Poreba TCG-160/10M, 63" Swing, 393" C.C, 200 RPM, Inch/Metric Threading, Tailstock, 100 HP, #30150

Manufacturer

Poreba

Category

Lathes

Type

LATHES, ENGINE

Stock

30150

Model

TCG160/10M

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #30150

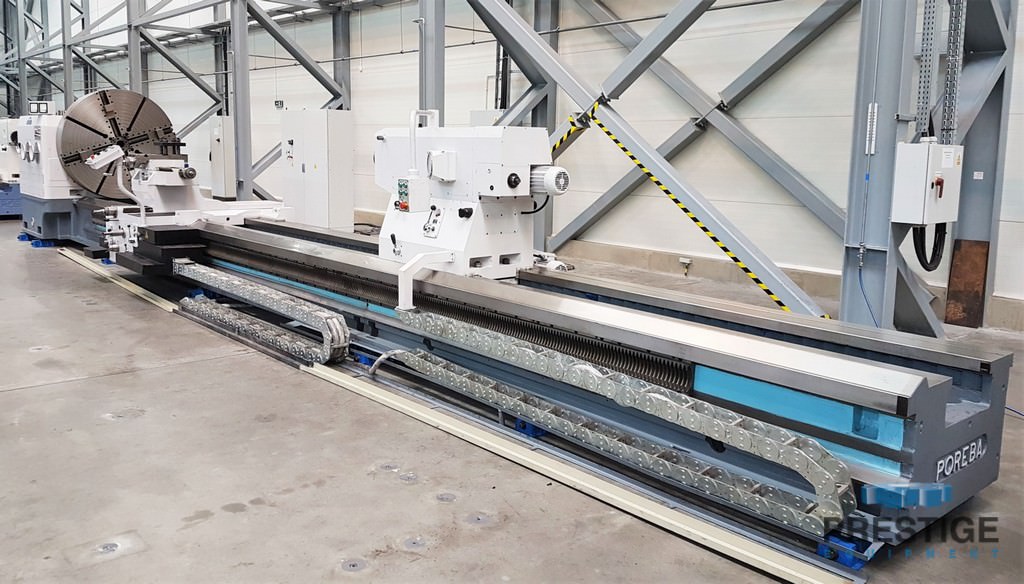

Poreba TCG-160/10M 63" x 393" Heavy Duty Manual Lathe

FEATURES:
100 HP Spindle Motor
40 Ton Weight Capacity
Inch/Metric Threading

SPECIFICATIONS:
Maximum Swing Over Bedways ............ 62.99"
Maximum Swing Over Cross Slide ........ 51.18"
Distance Between Centers .............. 393.70"
Width Of Bed .......................... 63"
Spindle Bore .......................... 4.13"
Spindle Speeds (24) ................... 1.6-200 RPM
Diameter of Spindle Front Journal ..... 10.25"
Longitudinal Feeds (20) ............... 0.007-0.2 IPR
Cross Feeds (20) ...................... 0.0035-0.1 IPR
Rapid Traverse ........................ 158 IPM
Metric Threading ...................... 1 to 129
Inch Threading ........................ 30 to 1/8
Tailstock Quill Diameter .............. 11.02"
Tailstock Quill Travel ................ 7.87"
Weight Capacity Between Centers ....... 66,000 lbs
Weight Capacity With One Syeady Rest .. 77,000 lbs
Weight Capacity With Two Steady Rest .. 88,000 lbs

EQUIPPED WITH:

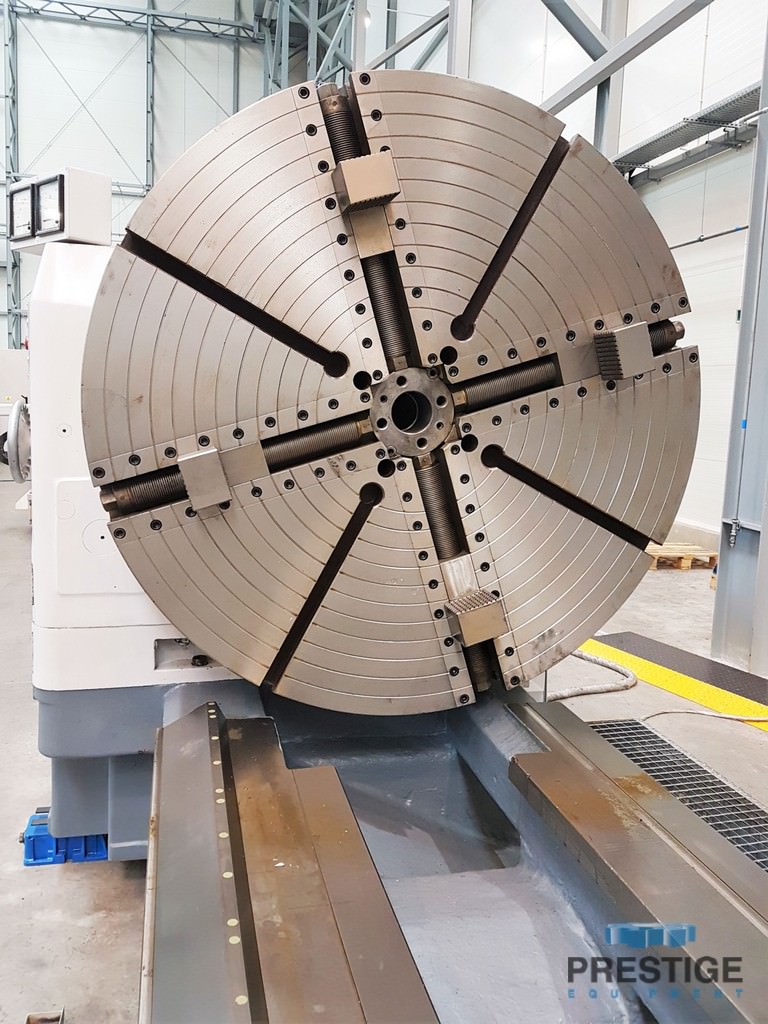

63" Independent 4-Jaw Chuck
Inch/Metric Threading
Power Compound for Taper Turning

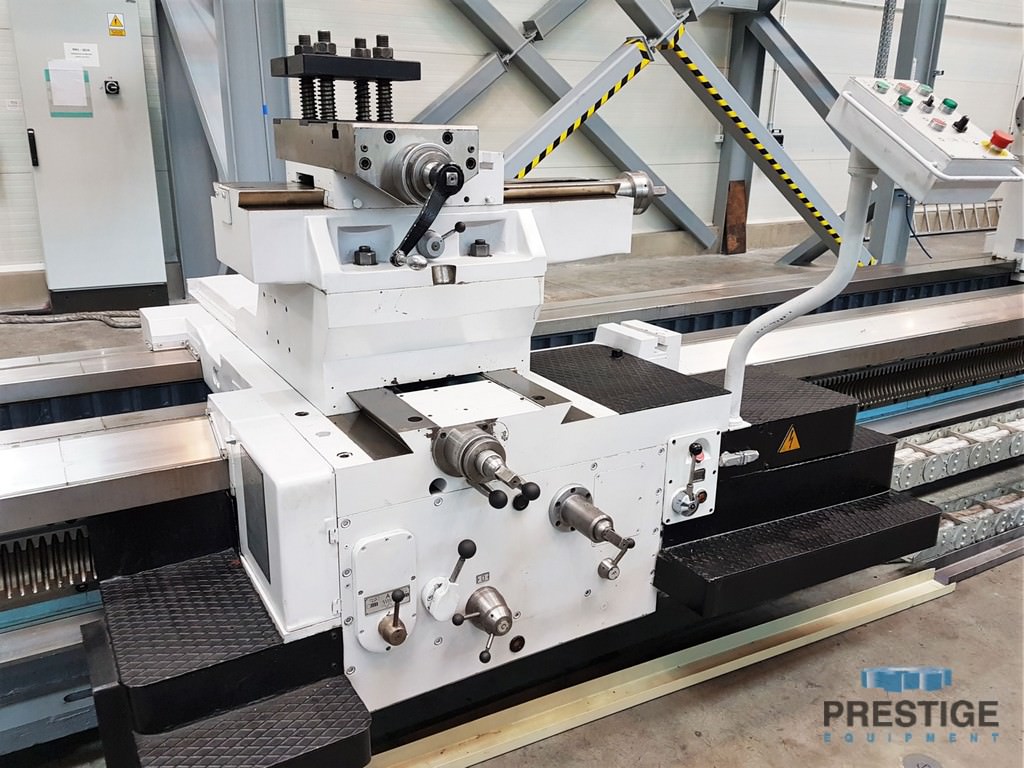

Pendant Station on Carriage
4-Way Heavy Duty Tool Post
3-Roller Steady Rests: 24", 32" & 44" Diameter
Hardened Ways

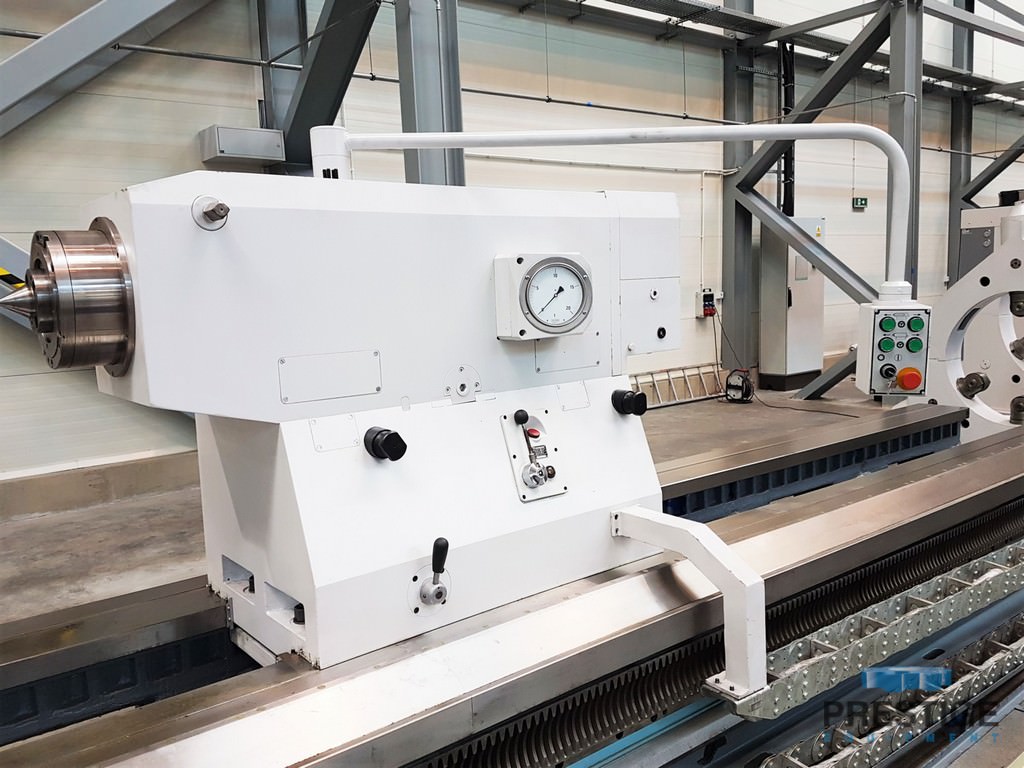

Power Tailstock Quill
Power Tailstock
100 HP Main Spindle Motor

NOTE:
Machine was Refurbished in 2020 Including
-Disassembly & Cleaning of All Components
-Grinding of Bed & Carriage Ways
-Inspection of all Major Components
-Replacement of all Bearings, Sleeves, & Nuts made of Bronze
-Calibration of Screws, Nuts, Screw Drives, Gears, & Clutches
-Replacement of Lubrication System
-Installation of New Electrical Cabinet
