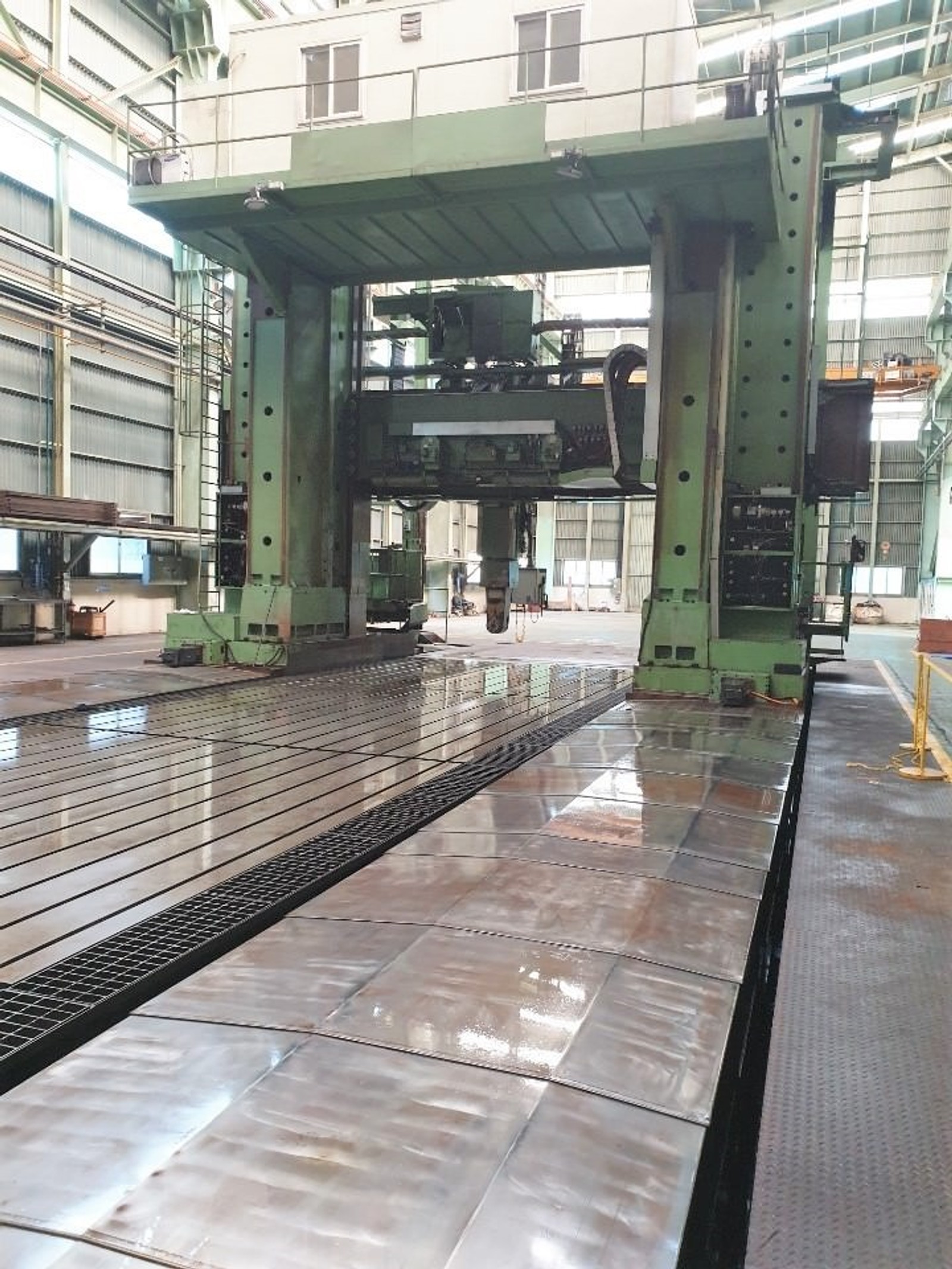

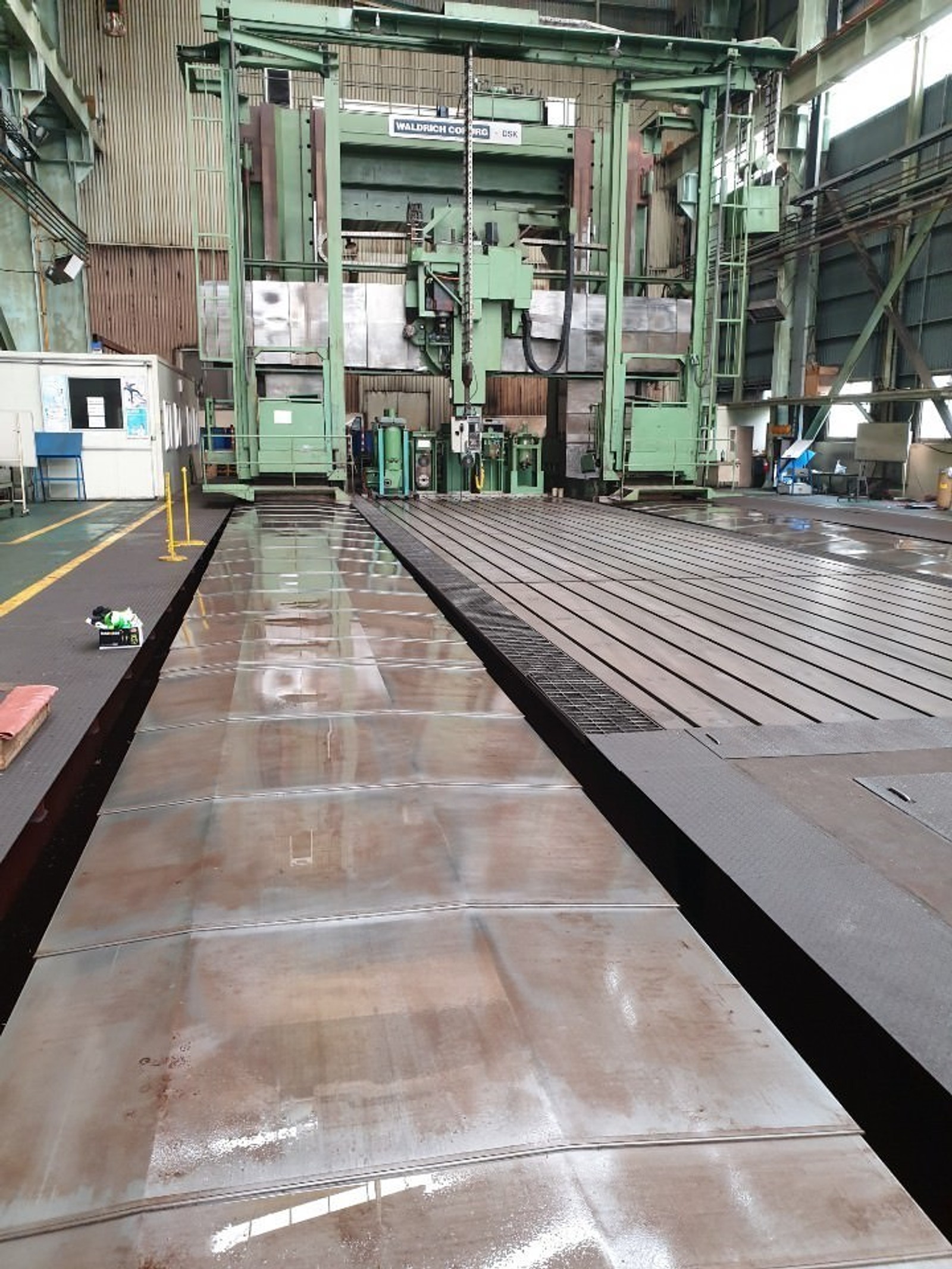

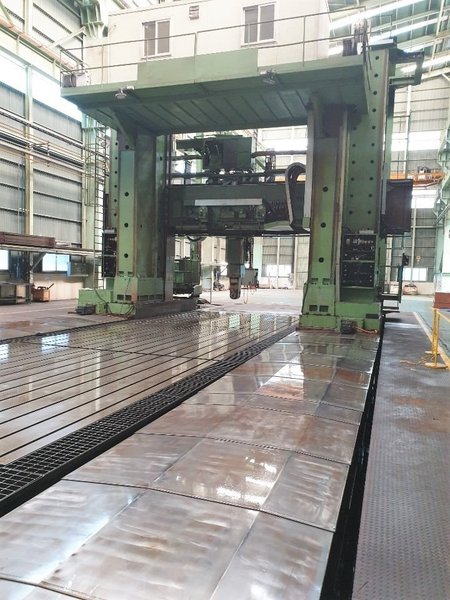

Waldrich Coburg Travelling Gantry, X-826", Y-208", 177" x 787" Table, 134 HP, Siemens 840D, 2009, #30513

Manufacturer

Waldrich Coburg

Category

Milling Machines

Type

MILLERS, PLANER TYPE (Including Millers, Slab)

Stock

30513

Model

5-Face Gantry Mill

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #30513
WALDRICH COBURG CNC Travellng GANTRY PLANO MILLER

Features:
Fully Rebuilt & Retrofit In 2009
Siemens Sinumerik 840 D
Travelling Gantry Design
Adjustable Rail

CAPACITY:
Distance Between Columns Covers ....... 204.72"
Height Under Spindle Nose ............. 208.66

TRAVELS:
X-Axis Gantry Travel .................. 826.77"
Y-Axis Head Travel .................... 255.90"
Z-Axis Ram Stroke .................... 39.37"
W-Axis Cross Rail Vertical Travel .... 138.19"

SPECIFICATIONS:
T-Slotted Work Surface ................ 787.74" x 177.16"
Work Surface Weight Capacity .......... 350 Ton

Spindle Motor ......................... 134 HP
Spindle Speeds ........................ To 2,000 RPM
Spindle Taper ......................... 1PH7224-2NF15-OBAO
Ram Cross Section ..................... 24.01" x 27.56"
C-Axis, Auto Indexing .................
Machine Footprint ..................... 1,299" x 590"
Machine Height ........................ 413"
Machine Weight ........................ 530 Ton


EQUIPPED WITH:

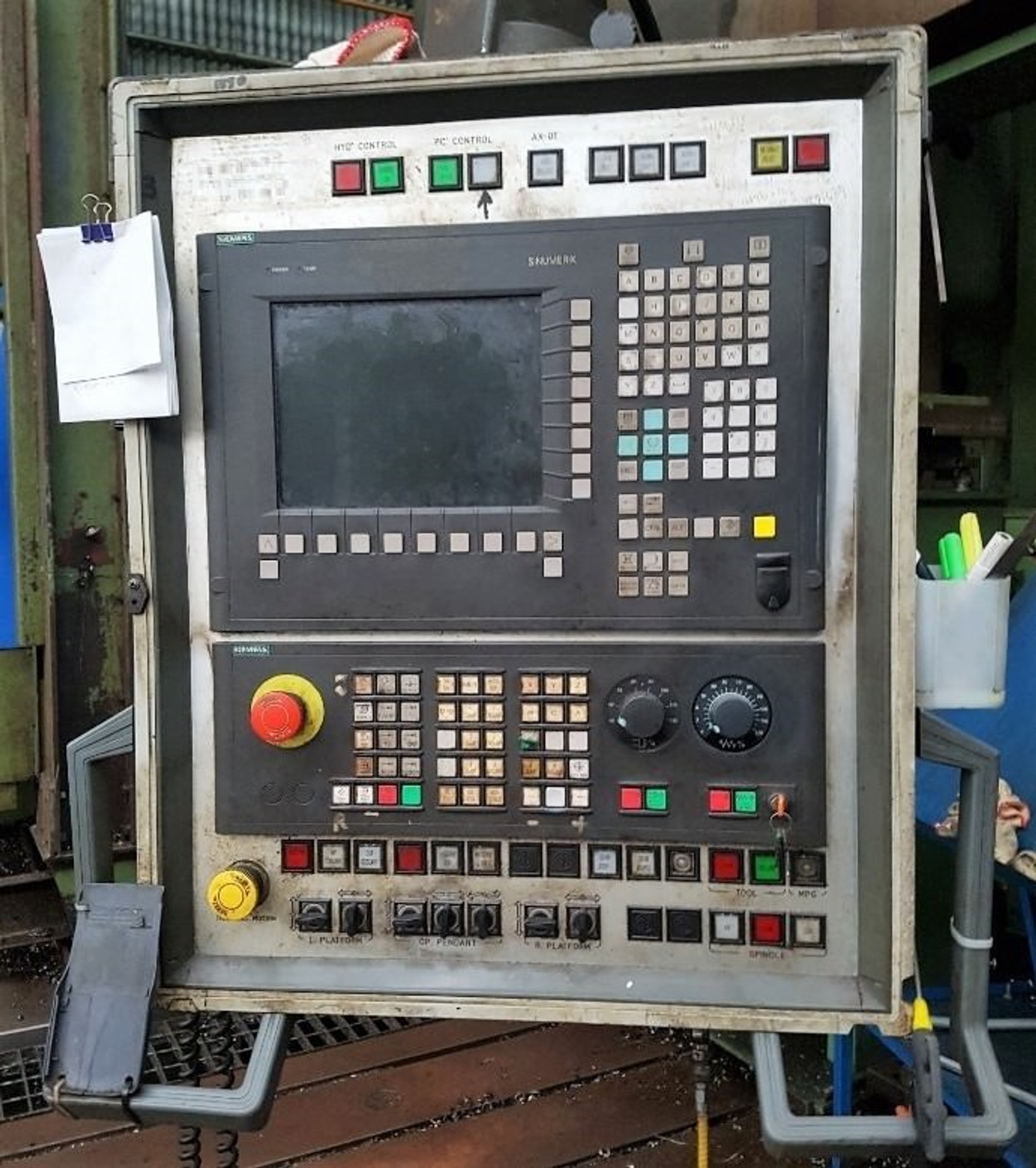

Siemens Sinumerik 840D CNC Control
Pendant Mounted CRT
Telescoping Steel Way Covers
Spindle Unit Attachments Including;
Angular, Horizontal, Eccentric, Slim, Long & Short Extensions

NOTE:
Fully Rebuilt and CNC Retrofit in 2009
