393"/590" Schiess Froriep, 2-Rams, 196" Under Rail, 220 Ton Weight Capacity, 250 HP, Siemens 840D Rebuilt '99 #25078

Manufacturer

FRORIEP

Category

Boring Mills

Type

BORING MILLS, VERTICAL, CNC

Stock

25078

Model

Double Column

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #25078

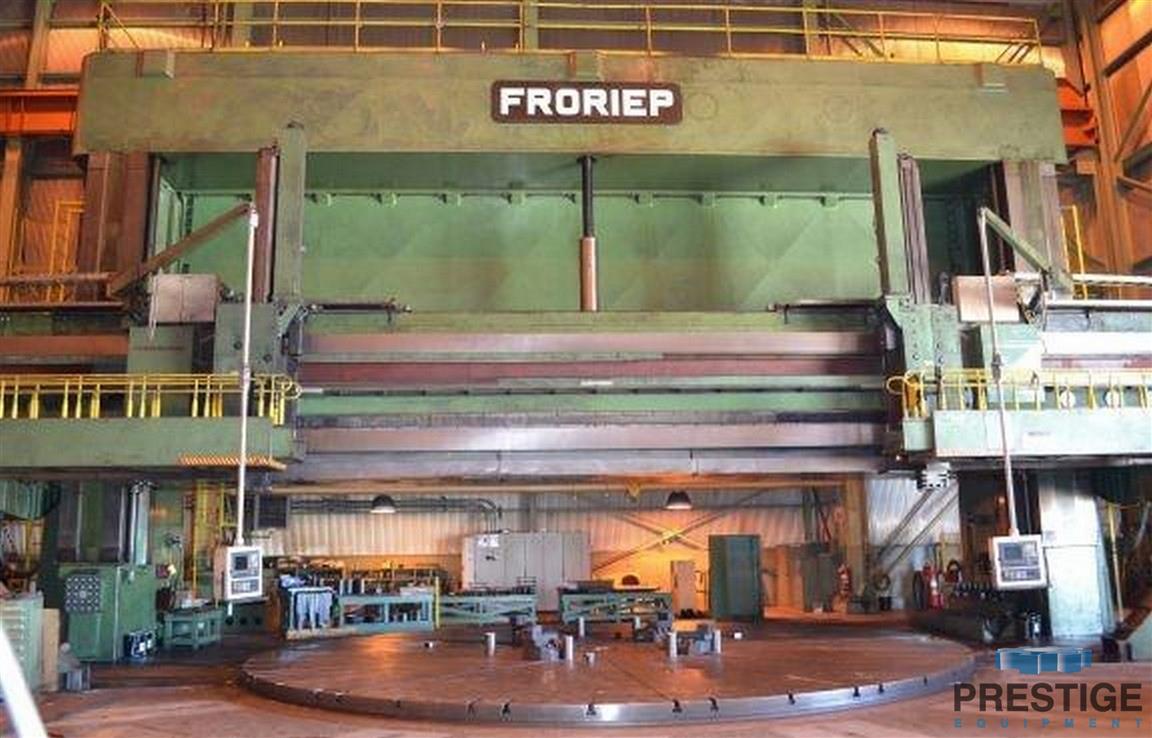

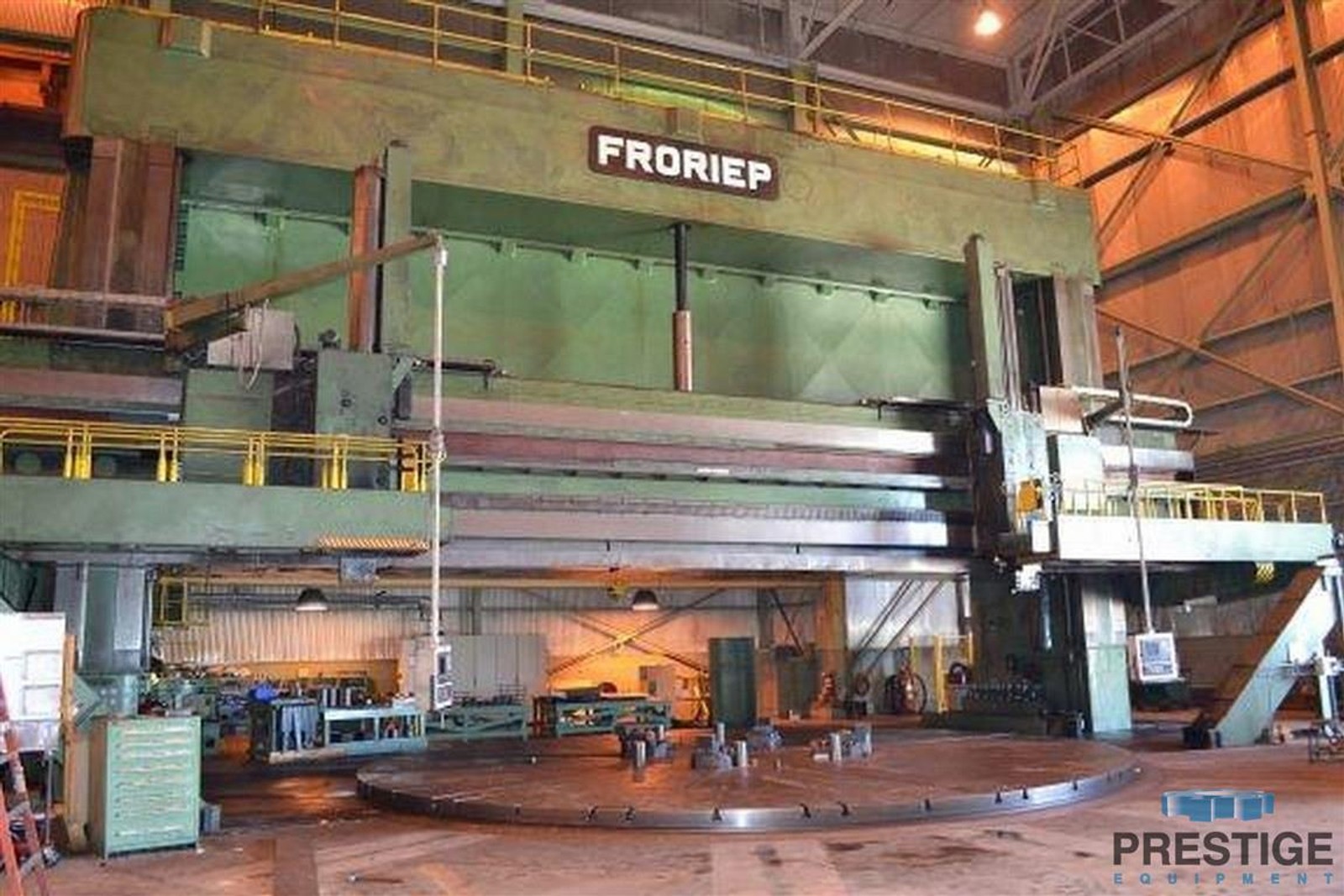

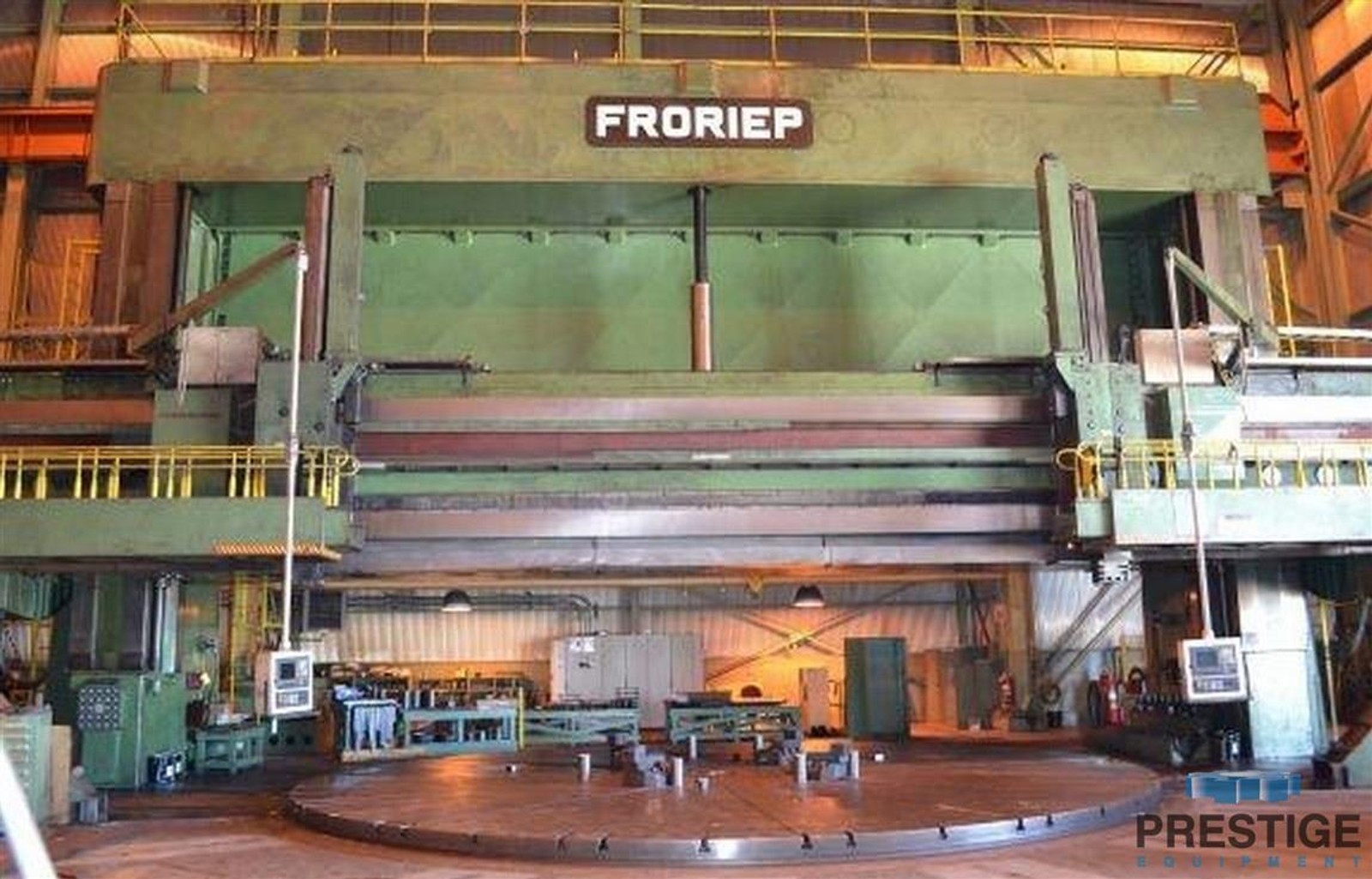

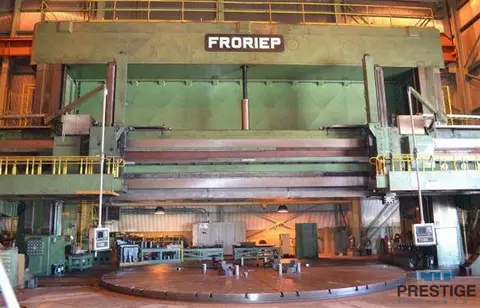

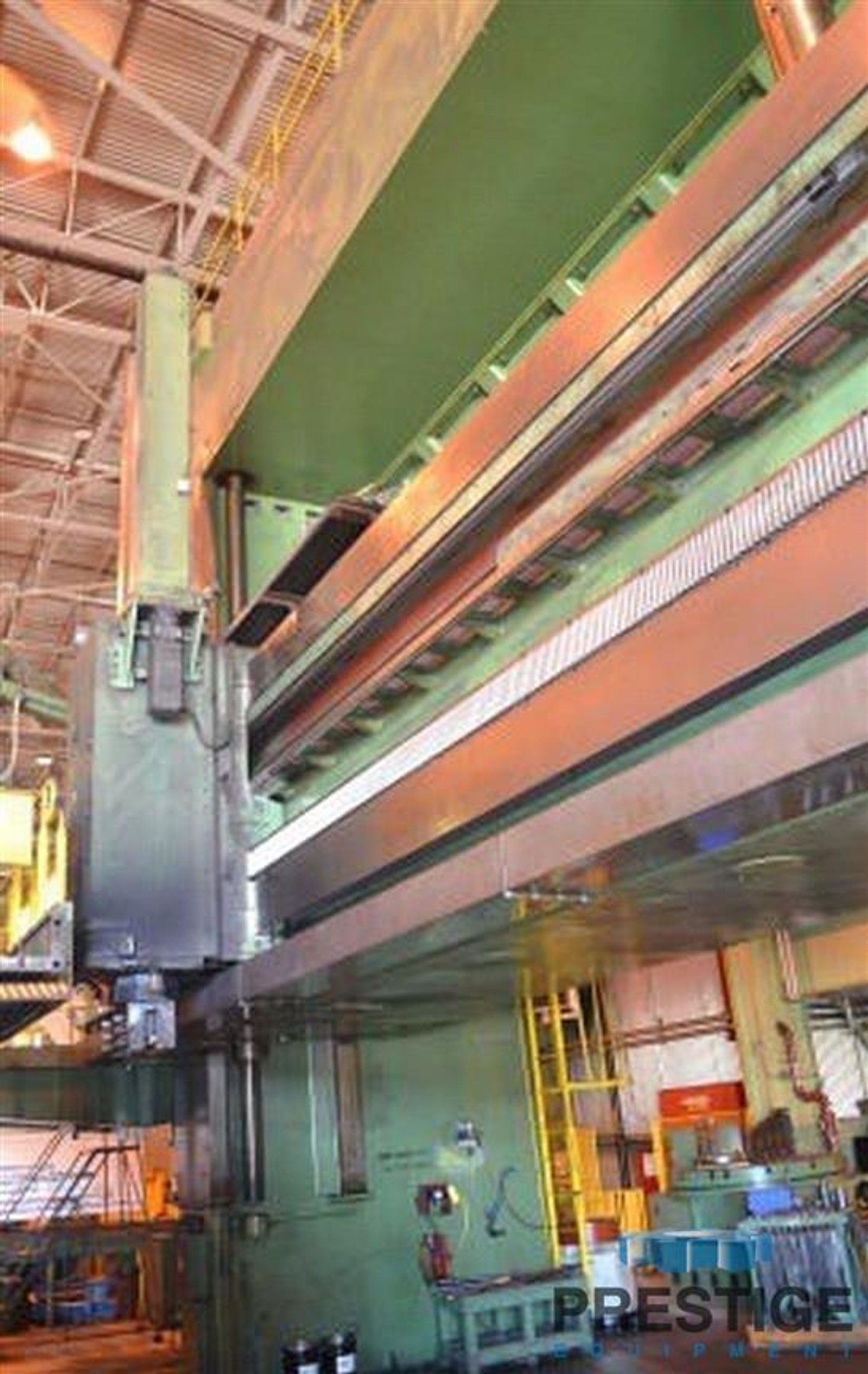

Froriep 393" / 590.55" CNC Vertical Boring Mill

FEATURES:
Siemens 840D CNC Control
2-Vertical Ram Heads
Rebuilt & CNC Retrofit In 1999

CAPACITY:
Table Diameter ....................... 393.37"
Turning Diameter with Vertical Rams .. 590.55"
Maximum Turning Height ............... 196.85"
Ram Vertical Travel .................. 78.74"
Ram Swivel ........................... +/- 30/15 Deg
Maximum Cutting Force Right Rail Hd .. 27,558 Lbs.
Table Load Capacity .................. 440,925 Lbs.
Table Speed Ranges, Inf.Variable ..... 4
Table Speeds ......................... 0.13 to 13 RPM
Rapid Traverse, X & Z Axis ........... 64.17" IPM
Creep Feed Motion, X & Z Axes ........ 0.118 IPM
Cross Rail Elevation Motor ........... 40.23 HP
Number of Feeds, Vertical & Horiz. ... 30
Vertical Ram Feeds ................... .00196-1.574 IPR
Horizontal Ram Feeds ................. .00196-1.574 IPR
Cross Rail Adjustment Motor .......... 86 HP
Rapid Traverse Motors ................ 15.5 HP
Main Motor ........................... 250 HP

EQUIPPED WITH:

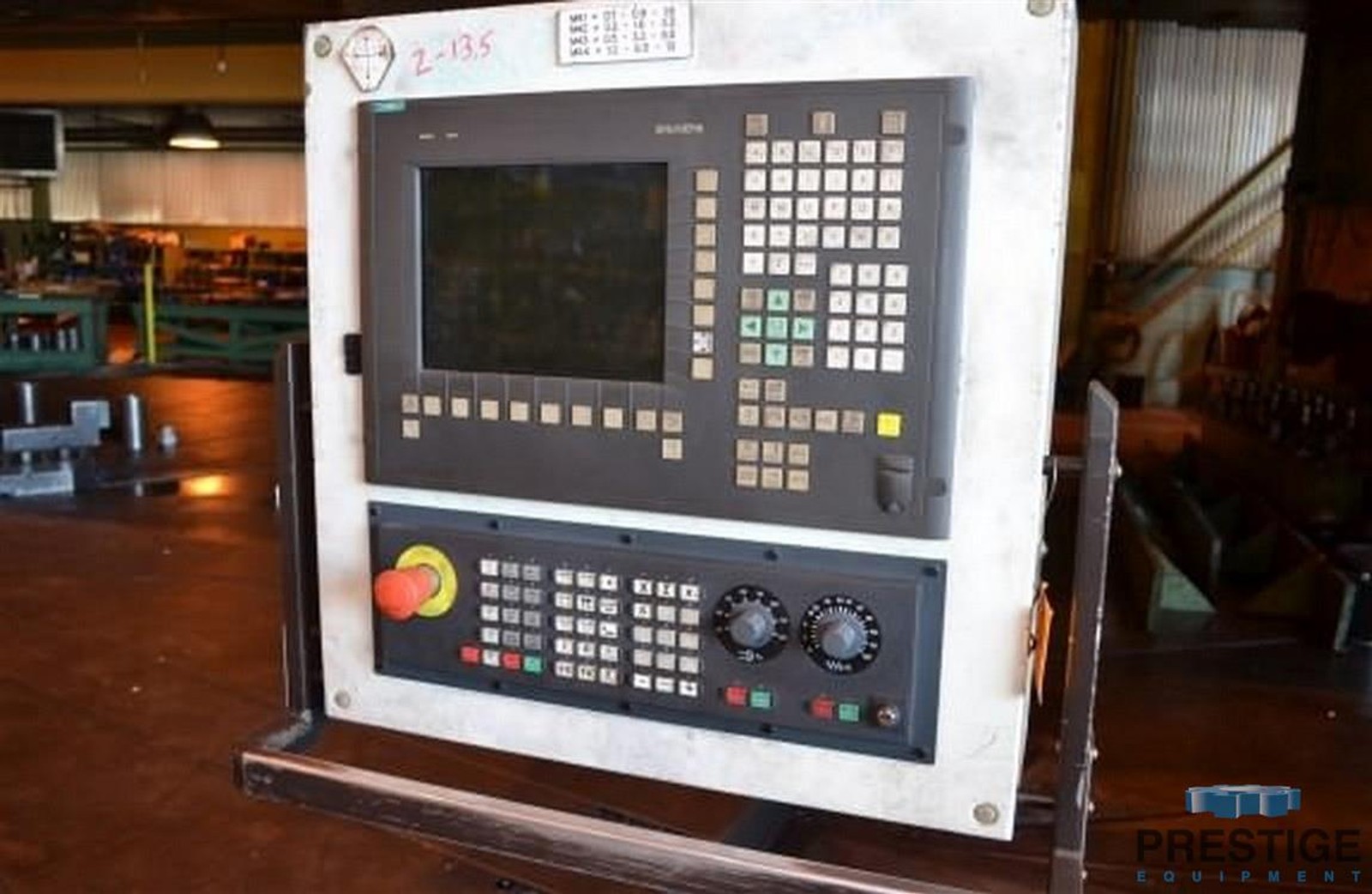

Siemens 840D CNC Control New 1999

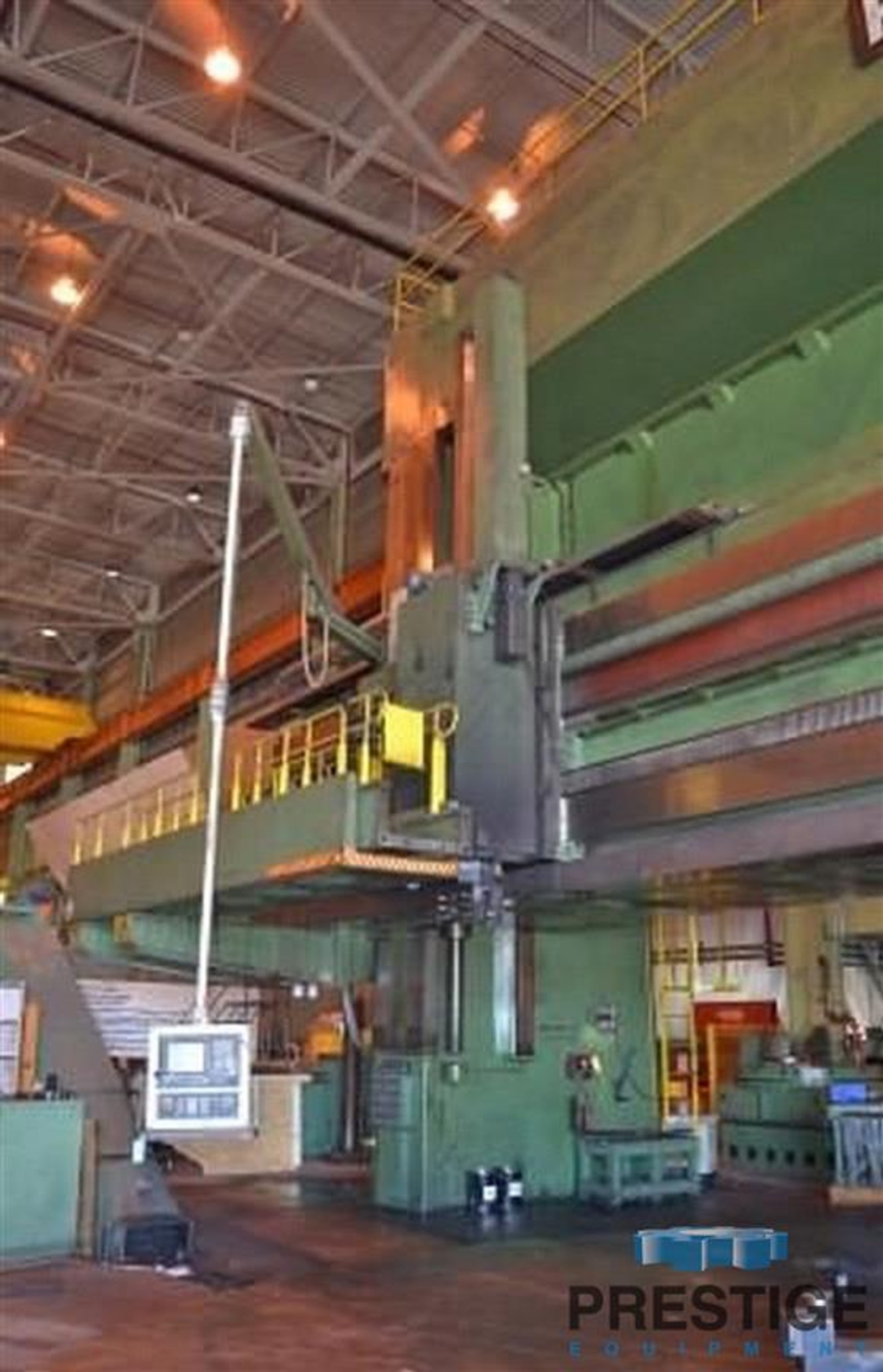

Dual Pendant Operated Controls
2-Vertical CNC Controlled Rams

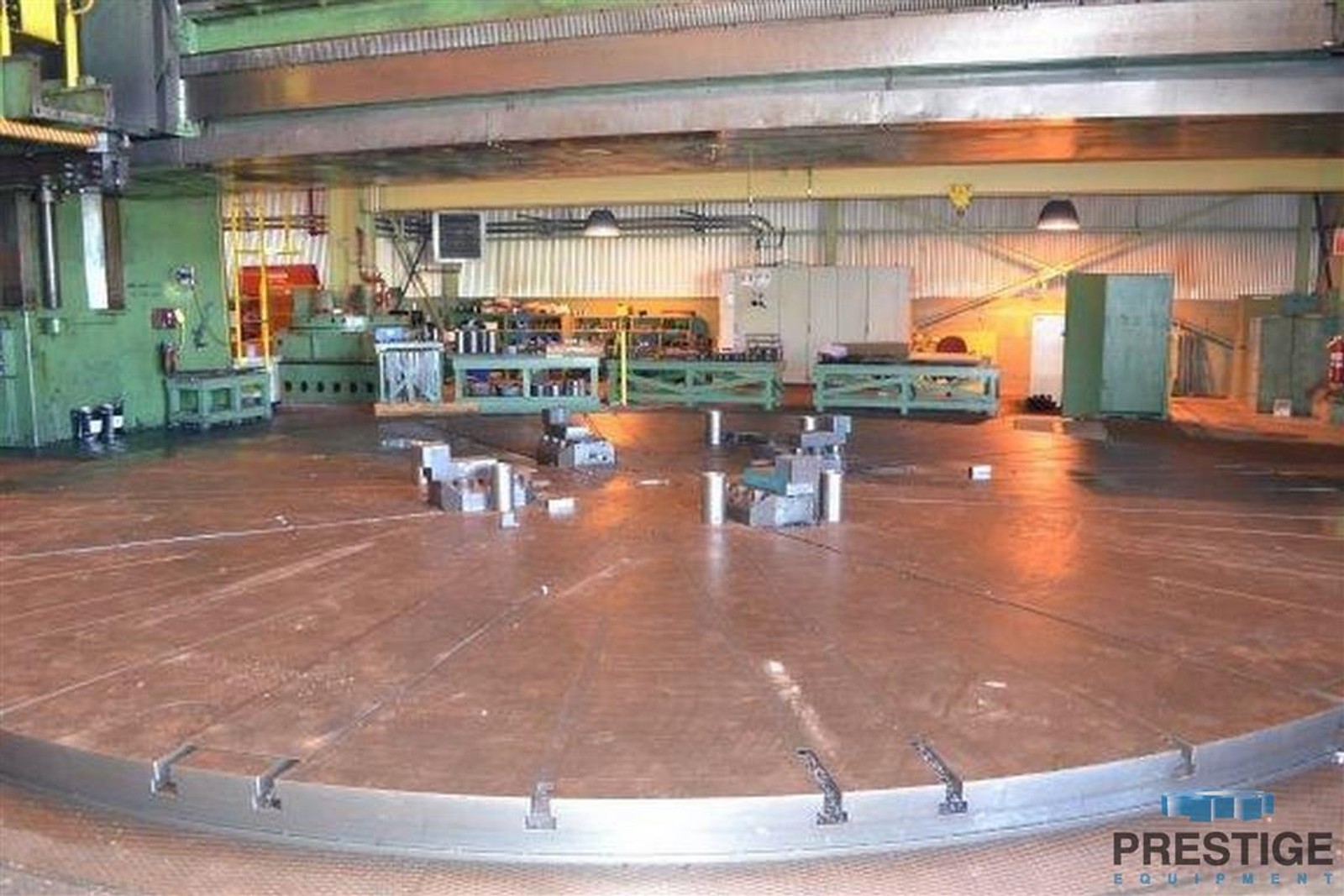

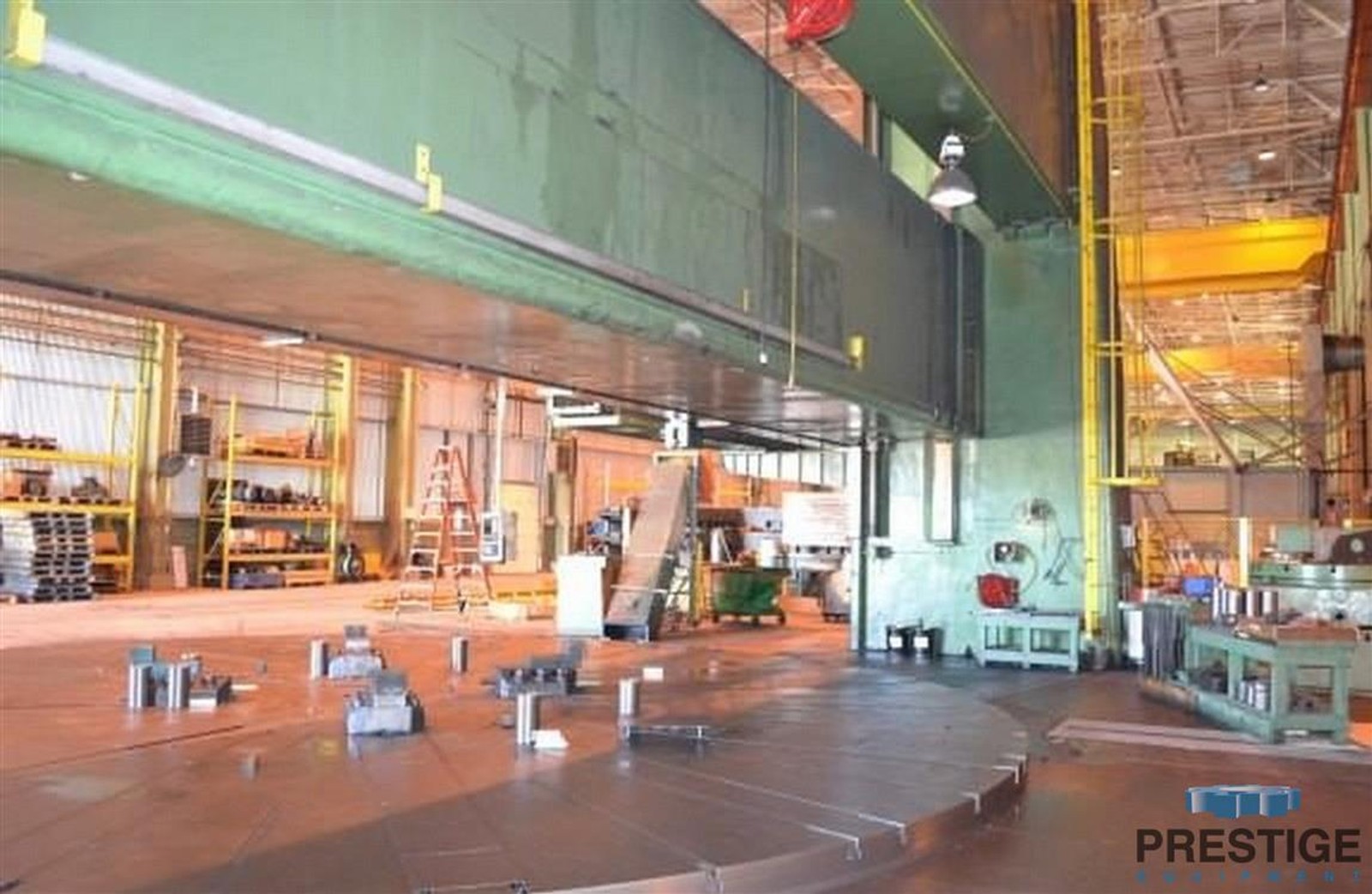

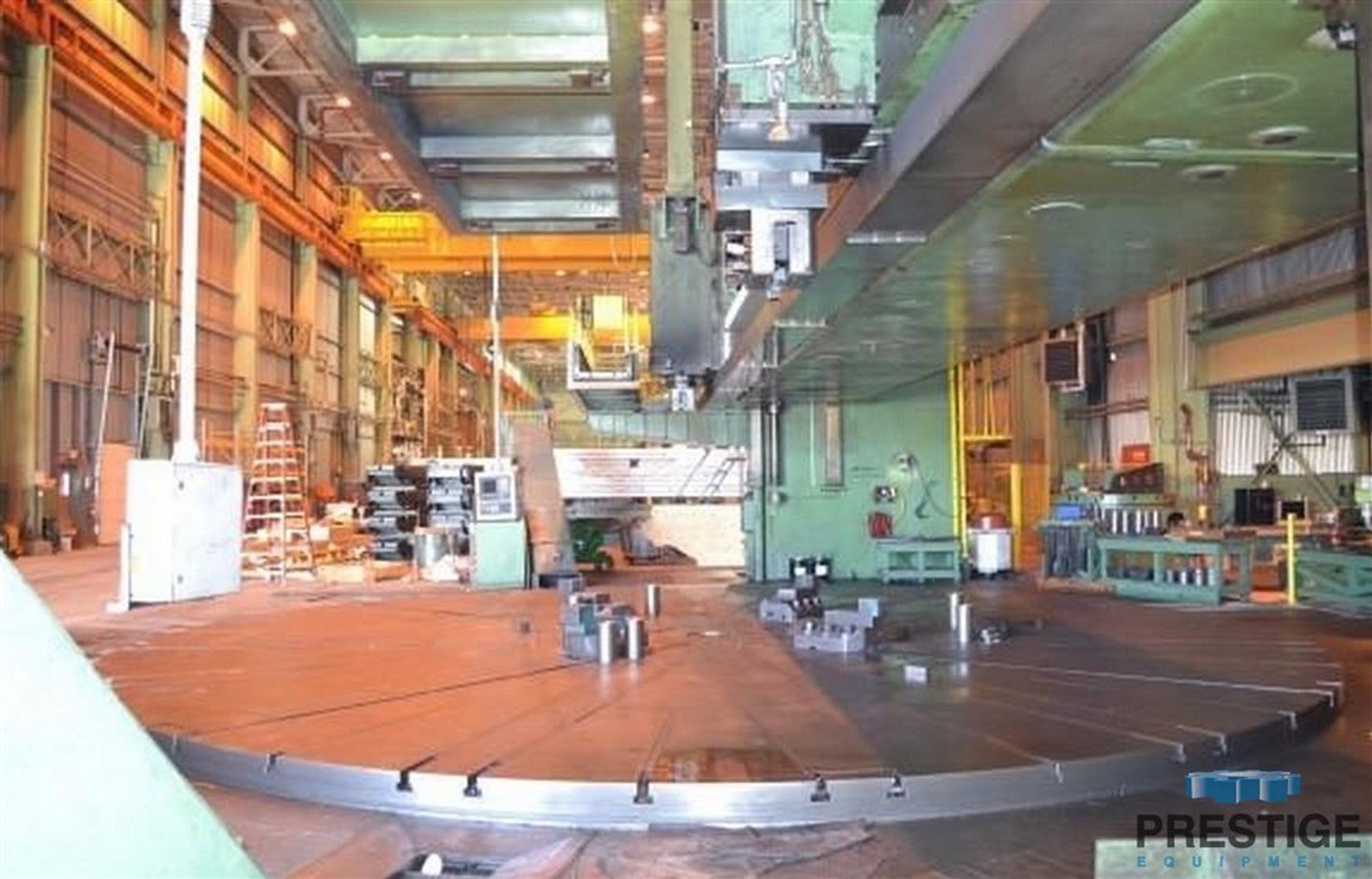

393.37" Diameter T-Slotted Table

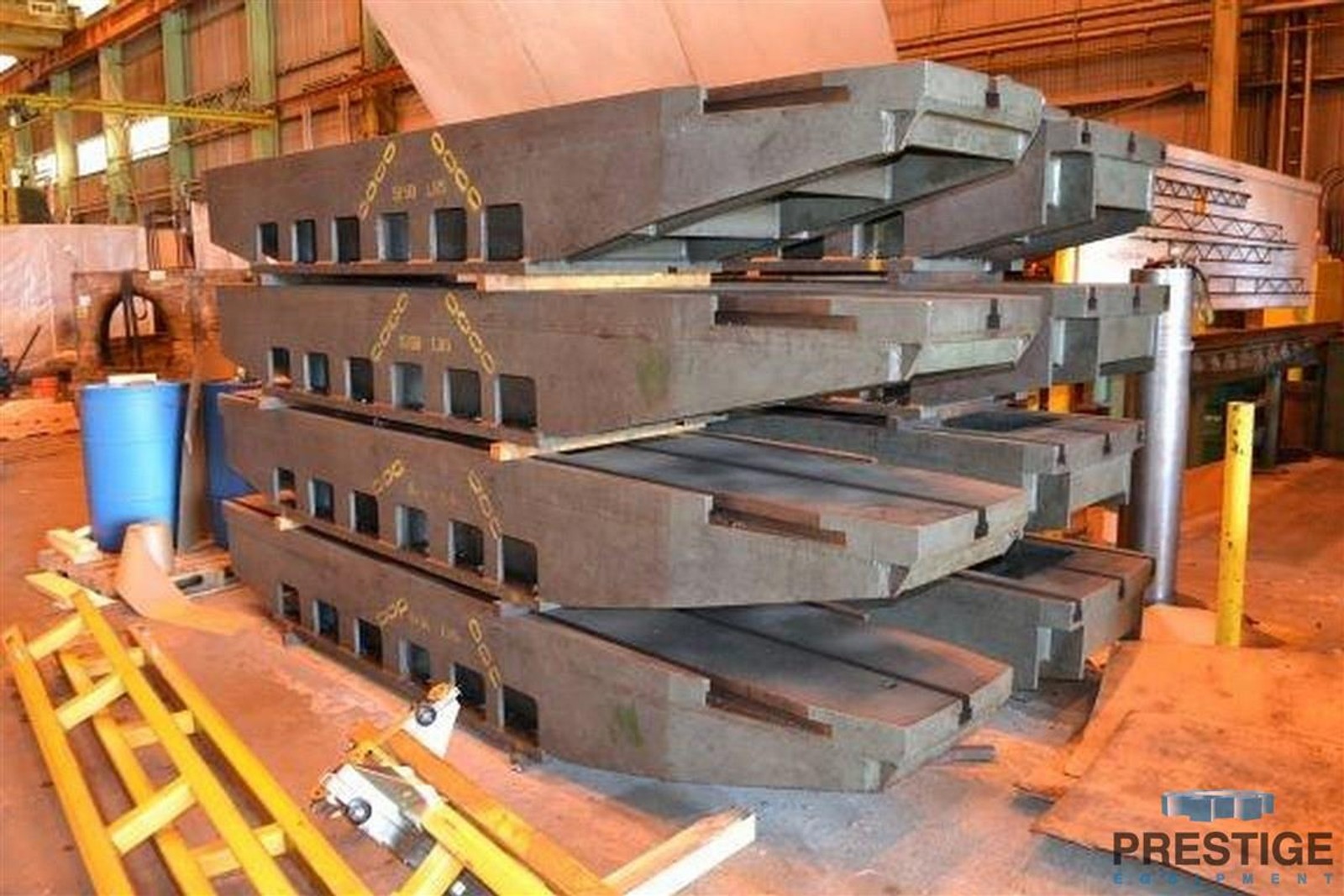

4-Heavy Duty Face Plate Type Jaws
Hydrostatic Bearing System For Table
Dual Operators Platforms

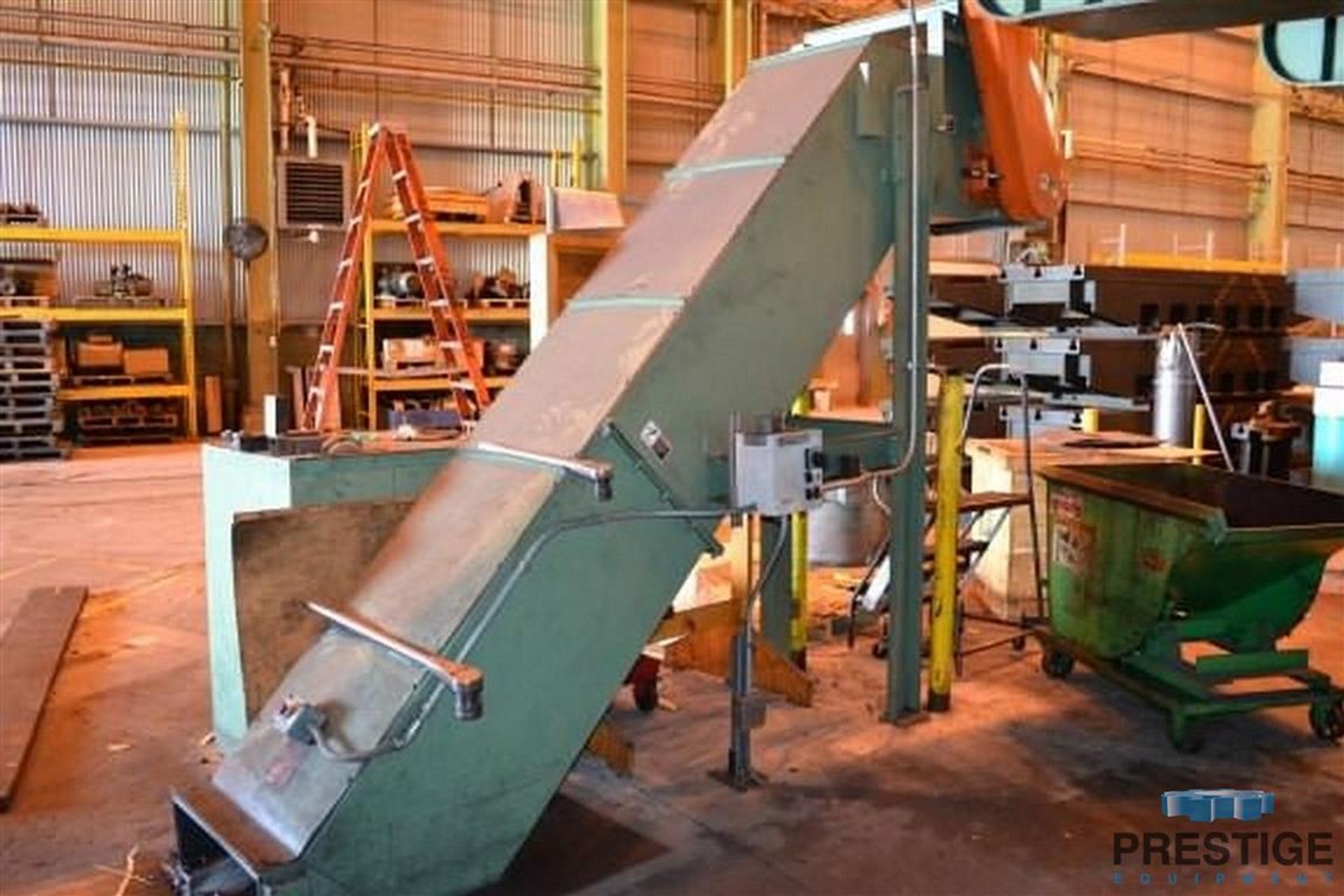

Dual Jorgansen Chip Conveyors
250 HP Table Motor
Rebuilt and Retrofit:

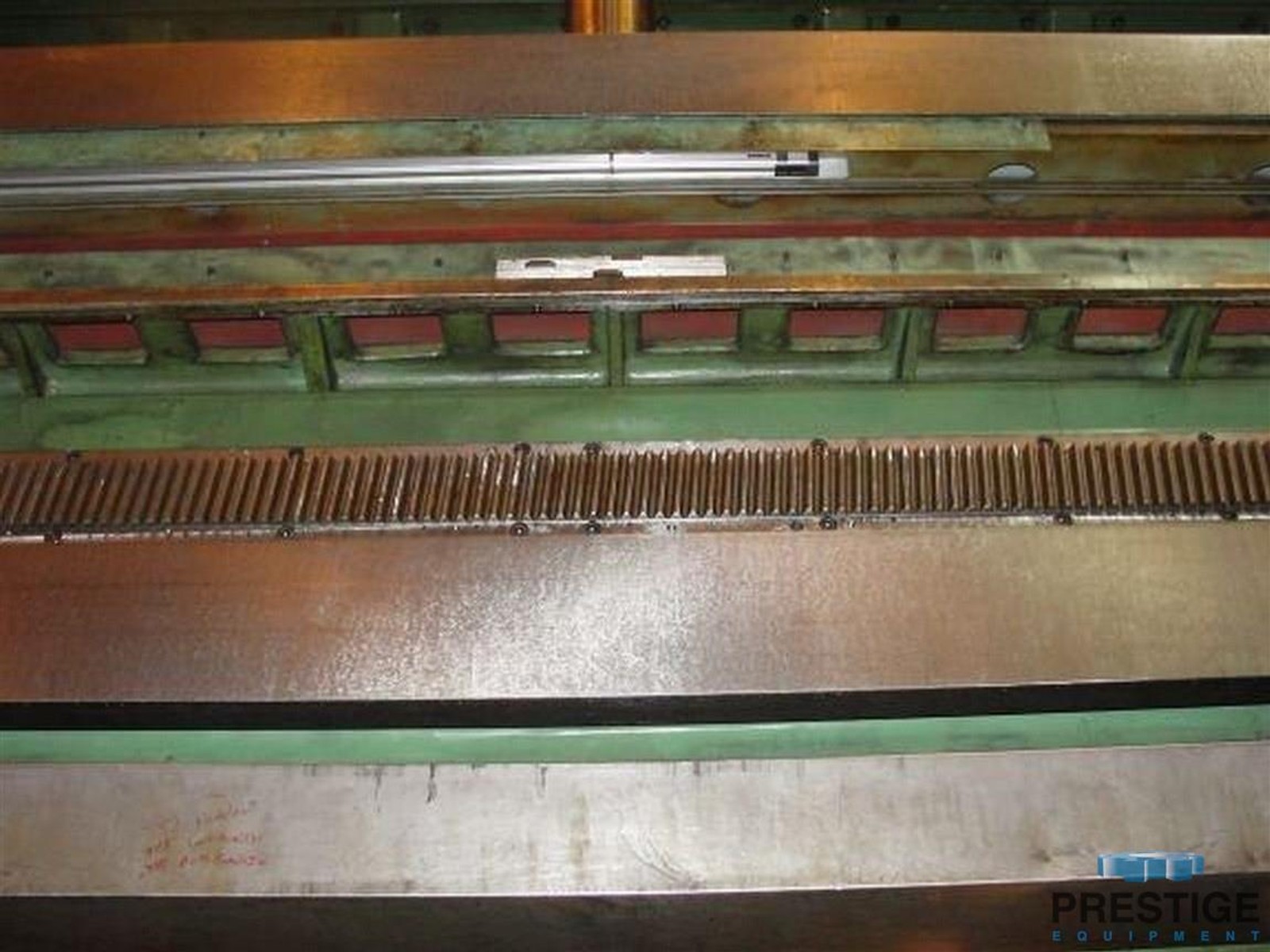

Rebuilt & CNC Retrofit in 1999. New Ball Screws, Refitted Column, Saddle and

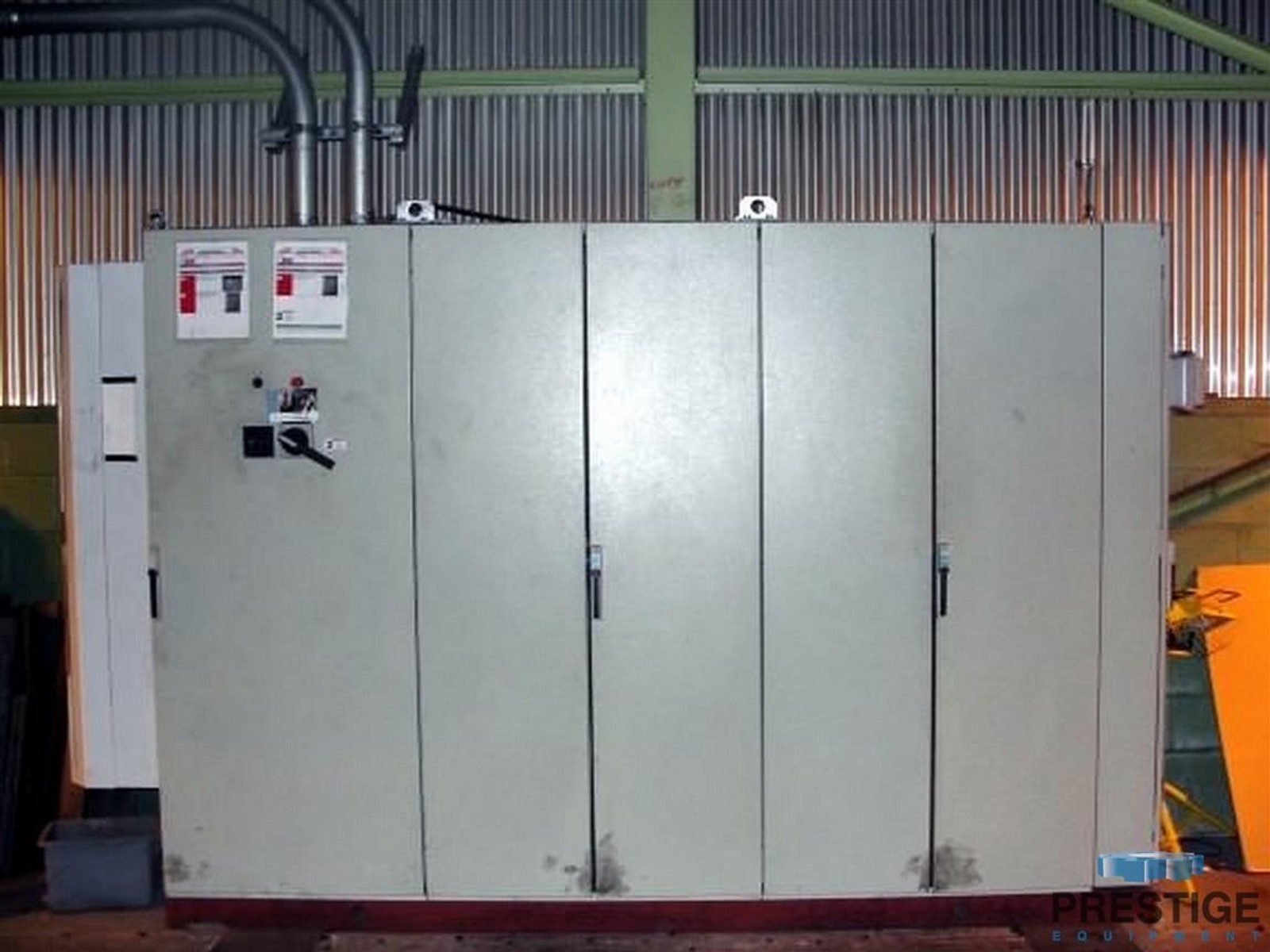

Rams, New Drives, New Clutch System, Electrics
