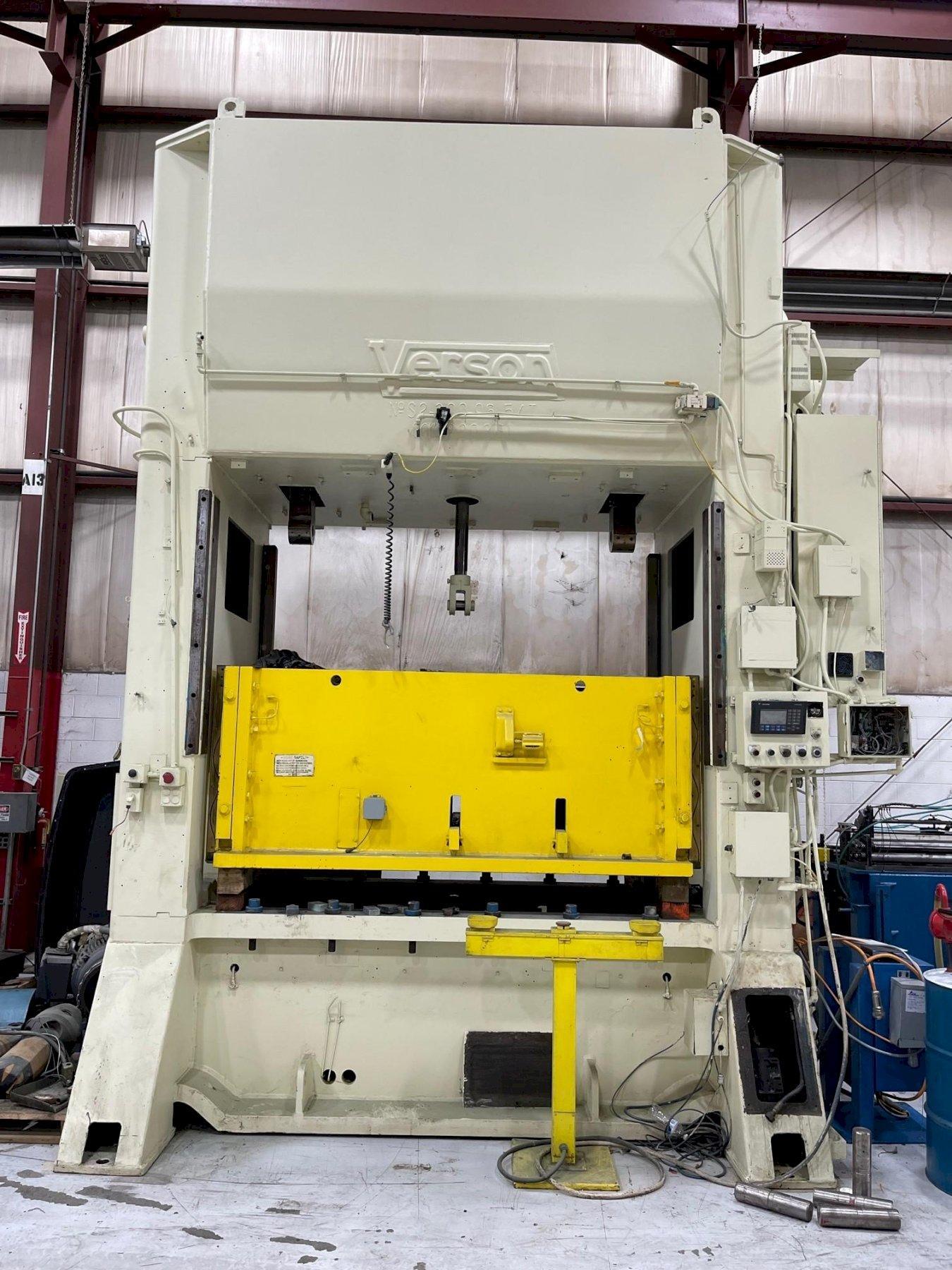

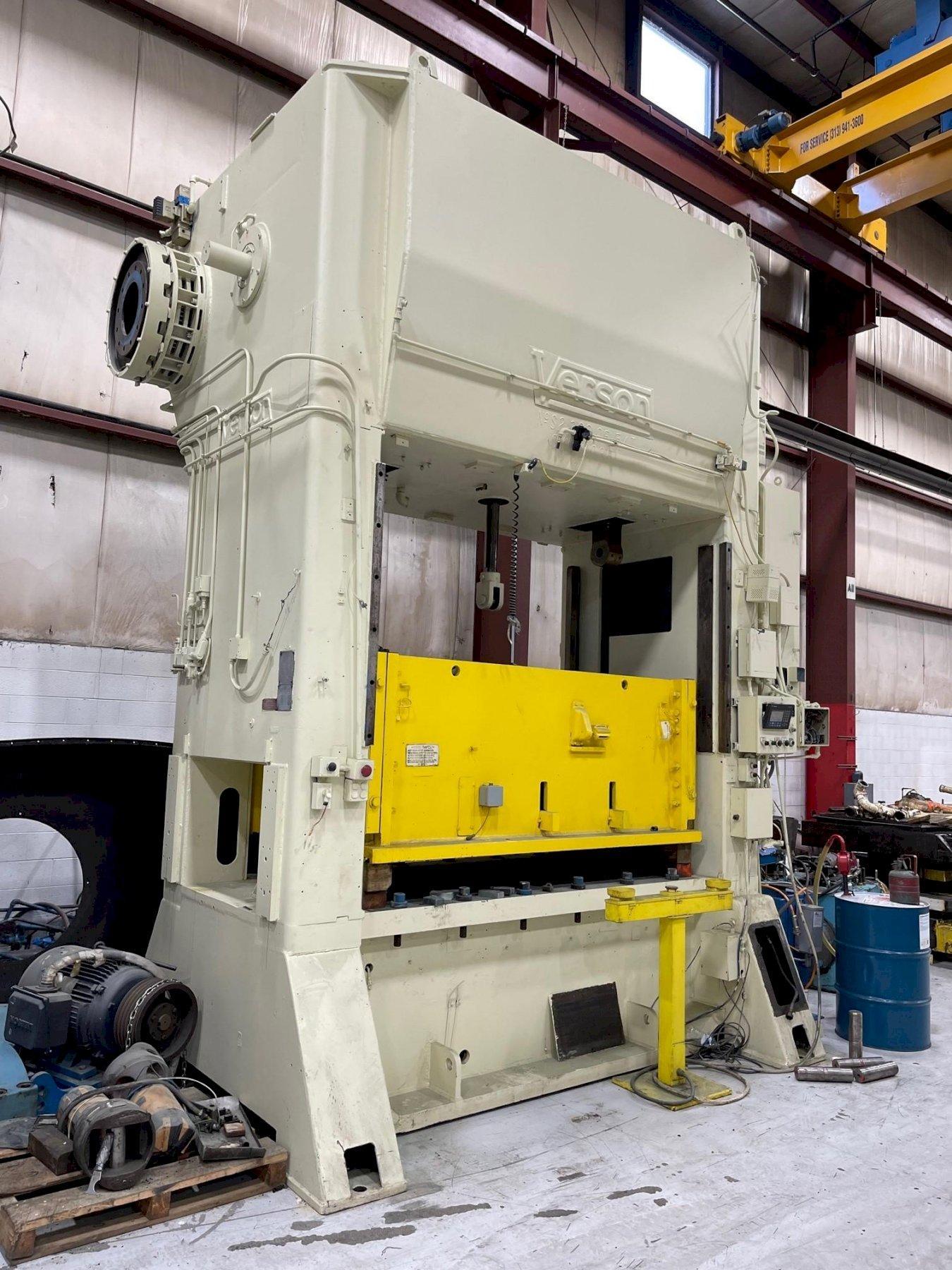

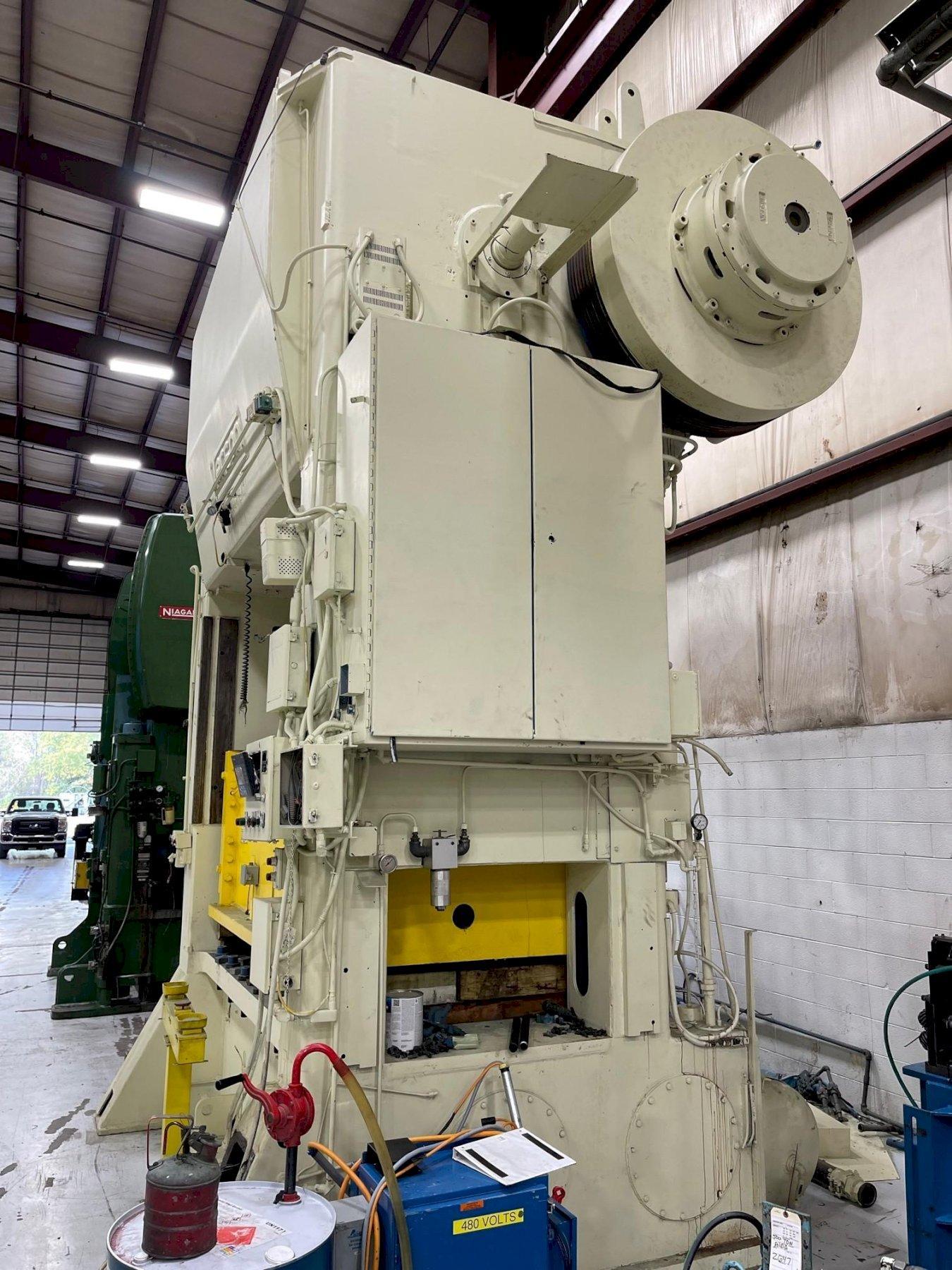

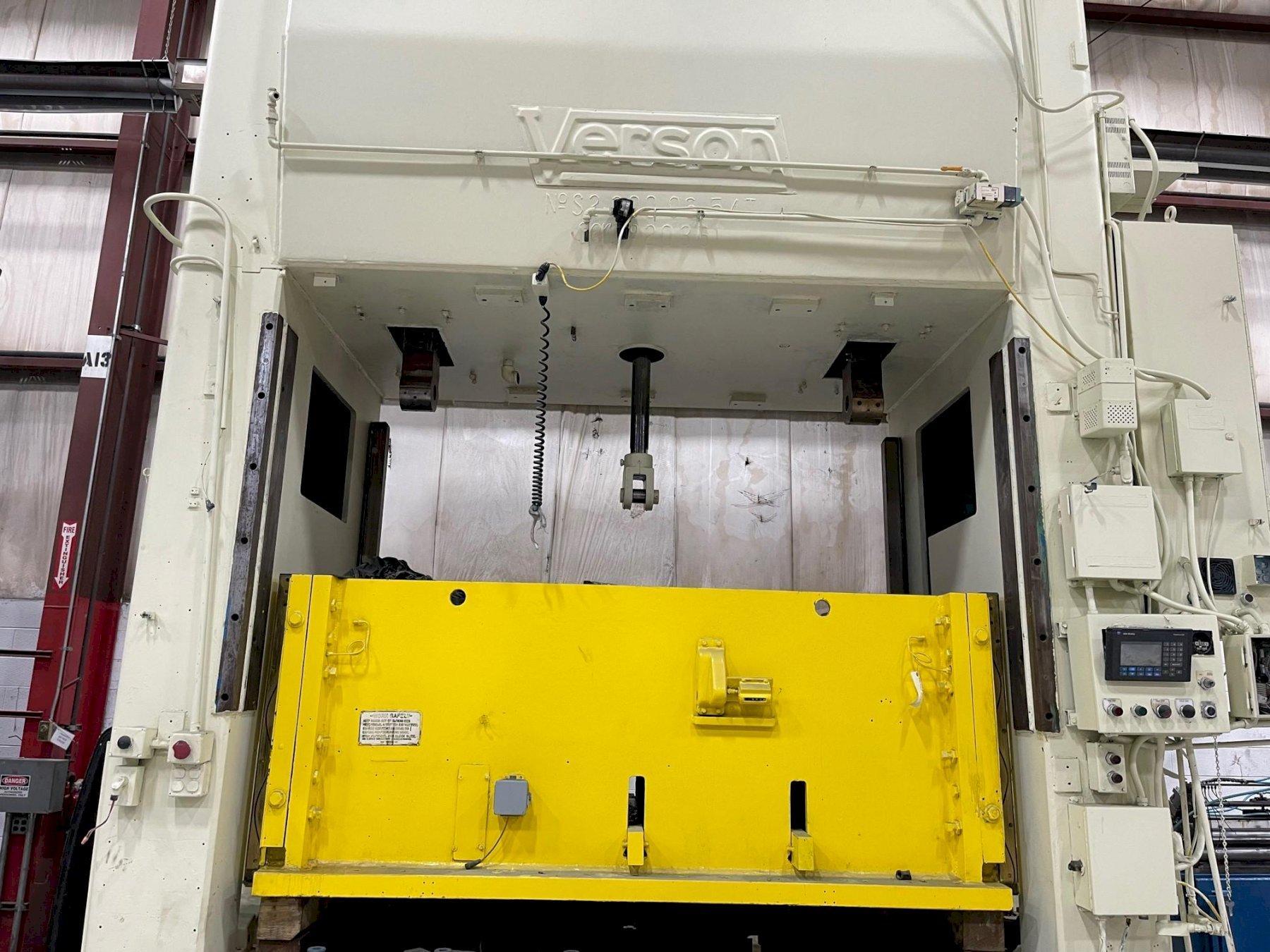

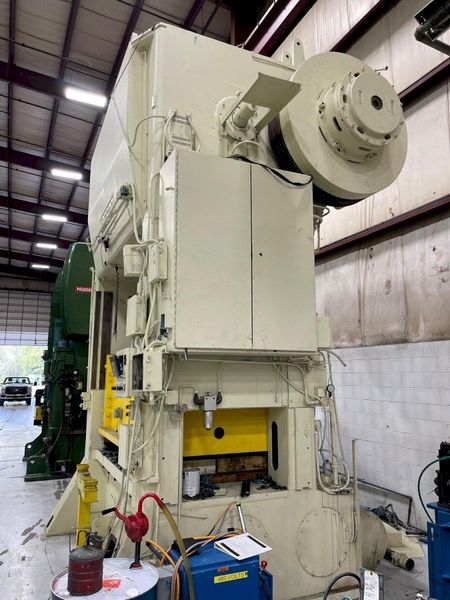

300 Ton Verson S2-300-96-54t Mechanical Straight Side Metal Stamping Press

Stock

2161

Model

S2-300-96-54t

Dealer Location

Michigan

Spec Sheet

Tonnage - 300
Stroke - 12 inches
Shut Height - 37 inches
Adjustment - 6 inches
Bed Size - 96" LR x 54" FB
Ram Area - 96" LR x 54" FB
SPM - 25-30-40 SPM



Standard Specifications
Verson Mechanical Metal Stamping Press
Model S2-300-96-54t, Straight Side
300 ton Capacity
12" Stroke
37" Shut Height
8" Motorized Adjustment
96" LR x 54" FB Bed Area
96" LR x 54" FB Slide Area
25-30-40 SPM

Equipment and Features
Air Clutch and Brake
Air Counterbalances
(2) Sheave Provided for 30 and 40 SPM
Recirculating Lube System
Sick Light Curtains
Non-Slotted Ram
38" Wide Windows
Motors and Controls
Existing Wintriss SmartPak Press Controls
Existing Wintriss Programmable Cam Outputs
Floor Standing

Approximate Weight 100,000
239" Overall Height

Being offered "As Is" Can be quoted with Full Mechanical, Lubrication and Air System 100% Reconditioned.  Can be offered with Update Electrical Controls as well... Ask your salesperson for controls pricing.

300-ton Verson Straight Side Mechanical Metal Stamping Press For Sale
