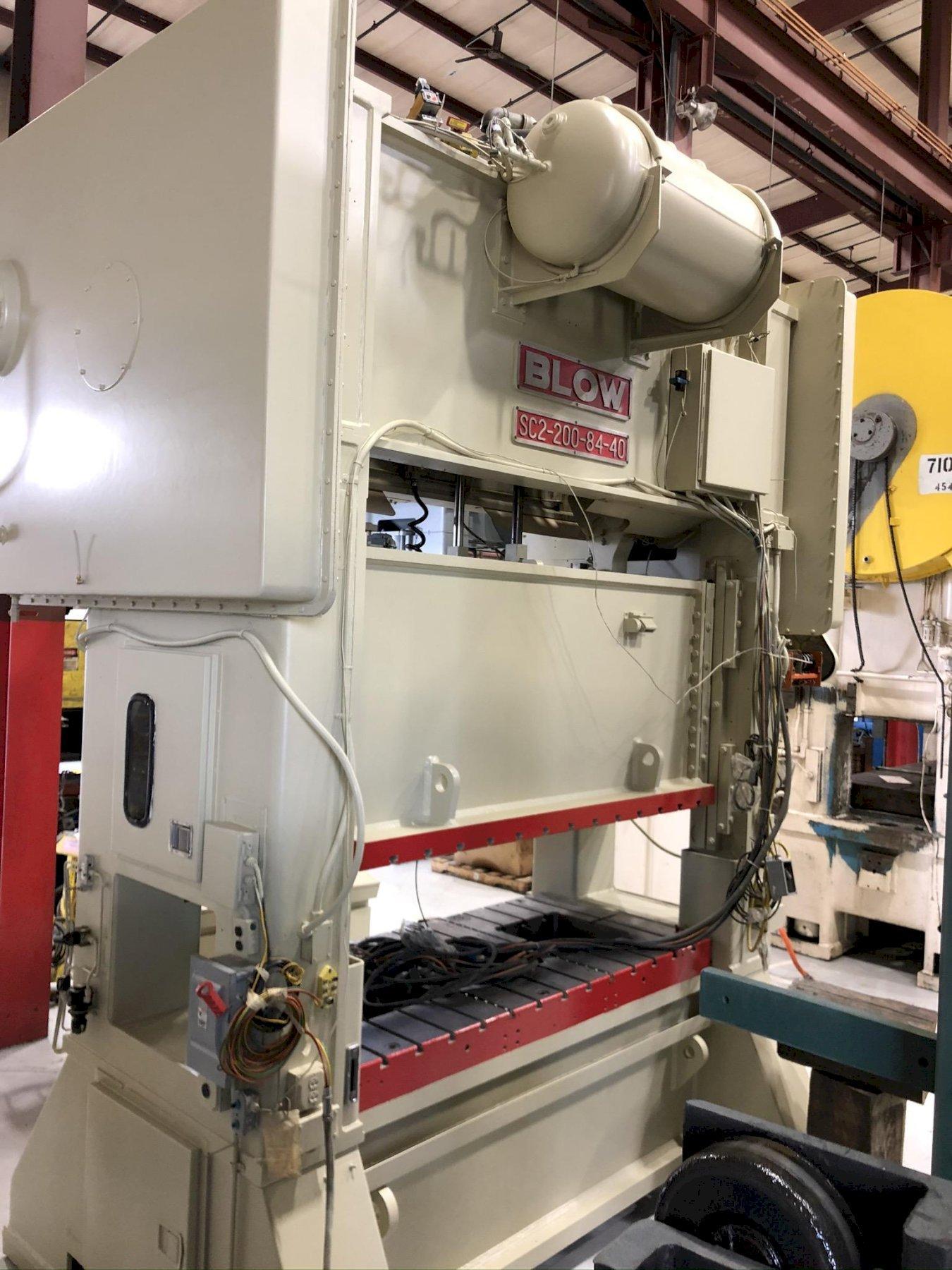

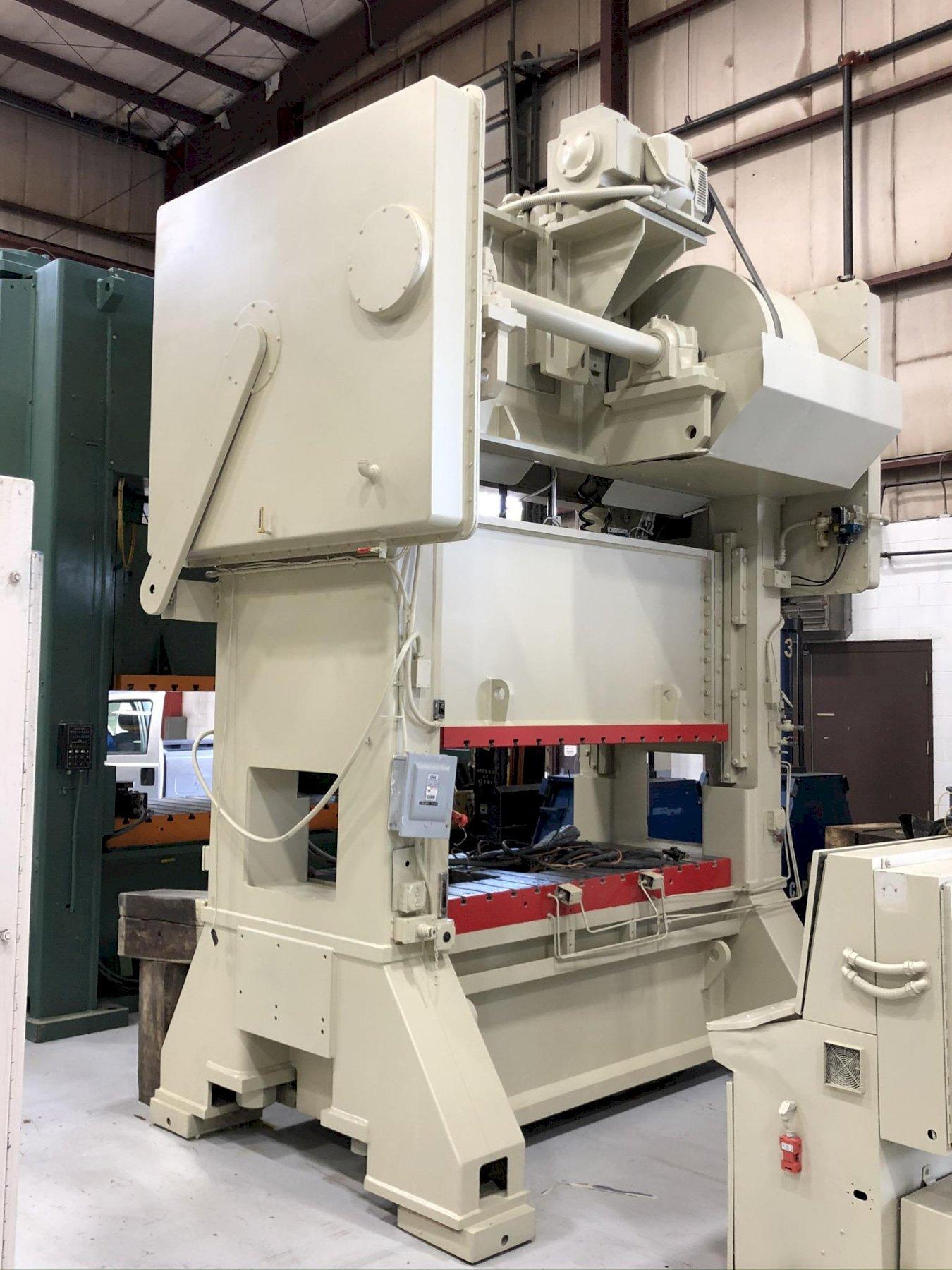

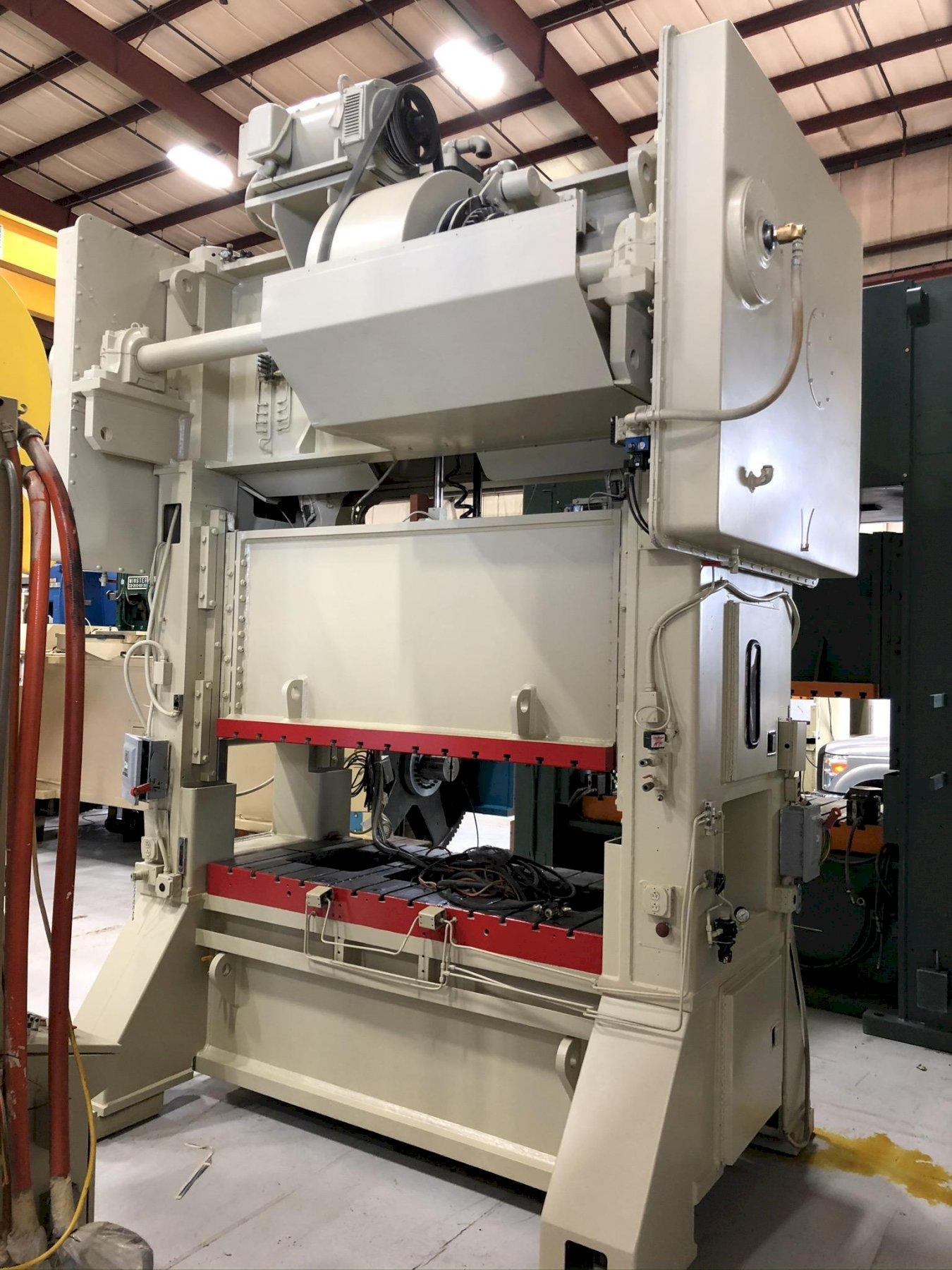

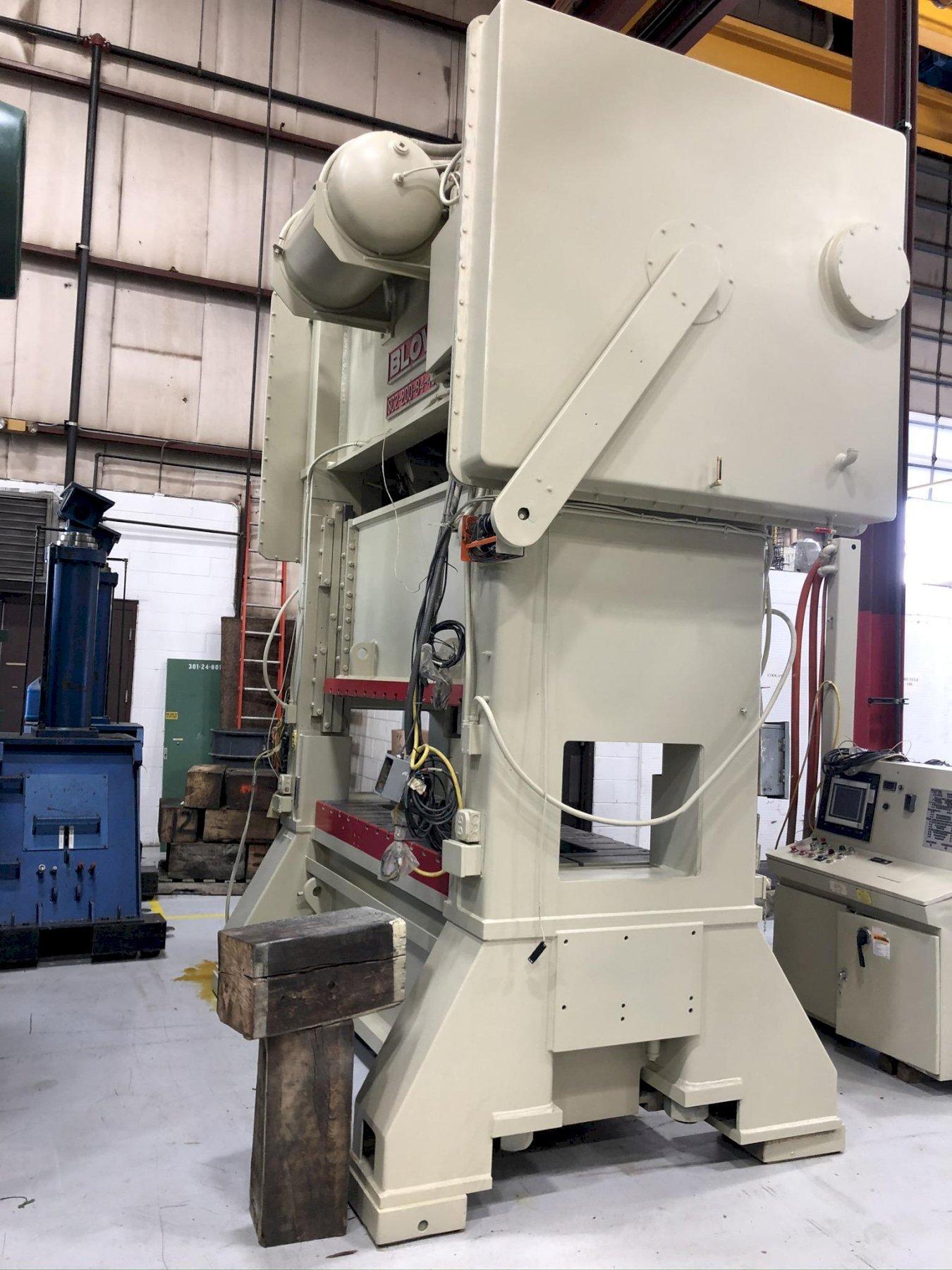

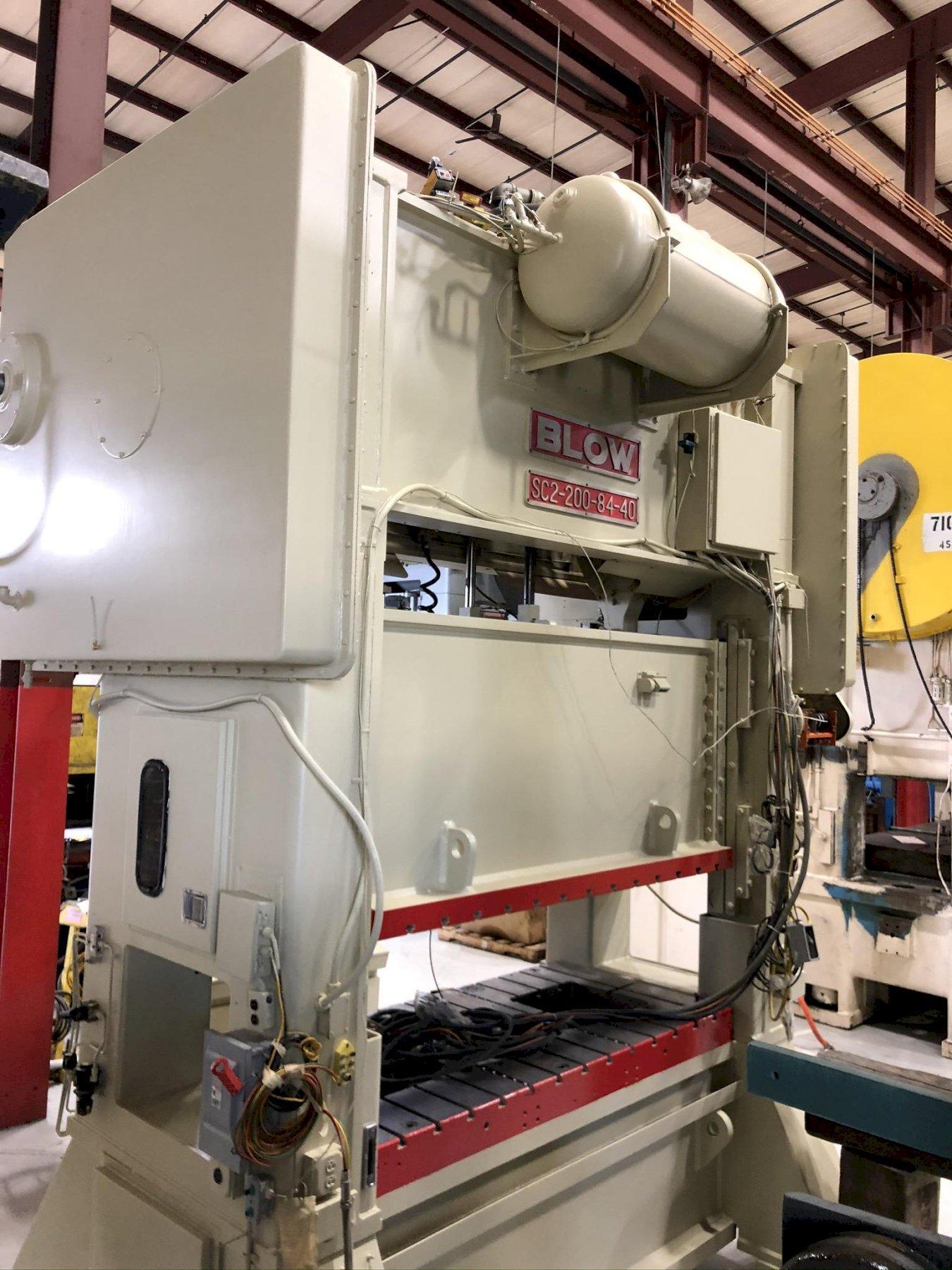

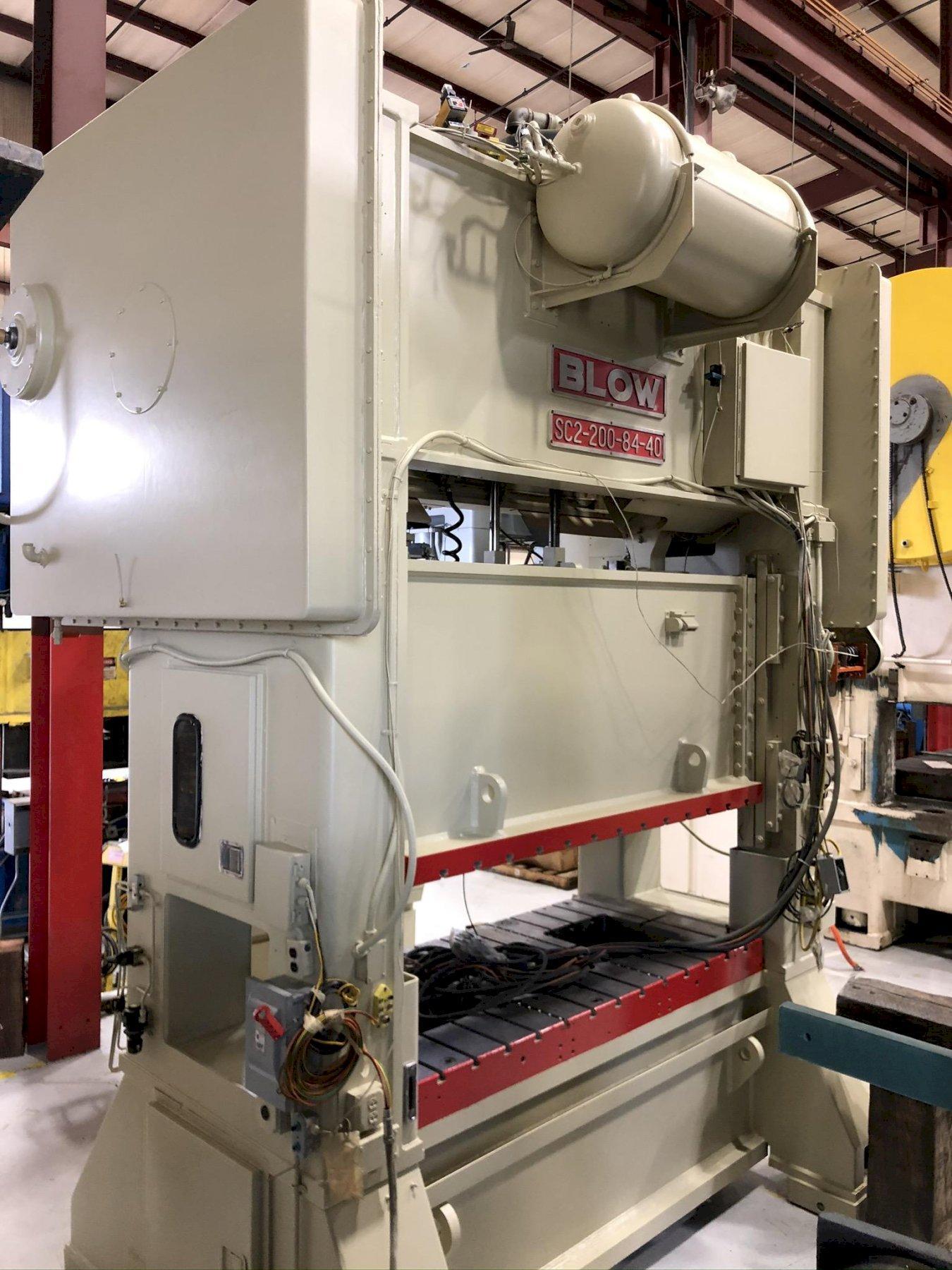

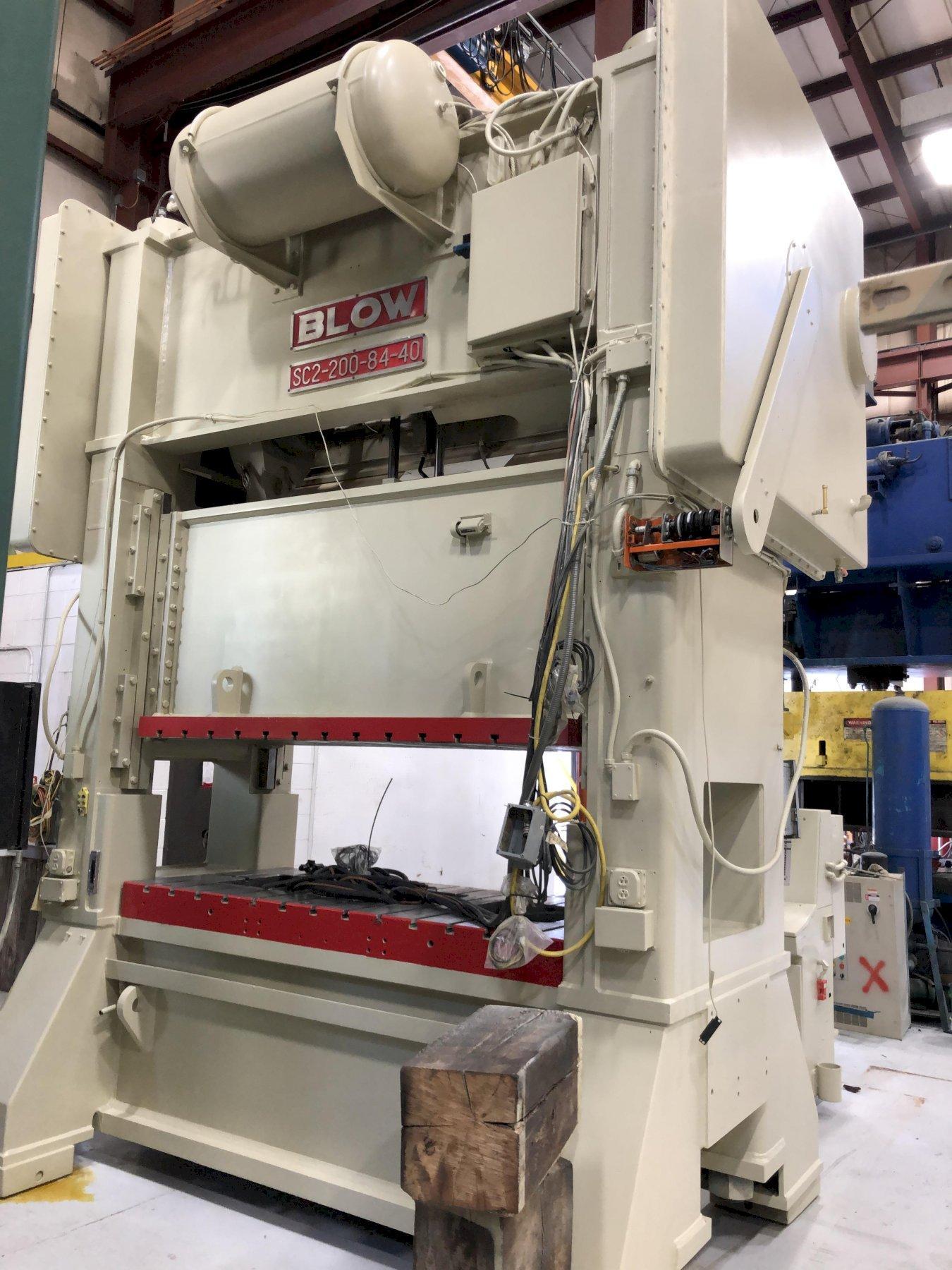

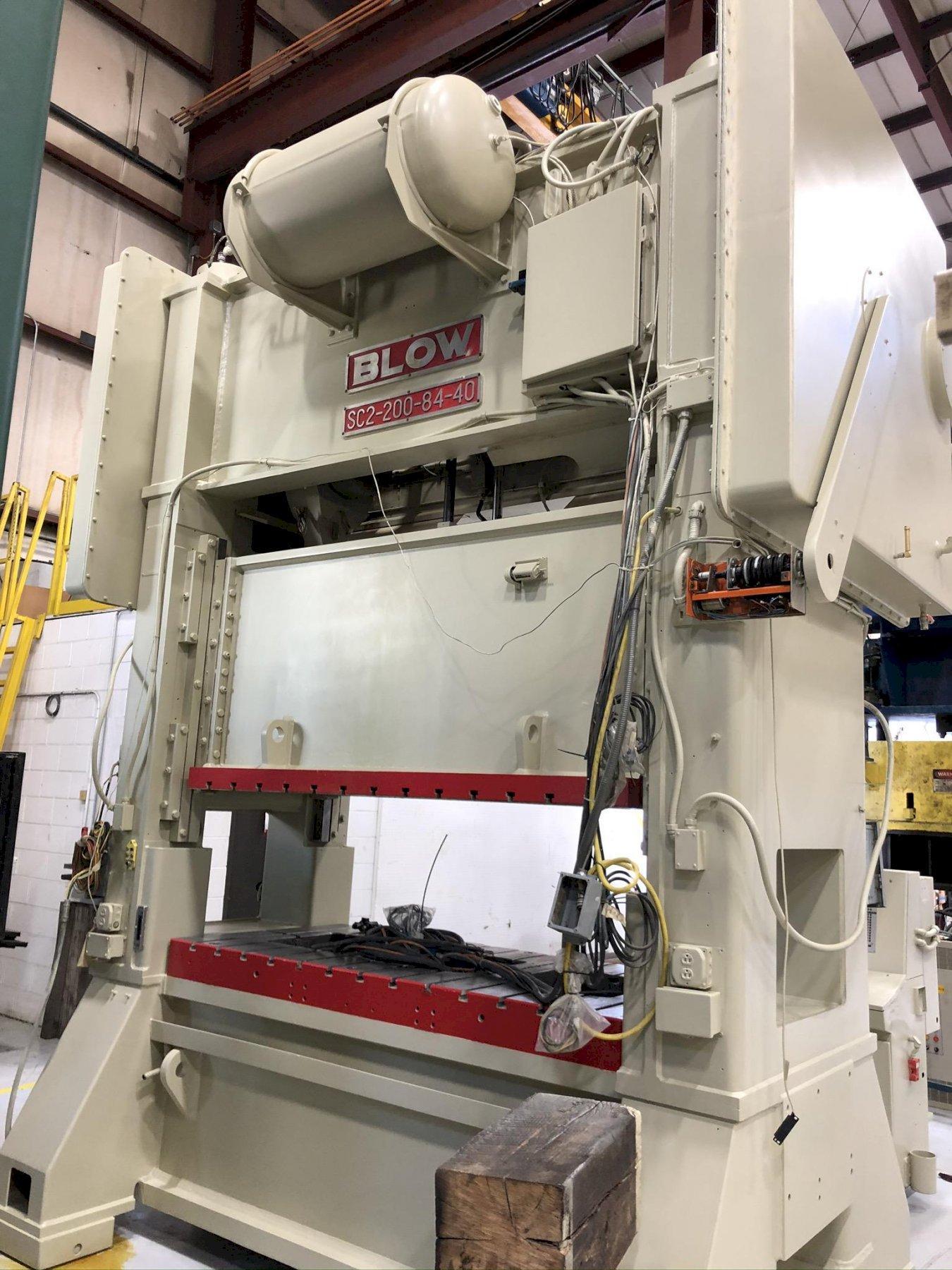

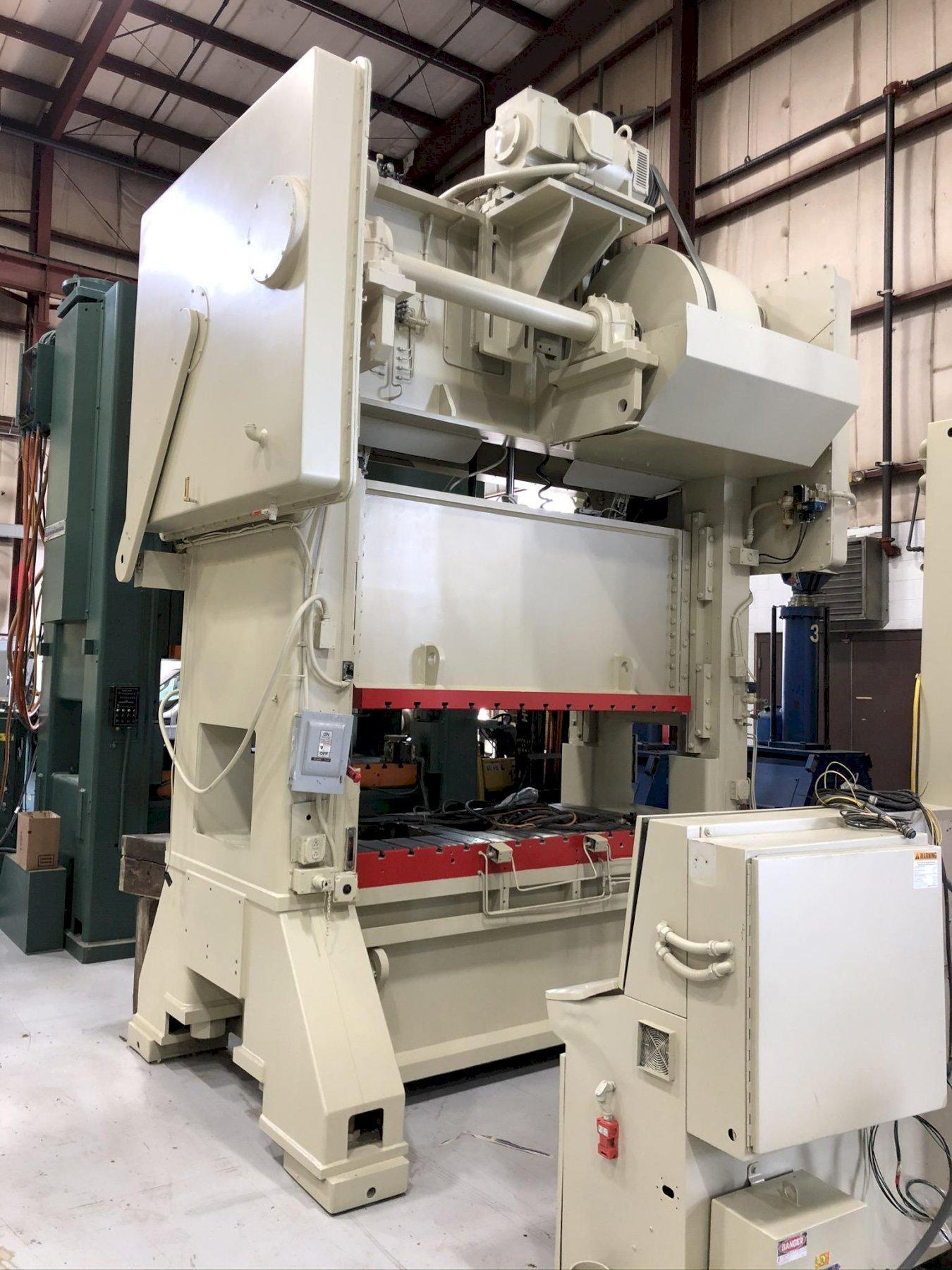

200 Ton Blow SC2-200-84-40 Straight Side Mechanical Metal Stamping Press For Sale, New 1992

Manufacturer

BLOW

Category

Presses

Type

PRESSES, STRAIGHT SIDE, DOUBLE CRANK, (Single Action)

Stock

2560

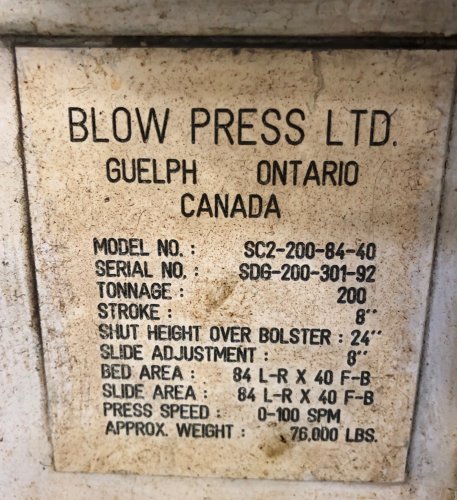

Model

SC2-200-84-40 SSDC

Dealer Location

Michigan

Request a Quote
View Contact Information

Spec Sheet

Tonnage - 200
Stroke - 8 inches
Shut Height - 30 inches
Adjustment - 8 inches
Bed Size - 84" LR x 40" FB
Ram Area - 84" LR x 40" FB
SPM - 0-100 VSPM


Standard Specifications
Straight Side Double Crank Press
Blow Press Model SC2-200-84-40
200 Ton Capacity
8" Stroke
30" Shut Height over Bed
24" Die Height over Bolster
8" Adjustment
84" LR x 40" FB Bed Area
84" LR x 40" FB Slide Area
0-100 VSPM

Equipment and Features
Air Clutch and Brake
Air Counterbalances
Recirculating Lube System
T-Slotted Ram and Bolster
6" Bolster Plate
T-Slots 6" Centers- Standard 1" T-Slots
8 Point Gibbing

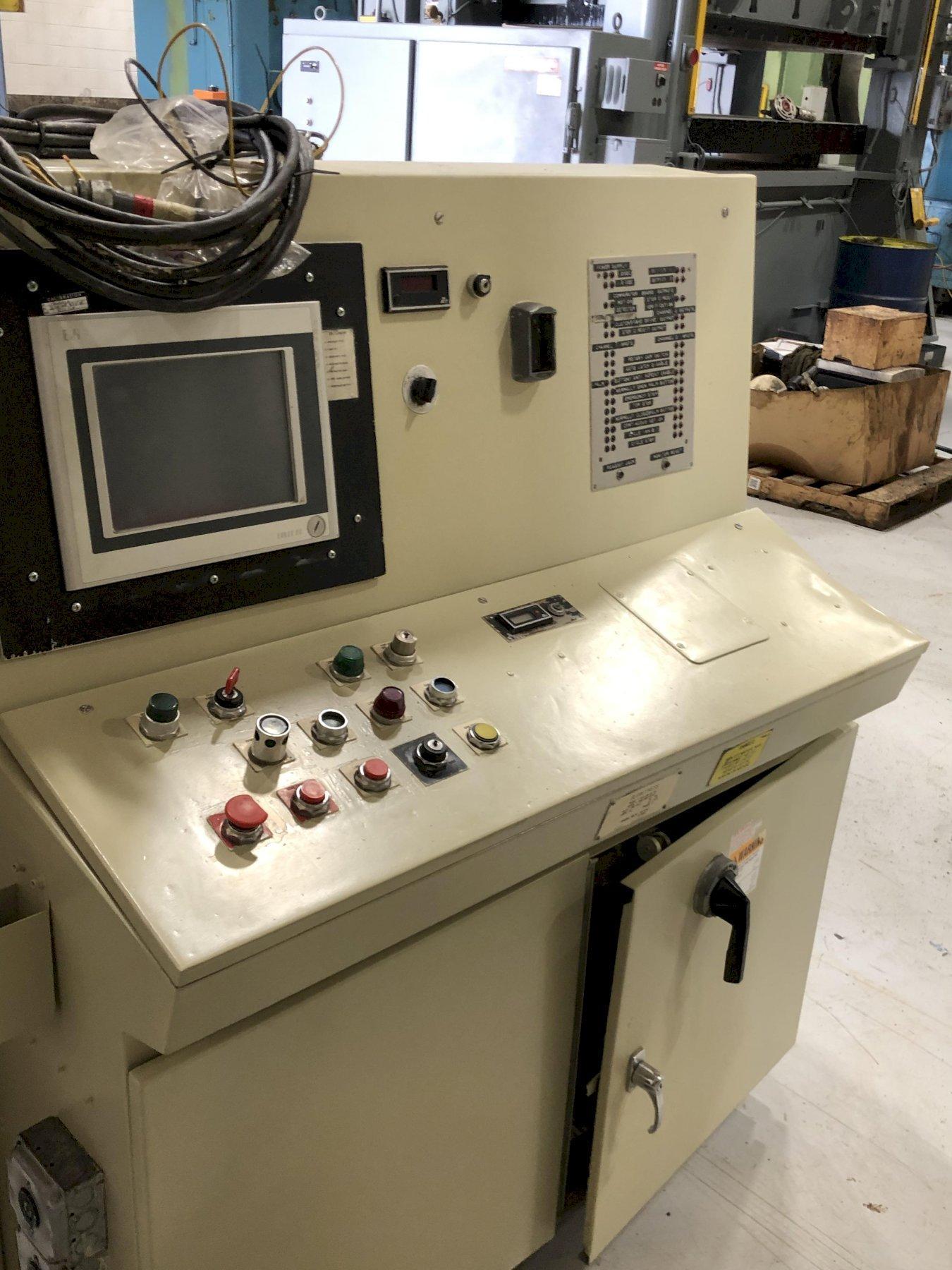

Electrical Control Cabinet
Variable Speed Motor
Motors and Controls
Palm Buttons
Dual Ross Air Valve
Motorized Ram Adjustment
Main Motor Fwd./Reverse
24" Wide Windows
Vibro Dynamic Floor Pads
Floor Standing

Approximate Weight 76,000lbs
Overall Height 180" Above the Floor

Price Includes:  Full Mechanical, Air and Lubrication Recondition.  All work is performed by professionals and includes an extended Warranty!
For "As is" pricing loaded onto a truck from our Livonia Michigan warehouse please feel free to contact your sale representative.

200 ton Blow Mechanical Metal Stamping Press Reconditioned For Sale

Used Straight Side Mechanical Metal Stamping Press For Sale
