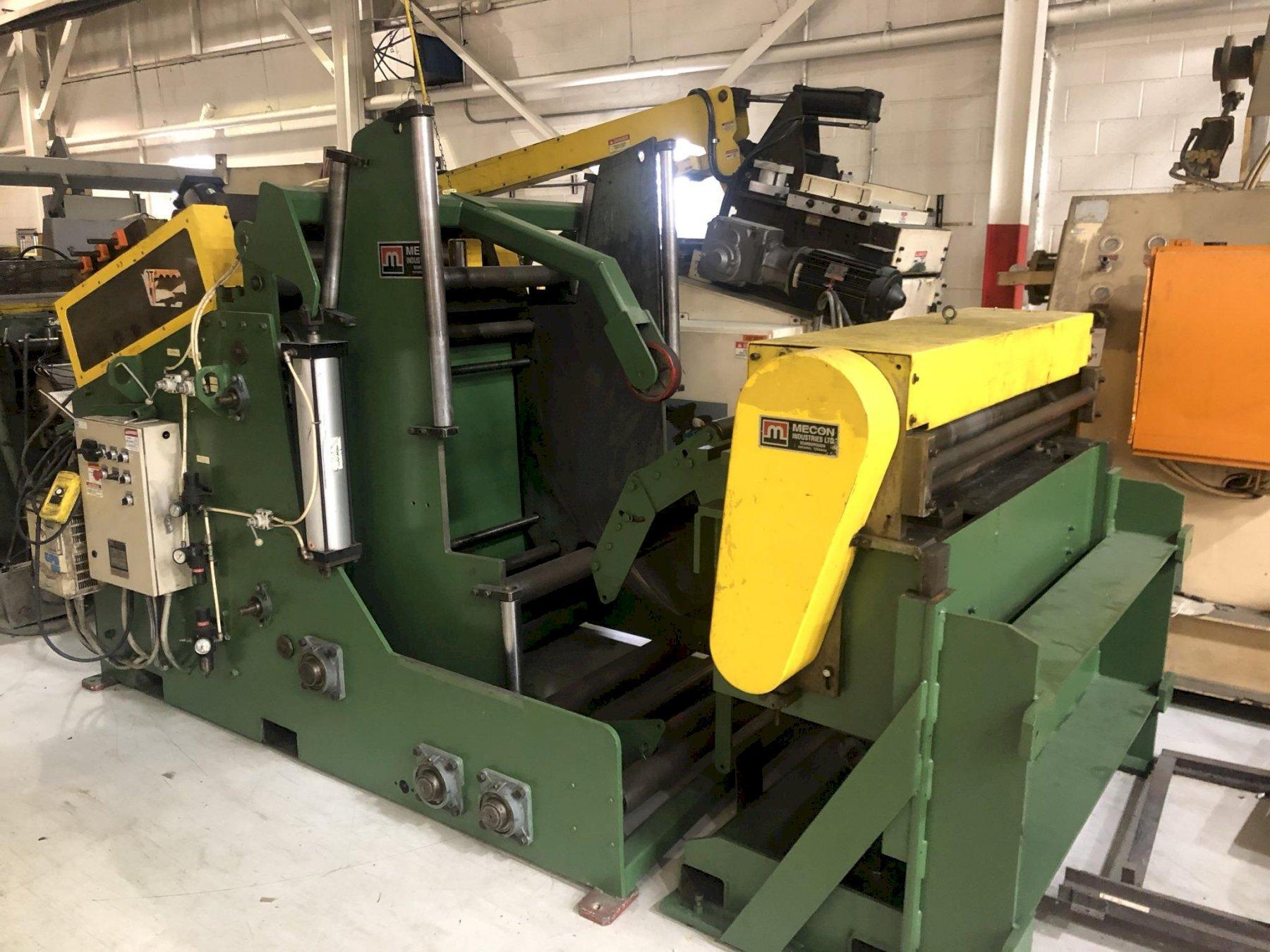

20,000 lbs Mecon Cradle Straightener Servo Feed Line

Manufacturer

MECON

Category

Coil Processing Equipment

Type

COIL FEED LINES

Stock

2595

Model

200CCS48 / 500F48HD

Dealer Location

Michigan

Request a Quote
View Contact Information

Spec Sheet

Coil Weight - 20000 pounds
Coil Width - 48 inches
Coil Thickness - .175 inches


Standard Specifications
20,000 lbs Max Coil Weight
48" Max. Coil Width
48" Wide x .175" Thickness Capacity @ Full Width
24" Wide x .250" Max. Thickness

Equipment and Features

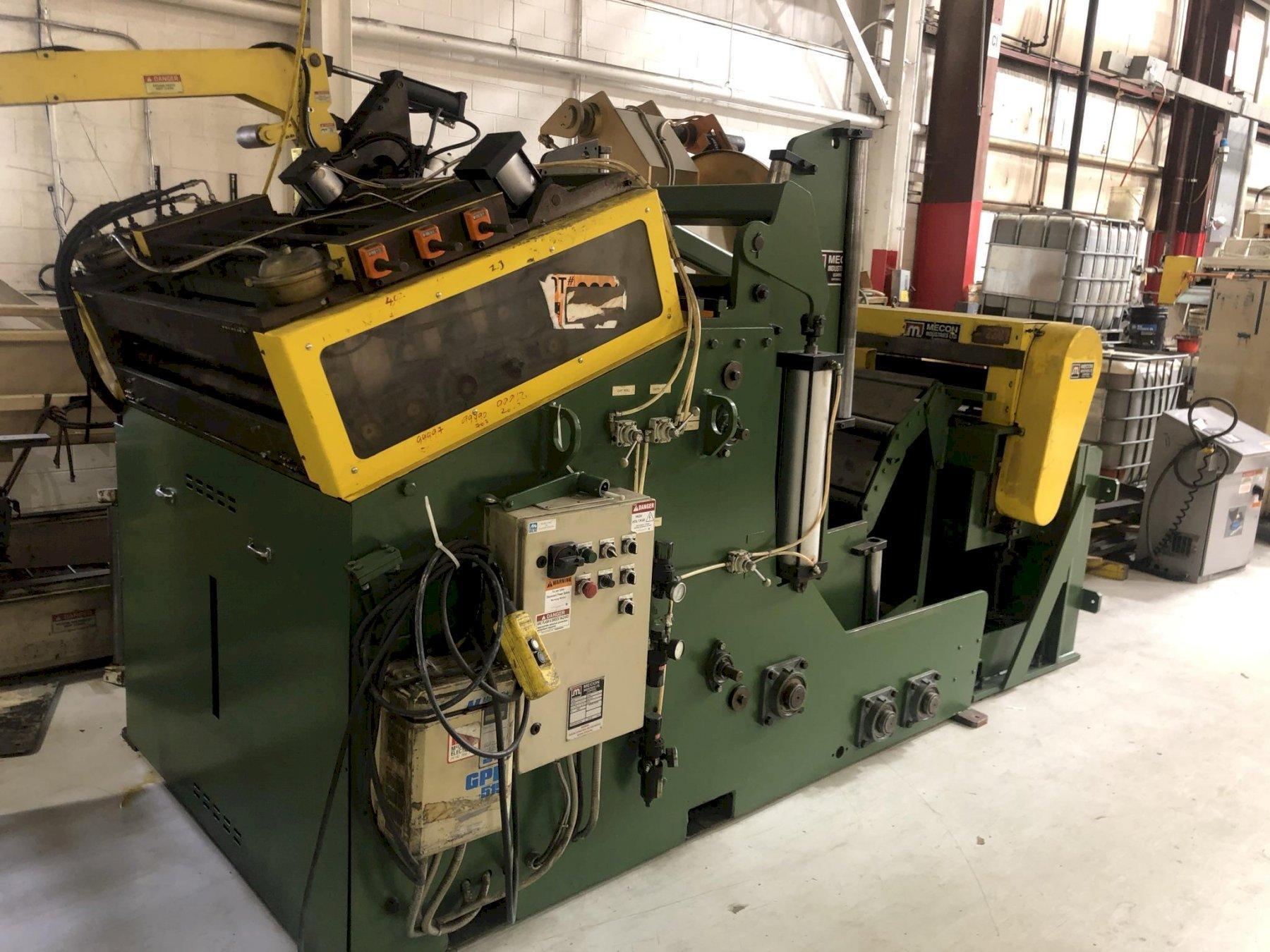

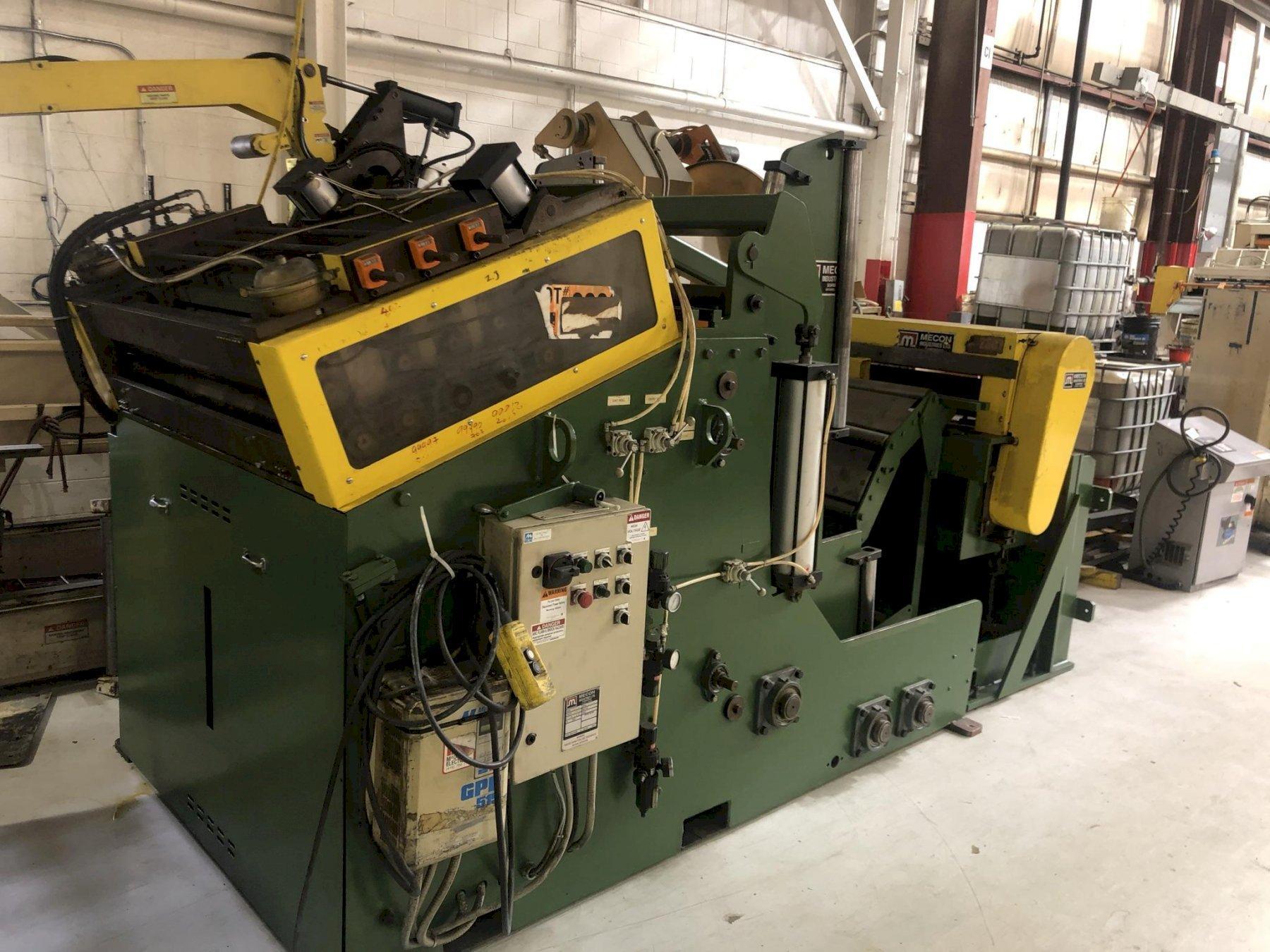

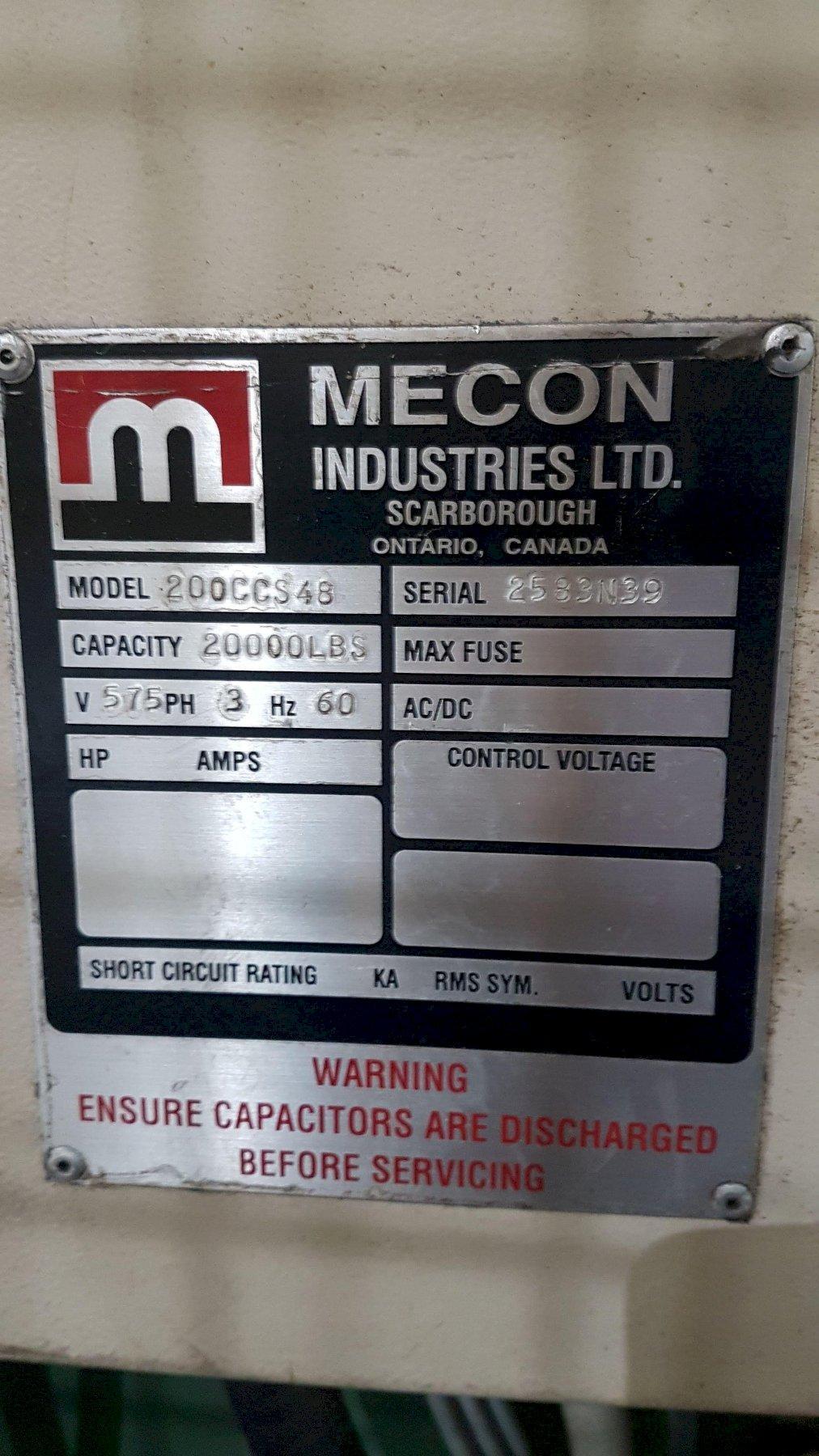

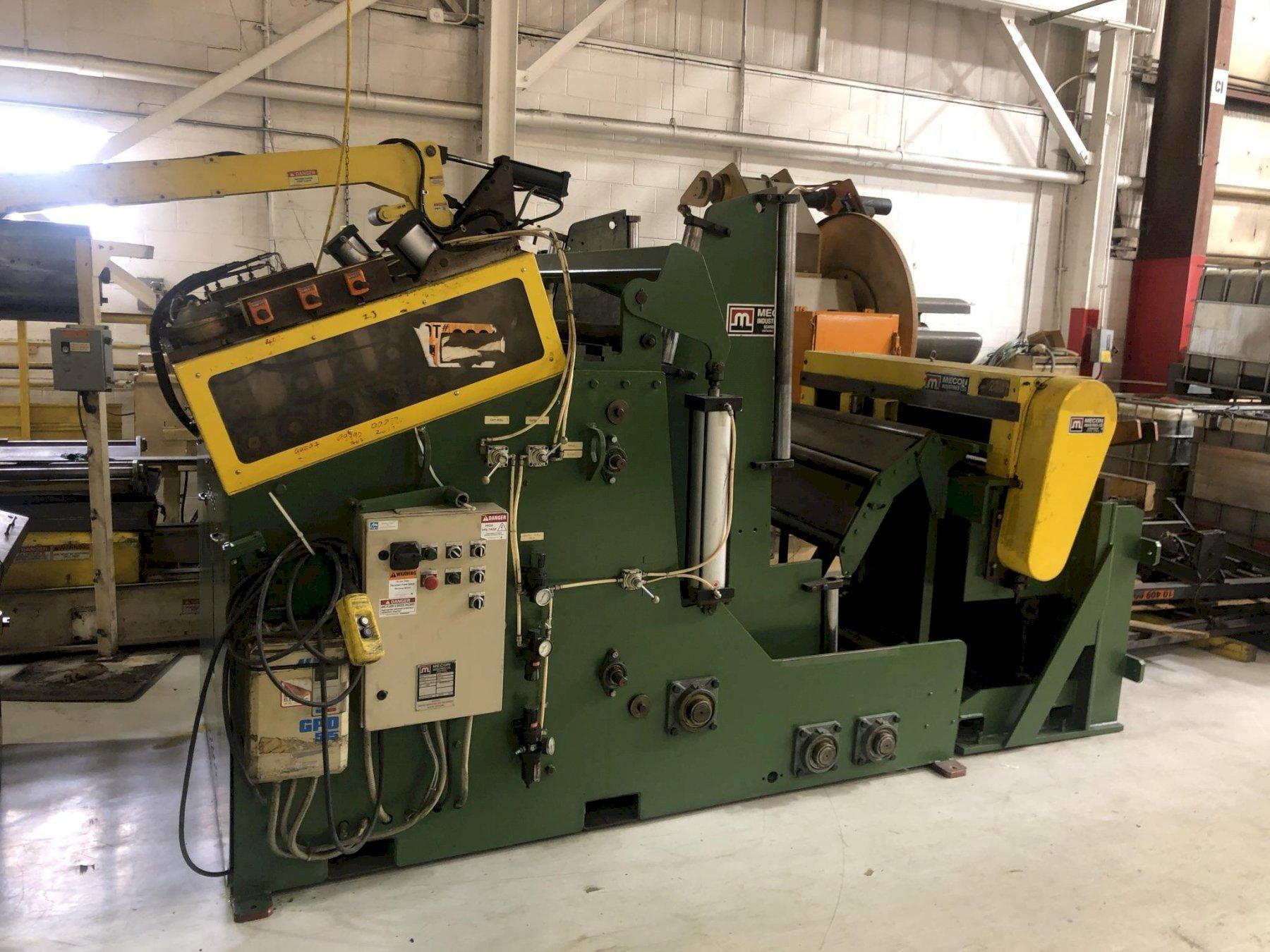

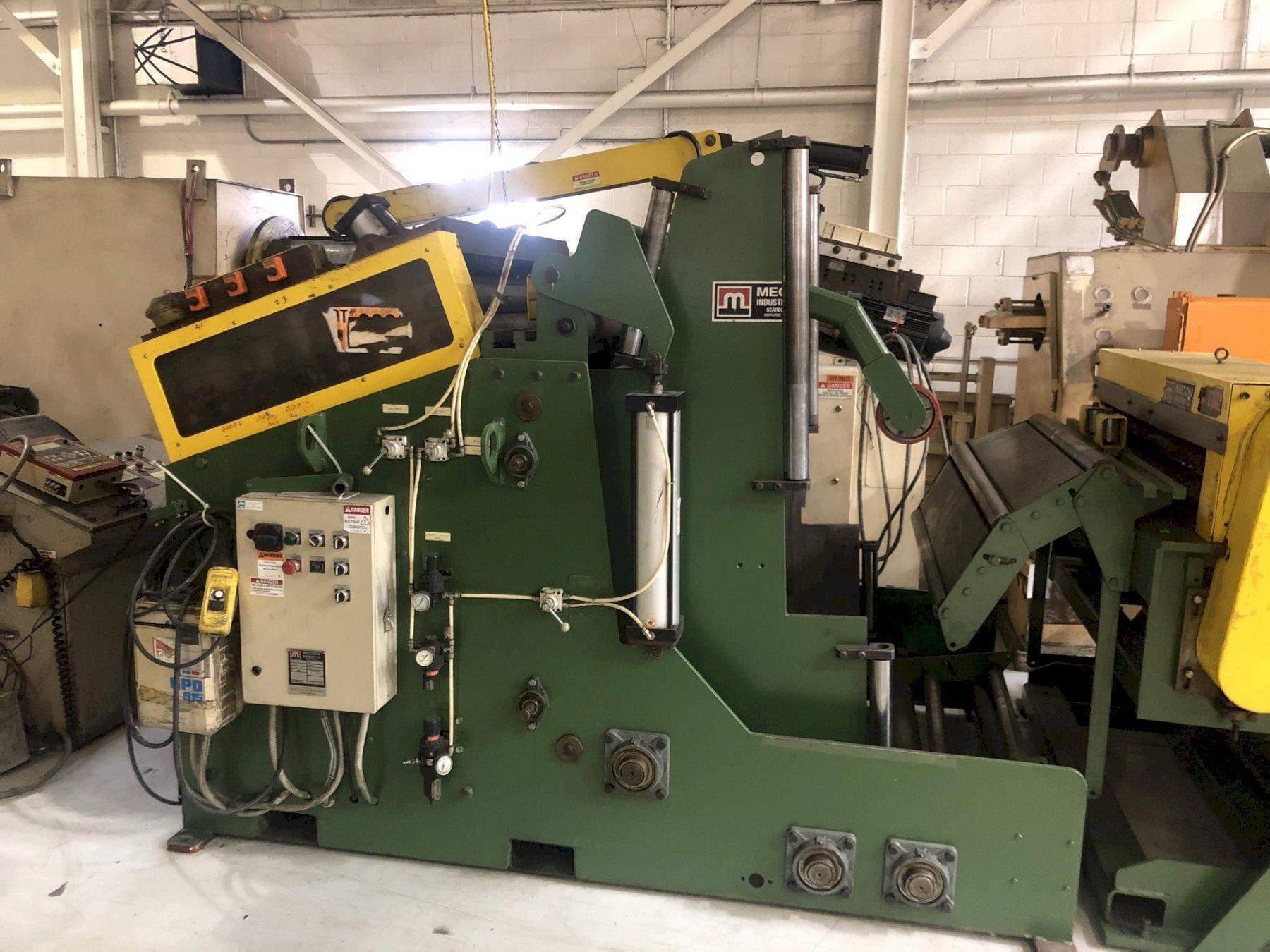

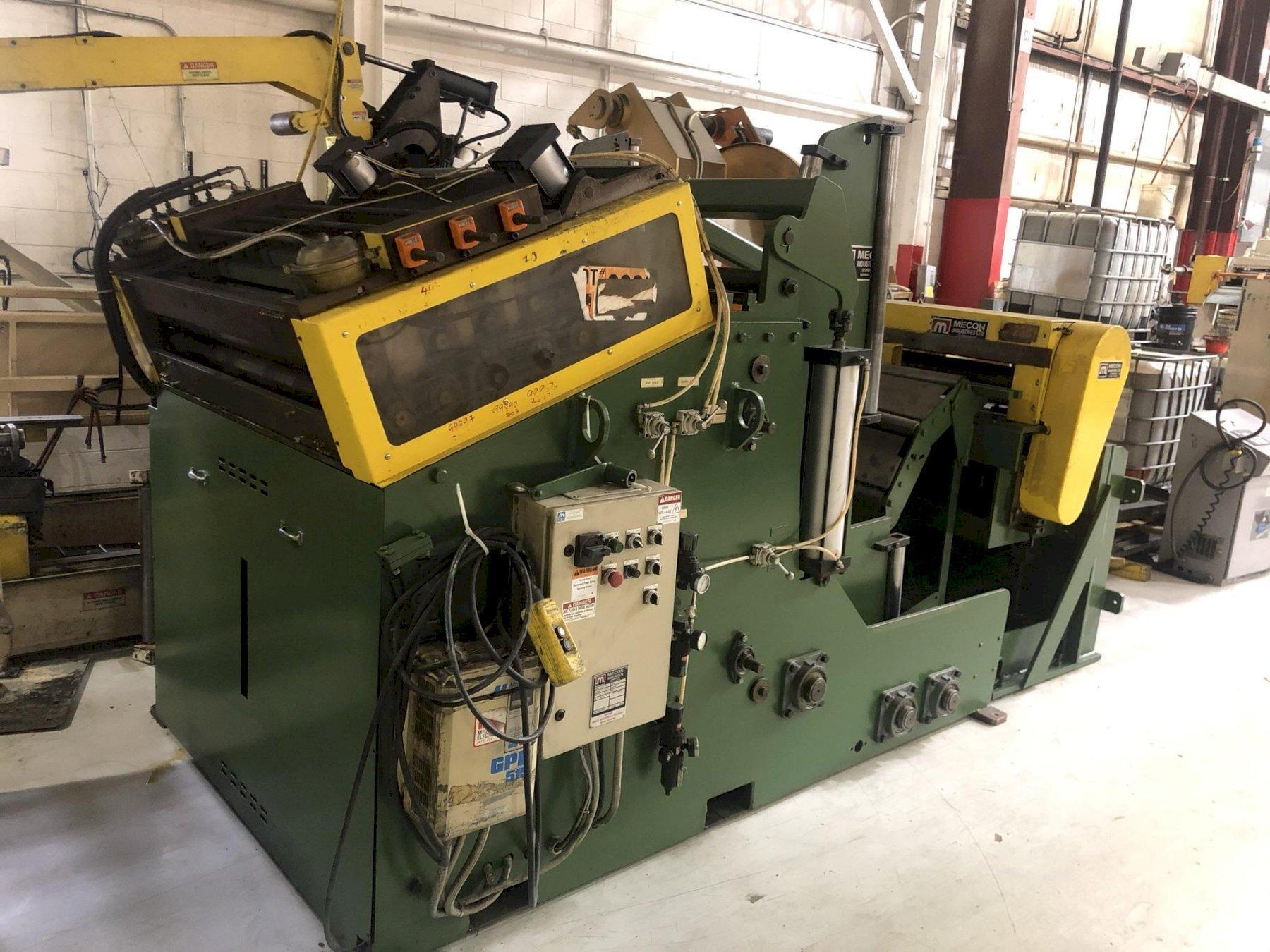

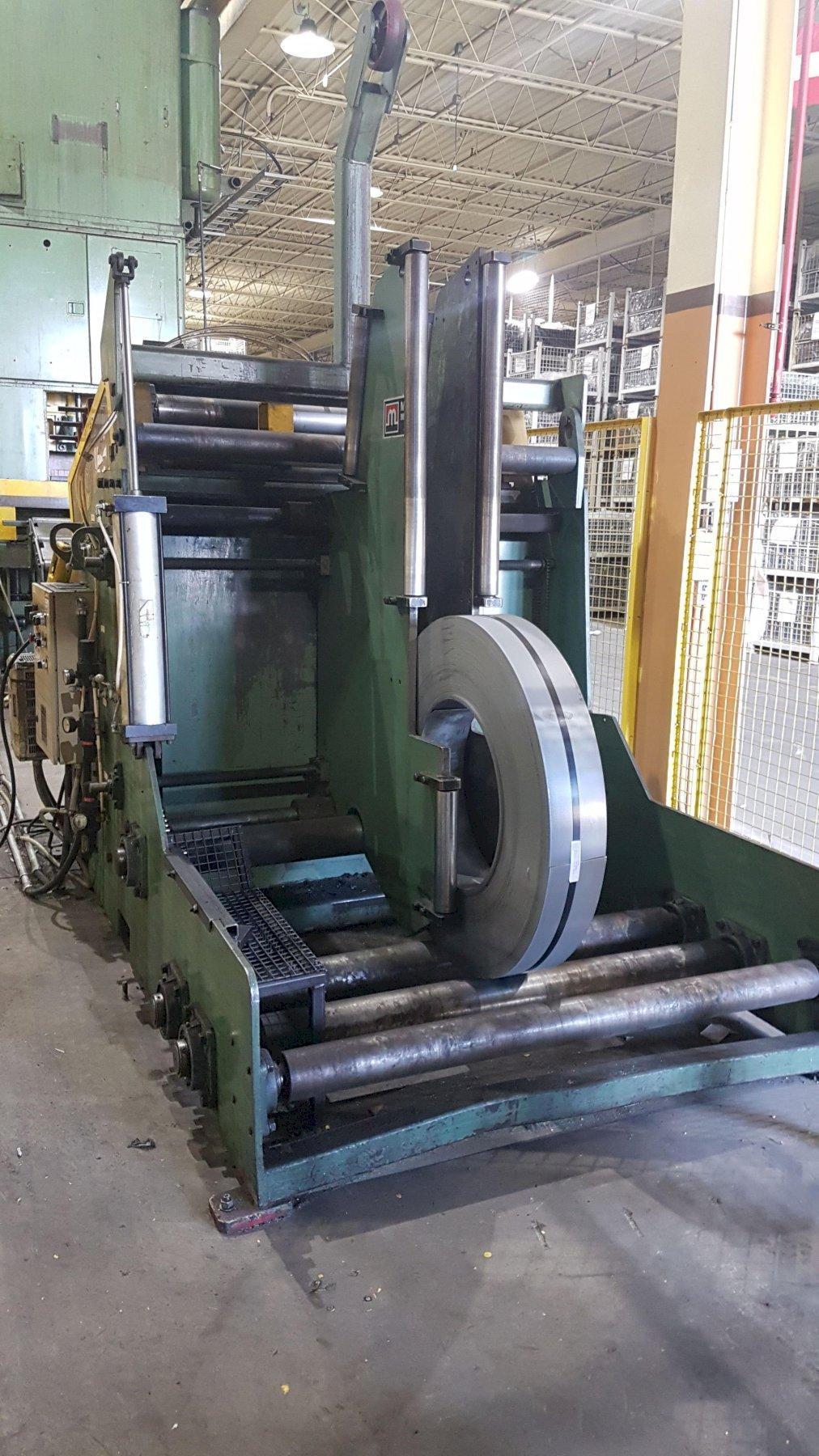

Coil Cradle - Straightener Model No. 200CCS-48
Entry and exit pinch rolls with air operated adjustments
Seven straightening rolls x 4" diameter
Individual upper straightening roll adjustments
Adjustable stock width edge guides
Coil hold down arm - dual cylinder
Adjustable coil side guide plates
Side plate rollers for wear protection
Variable speed payout
Jog forward and reverse
Auto / Run cycle
Loop control
Operator's control station

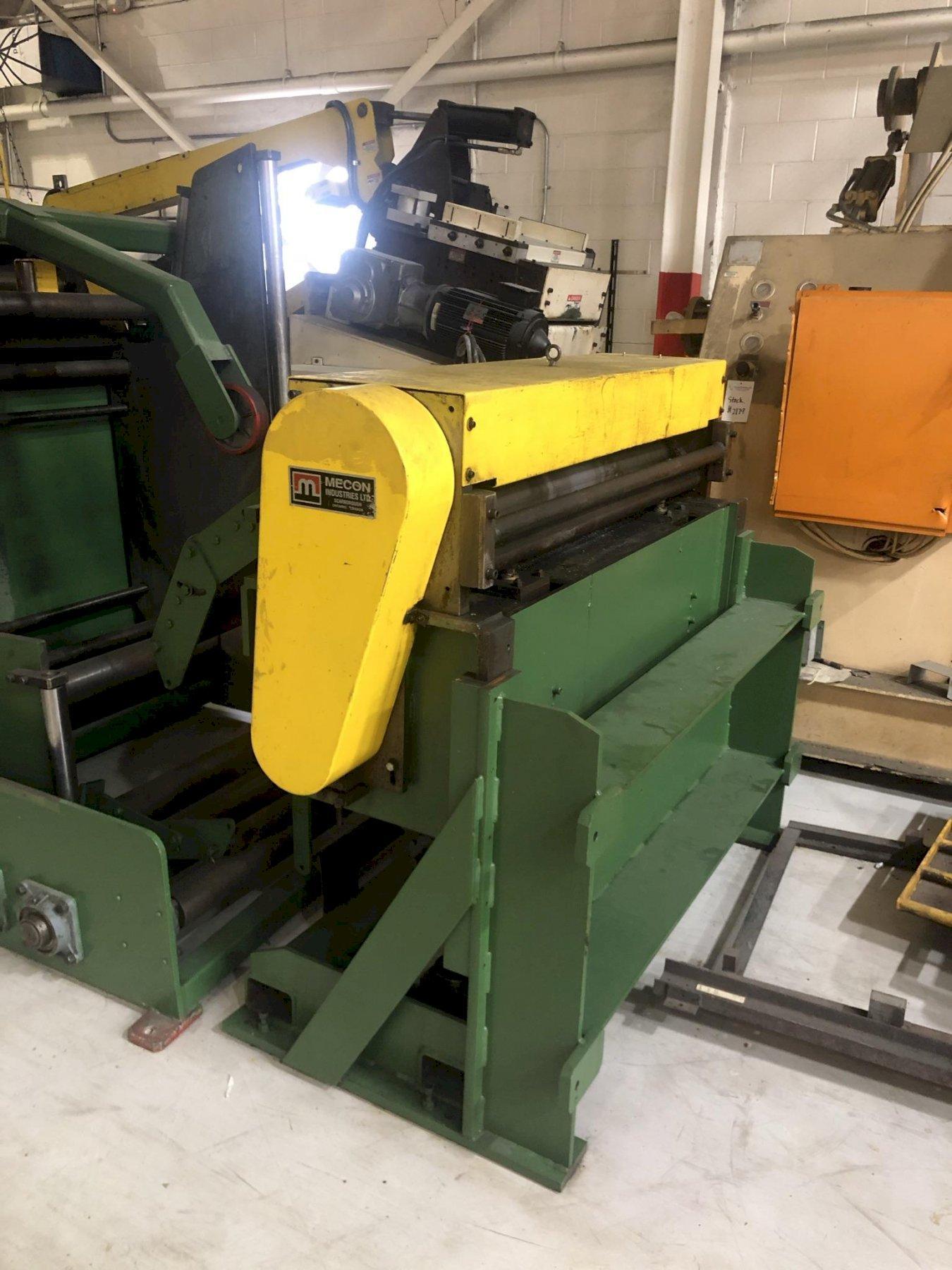

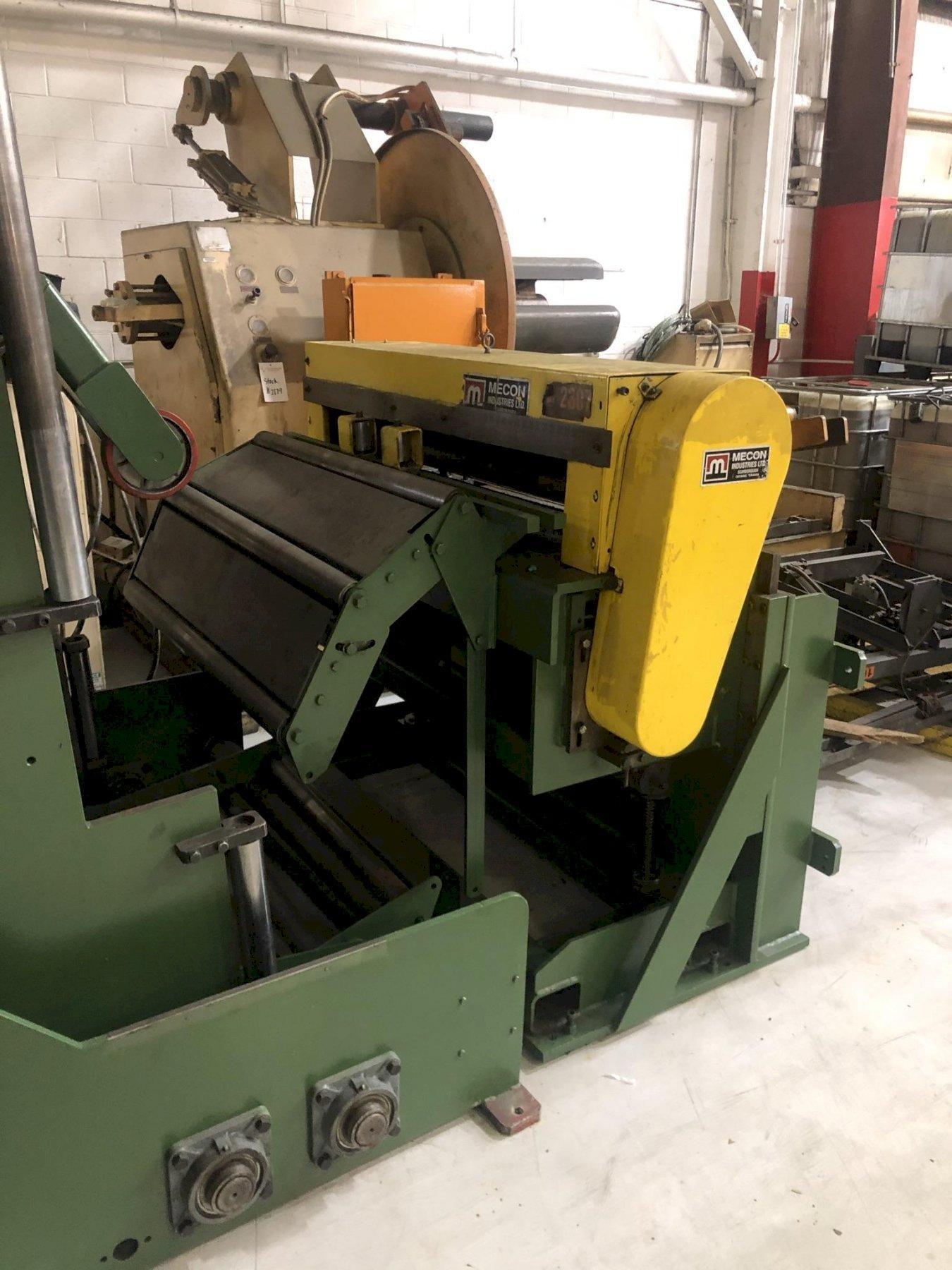

Servo Roll Feed Model  No. 500F48HD
Four-inch diameter feed rolls
Matte chrome finish on upper and lower rolls
Pneumatic upper feed roll lift and pilot
Adjustable stock width edge guides
Cascade loop support rollers
Free standing base
Adjustable pass line
New AC Servo drive and control package (consult sales for full details)
Color touch screen HMI
Job memory, micro adjust, full feature menu
Pilot pin mode
480 V

Pricing Includes: One year parts and labor warranty on new Servo Feed Controls
including schematics and operator's manual

Cleaned, painted and 100% cycling

Please know this feed Line can be purchased with its existing controls...  Ask your sales representative for "as is" pricing if desired.
