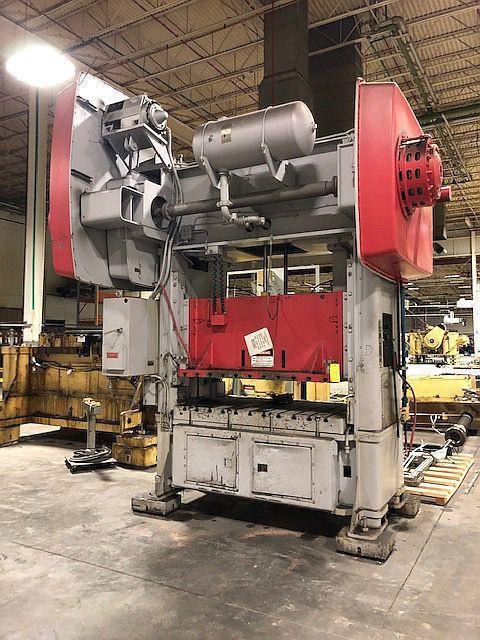

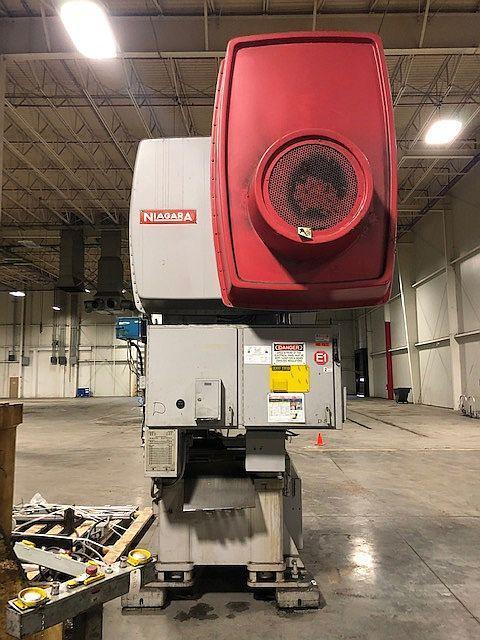

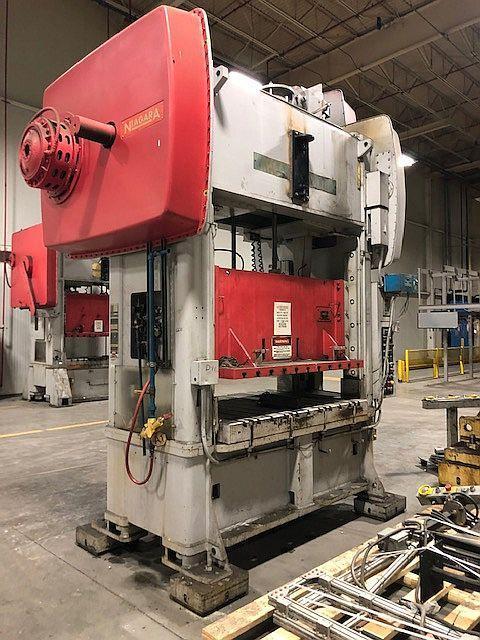

150 ton Niagara SE2-150-72-48 Straight Side Press, New 1989

Stock

2600

Model

SE2-150-72-48

Dealer Location

Michigan

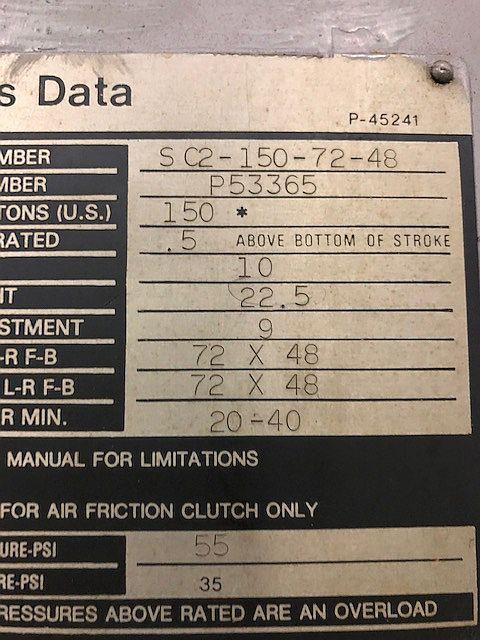

Spec Sheet

Tonnage - 150
Stroke - 10 inches
Shut Height - 22.5 inches
Adjustment - 9 inches
Bed Size - 72" LR x 48" FB
Ram Area - 72" LR x 48" FB
SPM - 20-40 VSPM


Standard Specifications
150 ton Capacity
10" Stroke
22.5" Shut Height On Bed
9" Motorized Adjustment
72" LR x 48" FB Bed Area
72" LR x 48" FB Slide Area
20-40 VSPM

Equipment and Features
Air Clutch and Brake
Air Counterbalances
Recirculating Lube System
T-Slotted Ram and Bolster
5.5" Thick Bolster
Set of Vibration Isolation Levelers

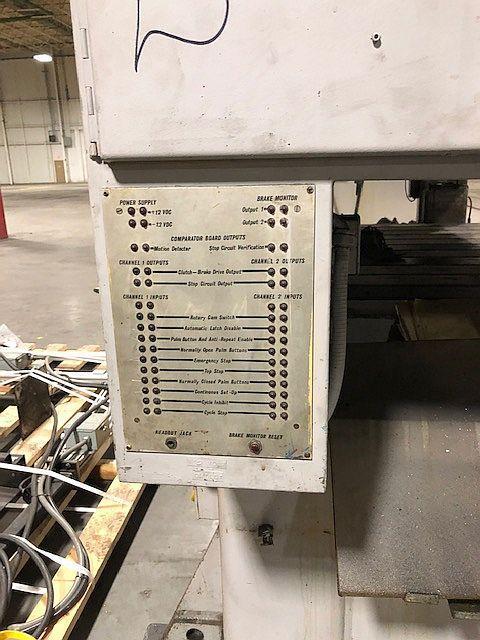

Link Logic Brake Monitor Press Control
Gemco PLS 1995
Link Logic Tonnage Monitor
8 Point Gibbing
20" Wide Windows
Floor Standing

96” LR x 58” FB Footprint Dimensions
38" Floor to top of Bed
13’9” Overall Height
