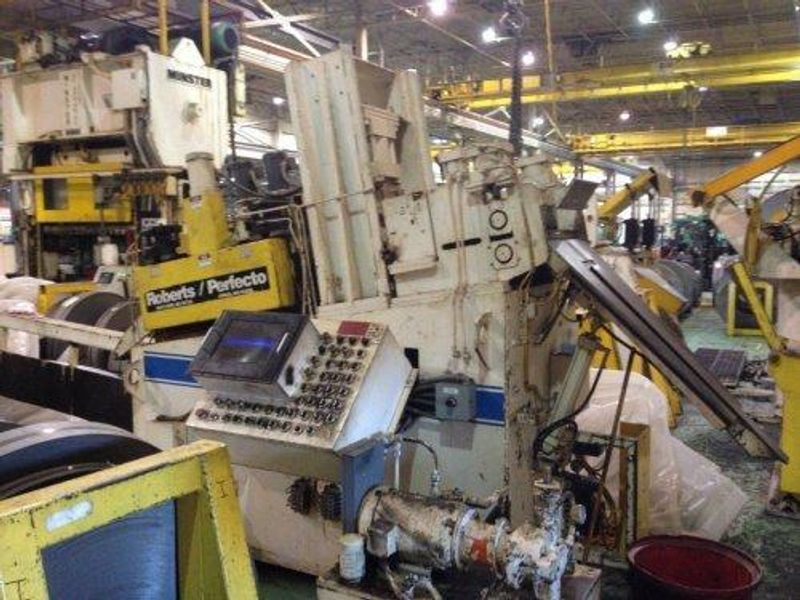

10000 Lbs. PERFECTO Servo Feed Line, 14" @ .250" Capacity

Manufacturer

PERFECTO

Category

Coil Processing Equipment

Type

COIL FEED LINES

Stock

2274

Model

DR100-14 / 38-14-7

Dealer Location

Michigan

Request a Quote
View Contact Information

Spec Sheet

Coil Weight - 10000 pounds
Coil Width - 14 inches
Coil Thickness - .250 inches


Specifications:
Coil weight capacity: 10,000 Lbs.
Coil width capacity: 14"
Stock thickness capacity: .250" @ 14" Wide
I.D. Expansion range: 20" Adjustable
Coil OD capacity: 60"
Serial No.: SS-91086

Equipped With:

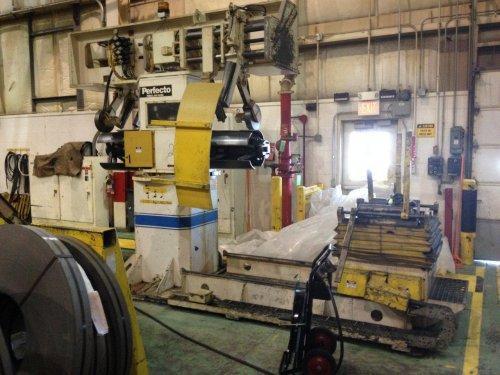

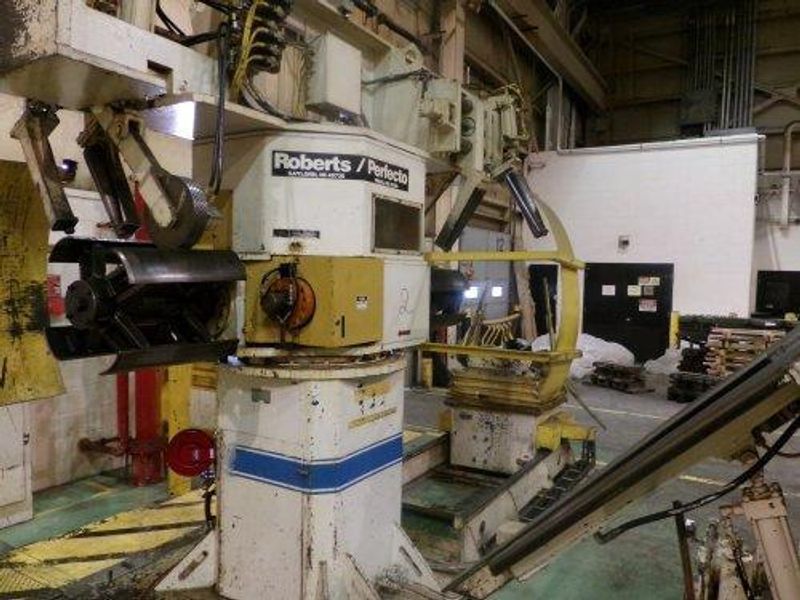

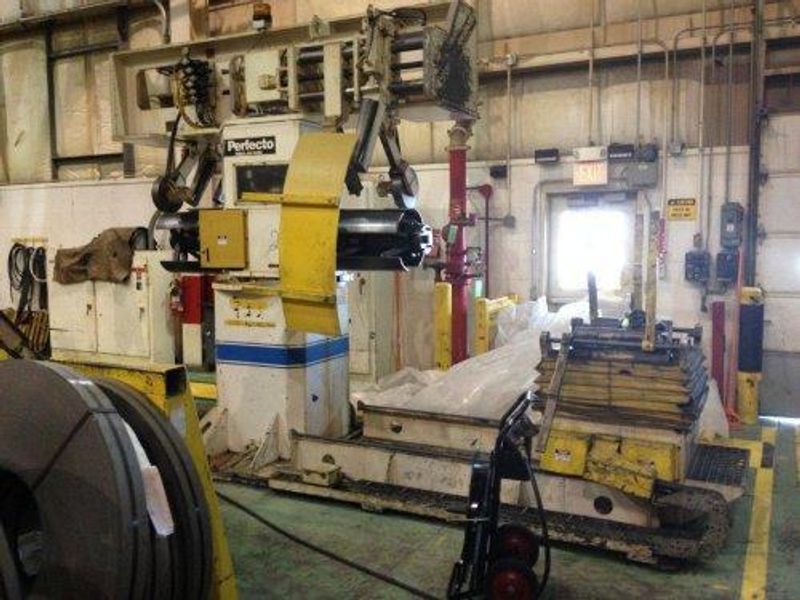

Double End Coil Reel Model No. DR100-14
Three leaf mandrels
Hydraulic mandrel expansion
Thread drives for jog forward and reverse
Powered mandrel rotation (indexing)
Air brakes mounted on main spindles
Adjustable tensioning
Coil hold down arms with motorized end wheel
Coil loading car with powered lift and travel

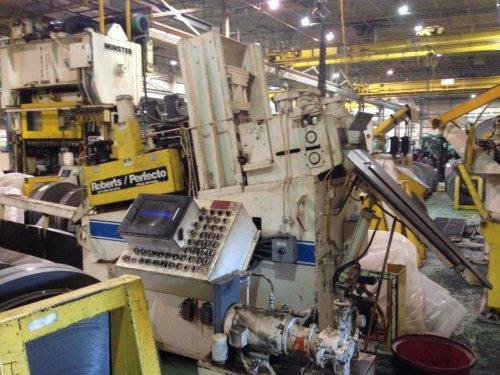

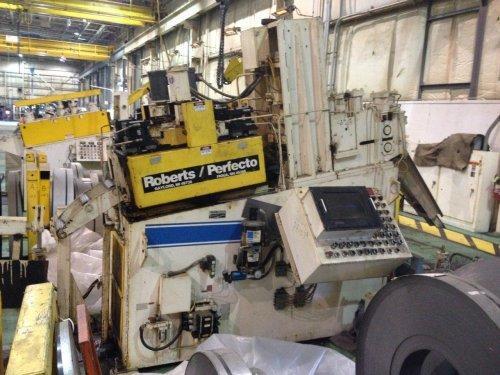

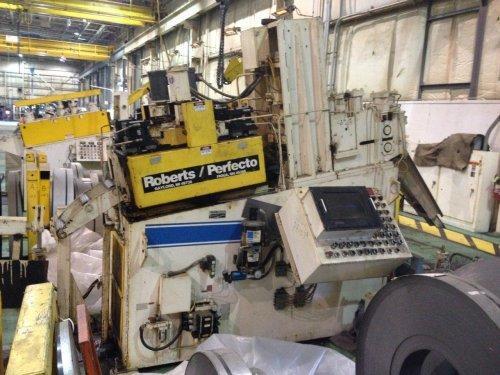

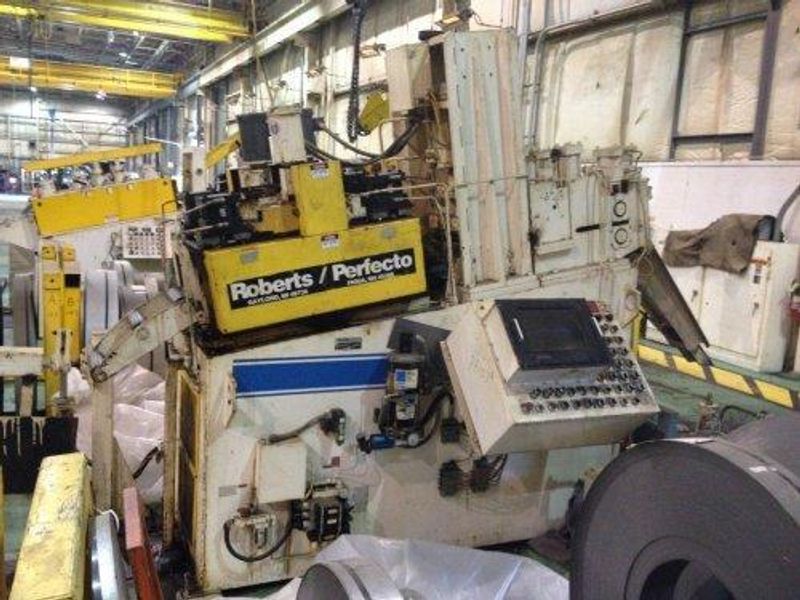

Powered Straightener Model No. 38-14-7
Entry and exit pinch rolls with air operated adjustments
Seven straightening rolls x 3.8" diameter
Motorized individual upper straightening roll adjustments
Stock peeler table with extension
Stock end de-bender
Heavy duty hand crank edge guides
Variable speed drive system
Automatic lubrication system
Exit cascade loop support rollers

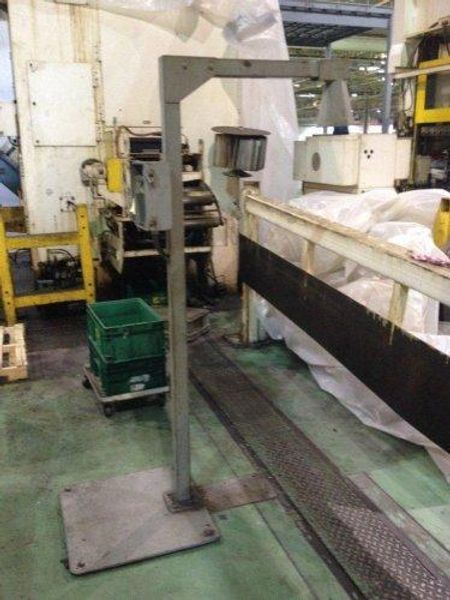

Ultrasonic variable speed loop control

Exit Thread Table Model No. ETT-14
Bomb-Bay Door style

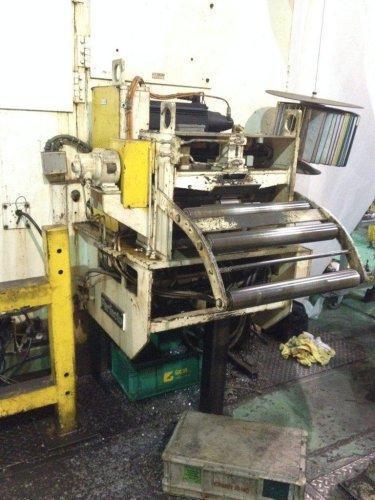

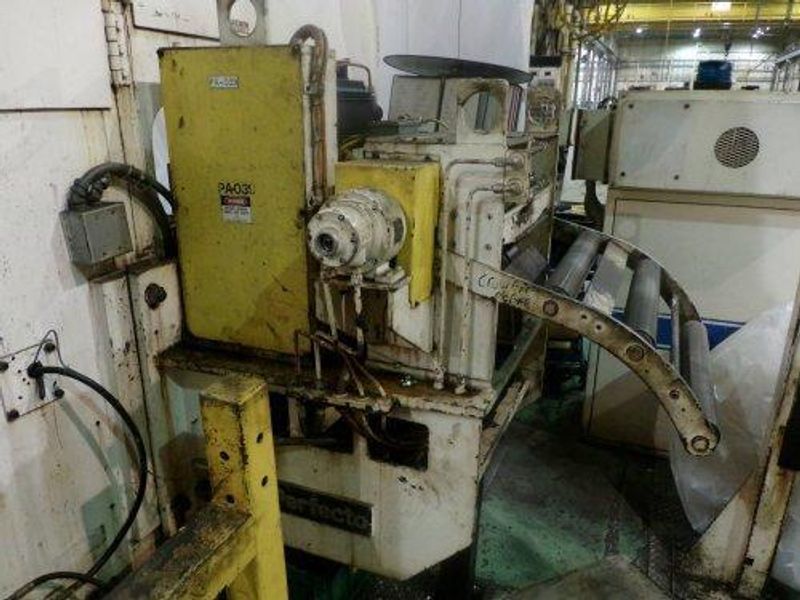

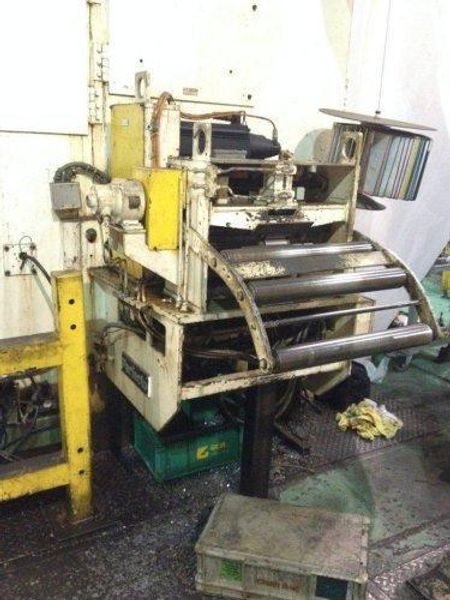

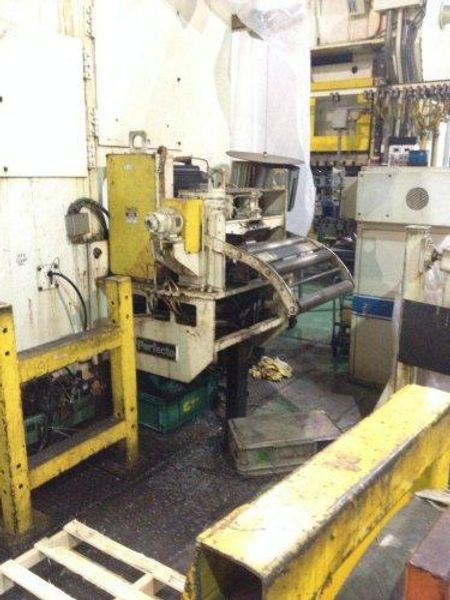

Servo Roll Feed Model No.: 600-14 / Serial No.: E6
Six inch diameter upper and lower feed rolls
Matte chrome finish on feed rolls
Air operated upper roll adjustment/pilot
Solenoid controlled pilot release
Dual adjustable edge guides - motorized
Anti back up roll - air operated
Centralized lubrication points
Press mounted
INDRAMAT AC servo drive and controls
