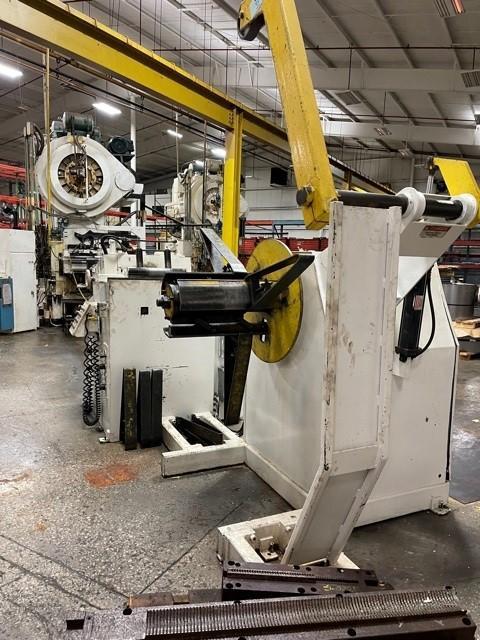

8000 lbs x 18" Coe Coil Reel and Powered Straightener

Manufacturer

COE

Category

Coil Processing Equipment

Type

COIL FEED LINES

Stock

2700

Model

CPR-PO-8018 / CPPS-PO-300-18

Dealer Location

Michigan

Request a Quote
View Contact Information

Spec Sheet

Coil Weight - 8000 pounds
Coil Width - 18 inches
Coil Thickness - .125 inches


Preliminary Specifications
8,000 lbs Coil Capacity
18" Max Coil Width
.125" Max Coil Thickness at Full Width
72" O.D. Coil Capacity
16"-21" Expansion Range

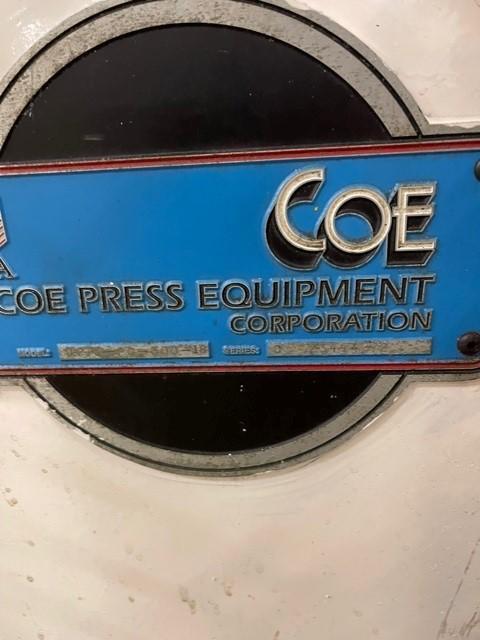

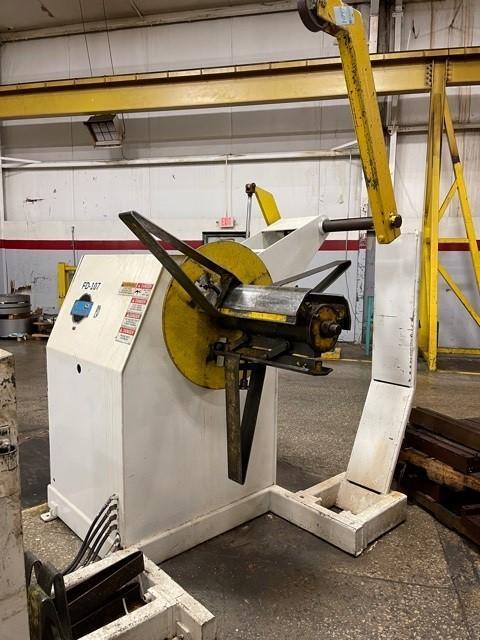

Coe Press Coil Reel Uncoiler Model# CPR-PO-8018
Serial Number: 23444-3
Three Leaf Mandrel Coil Reel
Air Operated Coil Hold Down Arm with End Wheel
Coil Reel Clock Spring Safety Guard
Full Set of Coil Keeper Arms
Front Mounted Coil Reel Expansion with Expansion Handle
Air Brake Mounted on Main Coil Reel Spindle
Adjustable Tensioning

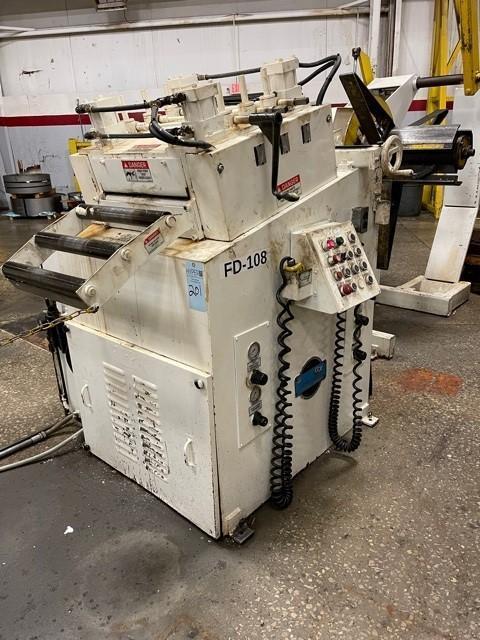

Coe Press Powered Coil Straightener Model# CPPS-PO-300-18
Serial Number:  23444-2
3" Diameter Straightening Rolls
Seven Straightening Rolls
Individual Upper Coil Straightening Roll Adjustments
Entry and Exit Powered Coil Straightener Pinch Rolls with Air Operated Adjustment
Adjustable Stock Width Edge Guides
Inclined Powered Coil Straightening Head
Exit Catenary Section
5 Hp AC Drive Assembly
Jog Forward and Reverse
Auto / Run Cycle
Ultrasonic Loop Control

All specifications are deemed accurate but subject to verification.
