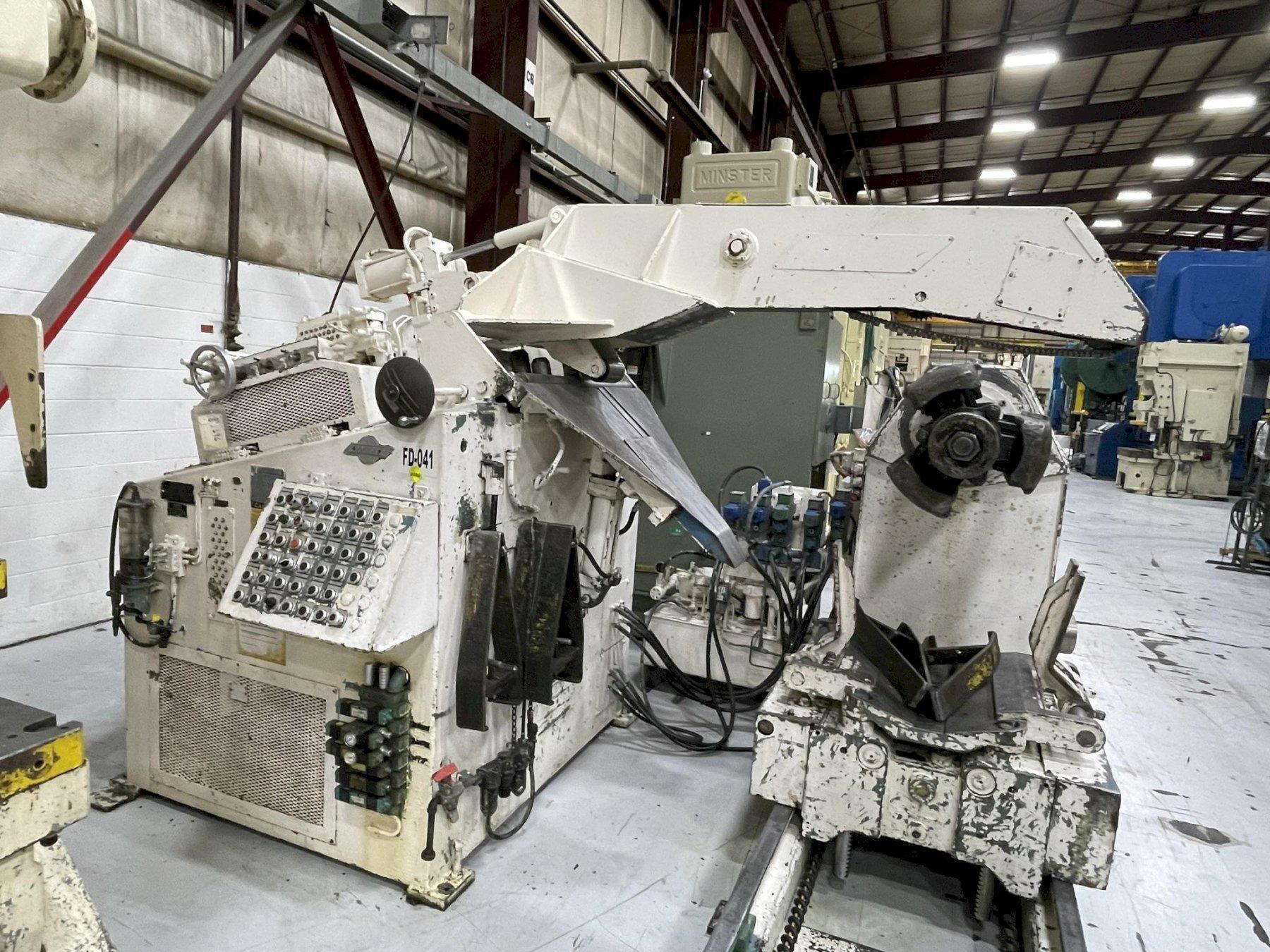

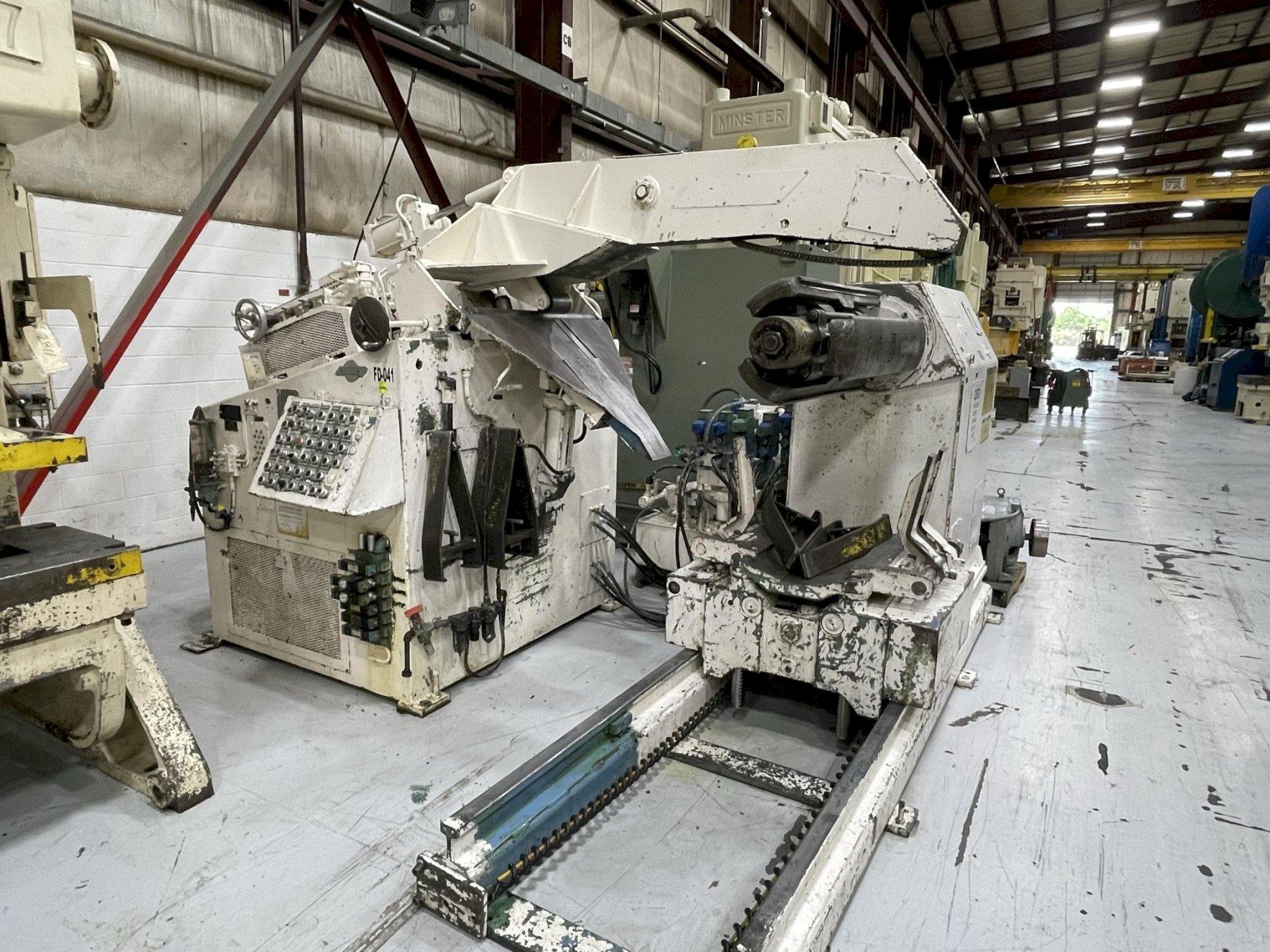

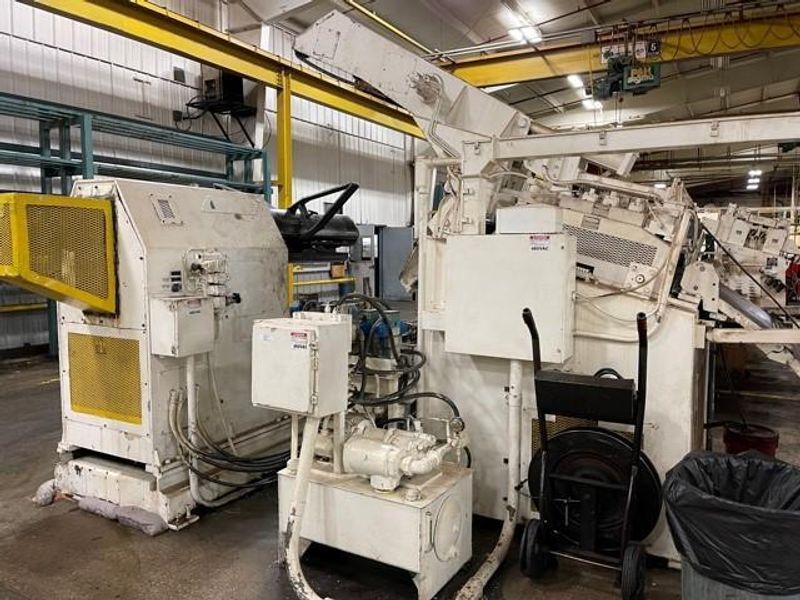

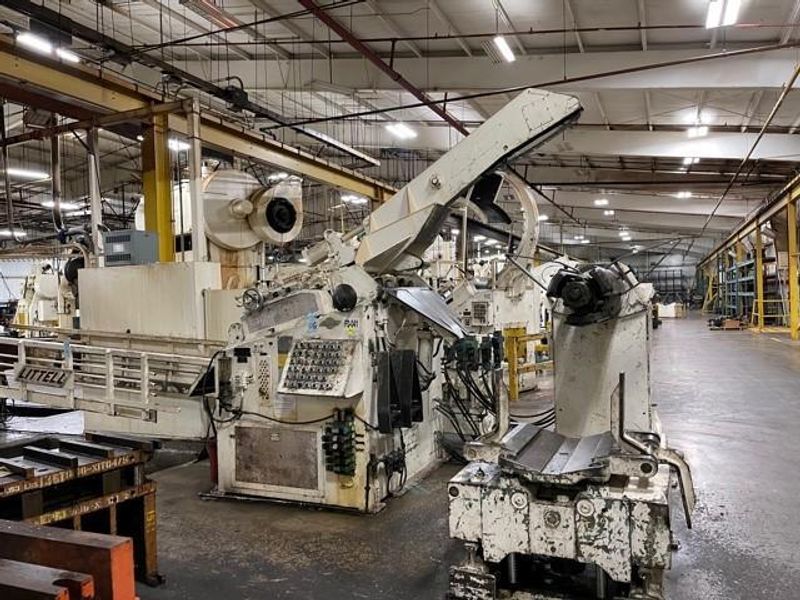

20,000 lbs. x 36" Littell Coil Reel with Car and Powered Straightener, Good Running!

Manufacturer

LITTELL

Category

Coil Processing Equipment

Type

COIL FEED LINES

Stock

2696

Model

S200-36 Reel / #638 Straightener

Dealer Location

Michigan

Request a Quote
View Contact Information

Spec Sheet

Coil Weight - 20000 ounces
Coil Width - 36 inches
Coil Thickness - .125 inches


Specifications
20,000 lbs Max Coil Capacity
36" Max Coil Width
.125" Stock Thickness at Full Coil Width
.187" Stock Thickness at 18" Coil Width
60" Coil O.D.
20-24" Coil I.D. Range

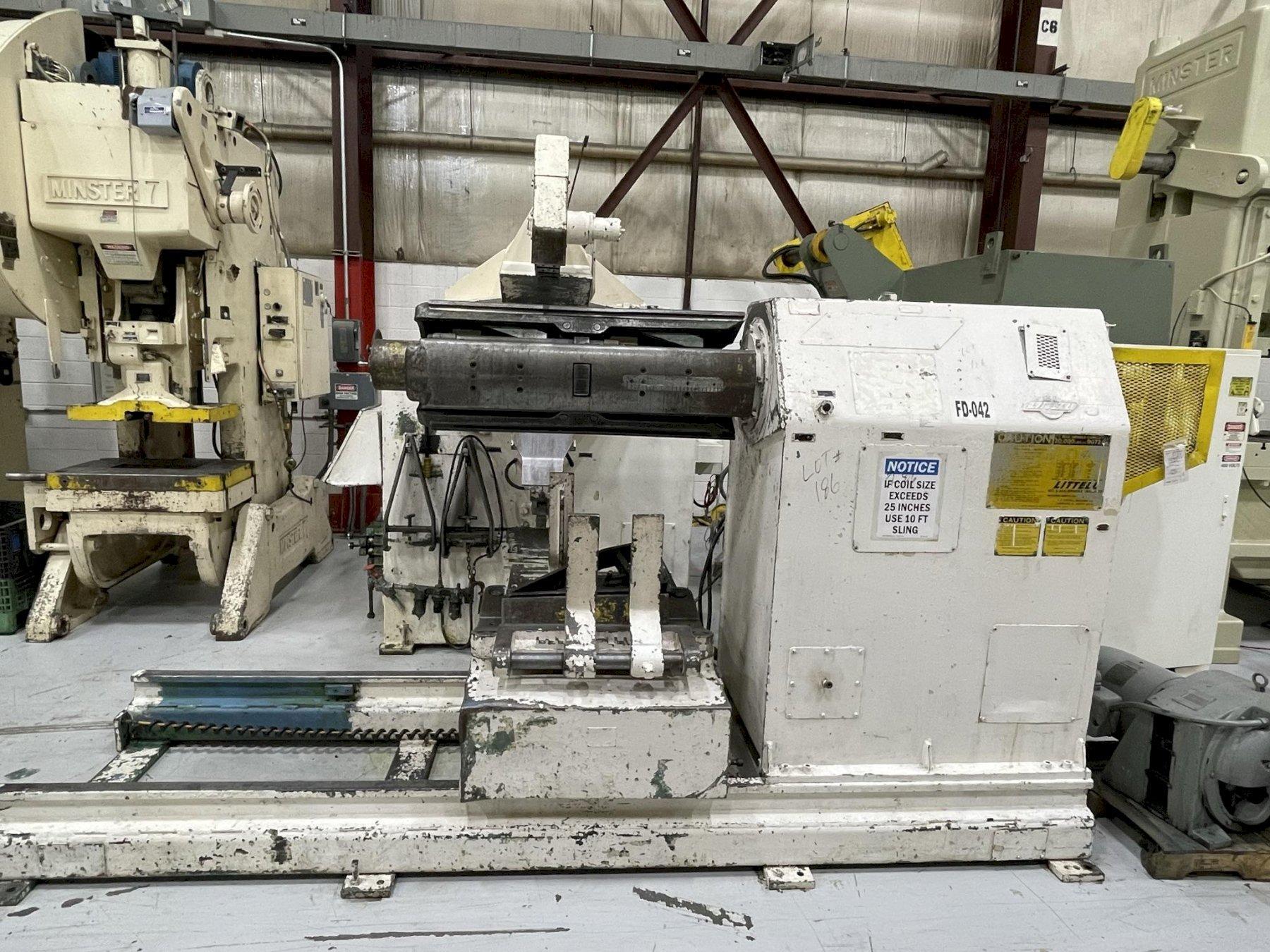

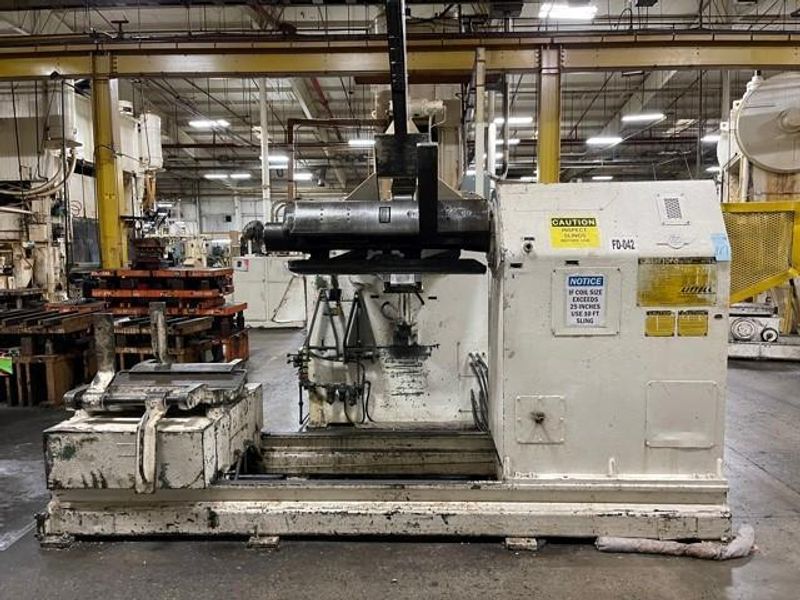

Littell Coil Reel Uncoiler Model No. S200-36, Serial No.: 87895-84
Three leaf mandrel coil reel
Hydraulic coil reel mandrel expansion
Coil reel keeper arms
Air brake mounted on main coil reel spindle
Adjustable tensioning
Threading drive for jog forward and reverse
Traveling coil load car
Powered lift and travel

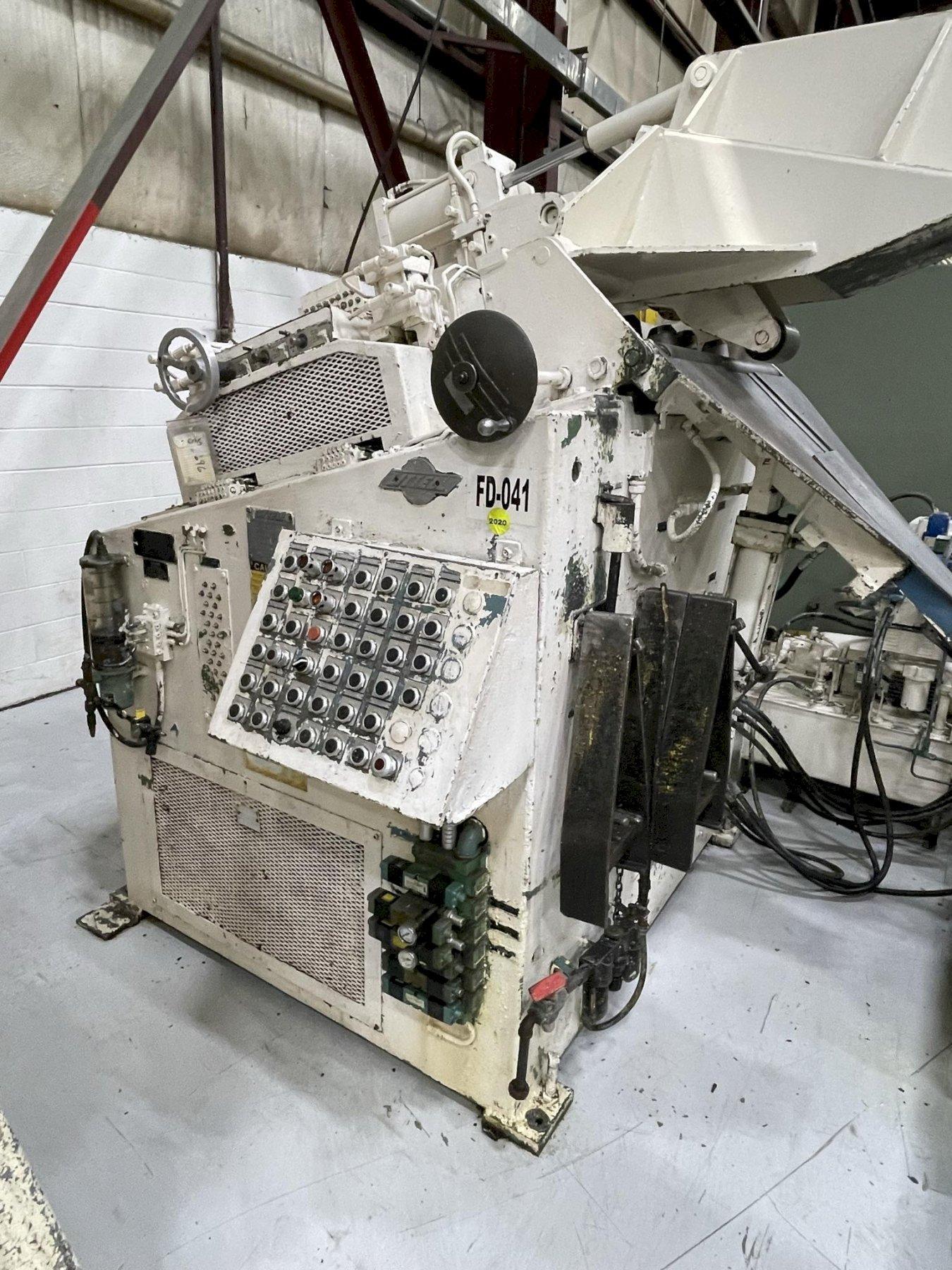

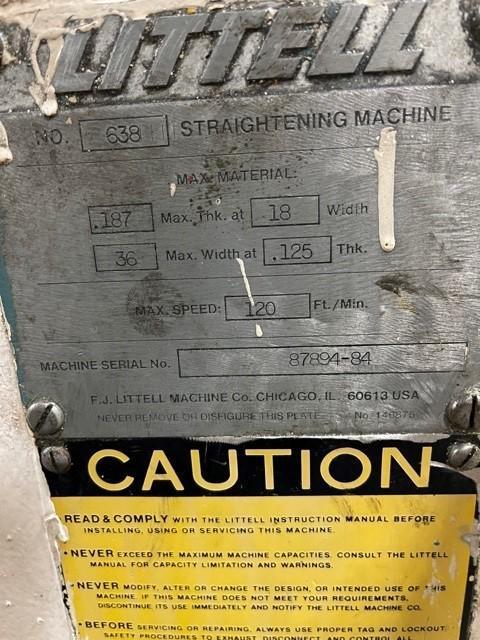

Littell Powered Coil Straightener Model# 638 Powered Straightener Serial No.: 87894-84
Entry and exit precision powered coil straightener pinch rolls x 6" diameter
Air operated precision powered coil straightener pinch roll adjustment
Seven coil straightening rolls x 5.25" diameter
Heavy duty back ups on on upper and lower coil straightening rolls
Bank type upper coil straightening roll adjustments
Dial depth indicators for upper coil straightening roll bank positioning
Motorized adjustment of precision powered coil straightener overshot roll
Adjustable stock width edge guides
Flat top precision powered coil straightener design
Coil hold down arm with non-motorized end wheel
Stock peeler table with spade extension
Integrated coil end de-bender
Variable speed drive
Jog forward and reverse
Auto/Run cycle
Loop control
Emergency stop
