600 ton Verson S2-600-108-54t Used Straight Side Mechanical Metal Stamping Press, New 1985. REC

Manufacturer

VERSON

Category

Presses

Type

PRESSES, STRAIGHT SIDE, DOUBLE CRANK, (Single Action)

Stock

2695

Model

S2-600-108-54t

Dealer Location

Michigan

Request a Quote
View Contact Information

Spec Sheet

Tonnage - 600
Stroke - 12 inches
Shut Height - 41.5 inches
Adjustment - 10 inches
Bed Size - 108" x 54"
Ram Area - 108" x 54"
SPM - 30-60 VSPM


Mechanical Recondition in Process - Will Be Complete 1st Quarter 2024

Standard Specification
Used Verson Press Model# S2-600-108-54t
600 ton Capacity
12" Stroke
41.5" Shut Height on Bed
10" Motorized Adjustment
108" LR x 54" FB Bed Area
108" LR x 54" FB Slide Area
30-60 Variable Strokes Per Minute

Equipment and Features
Air Clutch and Brake
Air Counterbalances
Recirculating Lube System
T-Slotted Ram and Bolster
8.5" Bolster Plate Thickness
Shut Height Indicator

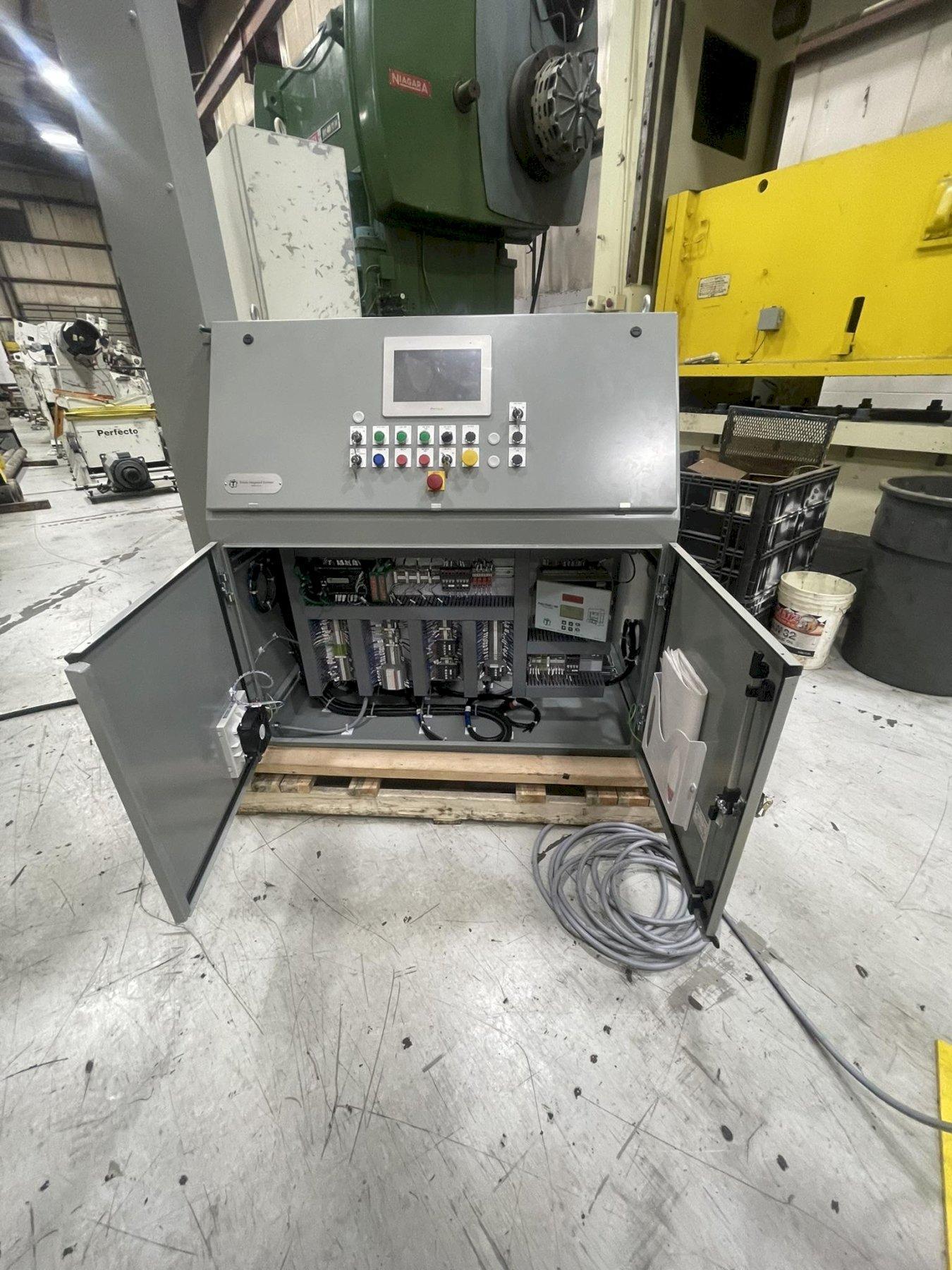

Wintriss Smart Pak Press Controls
Free Standing Console
38" Wide Windows
150 HP Main Drive Motor
Light Curtains
Hydraulic Tie Rod Nuts
Floor Standing

Press Weight:  168,200 lbs.

For complete scope of recondition work contact your sales professional.

This used 600 ton press an be inspected upon request at the S&G Press Livonia Michigan Warehouse!

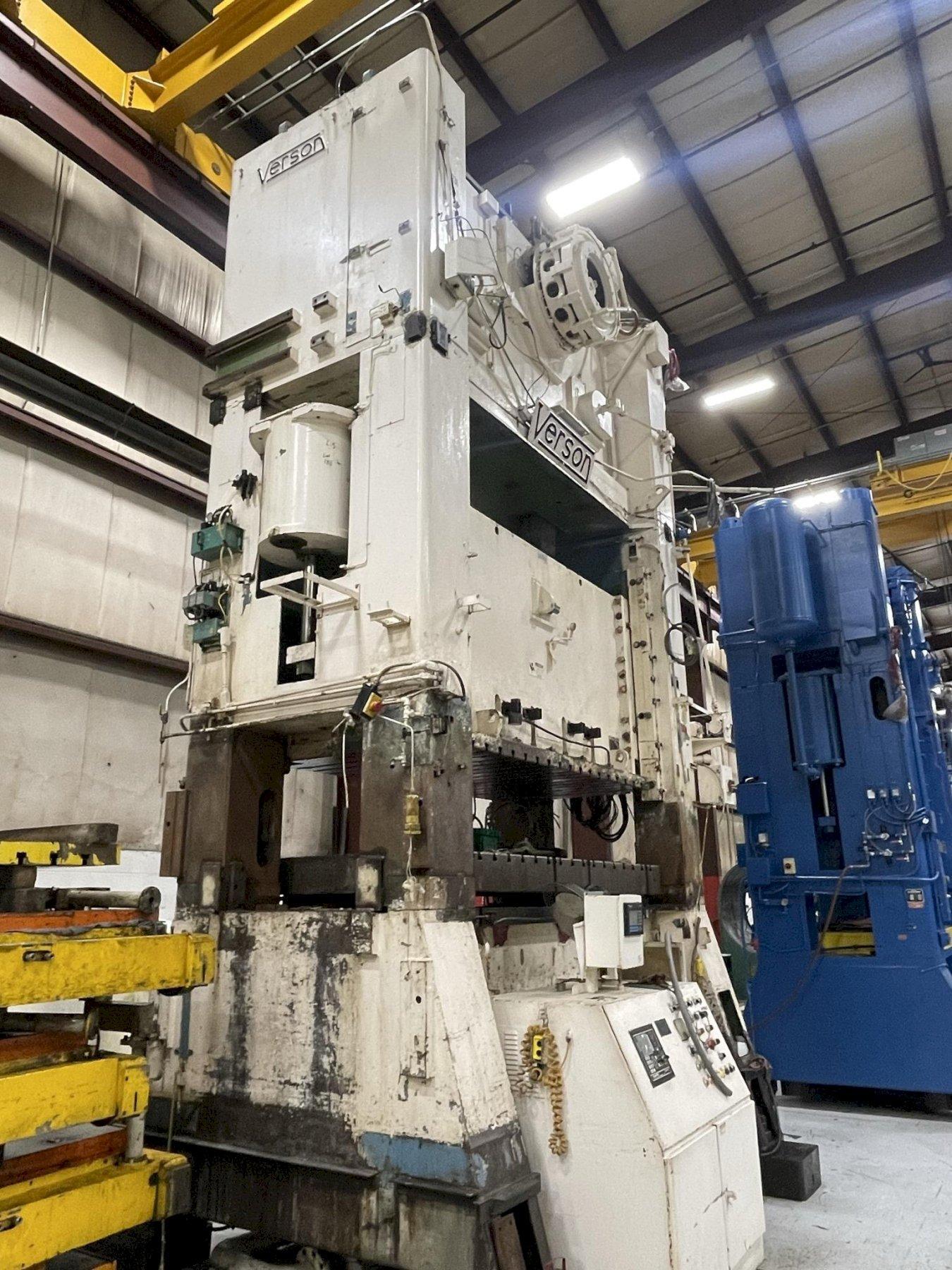

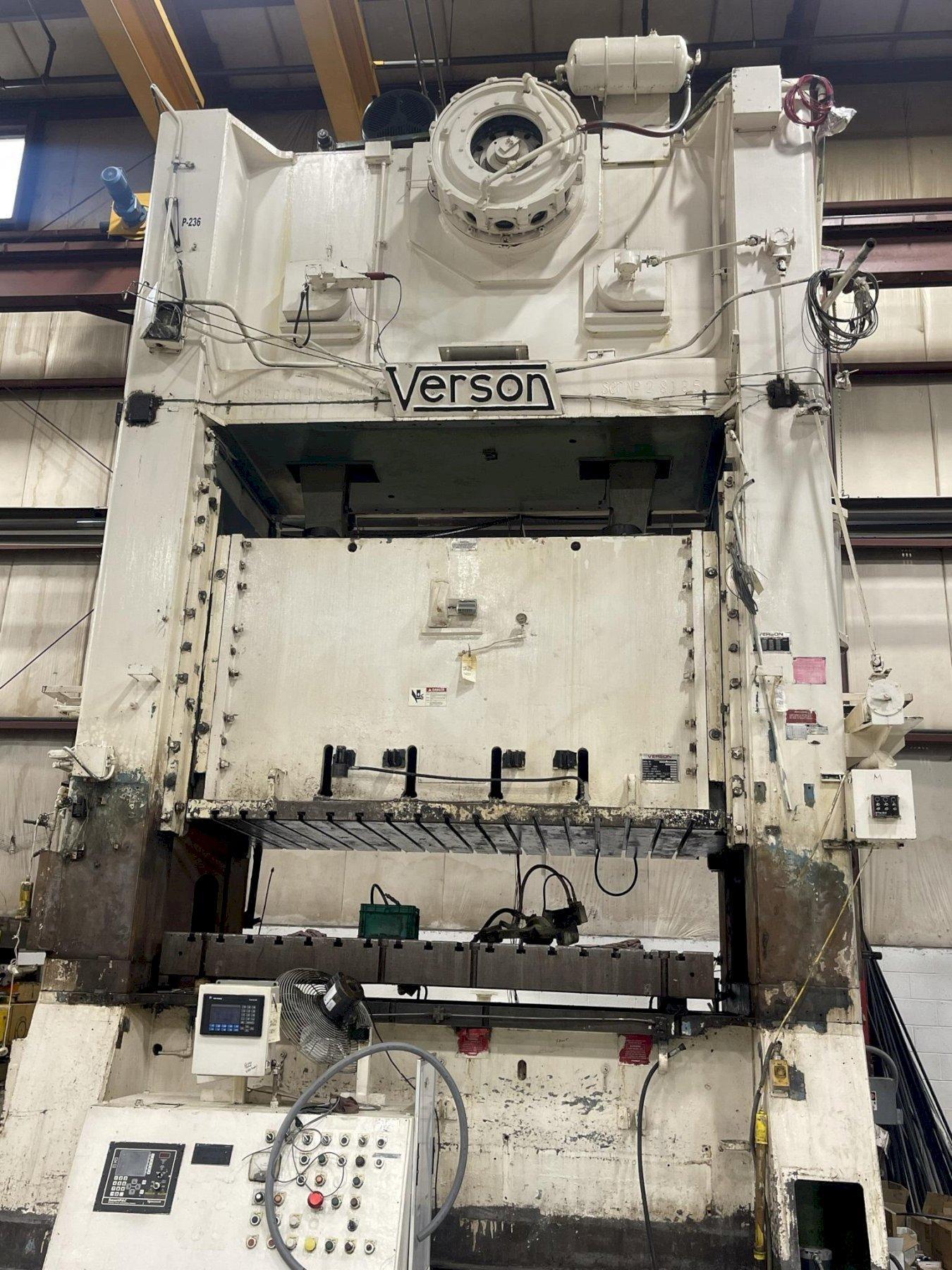

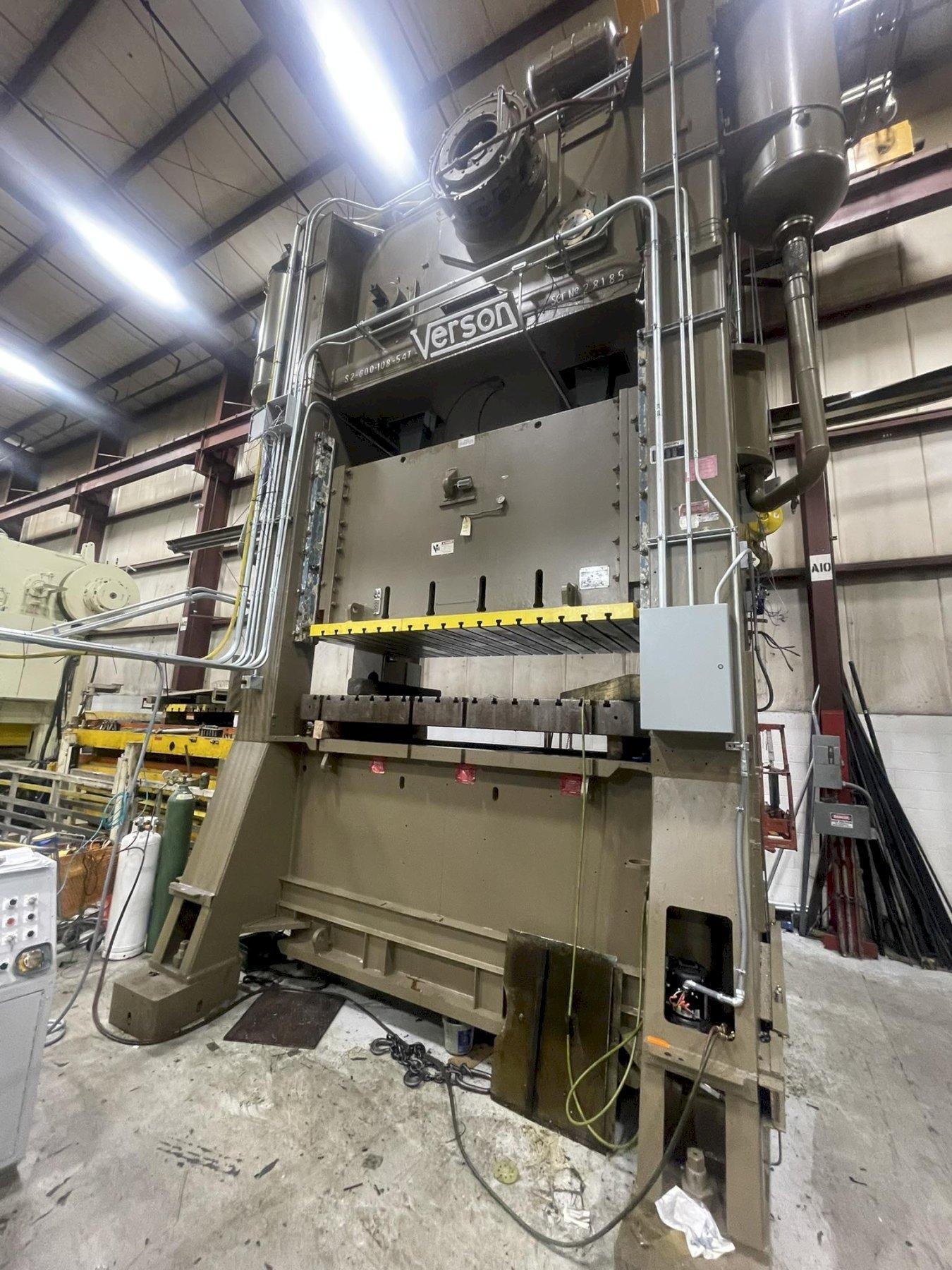

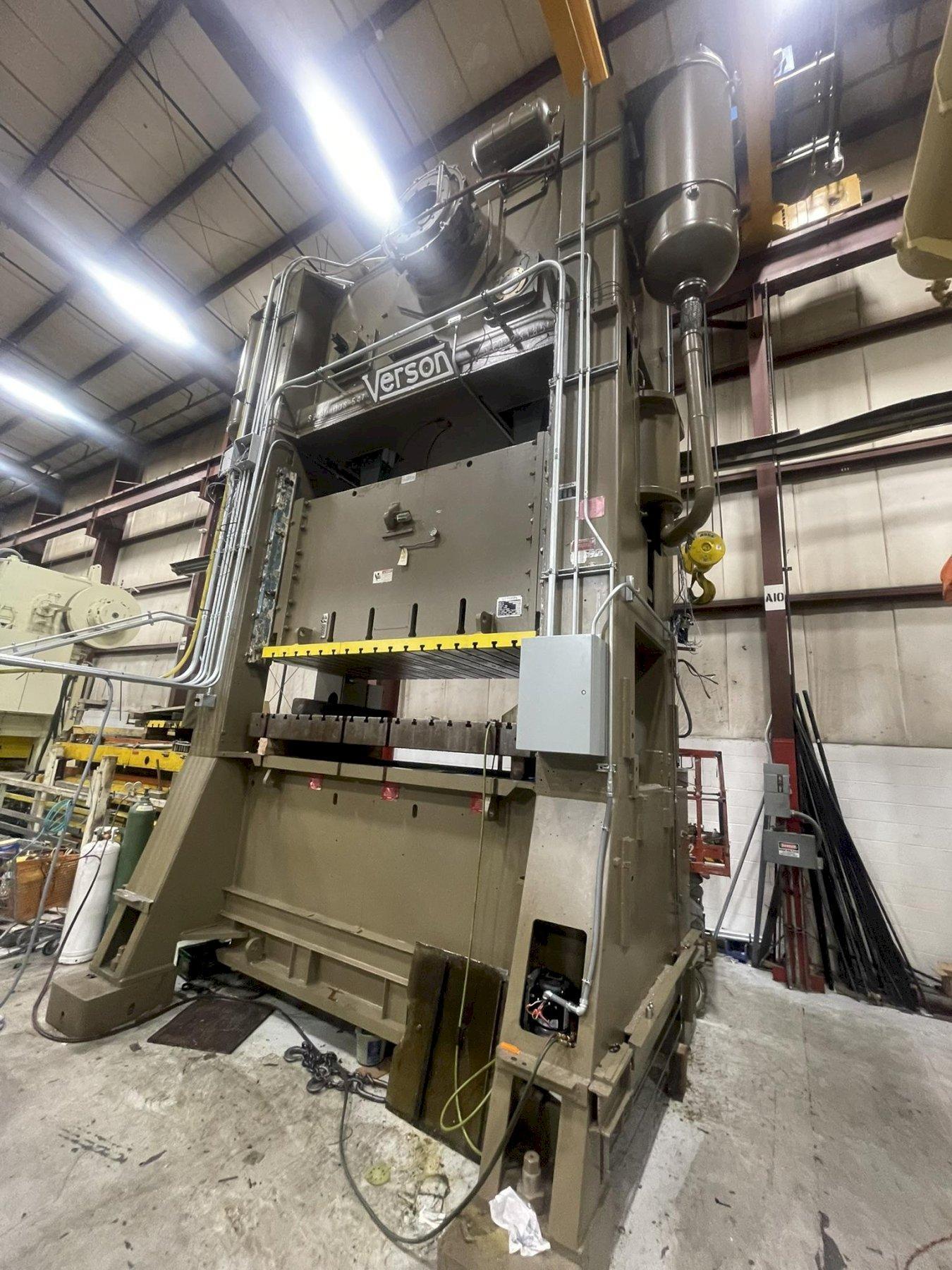

This featured used mechanical press is a 600 TON VERSON Press Model S2-600-108-54T Straight Side Mechanical Press, manufactured in 1985. This 600 ton press offers exceptional performance and reliability, making it an ideal choice for various metal stamping applications.

Used Straight Side Double Crank Mechanical Press For Sale
