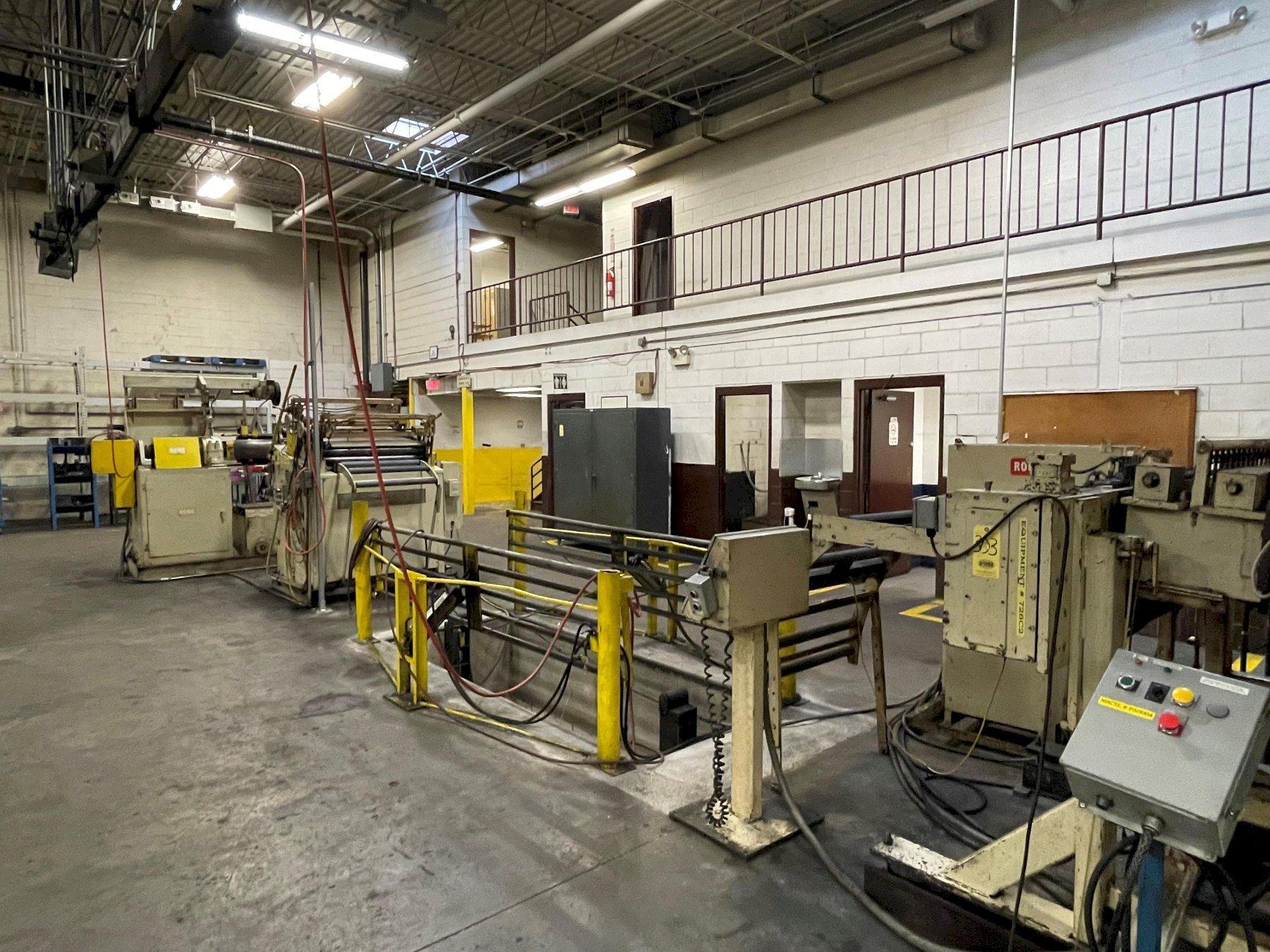

10,000 LBS. X 40" X .110" ROWE SERVO CONVENTIONAL COIL FEED LINE FOR METAL STAMPING

Manufacturer

ROWE

Category

Coil Processing Equipment

Type

COIL FEED LINES

Stock

2692

Model

10040-DSJ / C3-40 / PM-FDC-053-240

Dealer Location

Michigan

Request a Quote
View Contact Information

Spec Sheet

Coil Weight - 10000
Coil Width - 40
Coil Thickness - .110


10,000 lbs Coil Capacity
40" Coil Width Capacity
40” wide x .110” thick material
19.5” – 24.5” Coil I.D. Range
60" Coil O.D.

Equipment and Features:

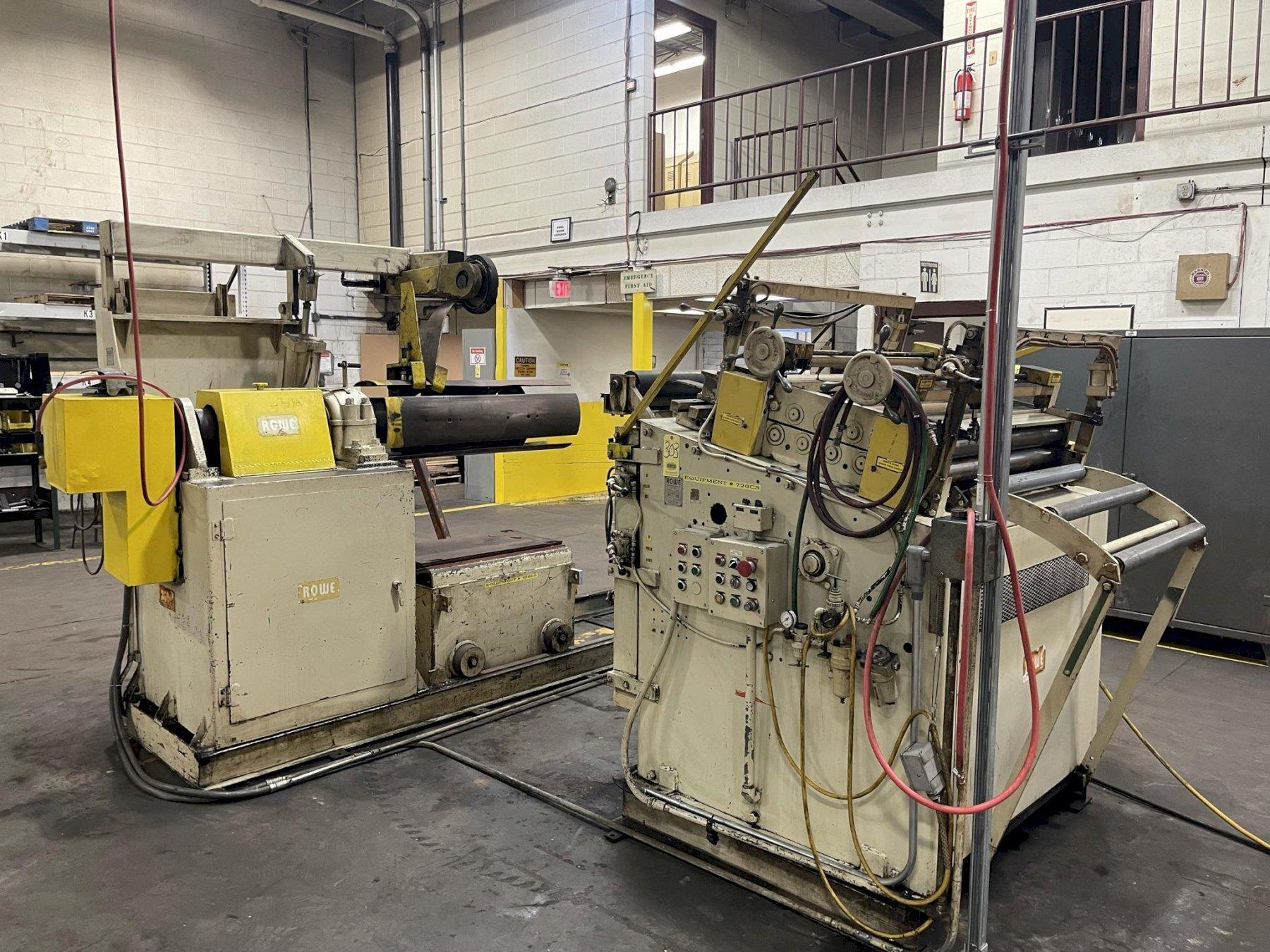

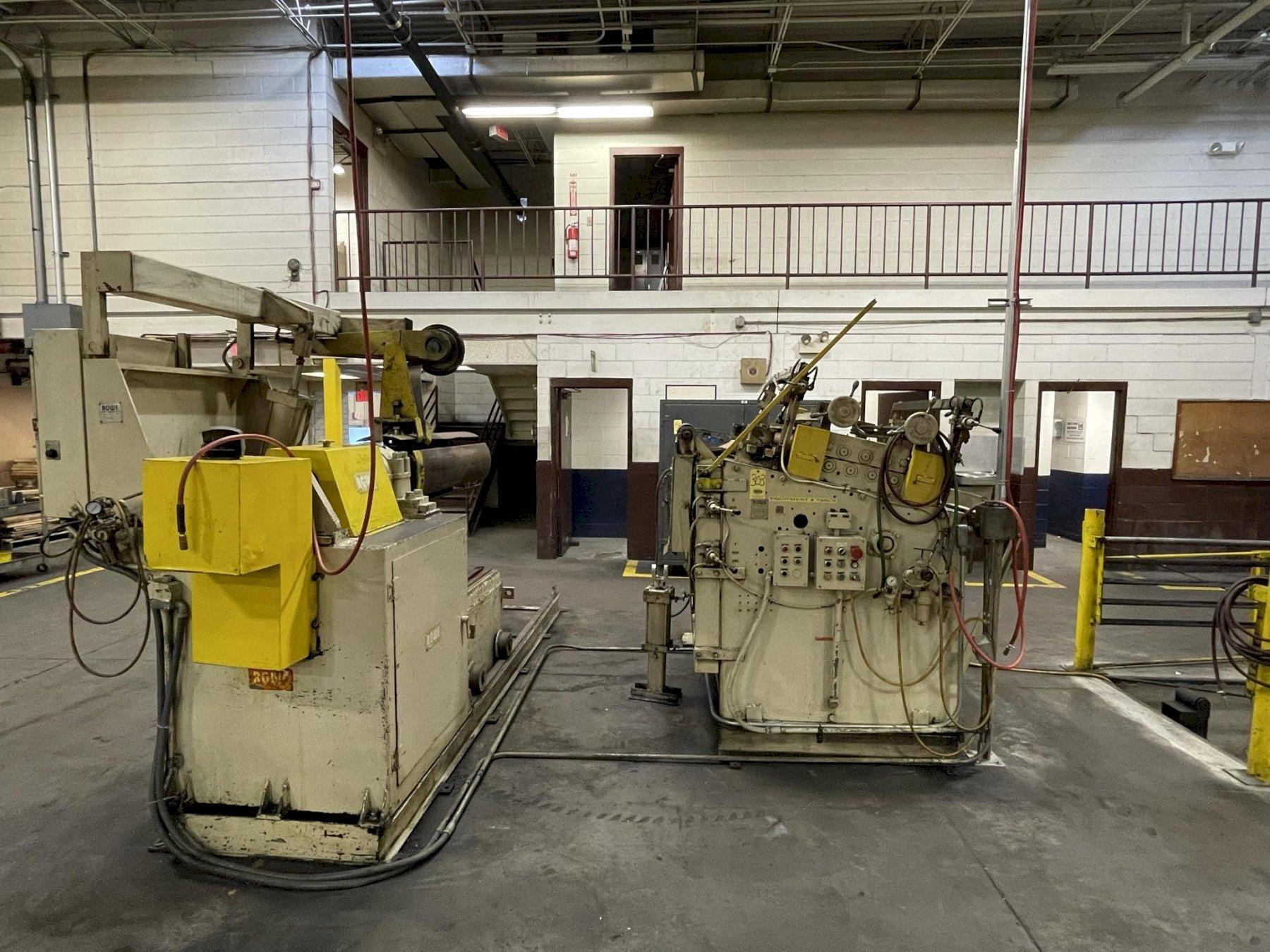

Rowe Non-Motorized Coil Reel

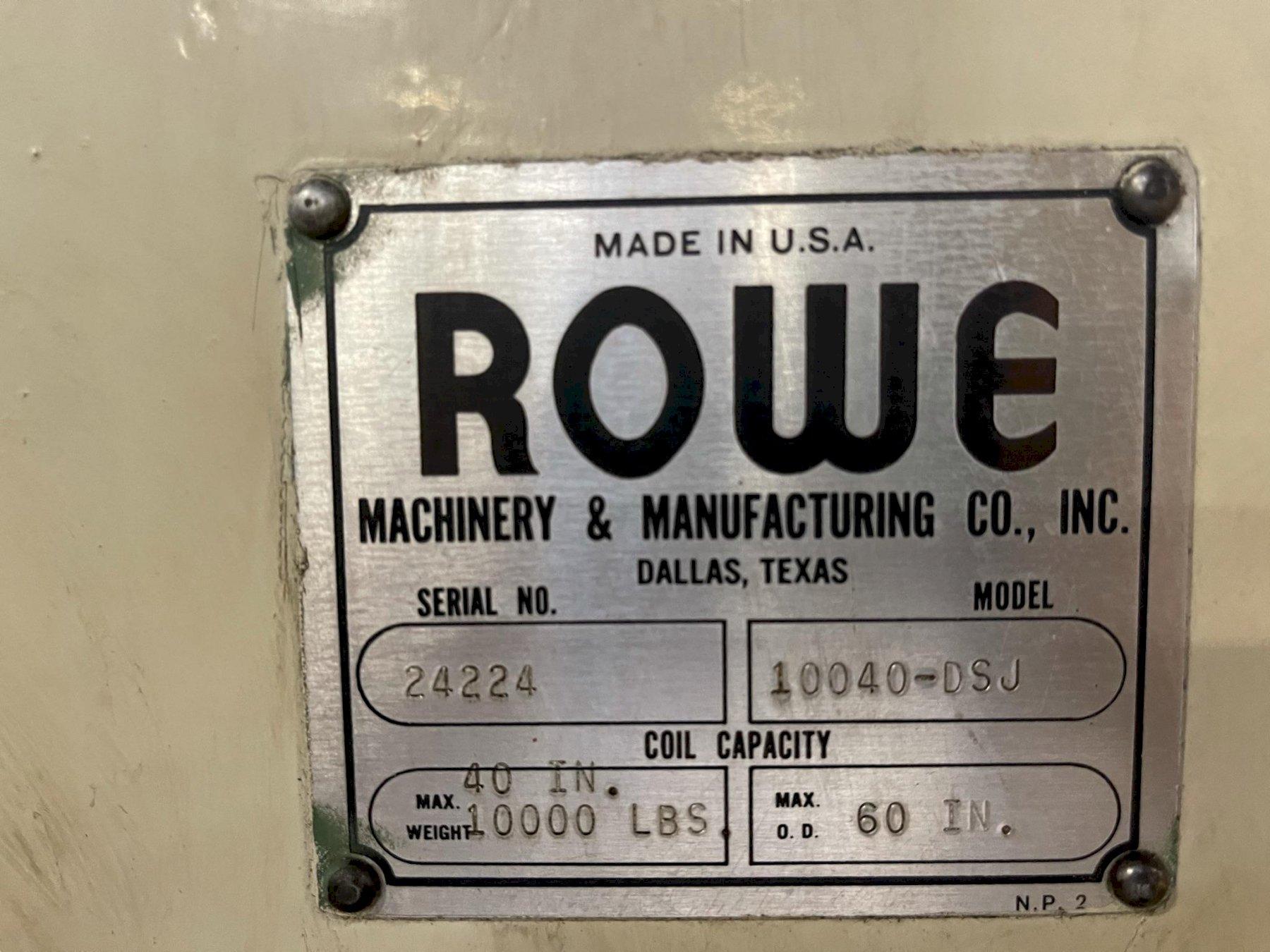

Model #: 10040-DSJ
Serial #: 24224
Hydraulically Actuated Hold Down Arm
Driven Spindle Jog Drive
Hydraulic Motor for Threading Material
Adjustable Air Brake
Pneumatic Brake w/ Regulator
Powered Thread Up Drive
4 Leaf Mandrel
60” OD Capacity
10,000 lbs Capacity Coil Car

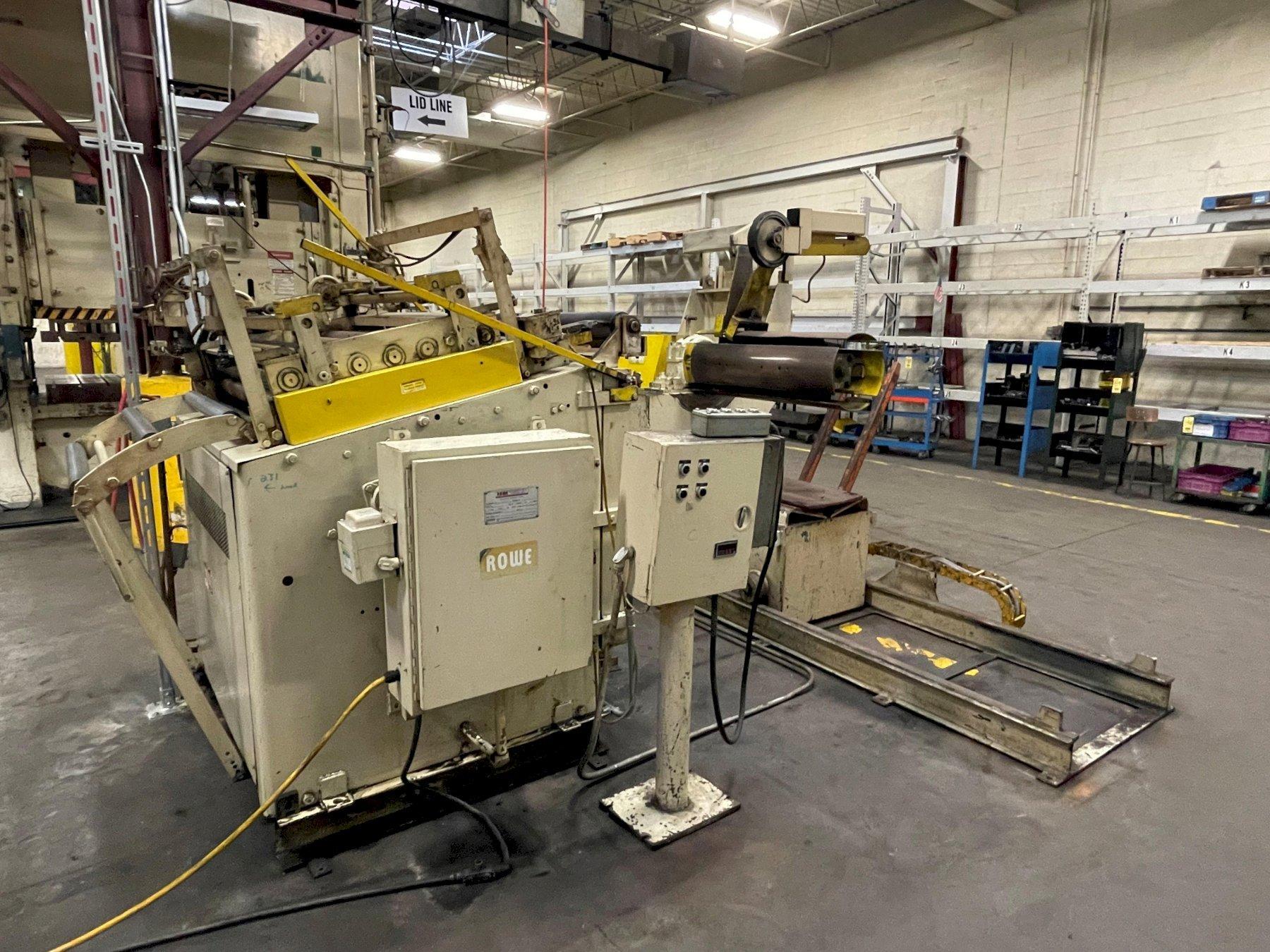

Rowe Powered Straightener

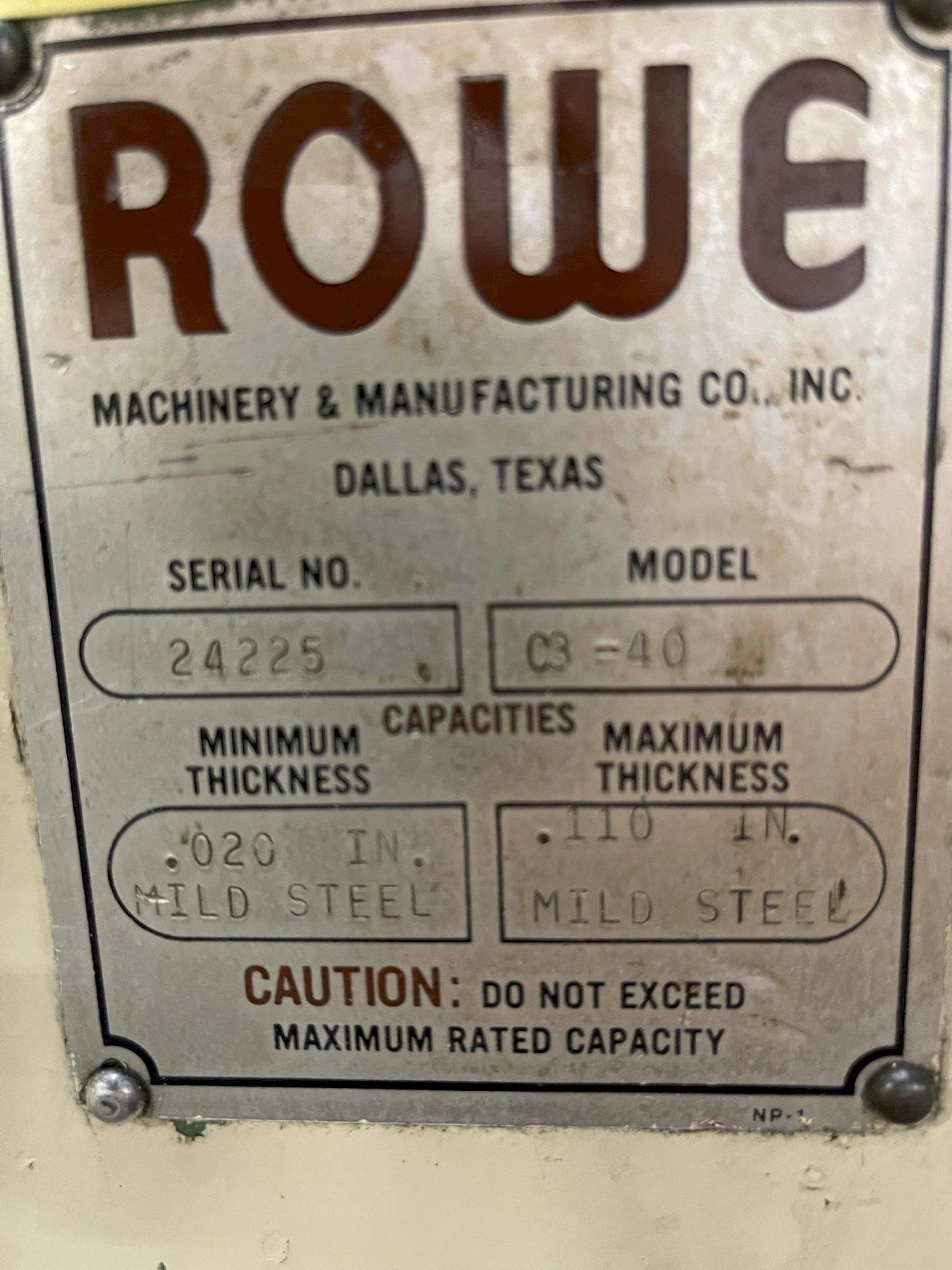

Model #: C3-40
Serial #: 24225
7 Roll Straightener
3” Diameter Straightening Rolls
4 Roll Coil Breaker Assembly
Capacity: 40” wide x 0.110” material
Peeler Threading Station
End of Stock De-bender
Entry and Exit Edge Guides
Exit Pinch Rolls
5 HP Motor
Exit Cascade Rolls

Rowe Bomb Bay Double Sided Thread Tables
Pneumatic Raise and Lower
Hand Valve Acuated

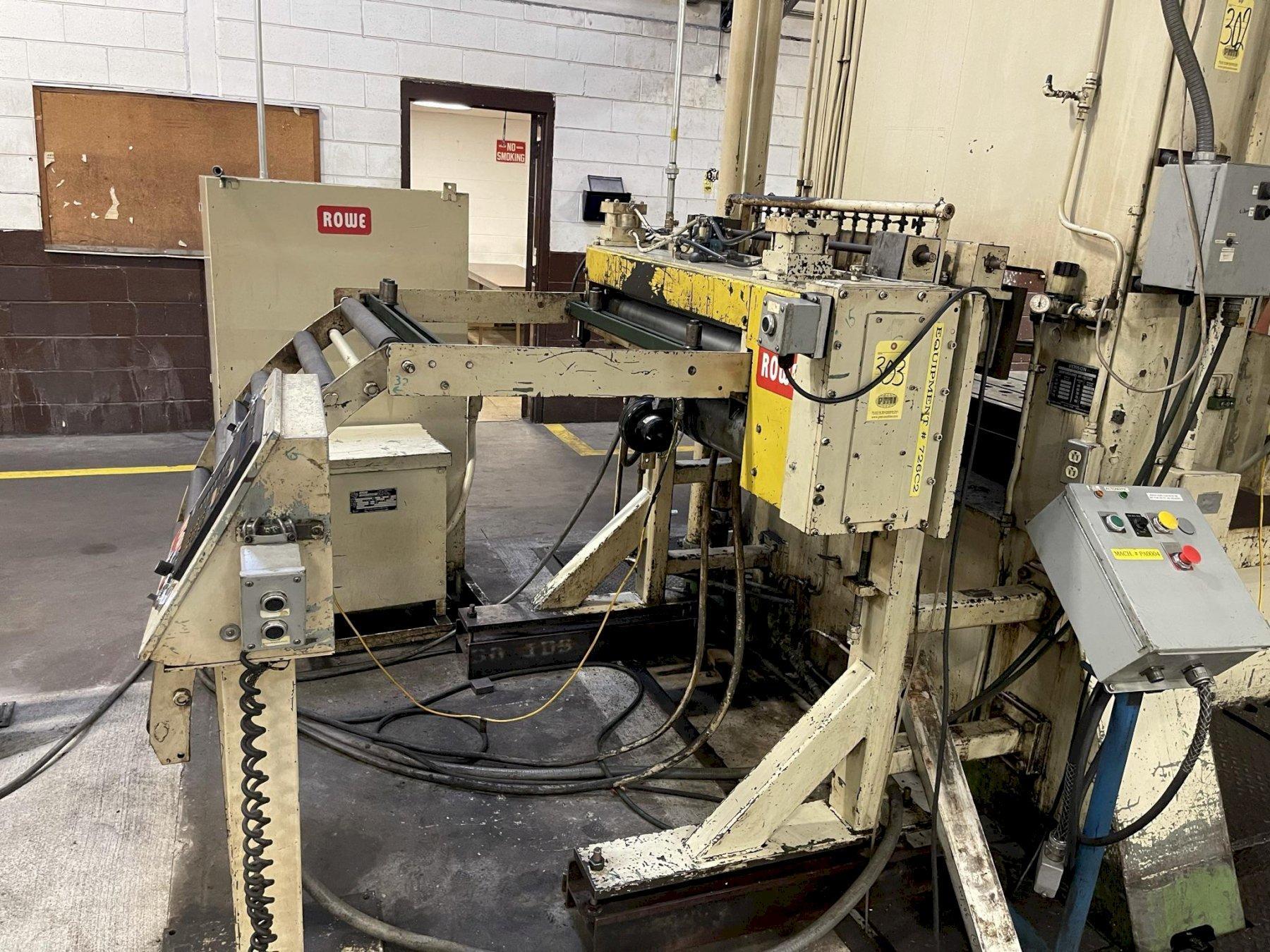

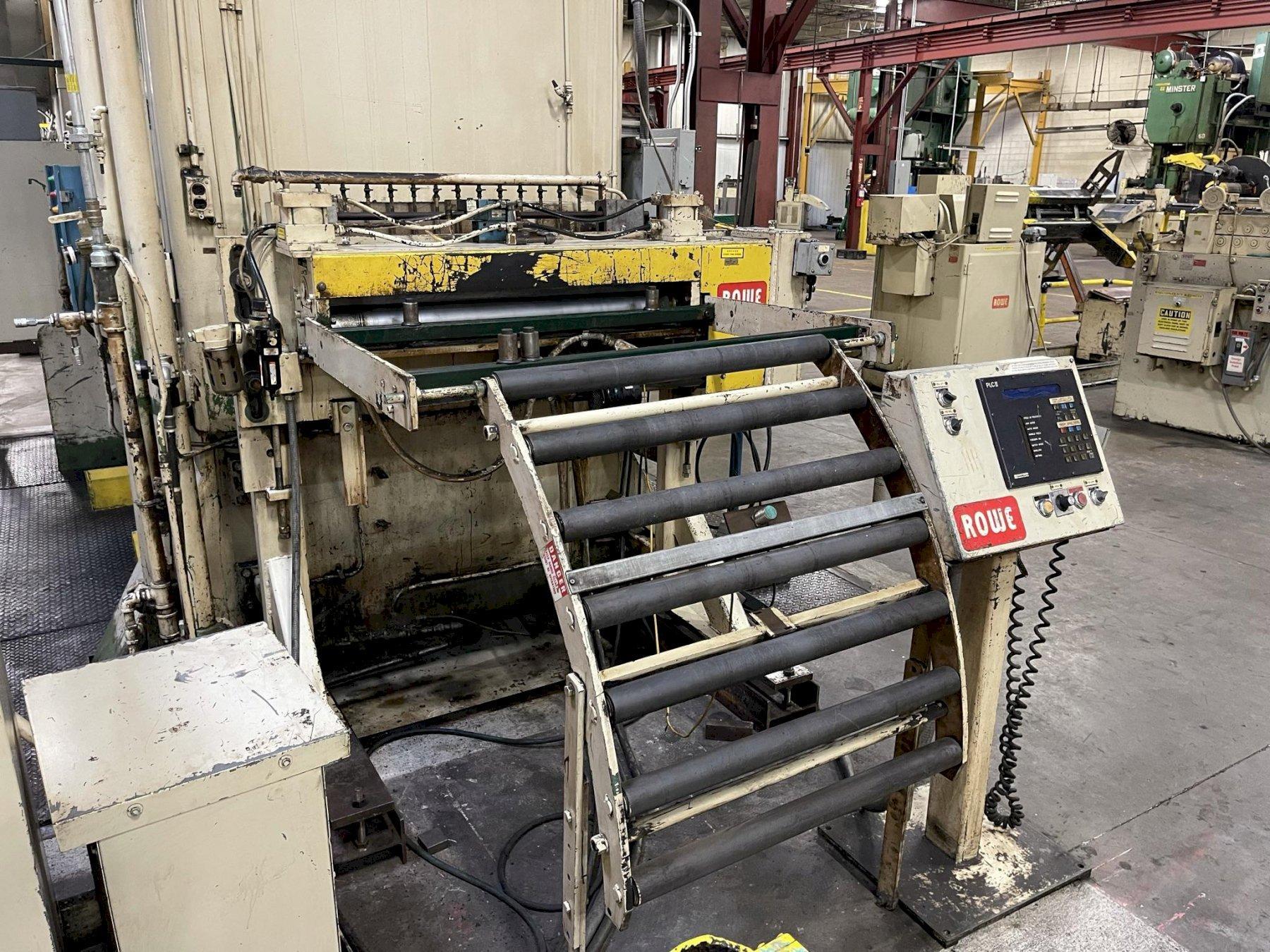

Rowe Cabinet Mounted Servo Feed
Model#: PM-FDC-053-240
Serial #: 27107
Entry Cascade Rolls
Pneumatic Pilot Release on Upper Feed Roll
Crank Adjustable Floor Mounted Pedestal (+/- 3)
Edge Guides
Loop Control
