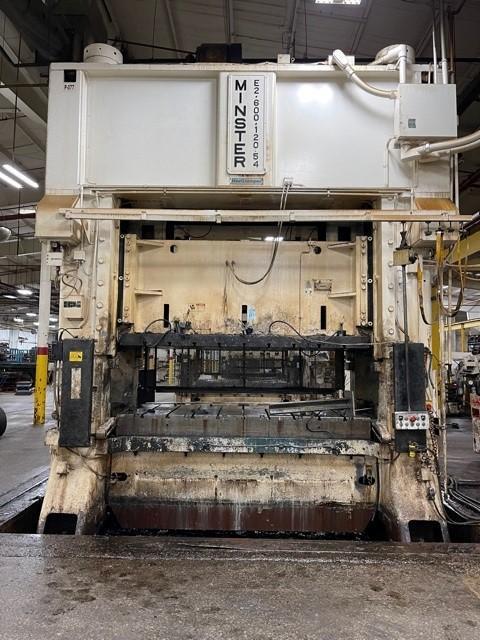

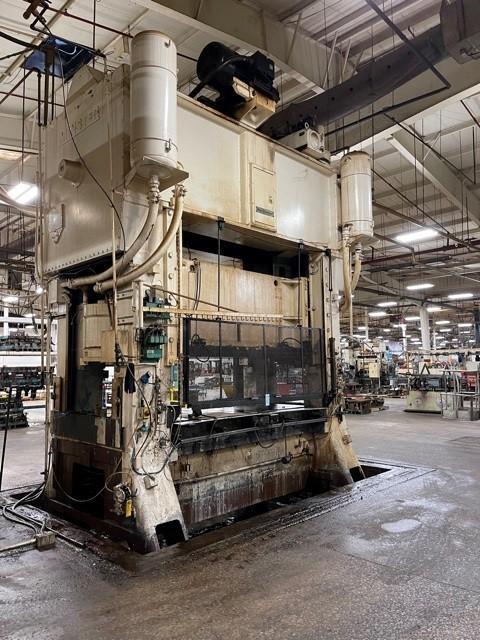

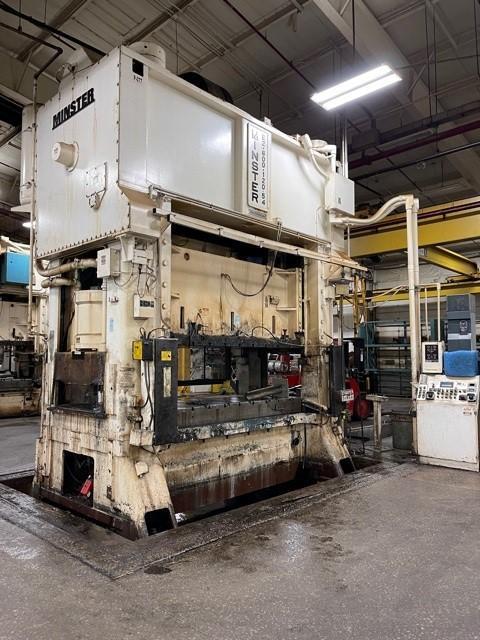

600 ton Minster E2-600-120-54 Hevi-Stamper Press, New 1992

Stock

2689

Model

E2-600-120-54 Hevi-Stamper

Dealer Location

Michigan

Spec Sheet

Tonnage - 600
Stroke - 14 inches
Shut Height - 43 inches
Adjustment - 6 inches
Bed Size - 120" x 54"
Ram Area - 120" x 54"
SPM - 0-60


Standard Specifications
600 ton Capacity
Model# E2-600-120-54 Hevi-Stamper
14" Stroke
43" Shut Height
6" Motorized Adjustment
120" LR x 54" FB Bed Area
120" LR x 54" FB Slide Area
0-60 VSPM

Equipment and Features
Combination Hydraulic Clutch and Brake
Air Counterbalances
Minster Monitor Flow Lubrication System
T-Slotted Ram and Bolster
48" Wide Windows
Micro Shut Height Indicator
Light Curtains
Hydraulic Tie Rod Nuts

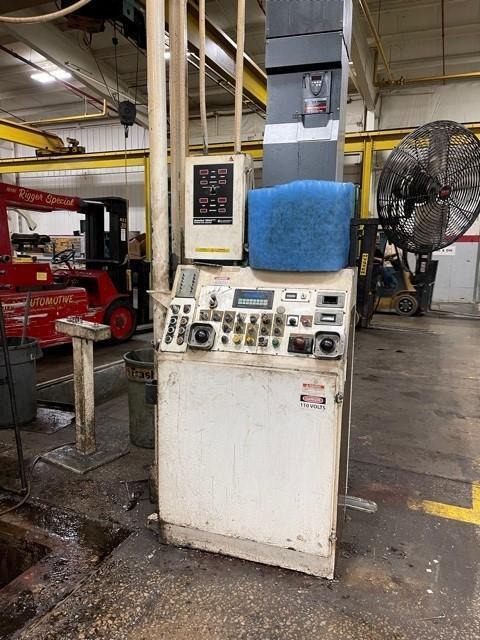

Free Standing Console Press Controls
Floor Standing Design

Overall Height:  21' 6" Tall
Foot Print:  173" x 112"

Can be inspected upon request in the S&G Press Livonia Michigan Warehouse!
