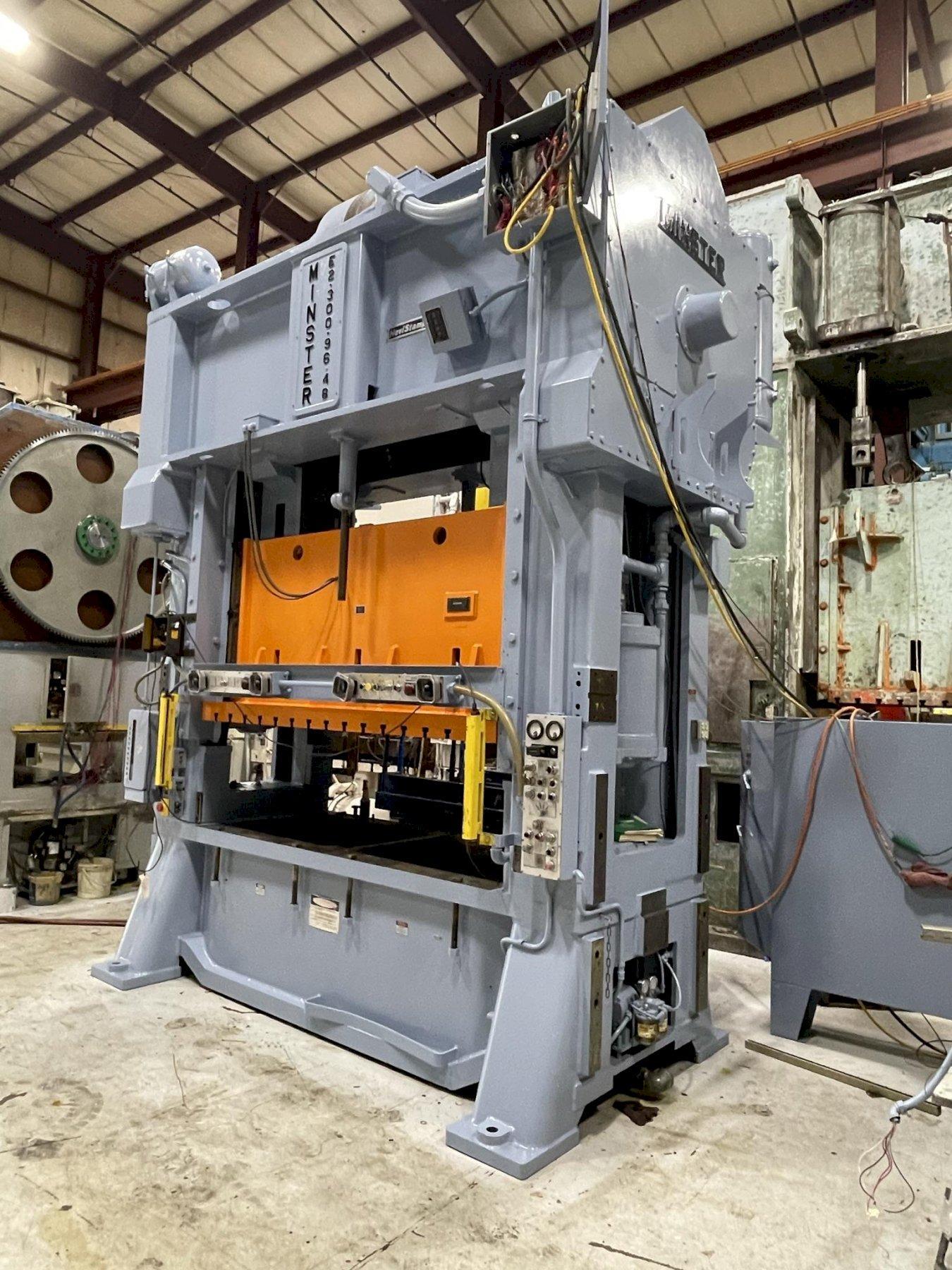

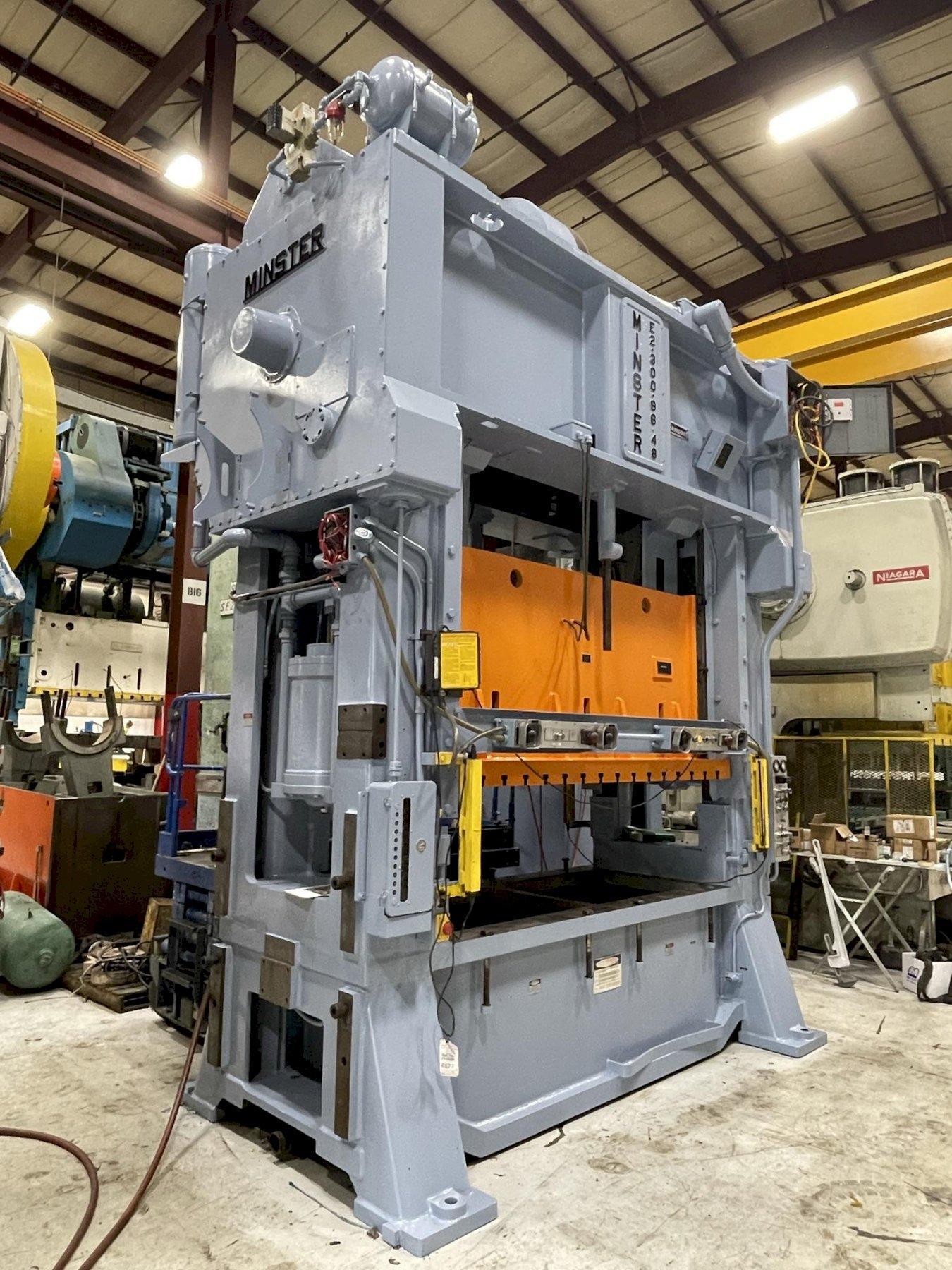

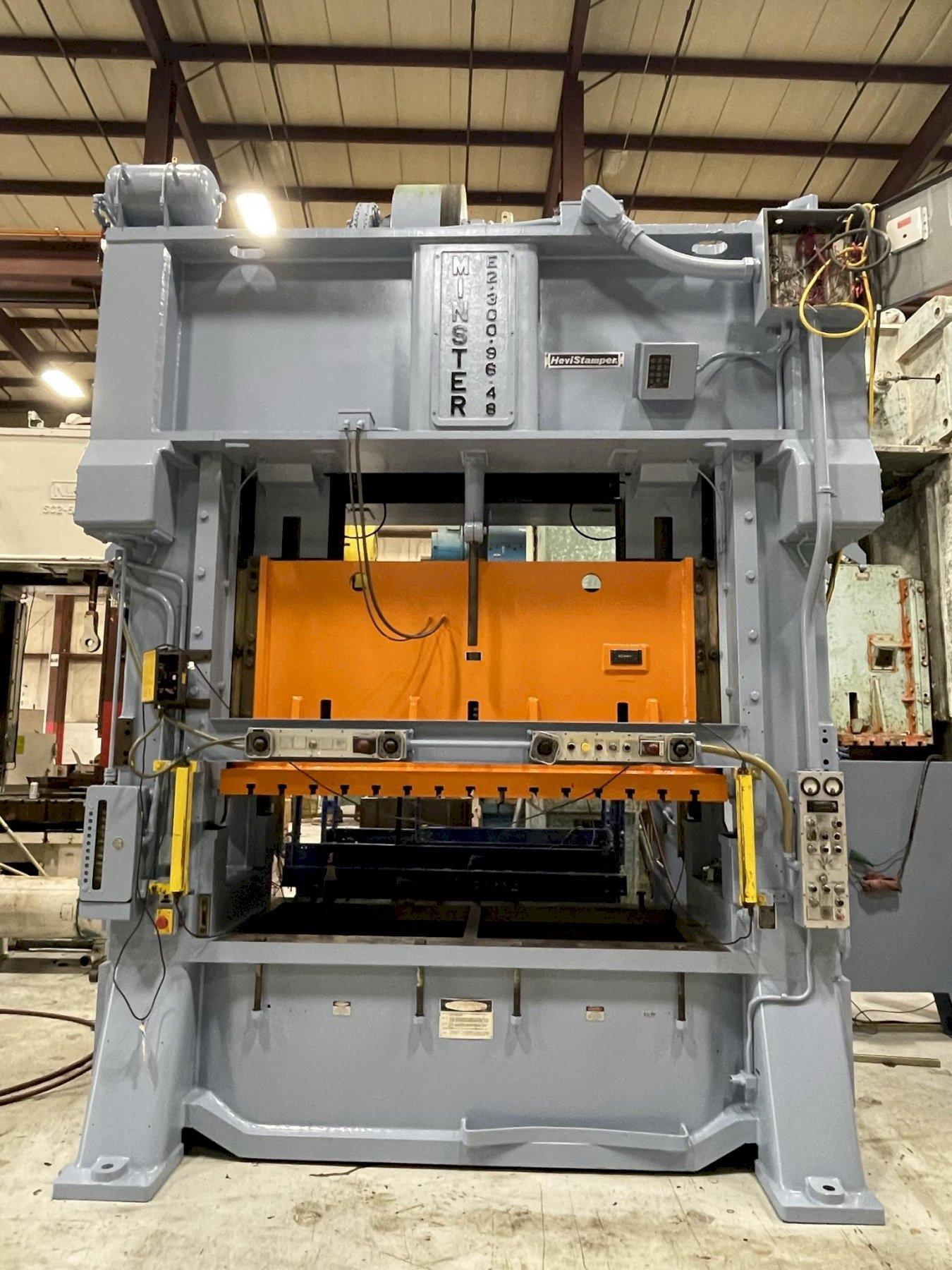

300 ton Minster E2-300-96-48 Hevi-stamper, Mechanical Metal Stamping Press, Year New 1983, Rebui

Stock

2687

Model

E2-300-96-48

Dealer Location

Michigan

Spec Sheet

Tonnage - 300
Stroke - 12 inches
Shut Height - 30 inches
Adjustment - 6 inches
Bed Size - 96" LR x 48" FB
Ram Area - 96" LR x 48" FB
SPM - 0-80 VSPM


Standard Specifications
300 ton Capacity
Model# E2-300-96-48
Serial Number E2-300-25609
12" Stroke
30" Shut Height
6" Motorized Adjustment
96" LR x 48" FB Bed Area
96" LR x 48" FB Slide Area
0-80 VSPM

Equipment and Features
Air Clutch and Brake
Air Counterbalances
Monitor Flow Recirculating Lube System
T-Slotted Ram and Bolster
Air Cushions - (2) 26.5 @ 100 PSI, 6" Stroke
28" Wide Windows
Palm Buttons
Floor Standing

Overall Height 210" Tall (17'6")

Can Be Seen Under Power Upon Request at the S&G Press Livonia Michigan Warehouse!

No Video Available
