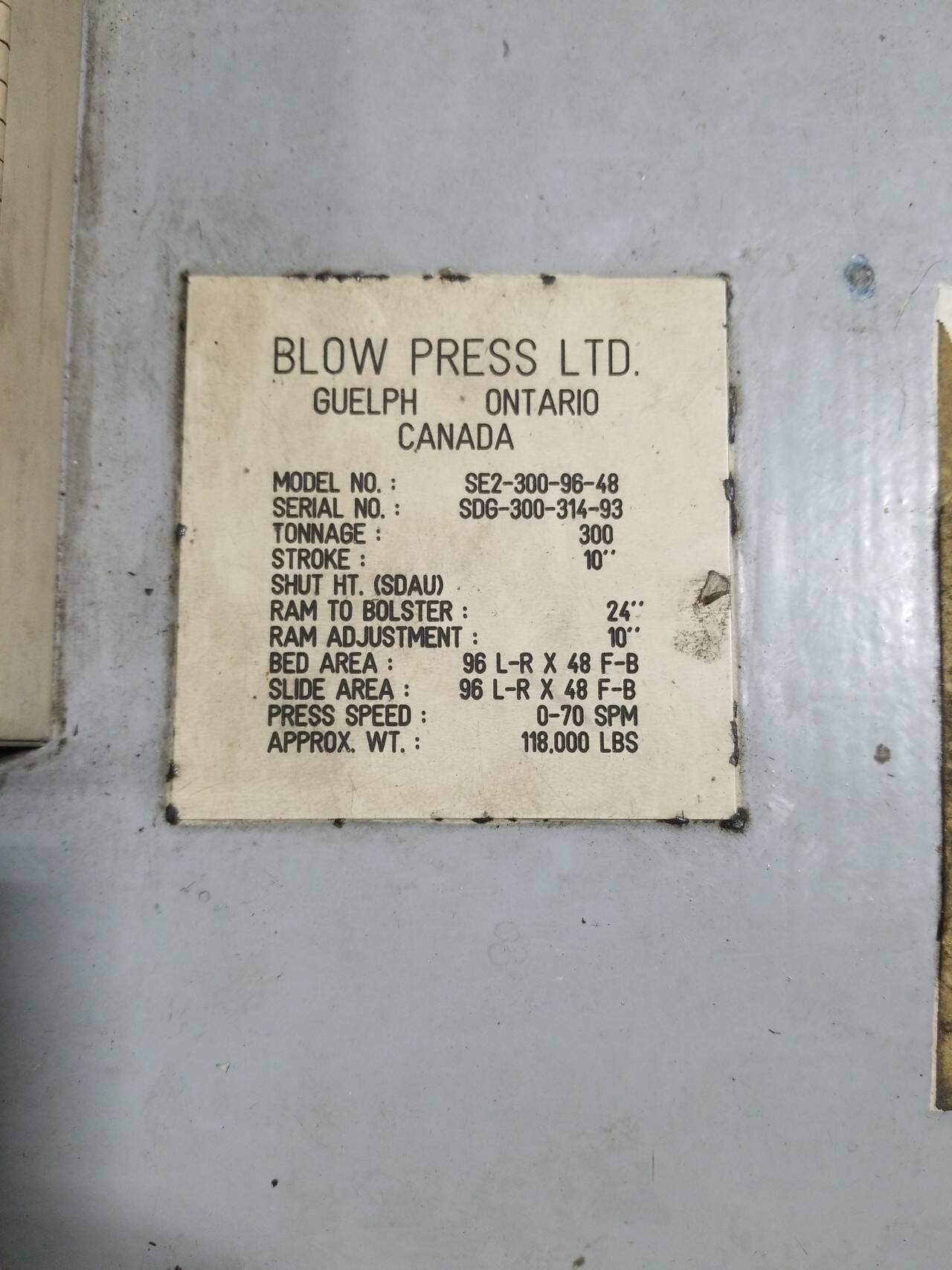

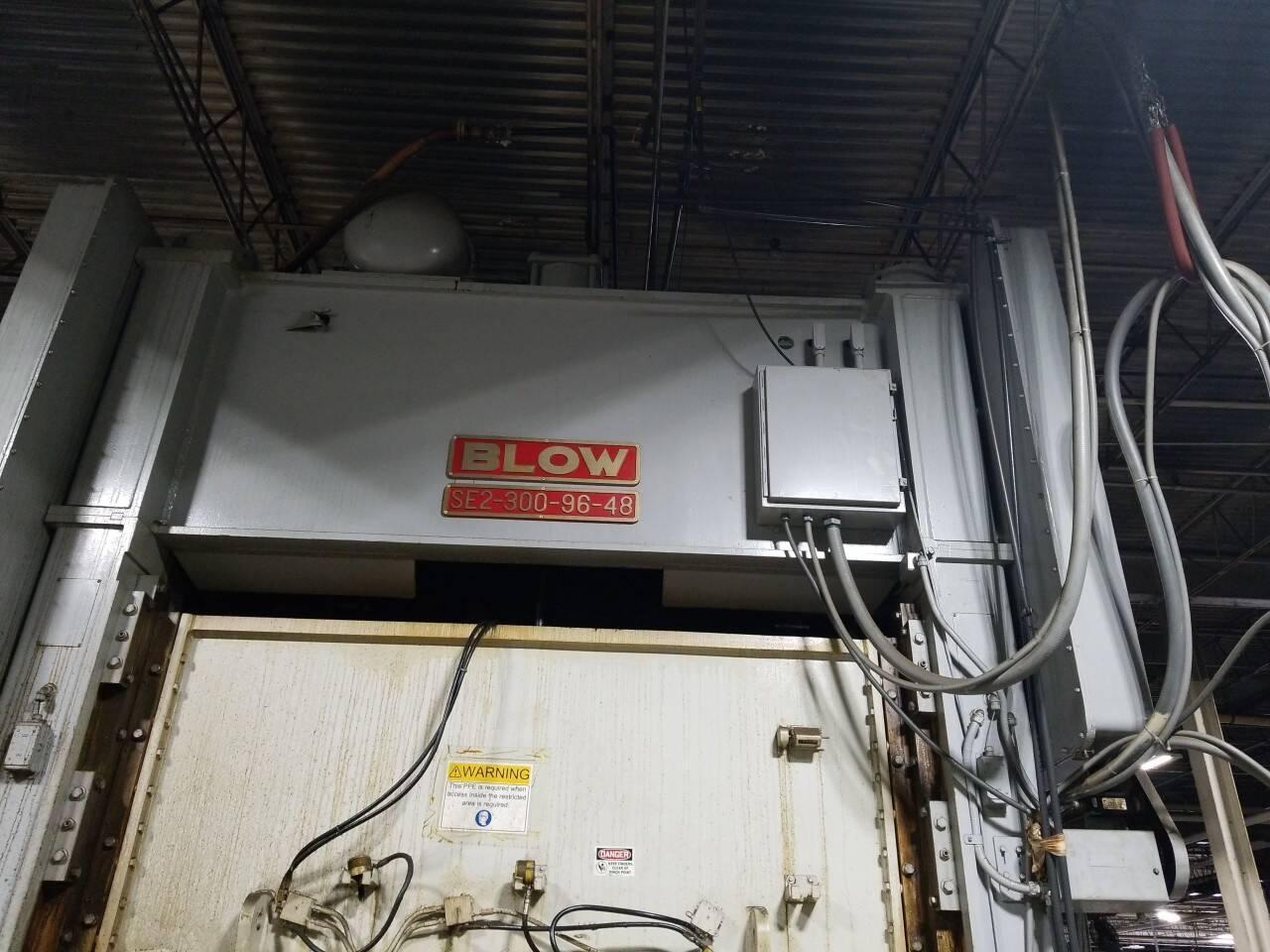

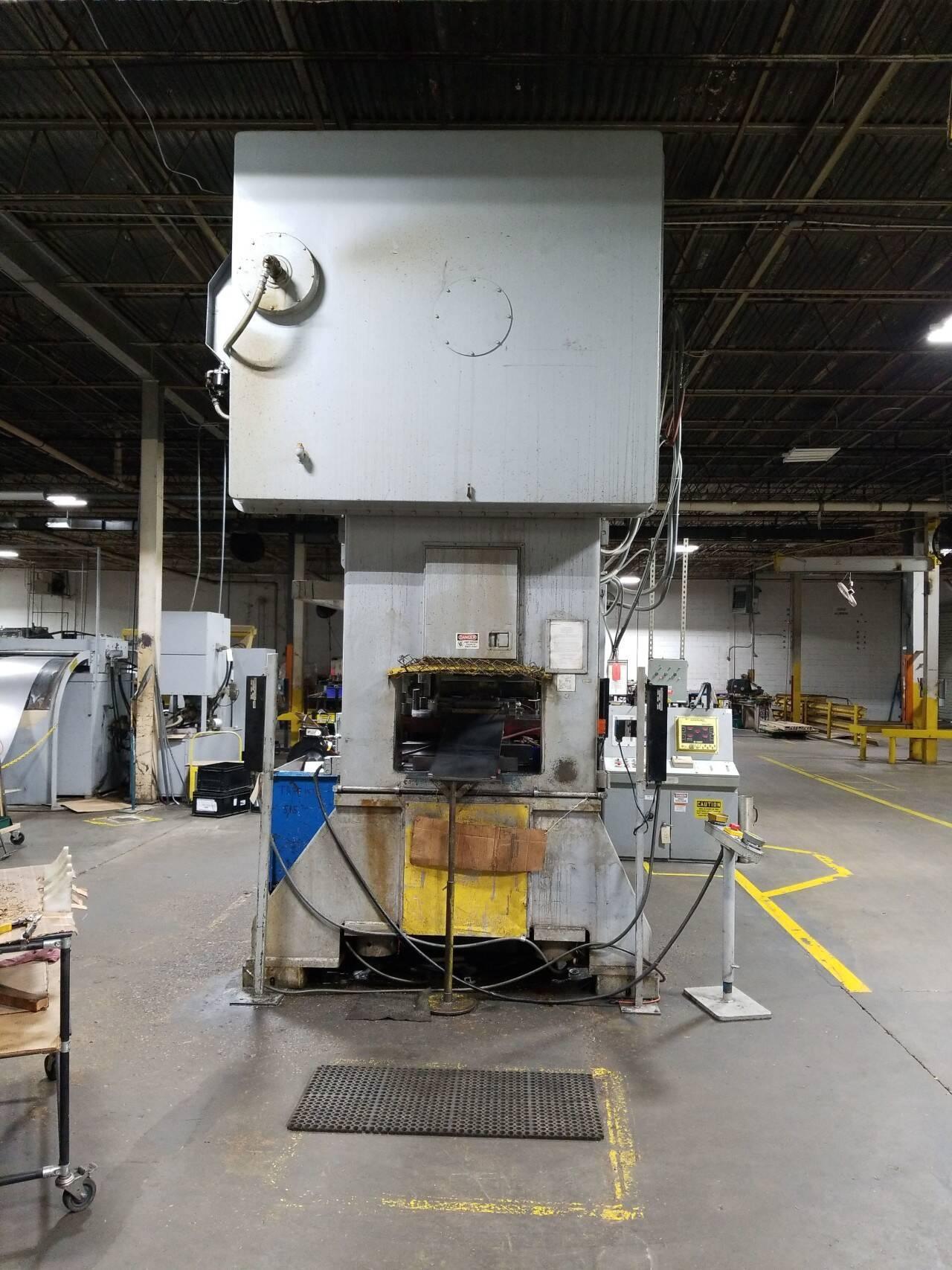

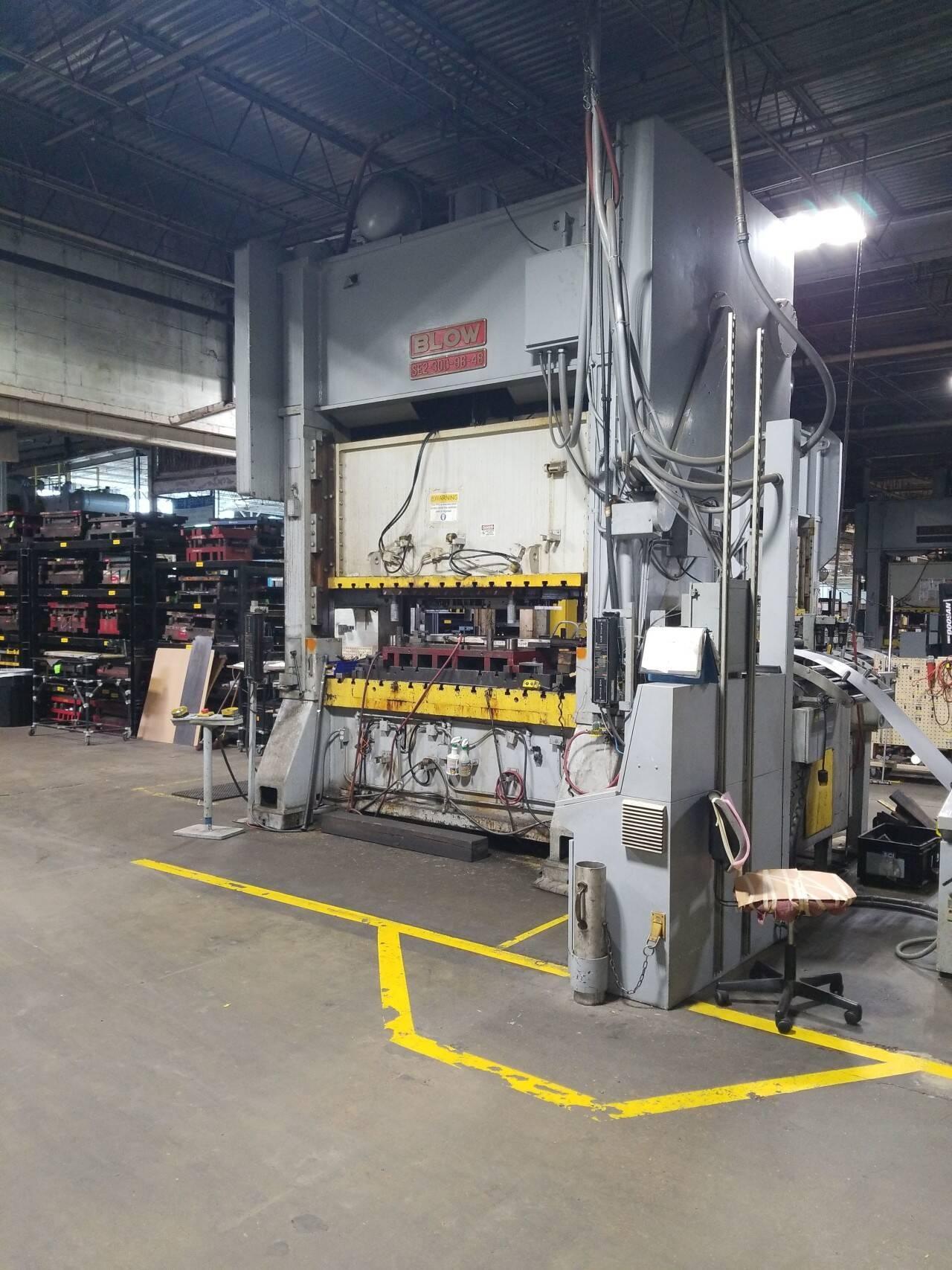

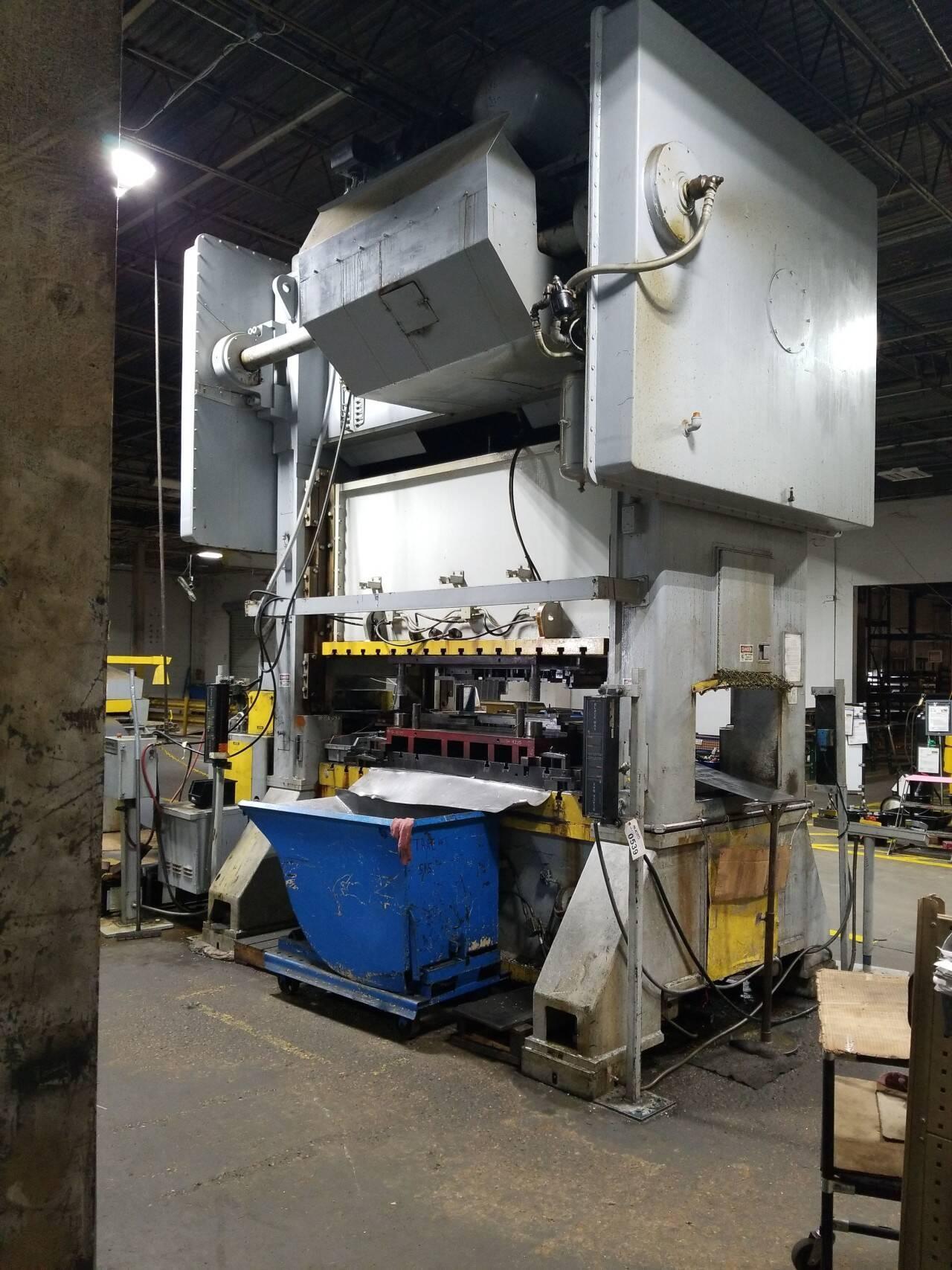

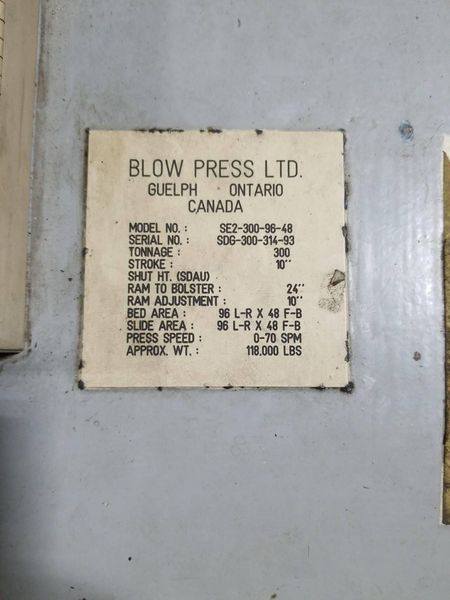

300 ton BLOW SE2-300-96-48 Straight Side Press

Stock

2686

Model

SE2-300-96-48

Dealer Location

Michigan

Spec Sheet

Tonnage - 300
Stroke - 10 inches
Shut Height - 30 inches
Adjustment - 10 inches
Bed Size - 96" LR x 48" FB
Ram Area - 96" LR x 48" FB
SPM - 0-70


Standard Specifications
300 ton Capacity
10" Stroke
30" Shut Height
24" Die Height on Bolster
96" LR x 48" FB Bed Area
96" LR x 48" FB Slide Area
0-70 VSPM

Equipment and Features
Air Clutch and Brake
Air Counterbalances
Recirculating Lube System
T-Slotted Ram and Bolster
Link Press Controls
Omni Link Light Curtains
6" Thick Bolster Plate
Helm LoadGard Trend Series 4

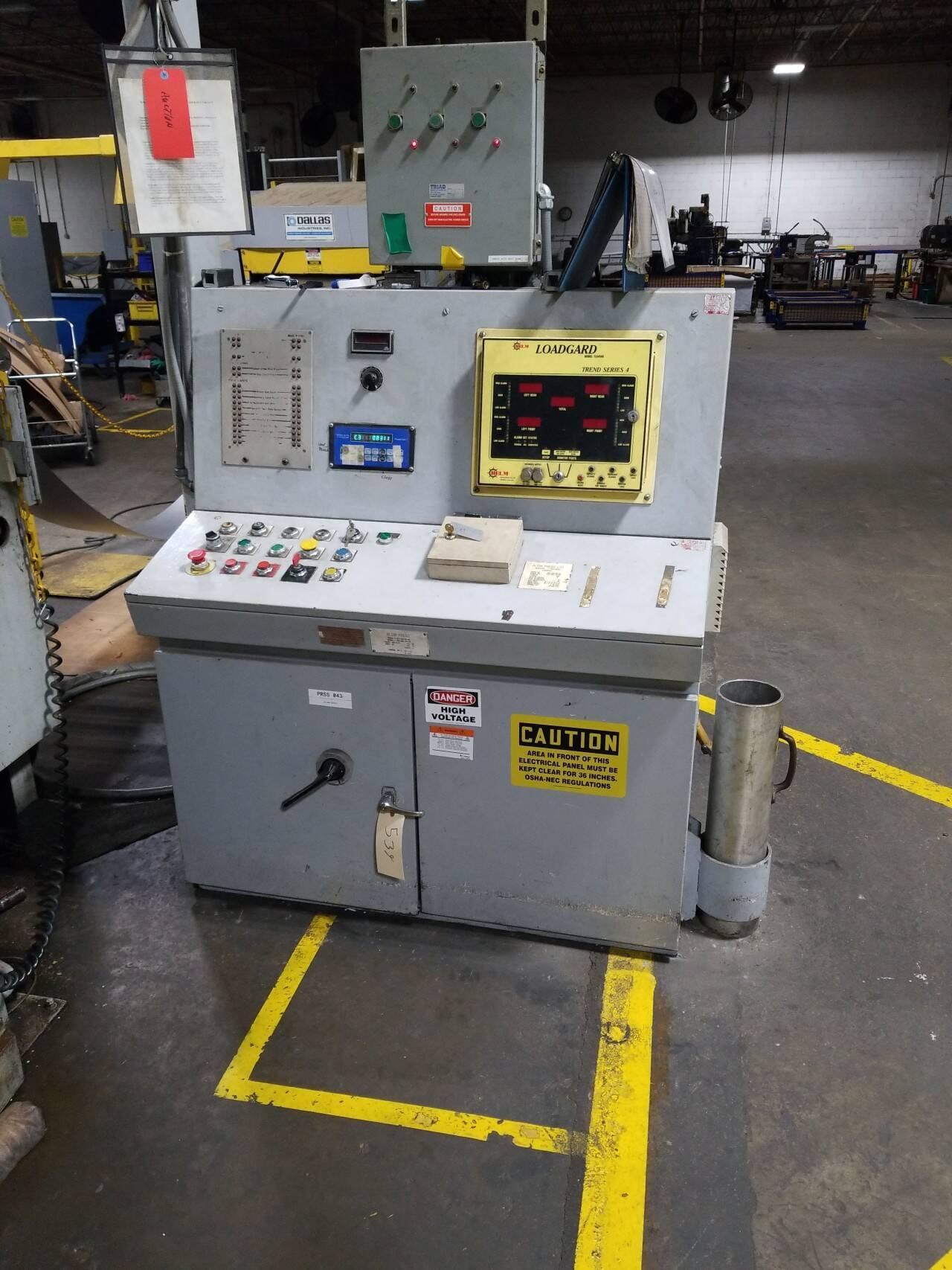

Free Standing Console Controls
42" Floor to Top of Bolster
Twin End Drive
32" Wide Windows
Floor Standing

191" Max Overall Height
129" x 88" Footprint
118,000 lbs Overall Weight

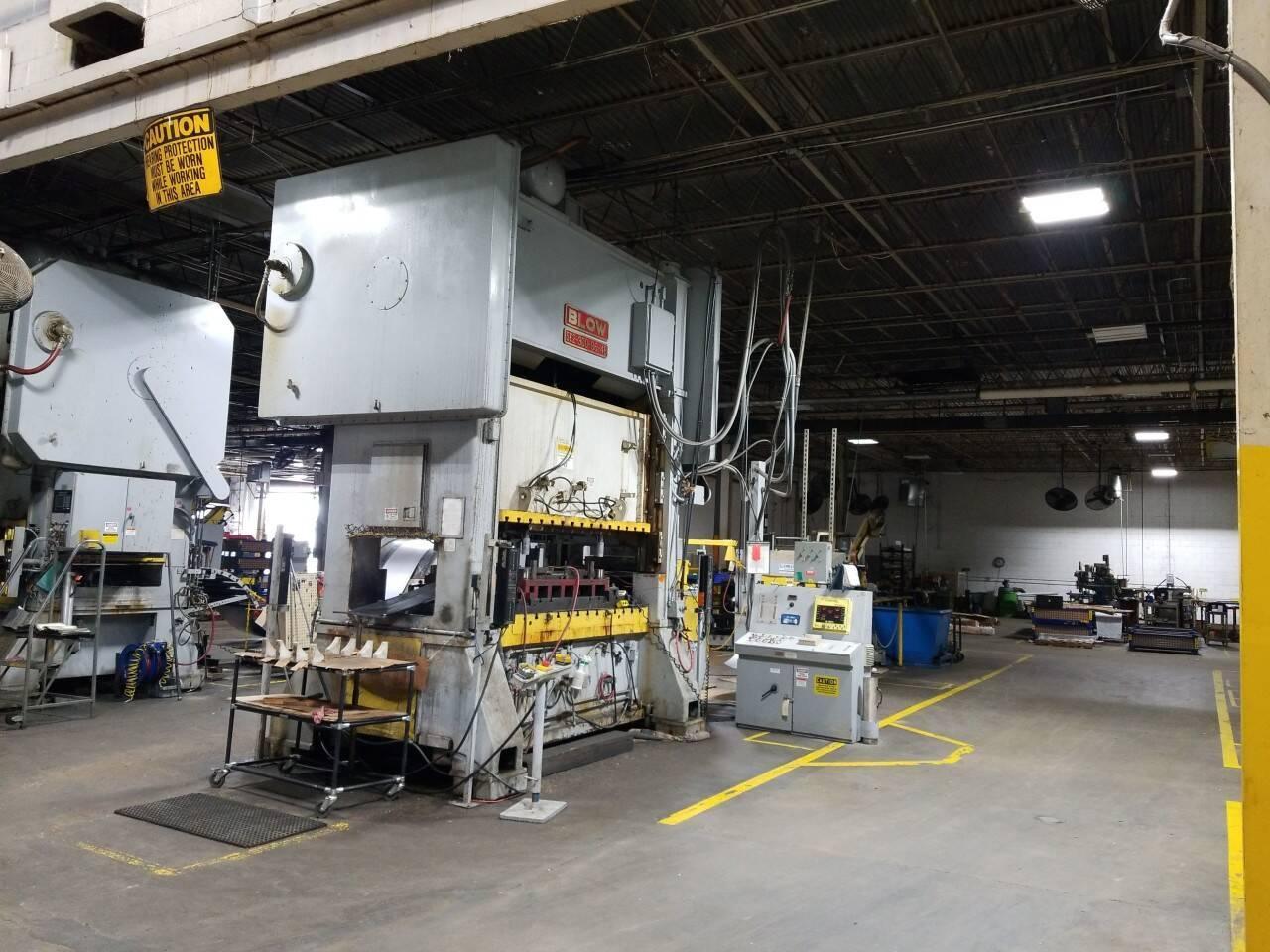

Can be seen under power in the S & G Press Livonia Warehouse!
