78" x 236" PD 2000/6000CM, 63" O.C, 500 RPM, 44" Bed Width, 55,000 Lb Weight Cap., Fagor 8055 CNC, 2021, #31643

Manufacturer

Strugovi Potisje

Category

Lathes

Type

LATHES, ENGINE

Stock

31643

Model

PD 2000/6000 CM

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #31643

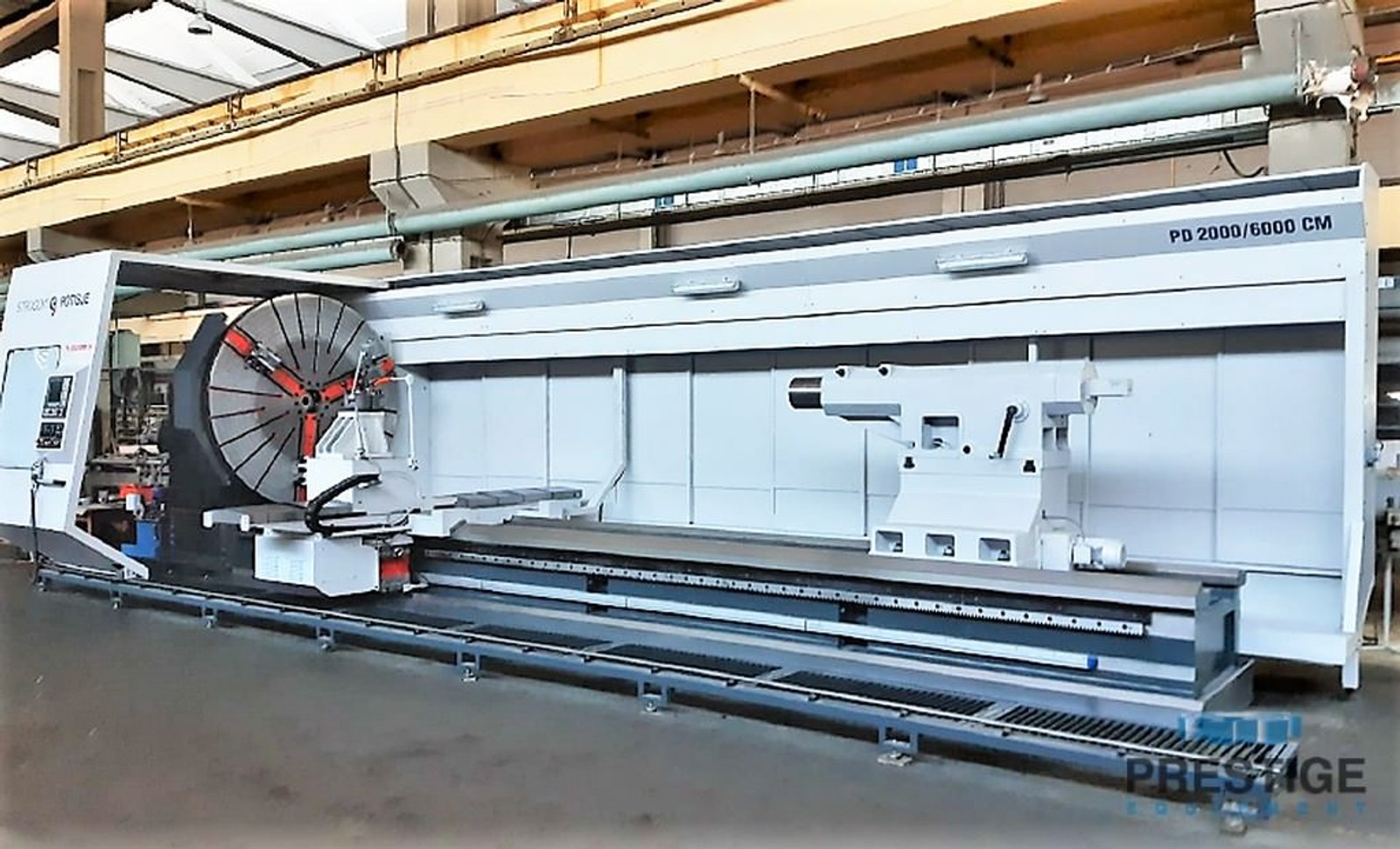

78" x 236" Strugovi Potisje PD 2000/6000 CM CNC Heavy Duty Lathe

FEATURES:

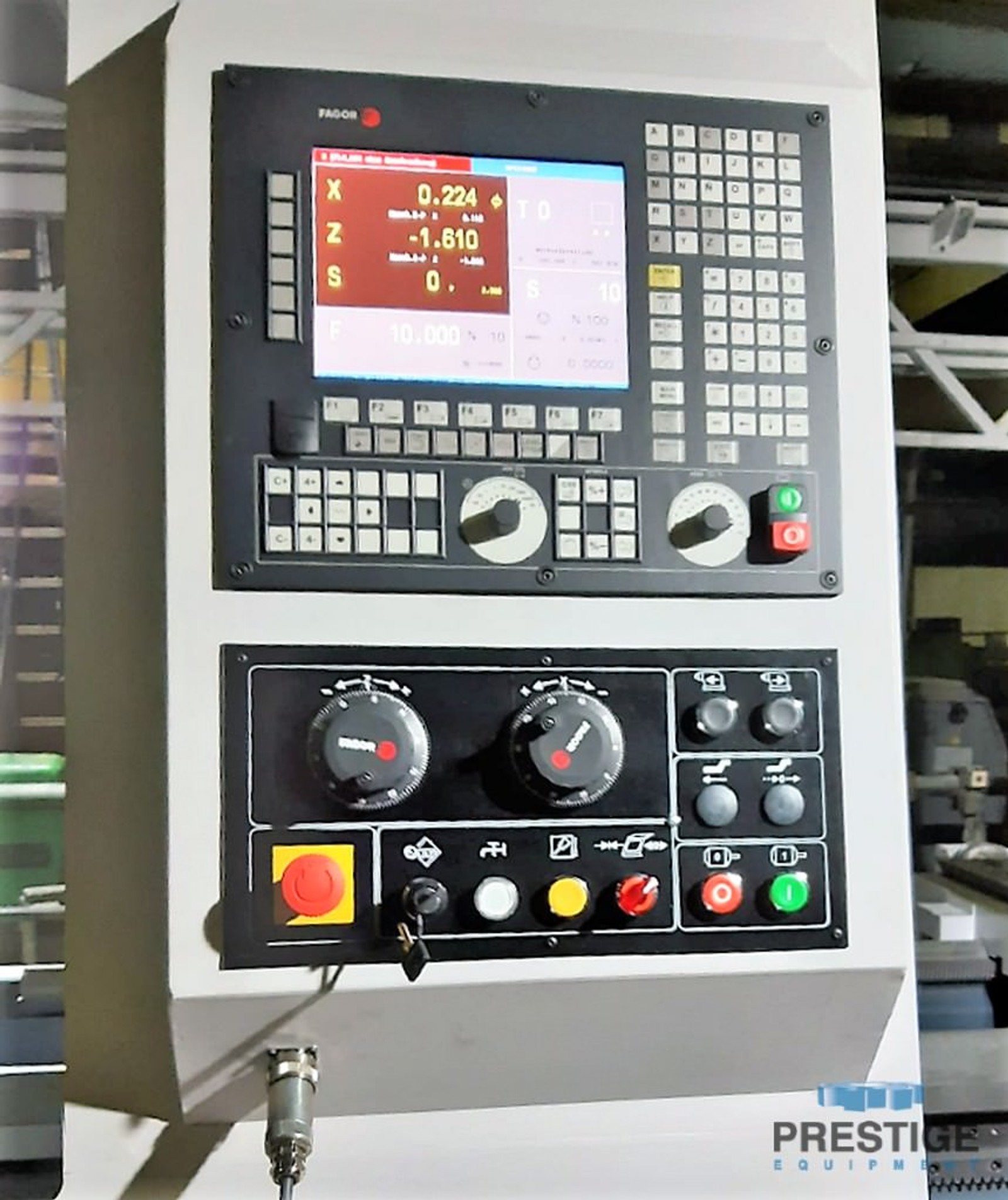

Fagor 8055T CNC Control

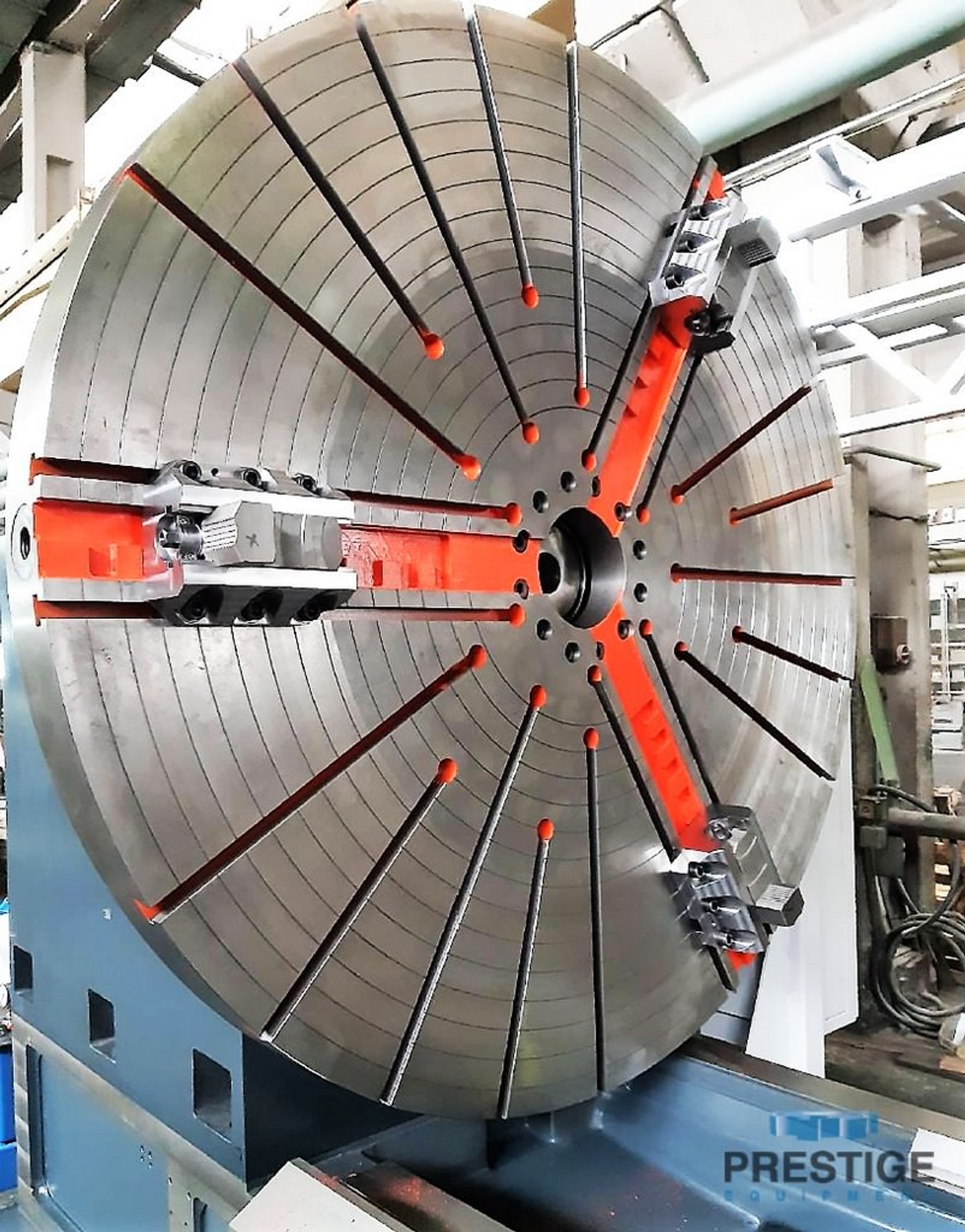

78.74" Diameter Face Plate Type Chuck
15.7" - 31.5" Steady Rest
Manual Tailstock with Electrical Displacement

CAPACITY:
Swing Over Bed ........................ 78.74"
Swing Over Carriage ................... 62.99"
Distance Between Centers .............. 236.22"
Spindle Speeds, 3-Range ............... 1 - 500 RPM
Spindle Bore .......................... 8.26"
Bed Width ............................. 44.09"
Tailstock Quill Diameter .............. 8.66"
Tailstock Quill Taper ................. ME80
Max. Workpiece Weight, Unsupported .... 13,200 Lbs
Max. Workpiece Weight, Supported ...... 55,000 Lbs
Main Spindle Motor .................... 68 HP / 95 HP
Approximate Machine Weight ............ 70,400 Lbs

EQUIPPED WITH:
Fagor 8055T CNC Control
78.74" Diameter Face Plate Type Chuck
15.7" - 31.5" Steady Rest
Manual Tailstock with Electrical Displacement
Central Lubrication System
Rear Splash Guard
Coolant System
AXA K55 4-Position Tool Post

NOTE:
Machine is Brand New
