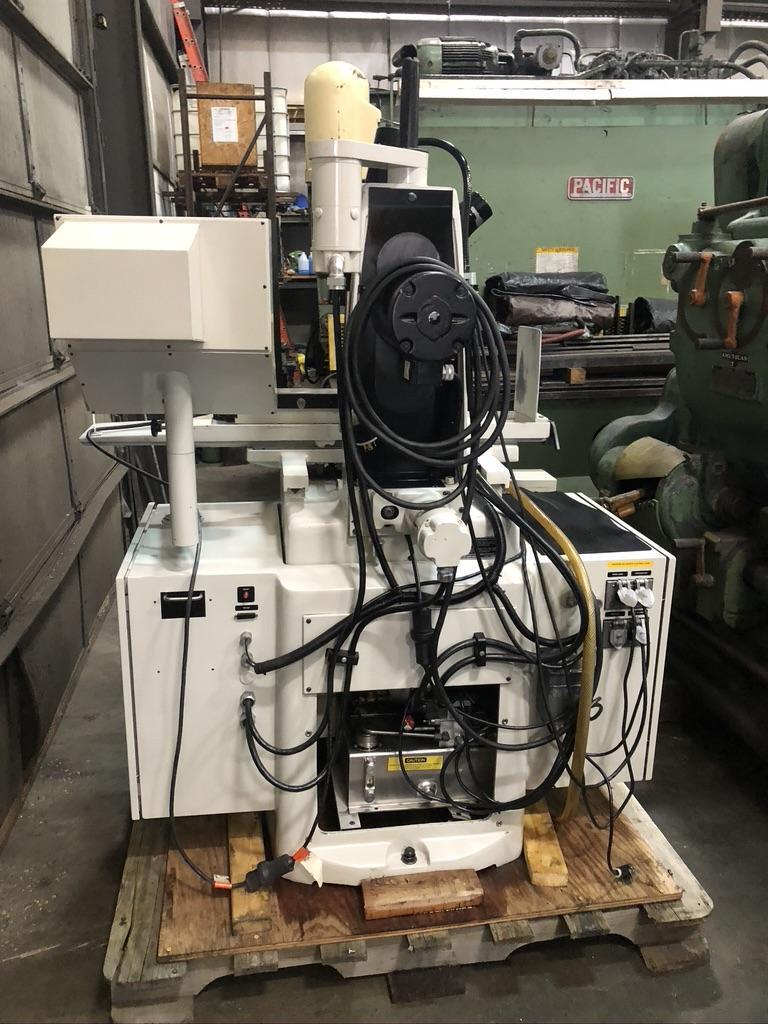

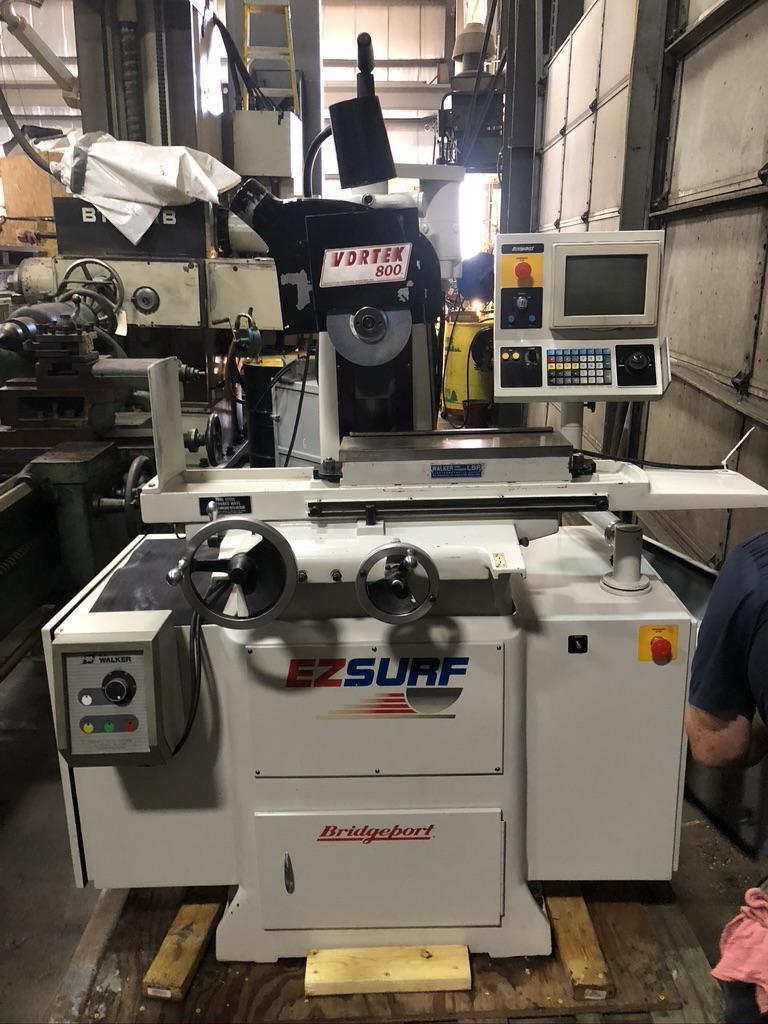

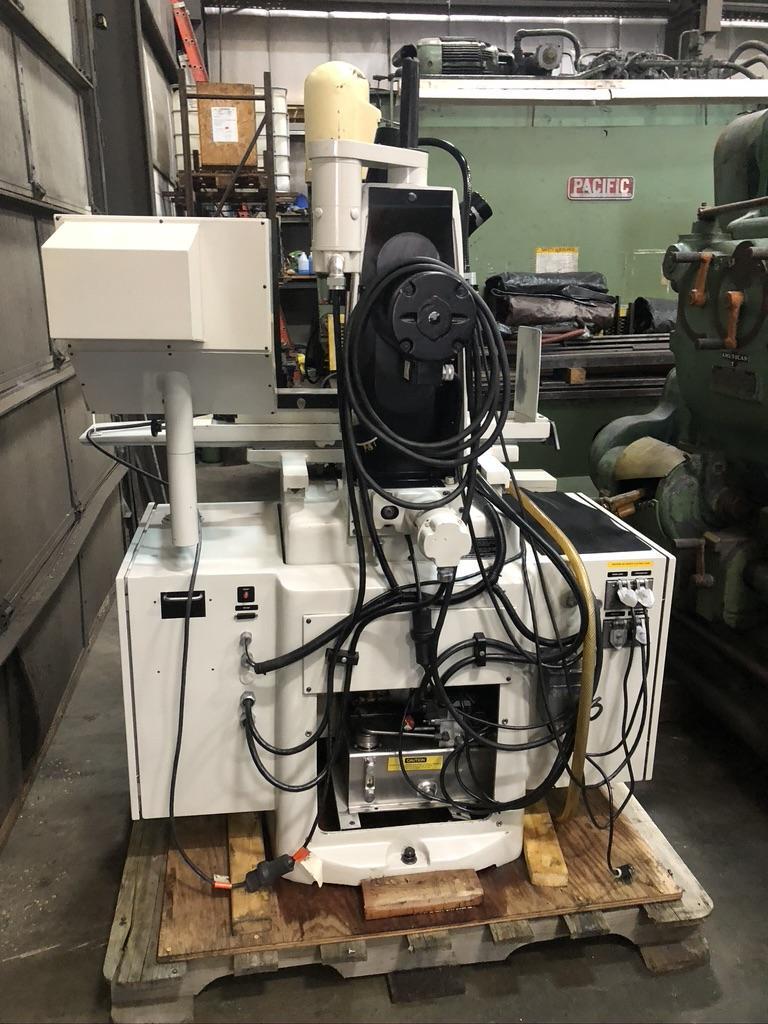

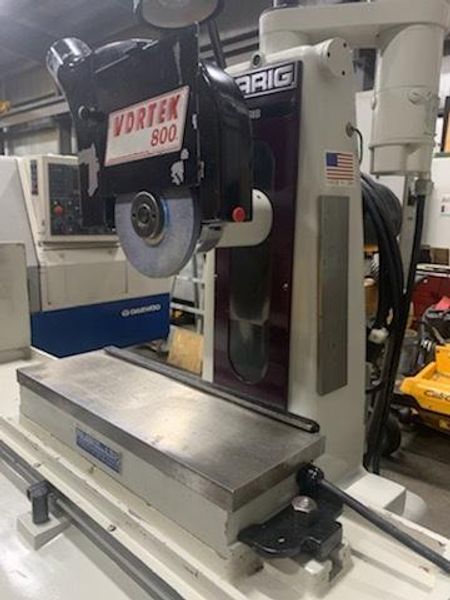

HARIG (BRIDGEPORT) 618 EZ SURF, 20" LONG., 6.75" CROSS, DUST COLLECTOR, 1998

Manufacturer

HARIG

Category

Grinding Machines

Type

GRINDERS, SURFACE, RECIP. TABLE, (Horizontal Spdl), CNC

Stock

10457

Model

618 EZ SURF

Dealer Location

Wisconsin

Request a Quote
View Contact Information

Spec Sheet



GENERAL SPECIFICATIONS:

MAKE............................ HARIG (BRIDGEPORT)
MODEL........................... 618
AGE (YEAR) APPROX............... 1998
SERIAL NUMBER................... 547-EZ
CHUCK SIZE...................... 6" x 18"

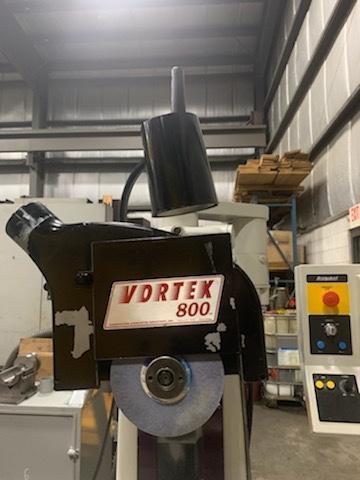

STANDARD GRINDING WHEEL SIZE.... 7" x 0.5" X 1.25"
MAXIMUM GRINDING WHEEL SIZE..... 8" x 1.25" x 1.25"
LONGITUDINAL TRAVEL............. 20"
CROSS TRAVEL.................... 6.75"
VERTICAL TRAVEL................. 12"
VERTICAL WORKING HEIGHT......... 11.75"
RAPID TRAVERSE RATE Y & Z AXES.. 100 IPM
LONGITUDINAL SPEEDS ............ 3 - 70 FPM
SPINDLE SPEEDS.................. 3,450 RPM
SPINDLE MOTOR................... 1.5 HP
MACHINE WEIGHT.................. 1,785 LBS
FLOOR SPACE..................... 70" x 65"
CURRENTLY WIRED 240V 3 PHASE, MOTOR IS DUAL VOLTAGE

EQUIPPED WITH:

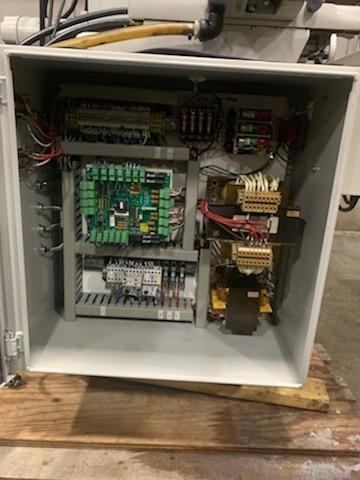

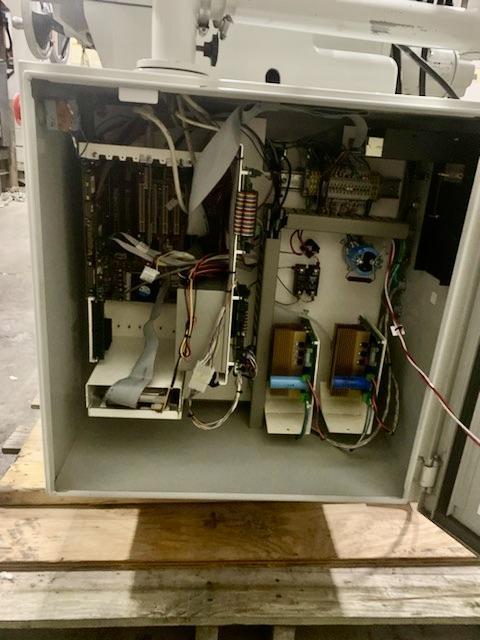

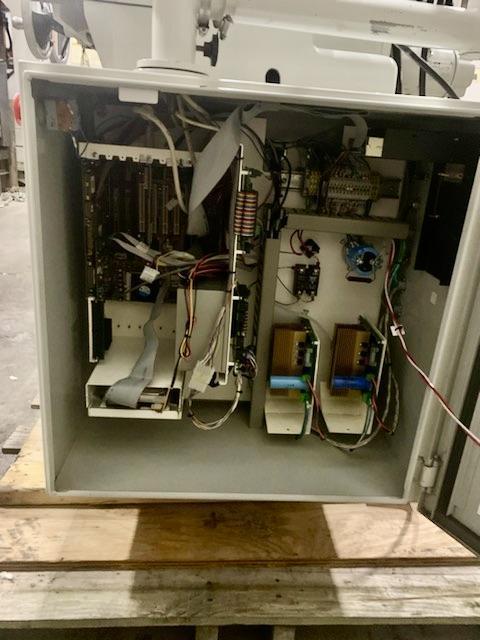

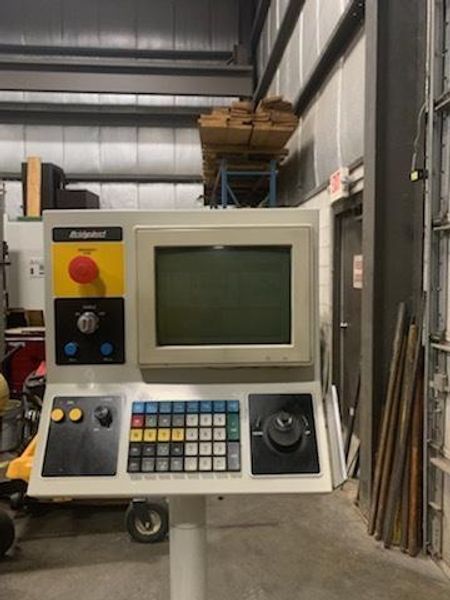

BRIDGEPORT 32-BIT PC-BASED (DOS O/S) CONTROL W/9" CRT
RS-232 PORT INTERFACE FOR DNC OPERATION

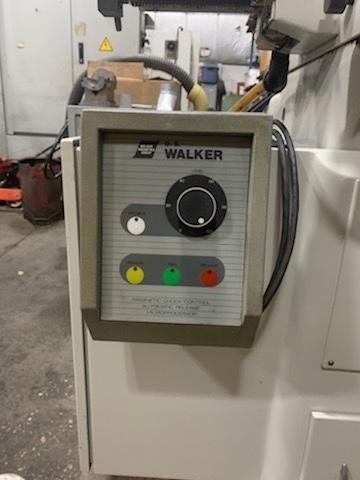

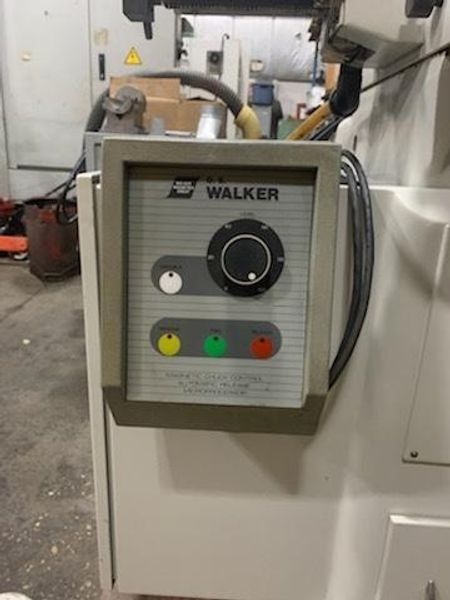

6" x 18" WALKER ELECTRIC MAGNETIC CHUCK WITH CLAMPS & BOLTS
RECTIFIER, AUTOMATIC RELEASE, VAR. HOLDING & RESIDUAL RELEASE

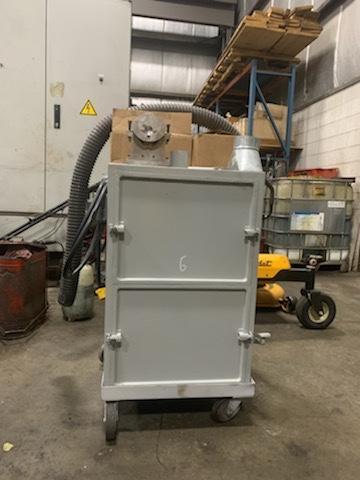

CABINET DUST COLLECTOR
2 AXIS (Y & Z AXES) DIGITAL READOUT SCREEN, 540 MB HARD DRIVE
38 KEY KEYBOARD, 2 AXIS LINEAR & CIRCULAR INTERPOLATION
CONVERSATIONAL DISPLAY WITH POP-UP WINDOWS & FUNCTION MENUS
ABSOLUTE / INCREMENTAL PROGRAMMING, ALL AVAILABLE MANUALS
