Microcut VMC-2100, X-82", Y-35", Z-33", Fanuc 31i, 32 ATC, TSC, New 2021, #21986

Manufacturer

MICROCUT

Category

Machining Centers

Type

MACHINING CENTERS, VERTICAL, CNC (Incl. Pallet Changers)

Stock

21986

Model

VMC-2100

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #21986

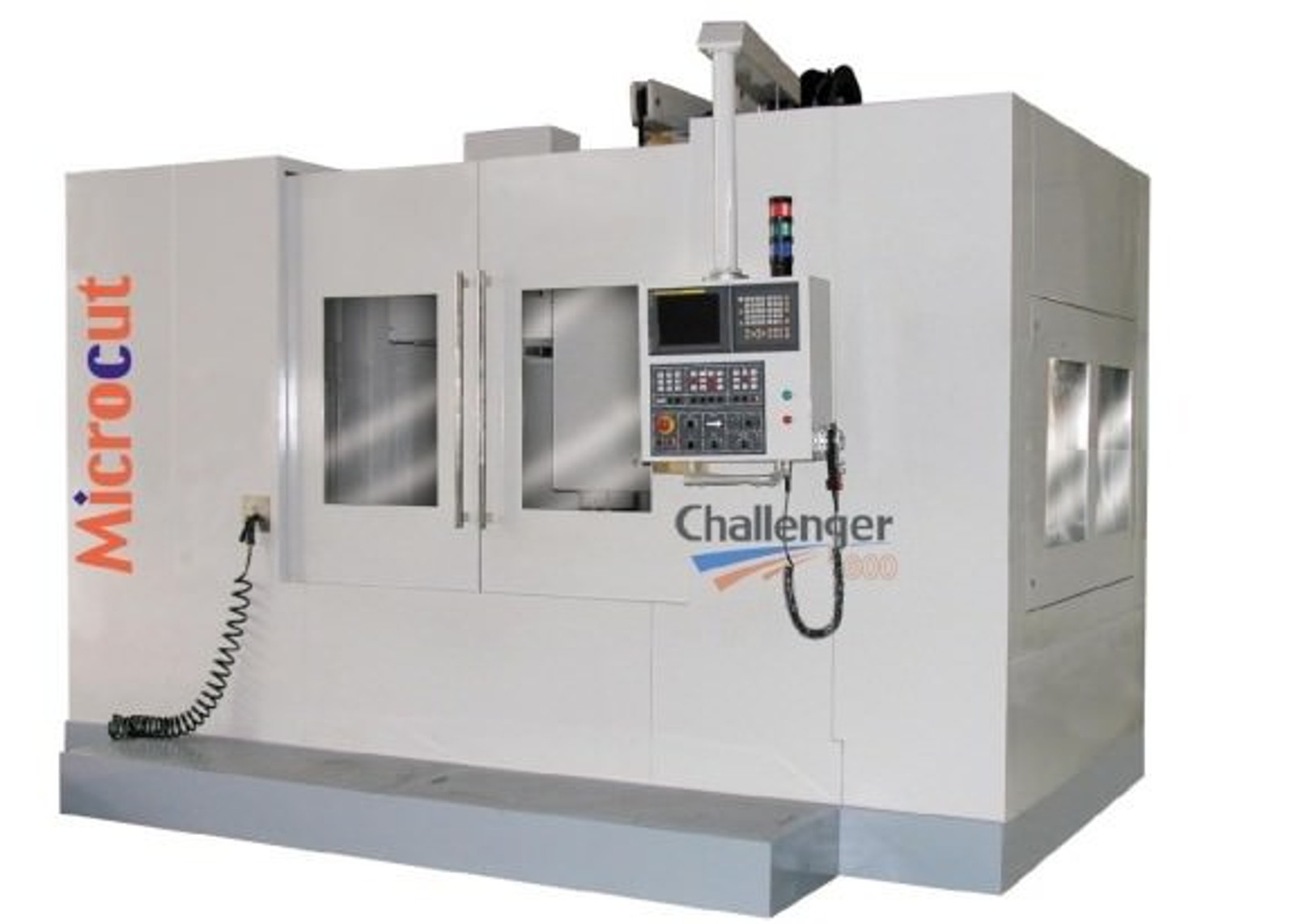

MICROCUT VMC-2100 CNC Vertical Machining Center

FEATURES:
Fanuc OiMF Plus CNC Control with 10.4" LCD Screen
Box Ways
Rigid Tapping
32-Position Automatic Tool Changer

CAPACITY:
X-Axis Travel ......................... 82.67"
Y-Axis Travel ......................... 35.43"
Z-Axis Travel ......................... 33.46"
Table Size ............................ 94.48" x 35.43"
Table Weight Capacity ................. 5,500 Lbs.
Spindle Speeds ........................ 6,000 RPM
Maximum Feed Rate (X&Y) ............... 787.40 IPM
Maximum Feed Rate (Z) ................. 708.66 IPM
Spindle Taper ......................... CAT #50
Spindle Nose to Table ................. 3.93"-37.4"
Spindle Drive Motor ................... 24.6 HP / 20 HP
Electrics ............................. 230/3/60
Machine Dimensions (w/ Chip Conveyor) . 244" x 165" x 146"
Machine Weight ........................ 49,500 Lbs.

EQUIPPED WITH:
Fanuc OiMF Plus CNC Control with 10.4" LCD Screen
Box Ways
Rigid Tapping
32-Position Automatic Tool Changer
Automatic Lubrication System
Fully Enclosure Splash Guard with Interlock Device
Telescoping Covers for X & Y Axis
Portable MPG
Chip Conveyor

NOTE:
Brand New Machine, Approx. 4-Month Delivery
1-Year Parts Warranty on Machine
2-Year Parts & Labor On CNC Control
