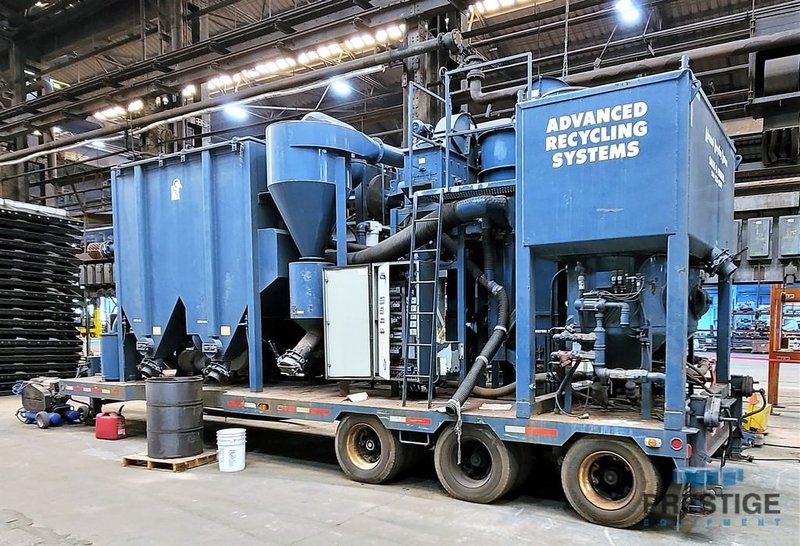

Advanced Recycling Systems Aries/Vac B2 Mobile Blasting System, 2-Pot System, Trailer, Dryer, 2005, #31575

Stock

31575

Model

Aries/Vac B2

Dealer Location

New York

Spec Sheet

Reference #31575

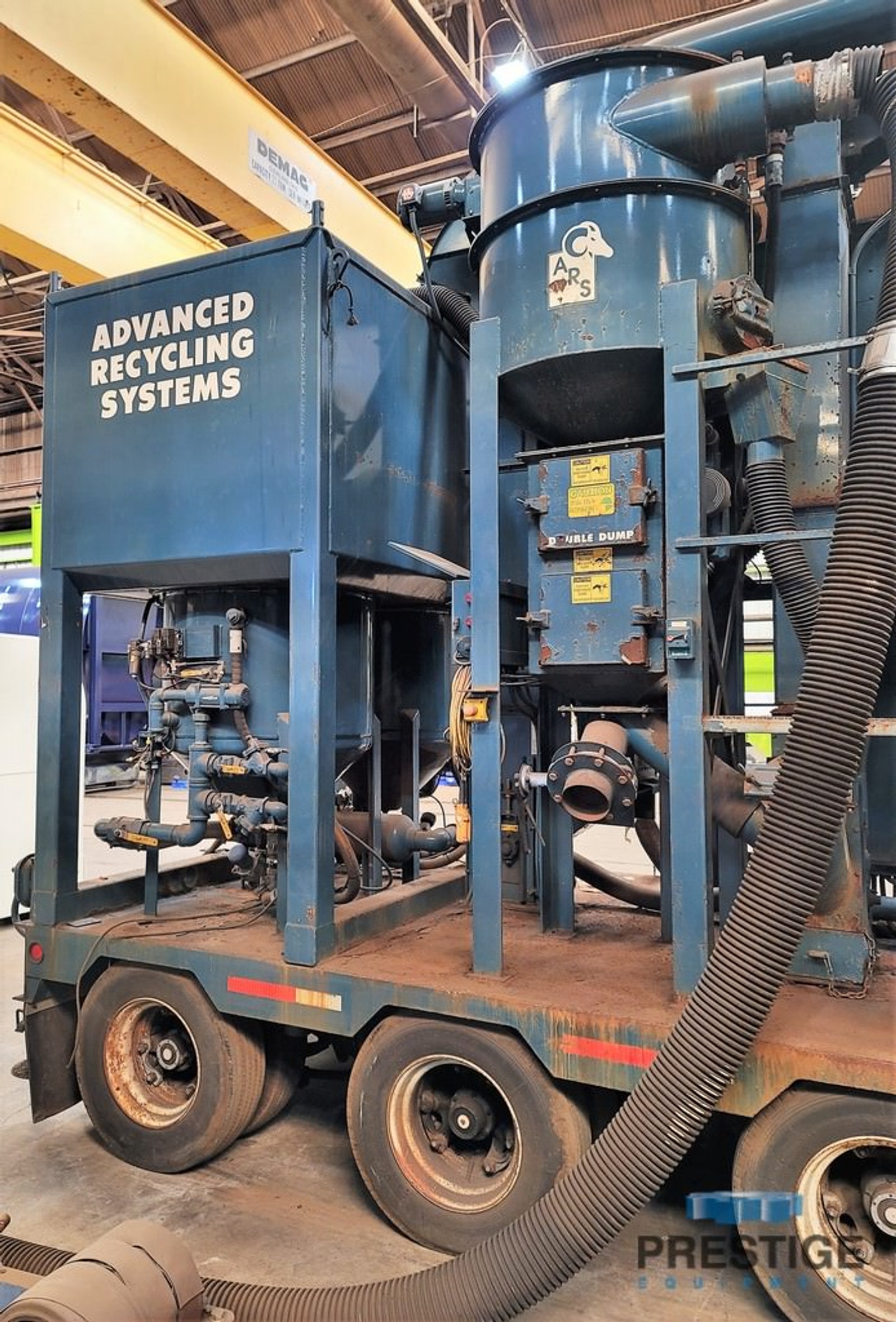

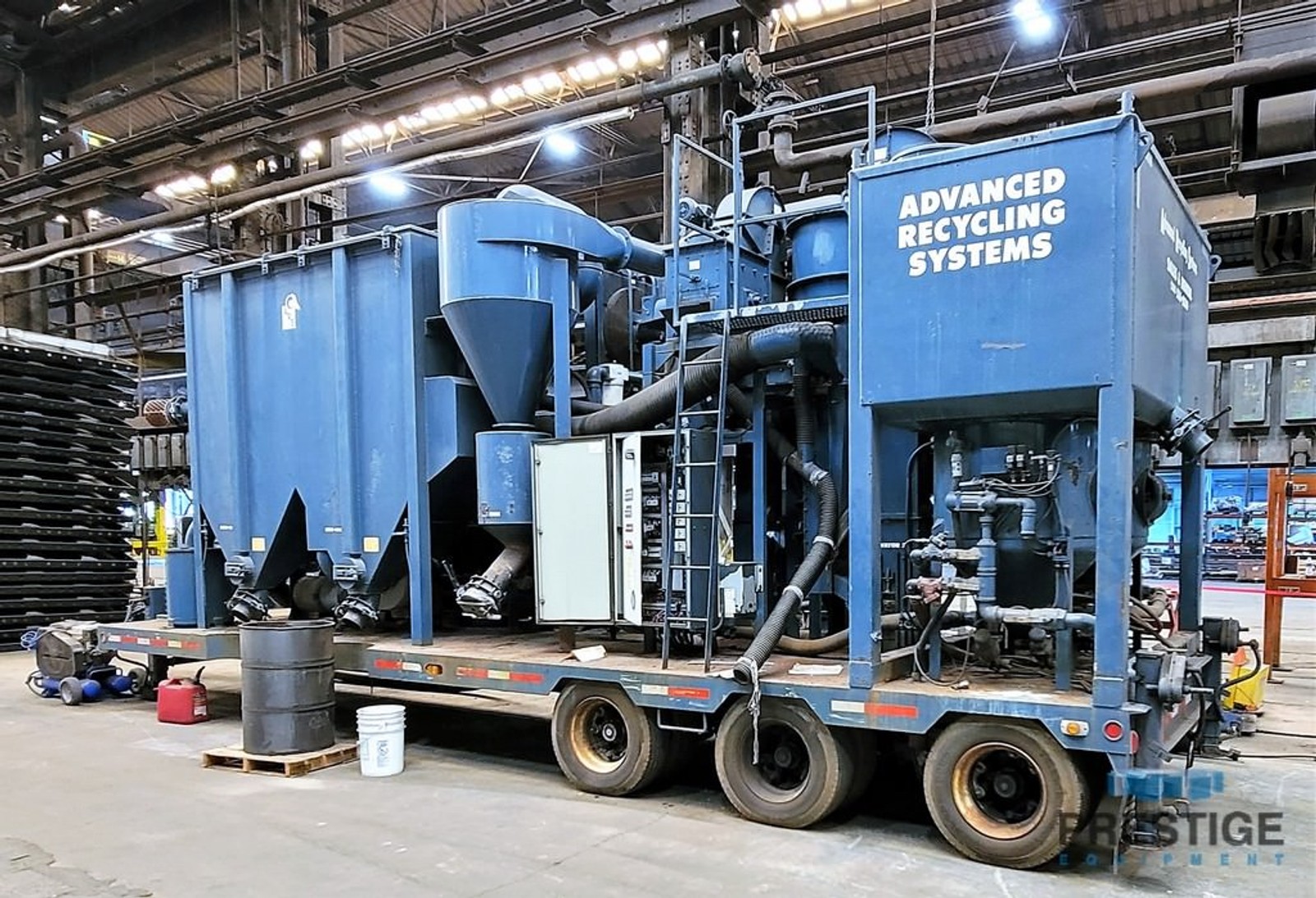

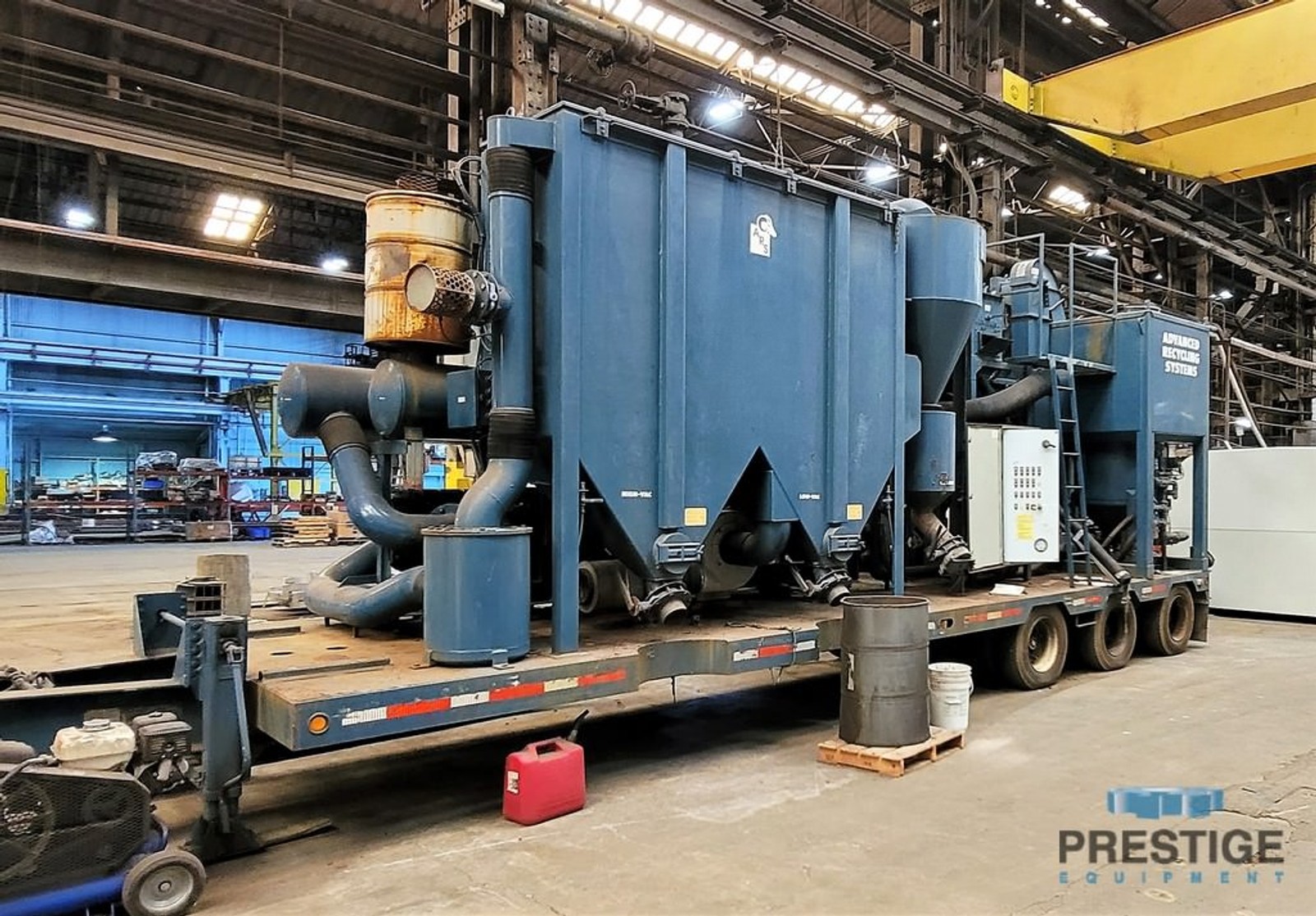

Advanced Recycling Systems Aries/Vac B2 Mobile Blasting System

FEATURES:
30' Extra Heavy Duty Trailer
Air Brakes with Antilock System
Dual 25K Drop Leg on Rear of Trailer
2,600 CFM Blower
Magnetic Particle Separator
2 - Auto Fill Blast Pots

VACUUM:

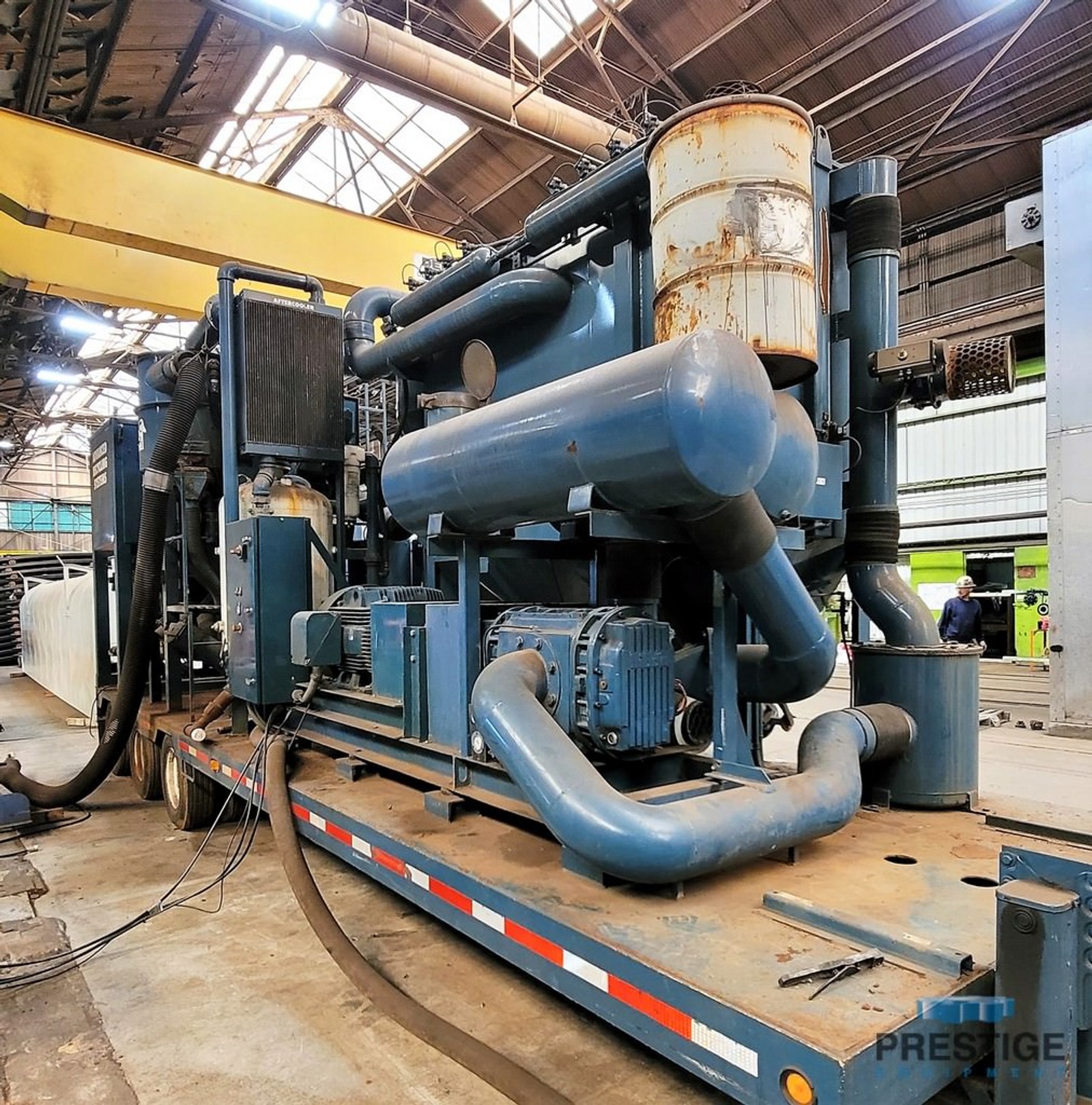

Blower ................................ 2,600 CFM
Vacuum ................................ 28" Hg - High Vaccum

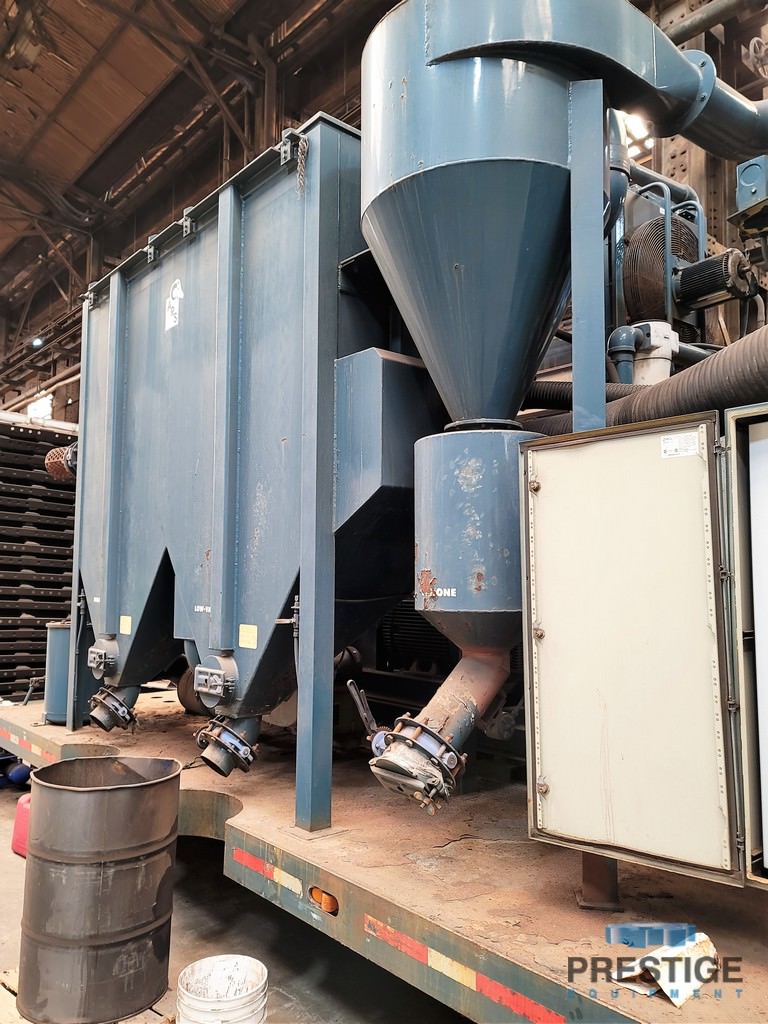

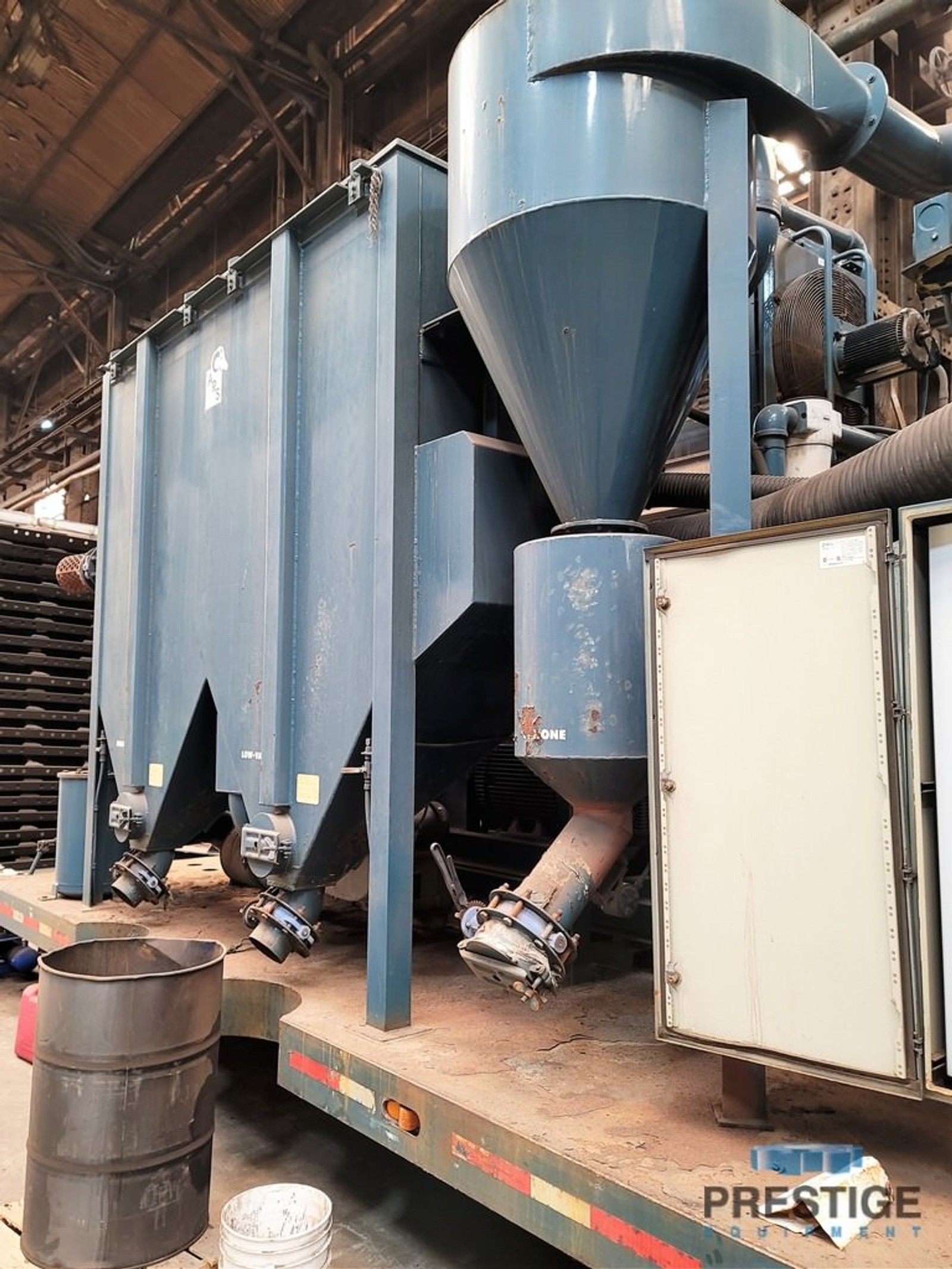

Cyclone ............................... Prefilter 36"
Dust Collector #1 ..................... 26 Bag Pulsating System
Power Plant ........................... 180 HP Diesel

CLASSIFICATION:
-Magnetic Particle Separator
-Vibratory Screen/Feeder
-Air Wash Separators, Six Stage
-(2) Bucket Elevators Per Unit
-Dust Collector #2 .................... 26 Bag Pulsating System
-Fan, Powers Dust Collector #2 ........ 1,800 CFM

BLASTING:

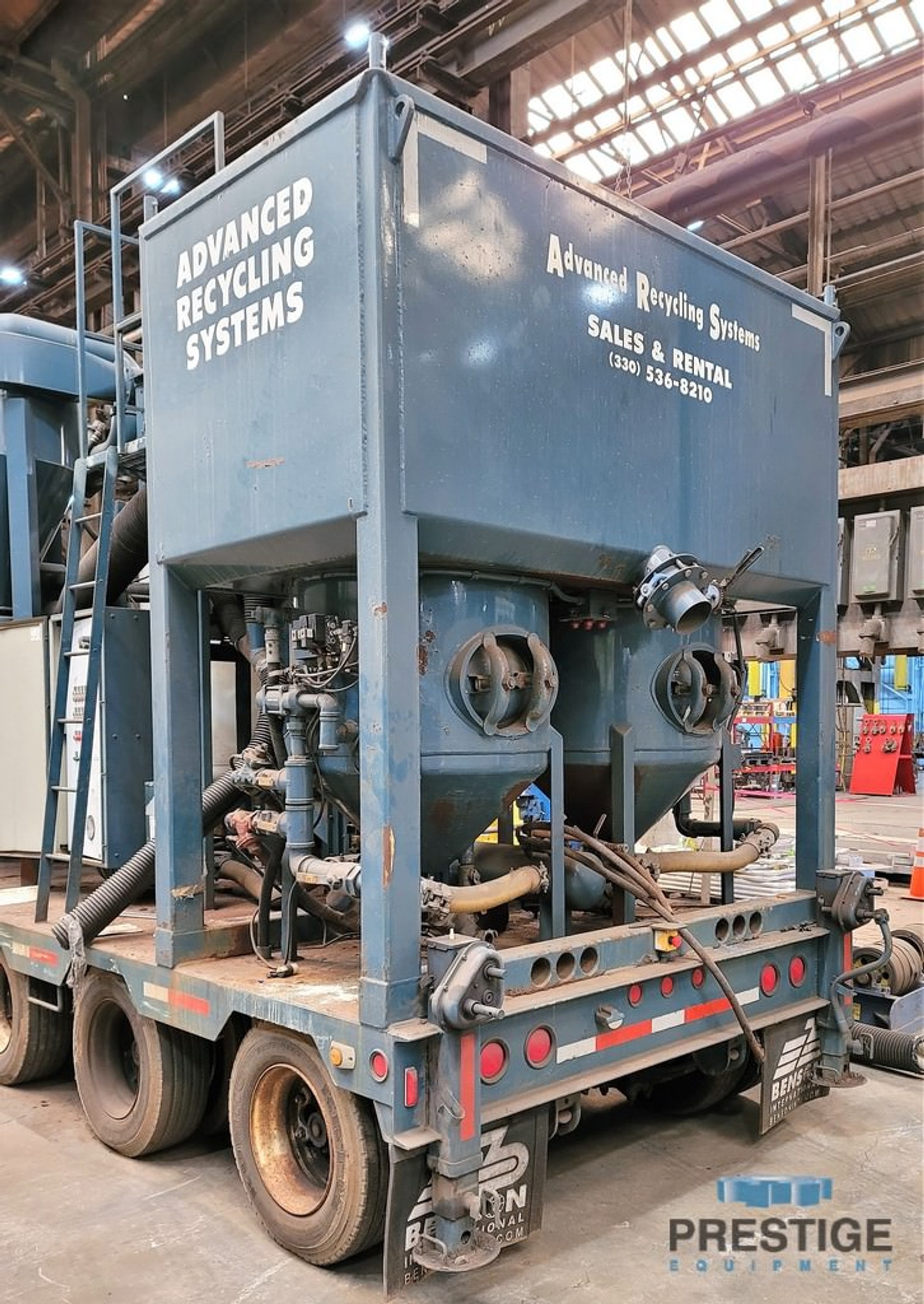

-Two Auto Fill Blast Pots
-Fully Automatic Control System
-Two Sand Blasting Outlets
-175 PSI Code Stamped & Registered Vessels

AIR DRYING SYSTEM:
-Over Sized Air-Cooled After Cooler
-3" NPT Piping Standard

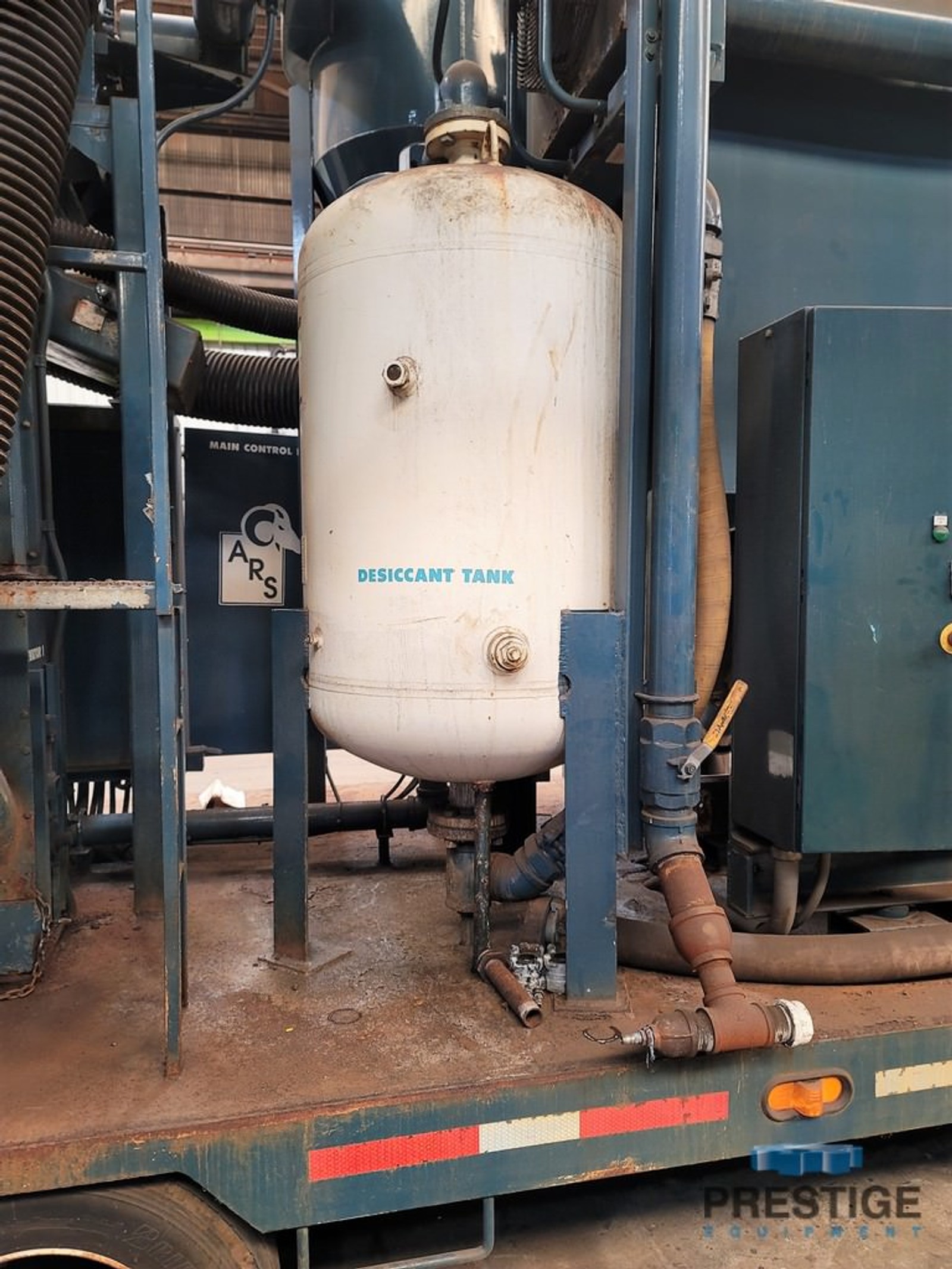

-Large Capacity Deliquescent Salt Tank
-Particulate Filters

EQUIPPED WITH:
30' Extra Heavy Duty Trailer
Air Brakes with Antilock System
Dual 25K Drop Leg on Rear of Trailer
