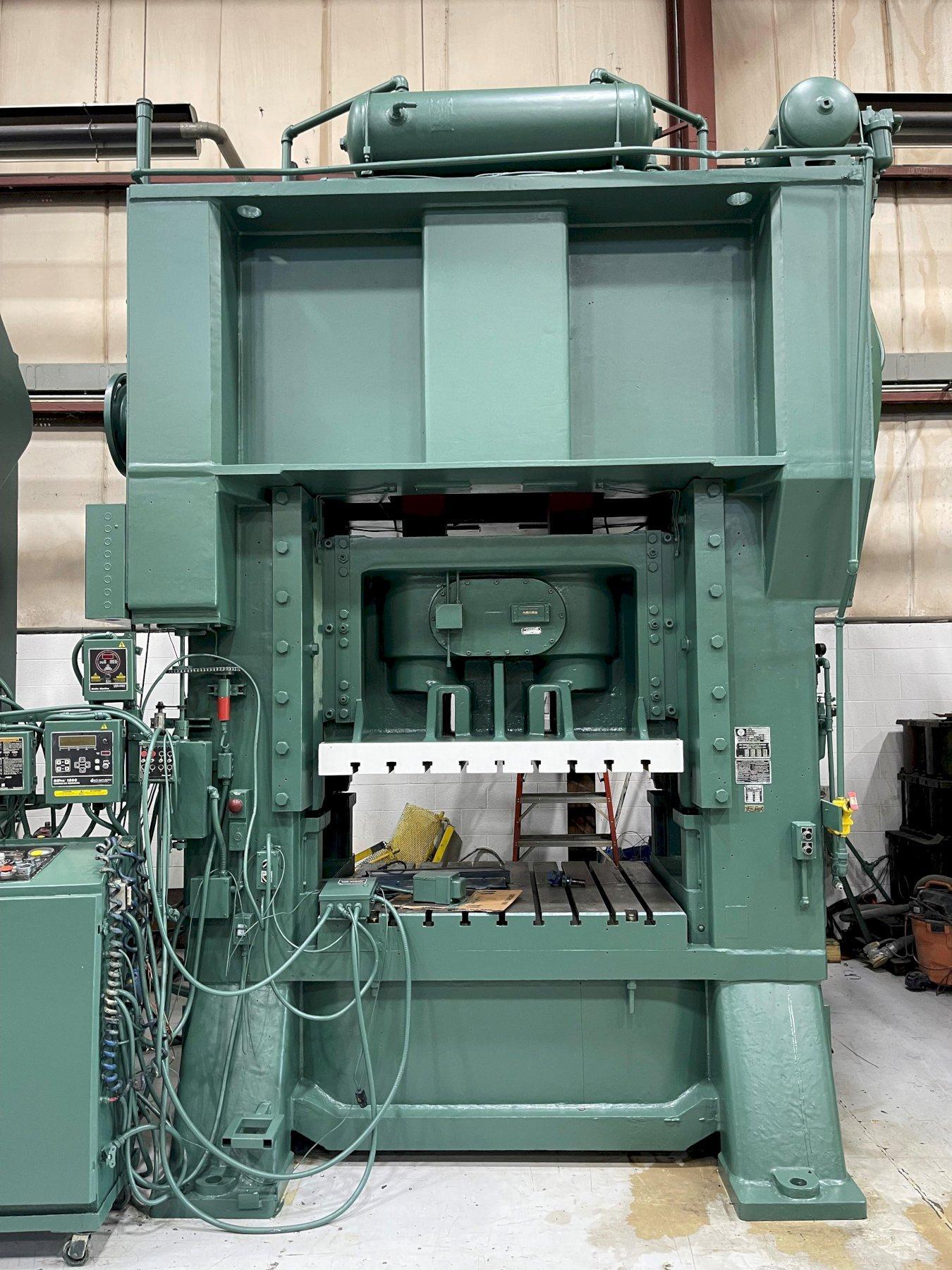

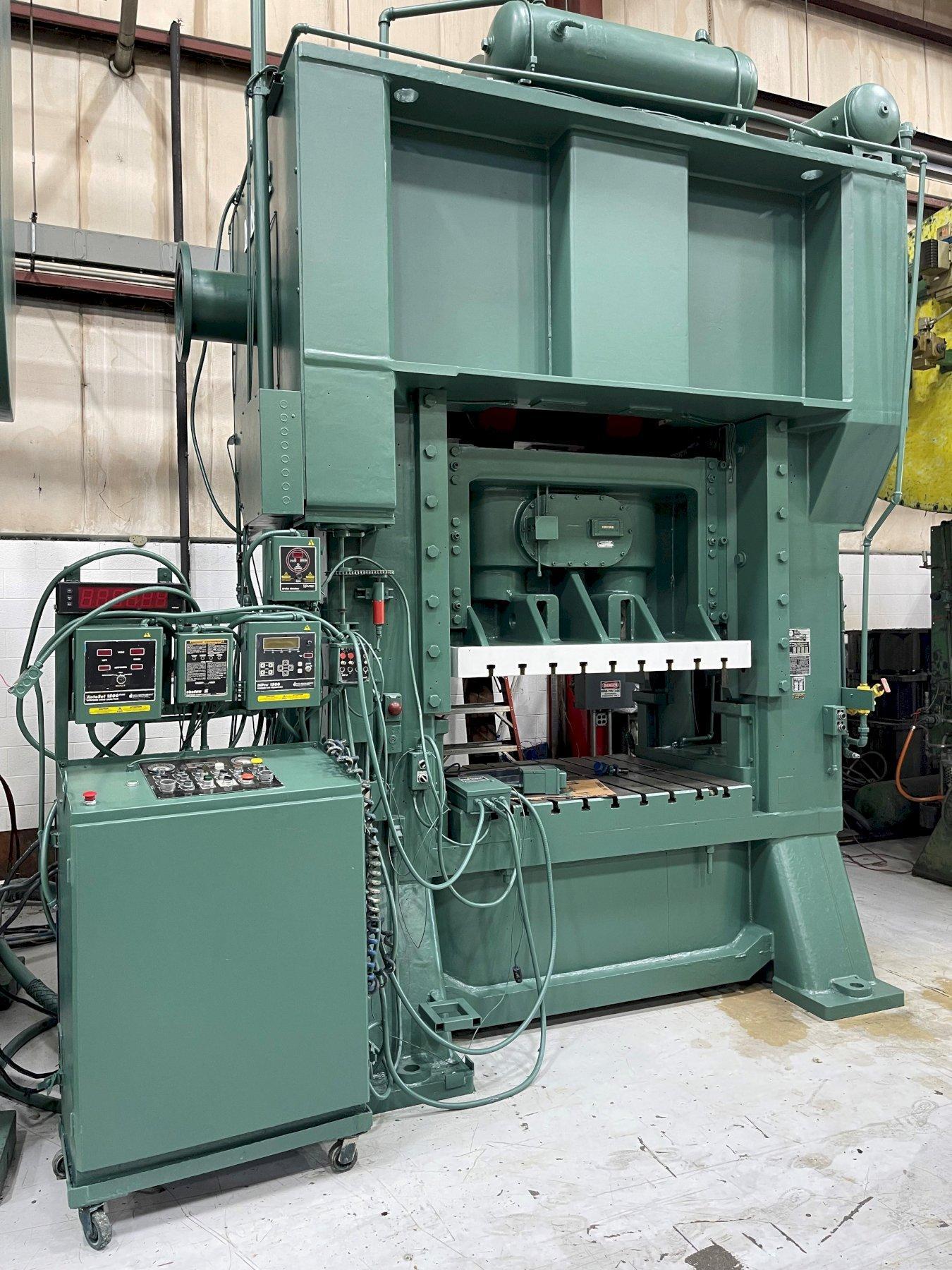

400 ton Minster E2-400-60-48 Hevi-Stamper Straight Side Mechanical Metal Stamping Press, Fully R

Stock

2672

Model

E2-400-60-48

Dealer Location

Michigan

Spec Sheet

Tonnage - 400
Stroke - 6 inches
Shut Height - 28 inches
Adjustment - 6 inches
Bed Size - 60" x 48"
Ram Area - 60" x 48"
SPM - 35-70 VSPM


Standard Specifications
Rebuilt 2024 Minster Hevi-Stamper
Straight Side Mechanical Press Model E2-400-60-48
All Mechanical Work Completed!

400 ton Capacity
6" Stroke
28" Shut Height
22" Die Height
6" Motorized Adjustment
60" LR x 48" FB Bed Area
60" LR x 48" FB Slide Area
35-70 VSPM

Equipment and Features
Air Clutch and Brake
Air Counterbalances
Recirculating Lube System
T-Slotted Ram and Bolster
Wintriss Shadow V Light Curtains
Wintriss DiPro 1500
Wintriss Brake Monitor
Wintriss Palm Button Station
Free Standing Console Controls
24" wide Windows
Vibratory Leveling Pads
Floor Standing

Foot Print:
104.5" Wide x 78" Deep x 188" Tallest Point

Price includes full Mechanical Rebuild, New Lube and New Air Systems.  Scope of Work Can Be Provided Upon Request.

This Rebuilt Minster Hevi-Stamper Mechanical Metal Stamping Press can be seen under power in the S&G Press Livonia Michigan Warehouse!

Refurbished Straight Side Mechanical 400 ton Minster Press For Sale
