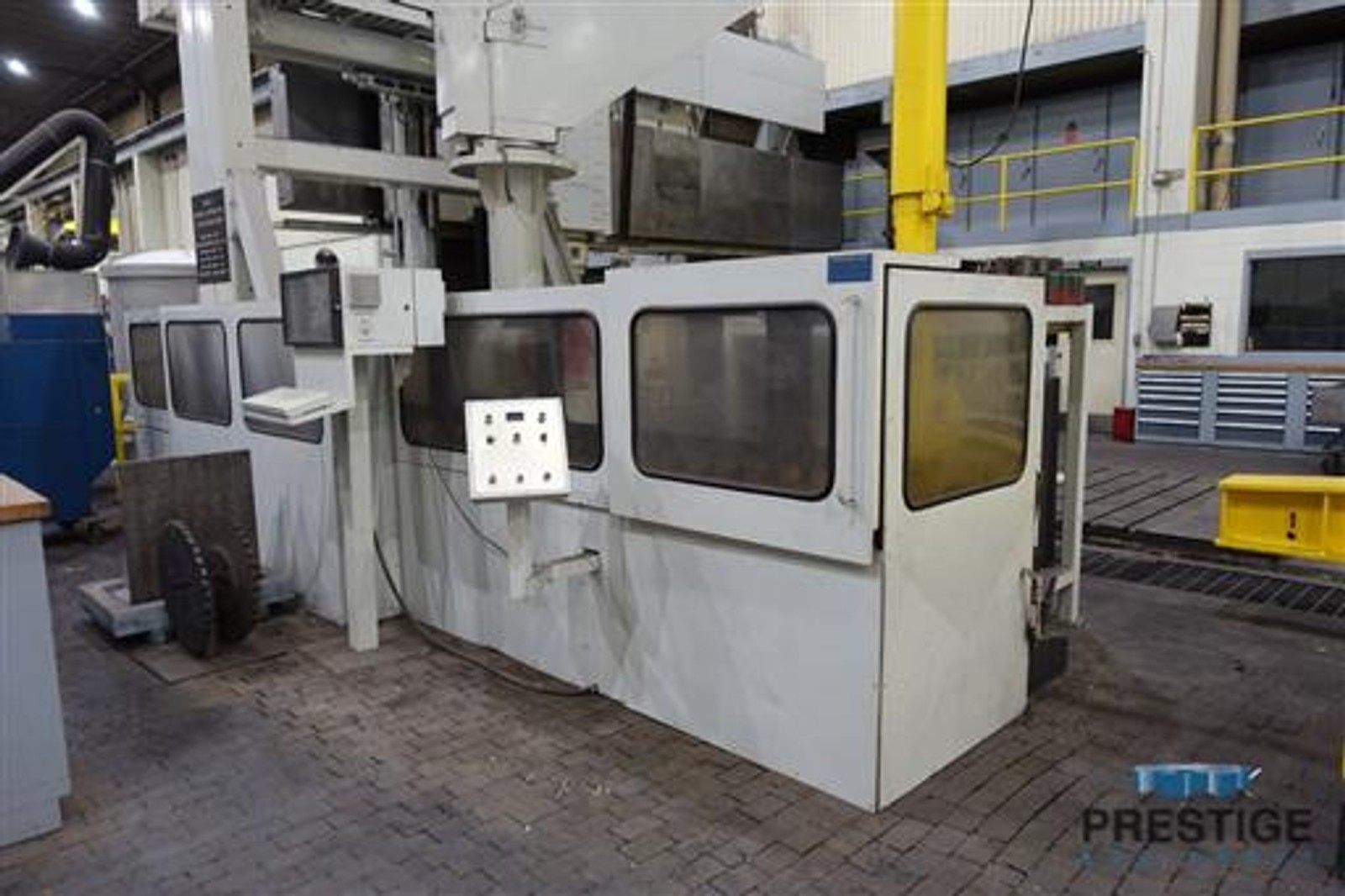

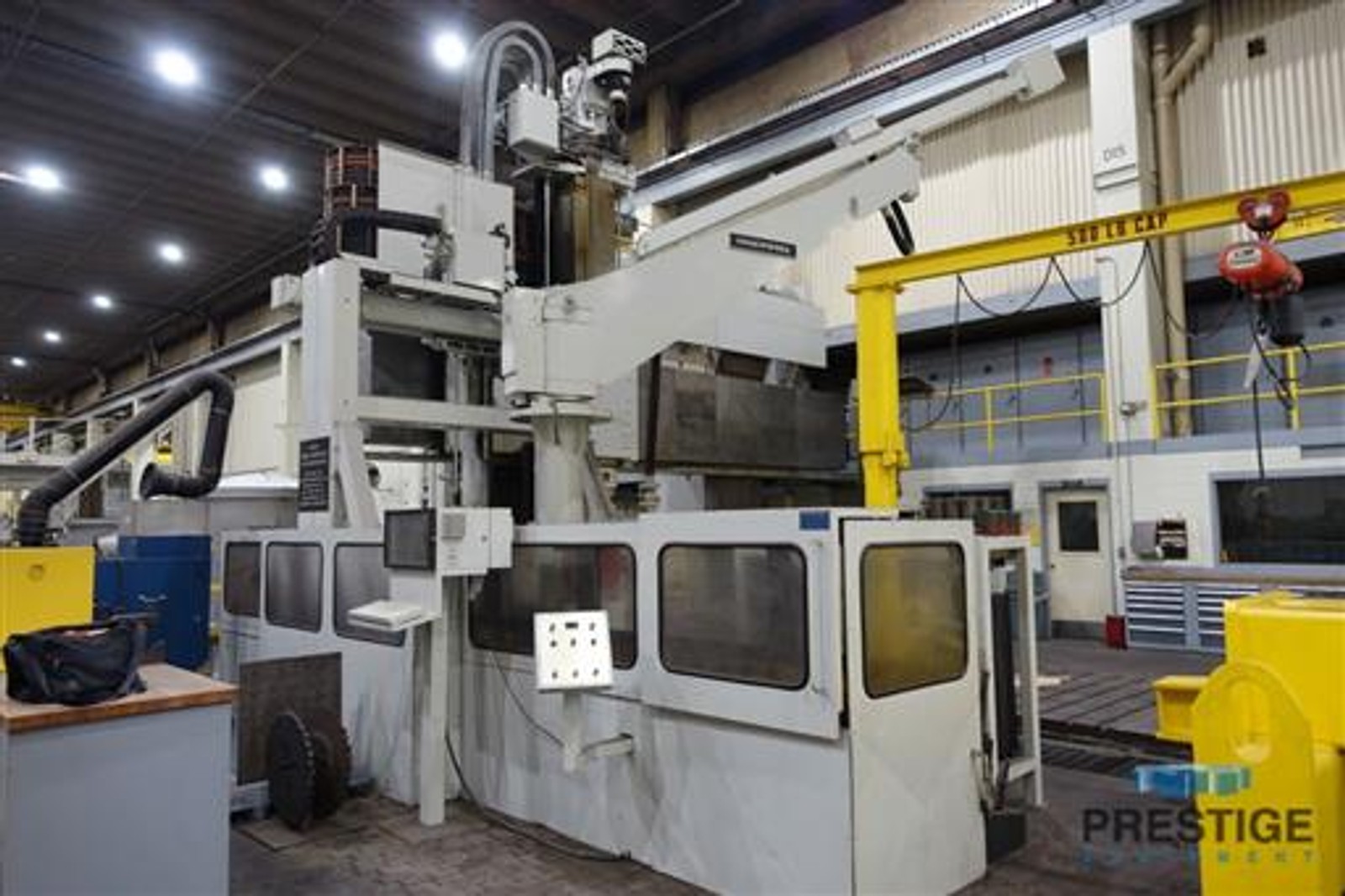

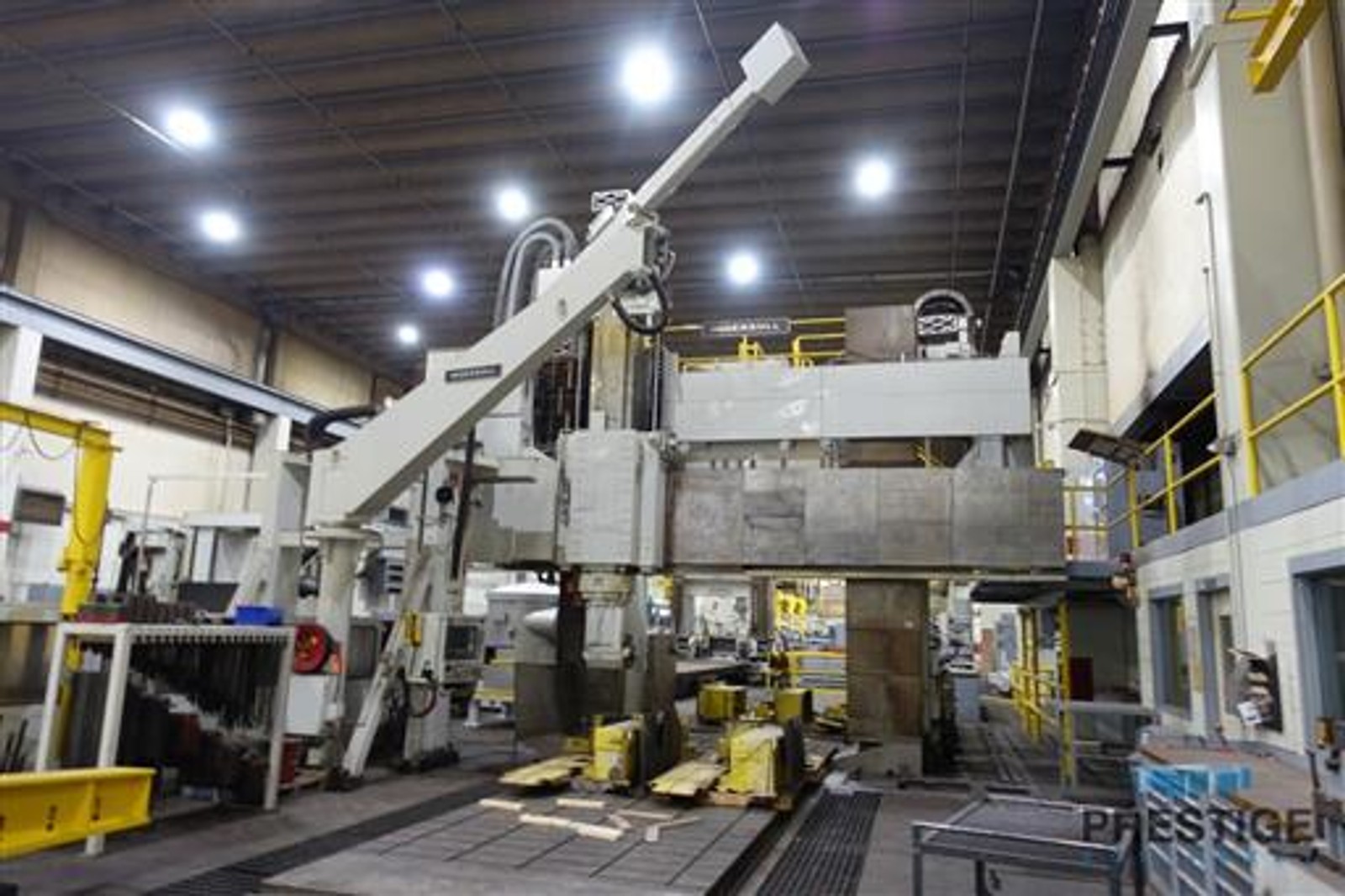

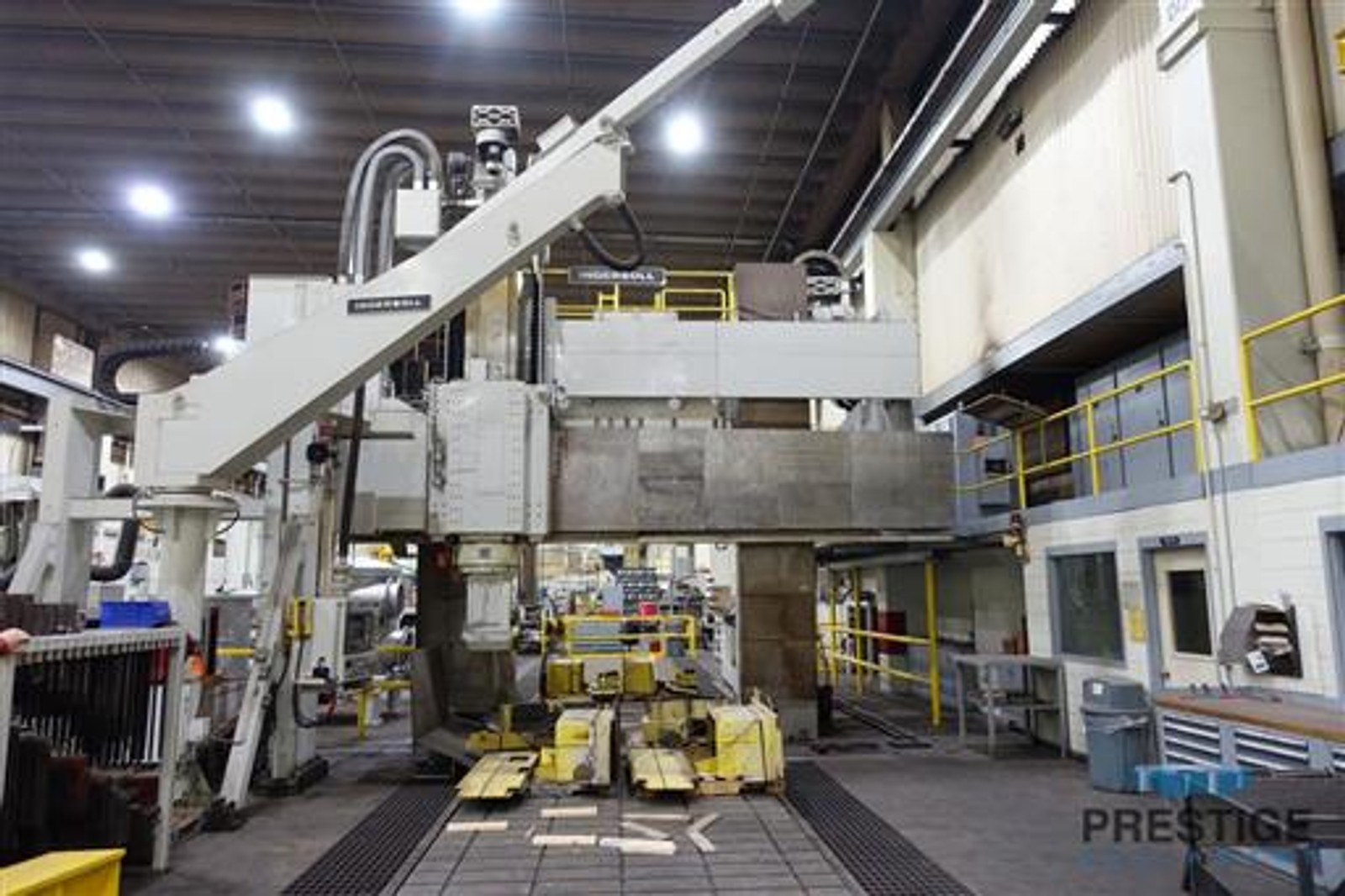

Ingersoll Masterhead 118" x 118" x 511.8" Adjustable Rail CNC Planer Mill

FEATURES:

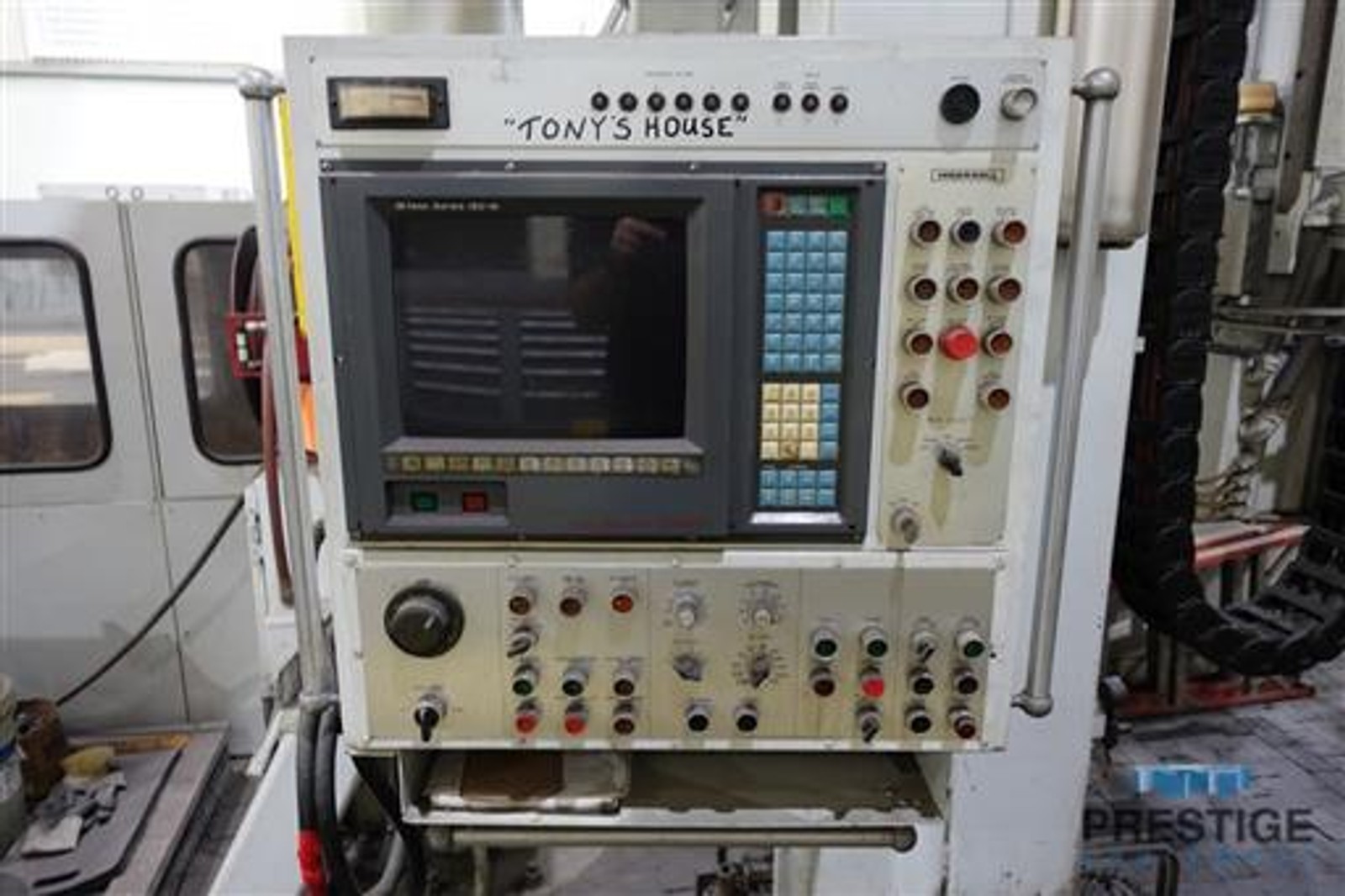

FANUC 150-M 5-Axis CNC Control
Automatic Tool Changer
Automatic Attachment Changer

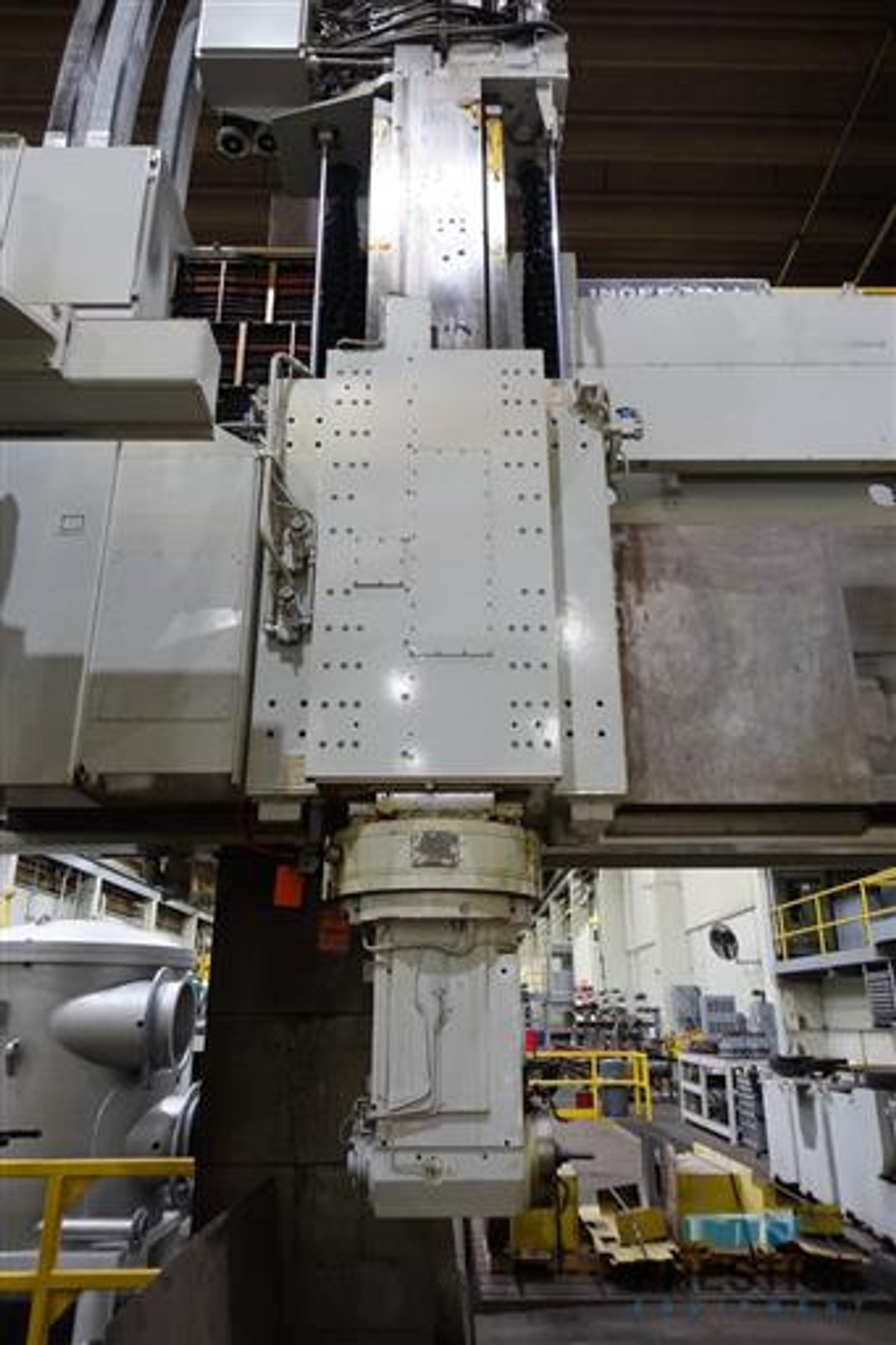

2-Axis Articulating Head

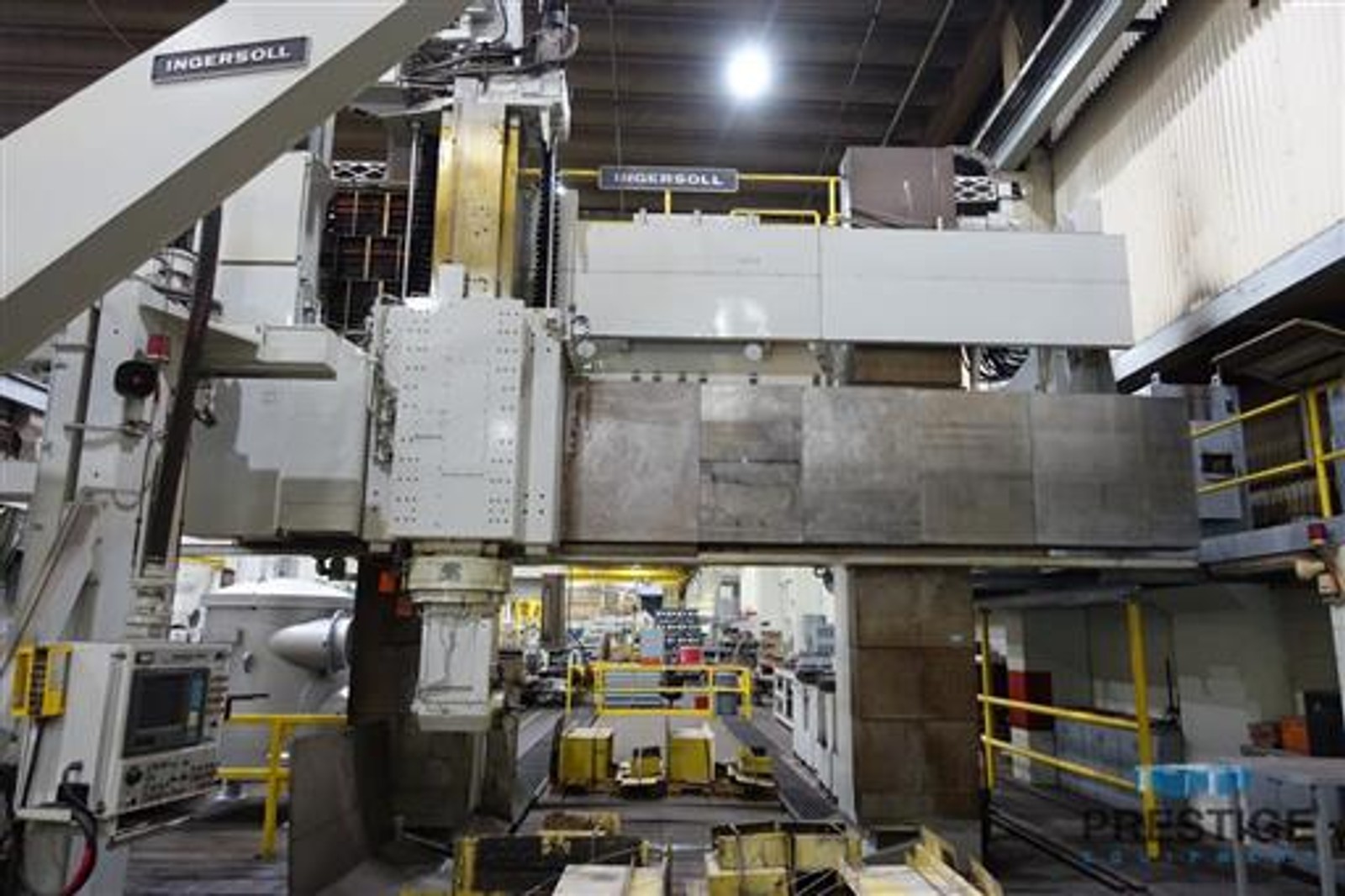

Adjustable Rail
Rebuilt in 2016


TRAVELS:
X-Axis, Table Travel .................. 511.81"
Y-Axis, Horizontal Head Travel ........ 163.38"
Z-Axis, Ram Stroke .................... 59.05"
W-Axis, Cross Rail Vertical Travel .... 80.70"
B-Axis, Head Rotation.................. 180 Degrees
C-Axis, Head Rotation.................. 360 Degrees

SPECIFICATIONS:

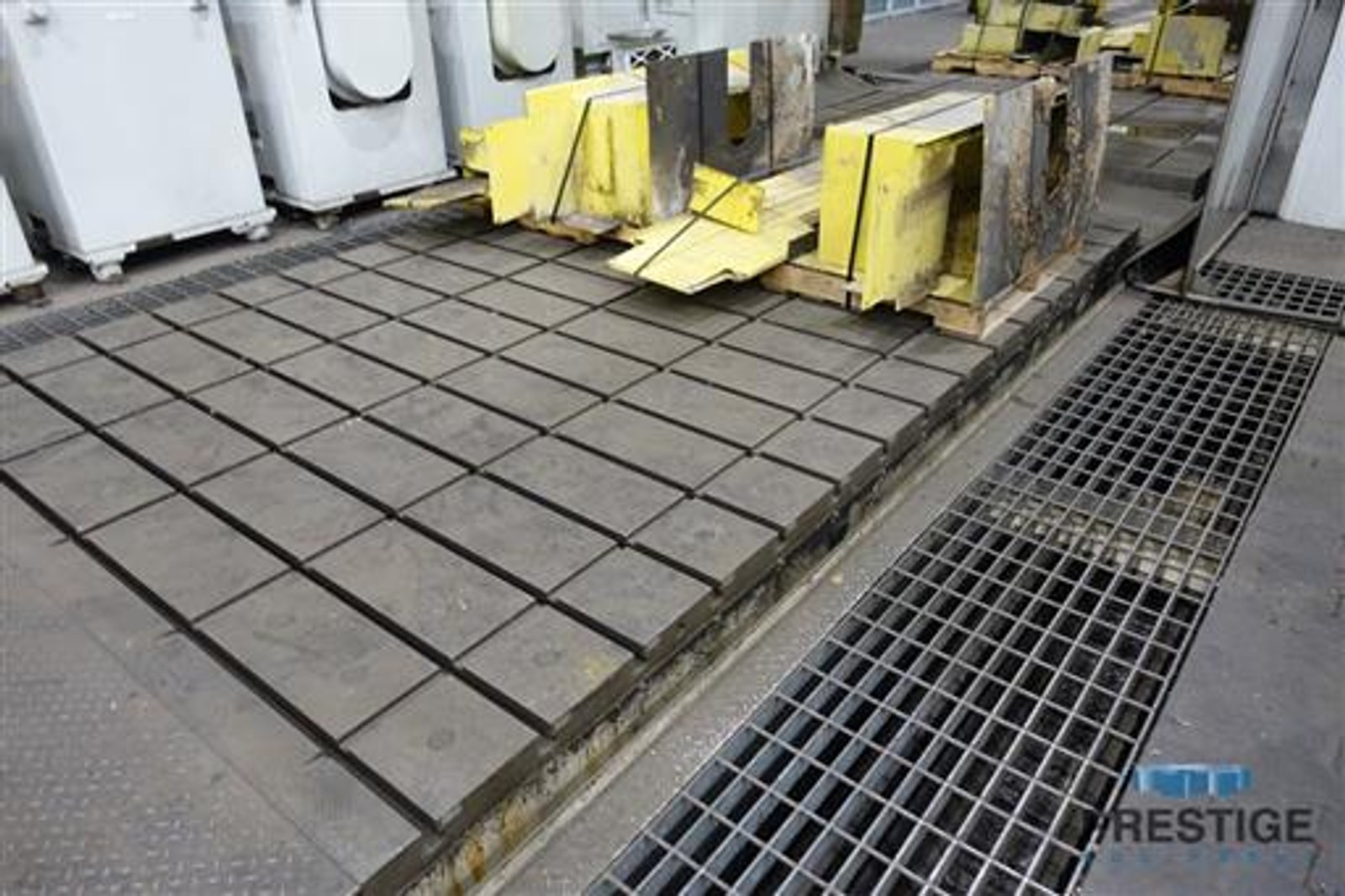

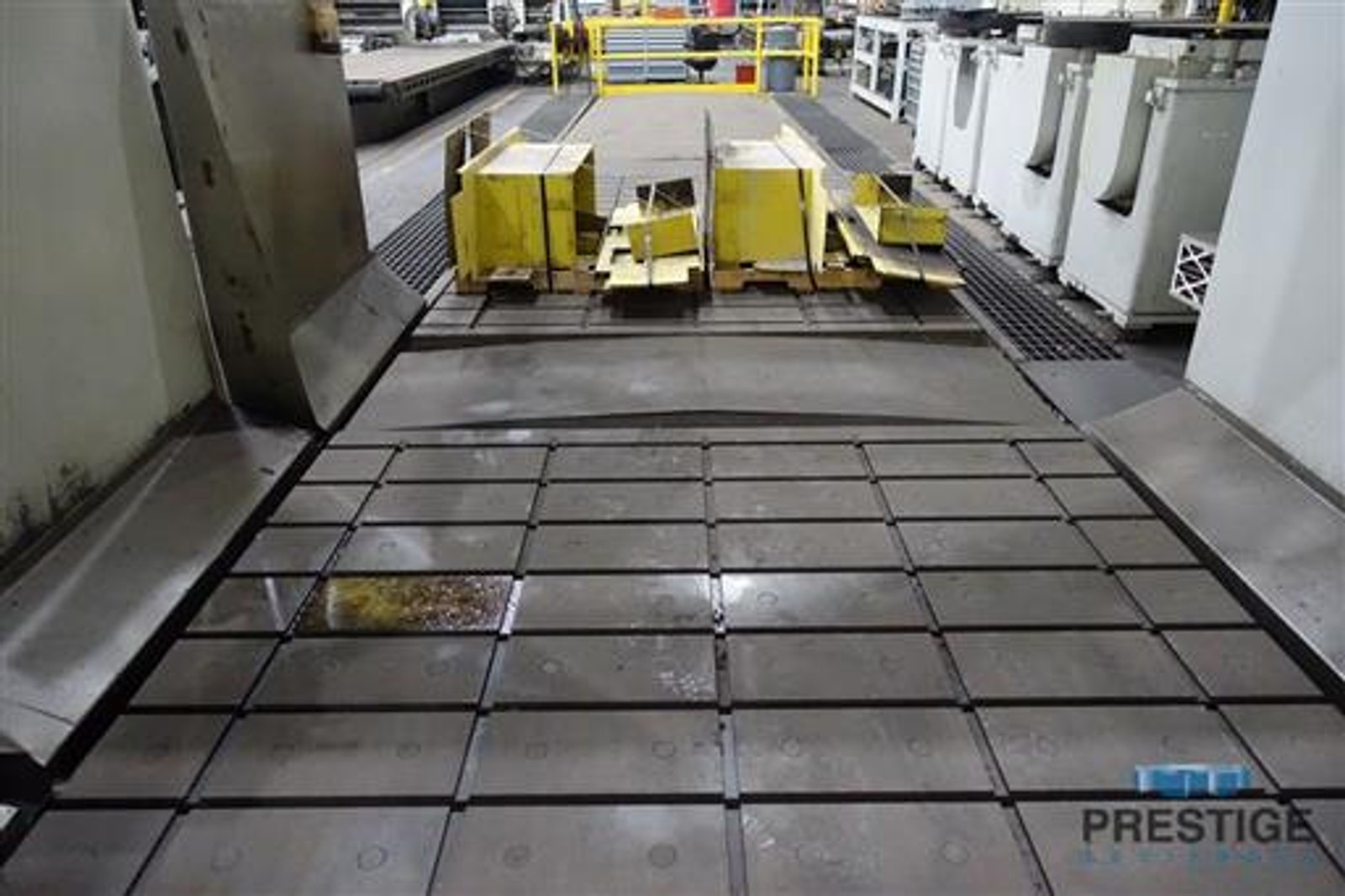

Table Size, Joined .................... 98.42" x 511.81"
Table Size, Front ..................... 98.42" x 314.96"
Table Size, Rear ...................... 98.42" x 157.48
Distance Between Joined Tables ........ 39.37"
Distance Between Columns w/o Covers ... 127.95"
Distance Between Columns w/Covers ..... 118.11"
Ram Cross Section ..................... 23.62" x 23.62"
Maximum Machining Height .............. 96"
Maximum Distance Under Cross Rail ..... 118.11"
Maximum End Face Machining Length ..... 472.44" Both Table Joined
Maximum End Face Machining Length ..... 100" Small Table
Spindle Taper ......................... Cat V-50
Speed ................................. 2-2500 RPM
Table Weight Capacity ................. 44,000 Lbs/Meter Table Length

MILLING HEADS SPINDLE SPEEDER:
Speed Rate ............................ 3 to 1
Maximum RPM ........................... 8000 RPM
Maximum HP ............................ 10 HP
Collet Sizes .......................... .375" - 1.25"
Coolant Thru Spindle Capability

EQUIPPED WITH:
Fanuc 150-M 5-Axis CNC Control
72 Station Automatic Tool Changer (ATC)
Automatic Attachment Changer (AAC)
Thru Spindle Coolant

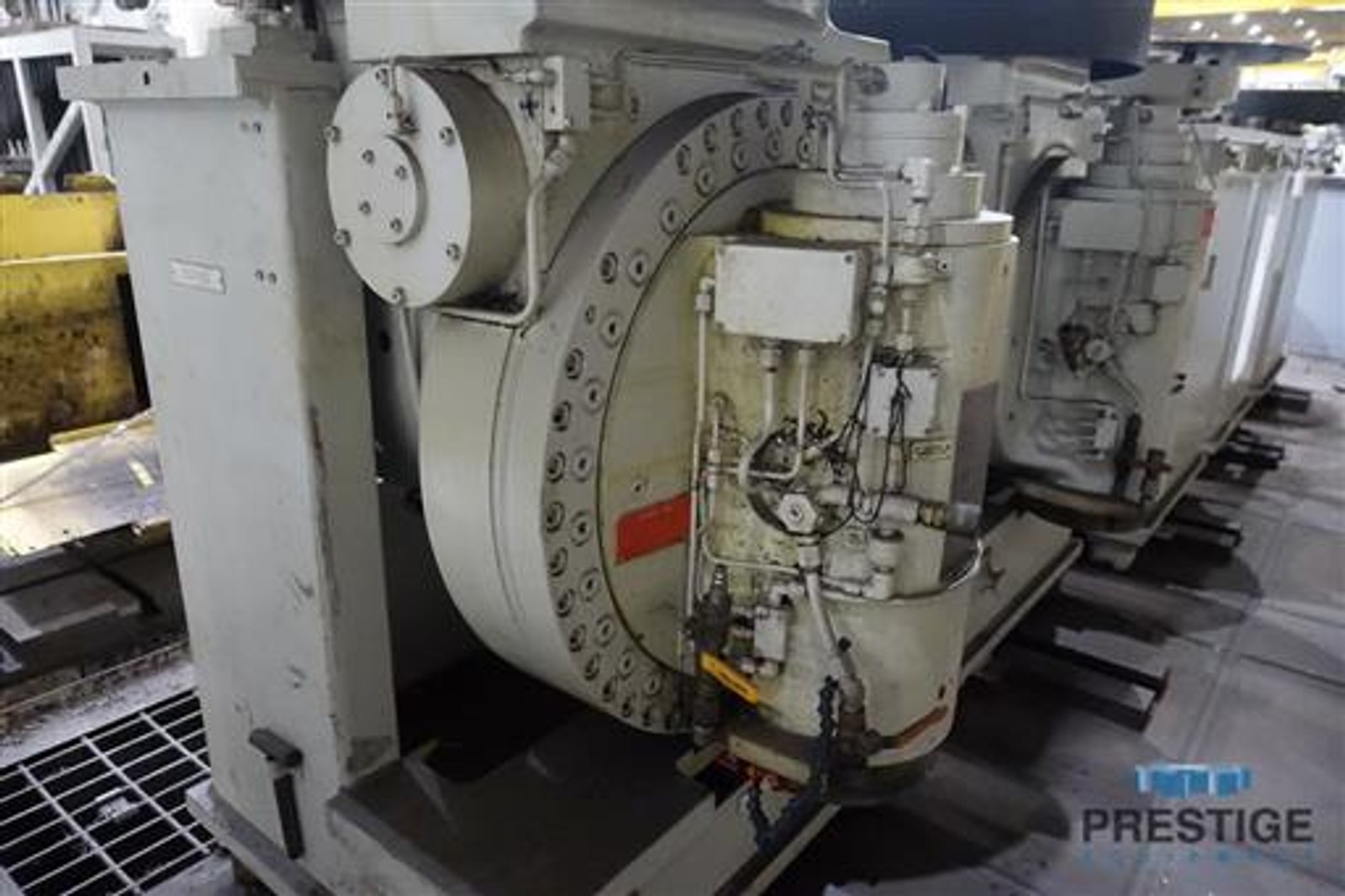

5-Spindle Head Attachments
2-Axis Articulating Head
Sliding Steel Way Covers
100 HP Spindle Motor

NOTES:
Spindle Unit Head Drawings/Specifications Available Upon Request.
