Ingersoll Masterhead 5-Axis CNC Planer Mill 118" x 551" Split Table

Manufacturer

INGERSOLL

Category

Milling Machines

Type

MILLERS, PLANER TYPE (Including Millers, Slab)

Stock

31513

Model

Masterhead

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #31513

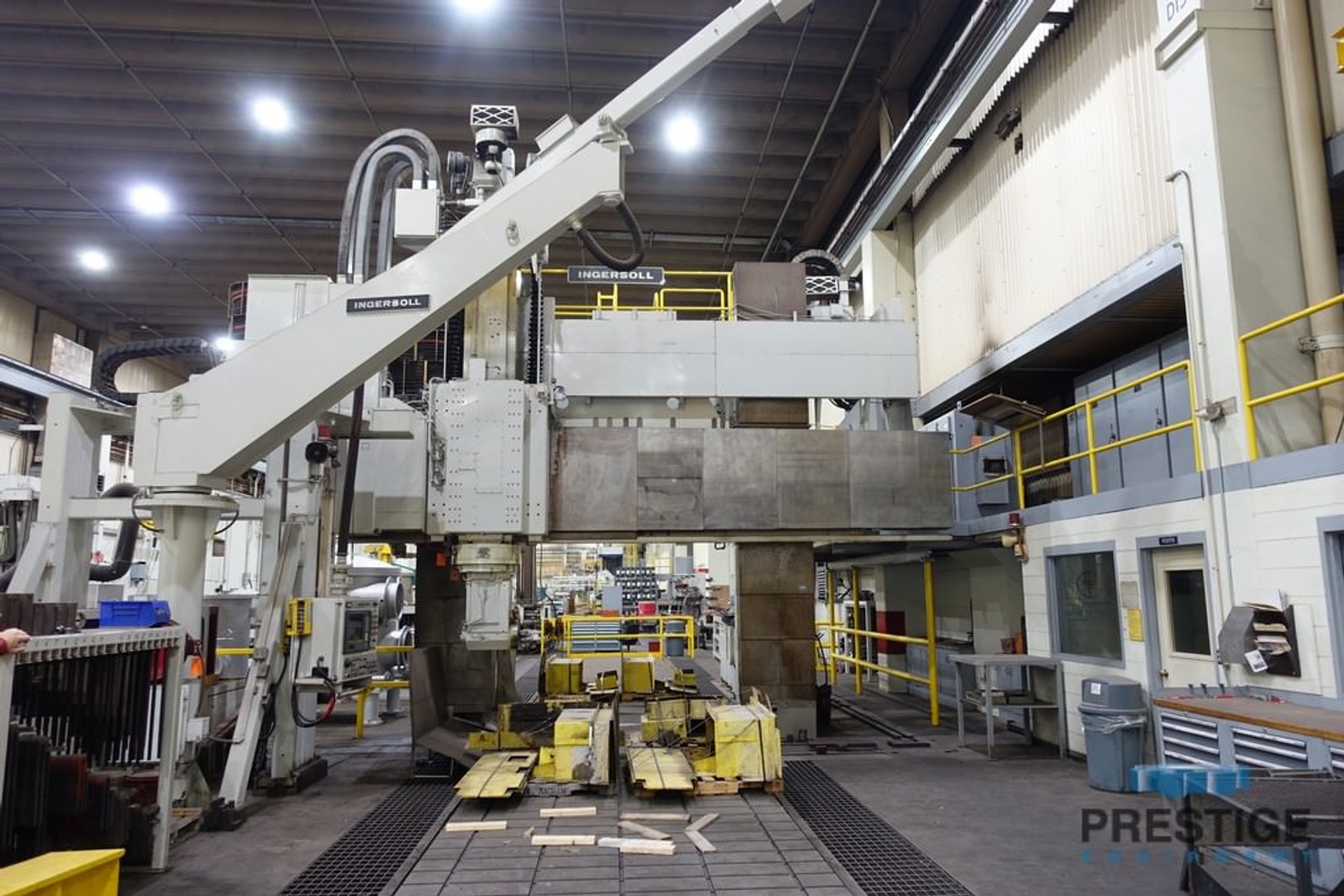

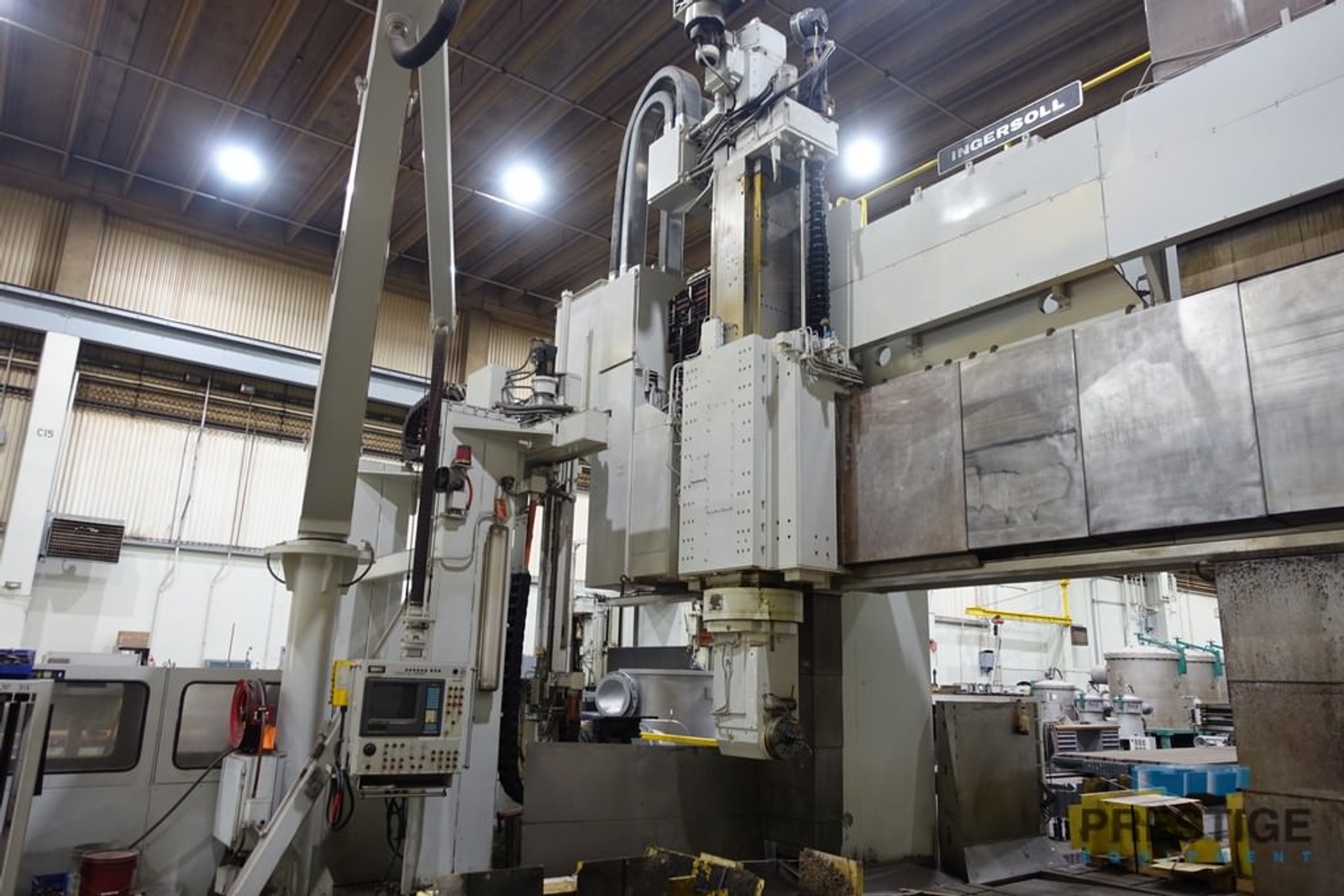

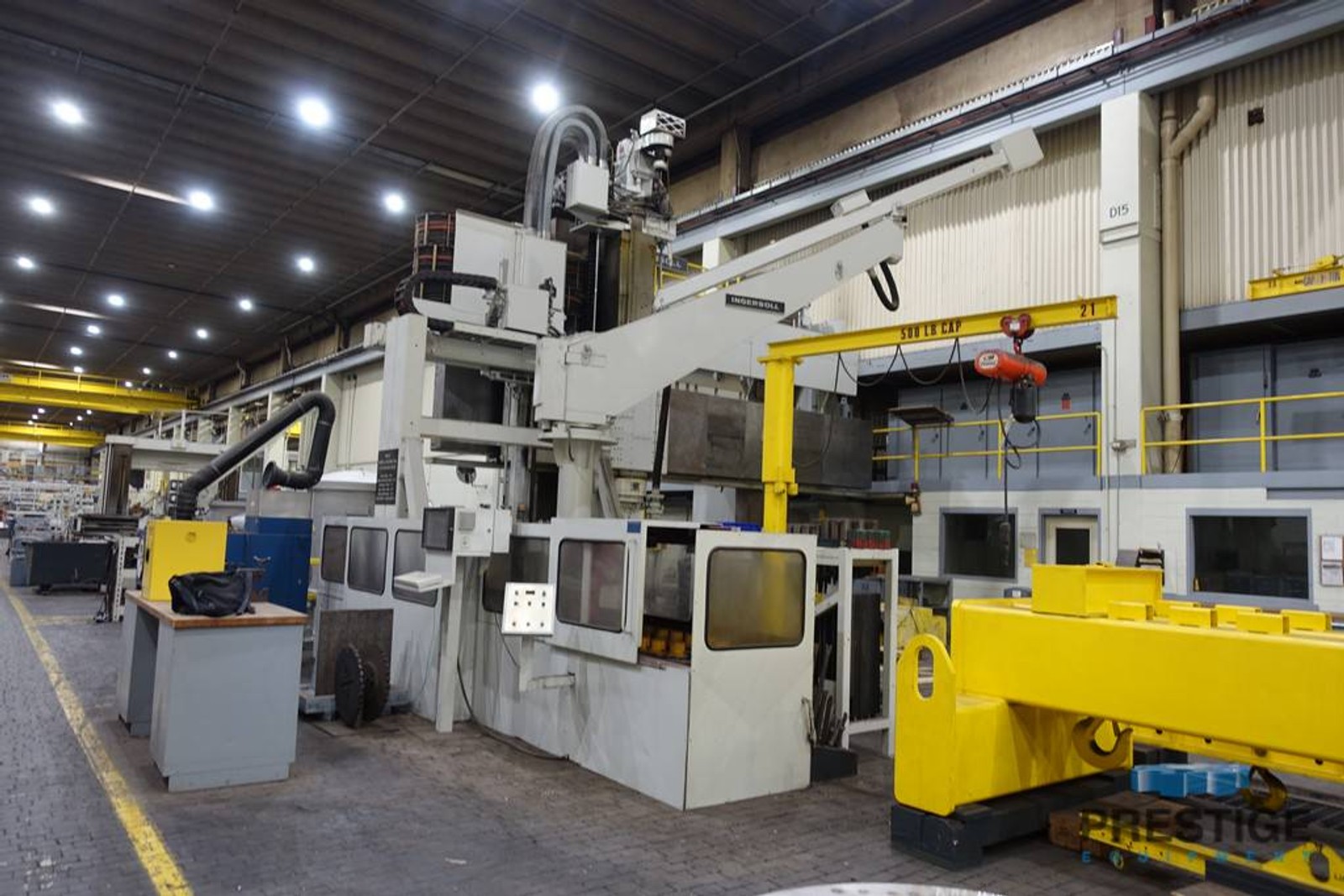

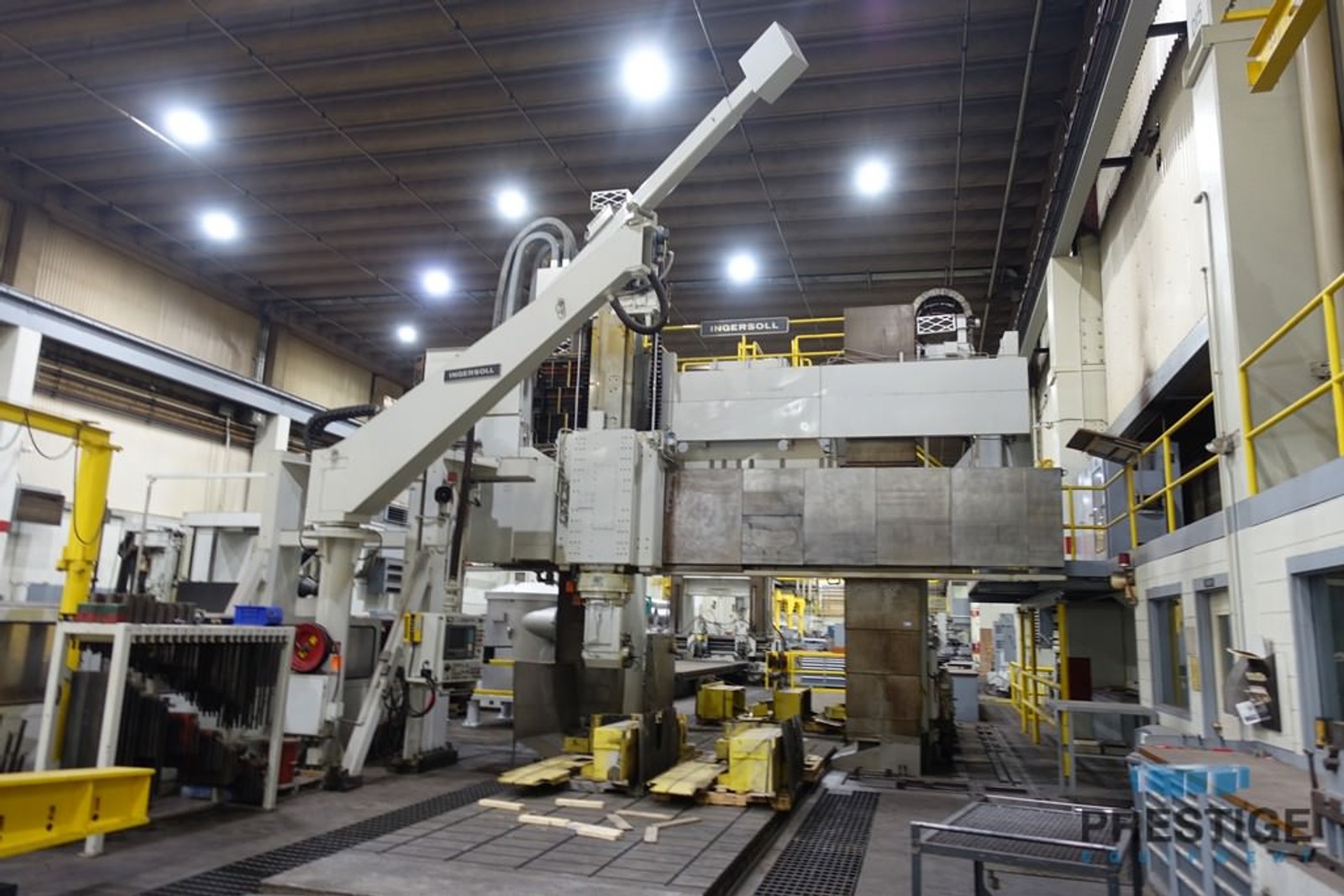

Ingersoll Masterhead 5-Axis CNC Planer Mill 118" x 551" Split Table

FEATURES:
Double Housing
Adjustable Rail

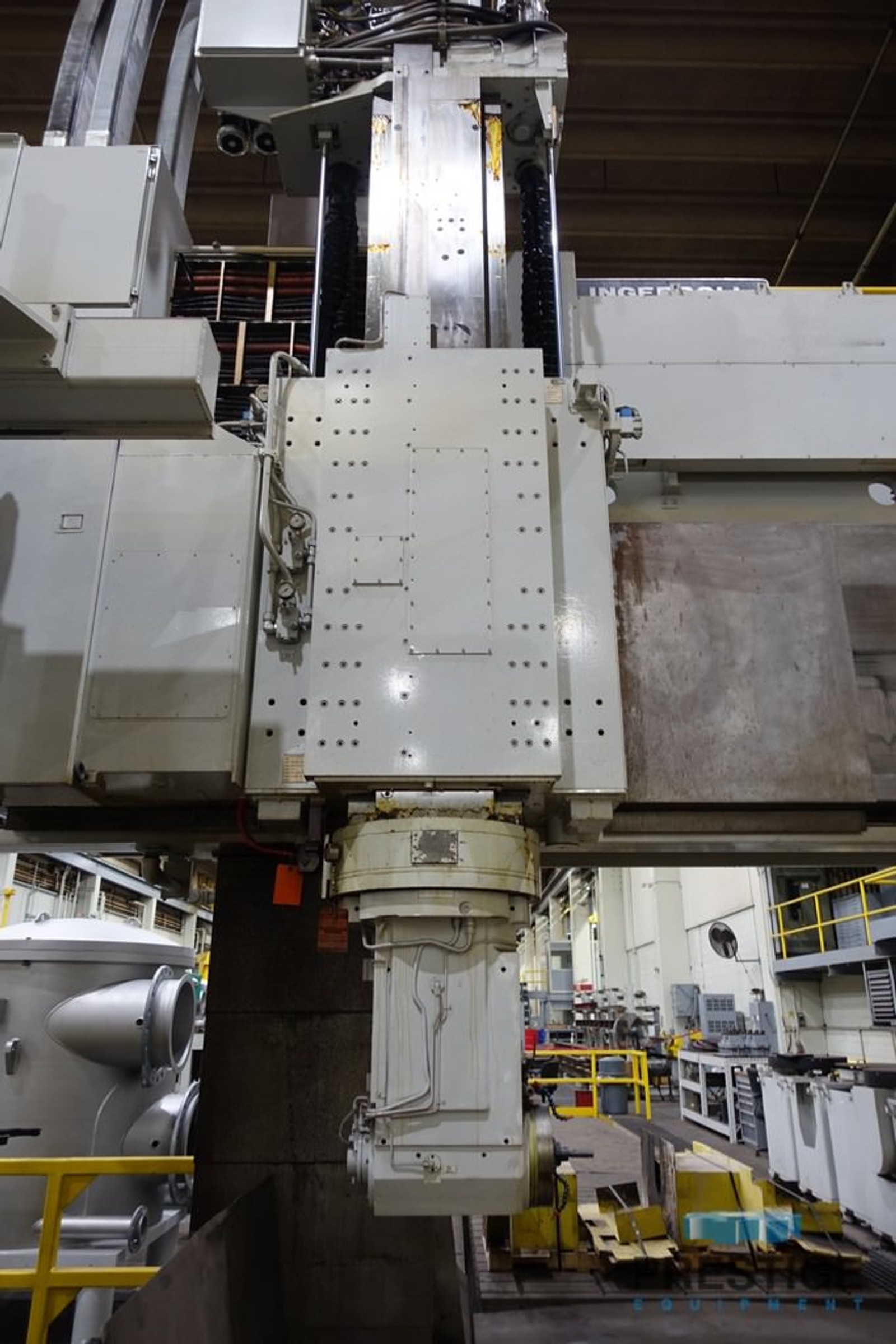

72 Station Automatic Attachment Changer
Automatic Tool Changer
2-Axis Head Attachment
5-Spindle Units
FANUC 150-M 5-Axis CNC Control

TRAVELS:
X-Axis, Table Travel .................. 511.81"
Y-Axis, Horizontal Head Travel ........ 163.38"
Z-Axis, Ram Stroke .................... 59.1"
W-Axis, Cross Rail Vertical Travel .... 98.42"
A-Axis, Head Rotation, 360 Degree ..... 360,000 Positions
B-Axis, Head Swivel, 180 Degree ....... 360,000 Positions

SPECIFICATIONS:

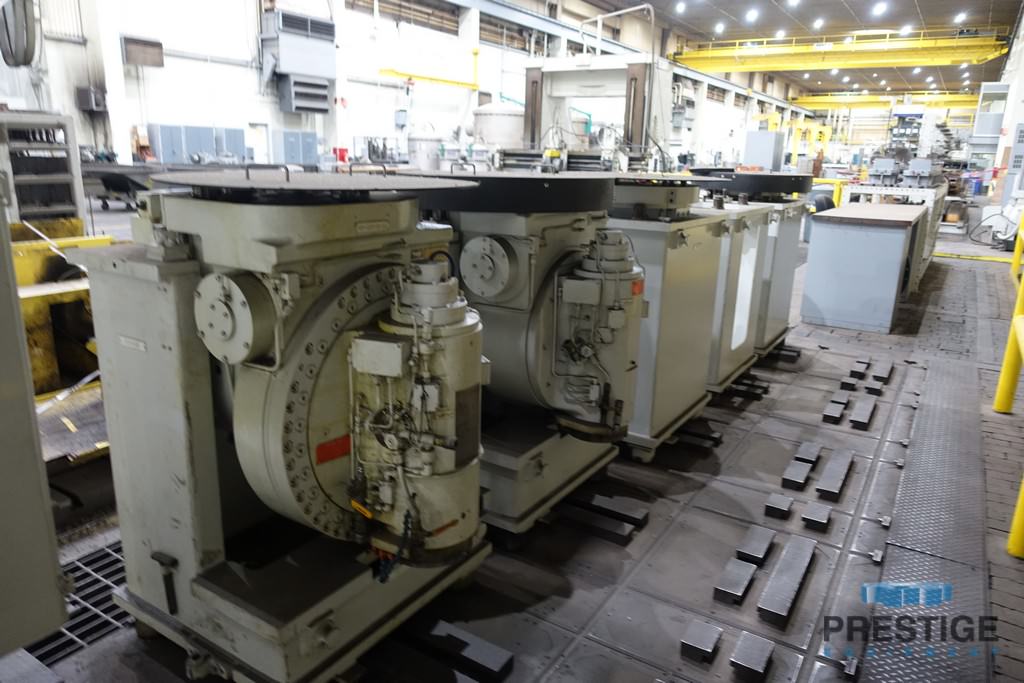

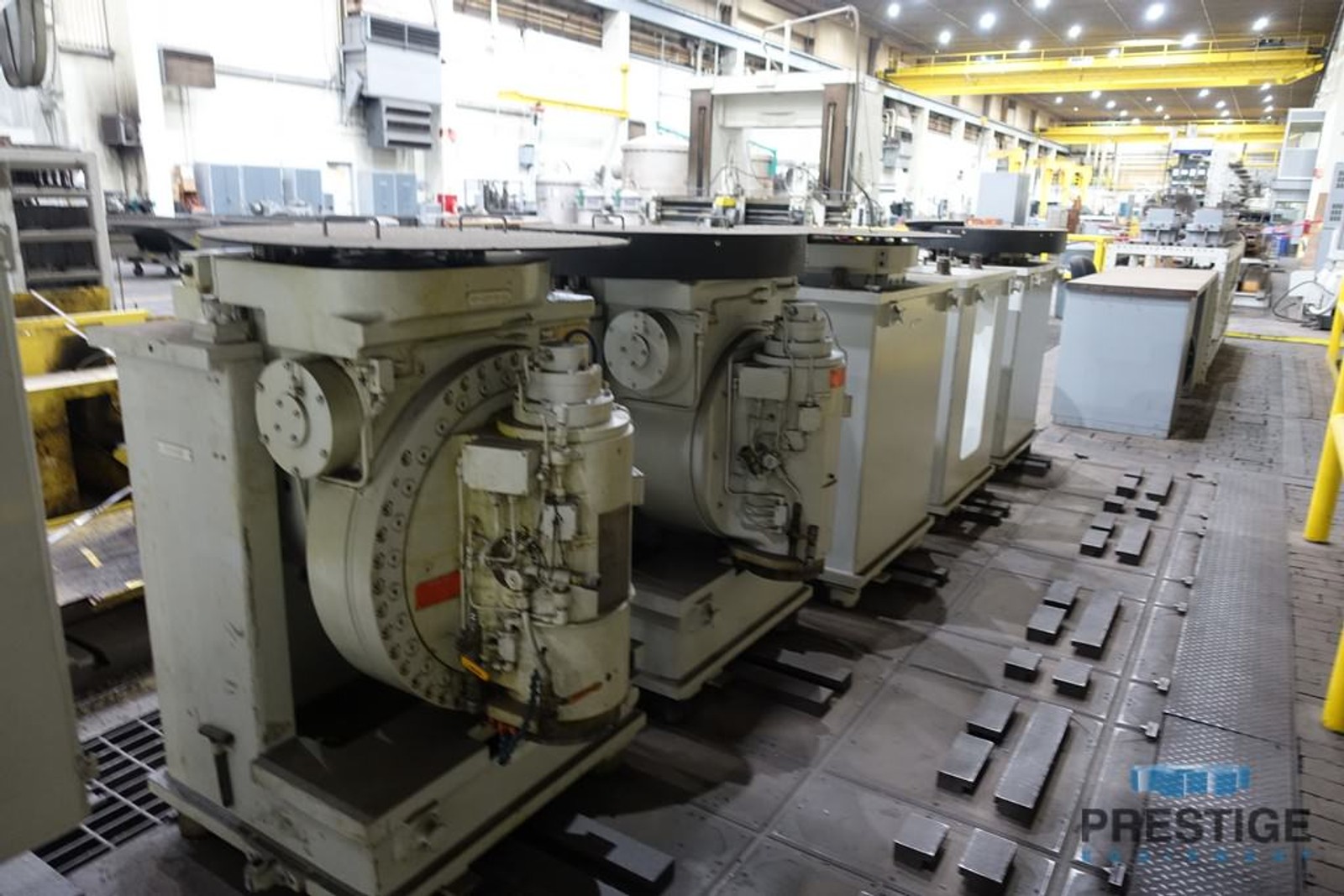

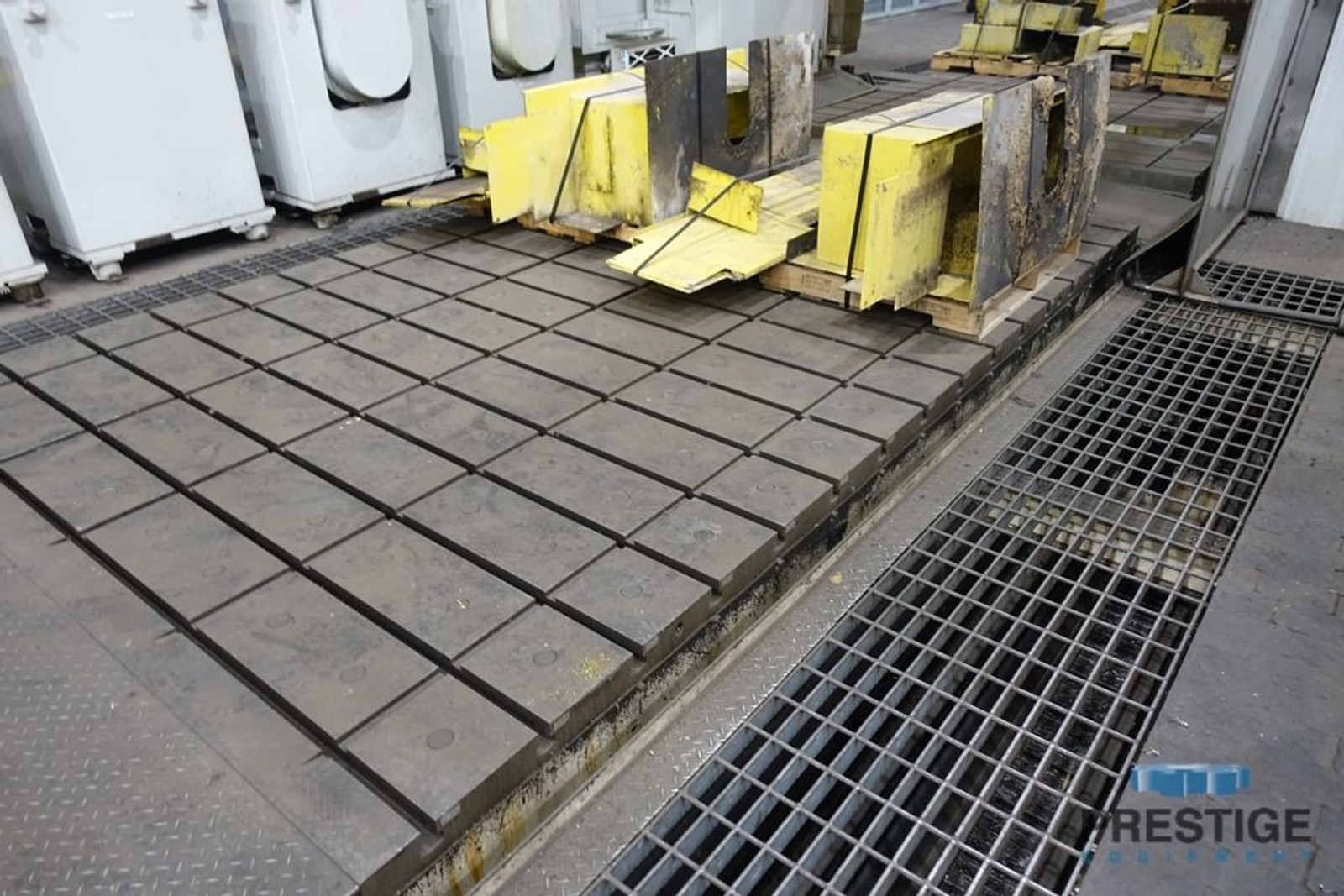

Table Size, Joined .................... 98" x 511.86"
Table Size, Un-Coupled Front .......... 98" x 314.9"
Table Size, Un-Coupled Back ........... 98" x 157.5"
Table Weight Per Table Meter Length ... 44,000 LBS/Meter
Distance Between Table Sections ....... 39.37"
Distance Between Columns .............. 118.11"
Distance Between Columns w/o Way Covers 124"
Ram Cross Section ..................... 23.62" x 23.62"
Maximum Height Table to Ram Face ...... 127.95"
Maximum Machining Height w/8" Tool .... 100"
Spindle Taper ......................... Cat V-50
Speeds ................................ 2-2500 RPM
Table Weight Capacity Joined .......... 139,480 Lbs

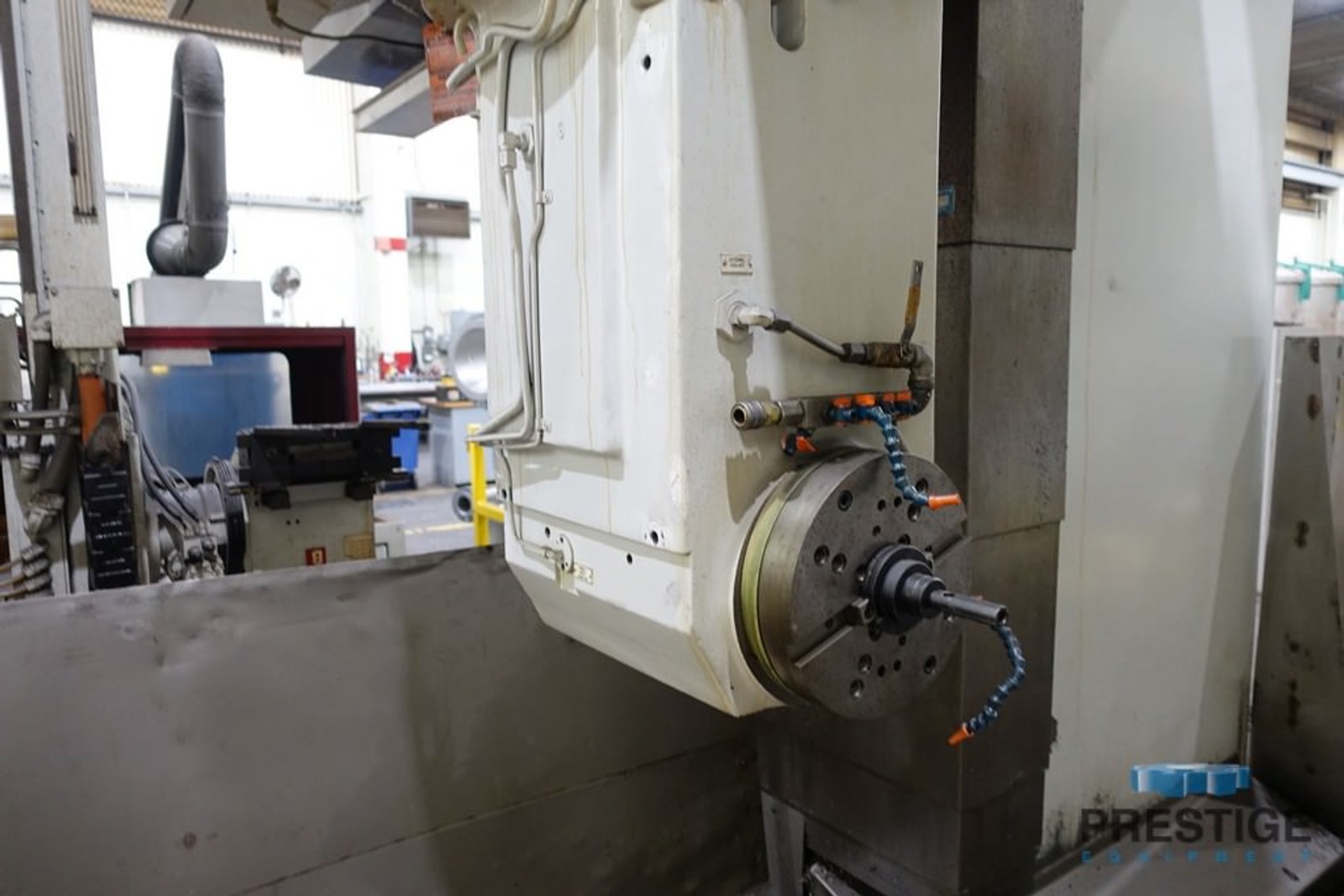

VERTICAL SPINDLE UNIT (A1):
Coolant ............................... External & Thru-Spindle
Maximum Speed ......................... 1500 RPM
C-Axis Movement ....................... 360 Degree
Tool Load ............................. Automatic

N/C SWIVEL UNIT (A3):
Power ................................. 50 HP
Coolant ............................... External
Maximum Speed ......................... 1500 RPM
C-Axis Movement ....................... 360 Degree
B-Axis Movement ....................... 180 Degree
Tool Load ............................. Automatic

90 DEGREE SPINDLE UNIT (A2):
Power.................................. 100 HP
Coolant ............................... External
Maximum Speed ......................... 1500 RPM
C-Axis Movement ....................... 360 Degree
Tool Load ............................. Automatic

90 DEGREE SPINDLE UNIT (A5):
Power ................................. 50 HP
Coolant ............................... External
Maximum Speed ......................... 1750 RPM
C-Axis Movement ....................... 360 Degree
Tool Load ............................. Manual

BIG SHEPPARD SPINDLE SPEEDER:
Speed Rate ............................ 3 to 1
Maximum RPM............................ 8,000 RPM
Maximum Diameter ...................... 1.25"
Maximum HP ............................ 10 HP
Coolant ............................... Thru-Spindle

EQUIPPED WITH:

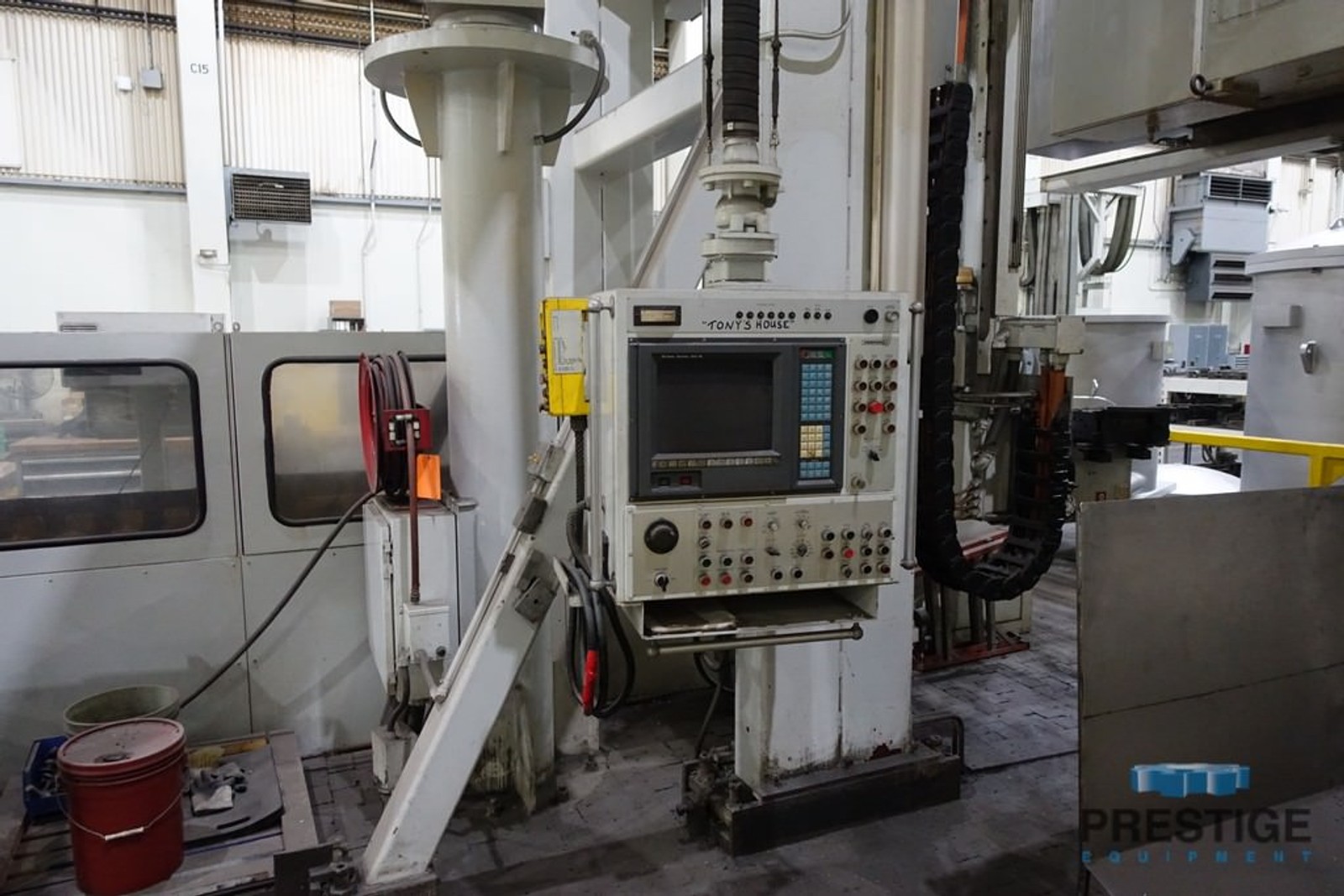

Fanuc 150-M 5-Axis CNC Control

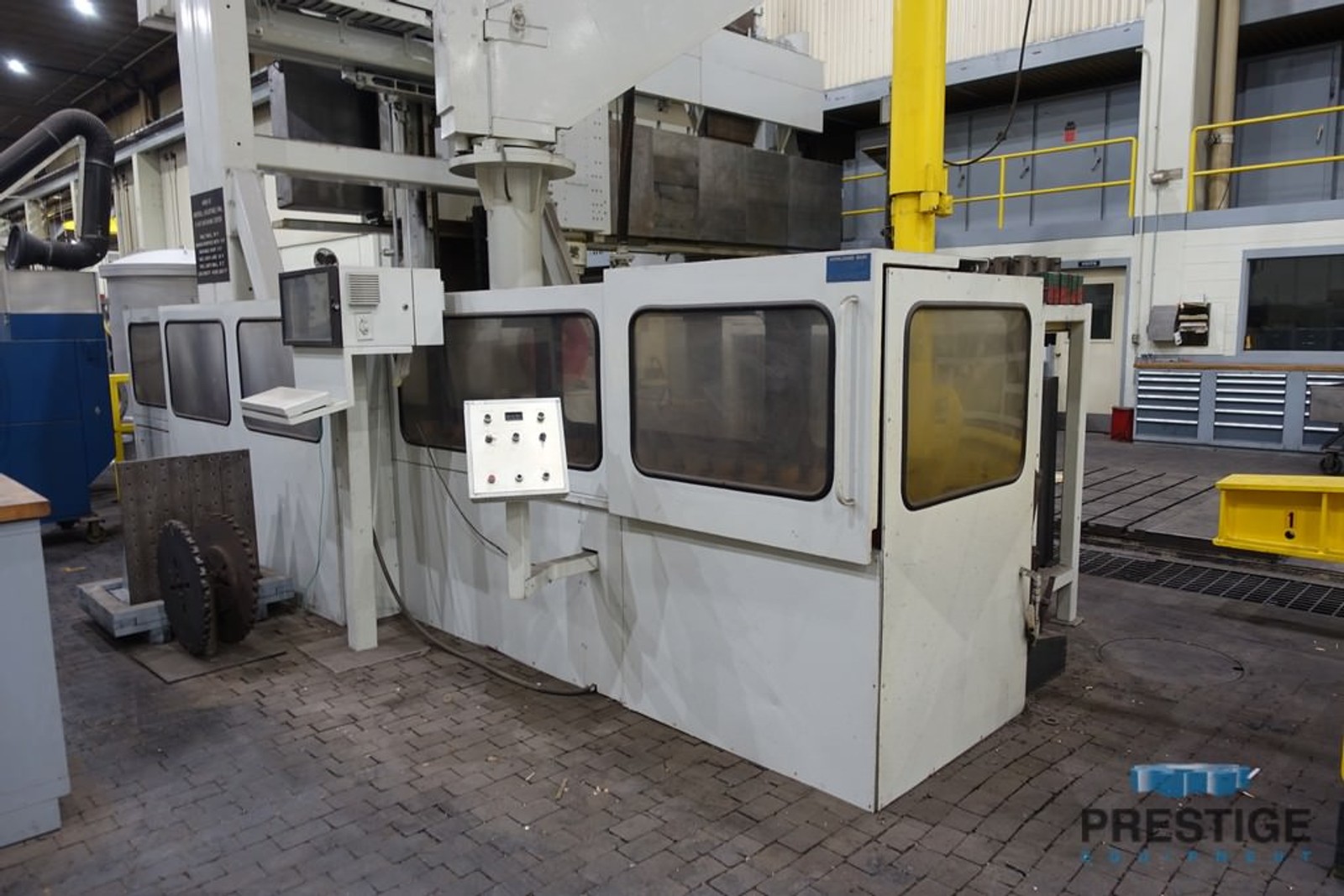

Adjustable Pendant Controls
Thru-Spindle Coolant
5-Spindle Units
Straight Milling Heads
2-Axis Articulating Head for 5-Axis Machining
Right Angle Head for 5-Face Milling
Telescoping Steel Way Covers on all X, Y & W Axes
Chip Conveyor
125 HP Spindle Motor

NOTES:
Mechanically Rebuilt Hydraulics, Ways Re-Ground, New Non-Metalic Surfaces, Rebuilt Ram

No Video Available

Want to request a quote from the owner of this listing?

Request a Quote
