60" x .375" x 40,000# Automatic Feed Cut-to-Length Line with Edge Deburr

Manufacturer

Automatic Feed

Category

Fabricating Machines

Type

CUT-TO-LENGTH LINES

Stock

102039A

Model

None listed

Dealer Location

Michigan

Request a Quote
View Contact Information

Spec Sheet

Serial #: 3831
Width Range: 4.75"-60"
Gauge Range: .094-.375" (.500" at 30")
Yield= 60,000 PSI
Coil ID: 22"-26"
Coil OD: 72"-36"
Pack Weight 10,000#
Pack Height 21"
Line Speed= 78' FPM

Complete Line with the Following Components:
Three Arm Entry Turnstile
Nova Coil Car

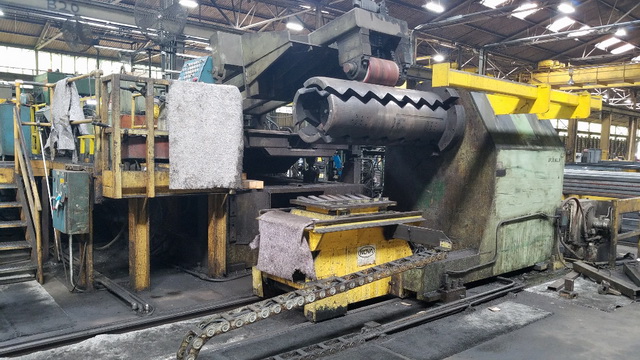

Mandrel Uncoiler
Powered Hold Down Roll
Straightener
Deburring Rolls
Pinch Rolls

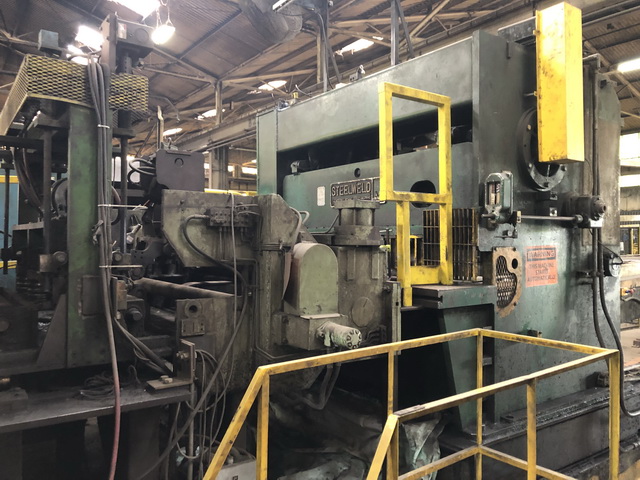

Steelweld Shear
Belt Conveyor

Cooper Weymouth Stacker with Scissor Table (Year 2011)
Stacker Capacity:
20" min. - 60" max. Width Blanks
16" min. - 144" max. Length Blanks
21" max. Stack Height Including Pallet
10,000# max. stack weight
End Discharge

Control Techniques Digital Drives
Delta RMC75 Motion Controller
New Controls in 2011
