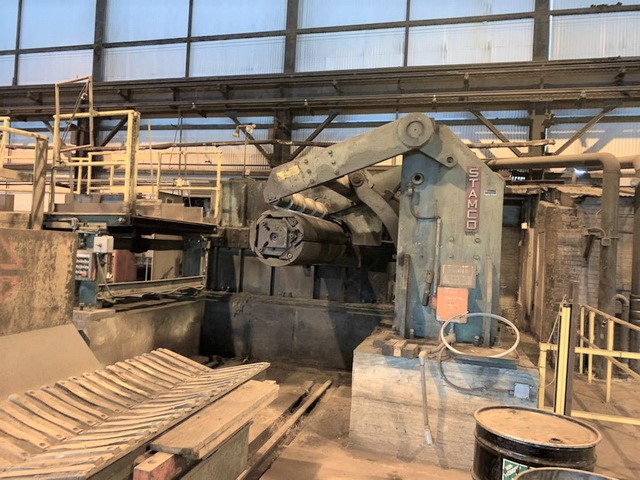

72" x .500" x 60,000# Stamco Slitting Line with 2 Heads

Manufacturer

Stamco

Category

Slitters and Slitting Lines

Type

SLITTING LINES

Stock

102069A

Model

None listed

Dealer Location

Michigan

Request a Quote
View Contact Information

Spec Sheet

General Specifications:
Strip Width: 20"-72" (508mm-1800mm)
Strip Thickness: .075"-.500" (1.9mm-12.7mm)
Coil ID: 20"-30" on entry, 24" on Exit (508mm-762mm on entry) (610mm on Exit)
Coil OD: 36"-80" (914mm-2032mm)
Max Coil Weight: 60,000#
Line Speed: 150 FPM (50 MPM)
4 Cuts of .375" at 80,000PSI
4 Cuts of .500" at 50,000PSI

Complete Line with the Following Components:
Entry Pit Type Coil Car
Coil Saddle
Double Cone Uncoiler
Peeler and Hold Down Roll
Entry Edge Guides
Automatic Edge Controller
Pinch Rolls
Three Roll Flattener
Entry Crop Shear
Edge Guides Pinch Rolls
Two Slitting Heads
Two Scrap Choppers
Goose Neck Conveyor
Carry Over Table
Recoiler with Overarm Separator
Exit L-Type Coil Car

Knives, Rubbers, and Tooling,
Allen Bradley Digital Drives
Currently Installed

No Video Available
