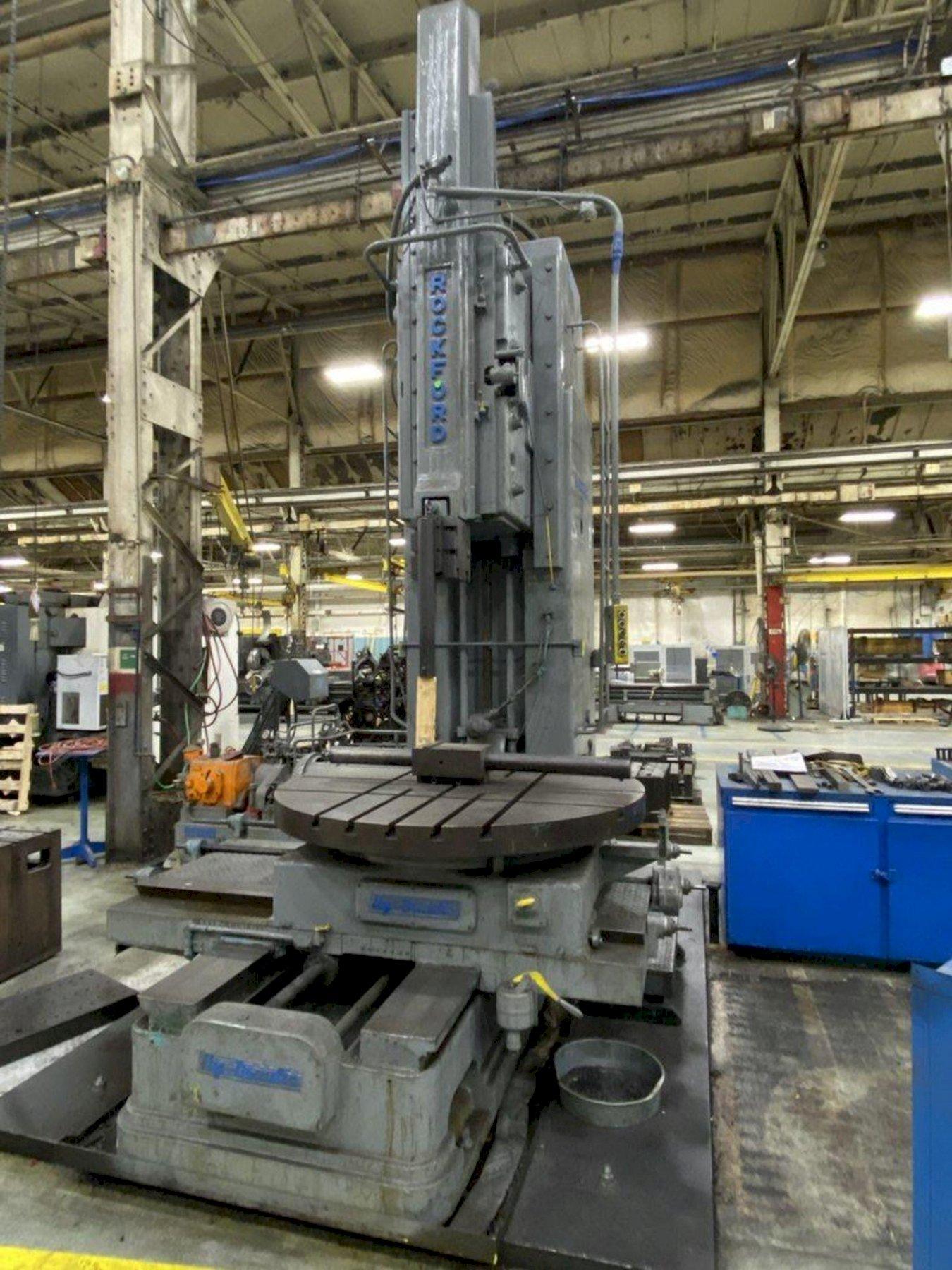

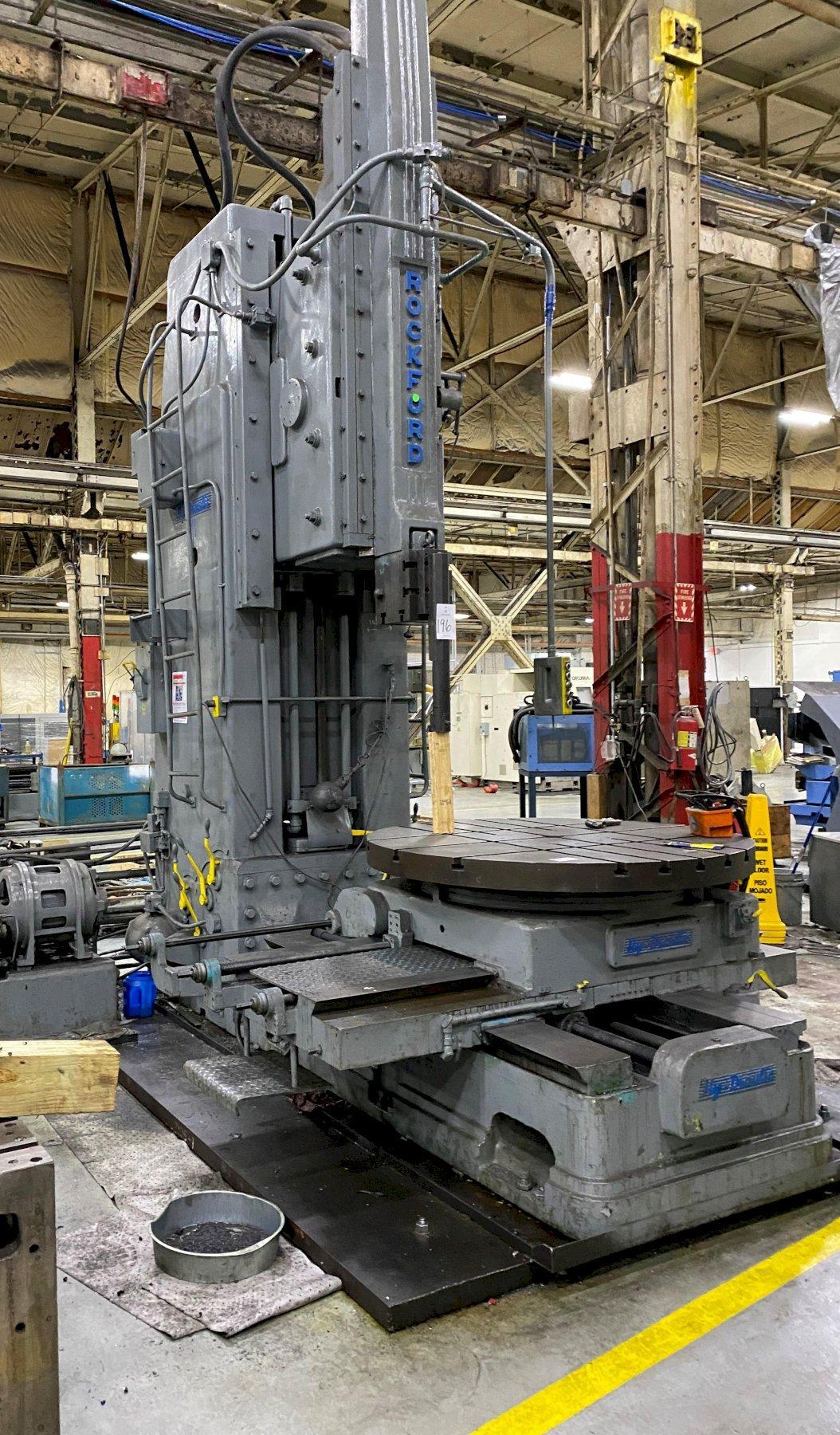

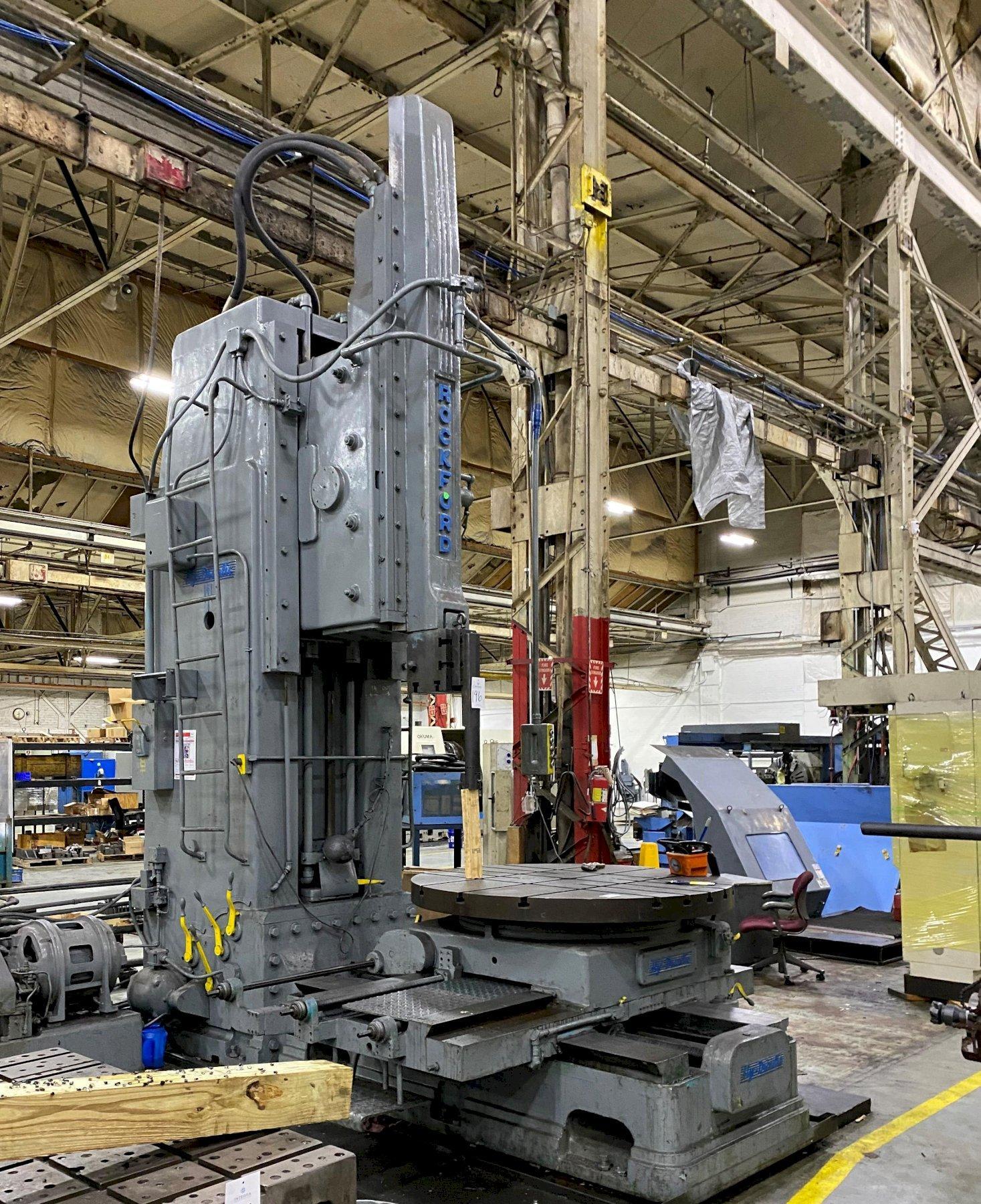

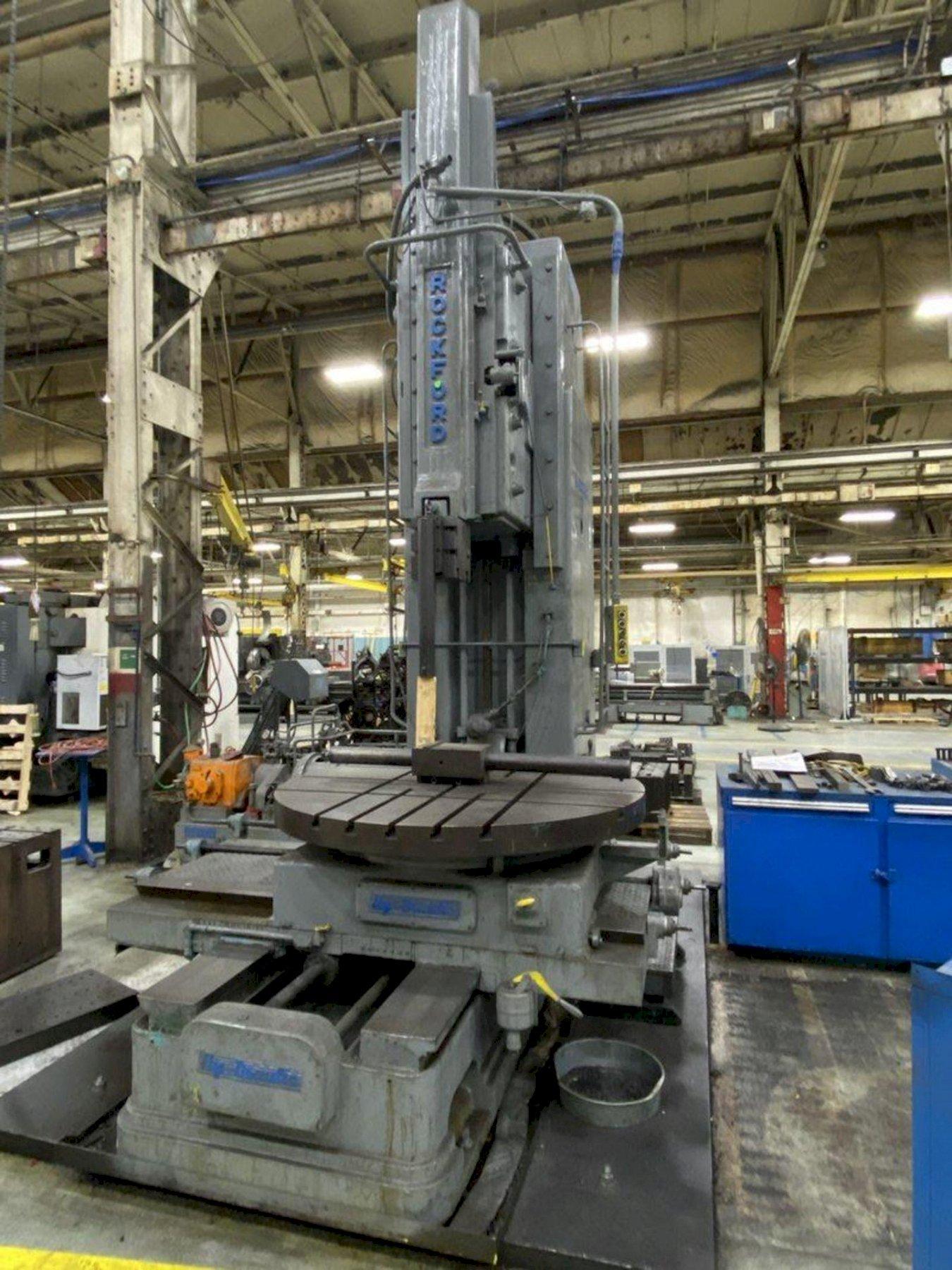

48" ROCKFORD MODEL #SL HYDRAULIC VERTICAL SLOTTER: STOCK #14740

Manufacturer

ROCKFORD

Category

Miscellaneous Machines

Type

SLOTTERS, SCREW, (High Speed)

Stock

14740

Model

SL

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet

Dimensions - APPROX FLOOR SPACE: 16' X 8'6" X 18'2" MAX HEIGHT
Weight - 38500 pounds

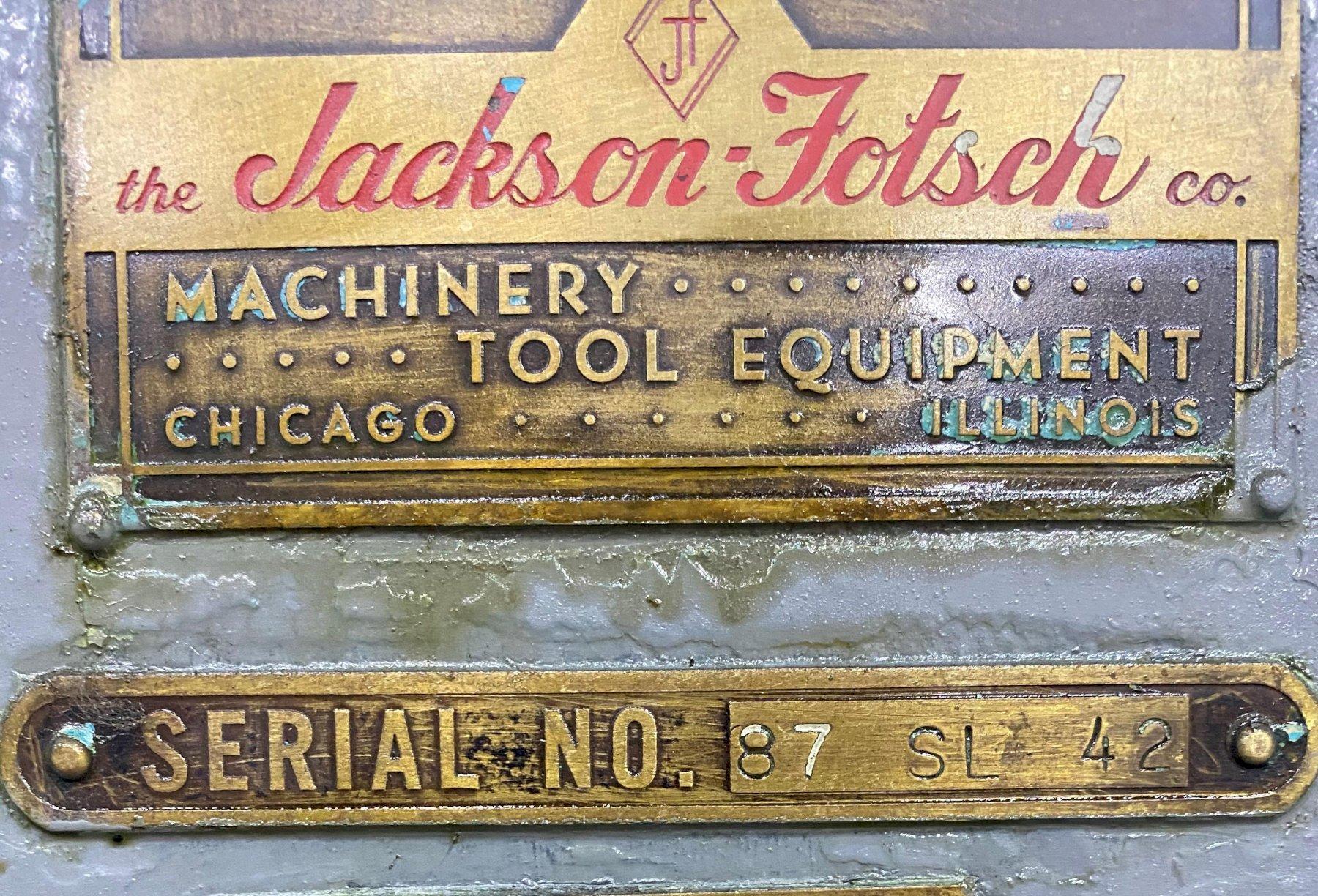

SERIAL ............................. 87-SL-42
MODEL .............................. SL
STROKE LENGTH ...................... 6" TO 48"
SLOTS TO CENTER OF CIRCLE .......... 83" DIAMETER
DISTANCE UNDER GUIDE RAM ........... 46" MAX
TABLE TO TOOL HEAD ................. 54" MAX
RAM GUIDE VERTICAL ADJUSTMENT ...... 16"
FOWARD INCLINATION OF TILTING RAM .. 10 DEGREES
RAM RETURN SPEED (VARIABLE) ........ O TO 150 FPM
CUTTING SPEED (VARIABLE) ........... 0 TO 80 FPM
SPEED CHANGES ON RAM ............... INFINITE
CUTTING PRESSURE ................... 10,000 LBS MAX

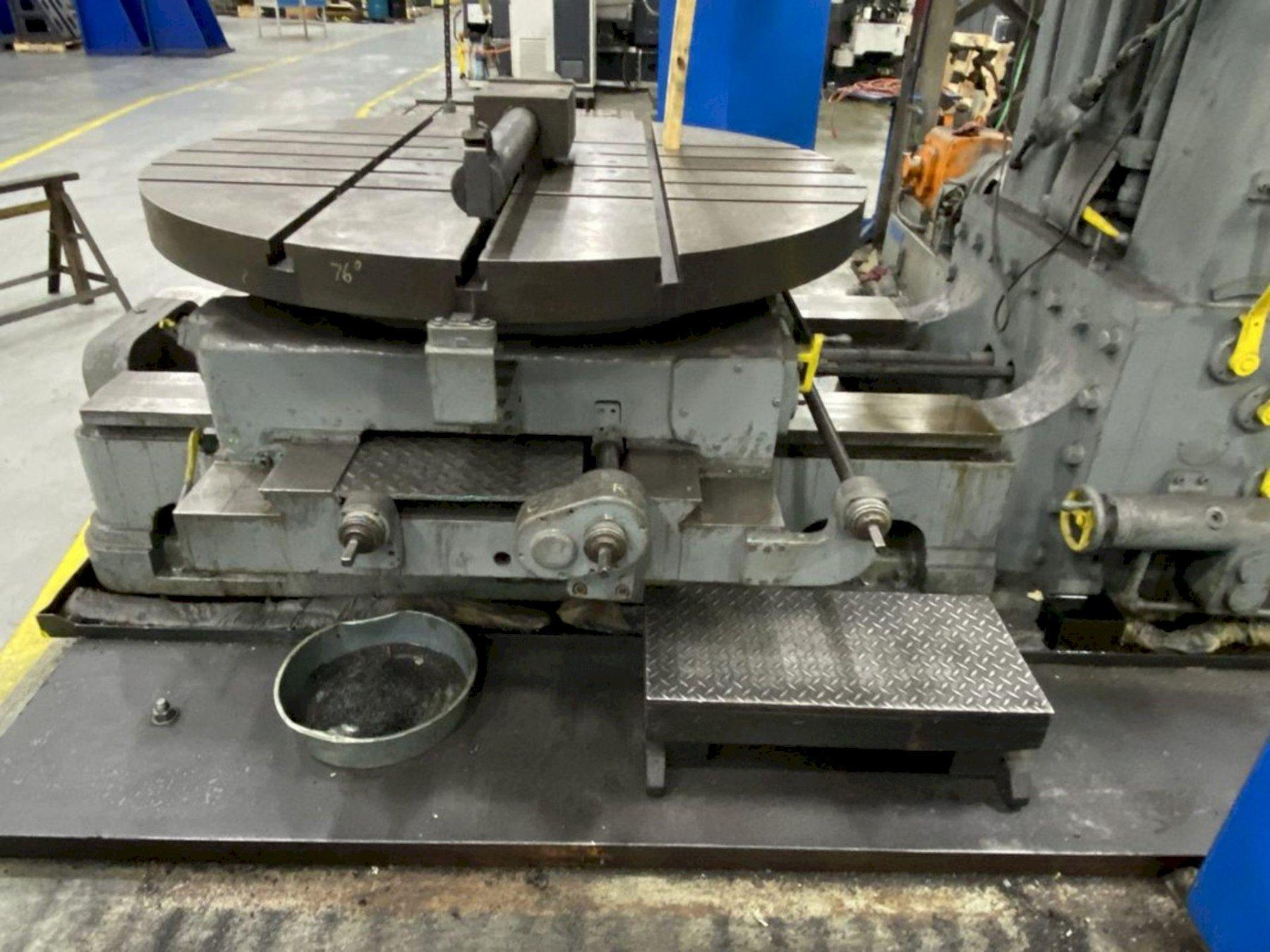

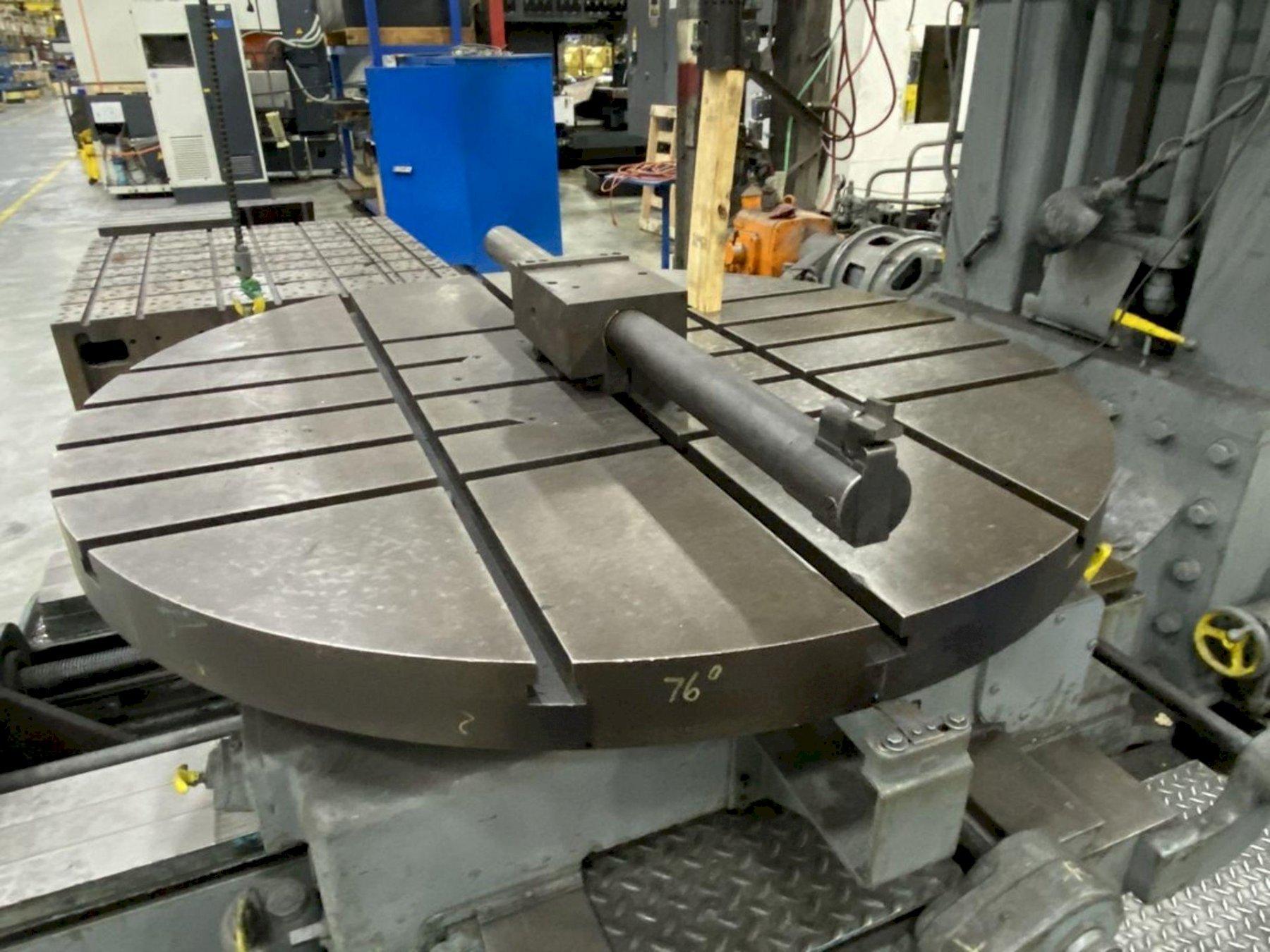

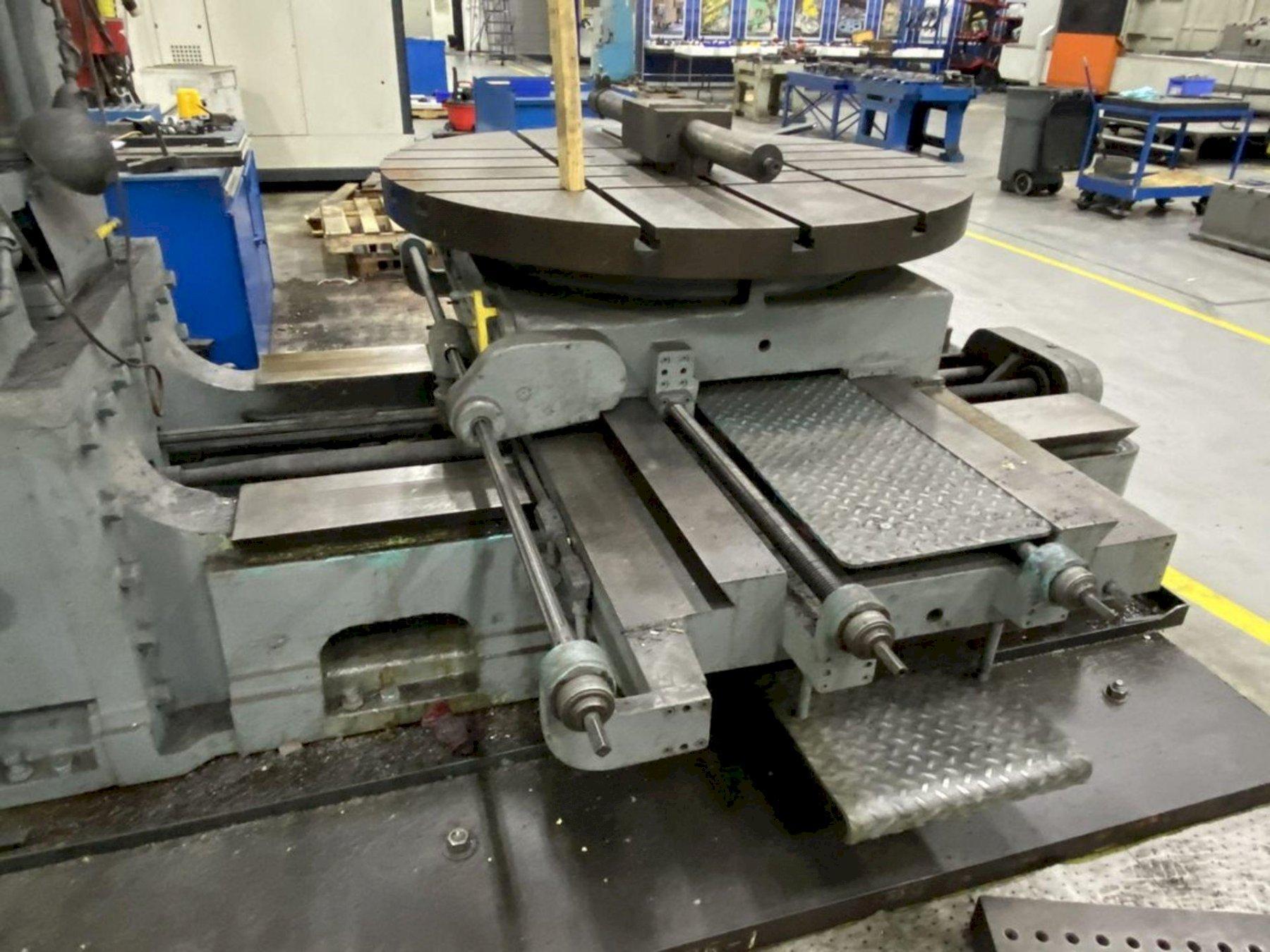

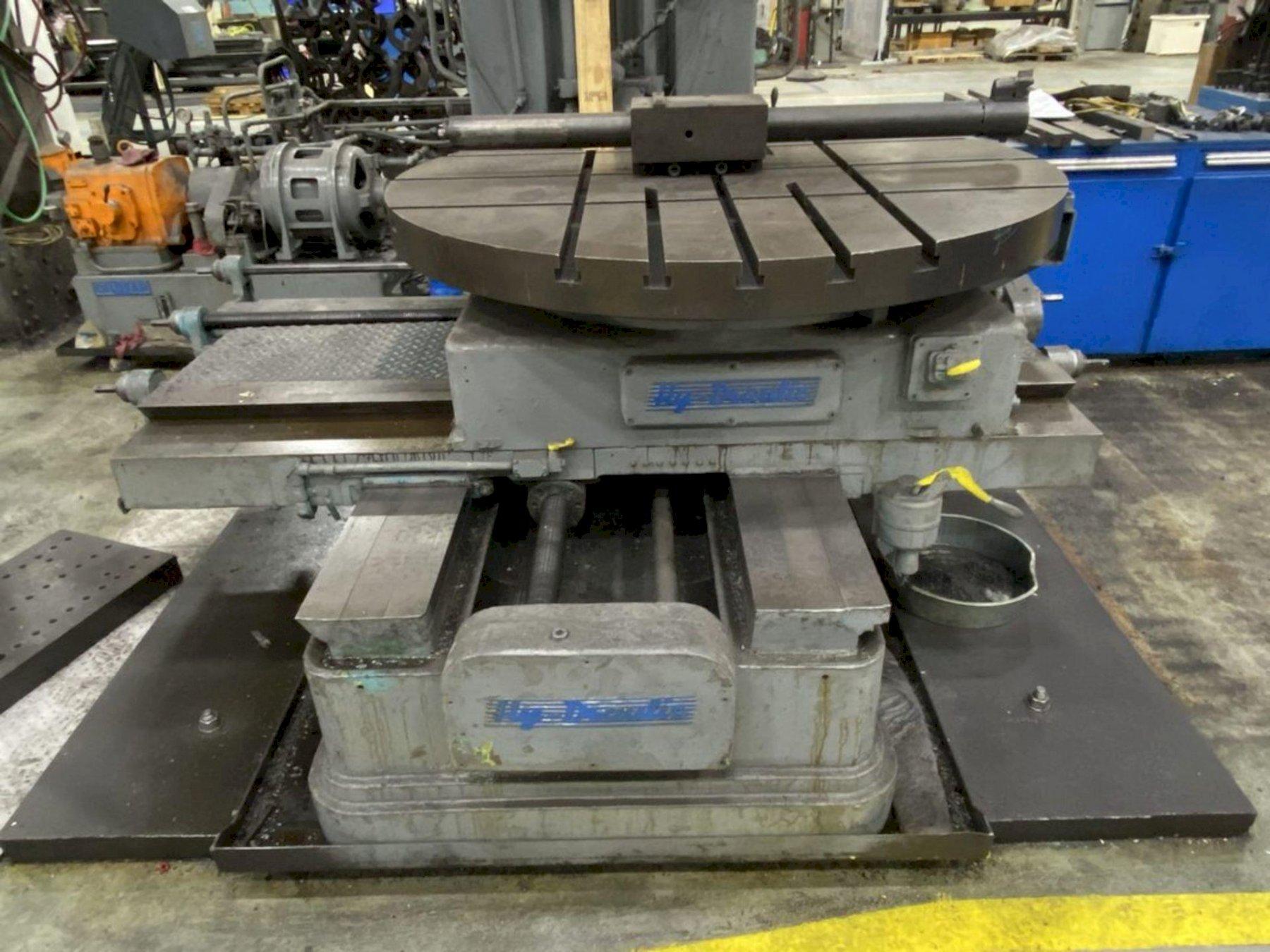

TABLE DIAMETER (T-SLOTTED) ......... 42"
WORK HEIGHT (FLOOR TO TABLE) ....... 42"
LONGITUDINAL TRAVEL OF TABLE ....... 42"
CROSS TRAVEL OF TABLE .............. 36"
LONGITUDINAL/CROSS/ROTARY FEEDS .... .001" TO .140" PER STROKE
PENDANT CONTROL .................... YES
ONE SHOT LUBE ...................... YES
TABLE MOTOR ........................ 2 HP

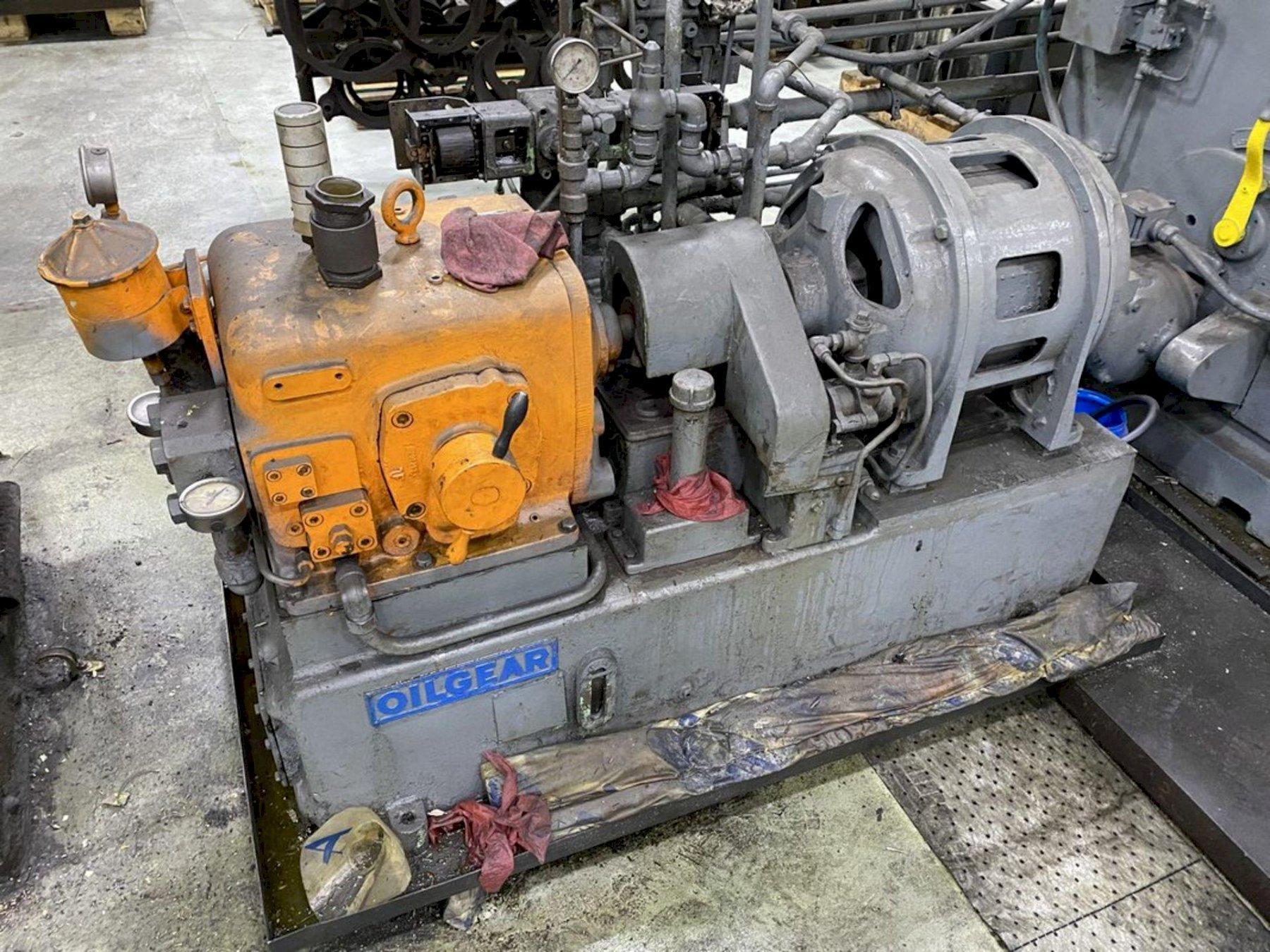

OIL GEAR PUMP MOTOR ................ 20 HP
