Makino A88, X-35.4", Y-31.5", 24.8" Pallets, 0.001 Degree Index, Pro-3 CNC, 1000 PSI TSC, 40 ATC, Chip Conveyor, #31431

Manufacturer

MAKINO

Category

Machining Centers

Type

MACHINING CENTERS, HORIZONTAL, CNC (Incl. Pallet Changers)

Stock

31431

Model

A88

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #31431

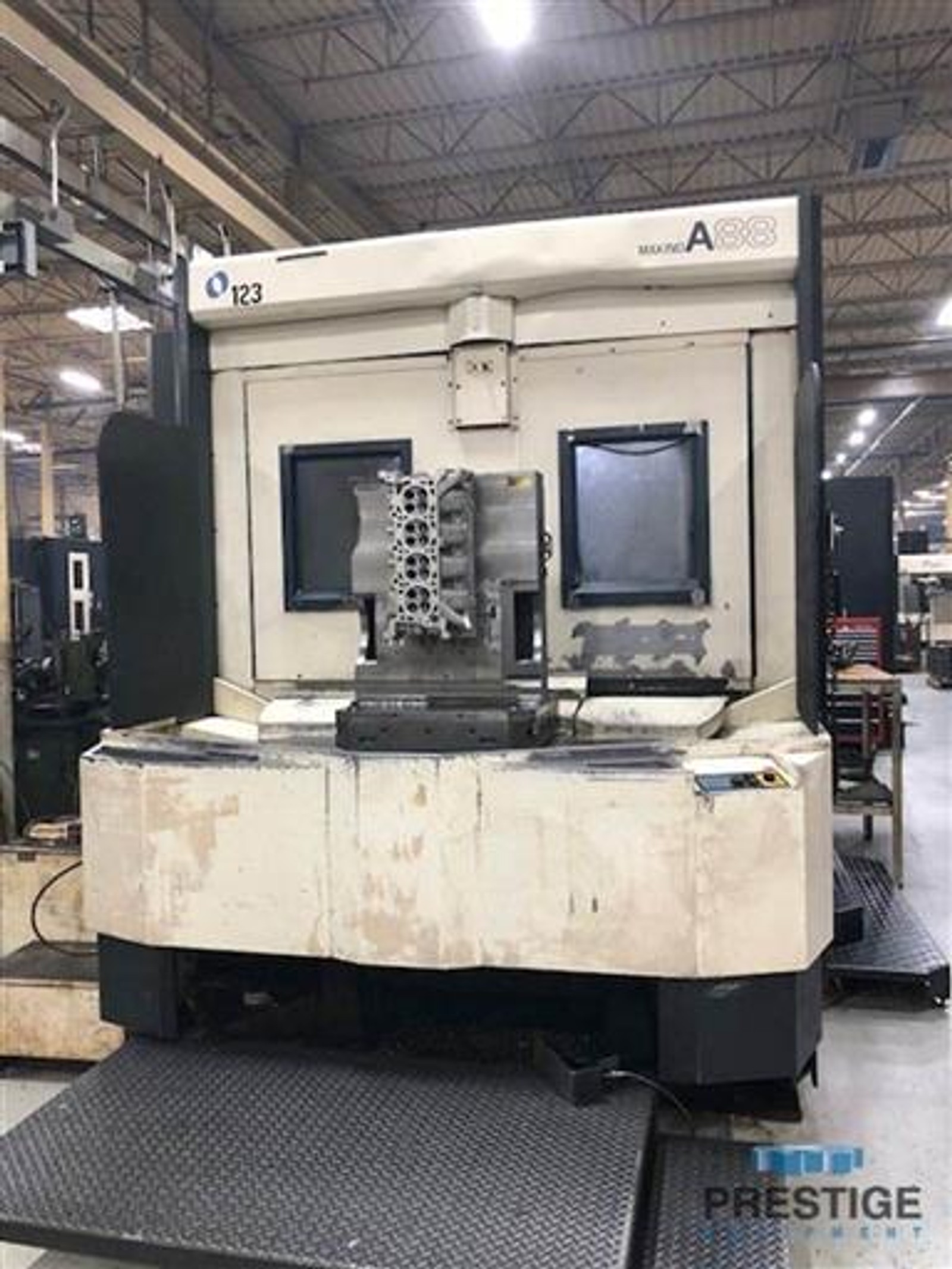

Makino A88 CNC Horizontal Machining Center

FEATURES:
Makino Pro-3 CNC Control
12,000 RPM
40 ATC
Through Spindle Coolant

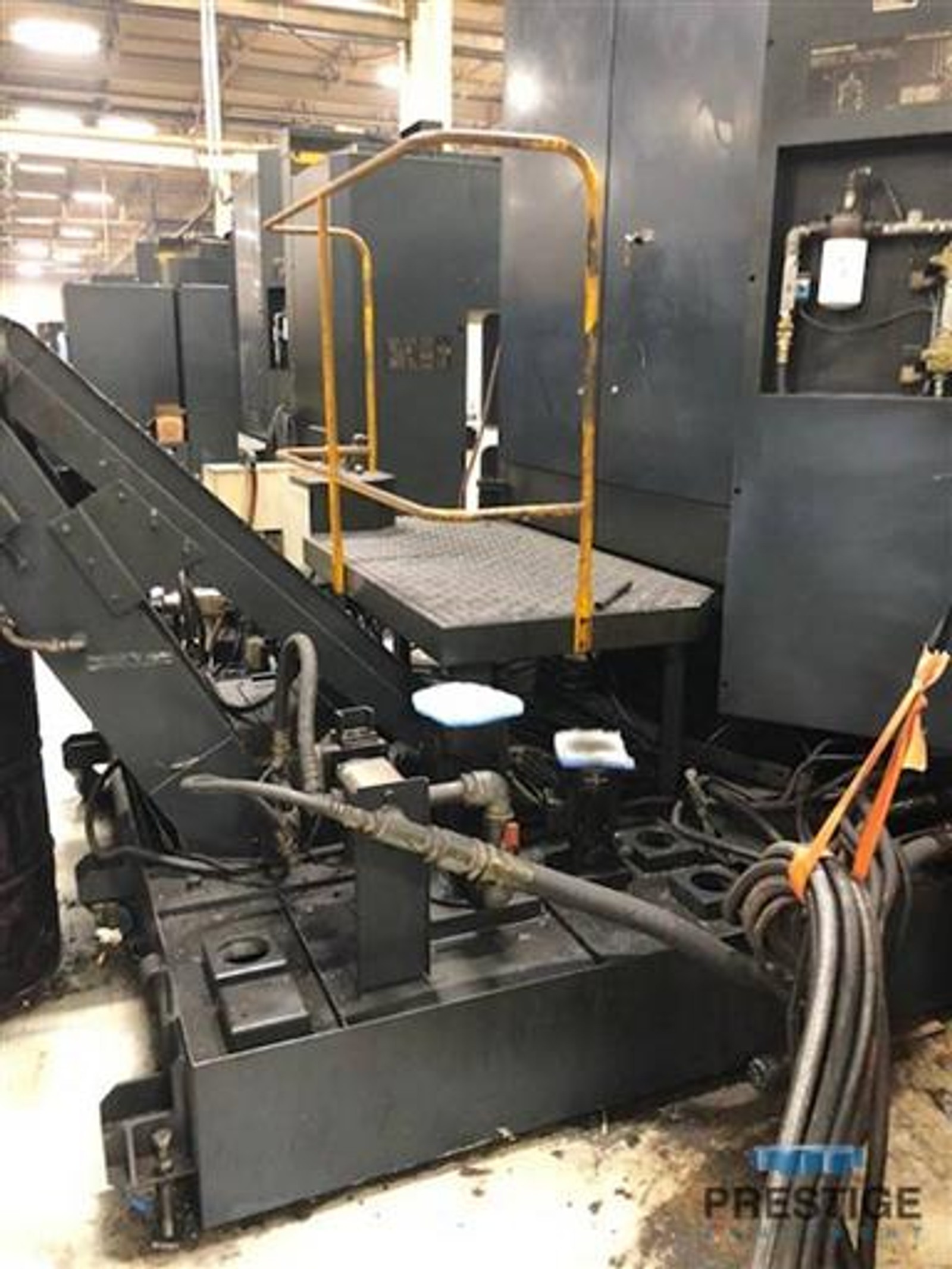

Chip Conveyor

SPECIFICATIONS:
X-Axis Travel ......................... 35.43"
Y-Axis Travel ......................... 31.49”
Z-Axis Travel ......................... 38.1”
Pallet Size ........................... 24.8" x 24.8"
Pallet Indexing ....................... 0.001 Degree
Max. Work Weight ...................... 6,600 Lb.
Spindle Speeds ........................ 12,000 RPM
Main Motor ............................ 40 HP
Rapid Traverse ........................ 1000 IPM
Cutting Feedrate ...................... 1000 IPM

EQUIPPED WITH:
Makino Pro-3 CNC Control

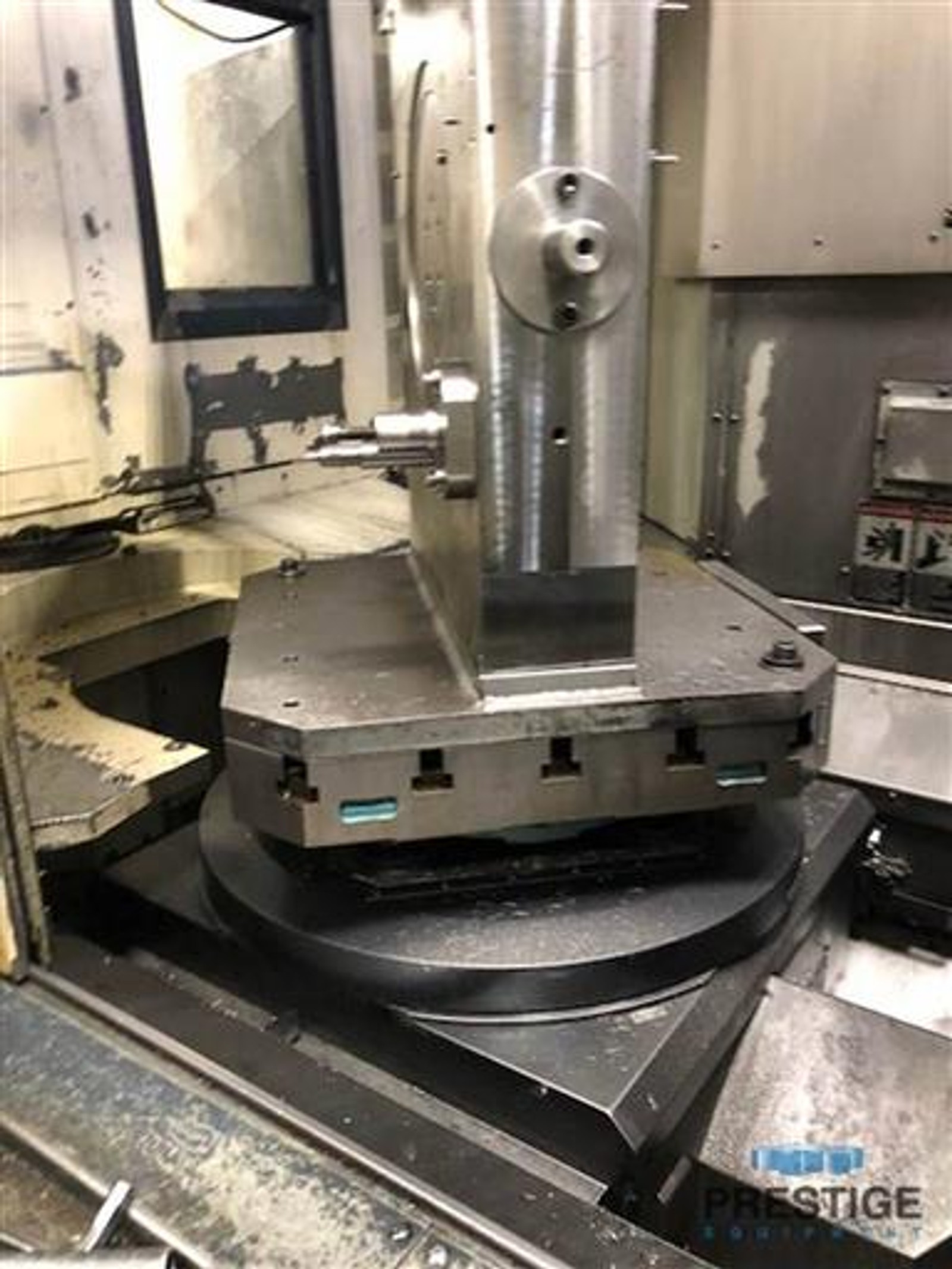

(2) 24.8" x 24.8" Pallets
40-Position Automatic Tool Changer
High Pressure Through Spindle Coolant
Chip Conveyor

LOCATION:
Inspect In Plant Under Power

No Video Available

Want to request a quote from the owner of this listing?

Request a Quote
