4.33" Toshiba BP-110-P20, X-100", Y-65", 3K RPM, Tosnuc 888, #31424

Manufacturer

TOSHIBA

Category

Boring Mills

Type

BORING MILLS, HORIZONTAL, TABLE TYPE, CNC

Stock

31424

Model

BP110-P.20

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #31424

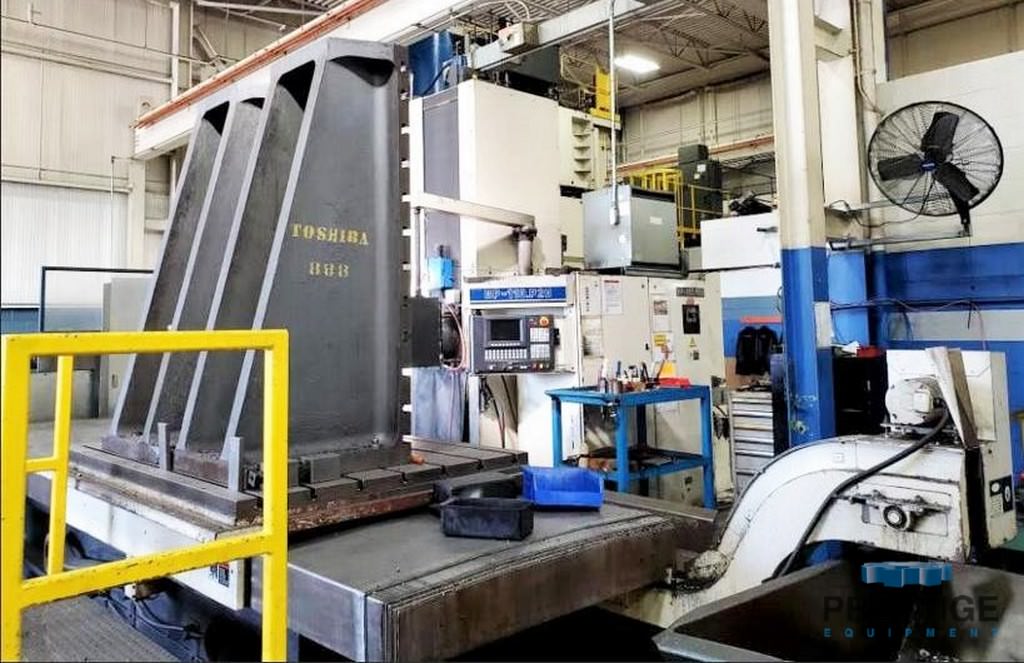

Toshiba P-110.P20 CNC Table Type Boring Mill

FEATURES:

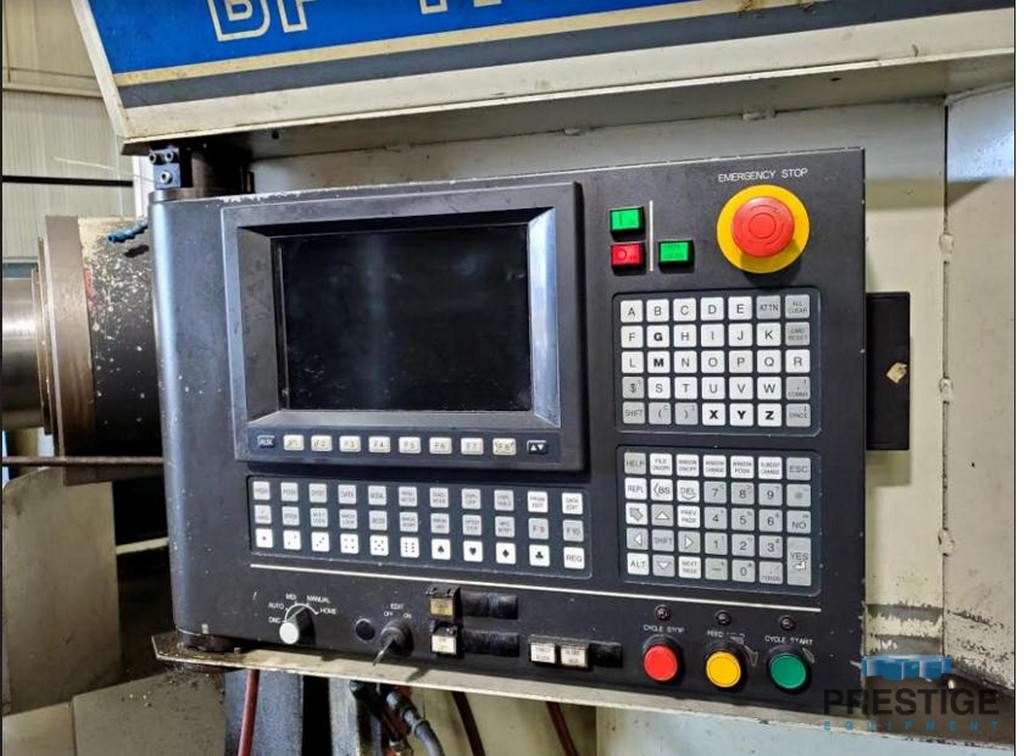

Tosnuc 888 CNC Control
Ballscrews & Independent Servo Drives
80" x 55" T-Slotted Plain Table
Hardened & Ground Ways Box Ways
Way Covers on X,Y & Z Axes
40 HP / 30 HP Spindle Drive Motor
Chip Conveyor

CAPACITY:
Spindle Diameter ...................... 4.33"
Milling Spindle Nose Diameter ......... 8.85"
Spindle Taper ......................... #50 CAT
Vertical Head Travel, Y ............... 65"
Table Travel, X ....................... 100"
Column Infeed, Z ...................... 45"
Spindle (Quill) Travel, W ............. 20"
Table Size ........................... 80" x 55"
Spindle Speeds ........................ 5-3000 RPM
Spindle Motor ........................ 30 HP / 25 HP

EQUIPPED WITH:
Tosnuc 888 CNC Control
Ballscrews & Independent Servo Drives
80" x 55" T-Slotted Plain Table
Hardened & Ground Ways Box Ways

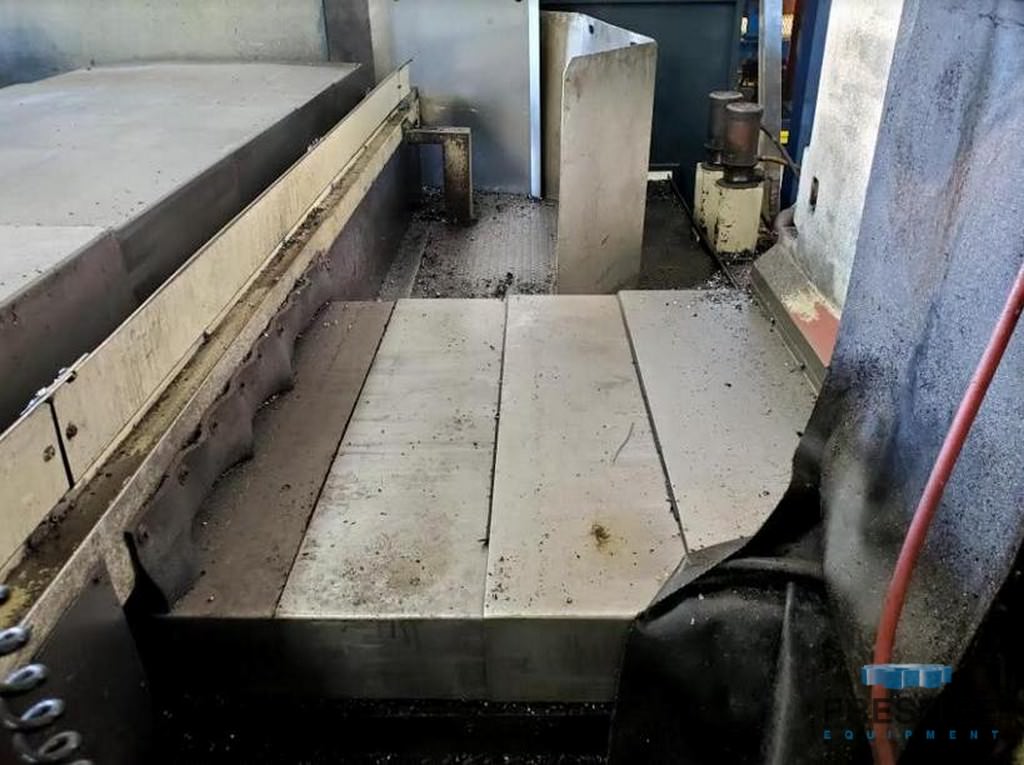

Way Covers on X,Y & Z Axes
30 HP / 25 HP Spindle Drive Motor
Chip Conveyor

NOTE:
Angle Plates NOT Included with Offer
