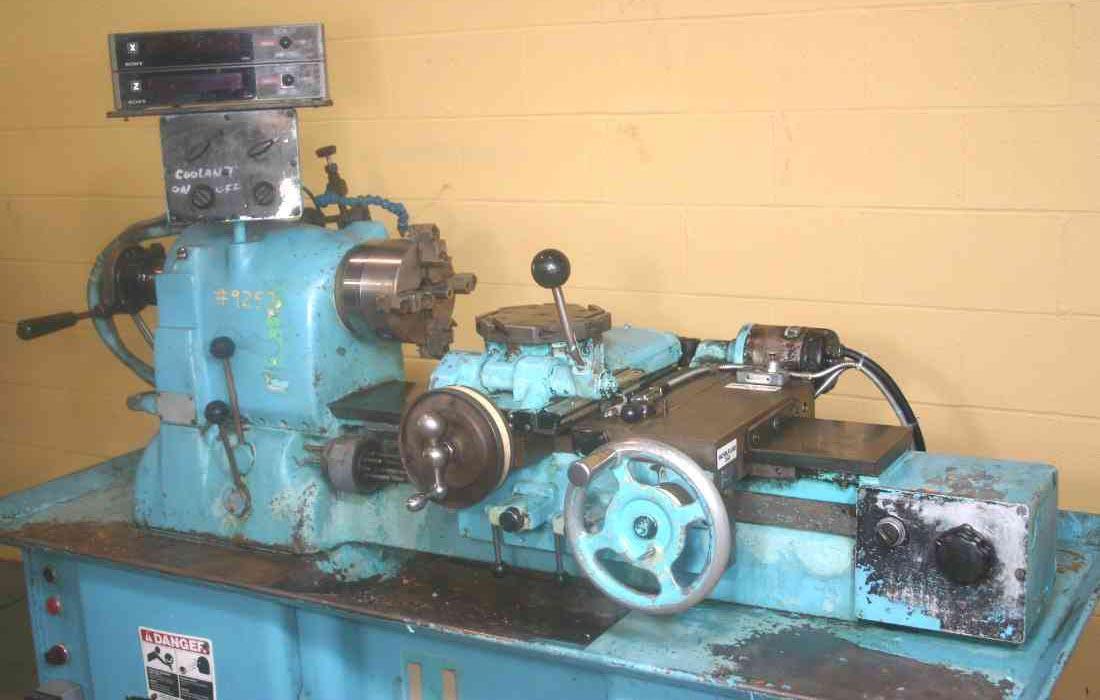

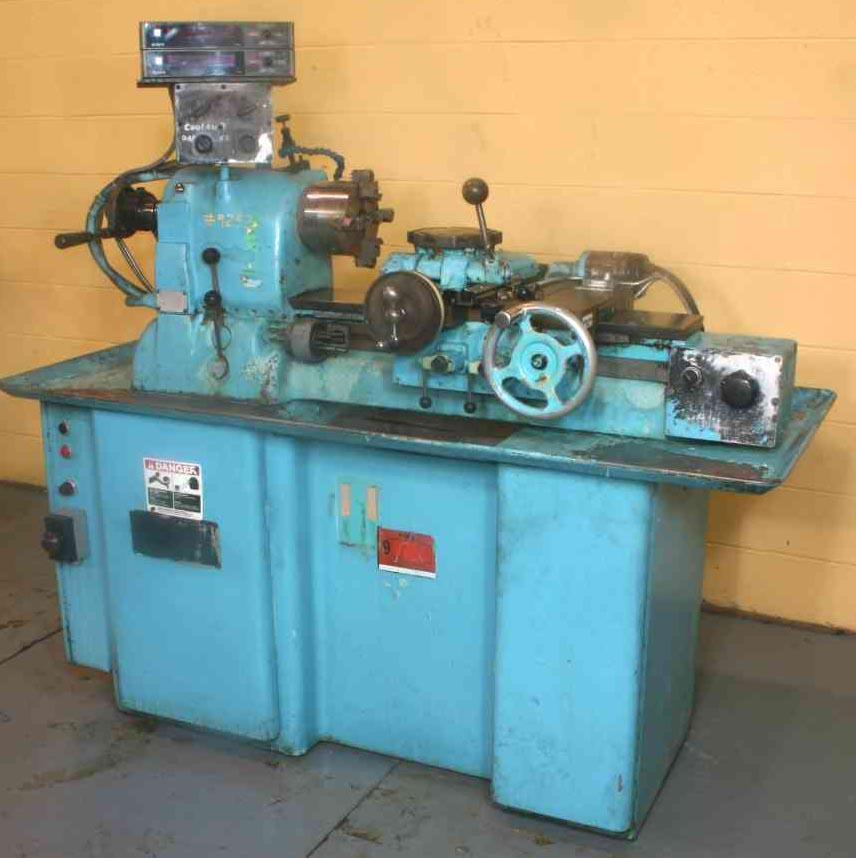

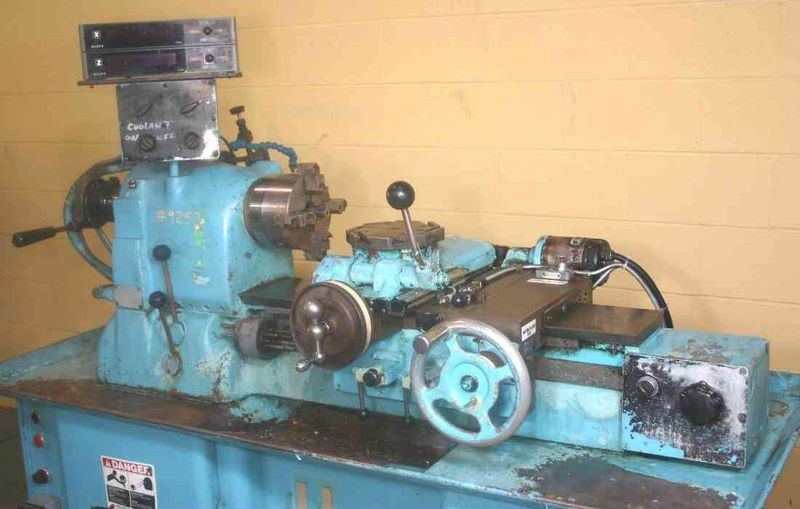

12' x 14' HARDINGE MODEL #HC CHUCKING LATHE: STOCK #18414

Manufacturer

Category

Lathes

Type

LATHES, CHUCKING, MANUAL

Stock

18414

Model

12 X 014

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet



SERIAL ................................ 12354
MODEL ................................. HC
SWING OVER BED ........................ 12"
SWING OVER CROSS SLIDE ................ 6"
DISTANCE FACE OF SPINDLE TO TURRET .... 14"
SPINDLE SPEEDS, VARIABLE .............. 125 TO 3000 RPM
TRAVEL OF CROSS SLIDE ................. 4-1/2"
CROSS SLIDE POWER FEED RANGE VARIABLE . 11/32 TO 6-1/4 IPM
CARRIAGE POWER FEED RANGE, VARIABLE ... 1/4 TO 10 IPM
DIAMETER OF SPINDLE HOLES ............. 1-5/32"
NUMBER OF TOOL POSITIONS ON TURRET .... 8
CARRIAGE STOP ......................... YES
4-JAW CHUCK DIAMETER .................. 6"
COOLANT ............................... YES
TWO AXIS SONY DIGITAL READOUTS ........ YES
MOTOR, HORSEPOWER ..................... 1-1/2
