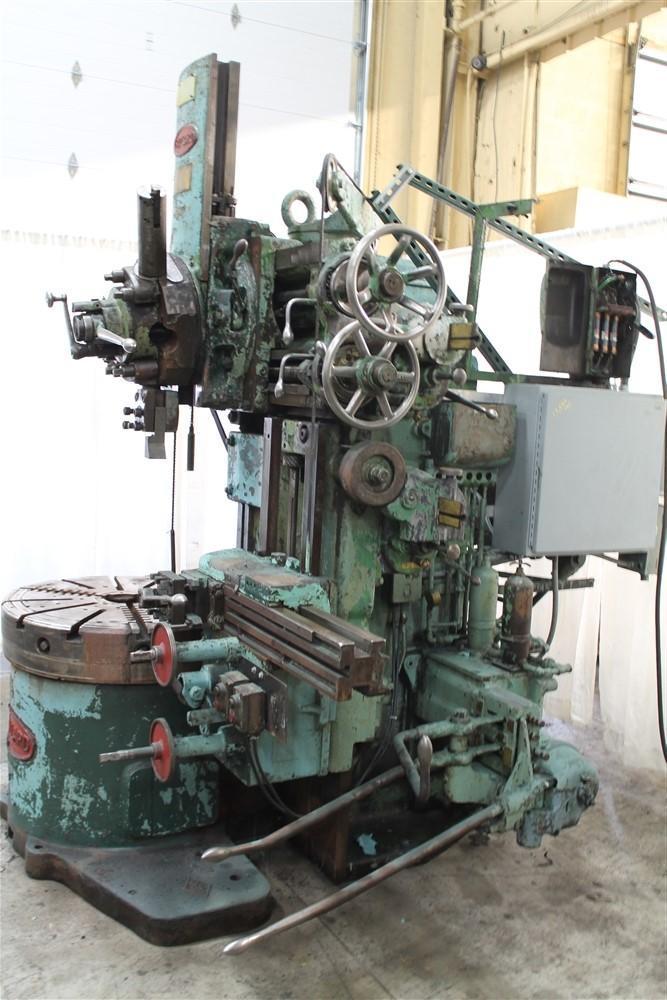

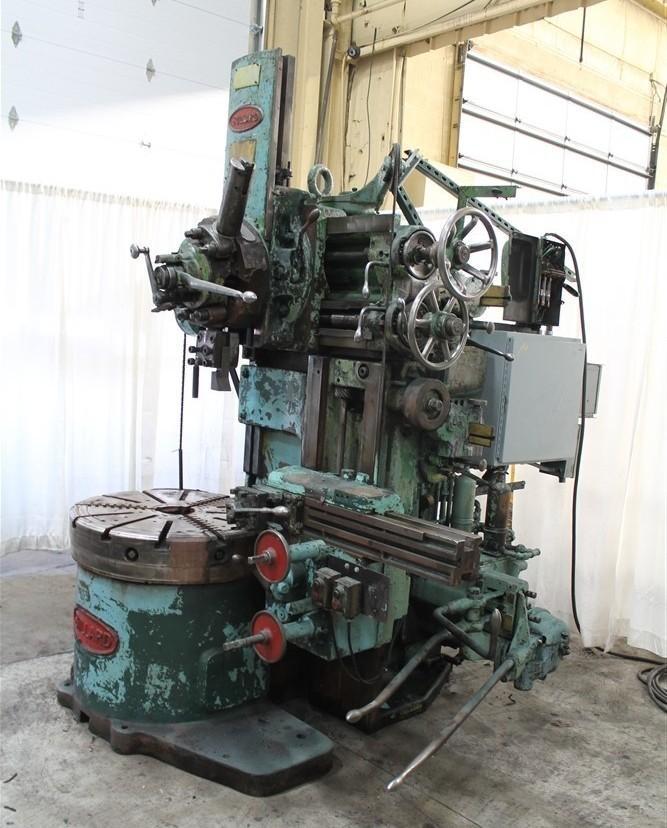

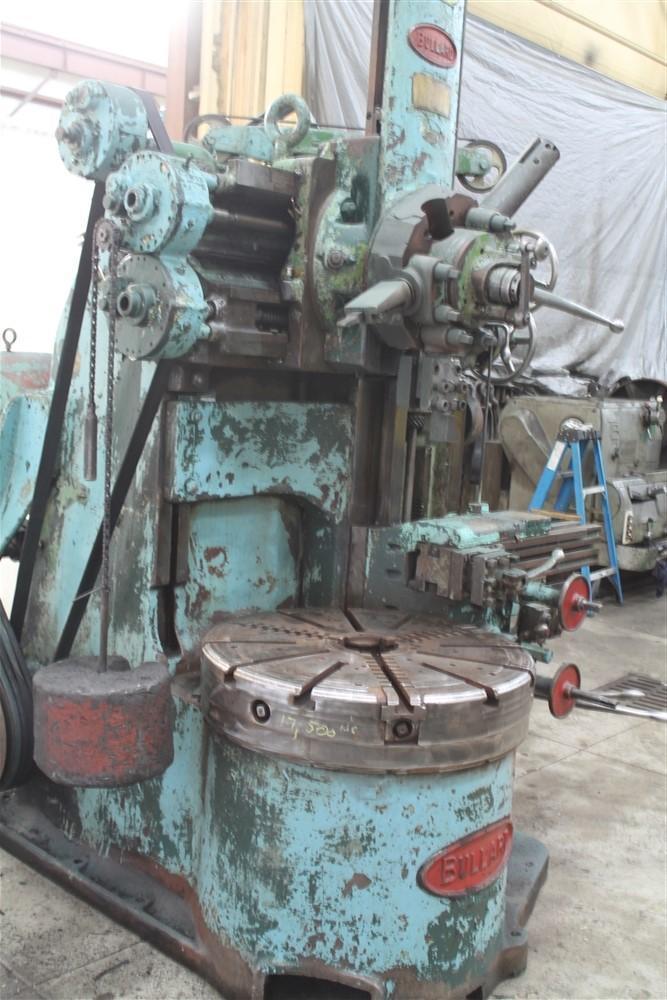

36" BULLARD VERTICAL TURRET LATHE: STOCK #59493

Manufacturer

BULLARD

Category

Lathes

Type

LATHES, VERTICAL TURRET

Stock

59493

Model

36' 3 JAW

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet



SERIAL .......................... 18065
MODEL ........................... 36" SPIRAL DRIVE

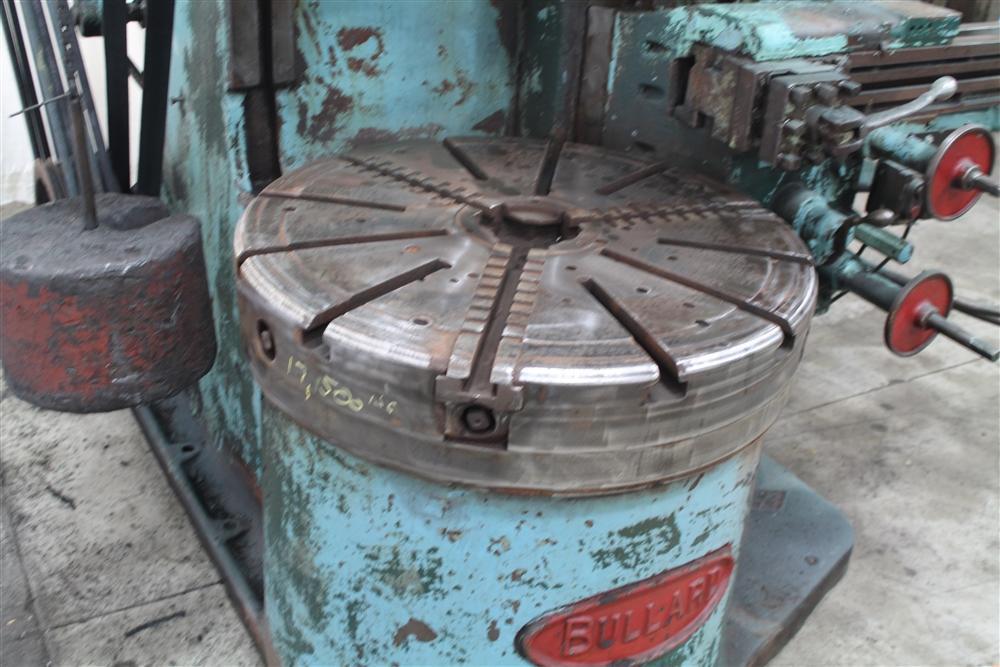

TABLE CHUCK DIAMETER ............ 34"
TURRET FACE TO TABLE ............ 34" MAX.
HEIGHT UNDER CROSS RAIL ......... 24-1/4" MAX.
VERTICAL TURRET TRAVEL .......... 26-3/8"
CLEARANCE UNDER SIDE HEAD ....... 16"
VERTICAL SIDE HEAD TRAVEL ....... 16"
HORIZONTAL SIDE HEAD TRAVEL ..... 21"
HORIZONTAL RAIL HEAD TRAVEL ..... 21-1/2"
FLOOR TO TABLE TOP .............. 33-3/8"
TABLE SPEEDS .................... (12) 5 TO 200 RPM
FEEDS ........................... (16) .002 TO .500 IPR
THREADS ......................... (15) 2 TO 18 TPI

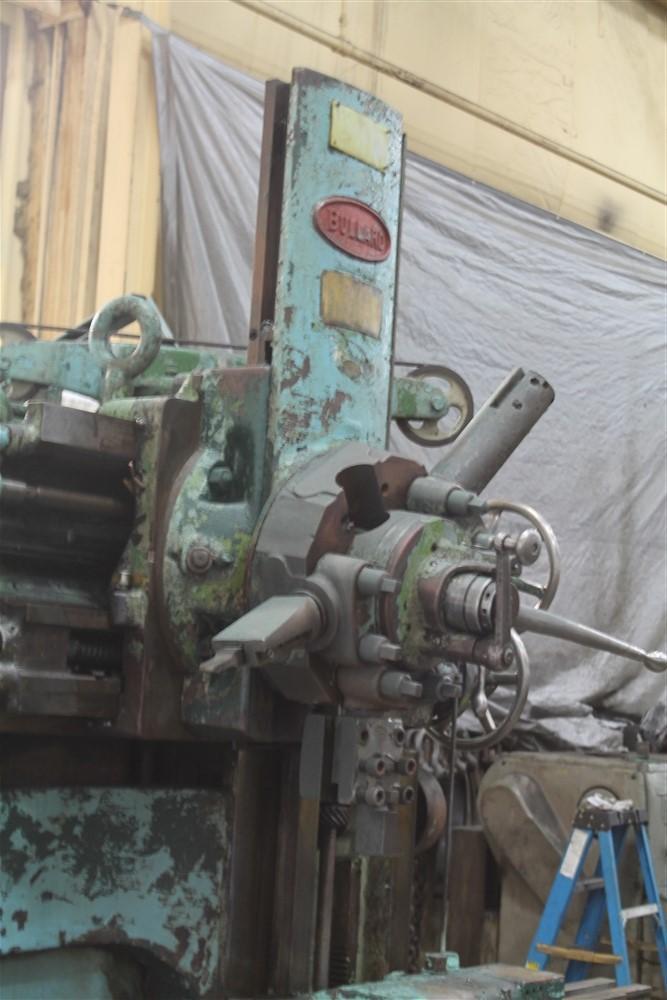

(1) RAIL SWIVEL TURRET HEAD ..... YES

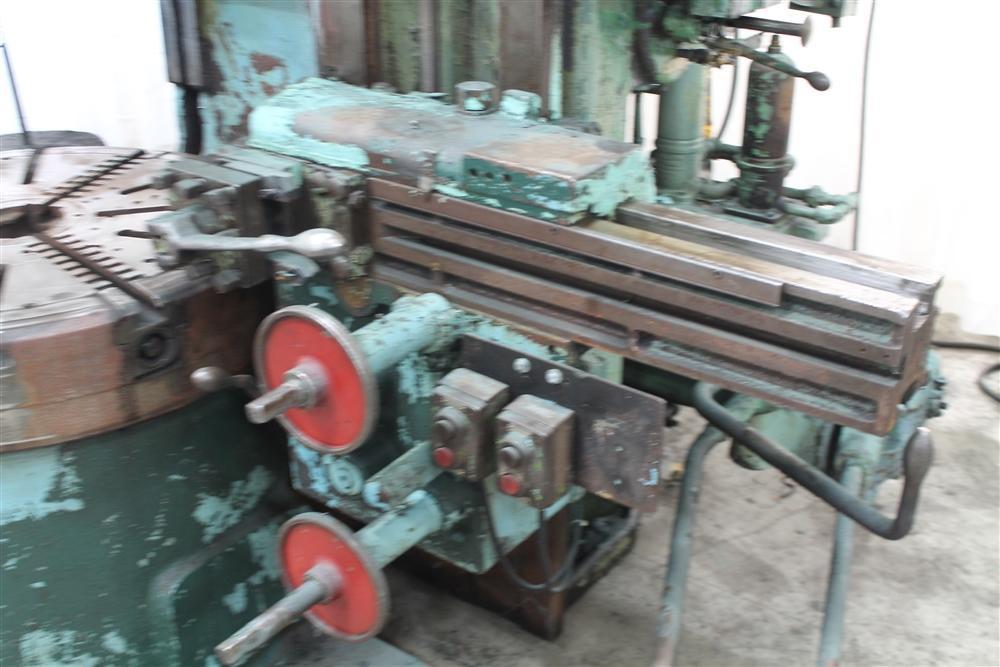

(1) RIGHT HAND SIDE HEAD ........ YES
MAIN MOTOR ...................... 25 HORSEPOWER
