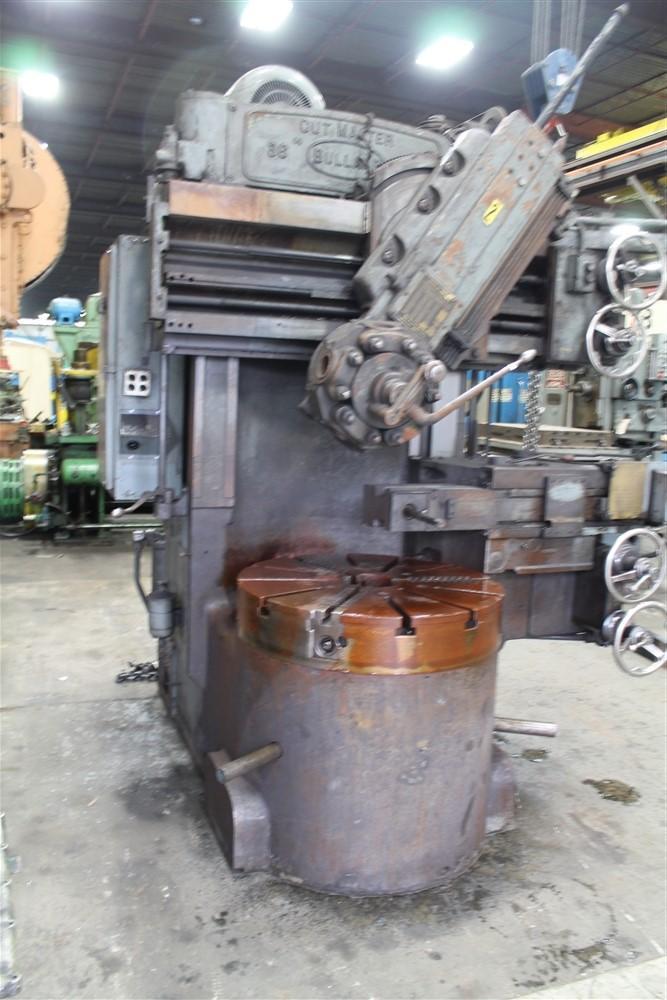

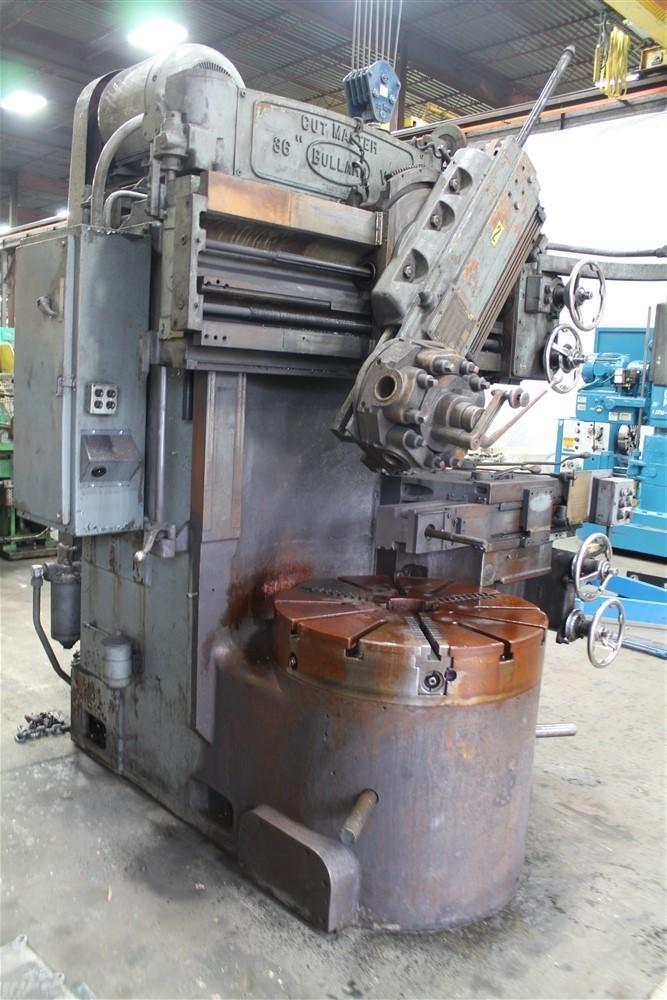

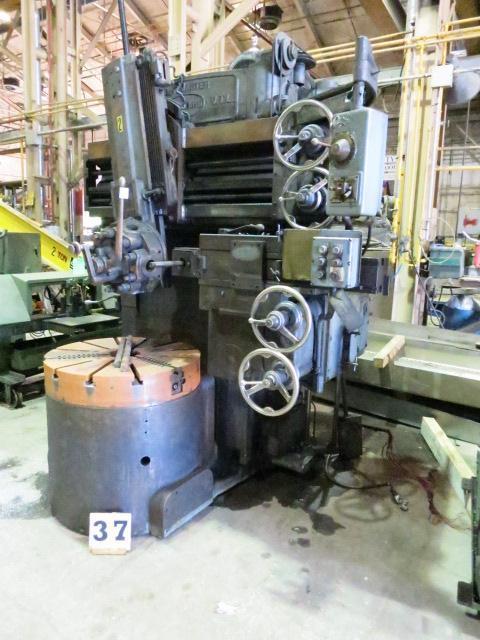

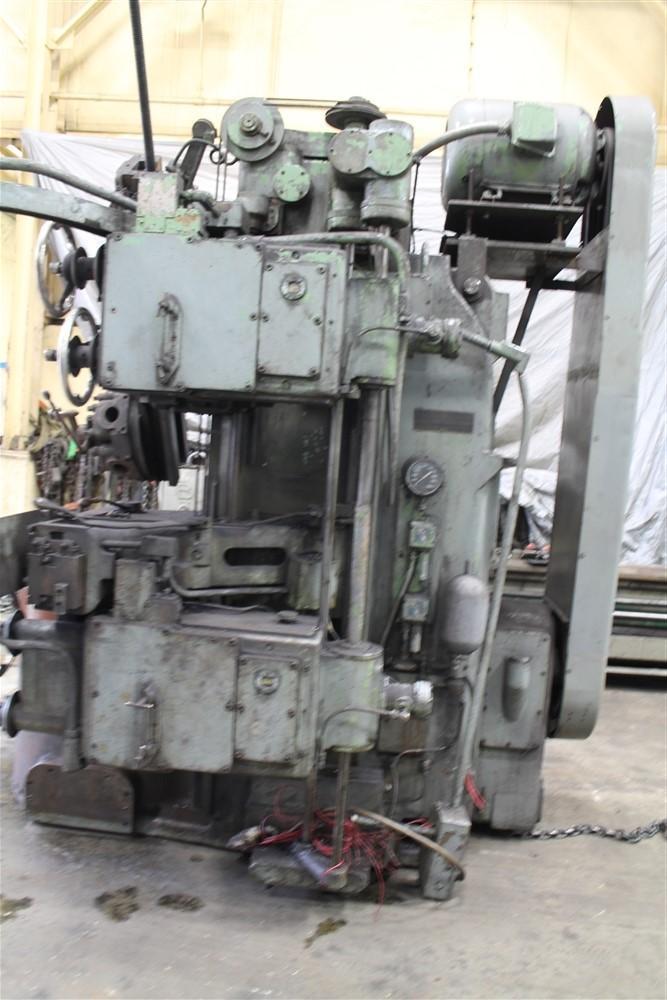

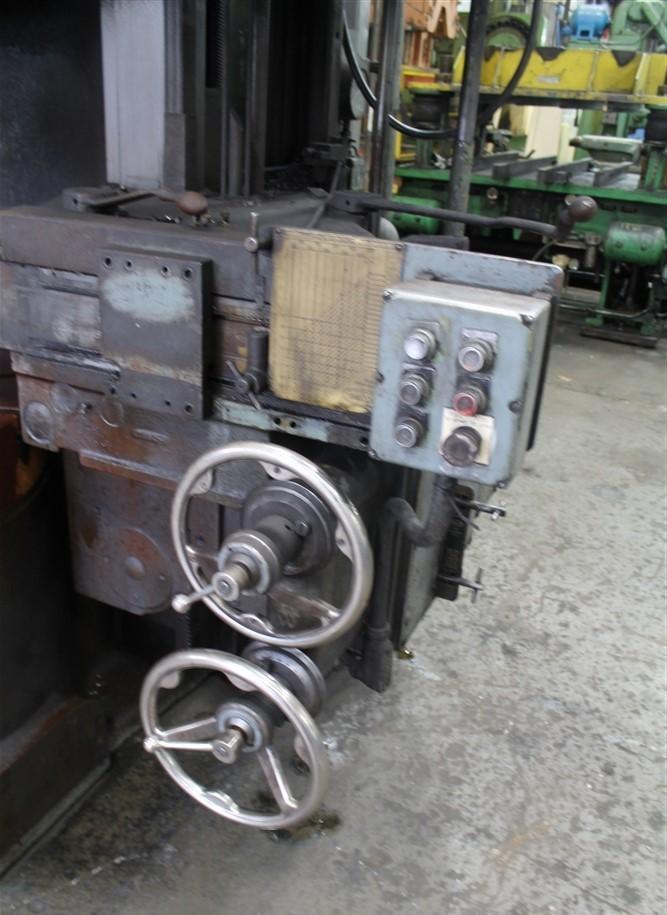

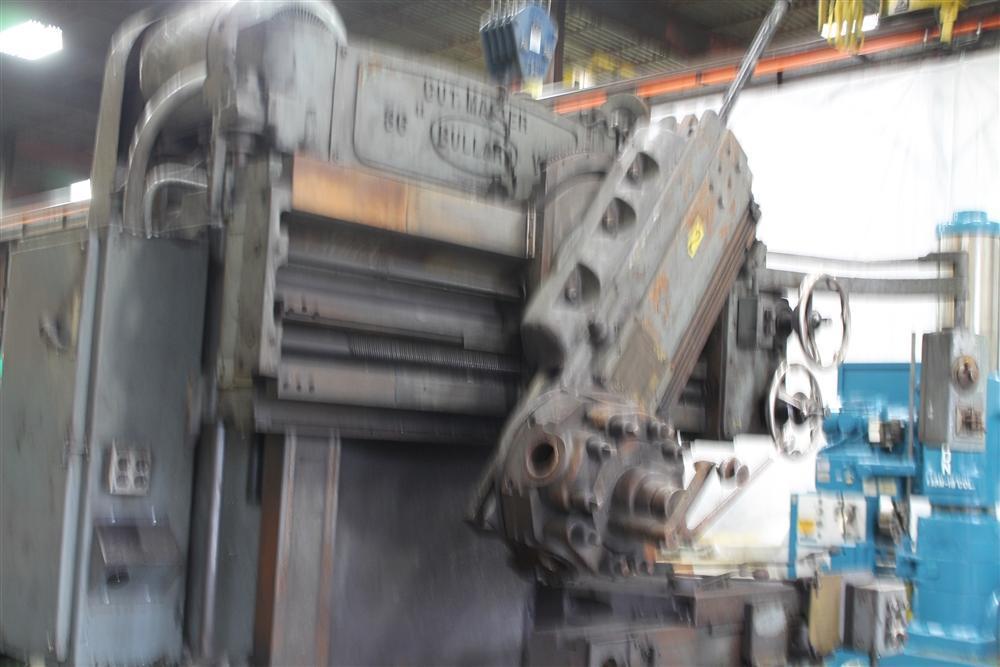

36' BULLARD CUTMASTER VERTICAL TURRET LATHE STOCK #61804

Manufacturer

Category

Lathes

Type

LATHES, VERTICAL TURRET

Stock

61804

Model

36 CUTMASTER 3 JAW

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet



SERIAL .......................... 28702
MODEL ........................... 36" CUTMASTER
DIAMETER OF  3 JAW CHUCK ........ 36"
TABLE SPEEDS .................... (20) 4.93 TO 240 RPM
FEEDS ........................... (16) .0004 TO .500 IPR
VERTICAL TURRET TRAVEL .......... 26"
FACE OF TURRET TO TABLE ......... 30-1/4" MAXIMUM
SIDE HEAD .......................  YES
MAXIMUM SWING, SIDE HEAD UP ..... 39"
MAXIMUM SWING, SIDE HEAD DOWN ... 45" DIAMETER
SWIVELING TURRET HEAD ........... YES
5-POSITION TURRET ON RAIL ....... YES
4-WAY TOOL POST ON SIDE HEAD .... YES
TOOL POST HOLES ................. 2-3/4"

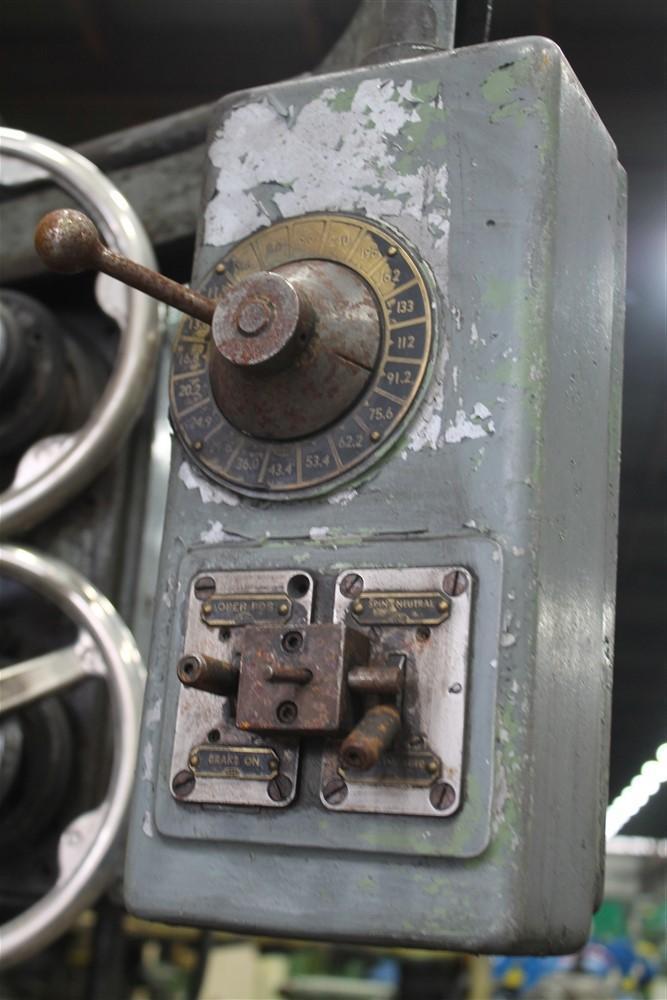

PENDANT CONTROL ................. YES
MOTOR, HORSEPOWER ............... 30
