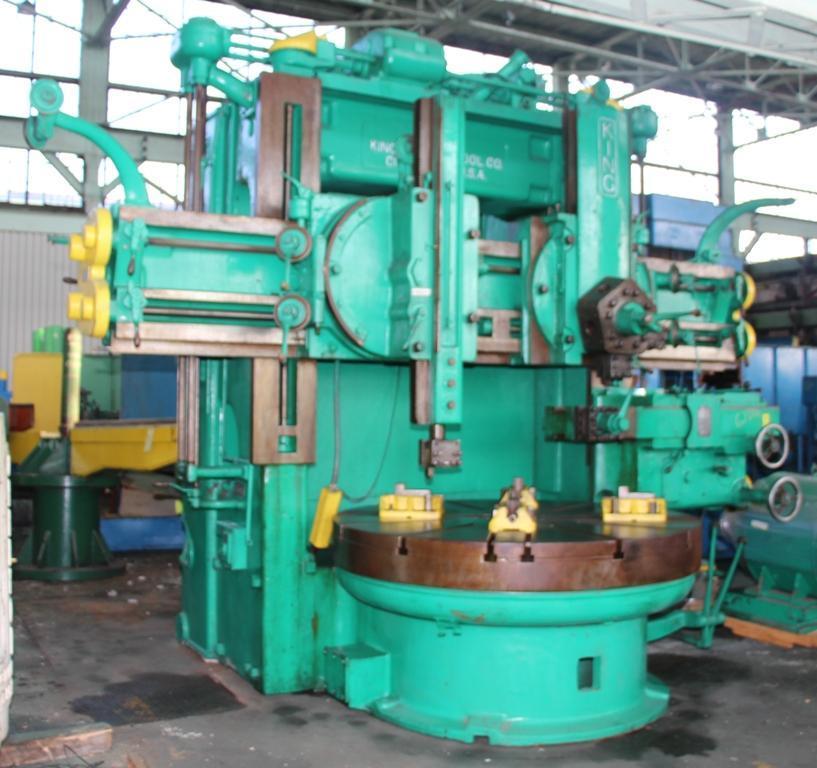

72" KING VERTICAL TURRET LATHE: STOCK #62273

Manufacturer

KING

Category

Lathes

Type

LATHES, VERTICAL TURRET

Stock

62273

Model

72'

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet



SERIAL ................................. DPC-203-B-2
TURRET HEAD ON RAIL .................... YES
RAM HEAD ON RAIL ....................... YES
RIGHT HAND SIDE HEAD ................... YES

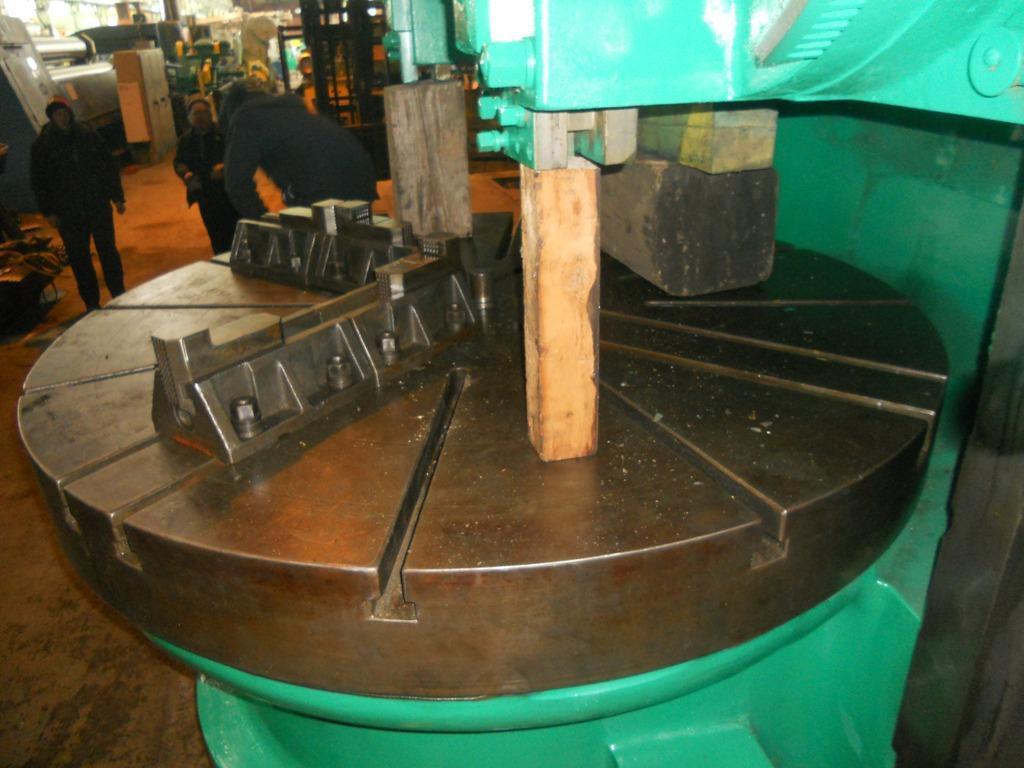

DIAMETER OF TABLE ...................... 72"
MAXIMUM SWING WITHOUT SIDE HEAD ........ 78-3/4"
MAXIMUM SWING WITH SIDE HEAD ........... 76"
MAXIMUM UNDER RAIL ..................... 62"
TABLE SPEEDS ........................... VARIABLE
FEEDS .................................. (24) .003 TO .500 IPR
VERTICAL TRAVEL OF RAM HEAD ............ 53"
MAXIMUM HEIGHT UNDER RAM HEAD .......... 60-1/2"
RAM HEADS SWIVEL, (LEFT OR RIGHT) ...... 60 DEGREE
MAXIMUM TABLE TO BOTTOM OF SIDE HEAD ... 50"
HORIZONTAL TRAVEL OF SIDE HEAD SLIDE ... 29"
VERTICAL TRAVEL OF SIDE HEAD ........... 58"
POWER RAIL ELEVATION ................... YES

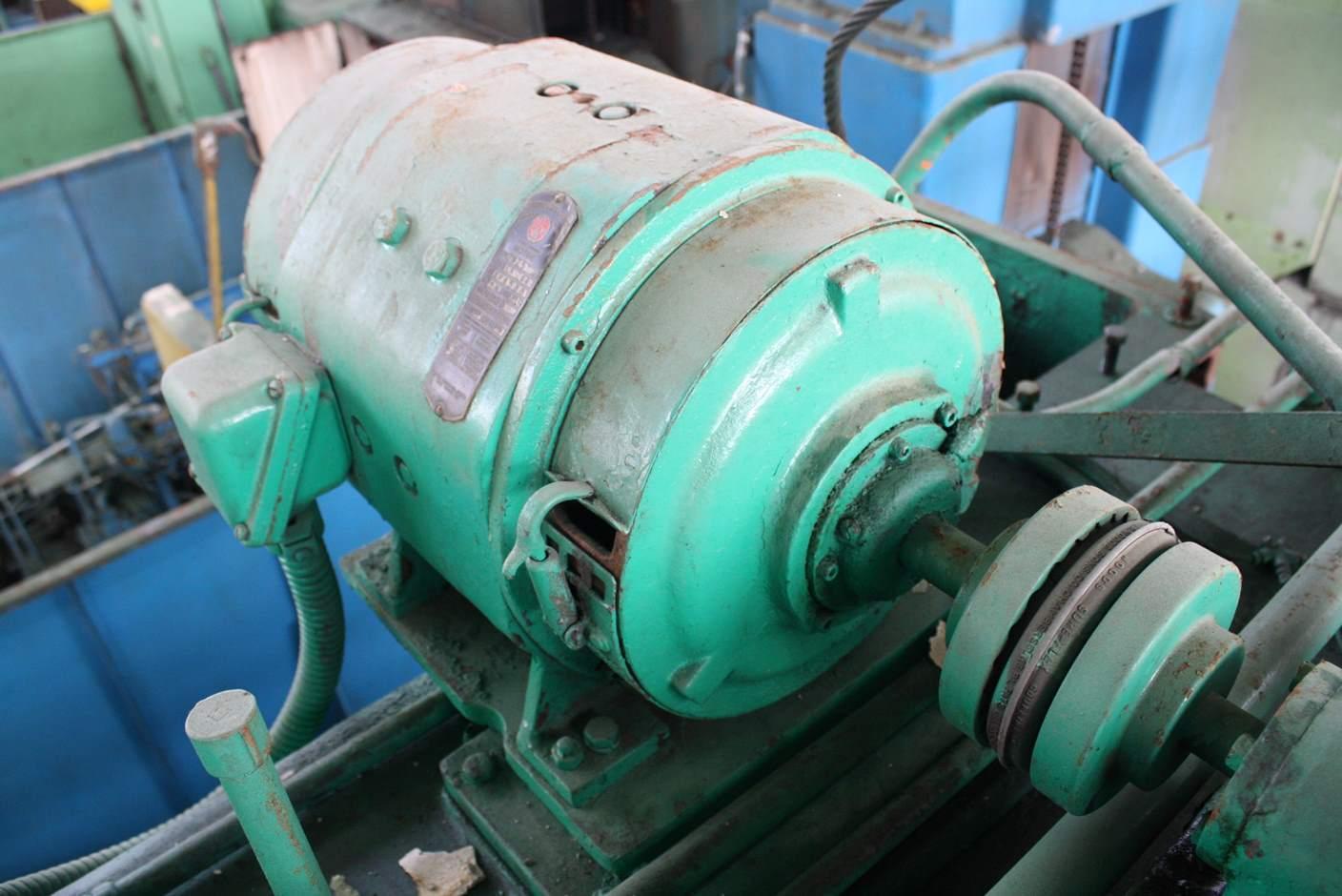

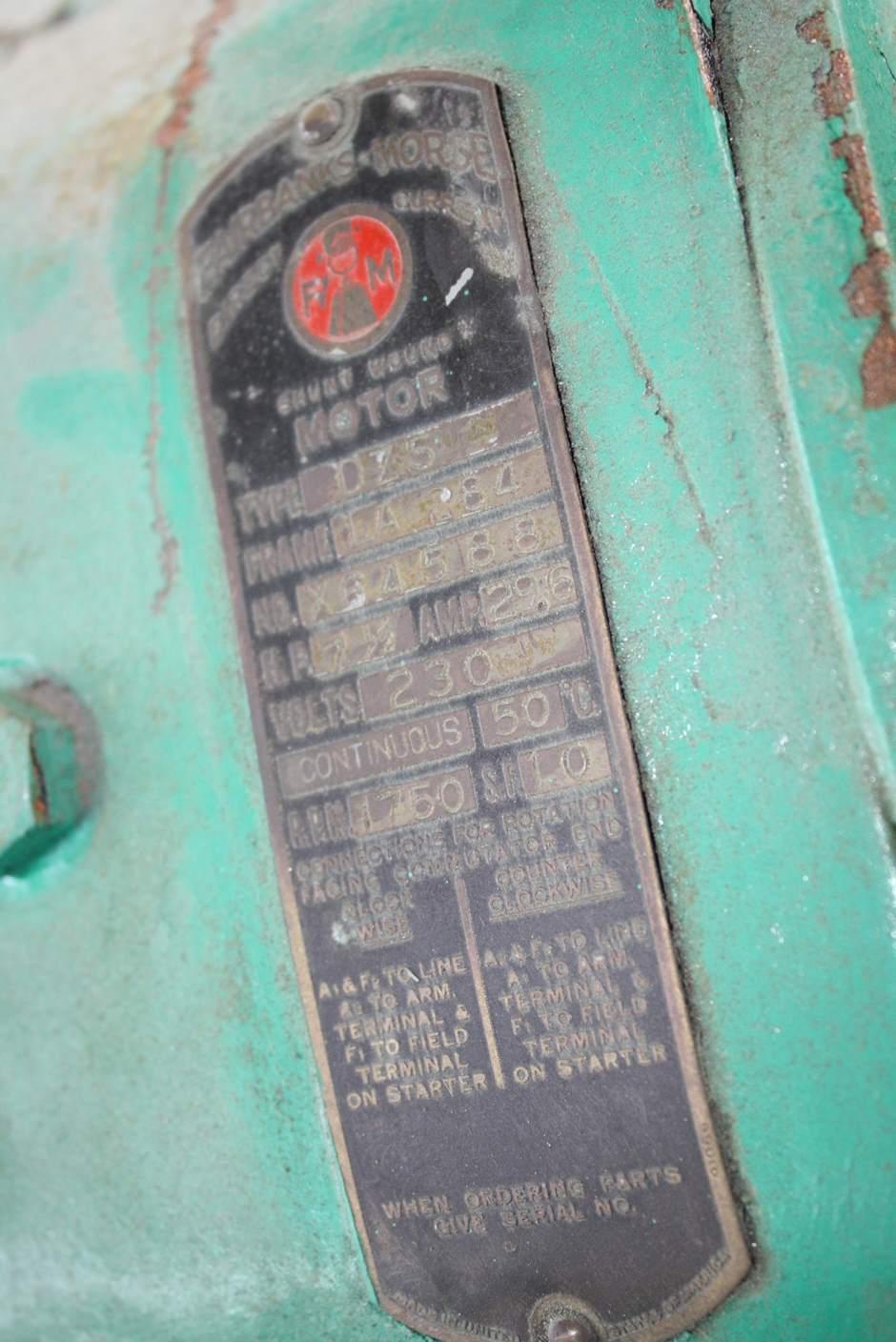

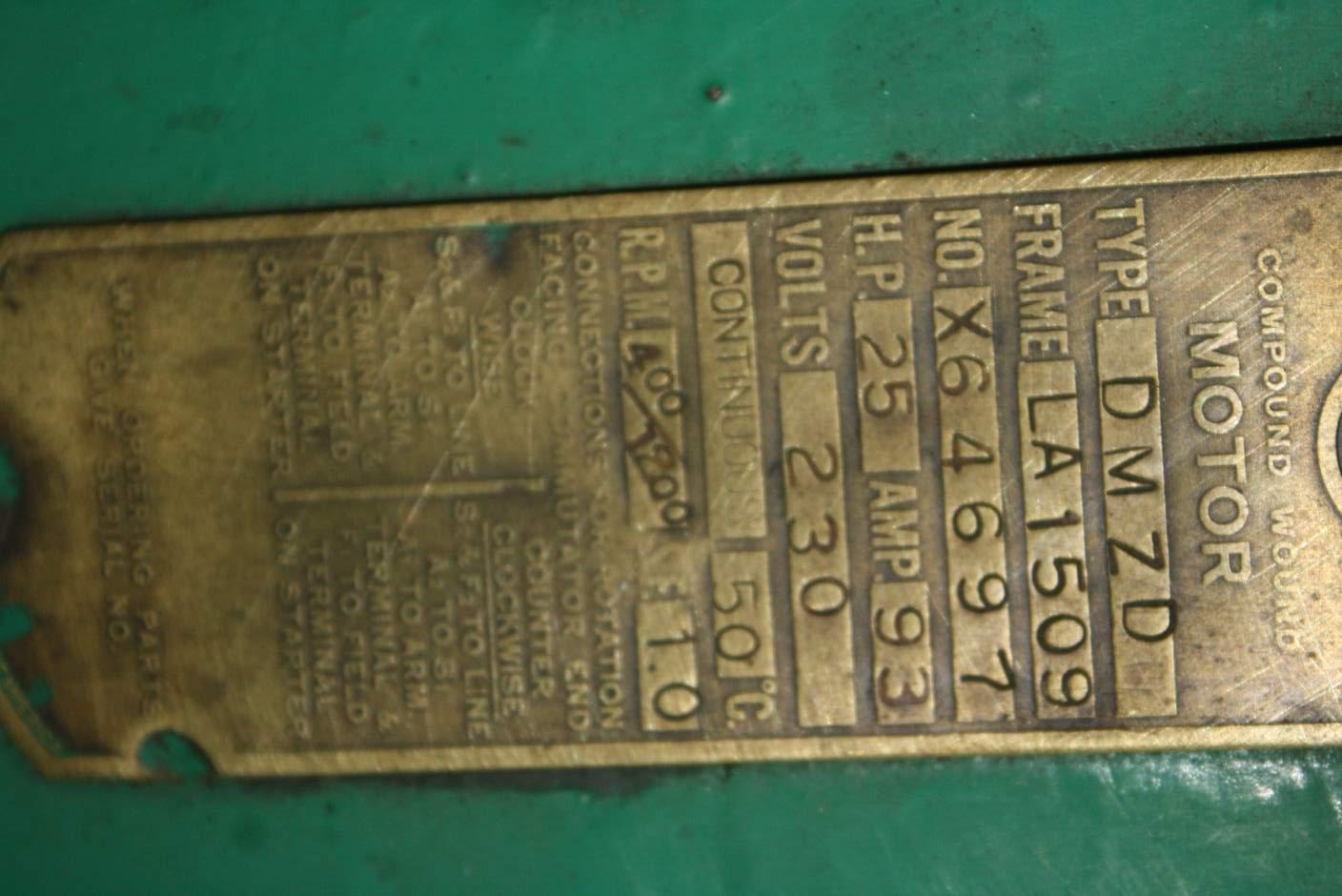

MOTOR .................................. 25 HP
