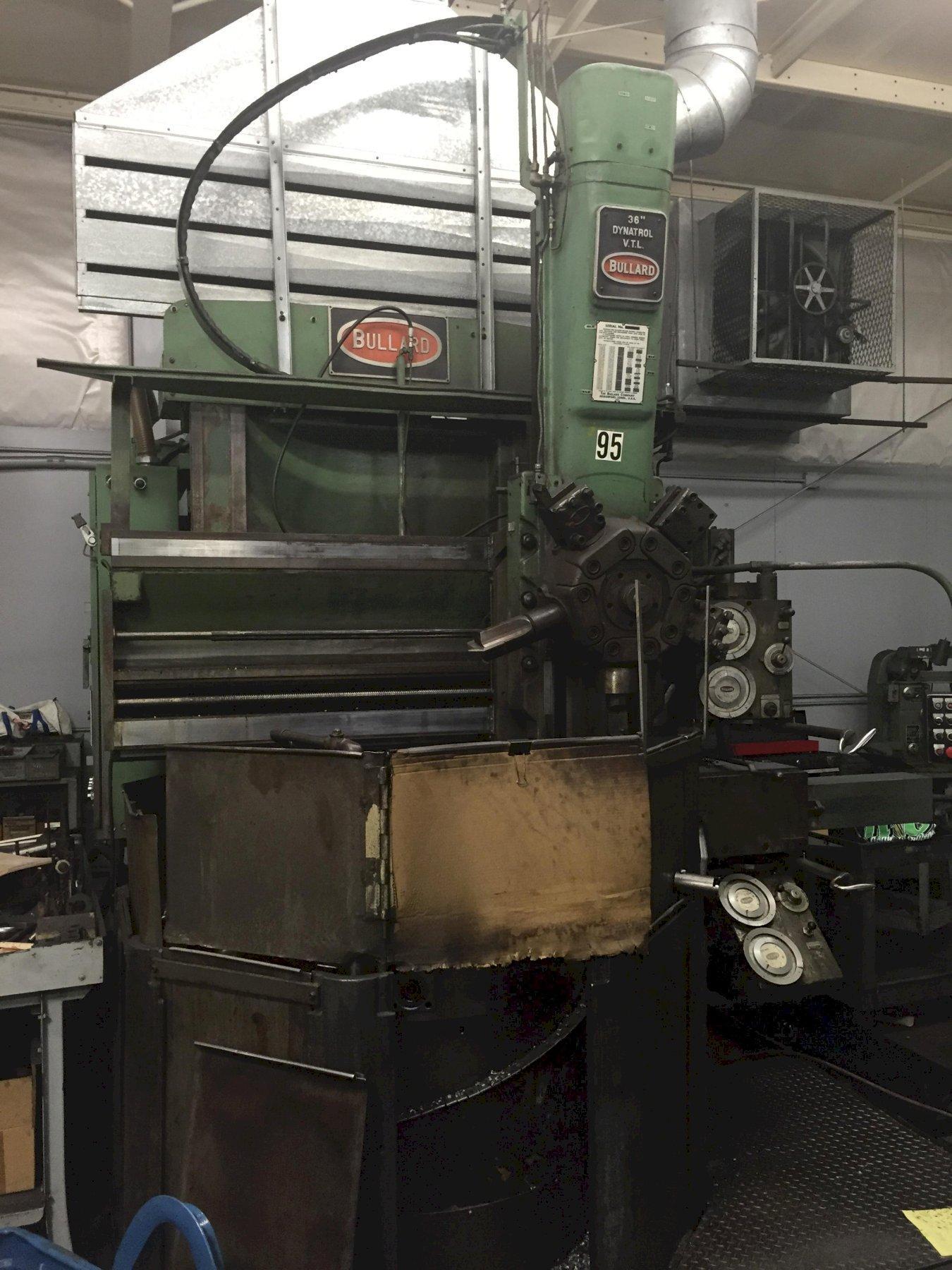

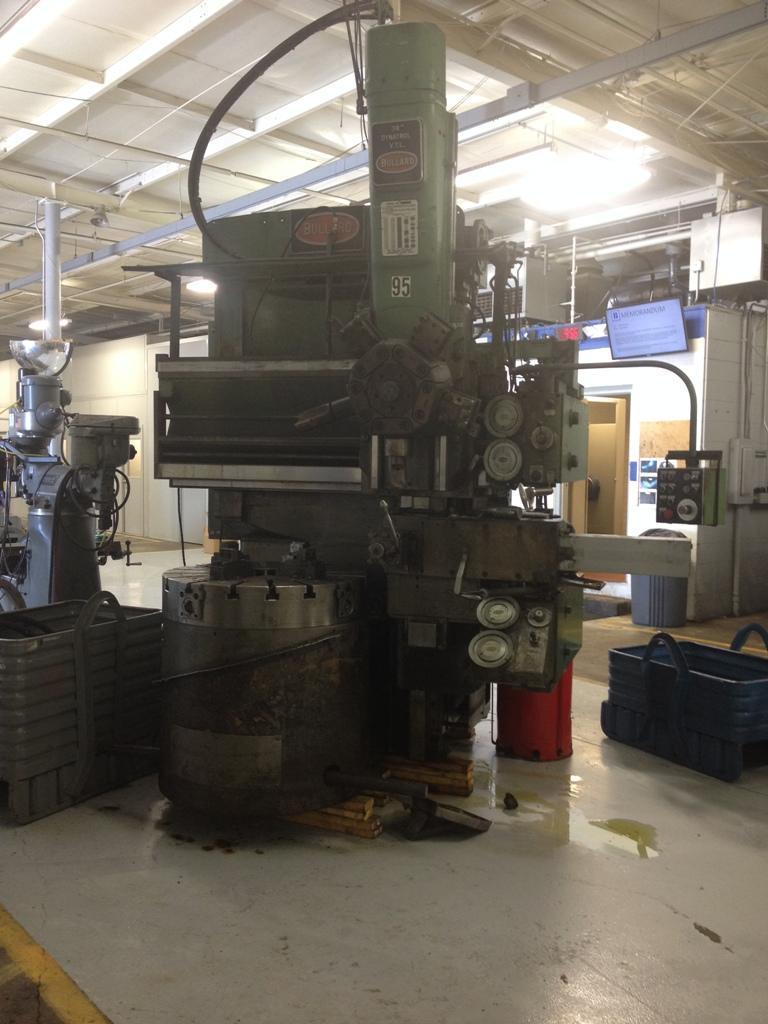

36" BULLARD DYNATROL VERTICAL TURRET LATHE: STOCK #64315

Manufacturer

BULLARD

Category

Lathes

Type

LATHES, VERTICAL TURRET

Stock

64315

Model

36' DYNATROL 4 JAW

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet



SERIAL ........................... 33004
MODEL ............................ 36" DYNATROL

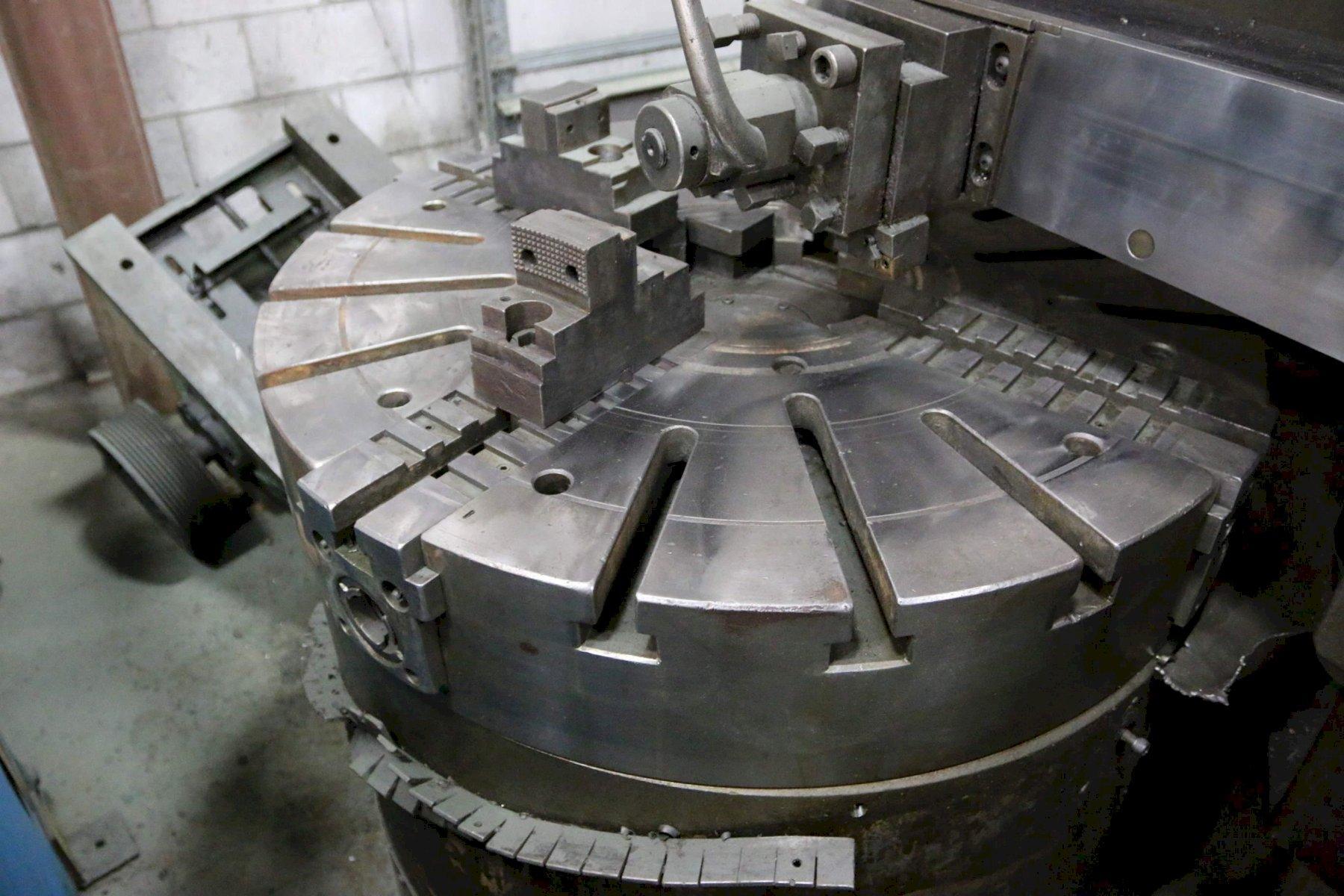

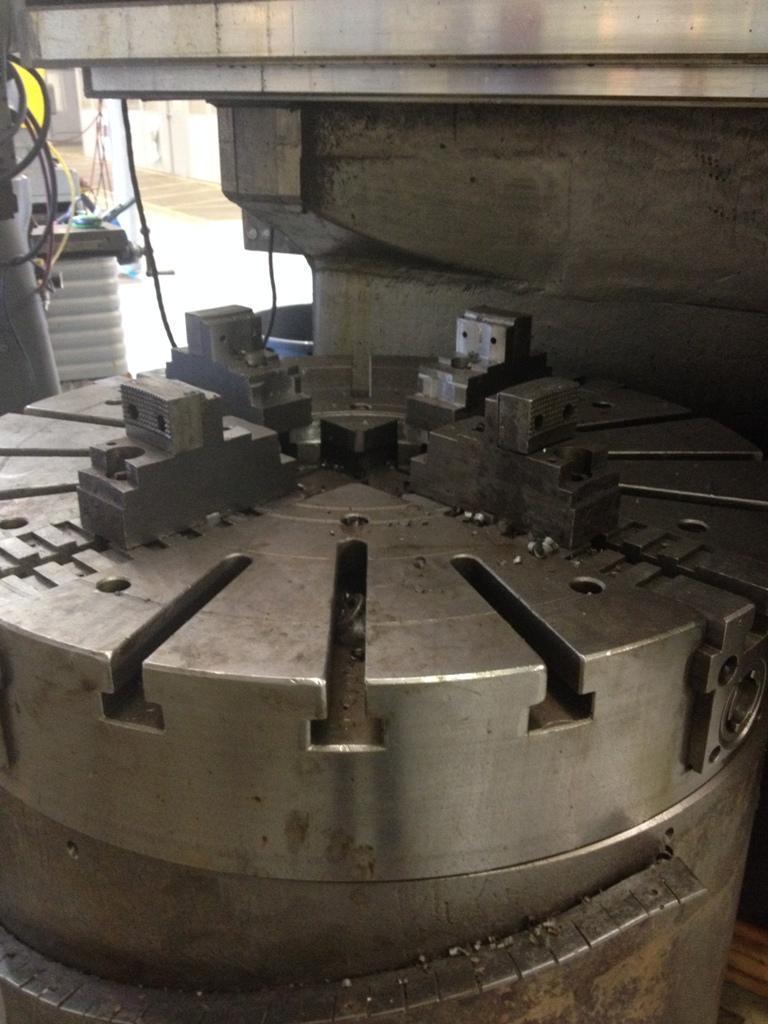

TABLE CHUCK DIAMETER (4-JAW) ..... 36"
MAXIMUM SWING W/O SIDE HEAD ...... 48"
CROSS RAIL VERTICAL TRAVEL ....... 20"
TABLE TO CROSS RAIL (MAXIMUM) .... 30"
TURRET HEAD HORIZONTAL TRAVEL .... 46"
TURRET HEAD VERTICAL TRAVEL ...... 26"
SIDE HEAD HORIZONTAL TRAVEL ...... 24"
SIDE HEAD VERTICAL TRAVEL ........ 29-1/2"
FLOOR TO TABLE ................... 37"
TABLE SPEEDS ..................... (20) 8 TO 300 RPM
FEEDS (VARIABLE) ................. .001 TO .250 IPM
AUTO LUBE SYSTEM ................. LUBE

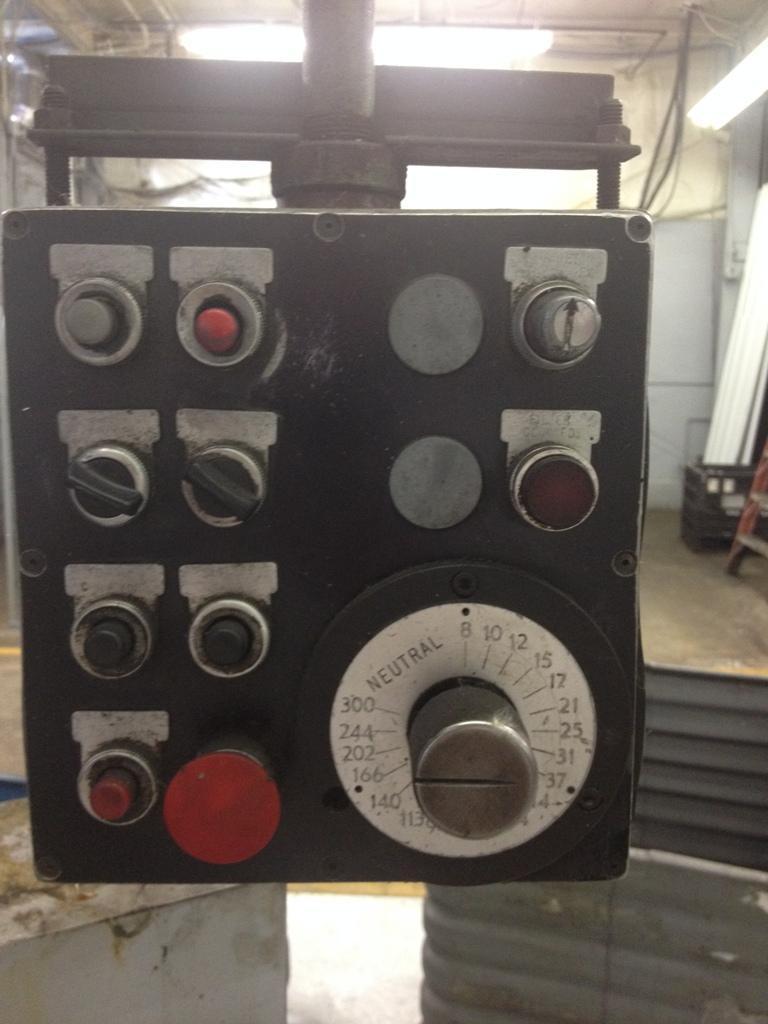

PENDANT CONTROL .................. YES
SWIVEL TURRET RAIL HEAD .......... YES
RIGHT HAND SIDE HEAD ............. YES
HORSEPOWER MAIN MOTOR ............ 60
