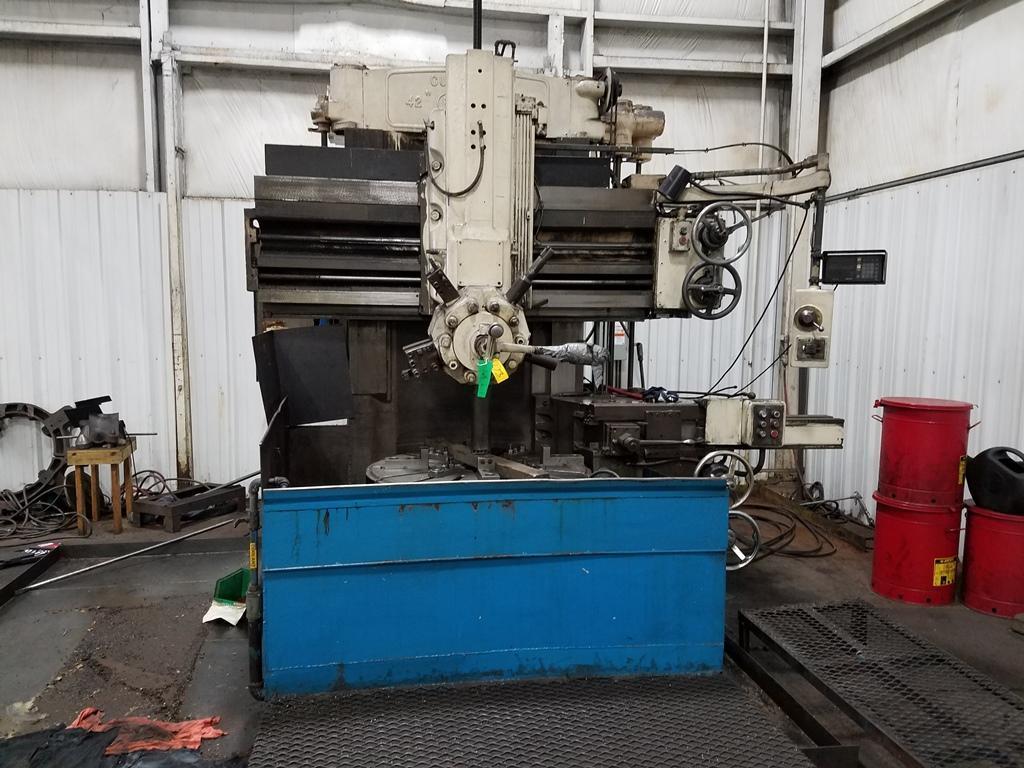

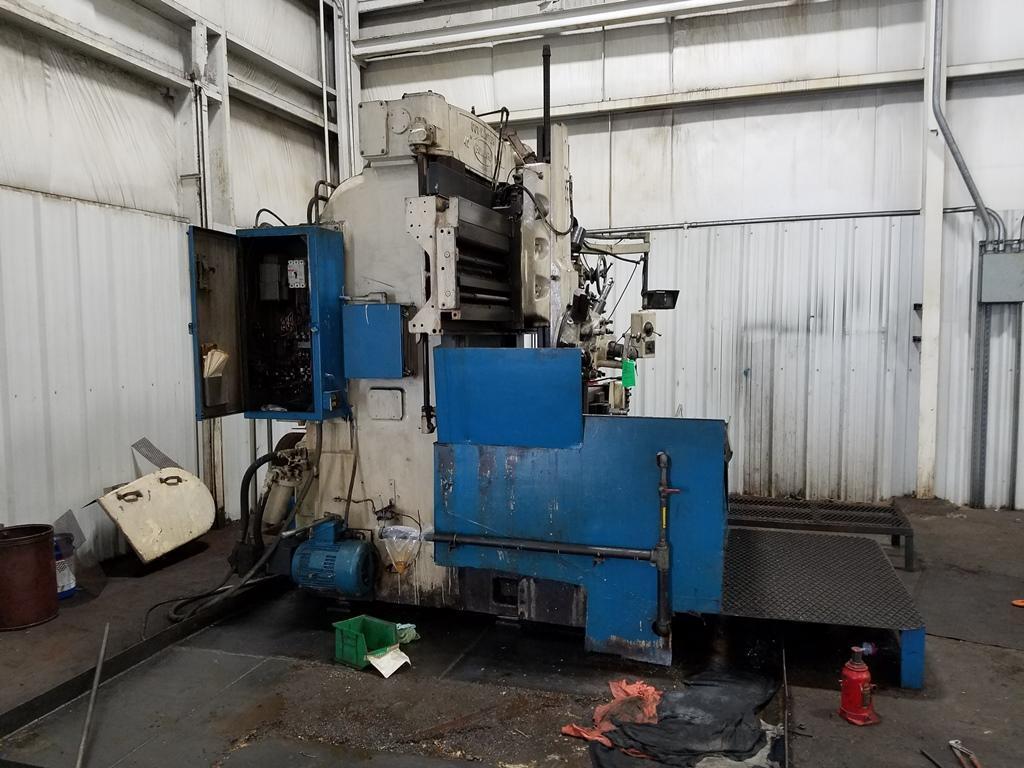

42" BULLARD CUTMASTER VERTICAL TURRET LATHE: STOCK #66852

Manufacturer

BULLARD

Category

Lathes

Type

LATHES, VERTICAL TURRET

Stock

66852

Model

42" CUTMASTER

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet



SERIAL .................................... 27260
MODEL ..................................... CUTMASTER
DIAMETER OF 4 JAW CHUCK ................... 42"
MAXIMUM SWING ............................. 54"
SWING WITH SIDE HEAD IN WORKING POSITION .. 45" MAXIMUM
MAXIMUM UNDER RAIL ........................ 37"
MAXIMUM UNDER TURRET FACE ................. 48-1/4"
TABLE SPEEDS .............................. (20) 4.11 TO 150 RPM
FEEDS ..................................... (16) .004 TO .500IPR
5 POSITION TURRET HEAD ON RAIL ............ YES
HORIZONTAL TRAVEL OF SIDE HEAD ON RAIL .... 54"
VERTICAL TRAVEL OF TURRET HEAD ............ 30"
TURRET HEAD SWIVEL (EITHER WAY) ........... 30 DEGREE
HORIZONTAL TRAVEL OF SIDE HEAD ............ 21"
VERTICAL TRAVEL OF SIDE HEAD .............. 37-1/4"
VERTICAL TRAVEL OF RAIL ................... 25"
PENDANT CONTROL ........................... YES
RAPID TRAVERSE ALL DIRECTIONS ............. YES
DIGITAL READ OUTS ......................... YES
MOTOR ..................................... 40 HP
