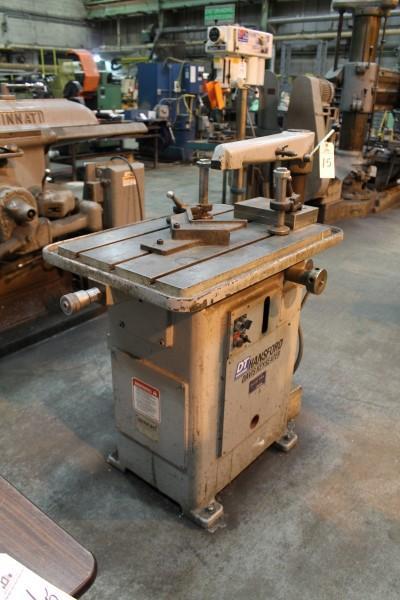

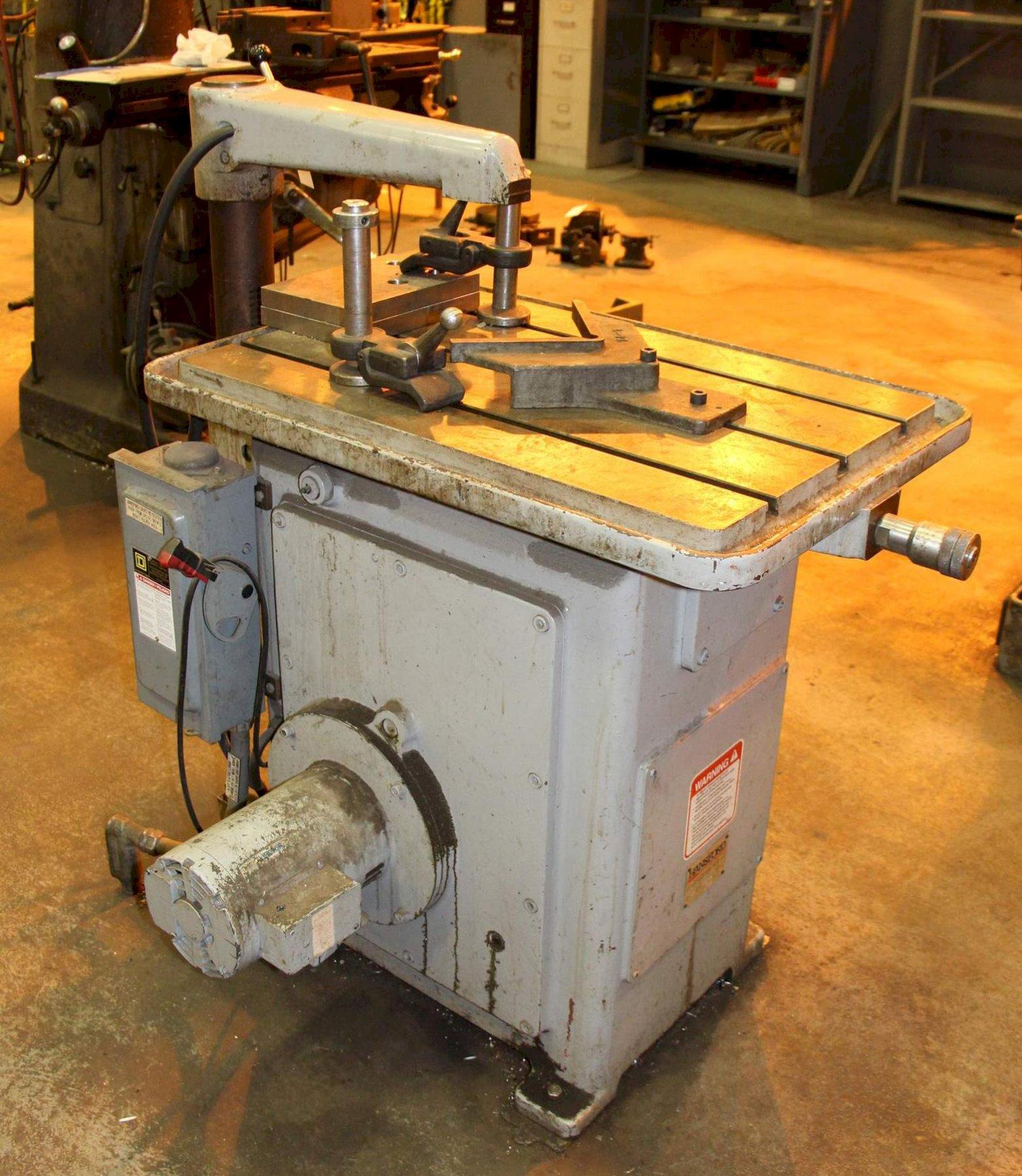

1-1/2" X 12" HANSFORD DAVIS MODEL 15 KEYSEATER: STOCK #68488

Manufacturer

DAVIS

Type

KEYSEATERS

Stock

68488

Model

1.5 X 12 #15

Dealer Location

Ohio

Spec Sheet

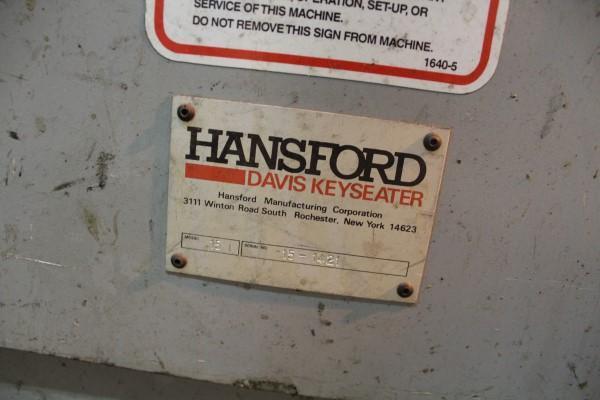

SERIAL ......................... 15-1421
MODEL .......................... 15
KEYWAY CUTTING CAPACITY ........ 1/16" TO 1-1/2"
MAXIMUM LENGTH OF CUT .......... 12"
STROKE ......................... 4-1/2"
THROAT ......................... 19"
MAXIMUM WORK HEIGHT ............ 12"
TABLE AREA (T-SLOTTED) ......... 31" X 20"
STROKES PER MINUTE (VARIABLE) .. 16 TO 60
MINIMUM AIR PRESSURE REQUIRED .. 80 PSI
FLOOR TO TABLE ................. 35-3/8"
TABLE FEED MOVEMENT ............ 1-1/2"
TABLE FEED ..................... MANUAL
COOLANT ........................ YES
MICROMETER DEPTH STOP .......... YES
LUBRICATION .................... BIJUR ONE SHOT
OPERATOR CONTROLS .............. HAND-JOG-AUTO
VARIABLE SPEED DRIVE MOTOR ..... 2 HORSEPOWER
