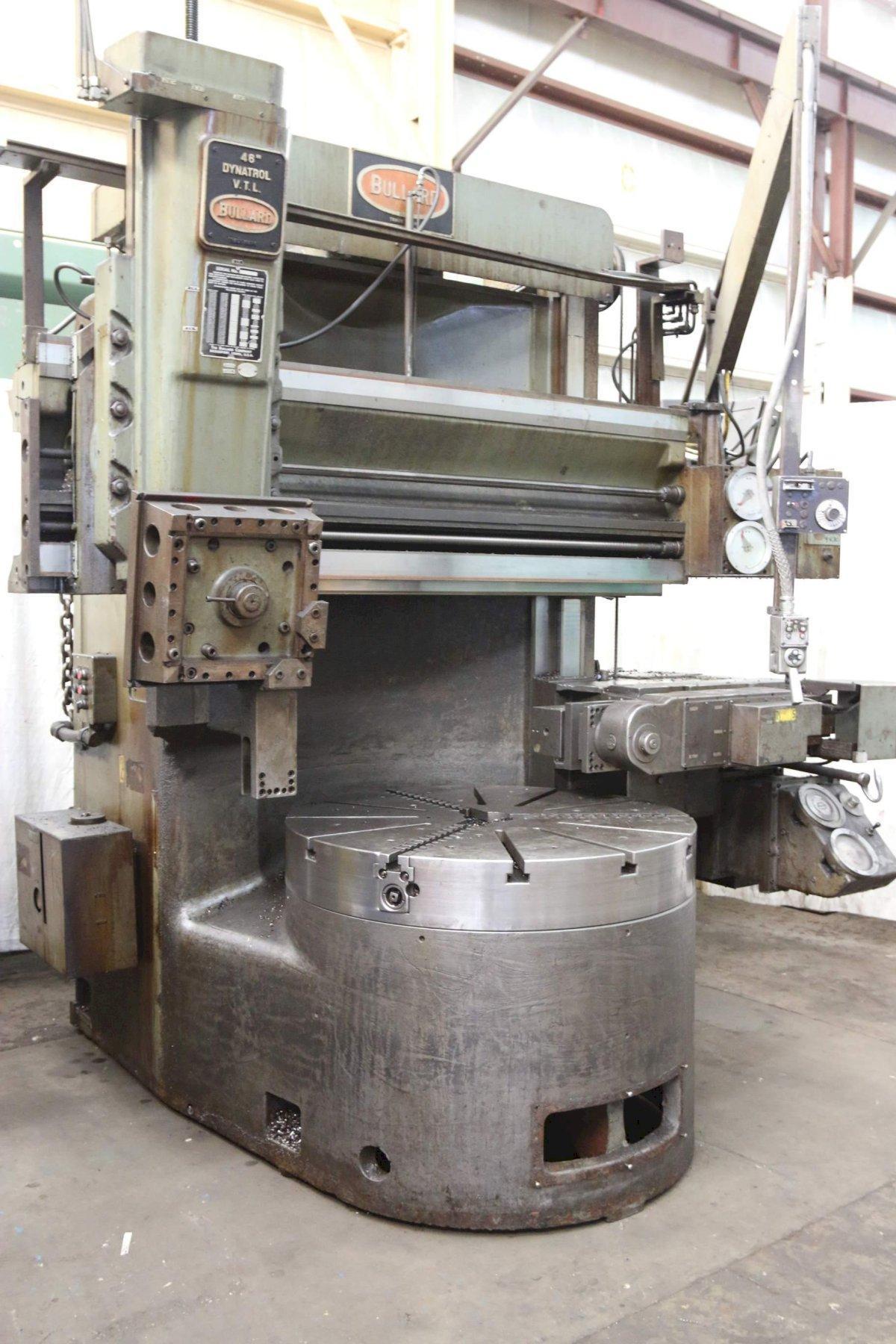

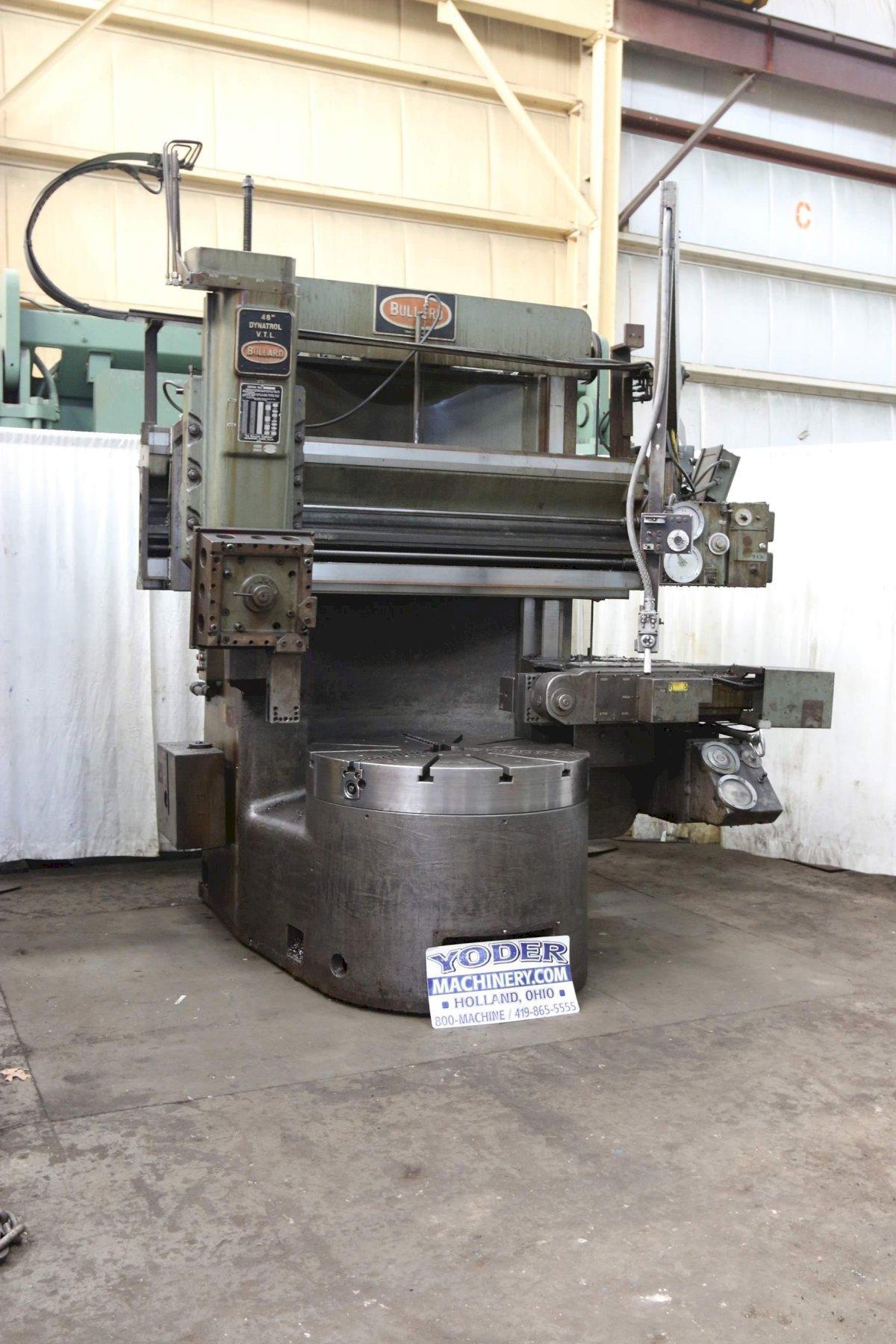

46" BULLARD DYNATROL VERTICAL TURRET LATHE: STOCK # 69936

Manufacturer

BULLARD

Category

Lathes

Type

LATHES, VERTICAL TURRET

Stock

69936

Model

46 DYNATROL 3 JAW

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet



SERIAL ........................... 32402
MODEL ............................ 46" DYNATROL

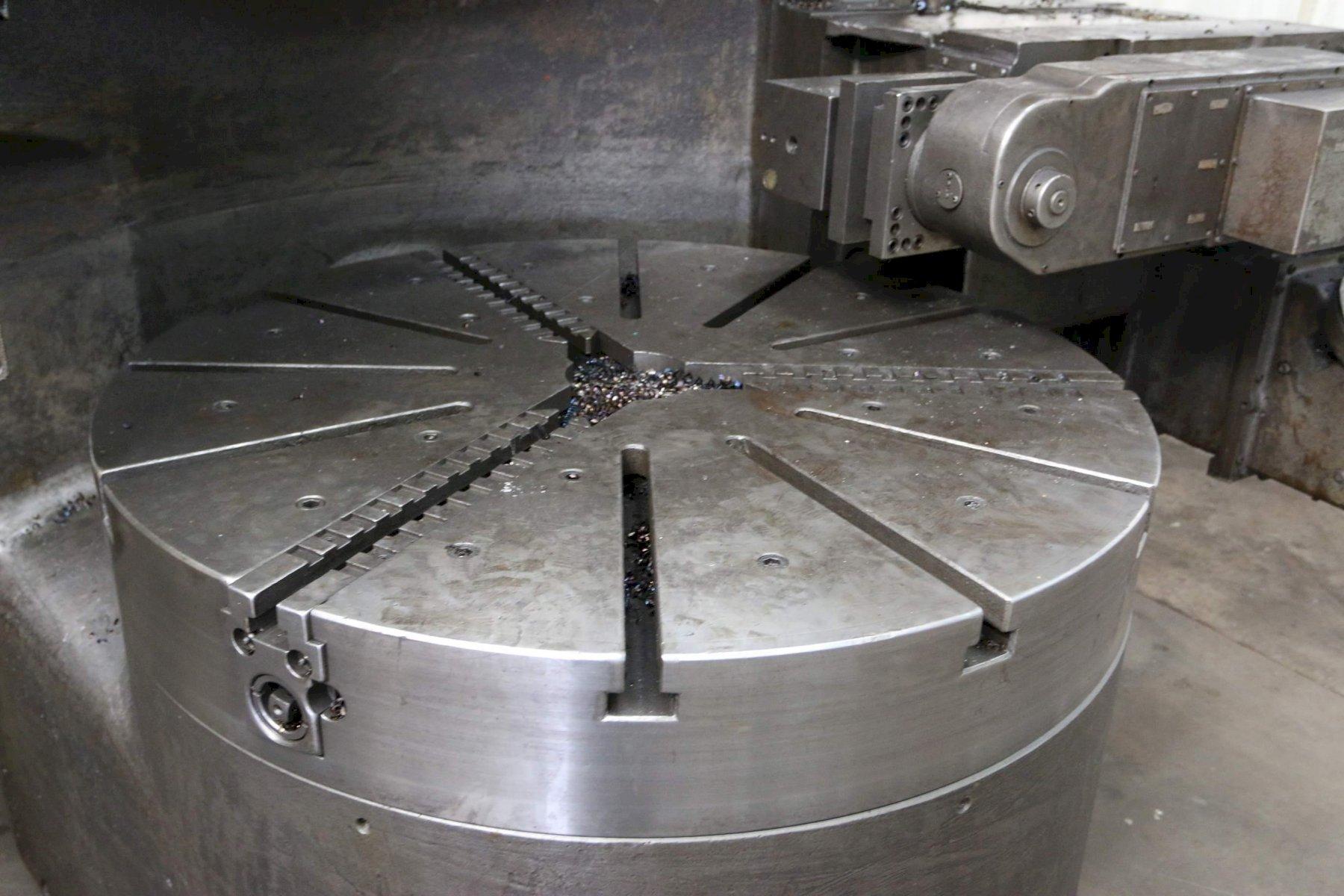

TABLE DIAMETER ................... 46" 3-JAW CHUCK
MAXIMUM SWING .................... 49" W/SIDE HEAD IN WORKING POSITION
MAXIMUM SWING .................... 58" W/SIDE HEAD BELOW TABLE TOP
HEIGHT UNDER RAIL ................ 40"
RAIL ADJUSTMENT .................. 30"
TABLE SPEEDS ..................... (20) 6.83 TO 250 RPM
FEEDS ............................ .001" TO .250" PER/REV

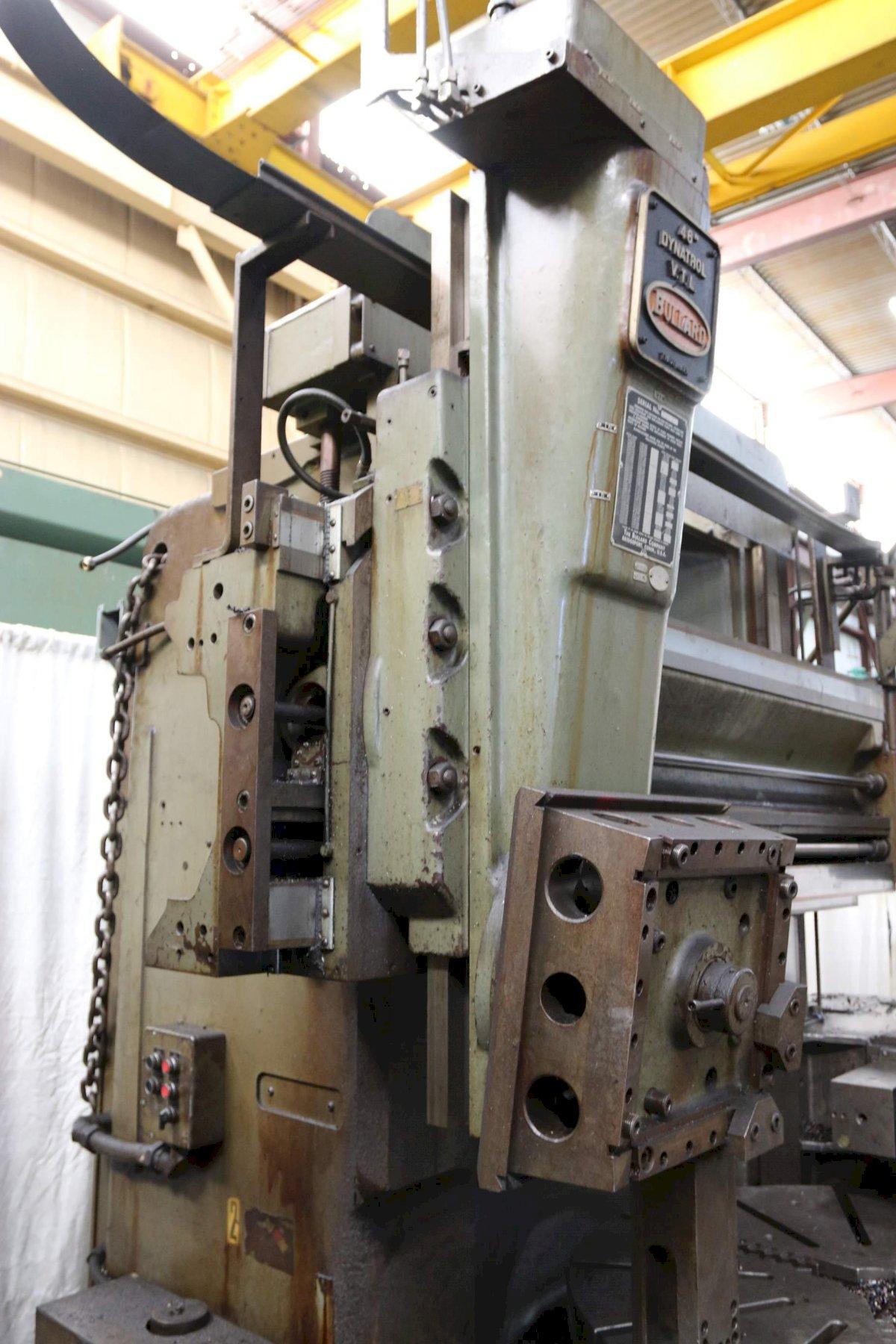

VERTICAL TRAVEL OF TURRET ........ 26" VERTICAL
TURRET TRAVEL ON RAIL ............ RIGHT 31" & LEFT 34-1/2"
TURRET SWIVEL .................... 30 DEGREES, RIGHT OR LEFT

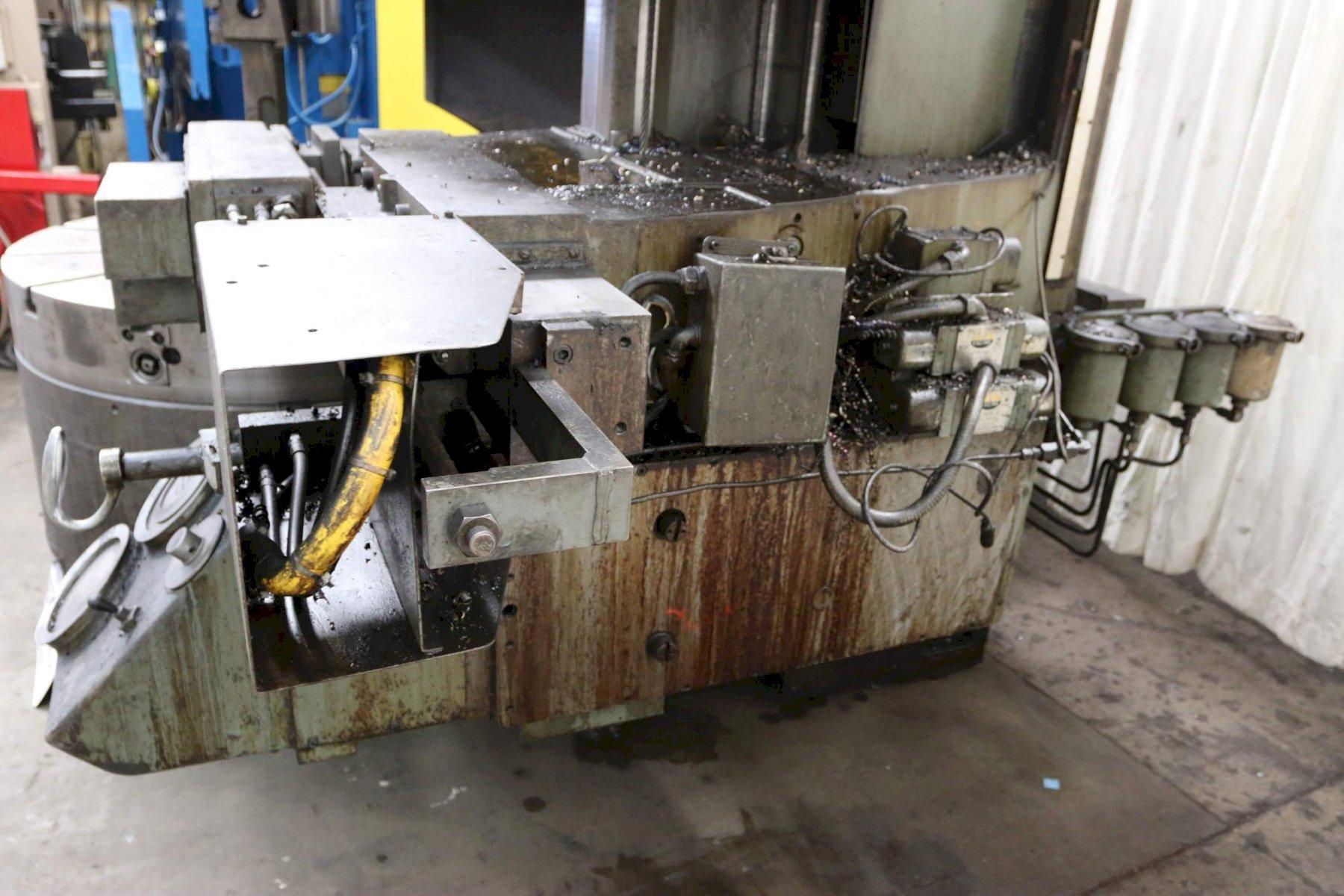

SIDE HEAD TRAVELS ................ 38-3/4" VERTICAL & 23-3/4" HORIZONTAL
TURRET HEAD ON RAIL .............. YES
TOOL POST ON SIDE HEAD ........... 4 POSITION
RAPID TRAVERSE ALL DIRECTIONS .... YES
AUTOMATIC LUBRICATION ............ YES
FLOOR STANDING ................... YES

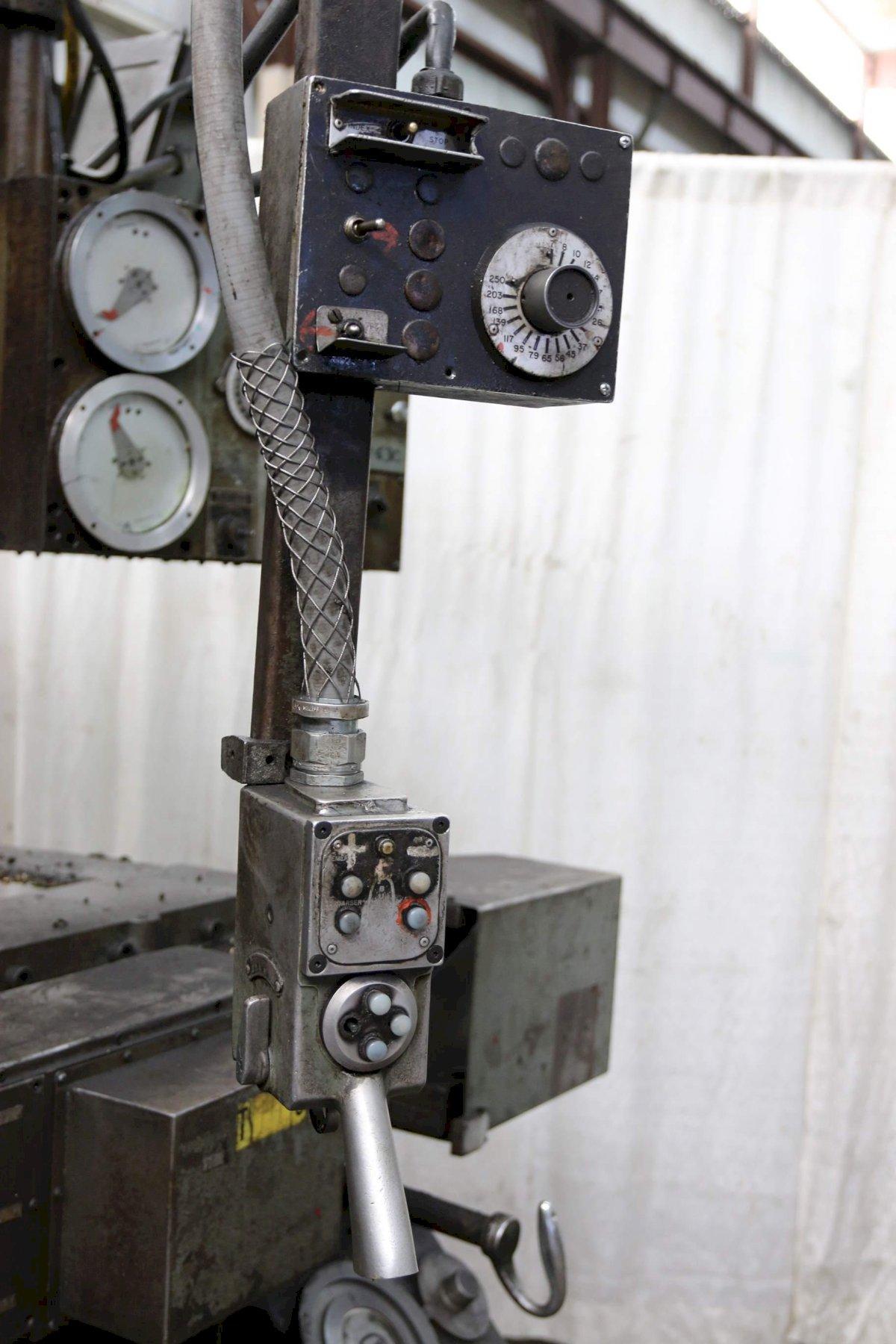

PENDANT CONTROLS ................. YES
MOTOR ............................ 30 HORSEPOWER
