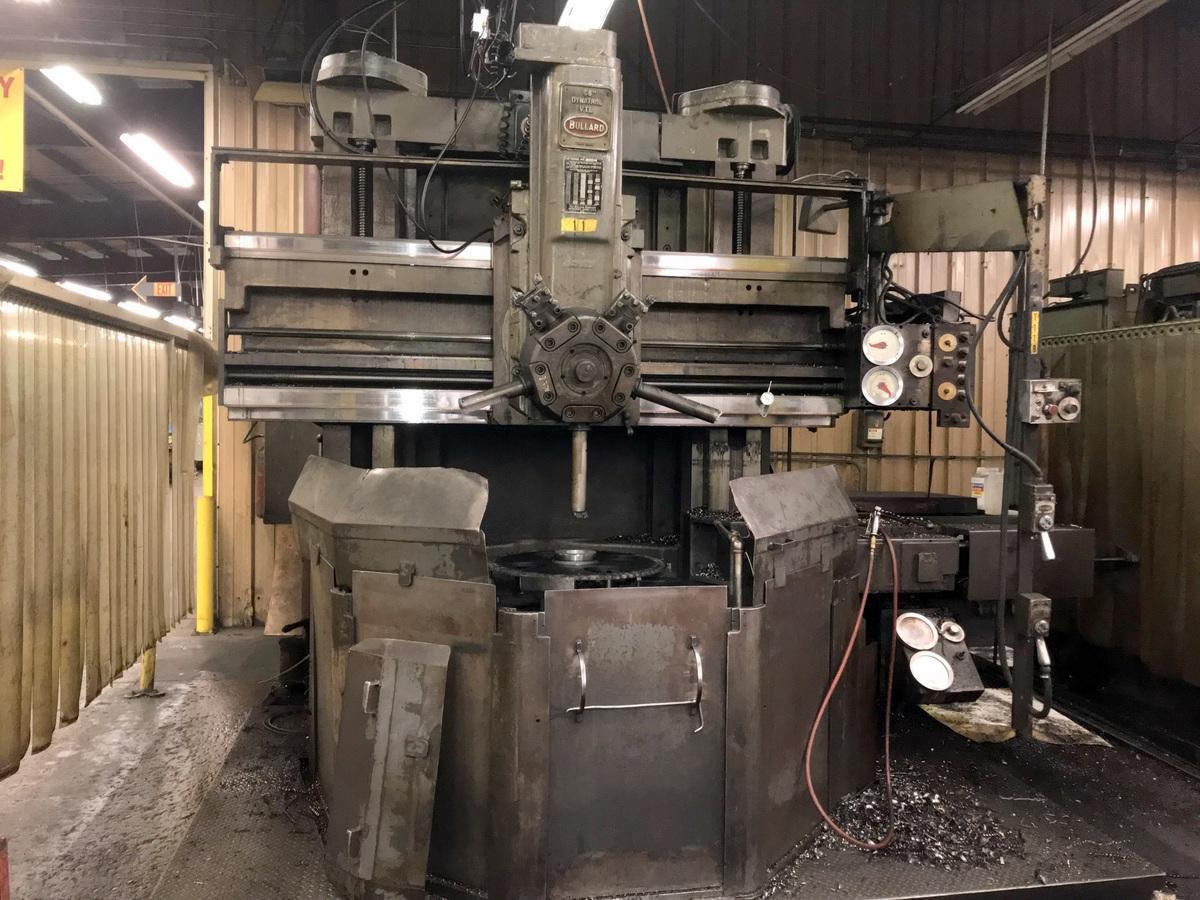

56" BULLARD DYNATROL VERTICAL TURRET LATHE: STOCK #70286

Manufacturer

BULLARD

Category

Lathes

Type

LATHES, VERTICAL TURRET

Stock

70286

Model

56 DYNATROL 3 JAW

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet



SERIAL .............................. 31333
MODEL ............................... DYNATROL
TABLE CHUCK DIAMETER (3-JAW) ........ 56"
TABLE SPEEDS ........................ (20) 6.8 TO 250 RPM
FEEDS ............................... .001 TO .250 IPR
MAXIMUM CLEARANCE UNDER RAIL ........ 50"
MAX. SWING - SIDE HEAD BELOW TABLE .. 68"
MAX. SWING - SIDE HEAD ABOVE TABLE .. 62"
MINIMUM HOLE RAM WILL ENTER ......... 9-1/2"
HORIZONTAL SIDE HEAD TRAVEL ......... 31-3/4"
VERTICAL TURRET SLIDE TRAVEL ........ 30-3/4"
CHROME WAYS ON TURRET & SIDE HEADS .. YES
PENDANT CONTROL ..................... YES
HORSEPOWER MAIN MOTOR ............... 50
