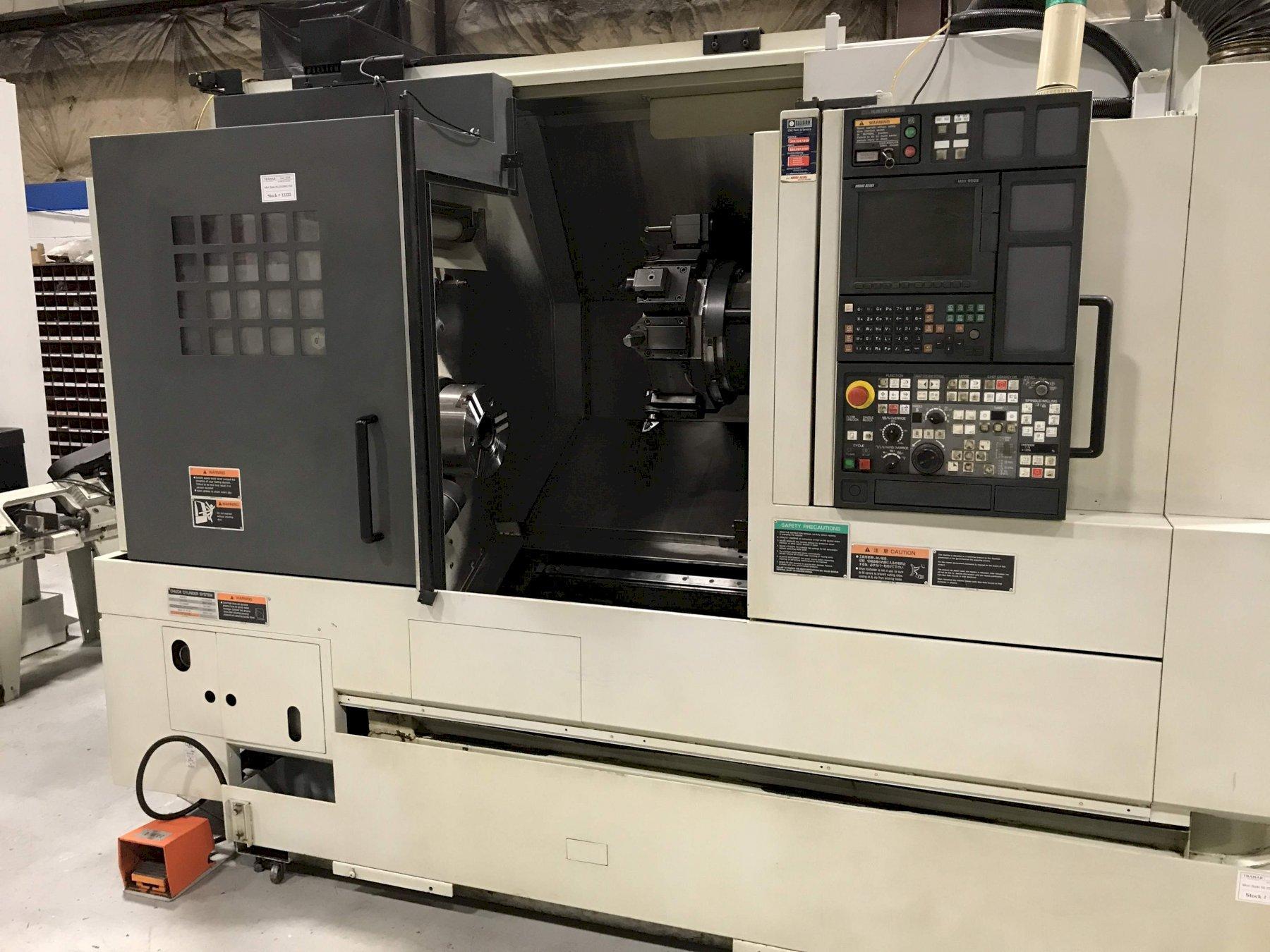

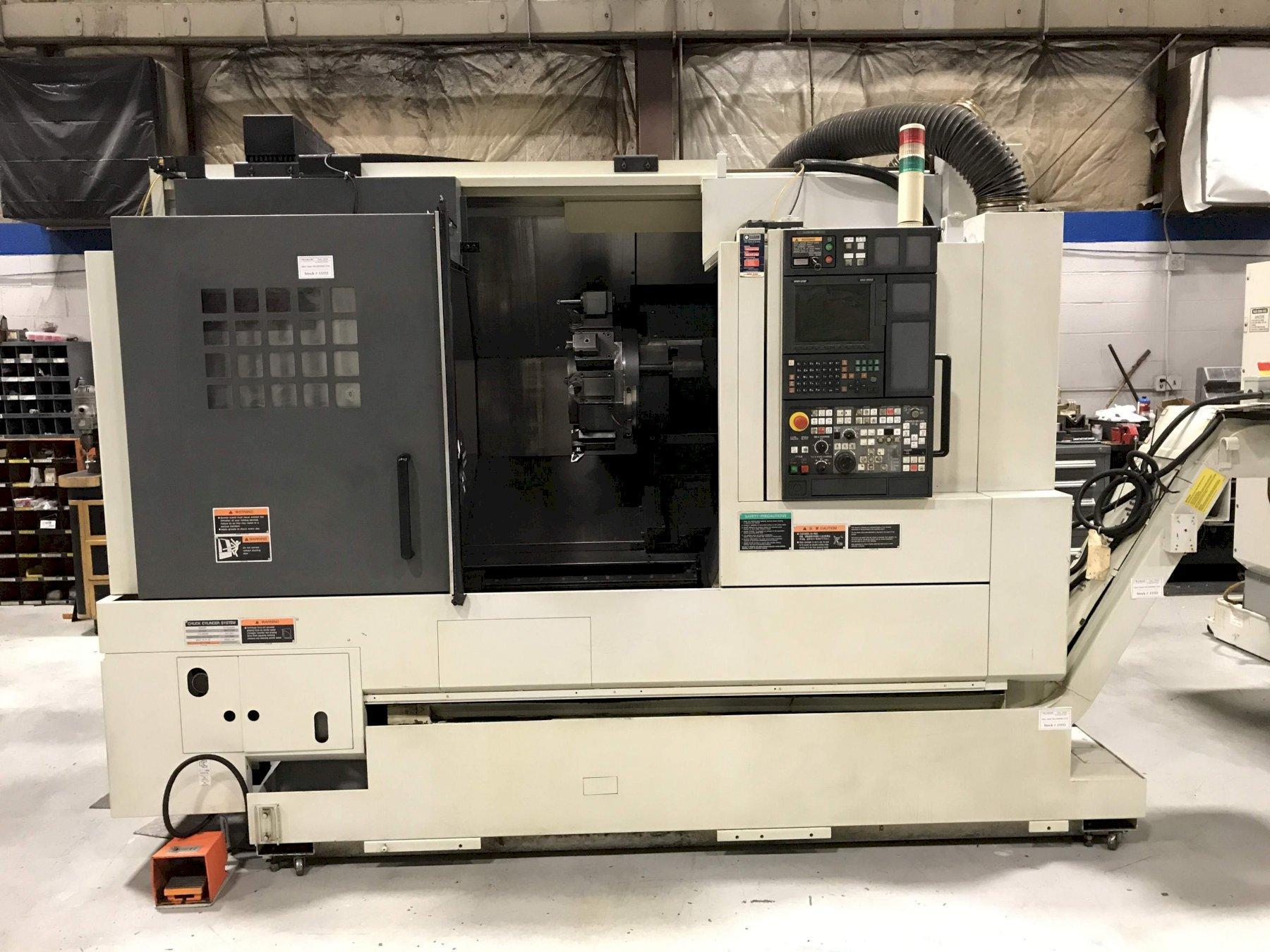

MORI SEIKI CNC LATHE: STOCK #72611

Manufacturer

Category

Lathes

Stock

72611

Model

None listed

Dealer Location

Ohio

Spec Sheet



SERIAL ...................... NL251II5104
MODEL ....................... NL2500MC/7000
YEAR ........................ 2008
CNC CONTROL ................. YES
NUMBER OF AXIS .............. 3
SWING ....................... 36.4" / 924.56 MM
SWING OVER CROSS SLIDE ...... 29.7" / 754.38 MM
TURNING DIAMETER ............ 14"   / 355.60 MM
CENTER DISTANCE ............. 27.7" / 703.58 MM

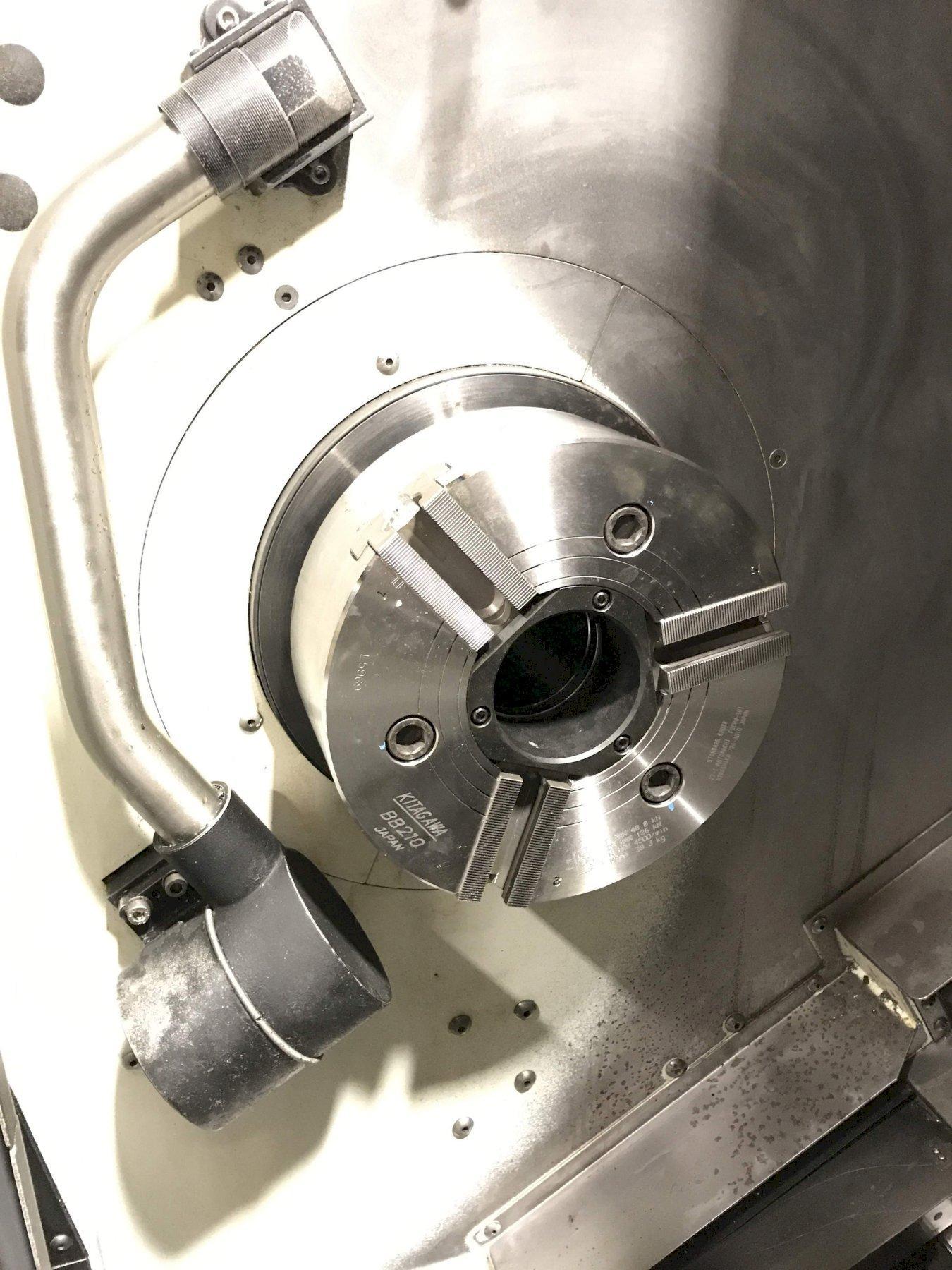

CHUCK SIZE .................. 10"   / 254.00 MM
BAR CAPACITY ................ 3.1"  / 78.74 MM
X AXIS TRAVEL ............... 10.2" / 259.08 MM
Z AXIS TRAVEL ............... 31.3" / 795.02 MM
C AXIS TRAVEL ............... 0.001 / 0.001
RAPID TRAVERSE .............. 1181 IPM
SPINDLE NOSE ................ A2-8
SPINDLE RPM ................. 4000 RPM
MOTOR ....................... 25 HORSEPOWER
LIVE TOOLING MOTOR .......... 7.5 HORSEPOWER

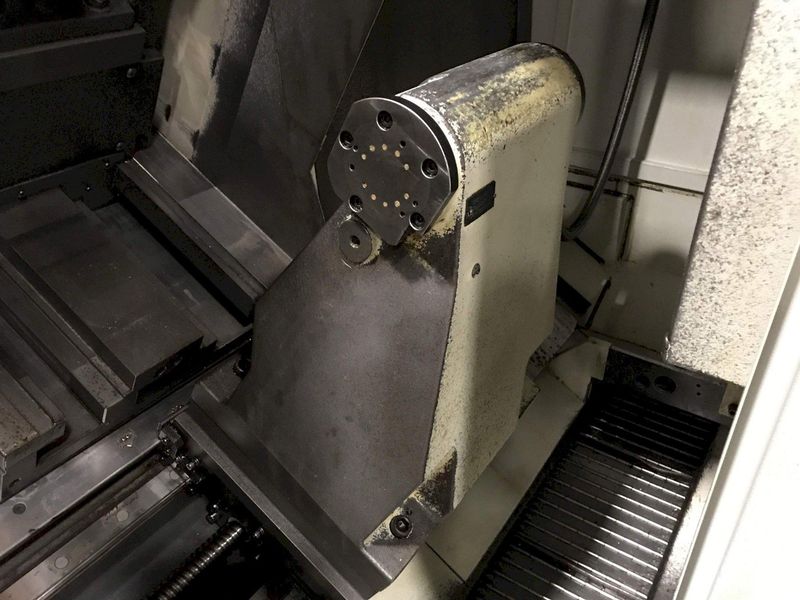

TAILSTOCK ................... YES

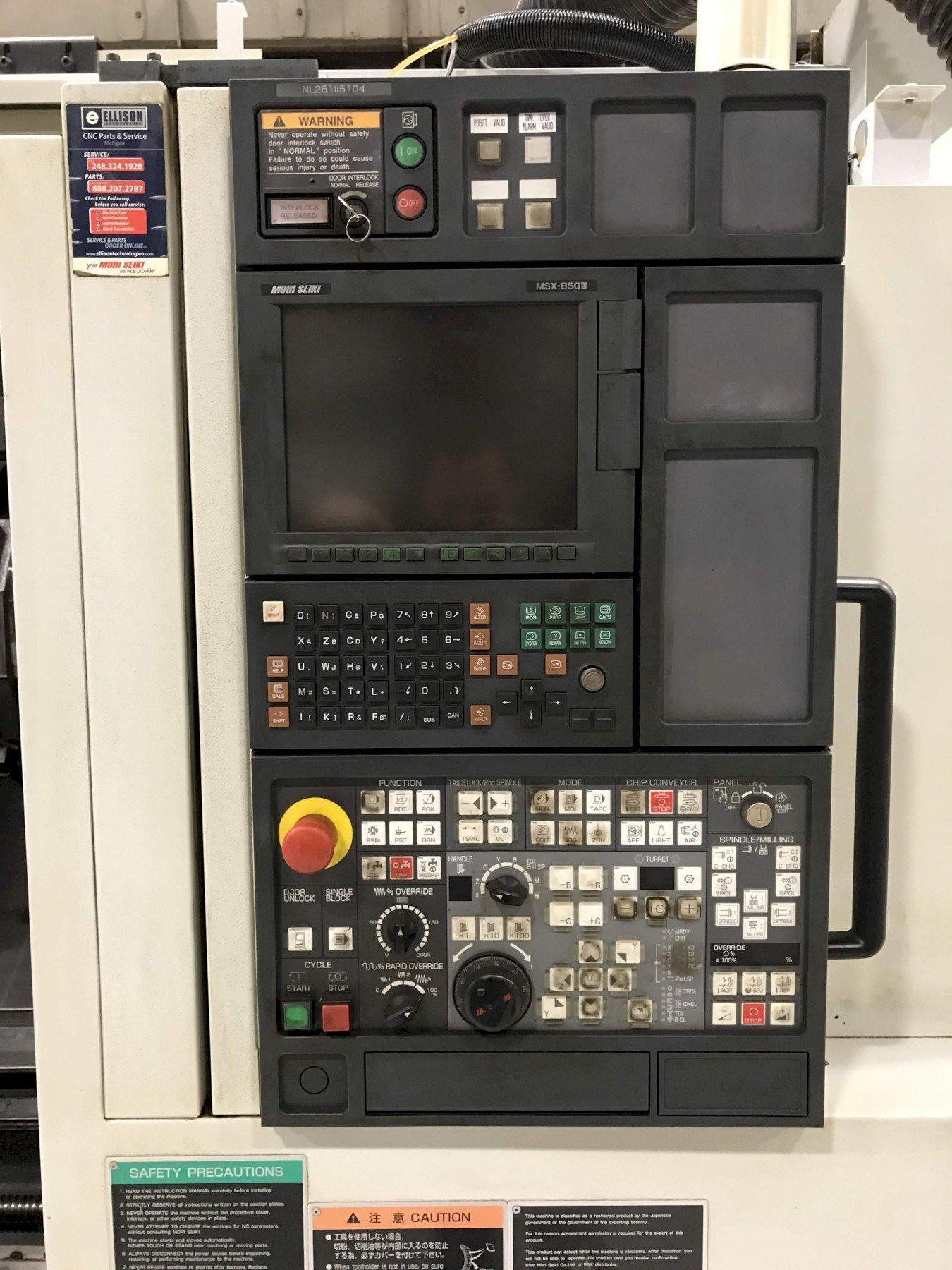

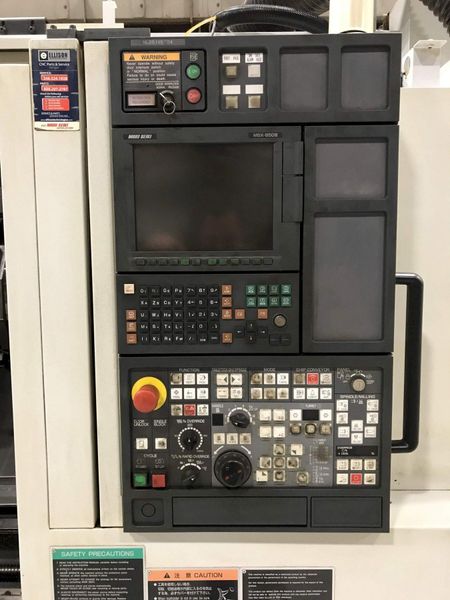

CONTROL ..................... MSX - 850 II

No Video Available

Want to request a quote from the owner of this listing?

Request a Quote
