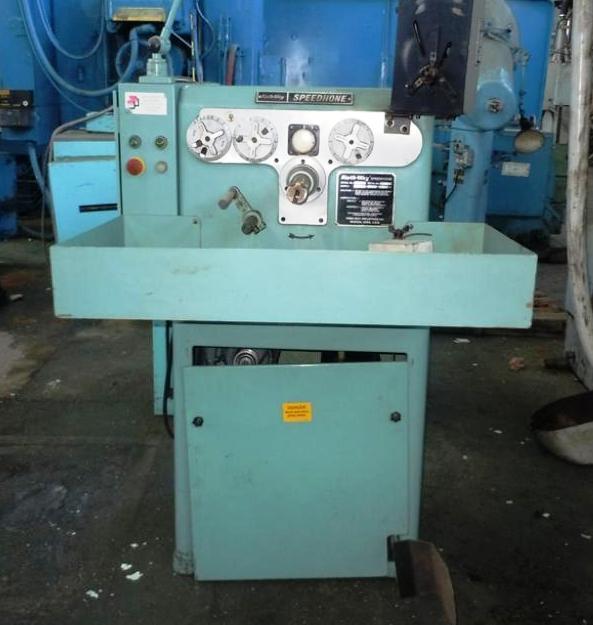

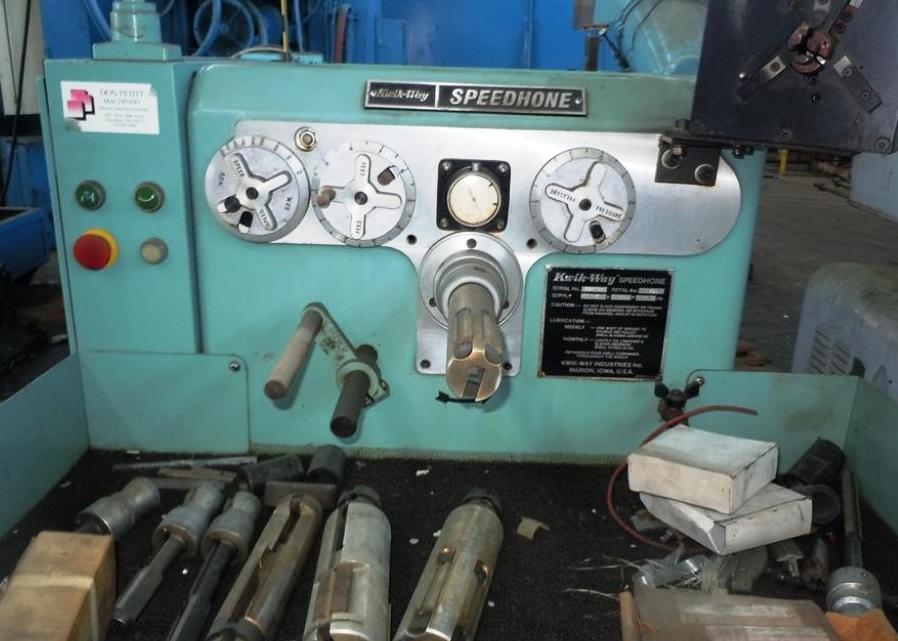

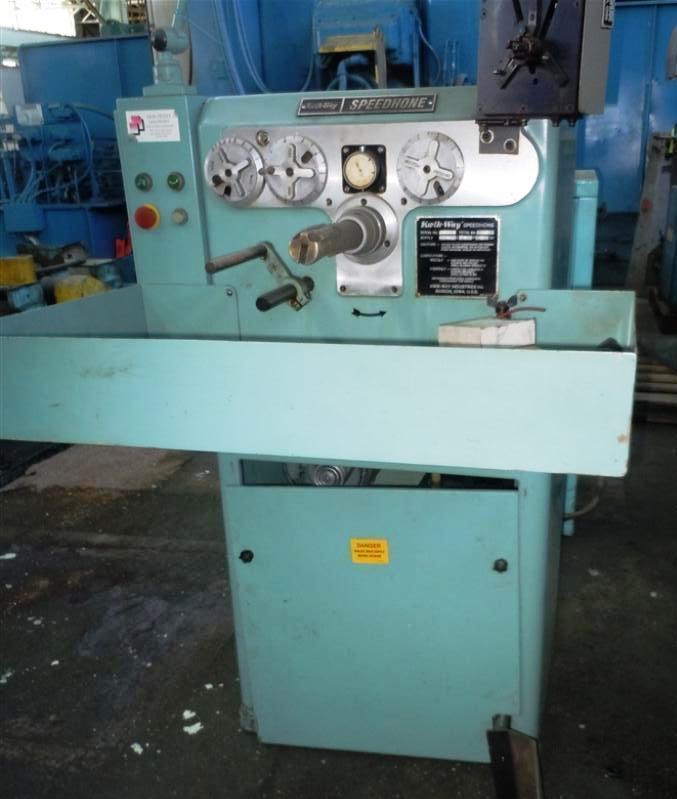

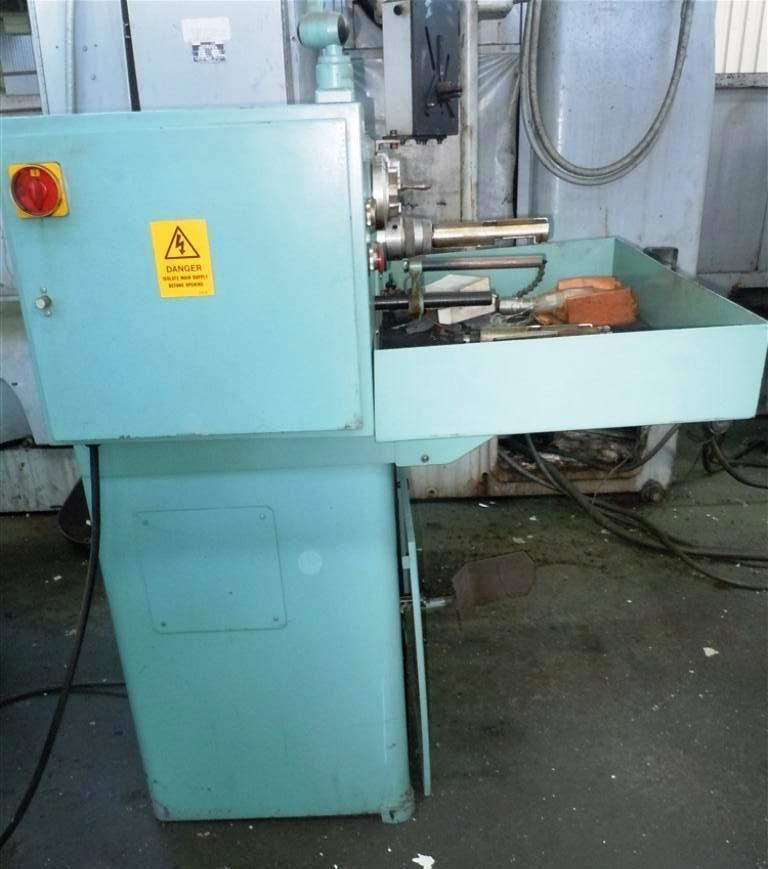

KWIK WAY MODEL 085 AUTO/STROKE HONE: STOCK #19443

Manufacturer

Category

Honing Machines

Type

HONES, ABRASIVE FLOW

Stock

19443

Model

None listed

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet



SERIAL NUMBER ............... 6041-10
MODEL ....................... 085
YEAR NEW .................... 1991
MANDREL DIAMETER RANGE ...... .045" TO 3.50"
SPINDLE SPEED ............... 250 - 1000 RPM - INFINITELY VARIABLE
                              THROUGHOUT THE RANGE
STROKE LENGTH ............... INFINITELY ADJ. FROM 0" TO 6"
STROKE RATE (PER MIN) ....... 43 AND 380 BOUDLE STROKES
                              INFINITELY VARIABLE
DIAL INDICATOR GRADUATED FOR IN-PROCESSING GAUGING (EACH MARK EQUALS
                                                    .0001)
COOLANT CAPACITY ............ 12 GAL
COOLANT FILTRATION .......... 3 STAGE INCLUDING BAR MAGN3ET & SETTLING
                              BAFFLES
STONE FEED UP ............... POSITIVE THREADED ADJUSTMENT OF STONE
                              FEED IN CONJUNCTION W/DIAL INDICATOR
CHUCK ....................... 4-WAY ADJUSTABLE
SPINDLE MOTOR ............... 1 HORSEPOWER
STROKING MOTOR .............. 1/4 HORSEPOWER
COOLANT PUMP ................ 1/3 HORSEPOWER
