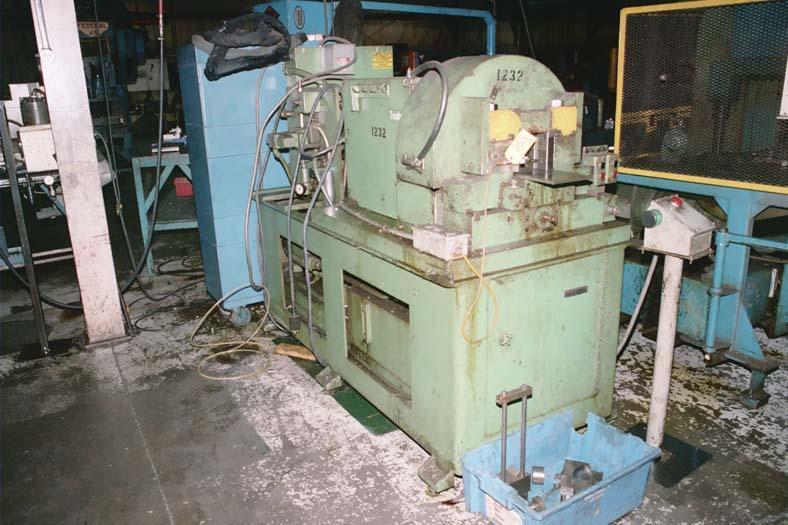

3-1/2' DICKEY ROTARY TUBE END FORMER: STOCK #50072

Manufacturer

Stock

50072

Model

None listed

Dealer Location

Ohio

Spec Sheet



SERIAL # ................... 234-A1015-7-73
TUBE RANGE ................. 2-3/4 OD MAX W/STANDARD CLAMP DIES
FORM STROKE ................ ADJUSTABLE UP TO 1"
CLAMP STROKE ............... 3"
CLAMP PRESSURE ............. 28,000 LBS @ 1000 PSI
FORM PRESSURE .............. 19,600 LBS @ 1000 PSI
ROTARY HEAD ................ DRIVEN BY 15 HP ELEC MOTOR THRU AIR CLUTCH AND
FLYWHEEL
MAIN SPINDLE ............... 300 RPM
SHIPPING WEIGHT ............ 6,700 LBS
