20,000 LB X 72' LOOPCO BANDING LINE: STOCK #53852

Manufacturer

Category

Coil Processing Equipment

Type

COIL BANDING LINES

Stock

53852

Model

20000 x 72

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet



YEAR ..................................... 1985

HEAVY DUTY CONVEYOR CAPACITY ............. 20,000 LBS

WIDE MULT CAPACITY ....................... 26"

MAX COIL O.D. ............................ 72"



CONSISTING OF THE FOLLOWING:

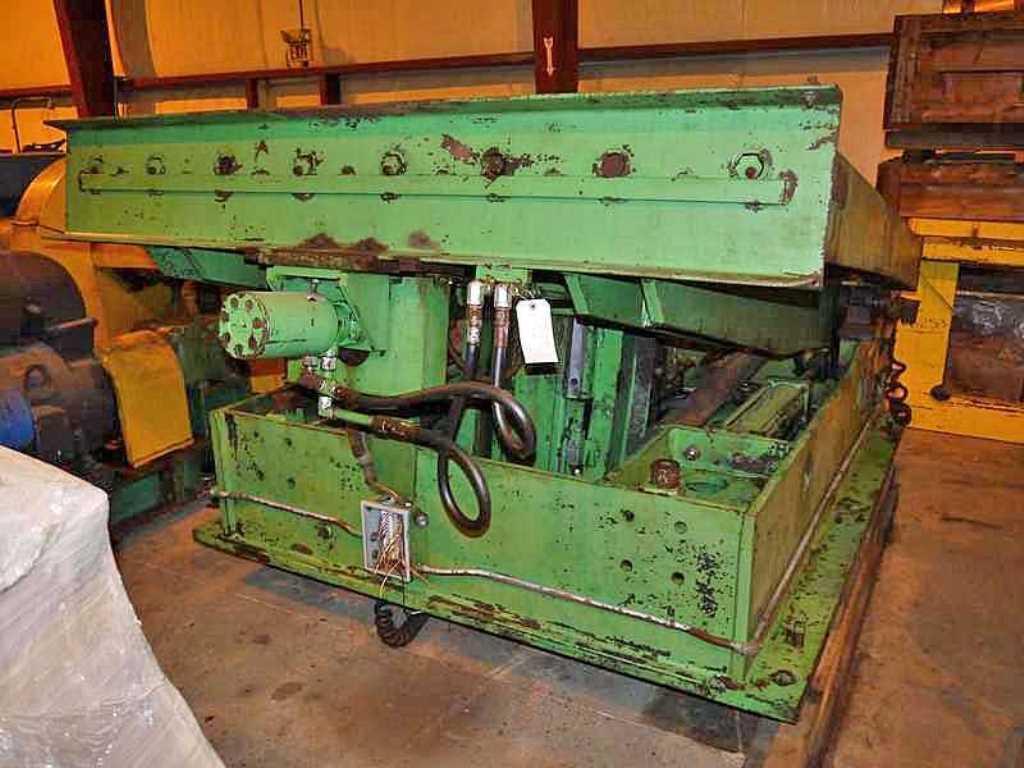

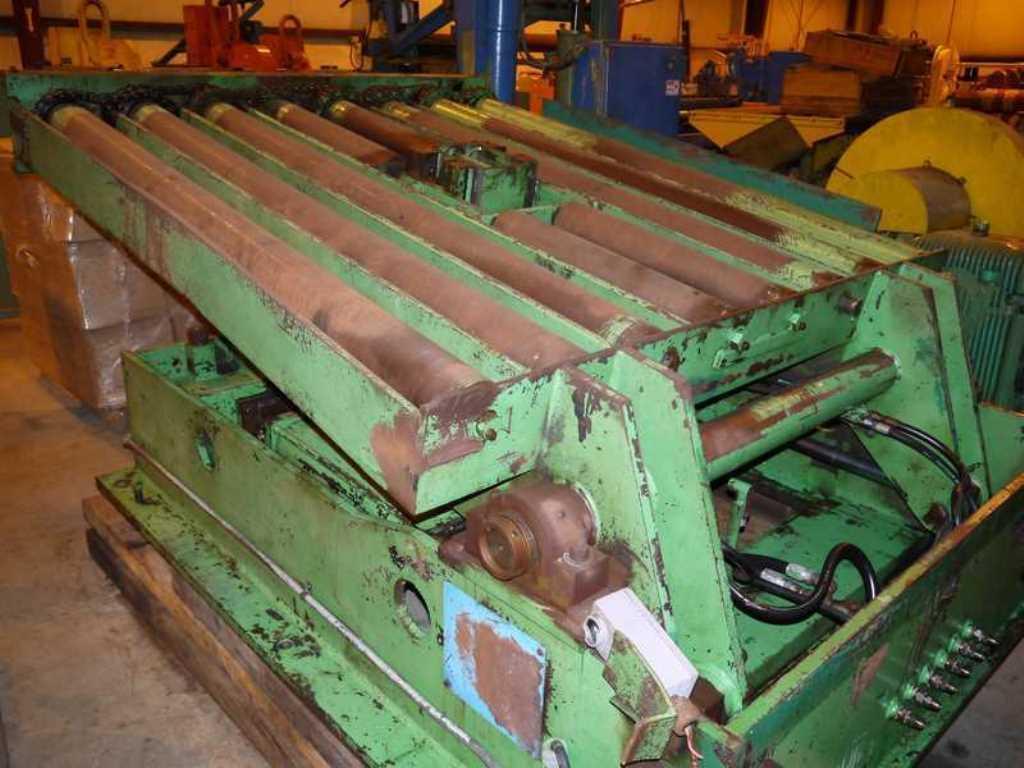

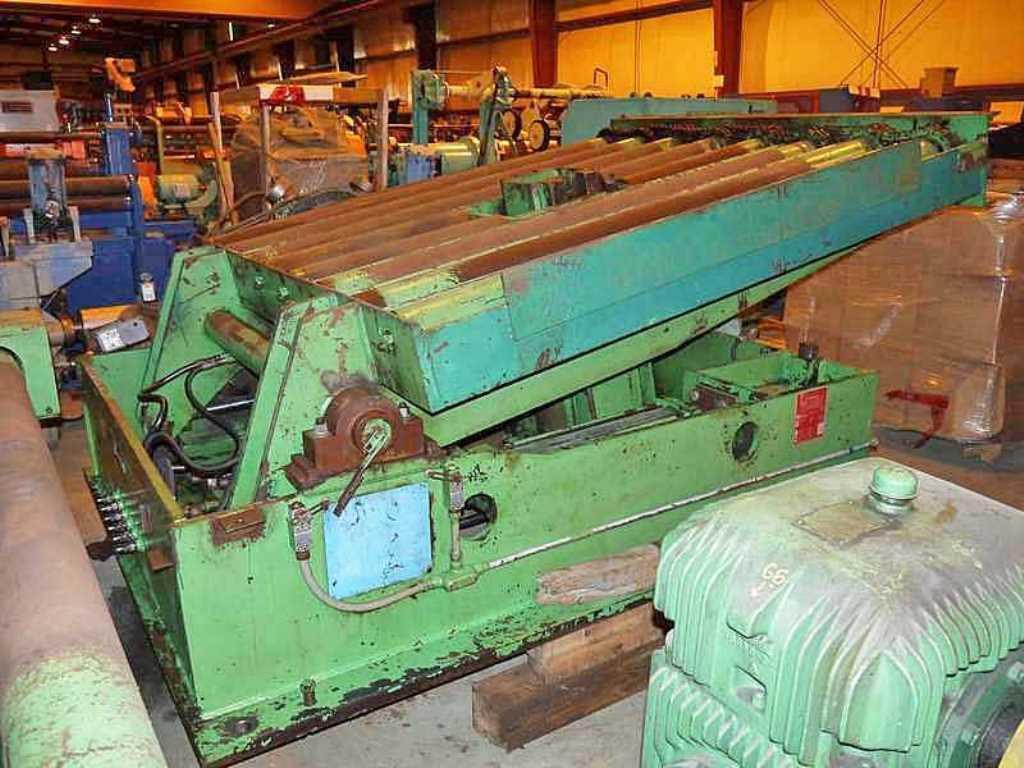

DOWNLAYER:

FACE DRIVEN ROLLS ........................ 5" DIA x 75"

HYDRAULIC MOTOR DRIVE .................... YES

RIGHT ANGLE DISCHARGE .................... YES

LONG HORN EXTENSION ...................... 25"

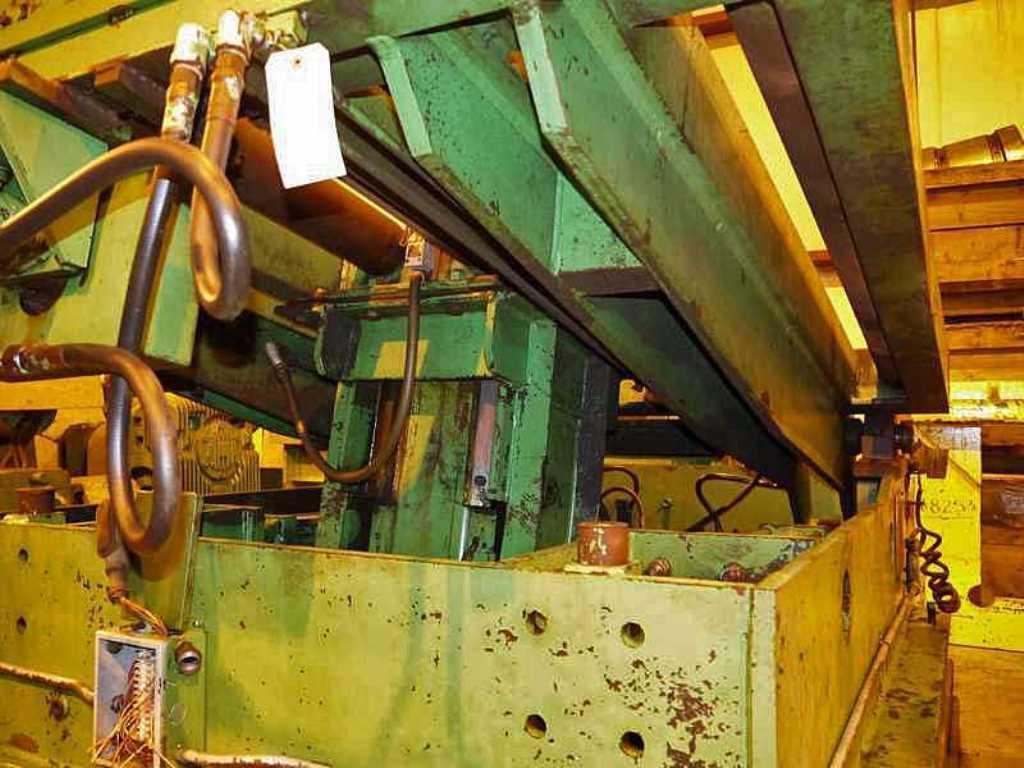

(1) HYDRAULIC HORN CYLINDER .............. 2.5" BORE x 26" STROKE

(2) HYDRAULIC TILT CYLINDERS ............. 5" BORE x 23" STROKE

FLOOR TO TOP OF HORN "TIPPED POSITION" ... 74" (APPROX)

PASS LINE HEIGHT ......................... 34.5"

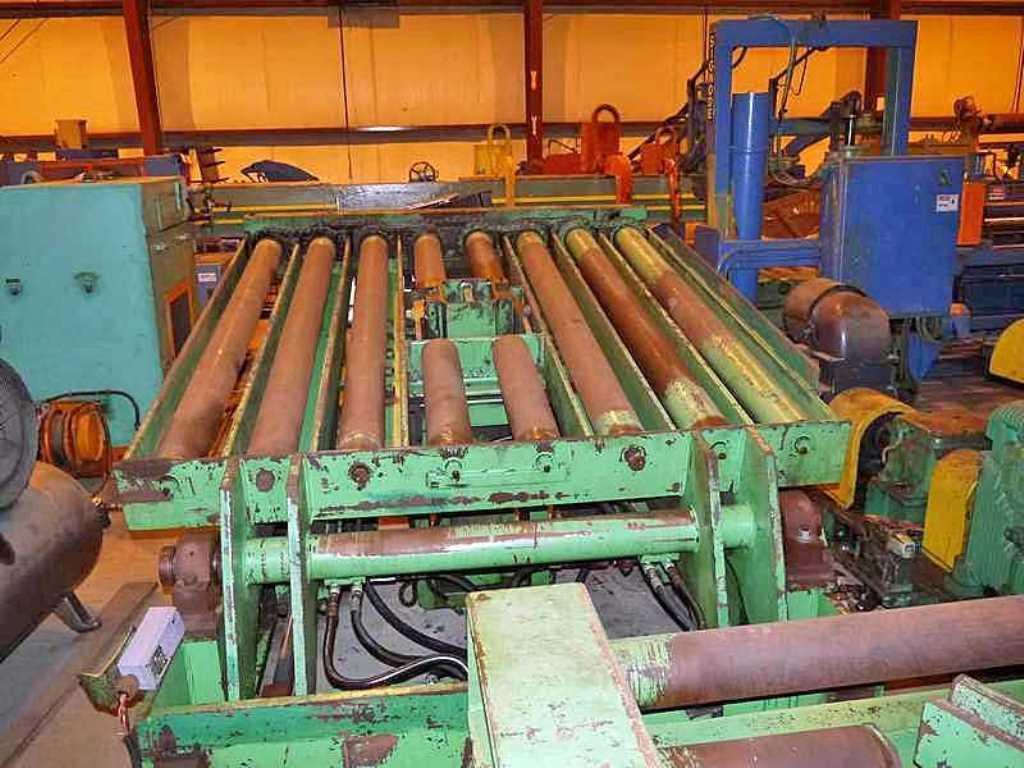

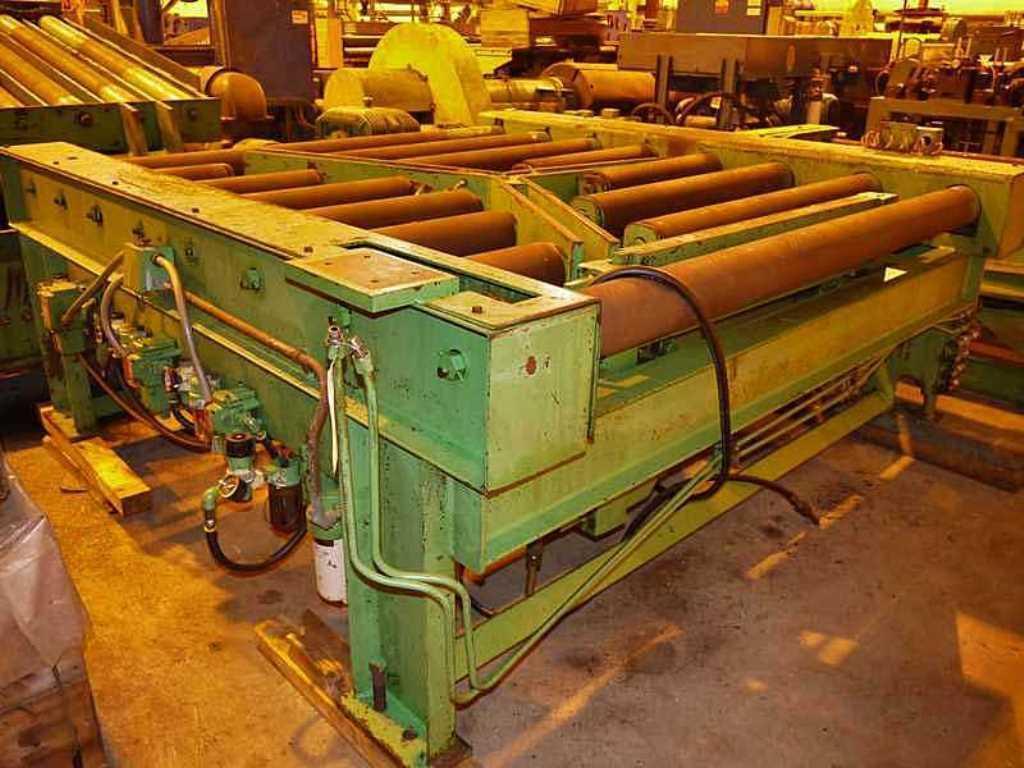

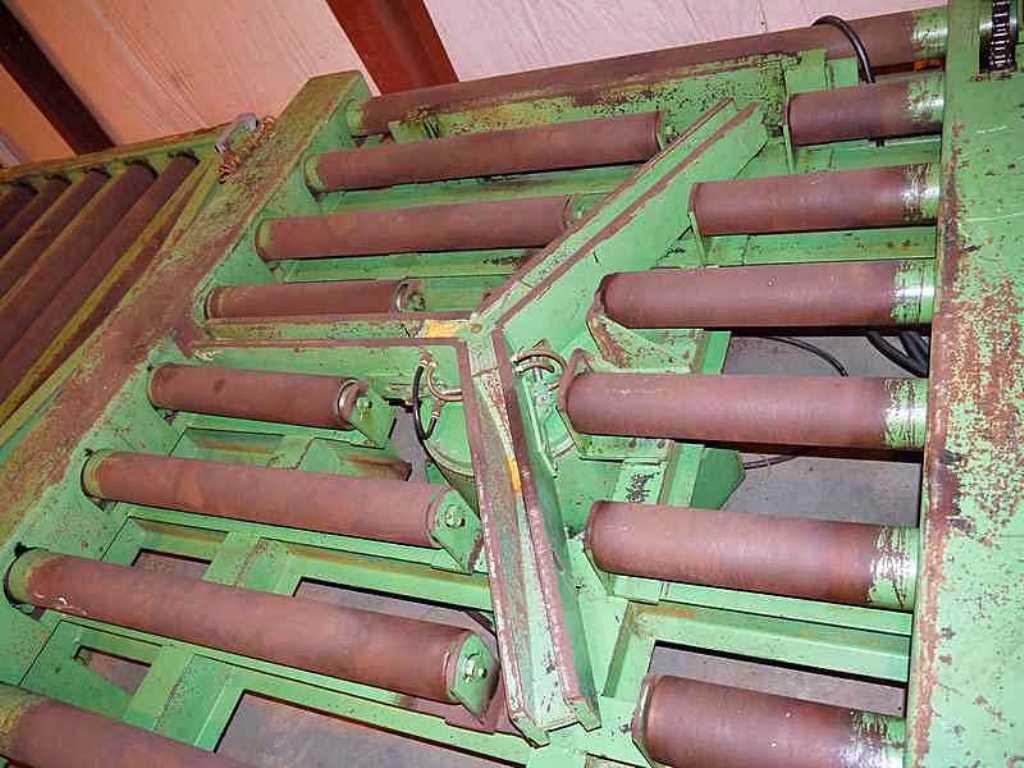

MANUAL BANDING TABLE:

DRIVEN ROLLS ............................. 5" DIAMETER

HYDRAULIC MOTOR DRIVEN ROLLS ............. YES

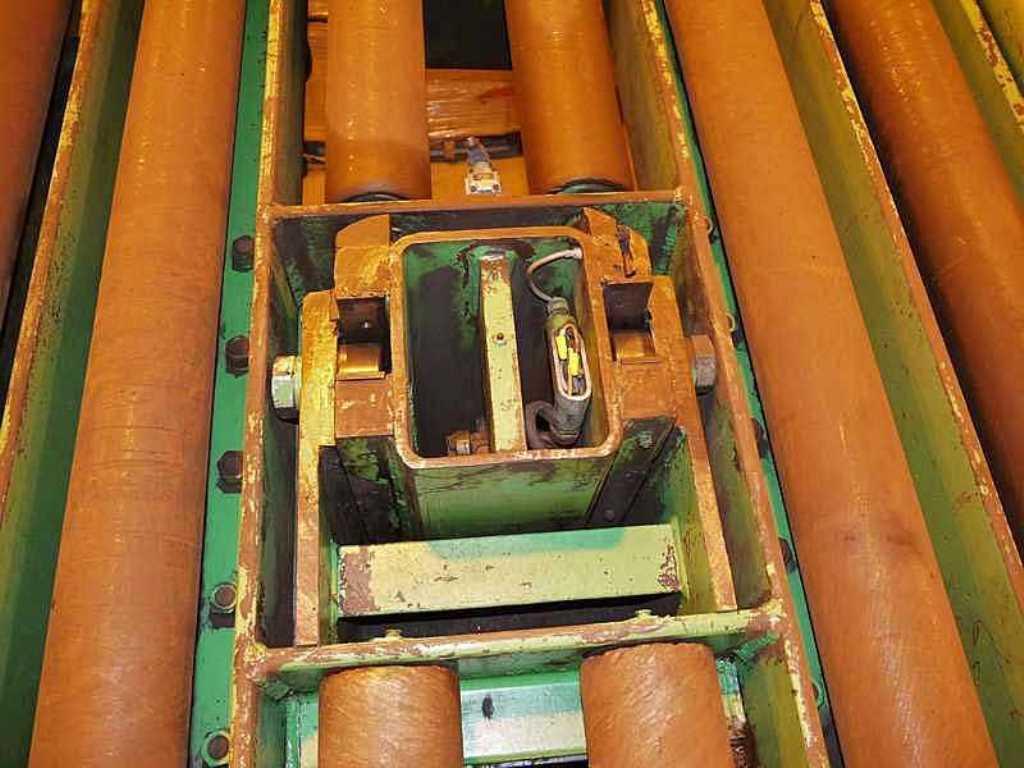

3 ARM TYPE COIL LIFT AND ROTATE .......... YES

(1) HYDRAULIC LIFT CYLINDER .............. 6" BORE x 9" STROKE

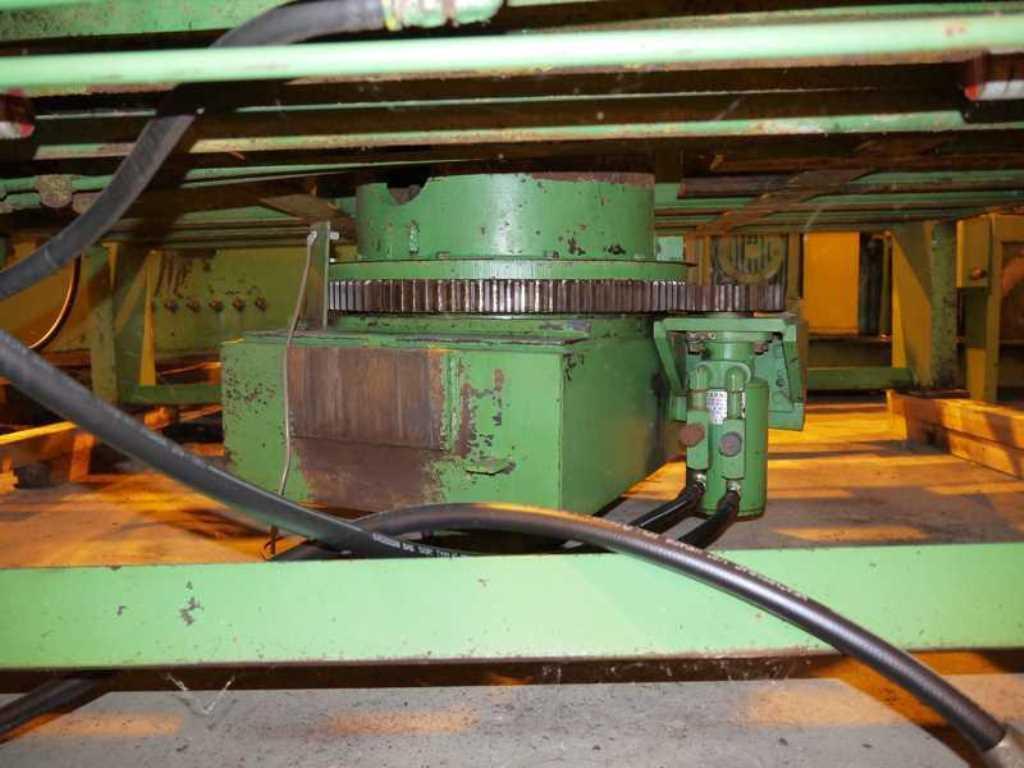

HYDRAULIC MOTOR ROTATE ................... YES

PASSLINE HEIGHT .......................... 35"

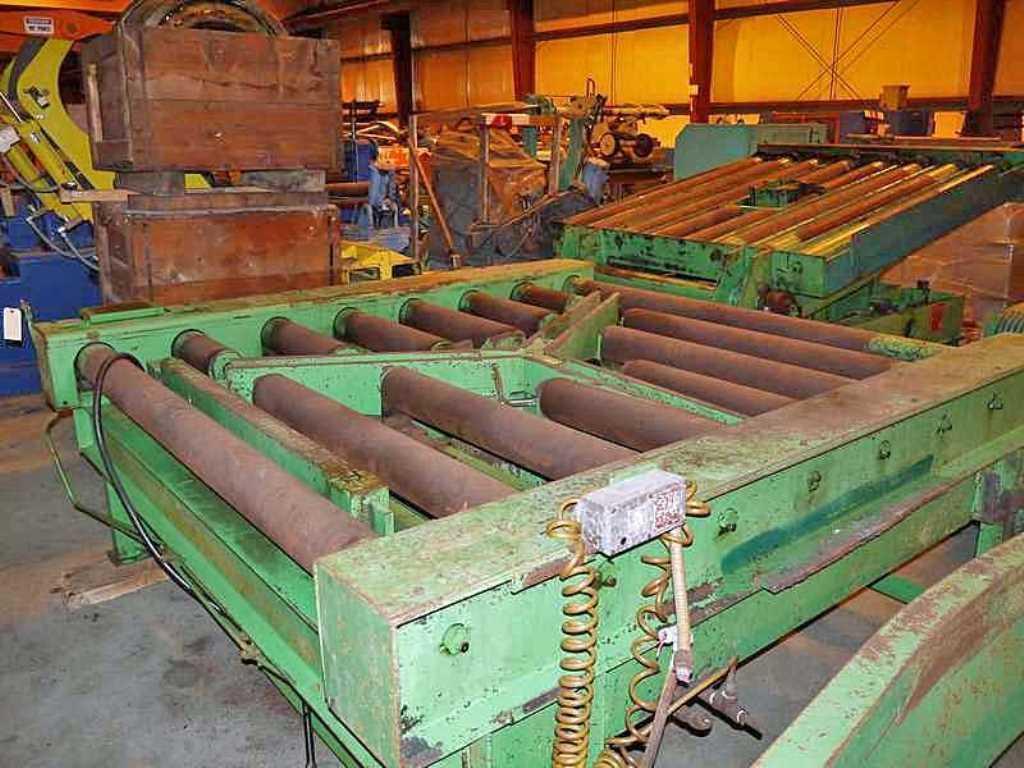

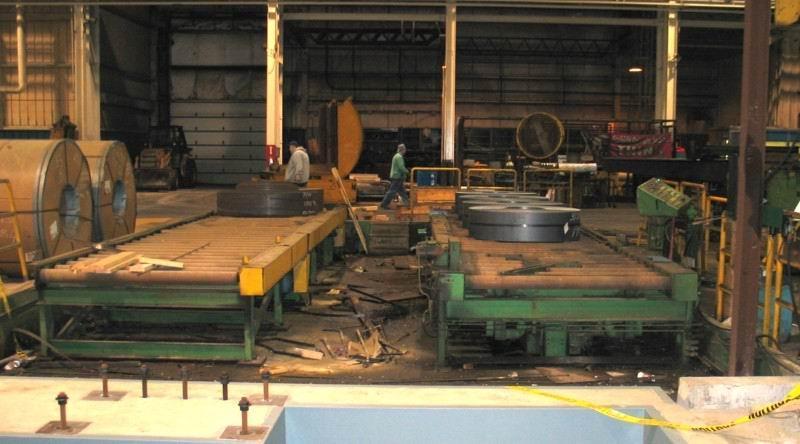

COIL STORAGE CONVEYOR:

LENGTH ................................... 25'

FACE DRIVEN ROLLS ........................ 5.25" DIA x 74"

FOOTE-JONES AC GEAR MOTOR DRIVE .......... 10 HP/230/460 V

PASSLINE HEIGHT .......................... 35" PASSLINE HEIGHT



MECHANICAL DRAWINGS INCLUDED
