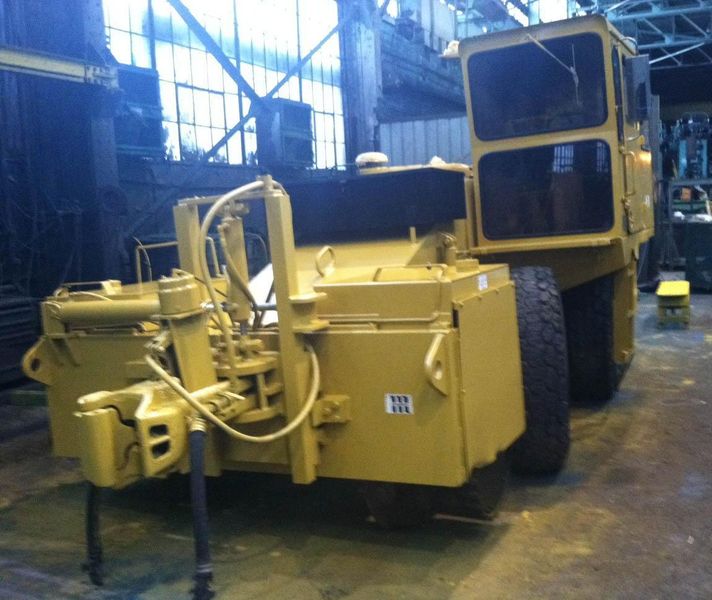

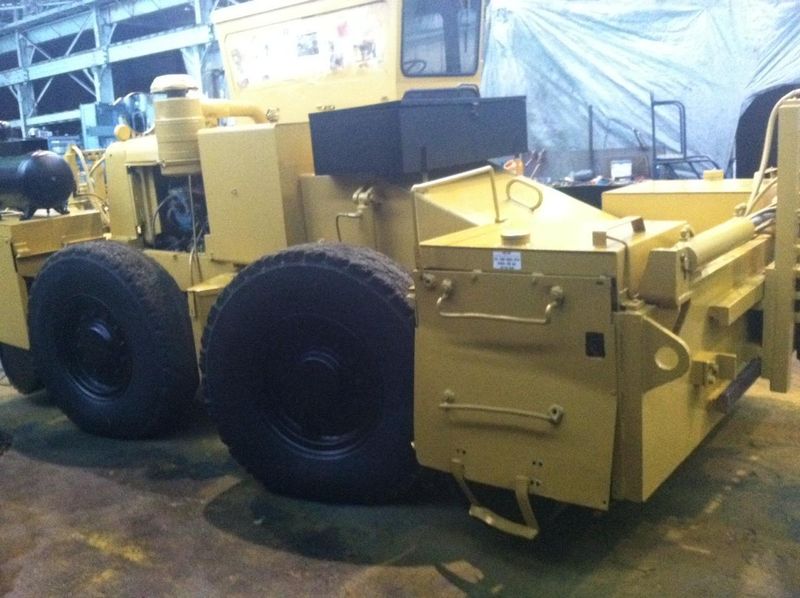

WORKMASTER MODEL #300AIL RAIL ROAD CAR MOVER: STOCK #55809

Stock

55809

Model

300AIL

Dealer Location

Ohio

Spec Sheet

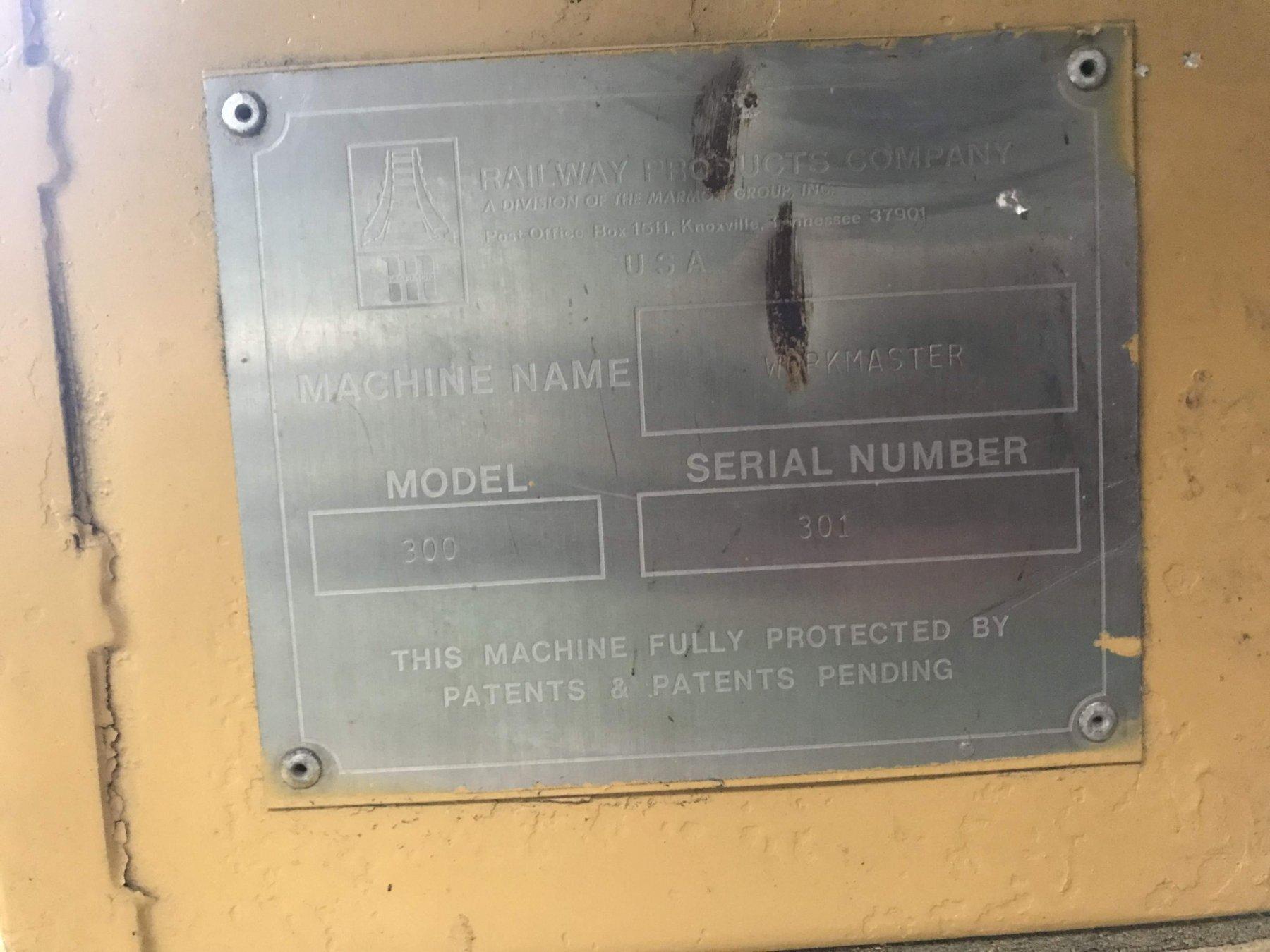

SERIAL .............................. 301
MODEL ............................... 300

CAPACITY:

DRAWBAR PULL ON TIRES ............... 33,000 LBS (14,850 KG)
DRAWBAR PULL ON RAIL WHEELS ......... 17,500 LBS (7875 KG)

OVERALL MEASUREMENTS:

HEIGHT WITH CAB (ON TIRES) .......... 9' 4-5/8"
HEIGHT WITH CAB (ON RAIL) ........... 9' 10"
LENGTH WITH COUPLERS FRONT & REAR ... 24' 4-1/2"

ENGINE TYPE:

MAKE ................................ DETROIT DIESEL
MODEL ............................... 4-53

ELECTRICAL SYSTEM ................... 12 VOLTS


FUEL TANK ........................... 34 GAL (128.7 L)


TURNING RADIUS (4-WHEEL STEER)

CURB CLEARANCE ...................... 15'
OUTSIDE TIRES ....................... 16' 6"

POWER TRAIN:

TORQUE CONVERTER AND POWERSHIFT TRANSMISSION

AXLES:

PETTIBONE PLANETARY SPIRAL BEVEL RING GEAR & PINION
W/PLANETARY REDUCTION AT WHEELS

WHEELBASE ........................... 6' 3-1/2" (1917.7MM)


BRAKES:

4-WHEEL AIR OVER HYDRAULIC MANUAL PARKING BRAKE ON DRIVE SHAFT

WEIGHTS:

TOTAL LBS (KG) ...................... 48,000 (21,818)
FRONT WHEELS LBS (KG) ............... 24,000 (10,909)
REAR WHEELS LBS (KG) ................ 24,000 (10,909)

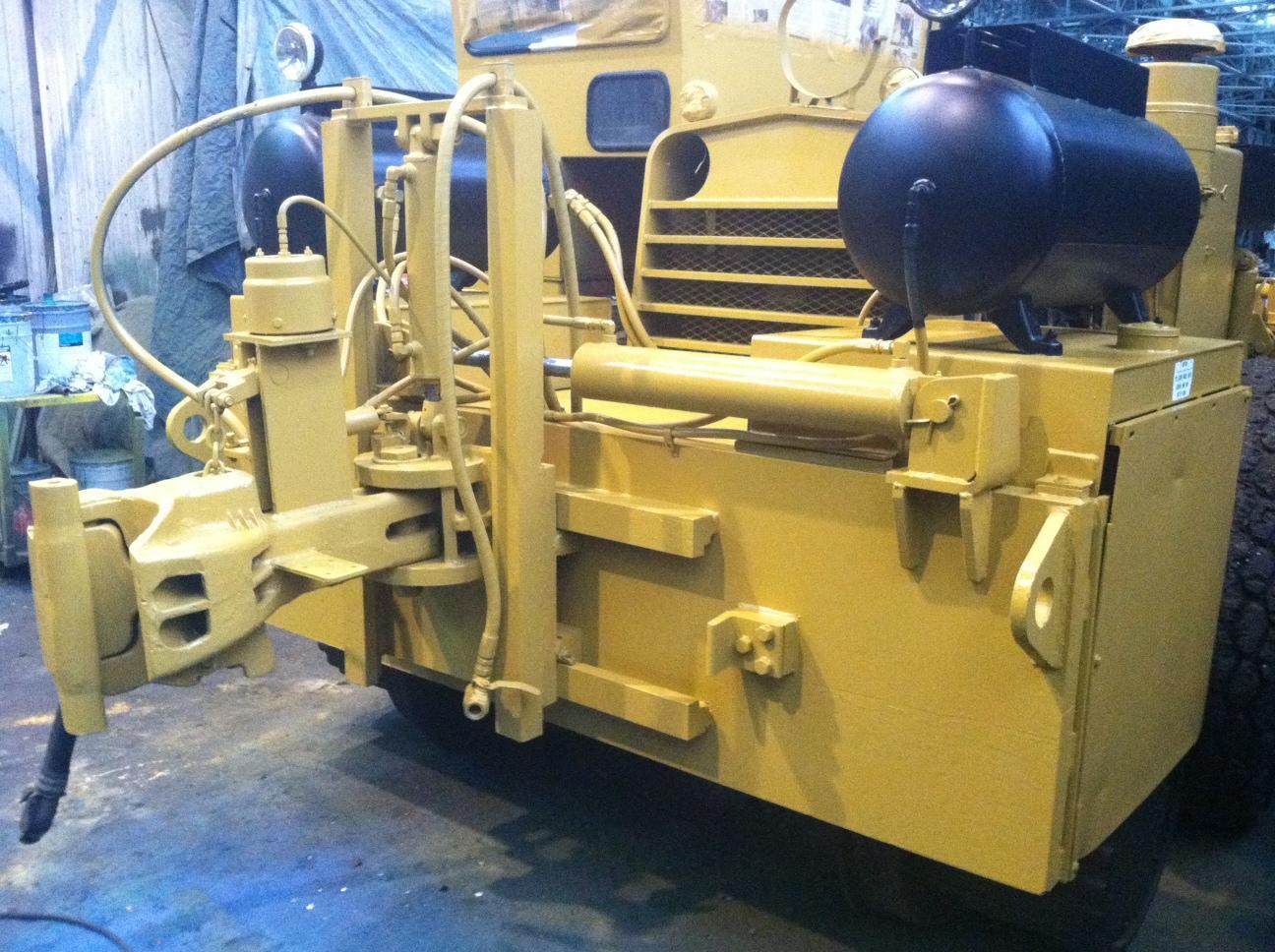

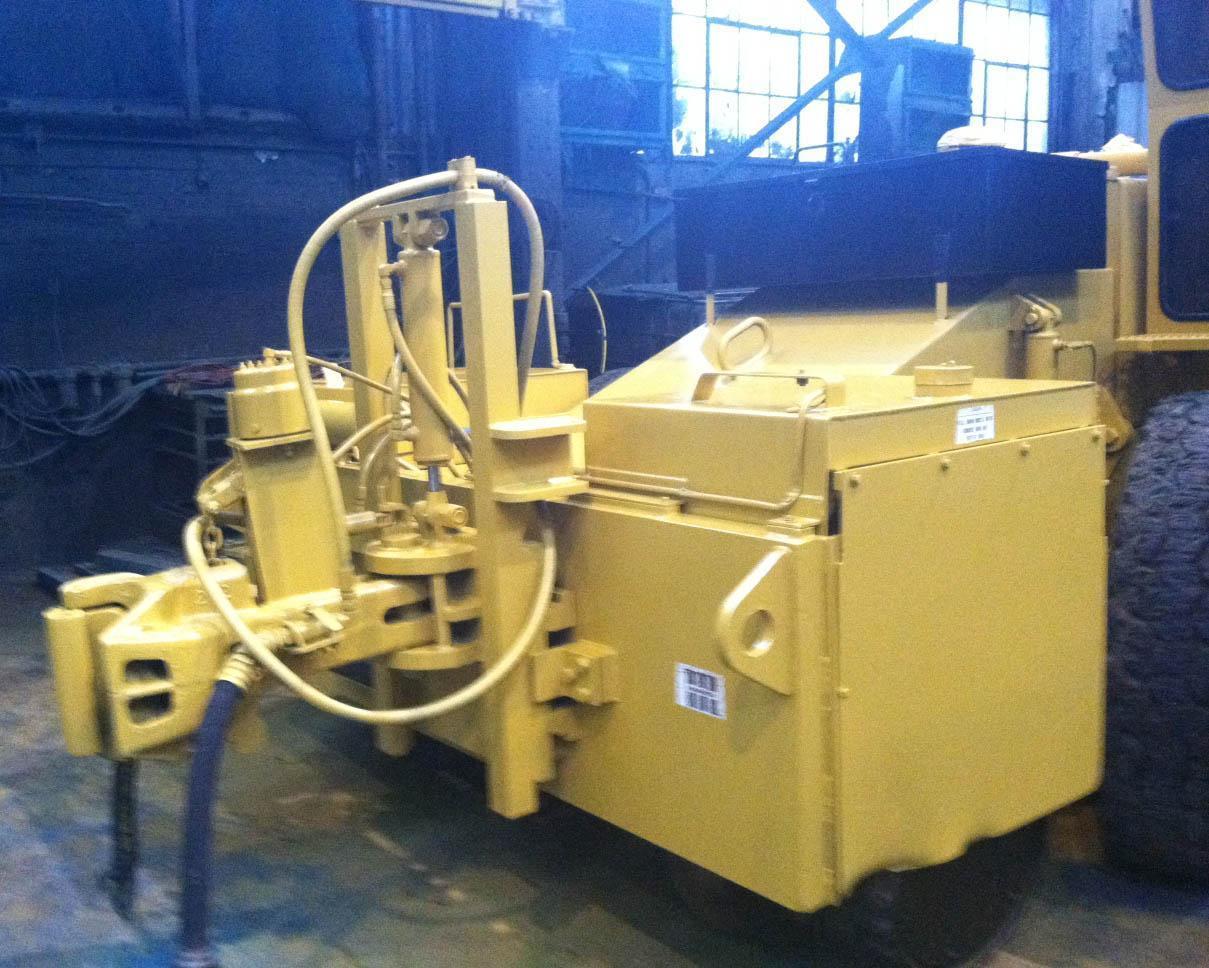

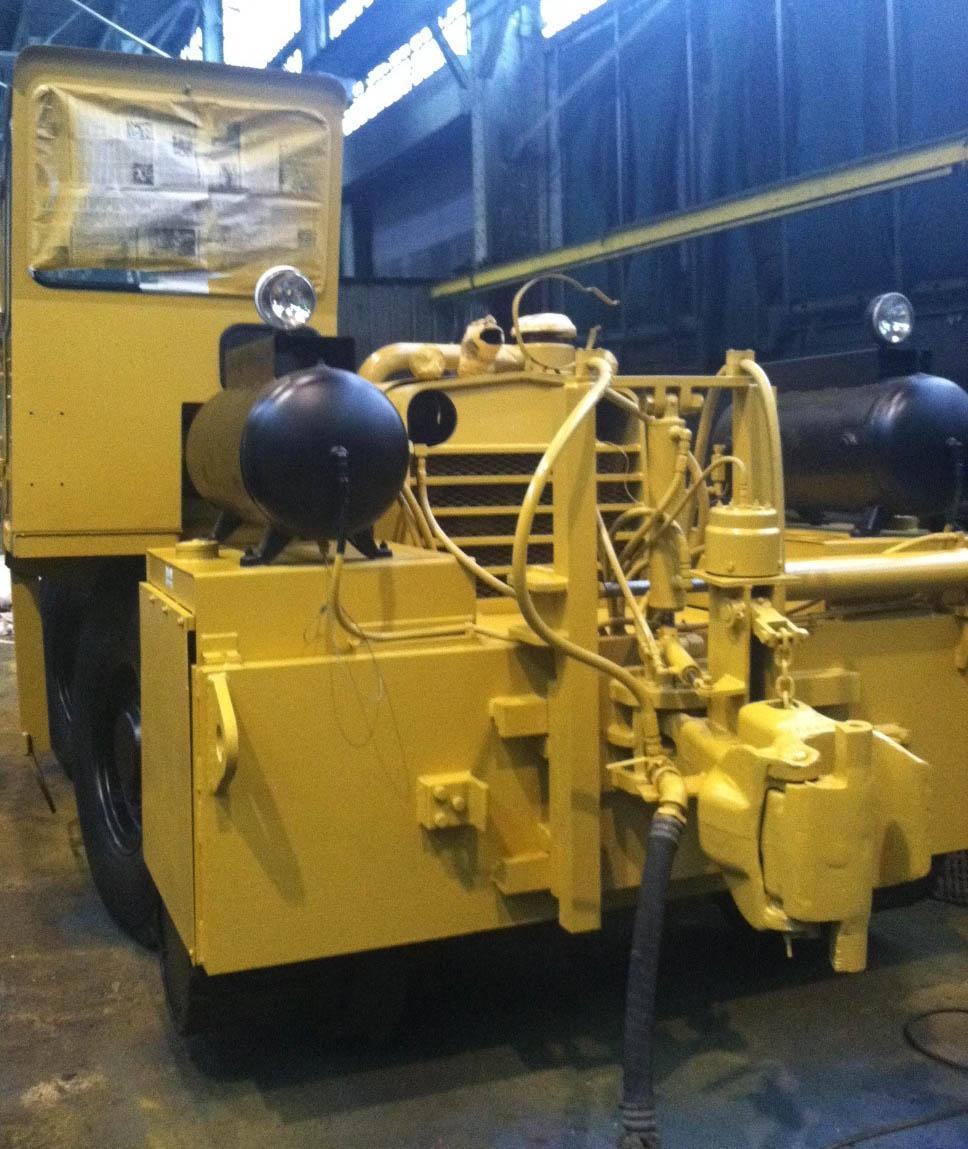

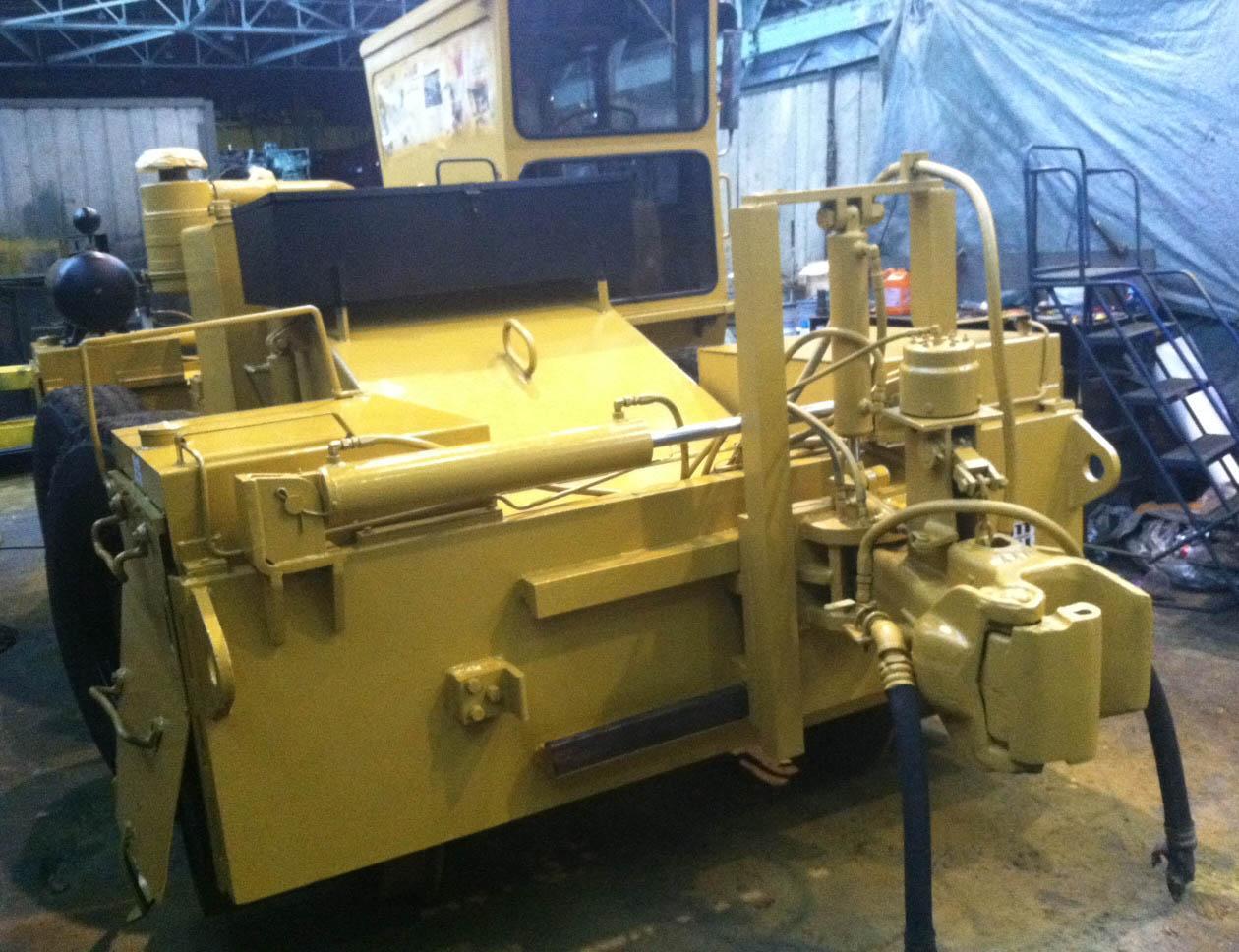

FRONT REAR COUPLING

HYDRAULIC LOAD TRANSFER
TRAIN AIR
HYDRAULIC COUPLER SHIFTING
HYDRAULIC VERTICAL ADJUSTMENT
