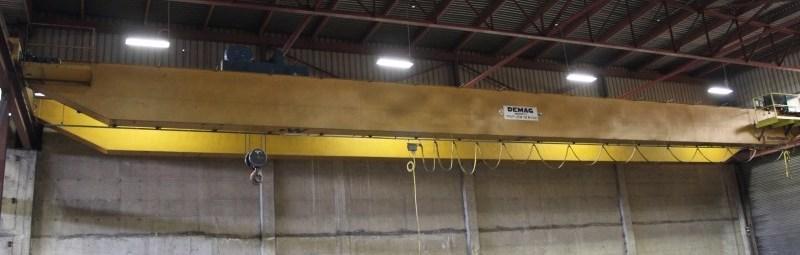

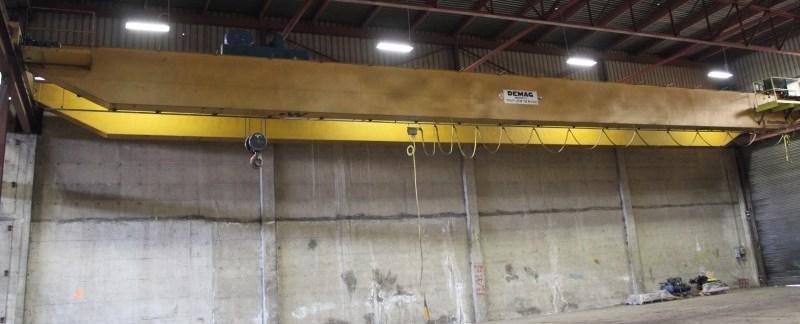

20 TON X 100' DEMAG DOUBLE GIRDER TOP RUNNING BRIDGE CRANE: #62961

Manufacturer

Category

Cranes & Hoists

Type

CRANES, BRIDGE & OVERHEAD

Stock

62961

Model

020 X 100

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet



JOB NUMBER ........... 43244
REFERENCE NO ......... DZ 8304
NEW .................. 1980
CLASS ................ C
CAPACITY ............. 20 TON (40,000 LBS)
SPAN ................. 100'0"
CONSTRUCTION ......... DOUBLE BOX GIRDER; TOP RUNNING BRIDGE & HOIST
TOP RUNNING HOIST .... C-E2BP 1650 H20 L4/1 F10
LIFTING SPEED ........ 24 AND 2.4 FPM
LIFT ................. 32'6" MAXIMUM
HOIST MOTOR .......... 38.6 HP
TROLLEY SPEED ........ 100/30 FPM
TROLLEY MOTORS ....... 2 MOTORS AT 1.1 HP EACH
BRIDGE SPEED ......... 320/160 FPM
BRIDGE MOTORS ........ 2 MOTORS AT 8.9 HP EACH
CABLE SYSTEM ......... FESTOONED
PENDANT CONTROL ...... YES
HEADROOM ............. 73" (TOP OF RAIL TO TOP OF CRANE)
