72" W X 14 GA X 40,000 LB DAHLSTROM CUT TO LENGTH: STOCK #63745

Manufacturer

DAHLSTROM

Category

Fabricating Machines

Type

CUT-TO-LENGTH LINES

Stock

63745

Model

72 x 40000 X 16 GA

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet



COIL CAPACITY ......... 40,000 LBS
LENGTH CAPACITY ....... 12" TO 144" (ALL COMPONENTS)
WIDTH CAPACITY ........ 12" TO 72" (ALL COMPONENTS)
THICKNESS CAPACITY .... 26 TO 14 GAUGE (ALL COMPONENTS)
DIRECTION ............. RIGHT TO LEFT

COMPONENTS:

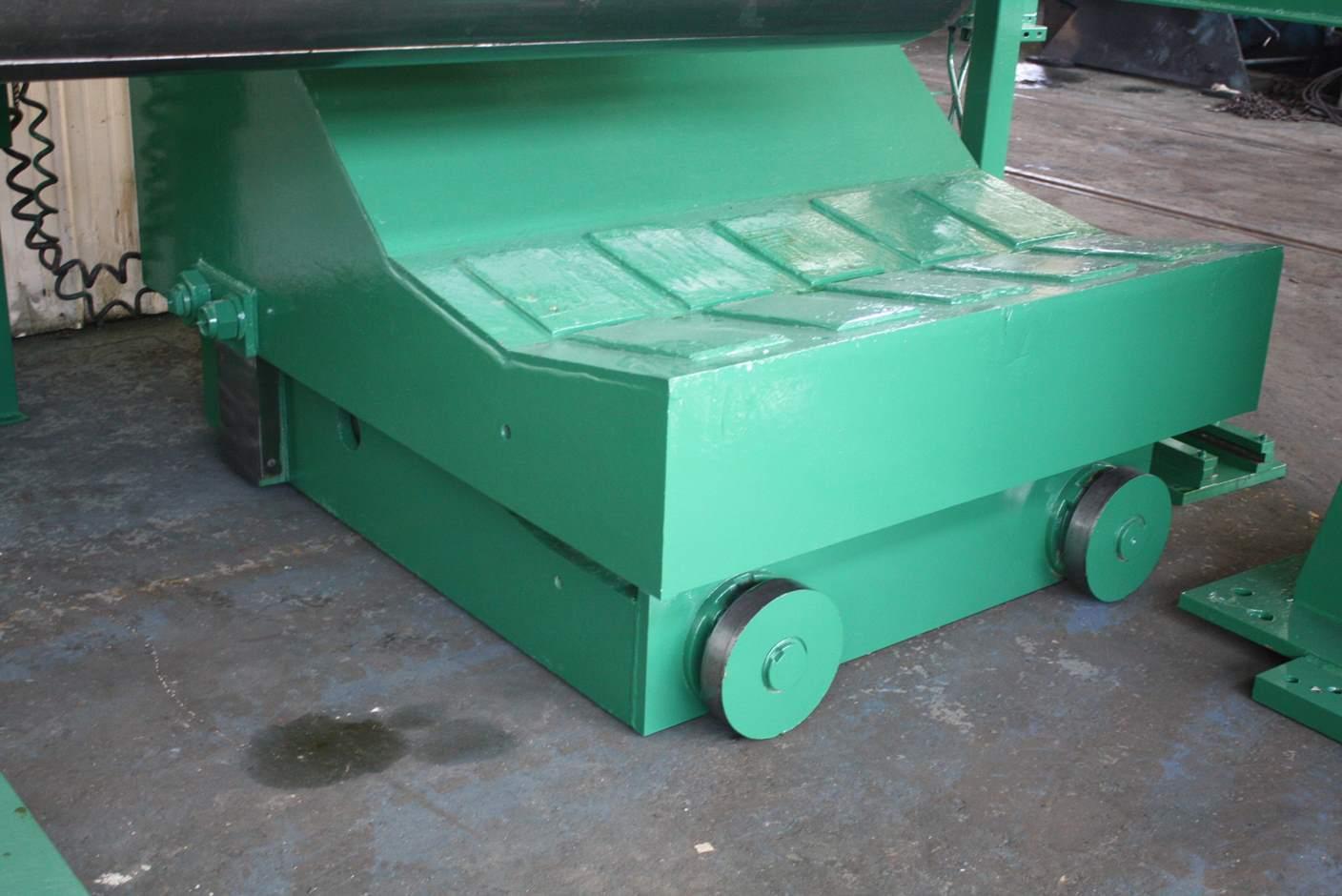

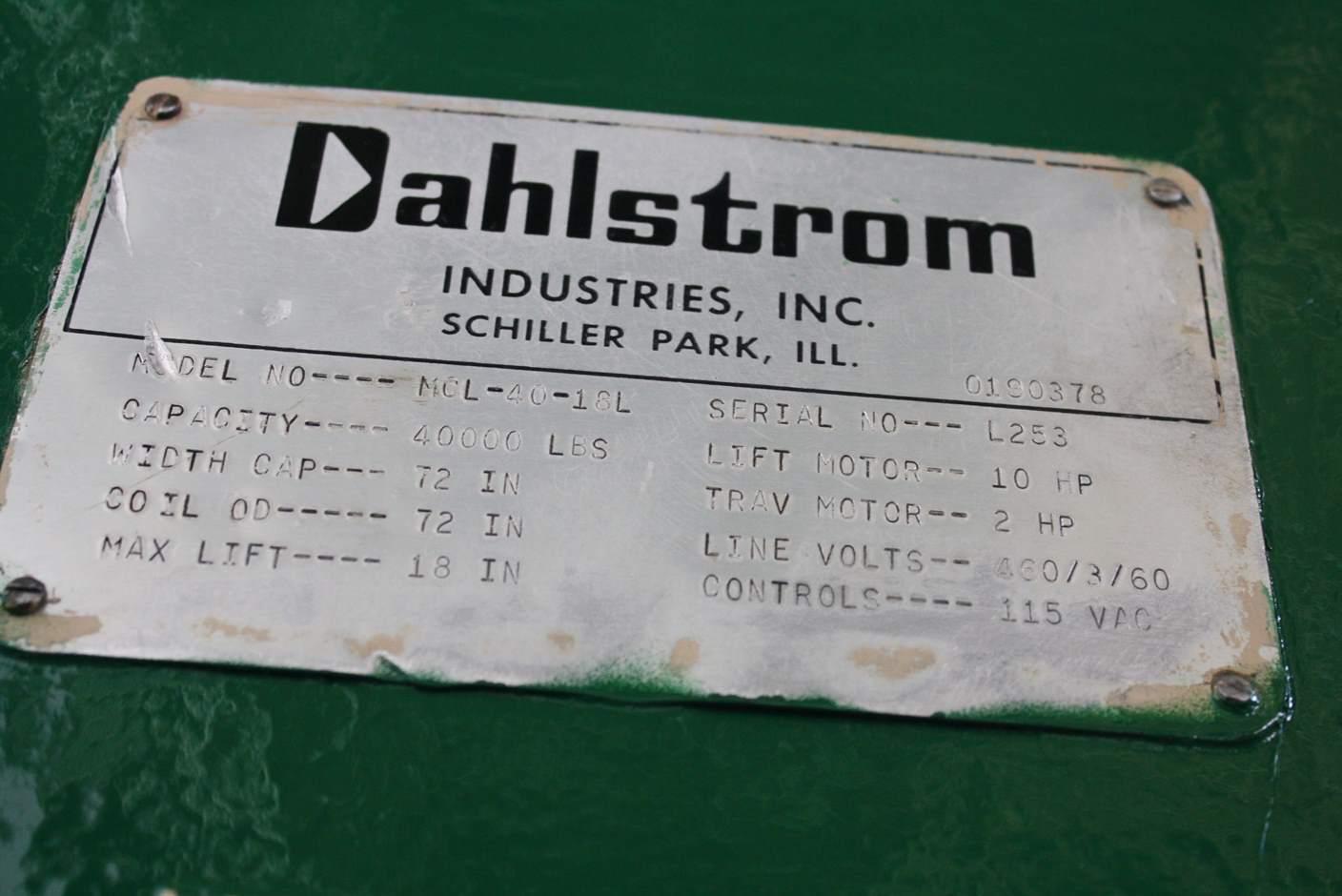

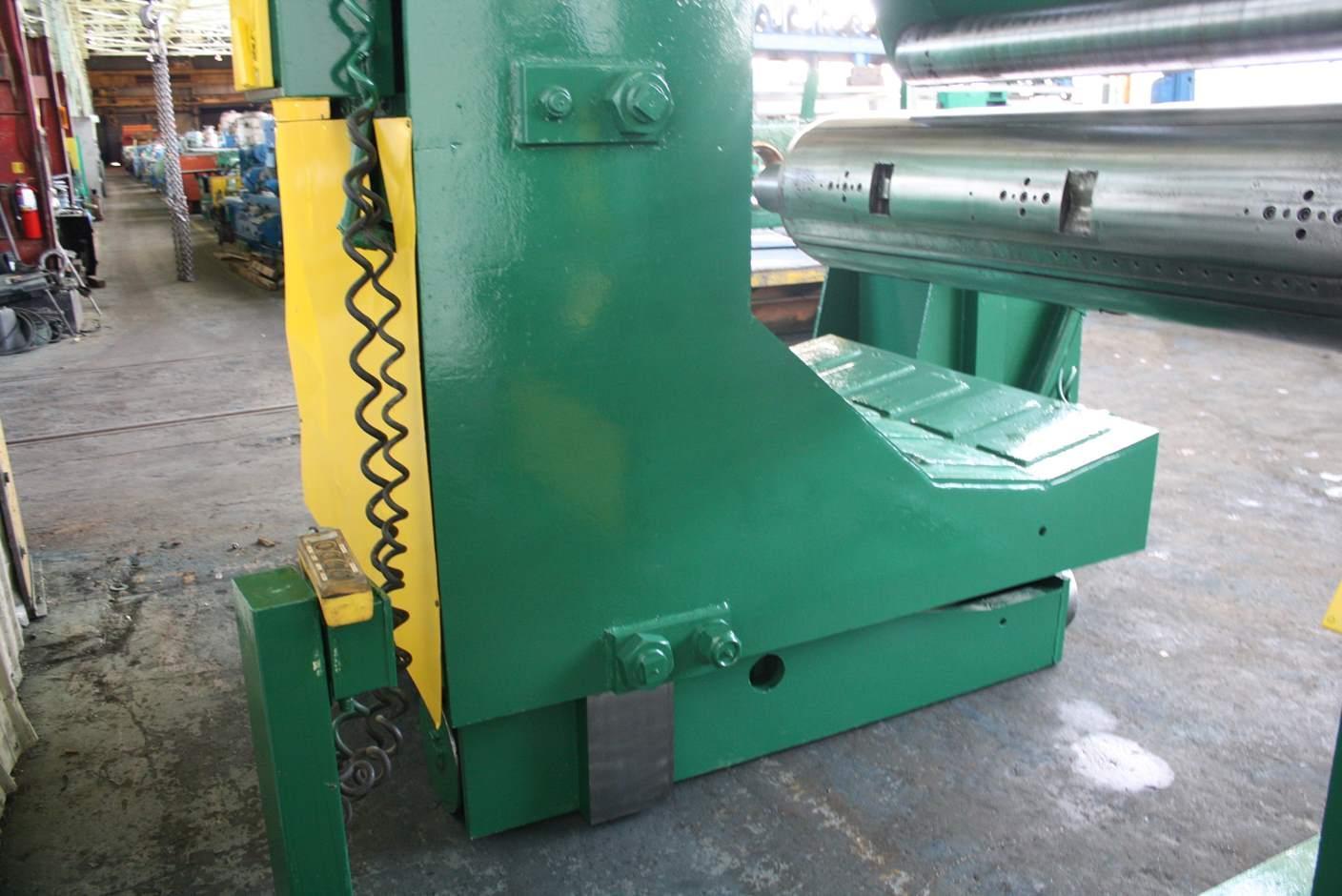

COIL CAR MODEL ........ MCL-40-18L
OUTSIDE DIAMETER ...... 72"
LIFT MAXIMUM .......... 18"

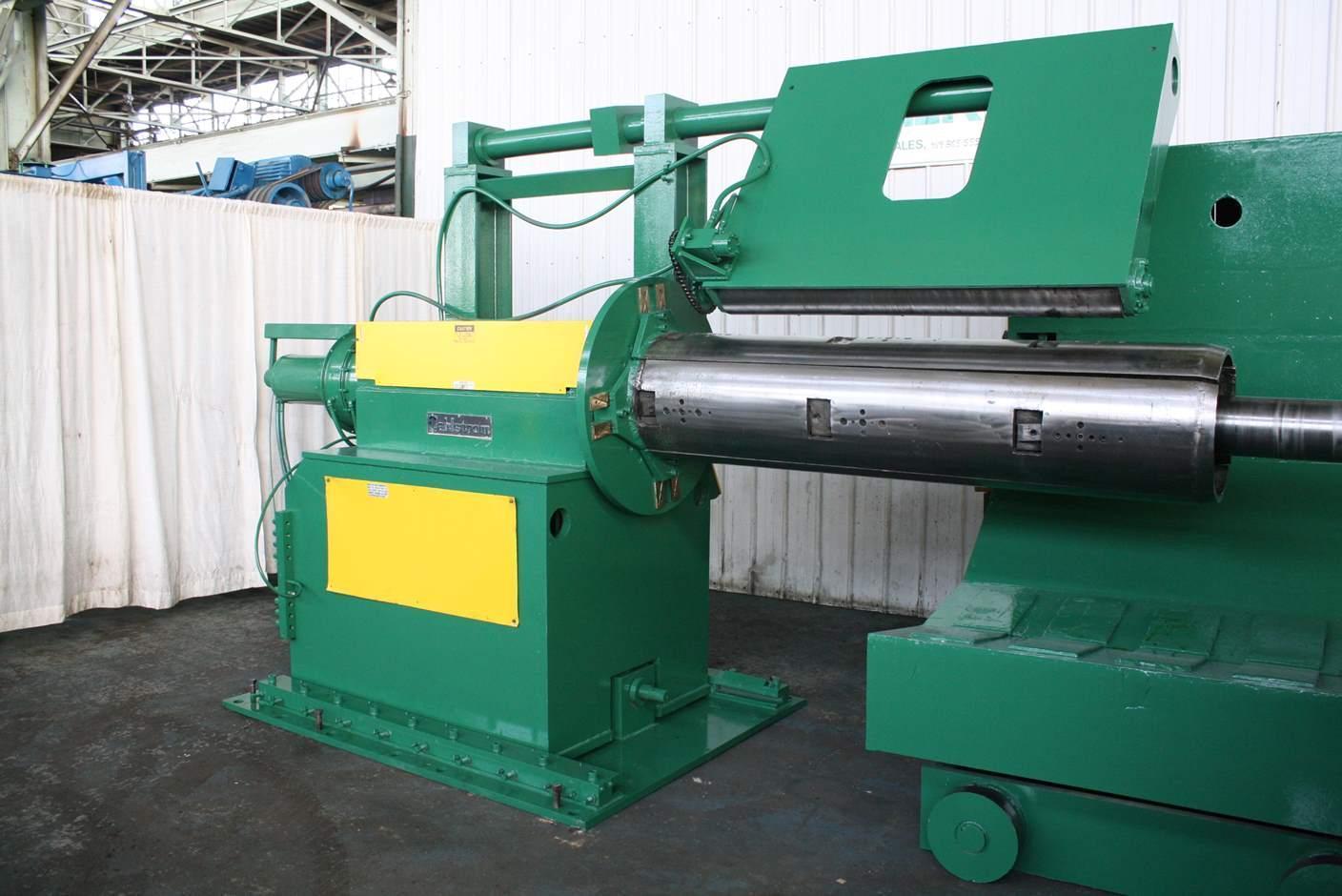

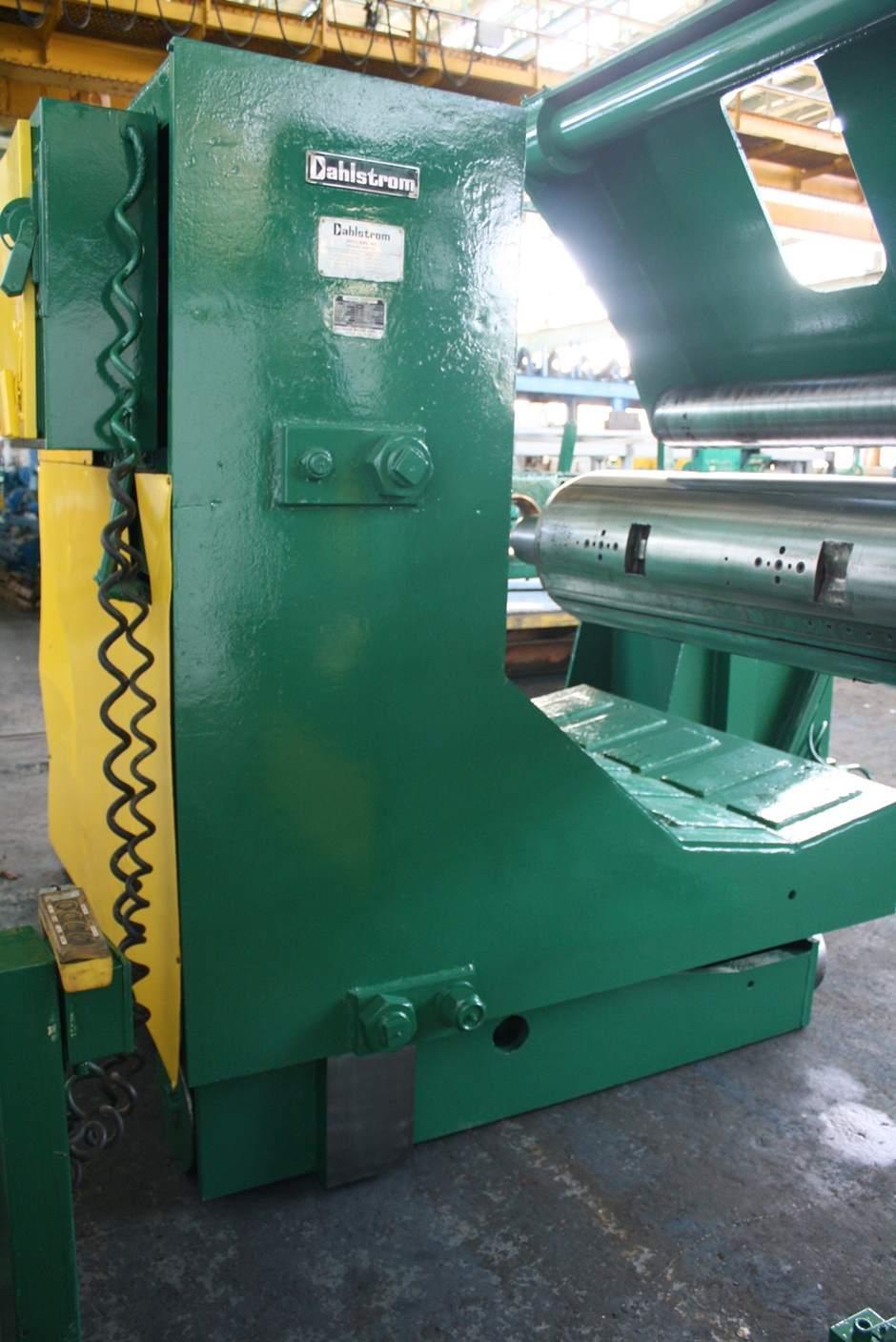

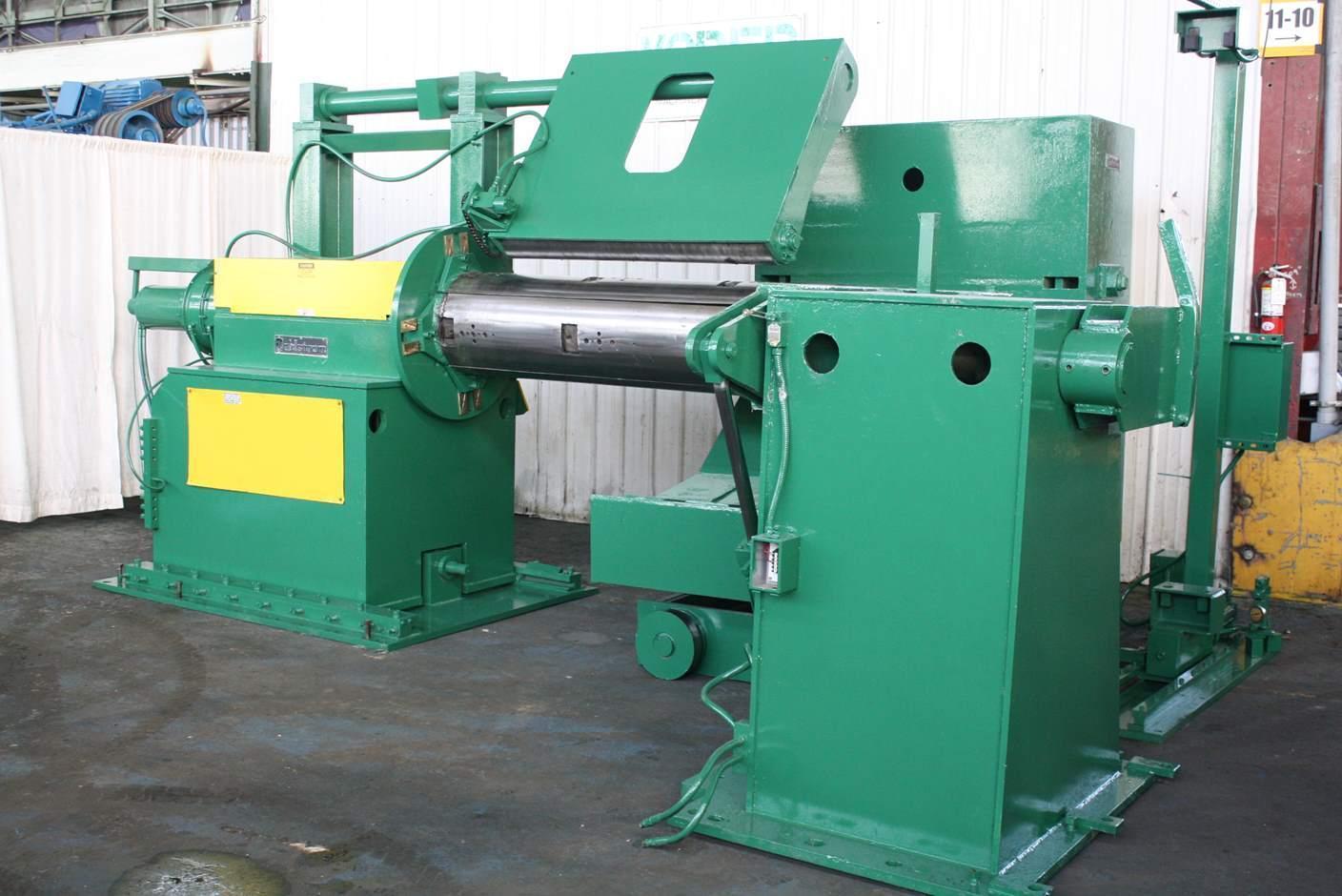

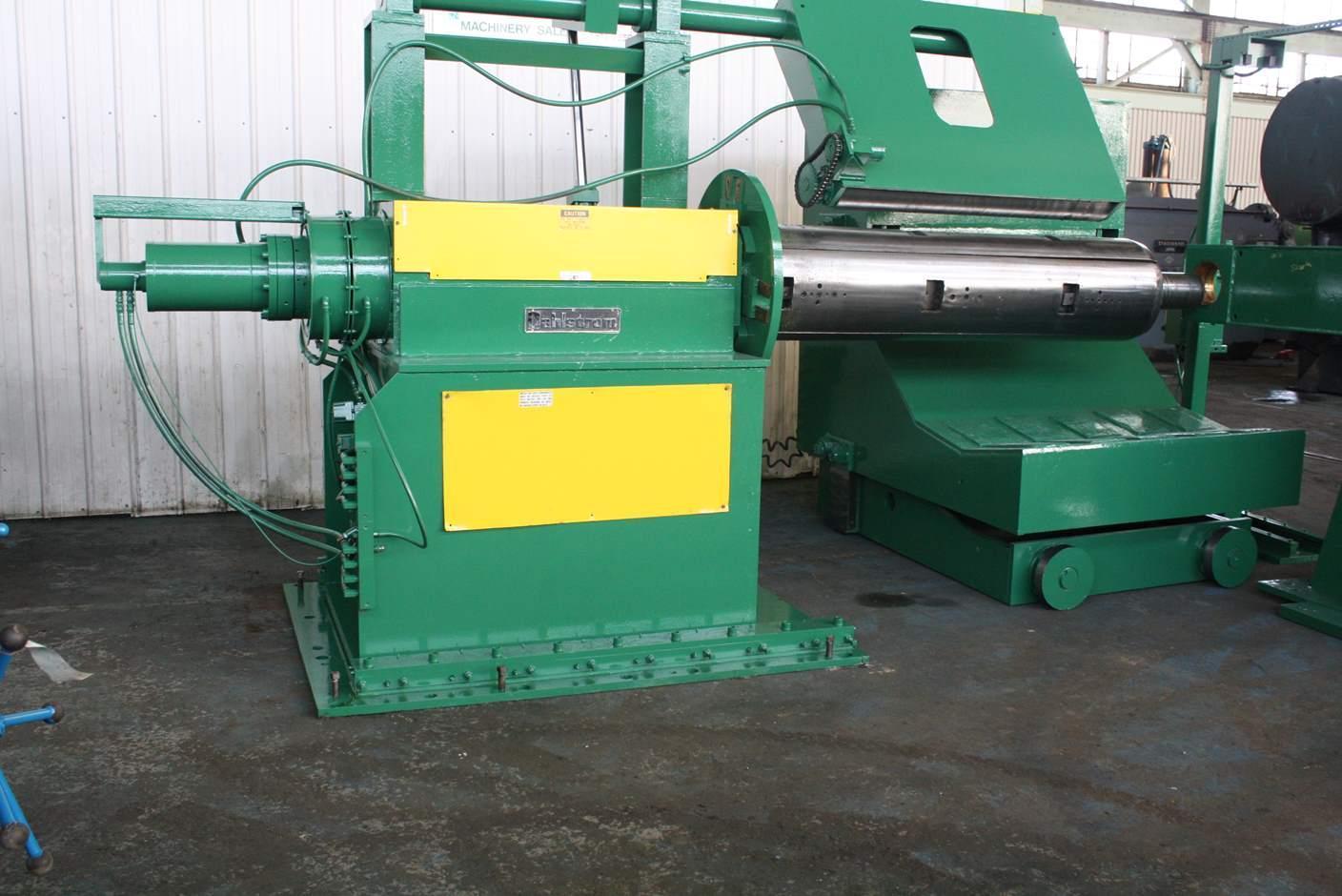

UNCOILER MODEL ........ 40H-72-2024W
COIL I.D. ............. 20" TO 24" HYDRAULIC EXPANSION
REEL TRAVERSE ......... 13"

HYDRAULIC FLIP UP THREADING TABLE
MODEL ................. ET-1272-14
FEEDER ROLLS .......... YES
EDGE GUIDES ........... YES

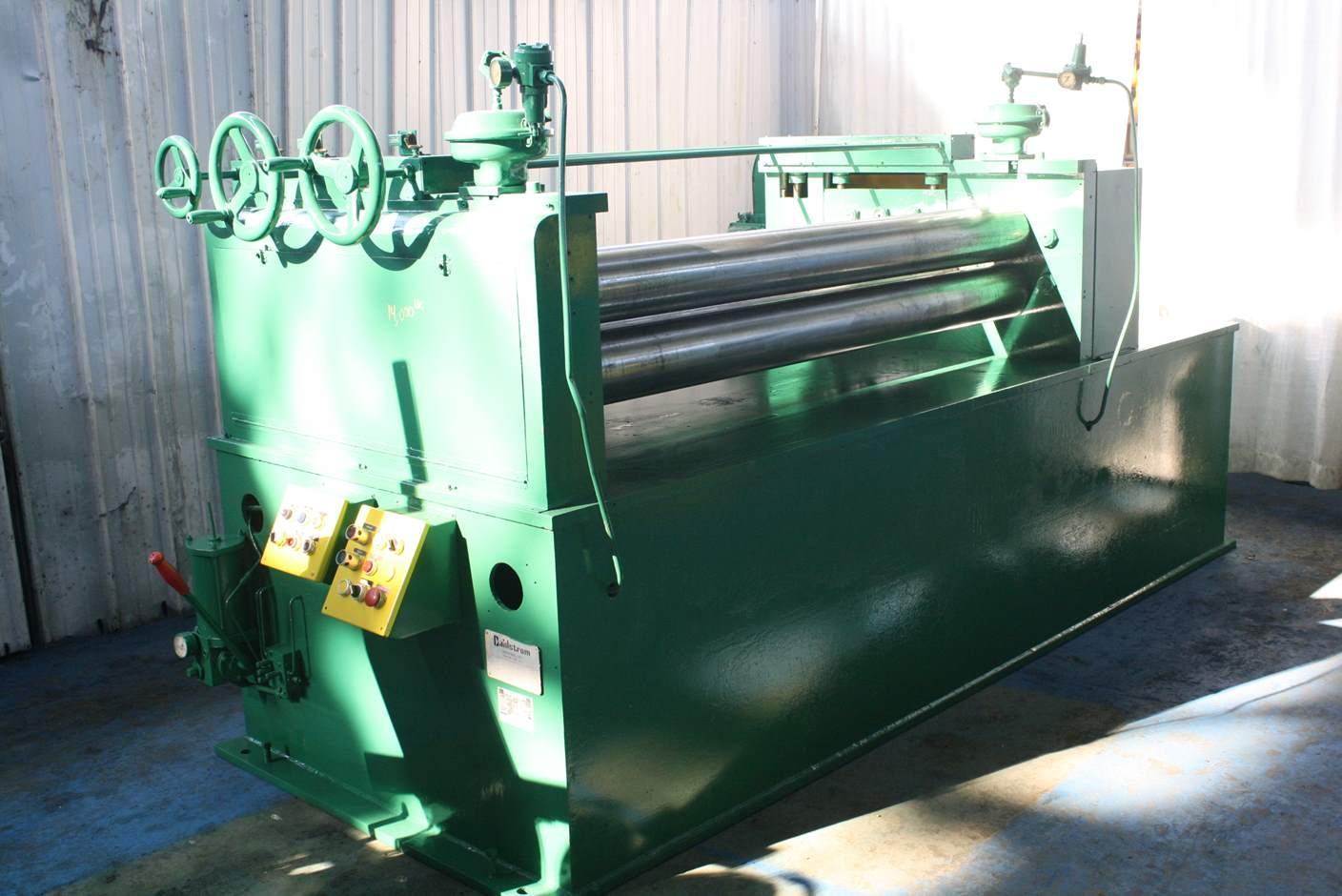

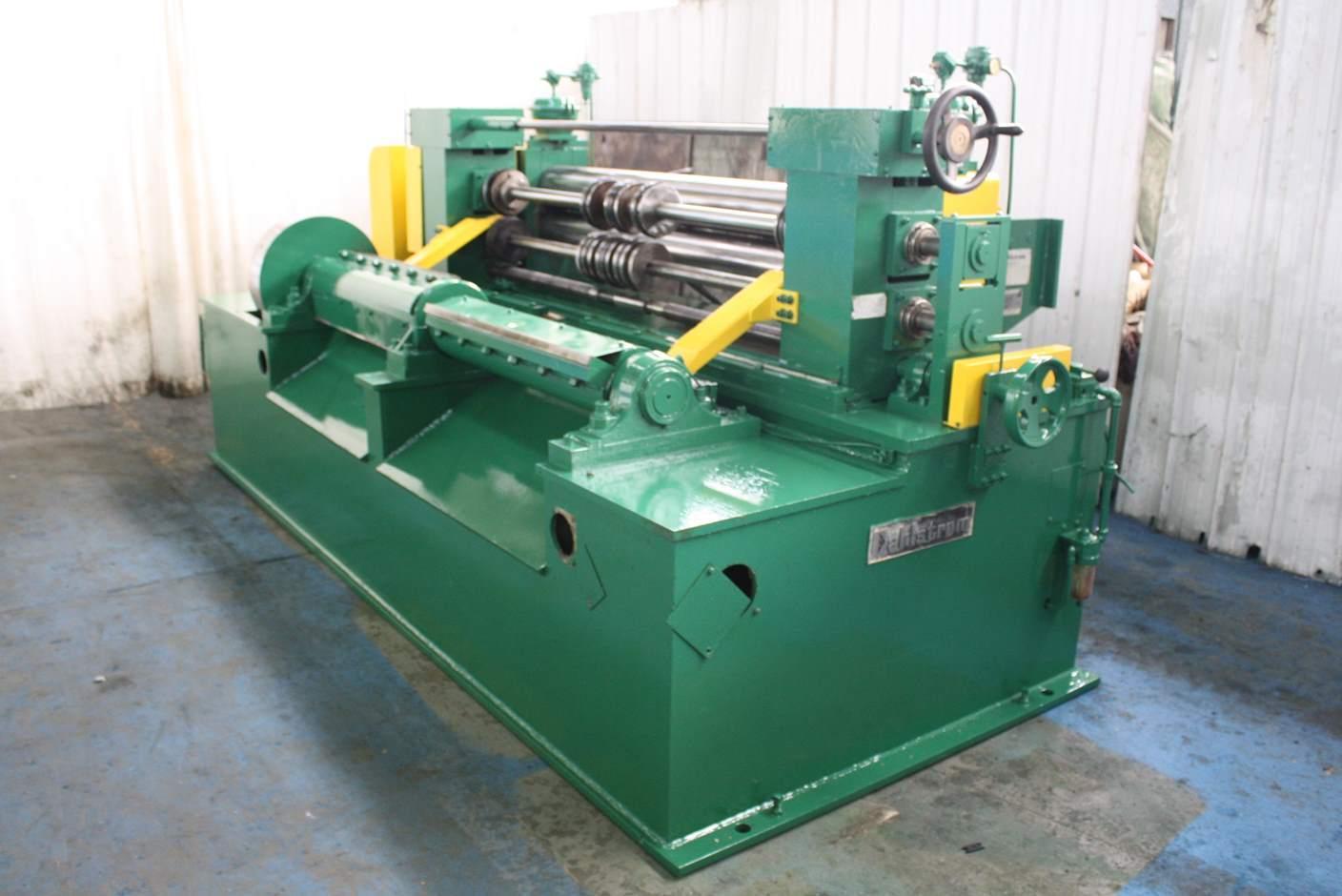

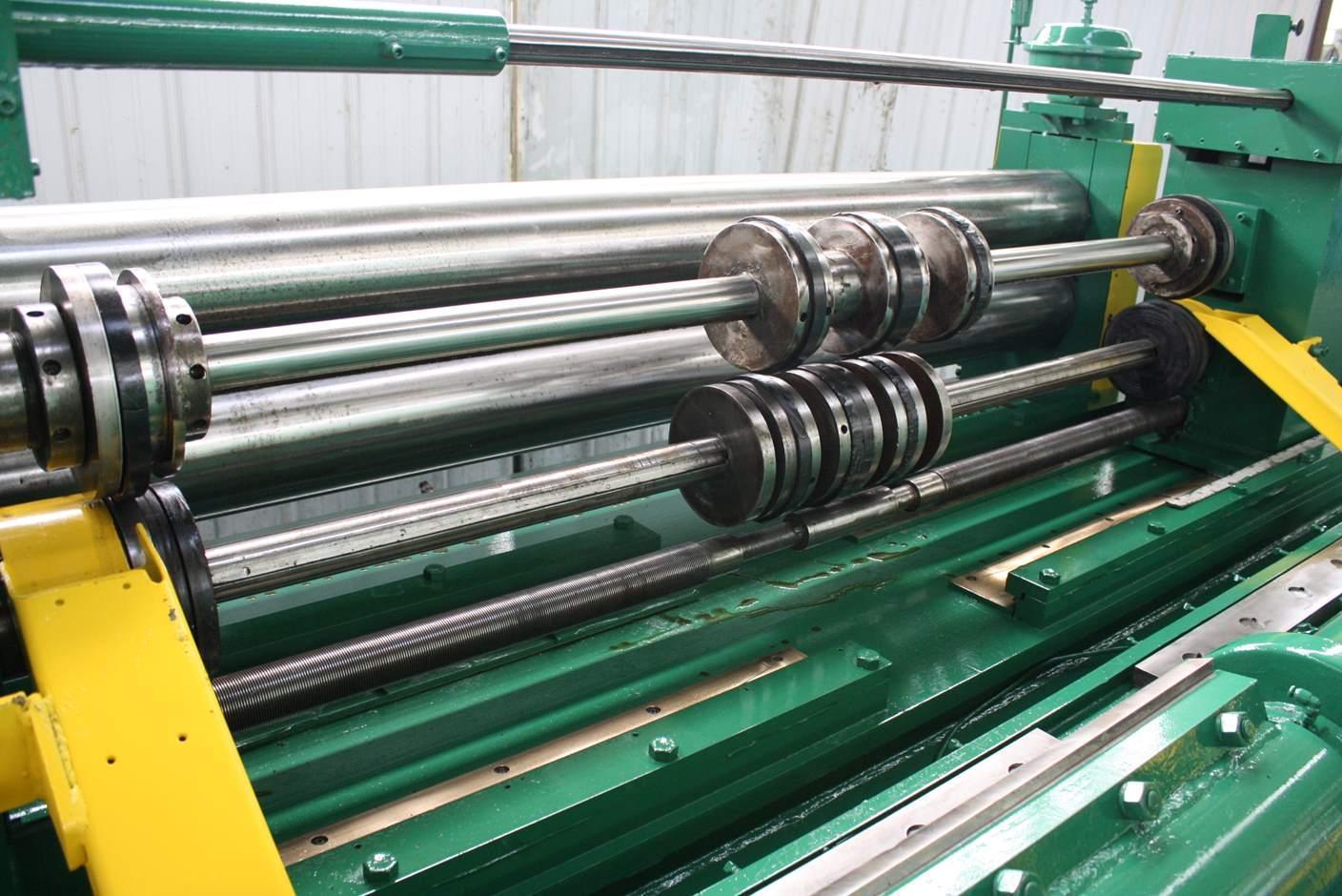

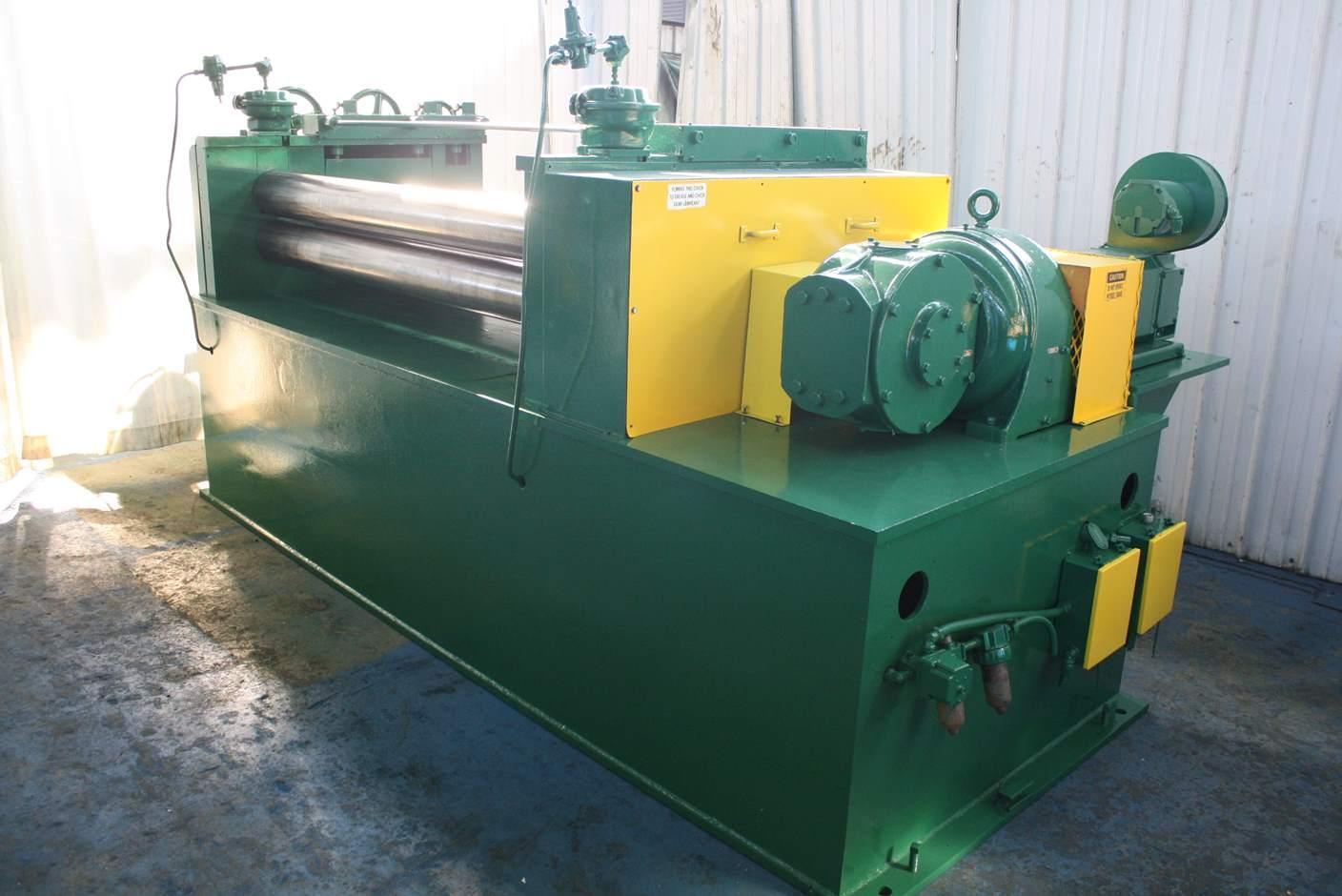

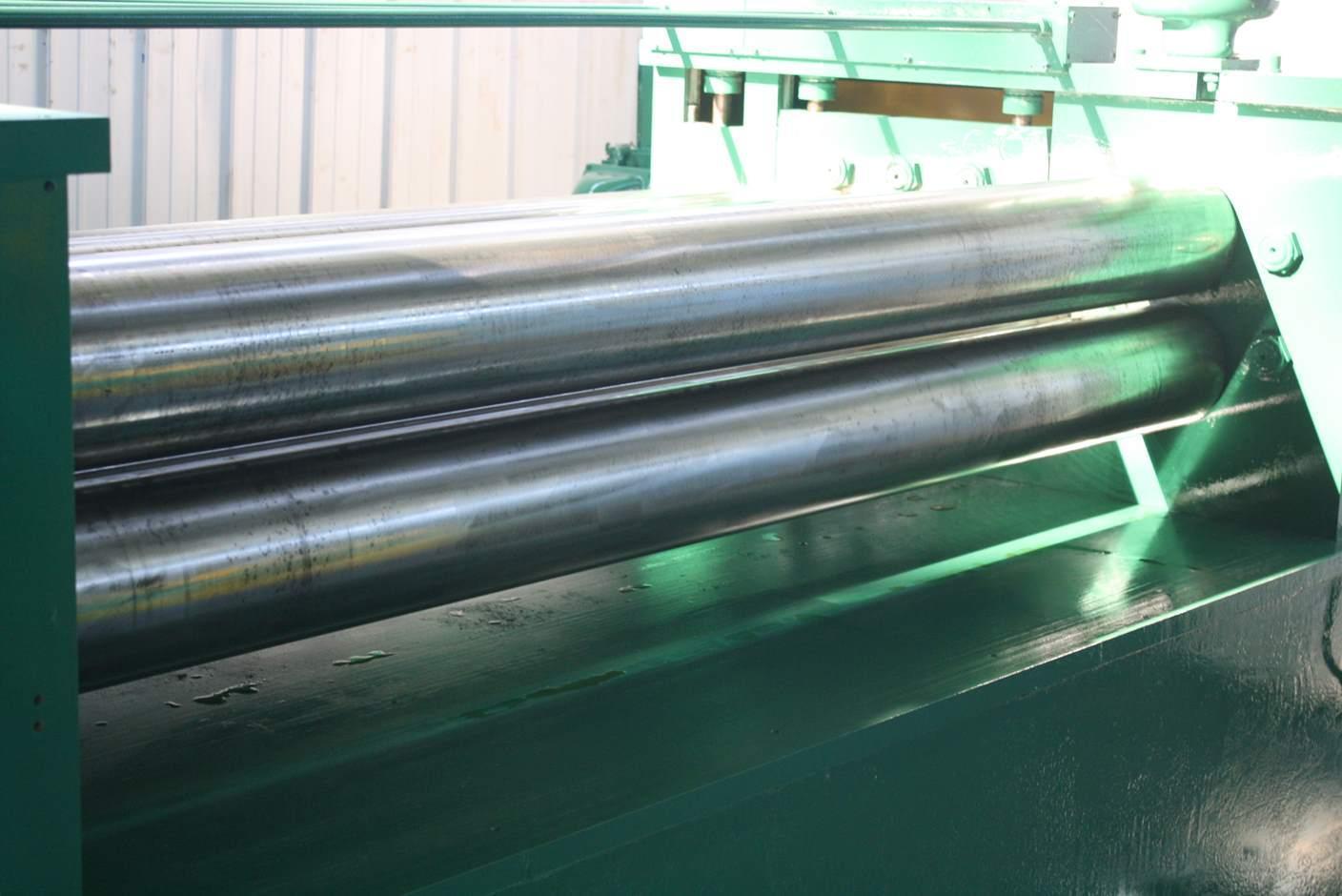

7 ROLL STRAIGHTENER
MODEL ................. S72-14-10
SPEED RANGE ........... 30 TO 210 FPM

HUMP TABLE
MODEL ................. HT-A-72

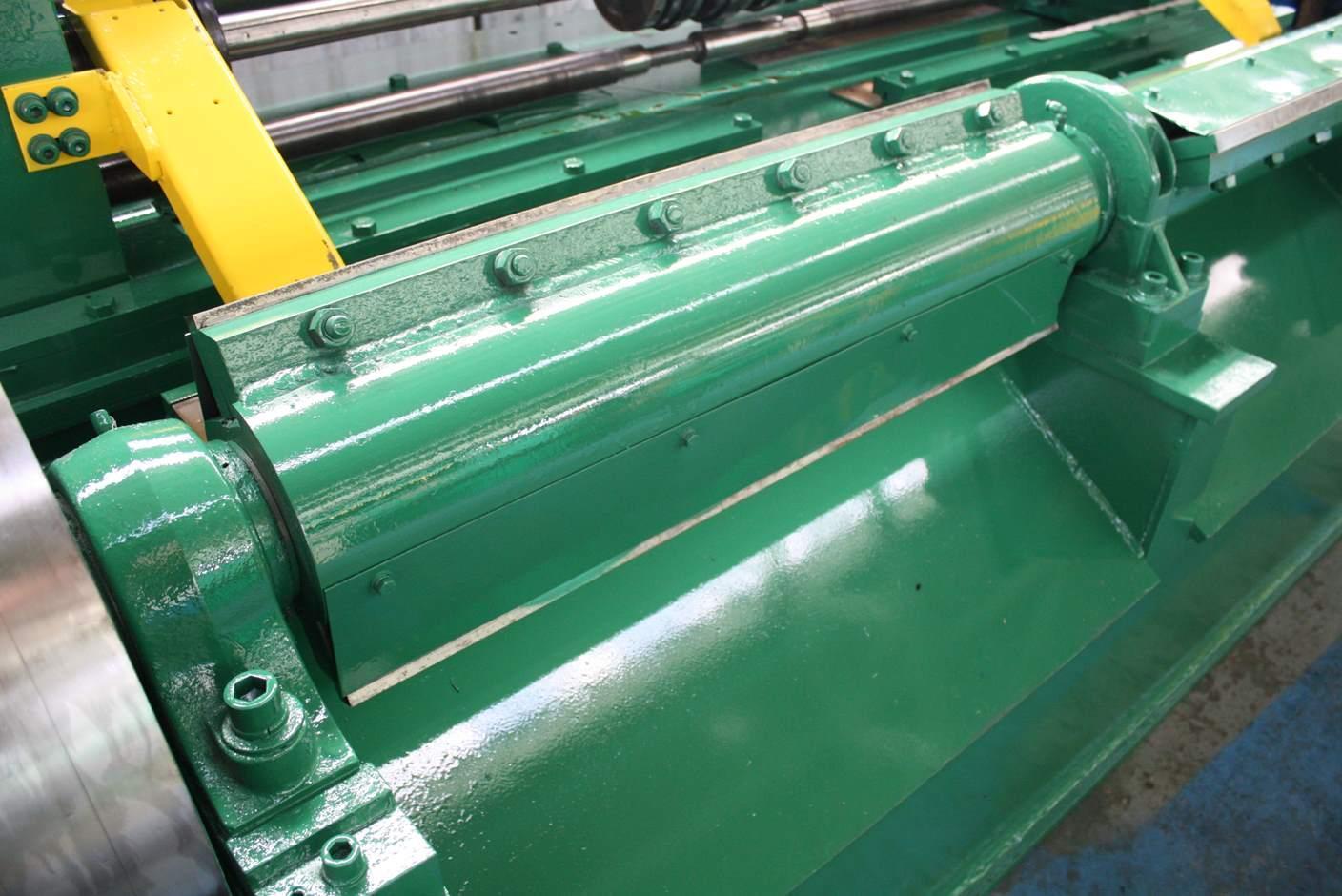

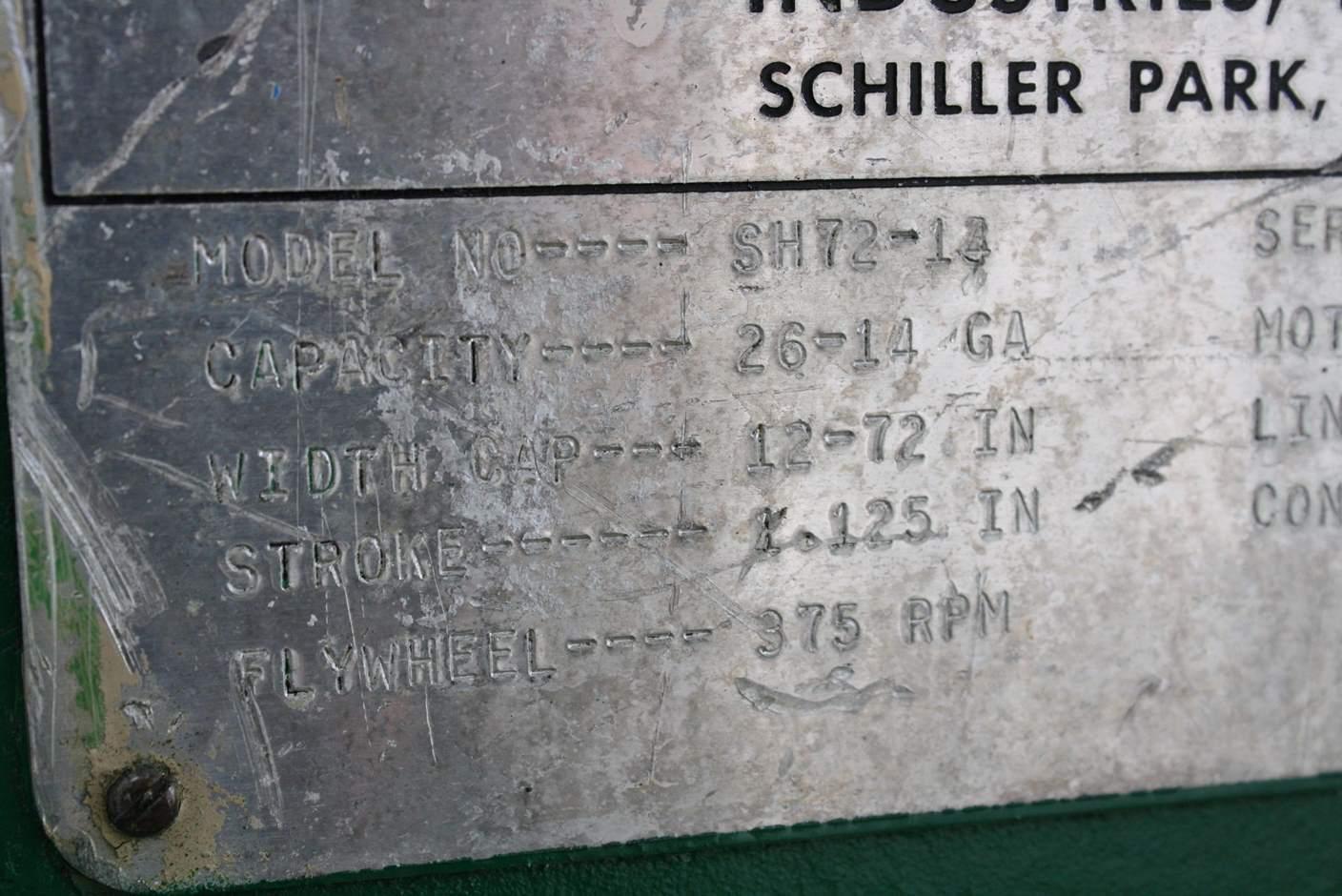

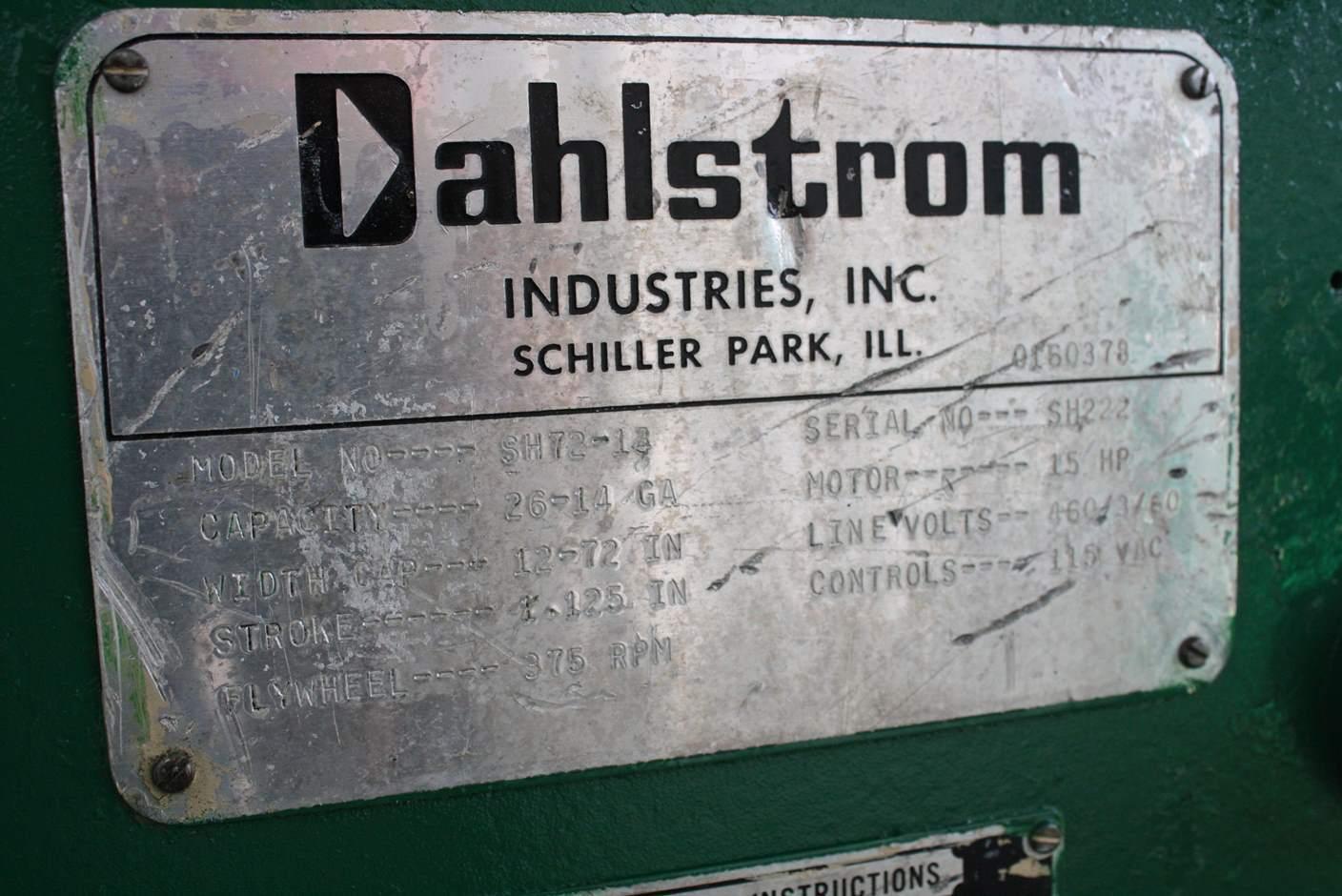

SHEAR
MODEL ................. SH72-14

RUN OUT TABLE
MODEL ................. M1272-06144-14
SPEED RANGE ........... 50 TO 300 FPM

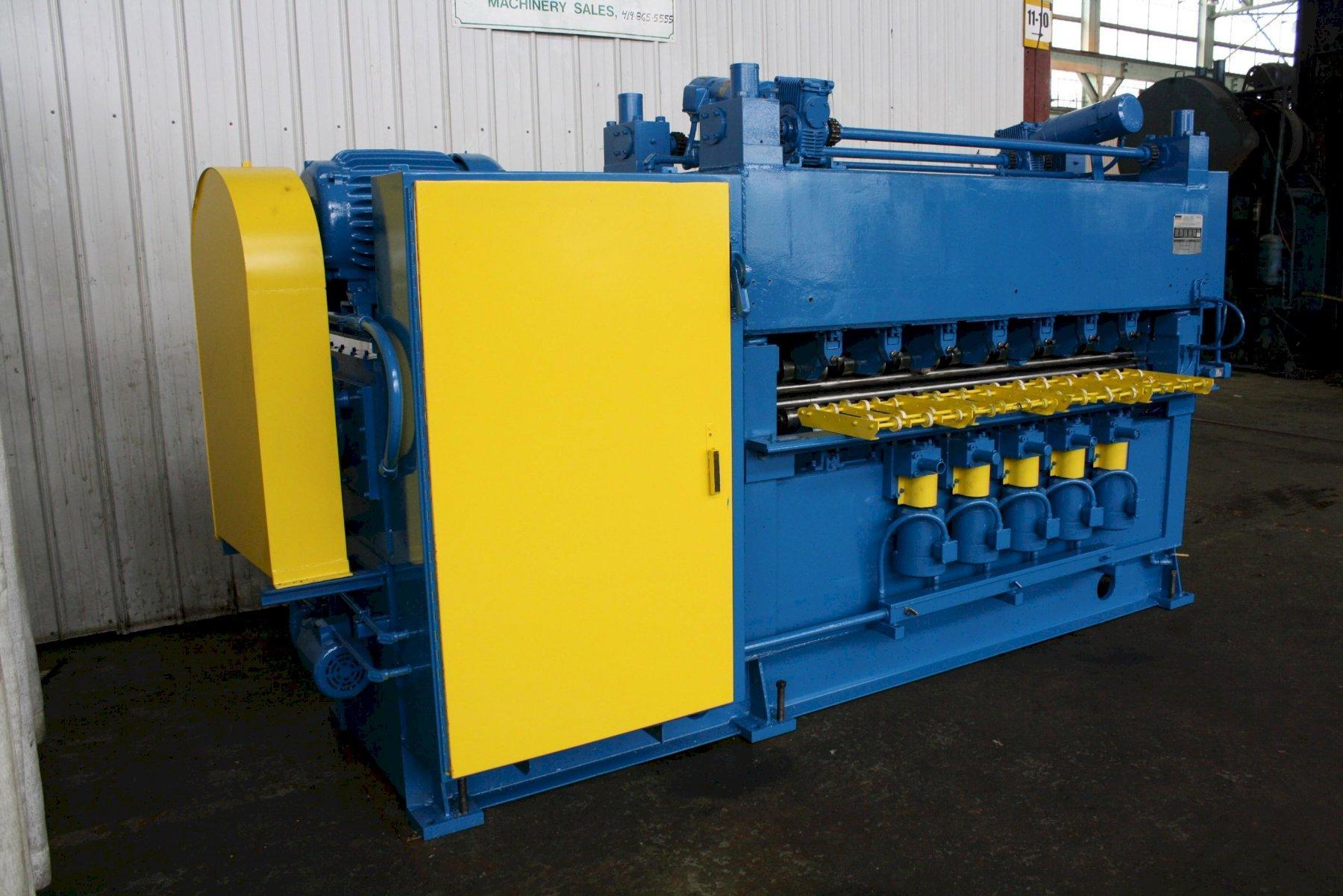

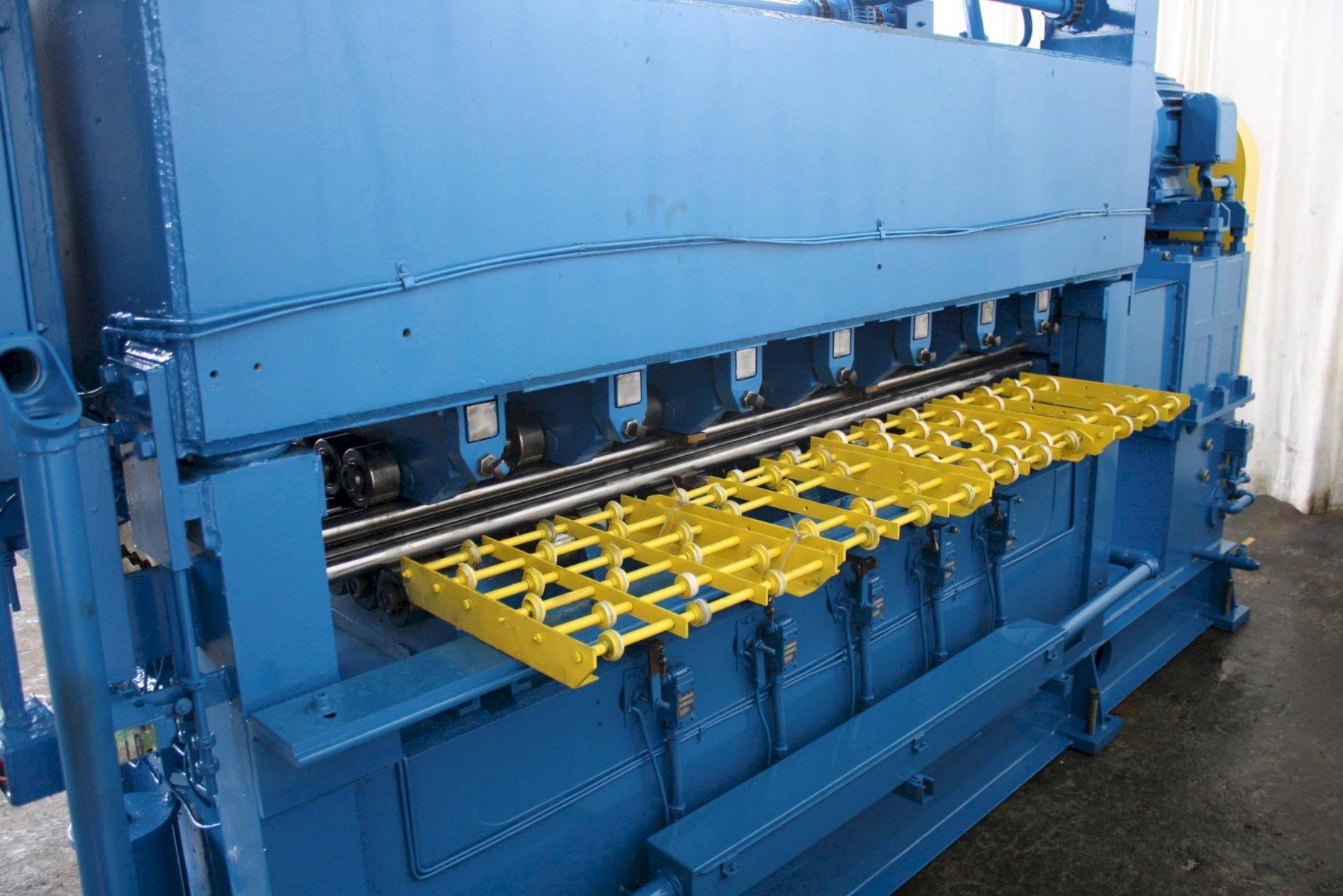

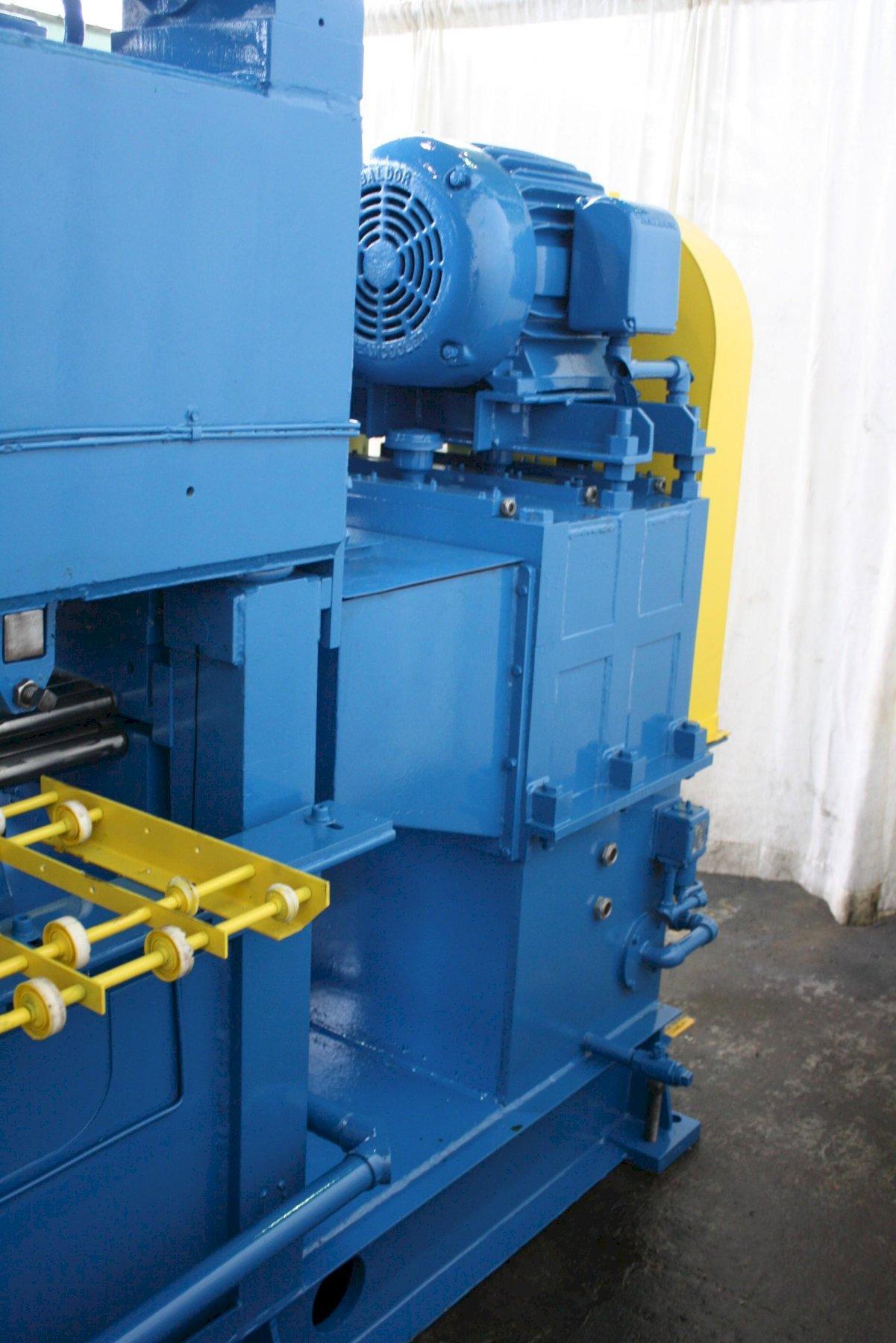

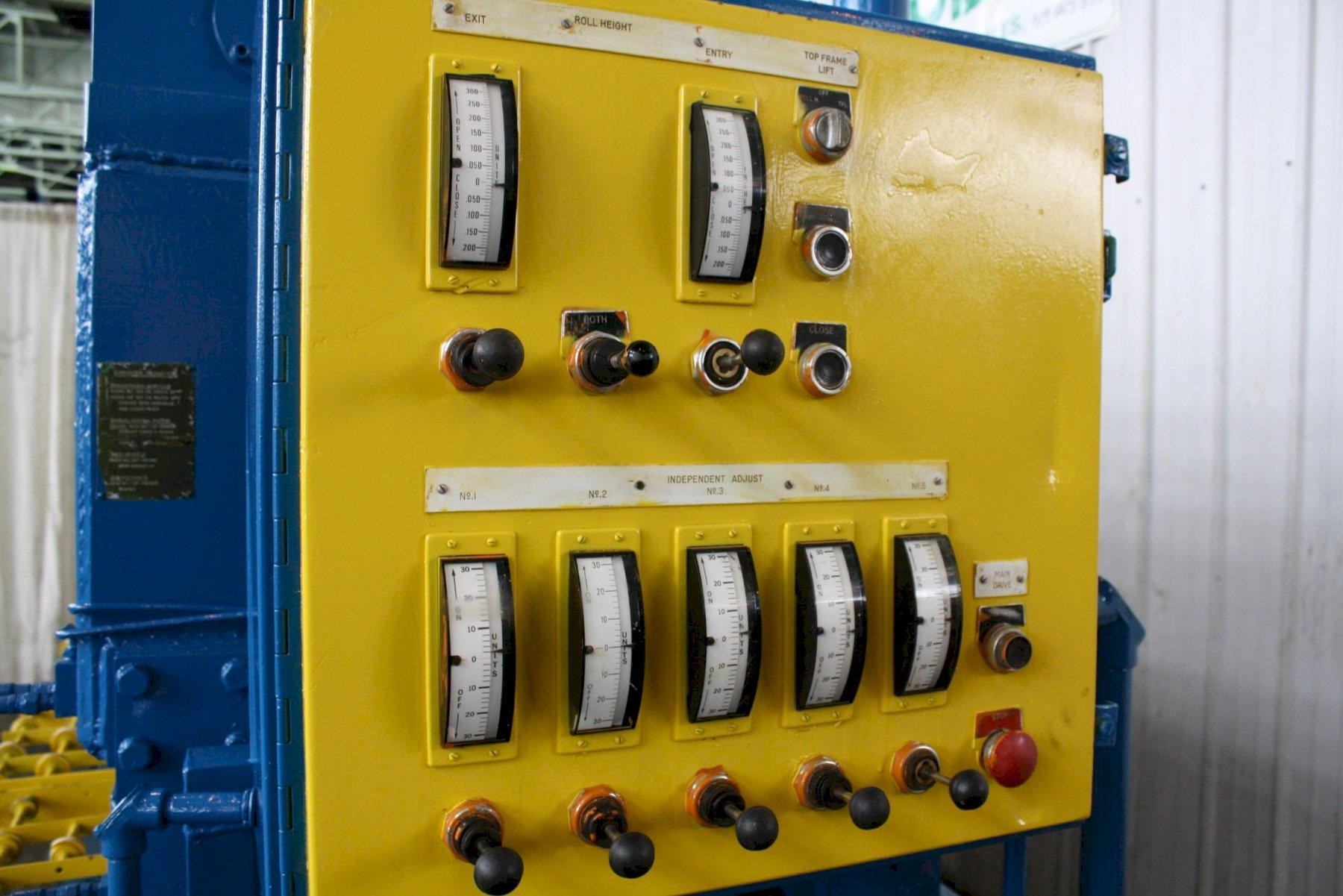

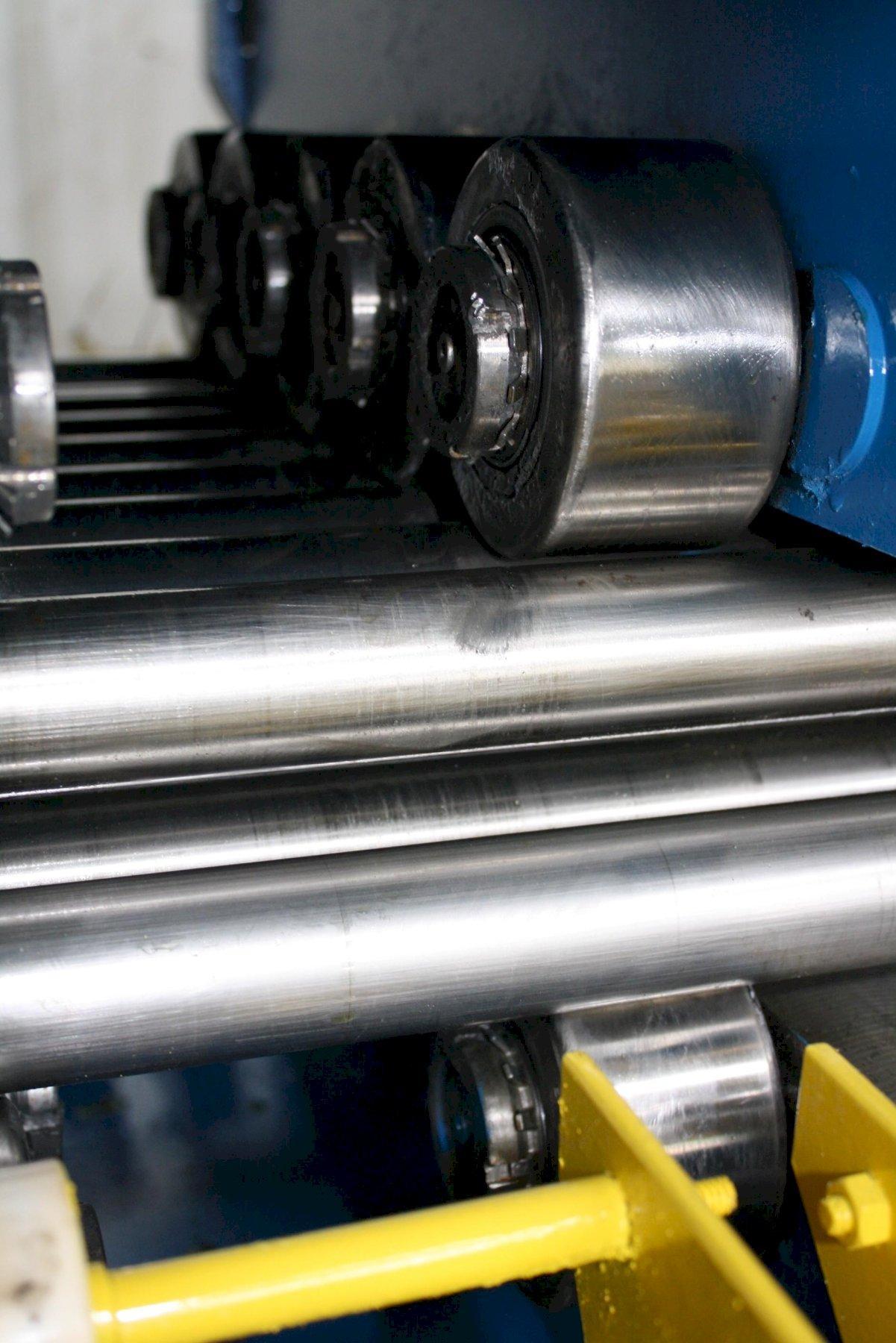

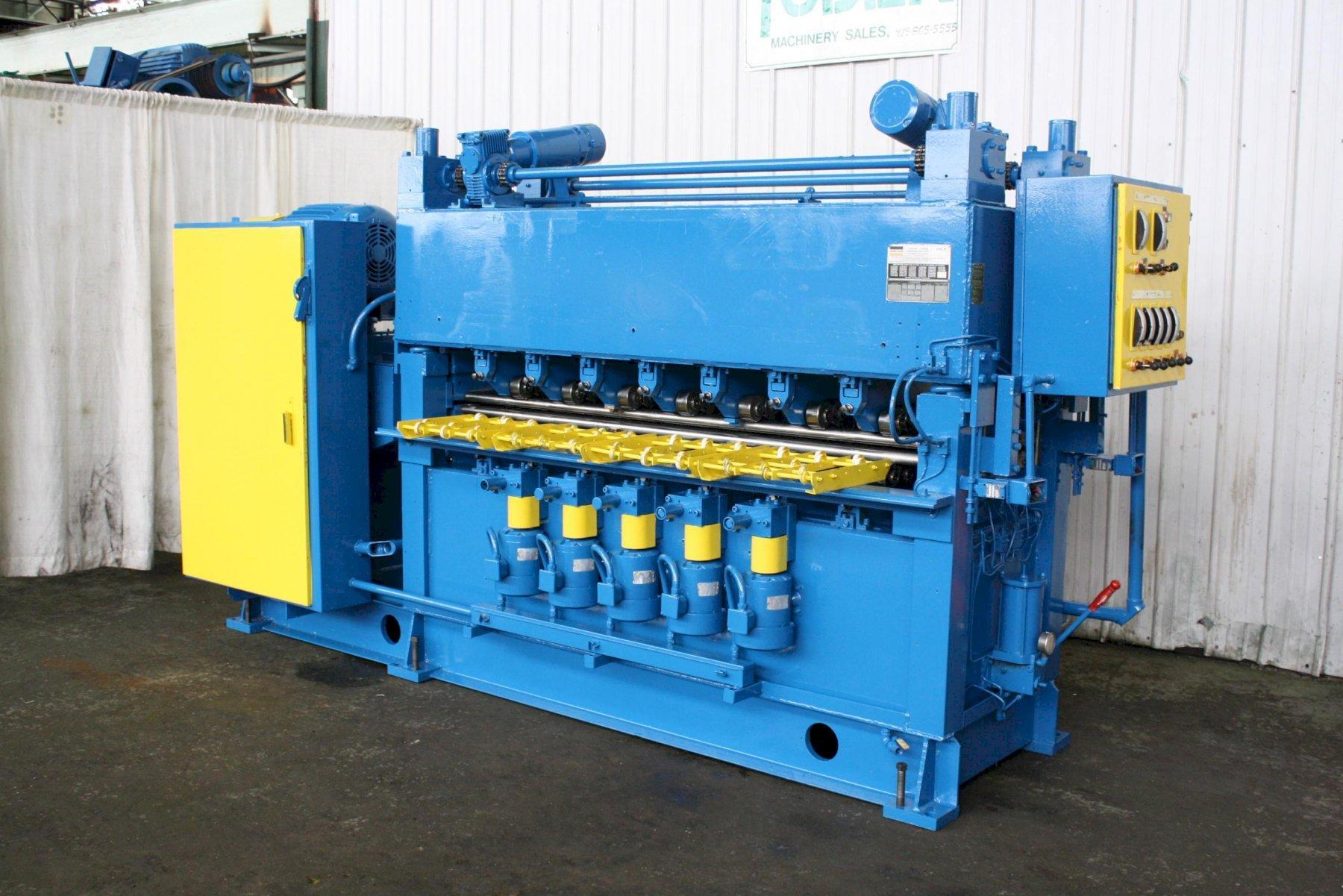

HERR VOSS 4 HI KEYSTONE LEVELLER
SERIAL ................ 14489
MODEL ................. RH84-1.500-19-4
CAPACITY .............. .018" TO .075" @ 40,000 PSI YEALD MAX
NUMBER OF ROLLS ....... 19
ROLL DIAMETER ......... 1.5"
ROLL WIDTH ............ 84"

RUN OUT TABLE
MODEL ................. INS72-144
SPEED ................. 150 TO 300 FPM

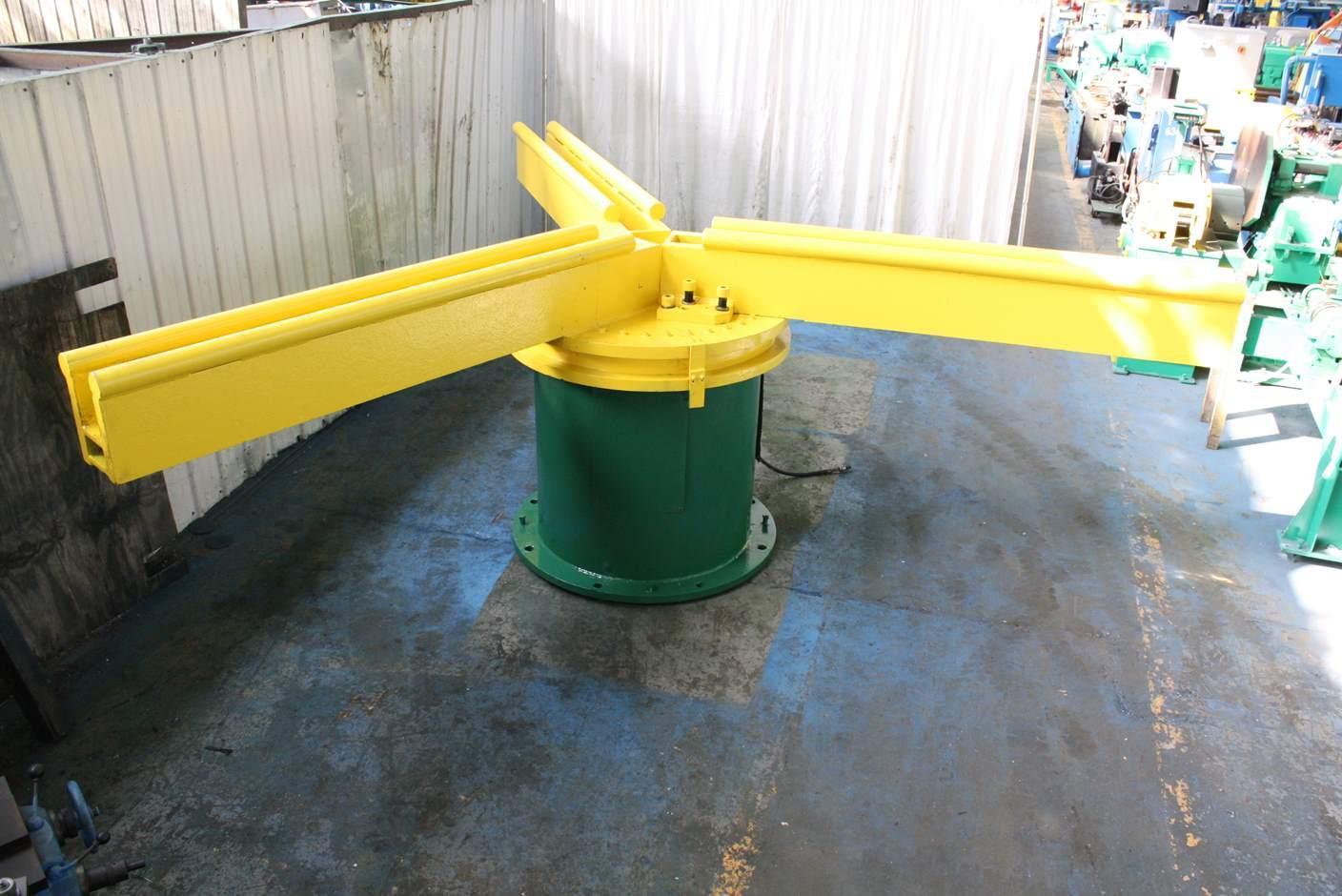

STACKER
MODEL ................. SU1272-12144MAG
CAPACITY .............. 10,000 LBS
