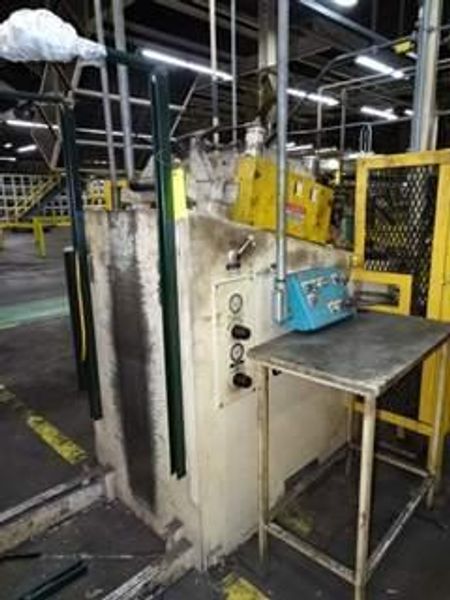

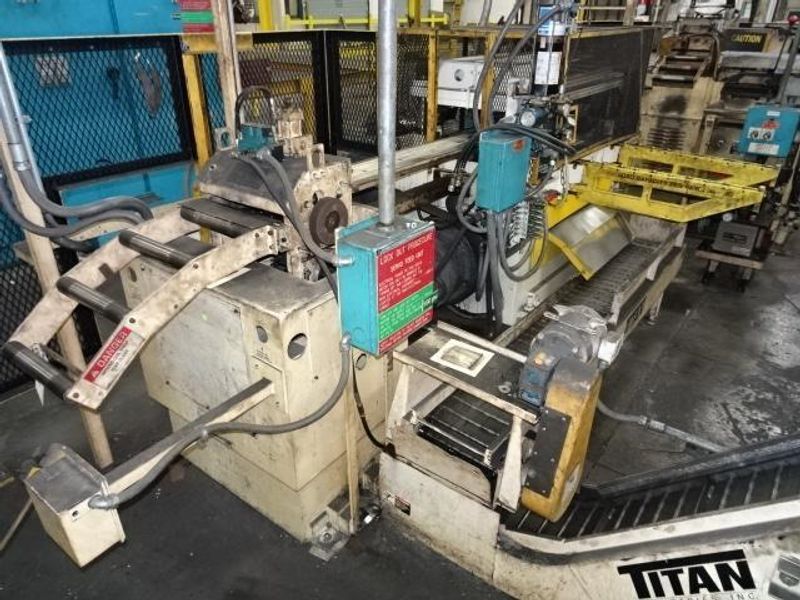

12' X .080 COE COIL FEED LINE: STOCK #67541

Manufacturer

Category

Coil Processing Equipment

Type

COIL FEED LINES

Stock

67541

Model

18

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet



CONSISTS OF:

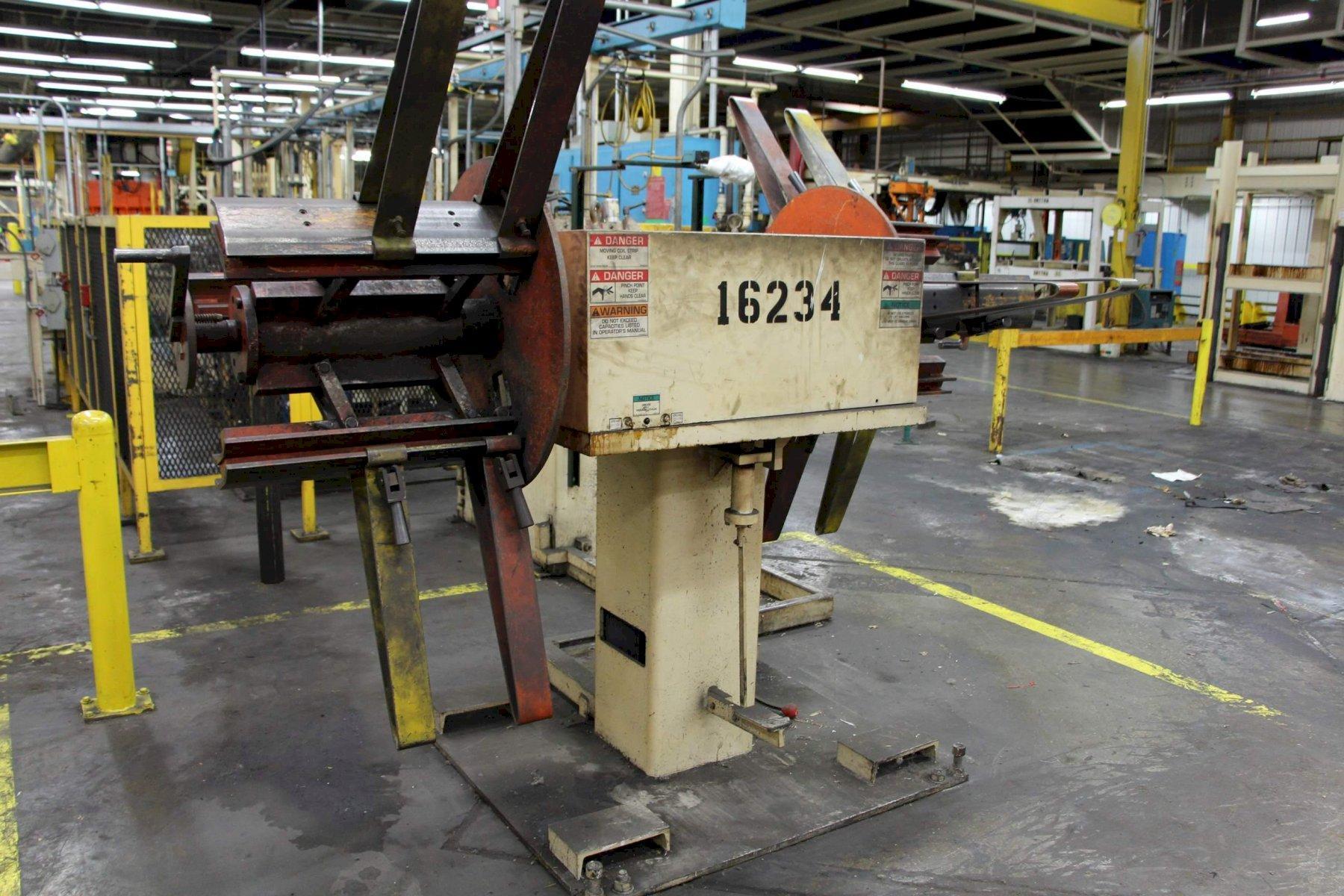

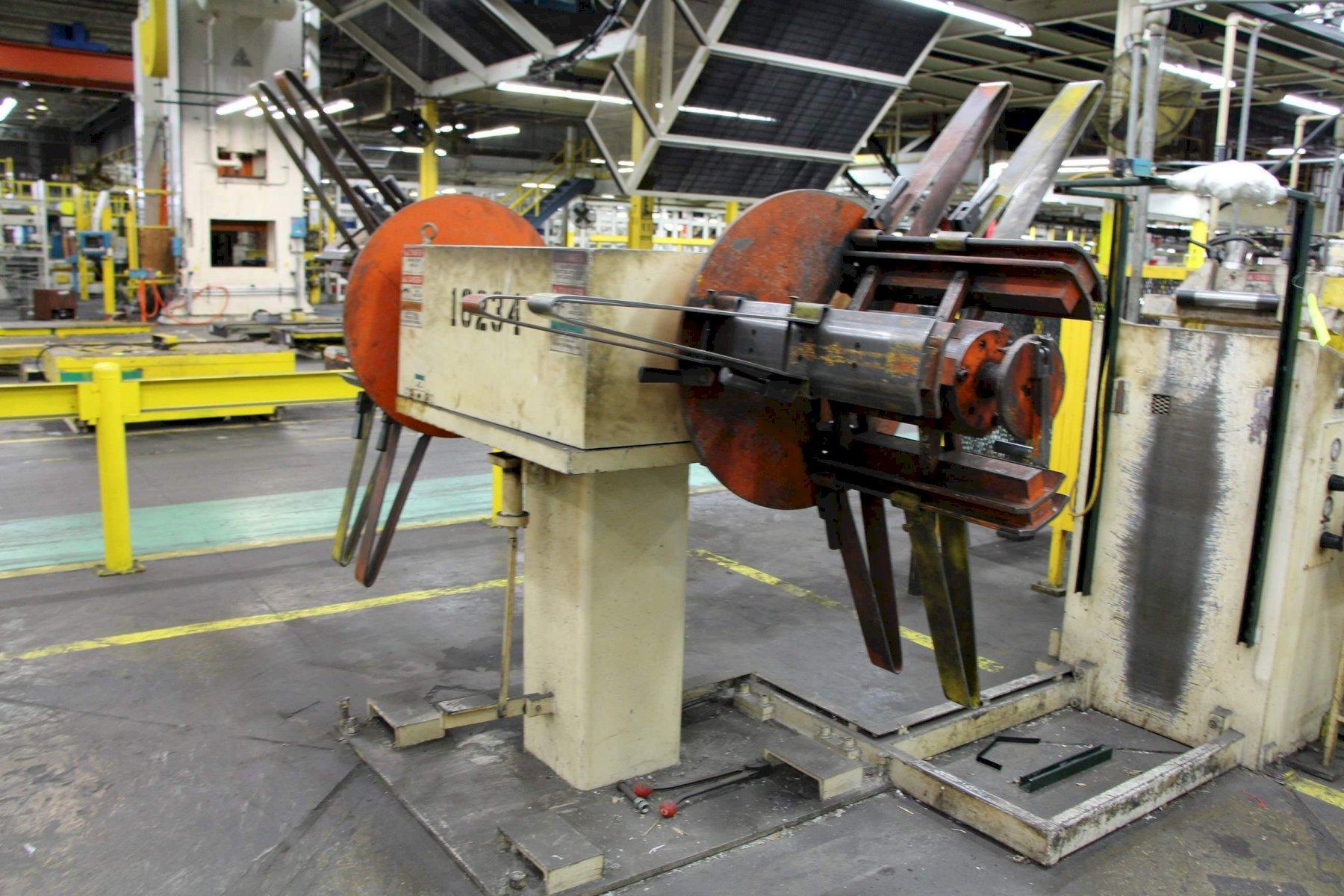

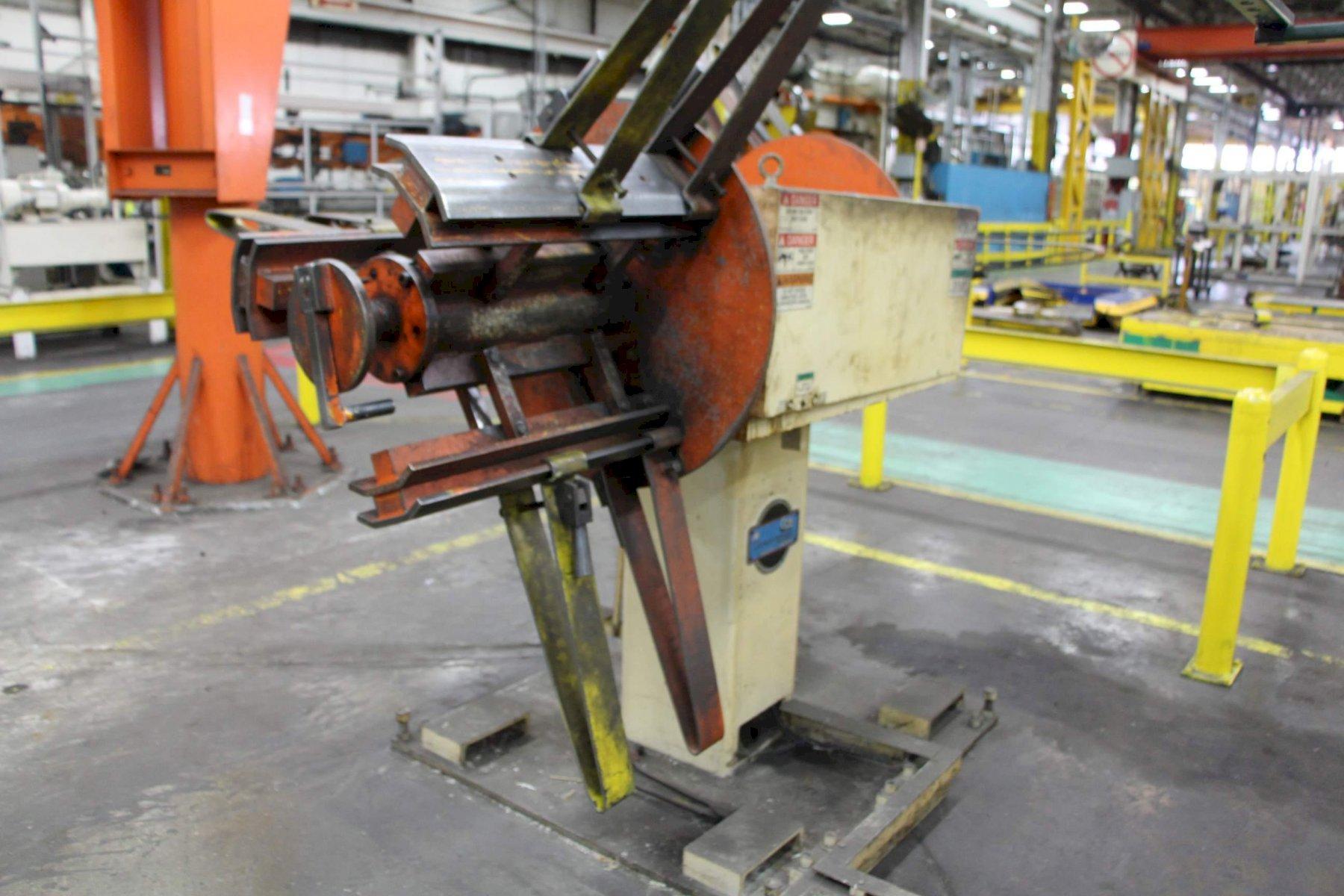

6000 LBS X 18" COE DOUBLE END COIL REEL
SERIAL .......................... 24791-3
MODEL ........................... CPR-DE-PO-6018
YEAR NEW ........................ 2000
CAPACITY ........................ 10,000 LBS
COIL WIDTH (MAX) ................ 18"
COIL O.D. ....................... 60"
COIL I.D ........................ 16" TO 21"
SPECIAL COIL ADAPTER PADS I.D. .. 19"  TO 24"
BACKPLATE DIAMETER .............. 30"
MANUAL EXPANSION ................ YES
COIL KEEPERS .................... YES
AIR DISC DRAG BRAKE ............. YES

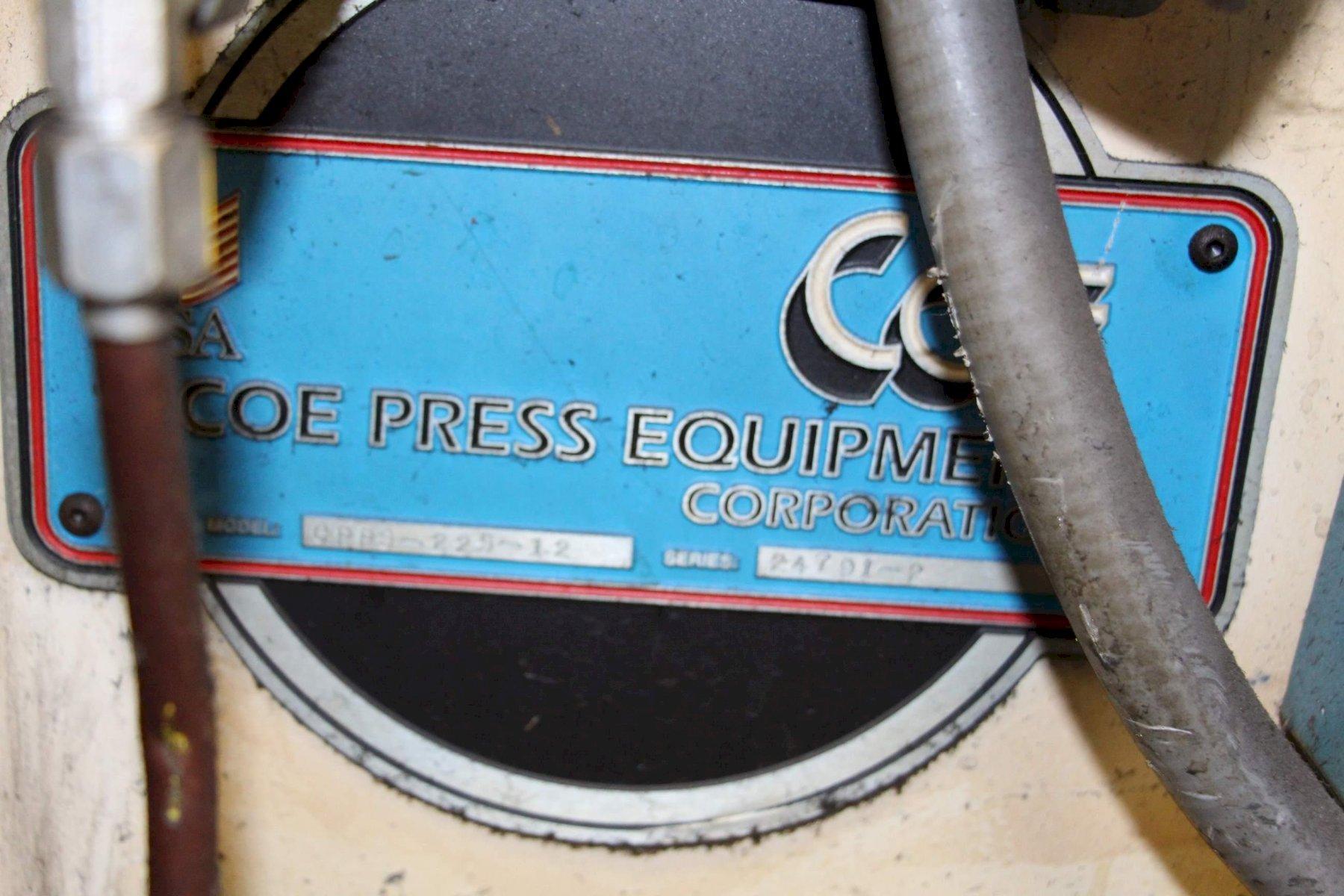

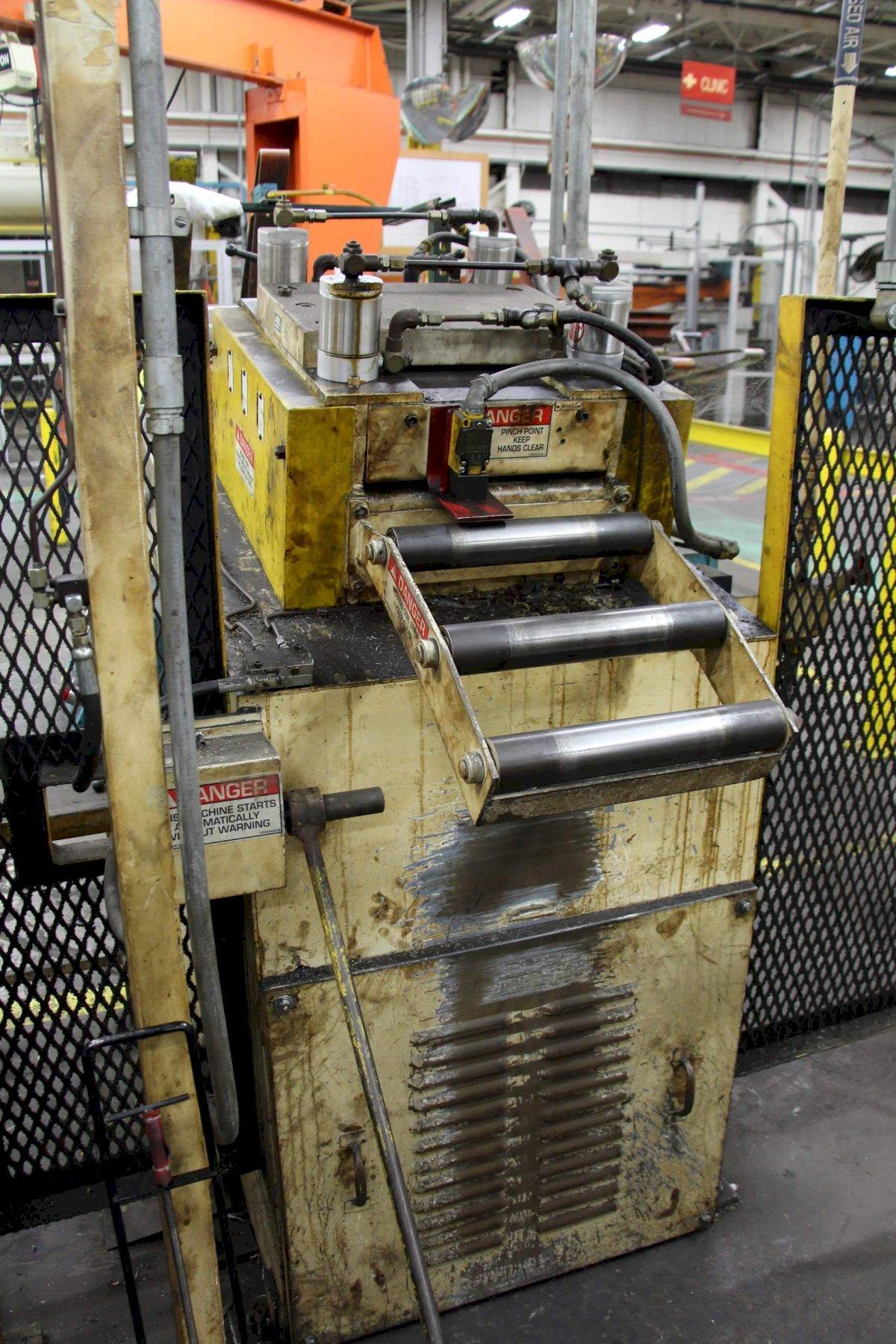

12" X .080" COE MODEL CPPS-225-12 7 ROLL STRAIGHTENER
SERIAL .......................... 24791-2
MODEL ........................... CPPS-225-12
YEAR NEW ........................ 2000
CAPACITY ........................ 0.020 TO 0.080
CAPACITY (MAX WIDTH) ............ 12"
SPEED (MAX) ..................... 125 FPM
NUMBER OF ROLLS ................. 7 (4 OVER 3)
DIAMETER OF STRAIGHTENING ROLLS . 2-1/4"
INDEPENTENT ROLL ADJUSTMENT ..... YES
DIAMETER OF PINCH & EXIT ROLLS .. 3"
ENTRY & EXIT PINCH ROLLS ........ YES
PINCH ROLLS ADJUSTMENT .......... PNEUMATIC
BRAKE ........................... PNEUMATIC DRAG
ENTRY SLIDE & CLAMP EDGE GUIDES . YES
REMOTE JOG PENDANT CONTROL ...... YES
MOTOR ........................... 3 HORSEPOWER

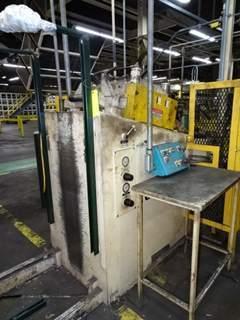

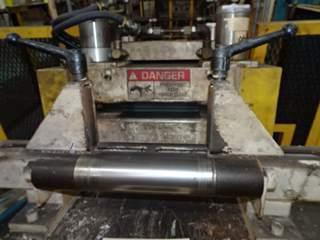

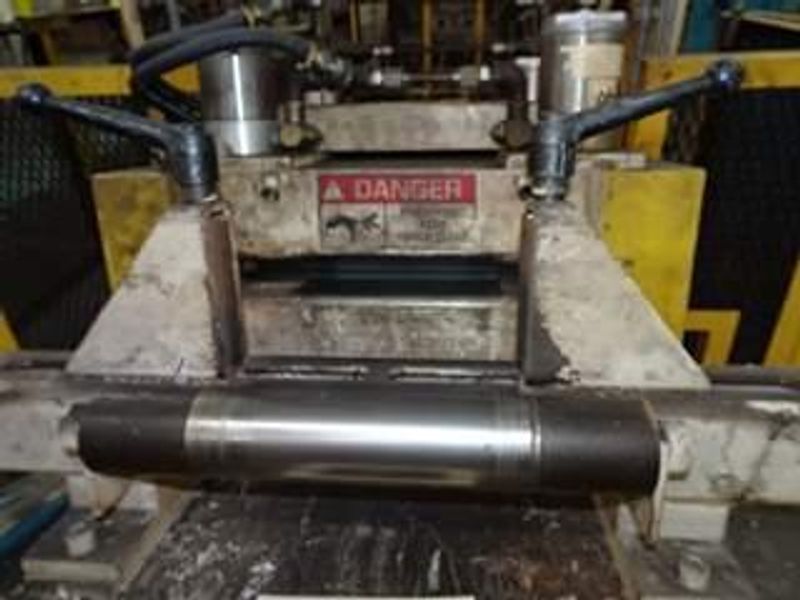

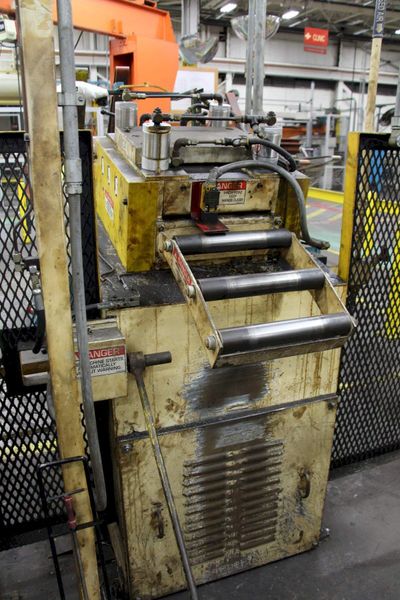

12" X .080 COE MODEL CPRF-SM-1-12 COIL SERVO FEEDER
MODEL ........................... CPRF SM-1 12
YEAR NEW ........................ 2000
CAPACITY (MAX WIDTH) ............ 12"
CAPACITY ........................ .020 TO .080
SPEED (MAX) ..................... 295 FPM
ACCELERATION .................... 100 F/S/S
FEED ACCURACY ................... +/- .003"
NUMBER OF FEED ROLLS ............ 2
DIAMETER OF ROLLS ............... 2-1/4"
PASS LINE ....................... 39"
ROLL PRESSURE (VARIABLE) ........ PNEUMATIC
VERTICAL EDGE GUIDES ............ YES
