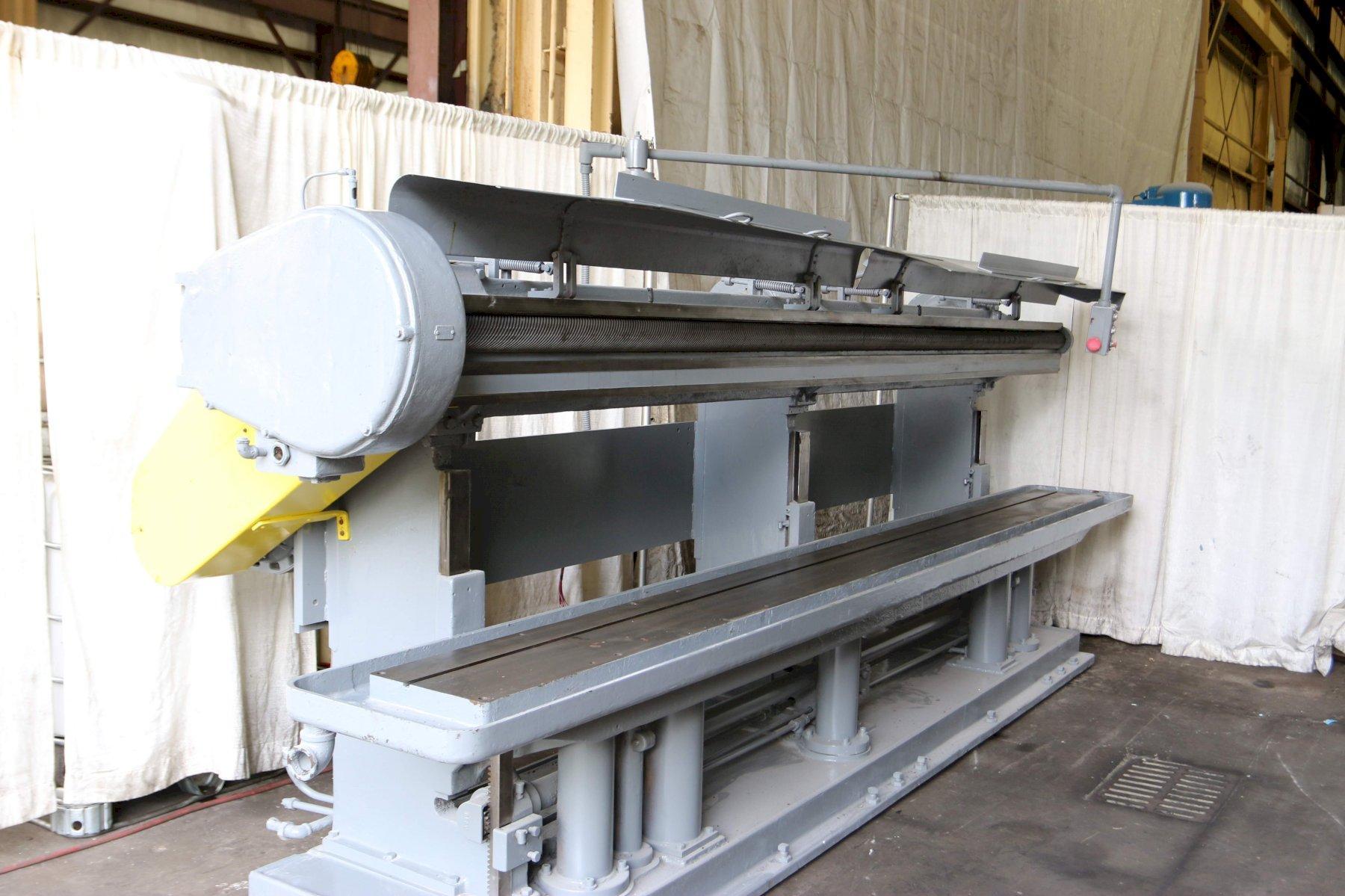

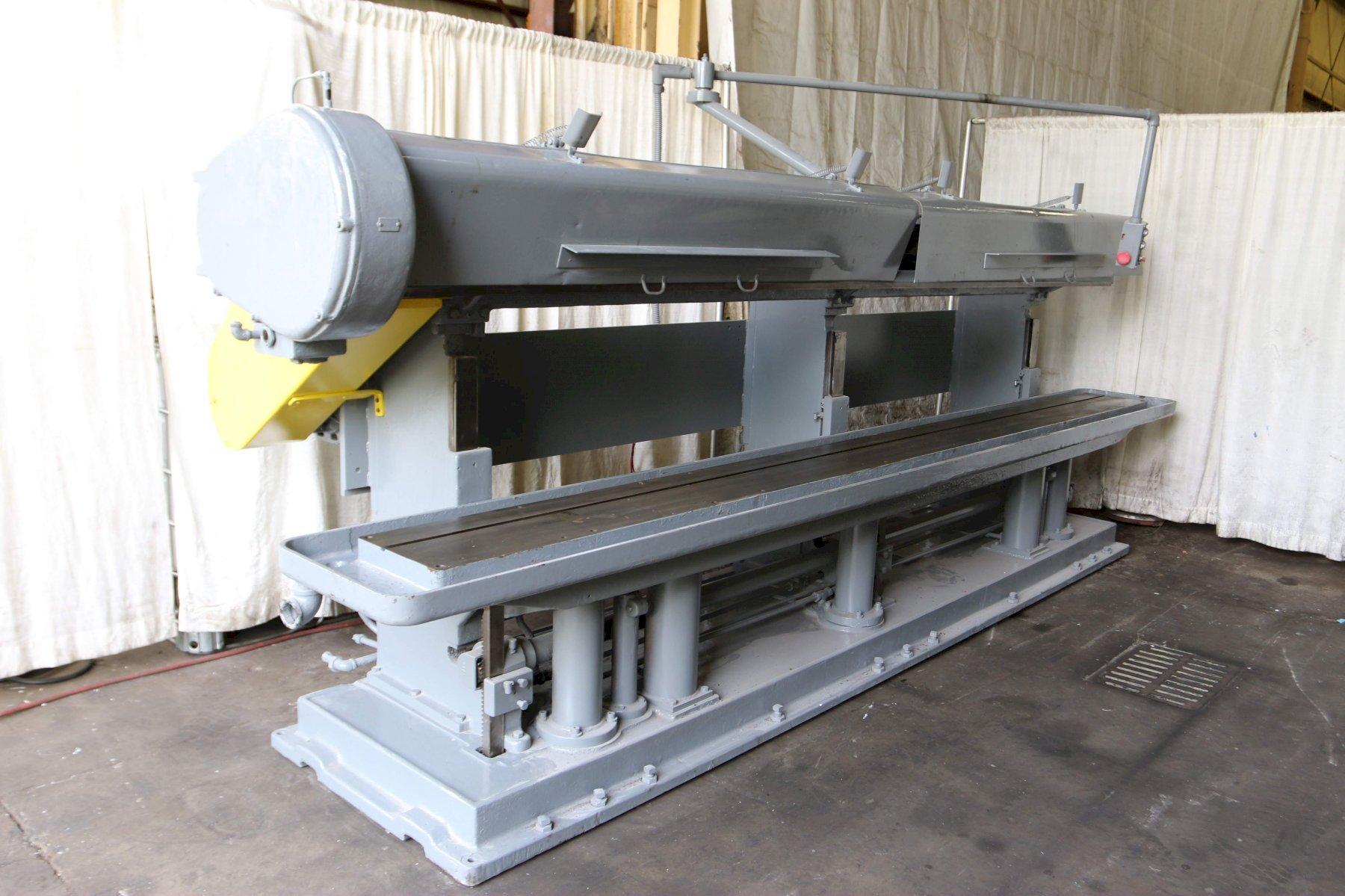

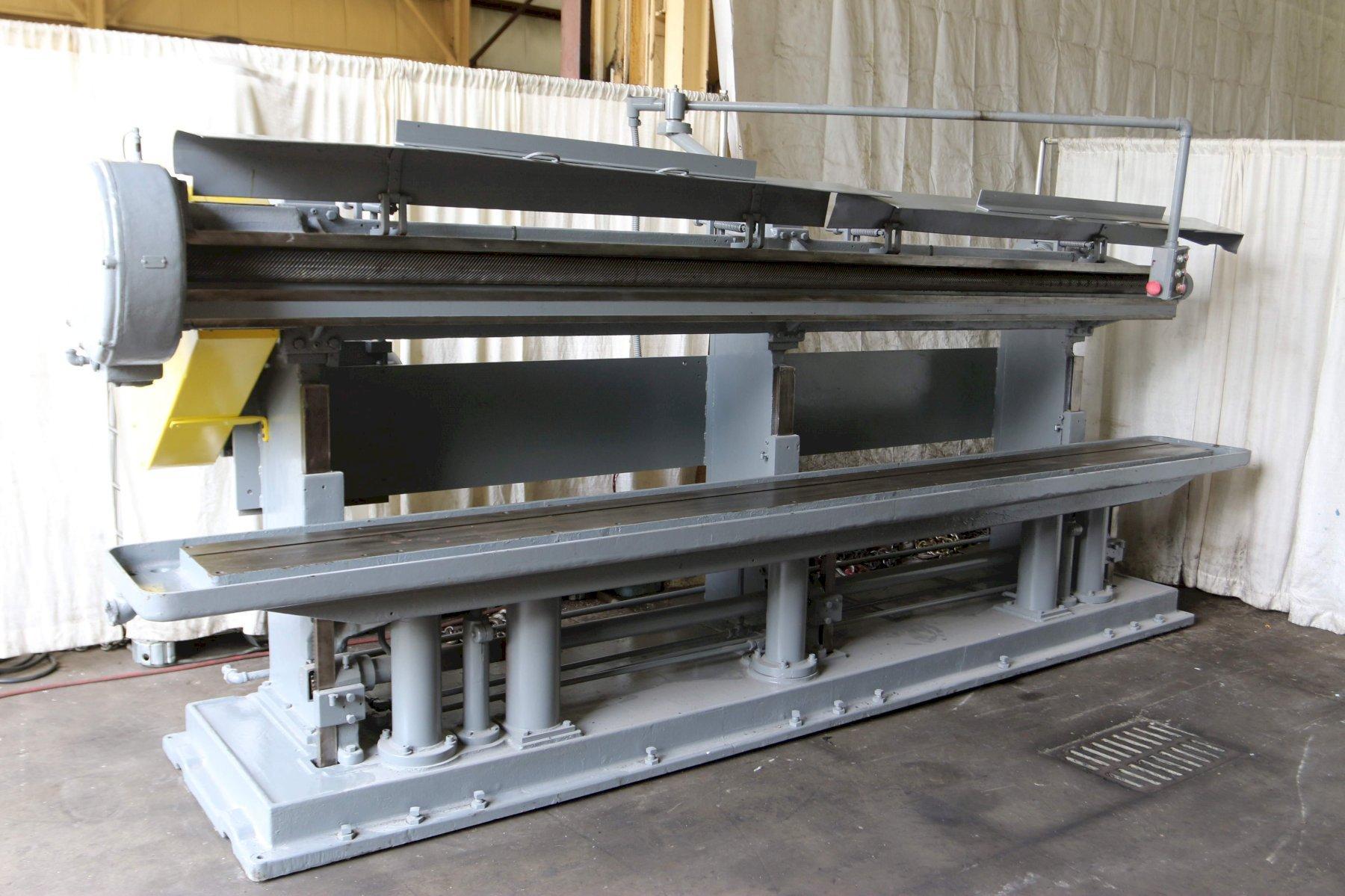

14' MOLINE MODEL #HR14 INLINE RAIL DRILL: STOCK #69670

Manufacturer

MOLINE

Category

Drilling Machines

Type

DRILLS, RAIL

Stock

69670

Model

168

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet



SERIAL ............................... 493725
MODEL ................................ HF9-14
DRILLING CAPACITY (MILD STEEL) ....... (17) 1/2" DRILLS
DRILLING CAPACITY (CAST IRON) ........ (15) 1" DRILLS

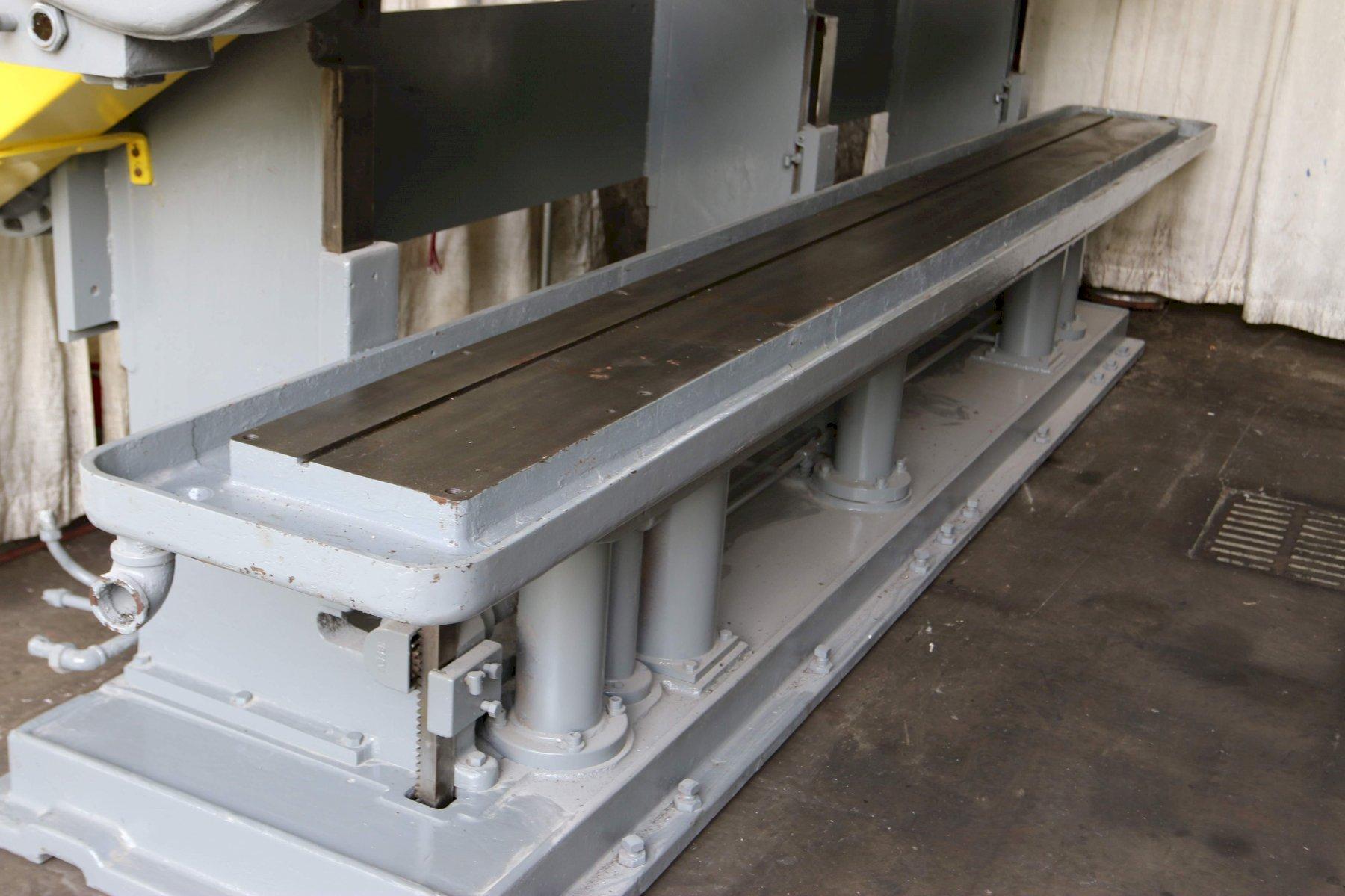

OVERALL TABLE AREA ................... 16' X 22"

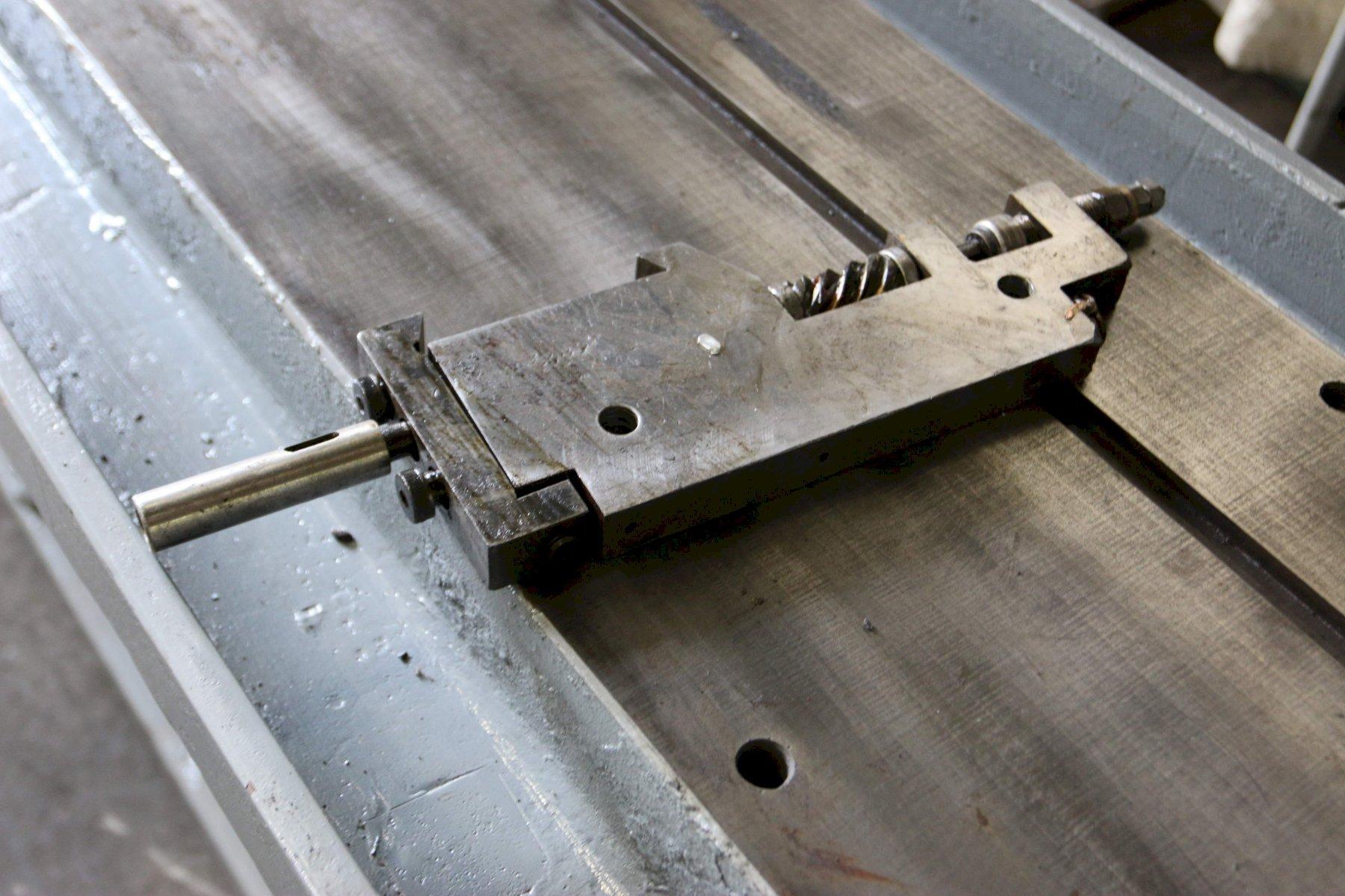

FIXTURE WITH HYDRAULIC CLAMPS ........ 18' X 12"
MAXIMUM TABLE UPSTROKE TRAVEL ........ 14"
MAXIMUM SPINDLE SPEED BY CHANGE GEAR . 3268 RPM
SPINDLE TAPER ........................ #1 MT
MINIMUM SPINDLE CENTERS .............. 1"
LENGTH OF DRIVE SCREW ................ 168"
DISTANCE BETWEEN COLUMNS ............. 68"
NUMBER OF COLUMNS .................... 3
SPINDLE JOG .......................... YES
TABLE RAPID UP/DOWN .................. YES
IN & OUT SHUTTLE TABLE STROKE ........ 9"
COOLANT .............................. YES
HYDRAULIC FEED MOTOR ................. 10 HORSEPOWER
SPINDLE MOTOR ........................ 25 HORSEPOWER
