30,000 LB X 48" X .135" RED BUD CUT TO LENGTH LINE, NEW 2008: STOCK # 69876

Manufacturer

RED BUD

Category

Fabricating Machines

Type

CUT-TO-LENGTH LINES

Stock

69876

Model

48 X 135 X 30000

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet



Tolerances
Length Accuracy: ± 0.005" (0.13 mm) @ Maximum Speed & Gage
Squareness (D1 - D2)/2: 0.015" (0.38 mm)
Diagonal (D1 - D2): 0.030" (0.76 mm)
Feed Stroke Length: 84" (2134 mm)

Material Data
Type: CRS-GALV
Maximum Tensile Strength @ Maximum Thickness: 50,000 PSI (344.74 MPa)
Maximum Thickness: 0.135" (3.43 mm)
Minimum Thickness: 0.020" (0.51 mm)

Motor Data
Primary Hydraulic Power: 100 HP (75 KW) AC / 66 - 33 GPM (250 - 125 LPM)

Electrical: 460 Volt 3 Phase

Air: 80 PSI (0.55 MPa)
Temperature: Maximum Ambient Temperature = 100°F (38°C)
Minimum Ambient Temperature = 35°F (2°C)

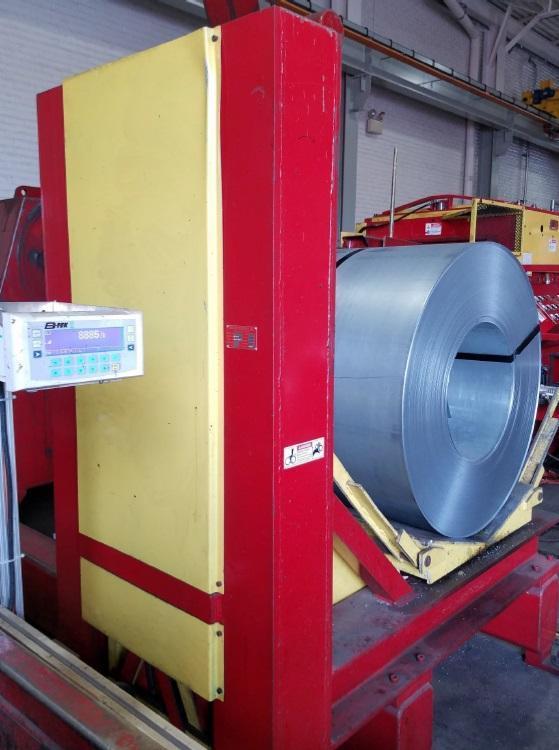

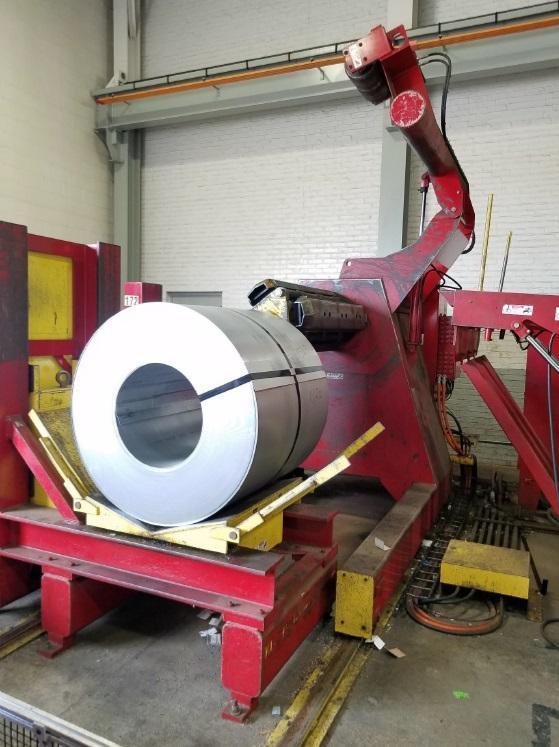

Coil Lift & Uncoiler Specifications:

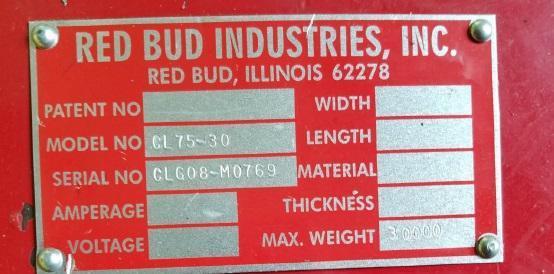

Coil Lift Model #: CL75 - 30

Uncoiler Model #: RM24 - 60 - 34
Maximum Entry Weight: 30,000 lbs (13,608 kg)
Maximum Entry Width (Machine Clearance): 51" (1295 mm)
Maximum Entry Coil Outside Diameter: 75" (1905 mm)
Straightener Specifications:
Model #: SM05 - 48
Number of Rolls: 11 (3 over 4) with Pinch Rolls

Motor Grip Feed Specifications:
Model #: FMBD - 9
Feed Accuracy: ± .005" (.127 mm) Repeatability
Incremental Readout: .001" (.025 mm)
Shear Specifications:
Model #: SH18 - 140 - 48
Type: Standard Rake
Blade: 4 Edge
Rake .140" Model: ¼" in 12" (6 mm - 304 mm)
Minimum Cut Length: 1.75" (45 mm)

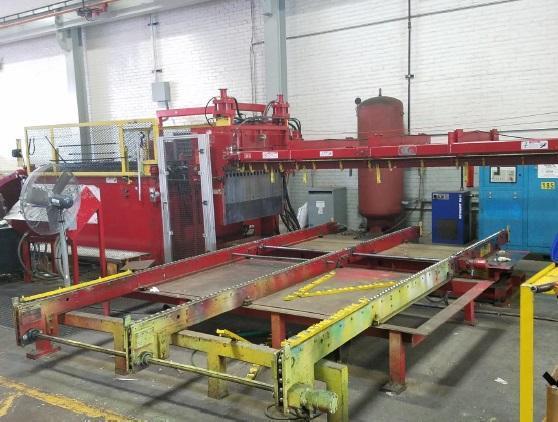

Stack Table & Drop Stacker Specifications:
Drop Stacker Model #: SSDS - 144 3
Stack Table Model #: SSTS-144-10
Stack Clearance: 24" (609 mm)
Table Capacity: 10,000 lbs (4536 kg)
