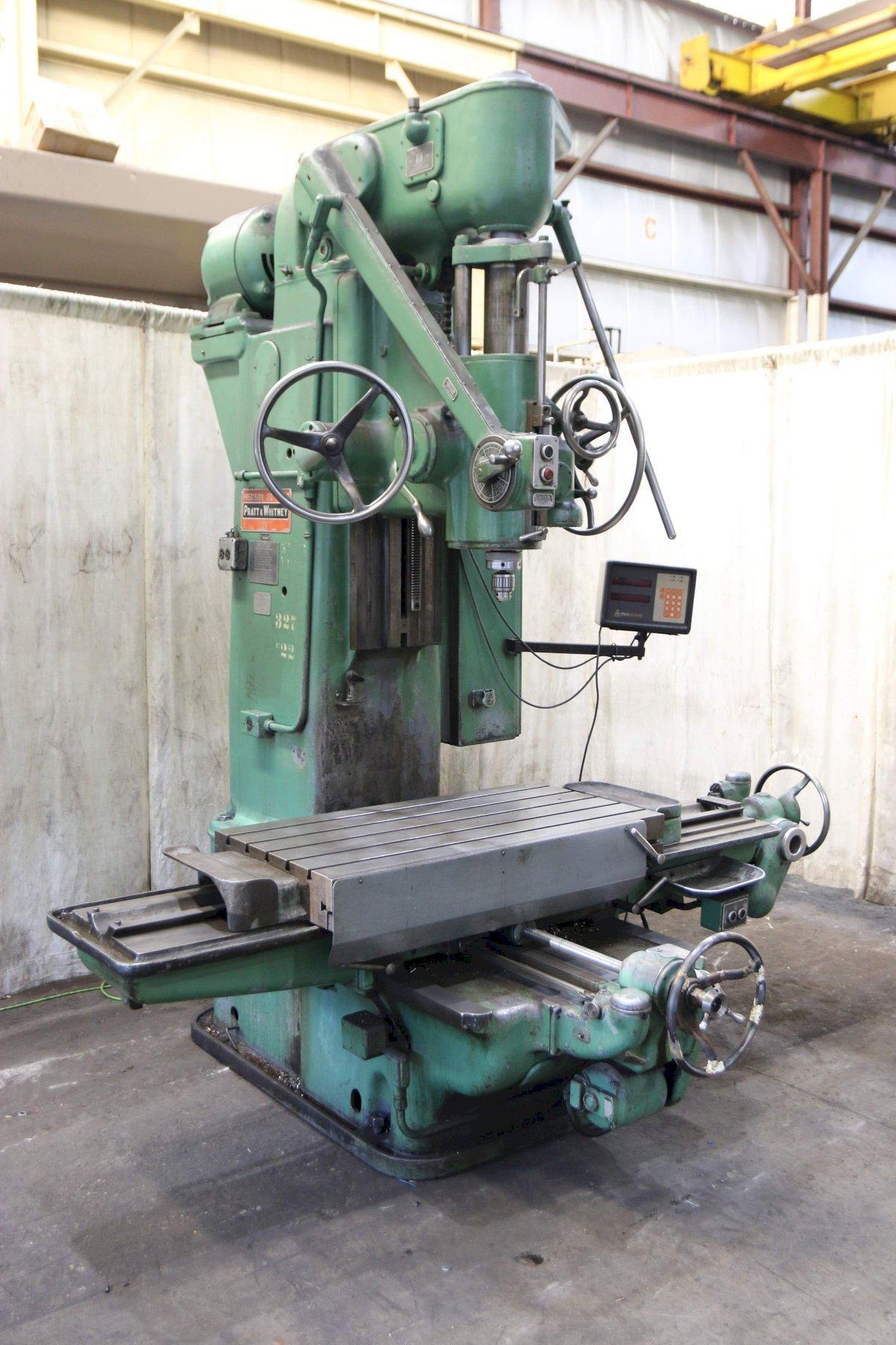

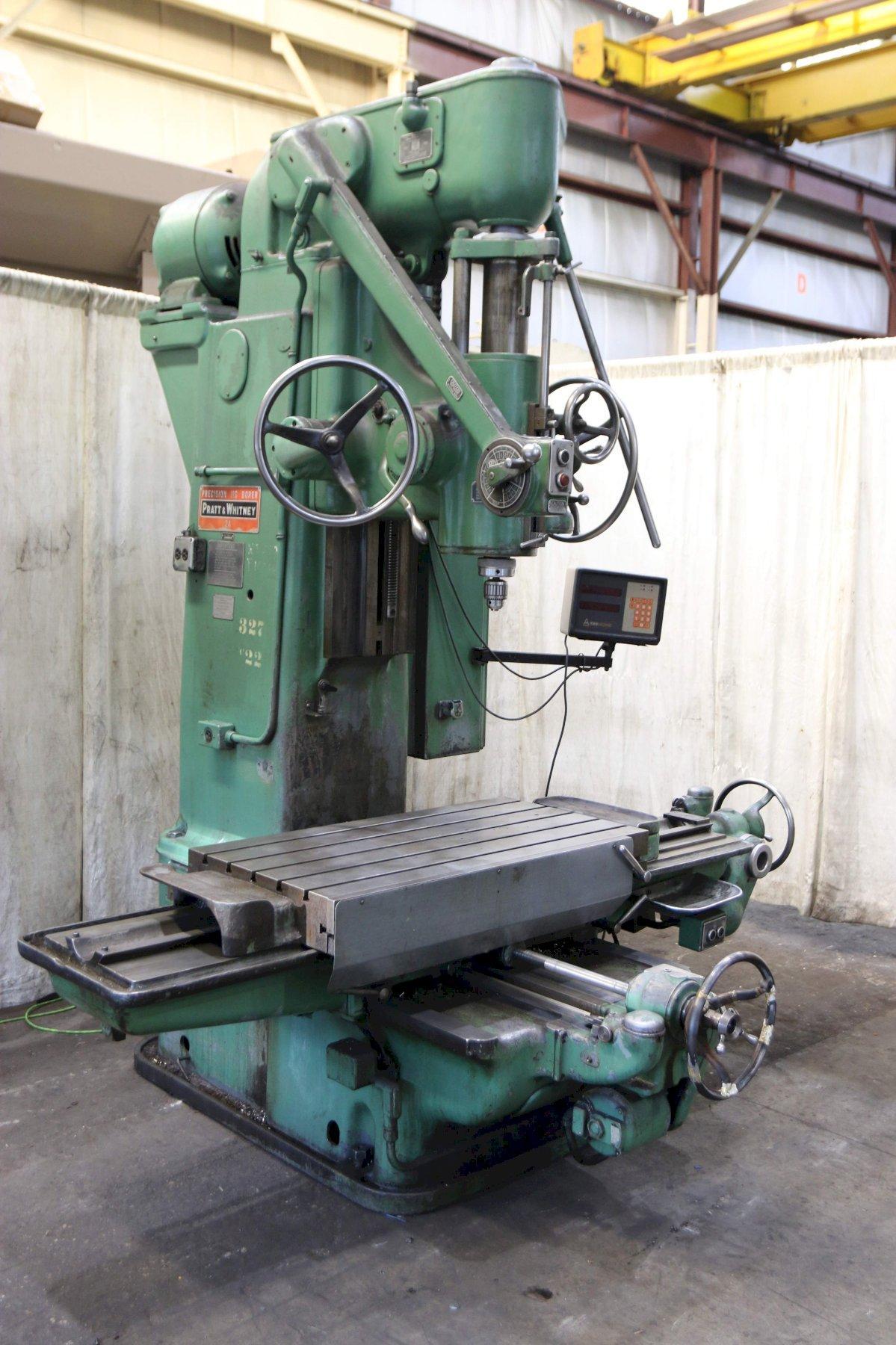

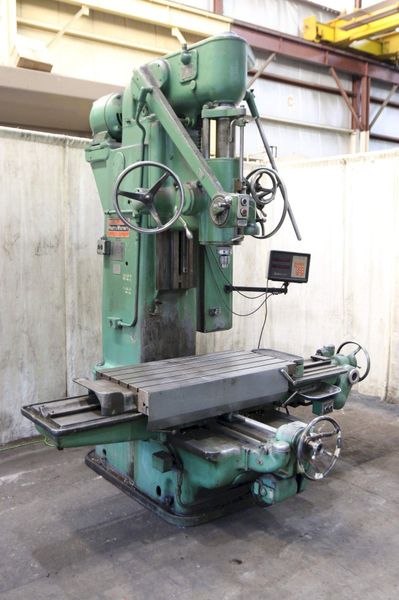

PRATT & WHITNEY #2A JIG BORER: STOCK #70571

Manufacturer

PRATT & WHITNEY

Category

Milling Machines

Type

JIG BORERS, CNC

Stock

70571

Model

2A

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet



SERIAL ............................. 26159
MODEL .............................. 1A

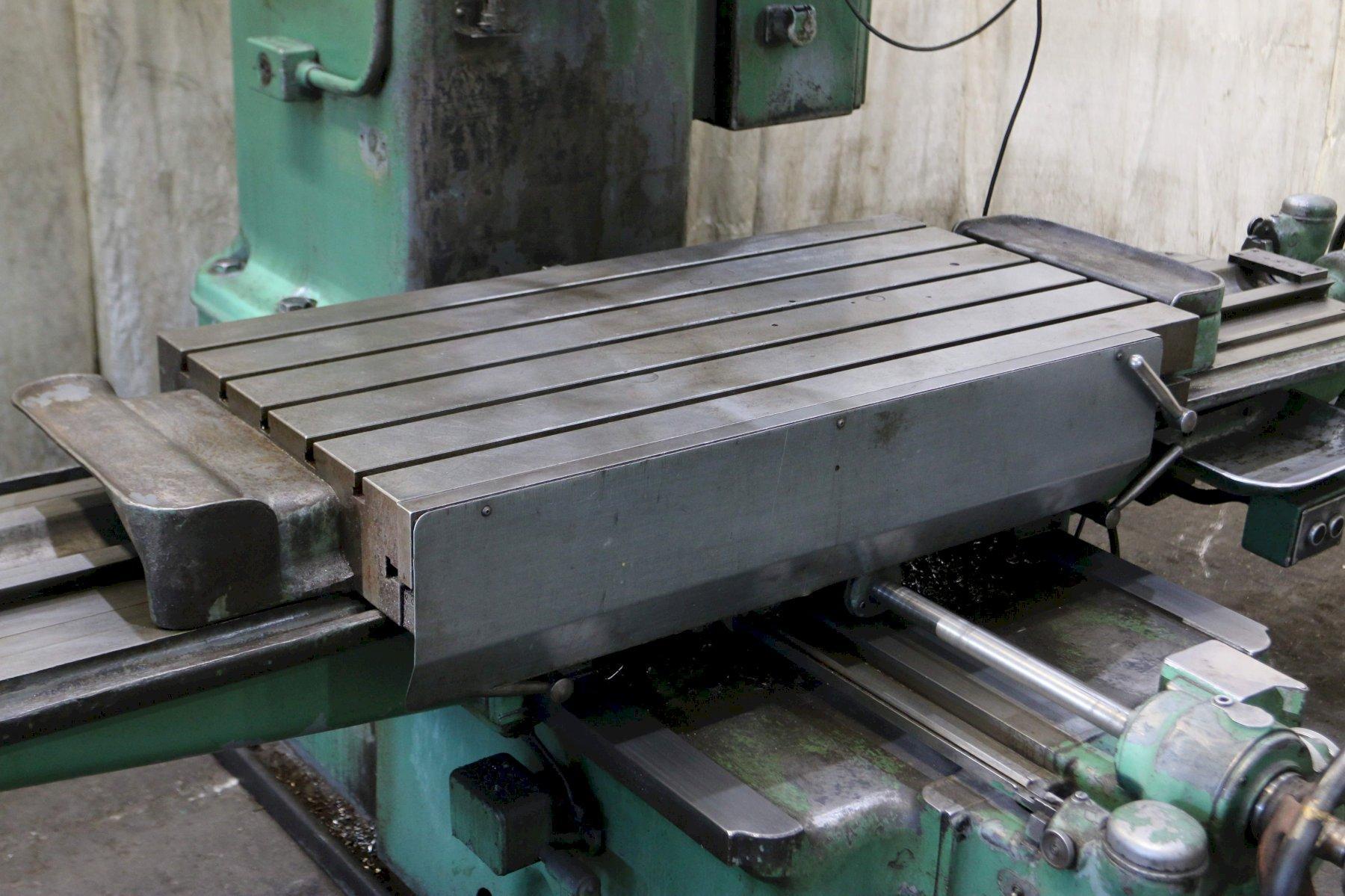

TABLE WORKING SURFACE .............. 44" X 22"
TABLE LONGITUDINAL TRAVEL .......... 36"
SADDLE CROSS TRAVEL ................ 18"

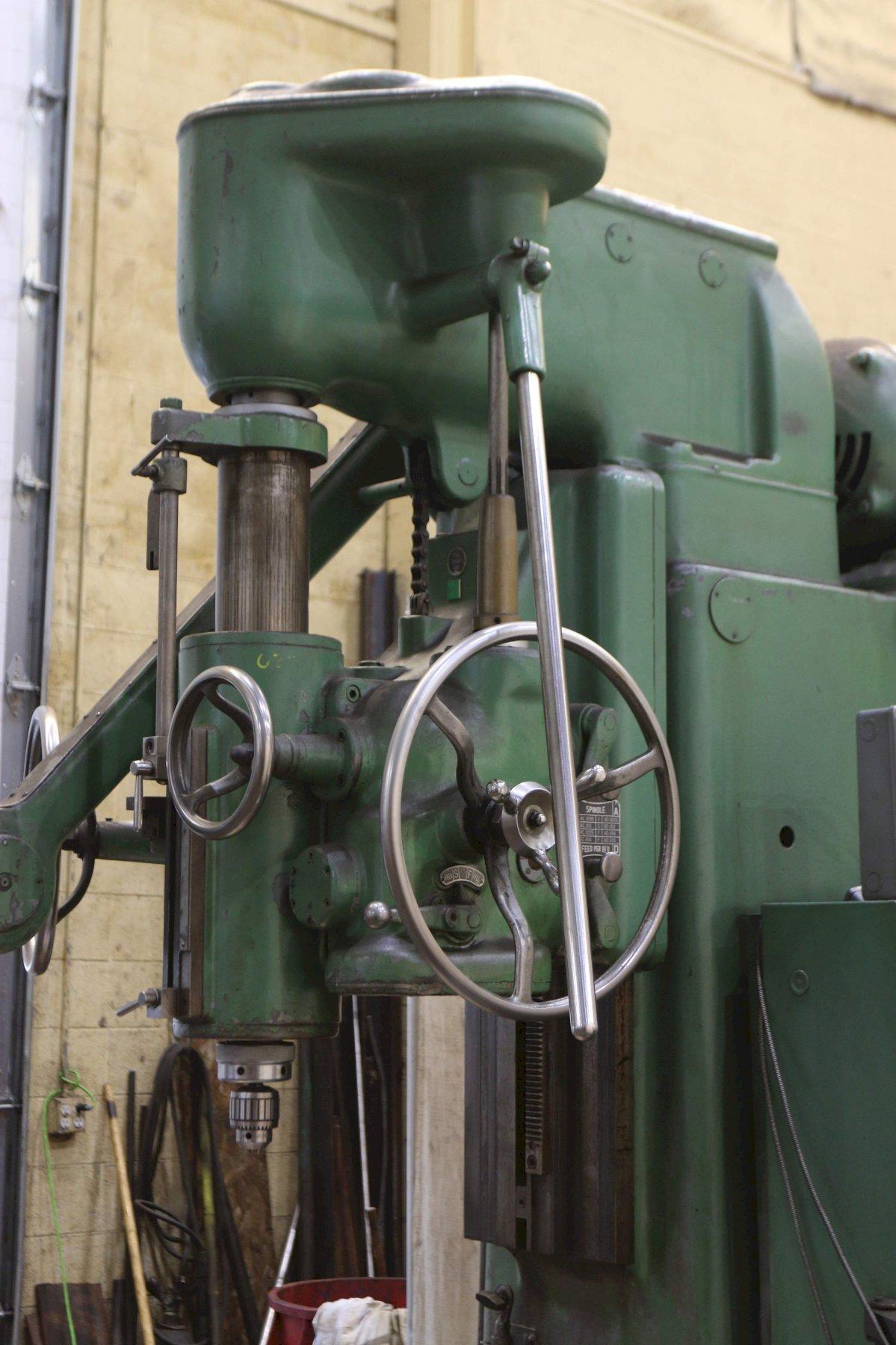

SPINDLE HEAD VERTICAL TRAVEL ....... 14"
SPINDLE QUILL TRAVEL ............... 9"
COLUMN NECK TO TABLE TOP ........... 23-1/2"
NOSE TO TABLE ...................... 6" MINIMUM TO 30" MAXIMUM
SPINDLE CENTER TO COLUMN ........... 18-1/2"
SPINDLE QUILL DIAMETER ............. 4-1/2"
SPINDLE SPEEDS ..................... (12) 37 TO 1800 RPM
POWER SPINDLE SPEED ................ (8) .0005 TO .015 IPR
LONGITUDINAL TABLE FEEDS ........... 1 TO 15 IPM

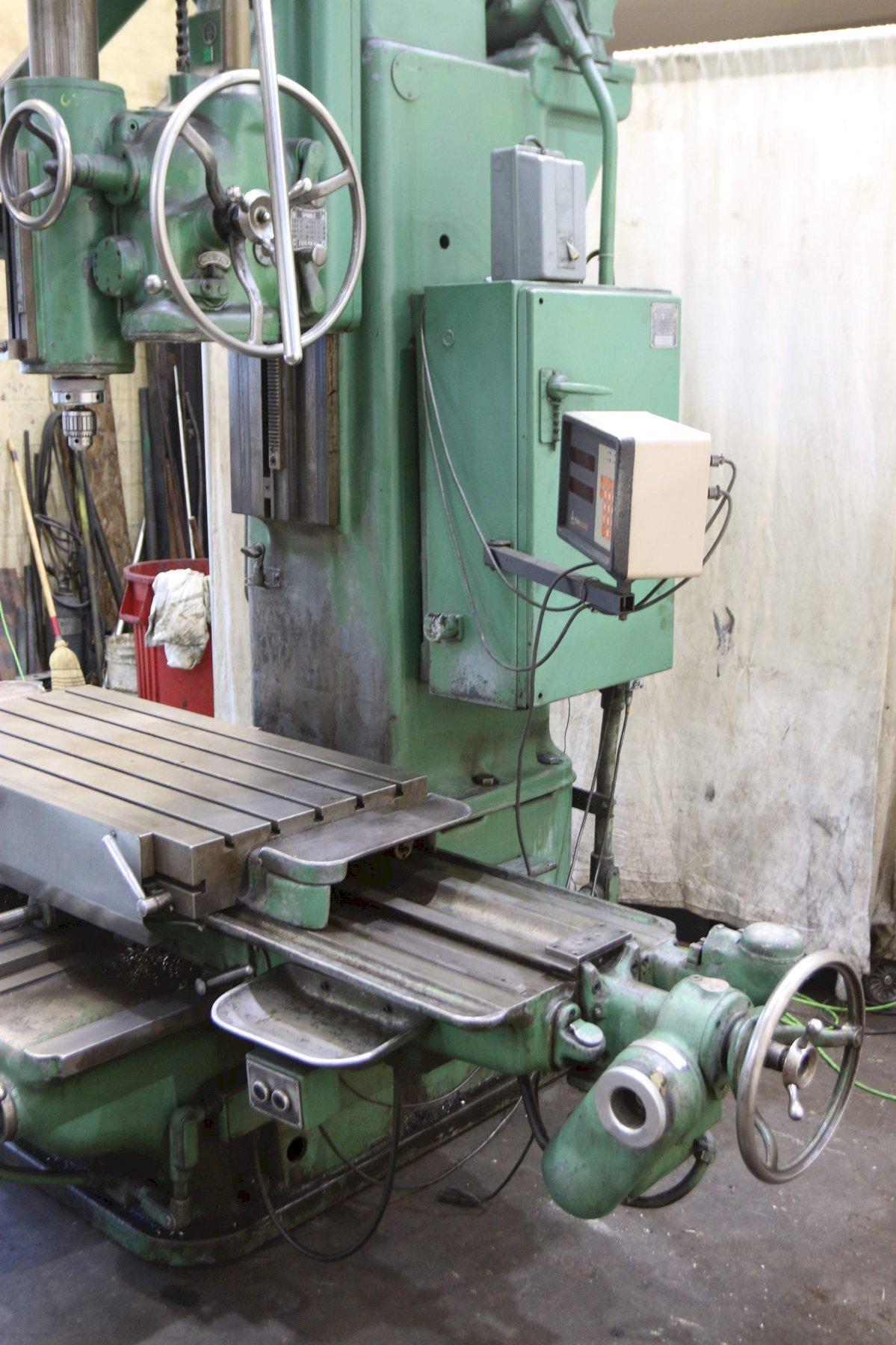

2 AXIS DIGITAL READOUTS ............ ANILAM
HORSEPOWER MAIN MOTOR .............. 10
