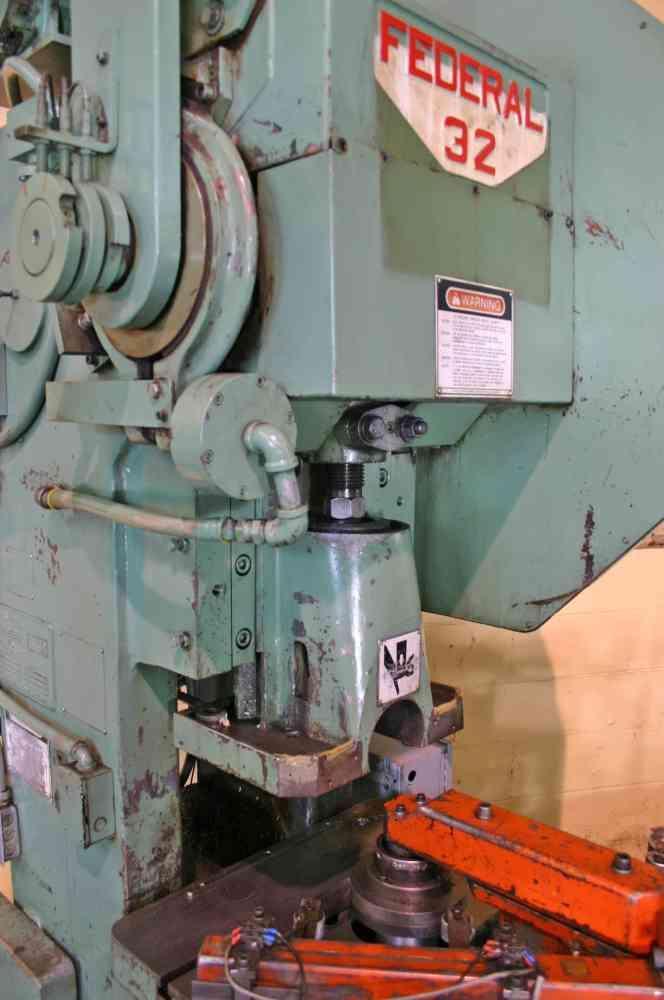

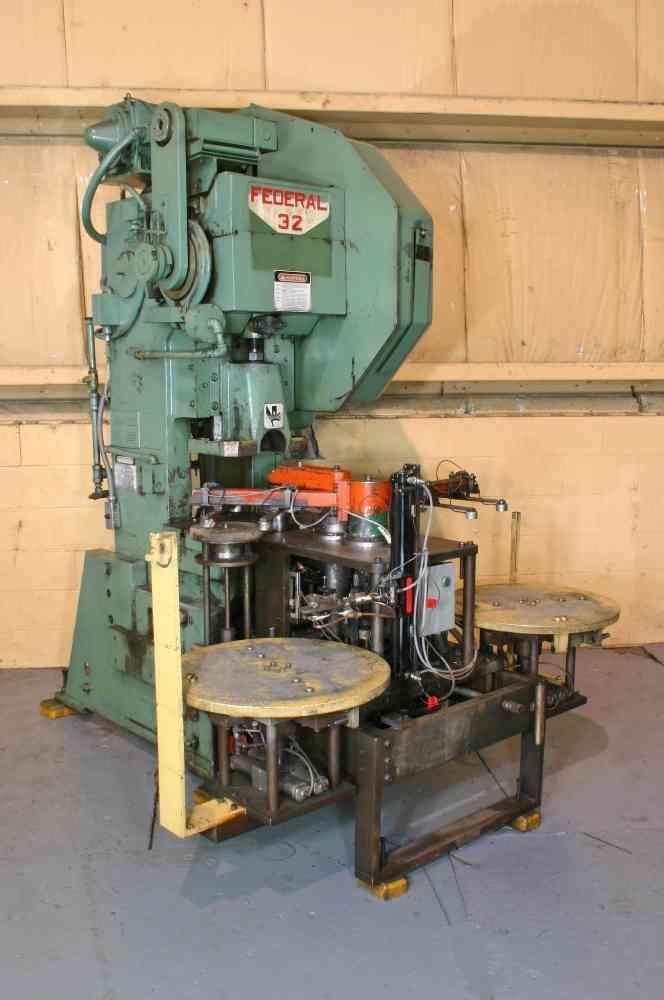

32 TON FEDERAL OBI NOTCHING PRESS: STOCK #51137

Manufacturer

Category

Presses

Stock

51137

Model

0032

Dealer Location

Ohio

Spec Sheet



SERIAL ......................... #32-586
MODEL .......................... 32
YEAR ........................... 1992
CAPACITY ....................... 32 TON
STROKE OF SLIDE ................ 3"
SLIDE ADJUSTMENT ............... 2"
SHUT HEIGHT, SDAU .............. 11-1/2"
AREA OF BED .................... 24" X 15"
AREA OF RAM .................... 15" X 10"
DEPTH OF THROAT ................ 8"
DIAMETER OF RECEIVING TABLE .... 24"
BLANK DIAMETER ................. 8" MINIMUM - 18" MAXIMUM

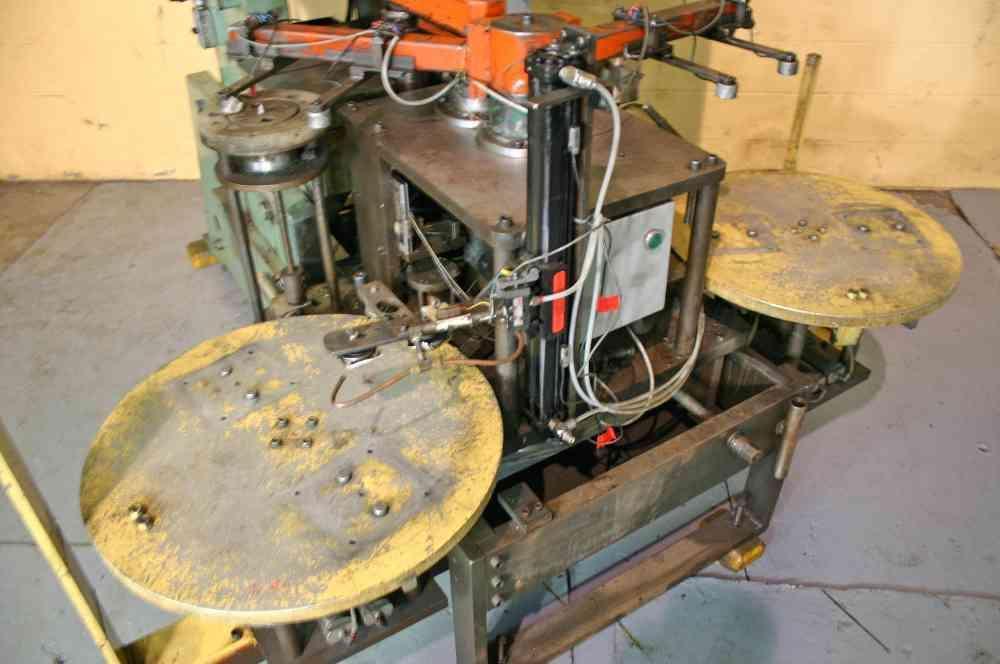

PICK & PLACE LOADED
PICK & PLACE UNLOADED
STROKES PER MINUTE, VARIABLE ... 100 - 200
BOLSTER ........................ 24" X 15" X 2-1/2"
AIR CLUTCH AND AIR BRAKE ....... YES
FLYWHEEL TYPE .................. YES
PRESS MOTOR, HORSEPOWER ........ 5
