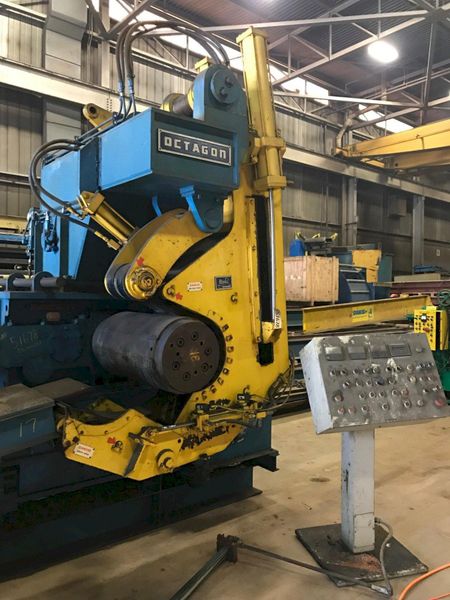

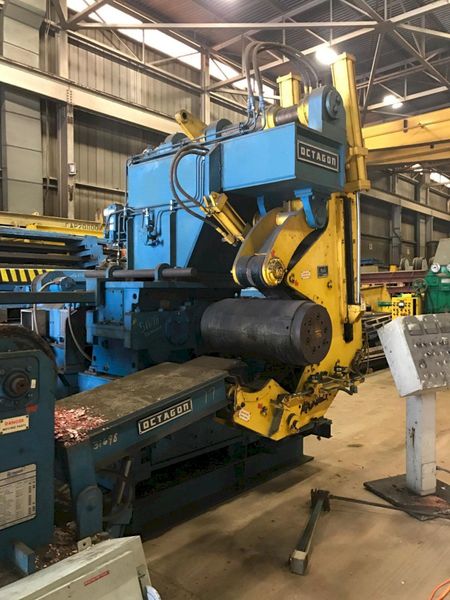

10,000 LBS X 18' OCTAGON RECOILER: STOCK #51678

Manufacturer

Category

Recoilers/Uncoilers

Type

RECOILERS

Stock

51678

Model

10000 x 18

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet

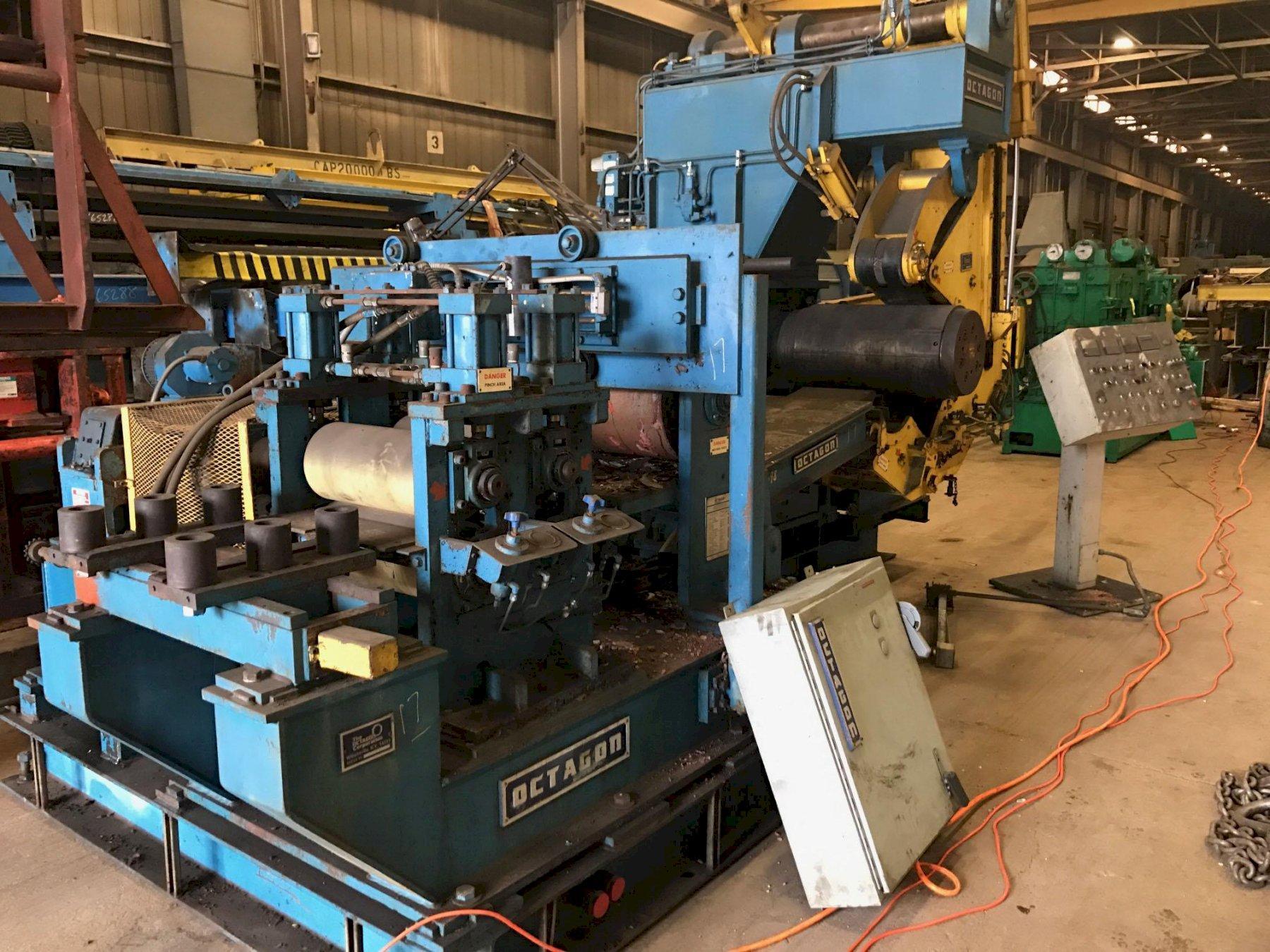

INSERTION SECTION CONSISTS OF .......

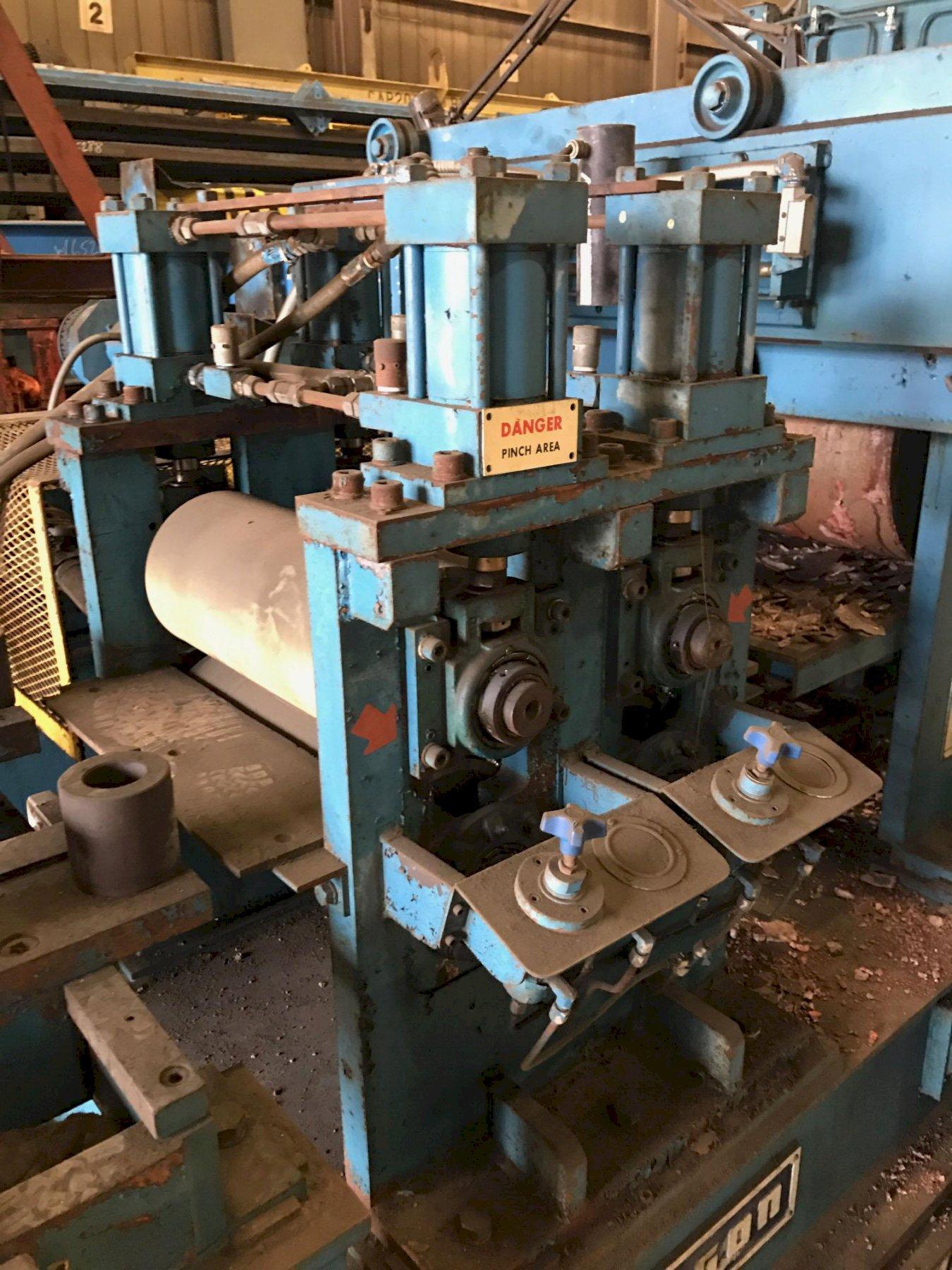

(3) PAIRS OF ADJUSTABLE WIDTH EDGE GUIDE ROLLS ........
(2) PAIRS OF DRIVEN RUBBER COATED ROLLS, 8" DIA. x 18" WIDE, ....
EACH PAIR HAS HYDRAULIC HOLD DOWN CYLINDERS WHICH CAN BE INDIVIDUALLY ..
ADJUSTED FOR PRESSURE ........
NORTH AMERICAN DISCRIMINATING DETECTOR CAMERA, MODEL #M3109, S/N HC6413 ..
(1) LARGE DIA. RUBBER COATED HOLD DOWN ROLL ..

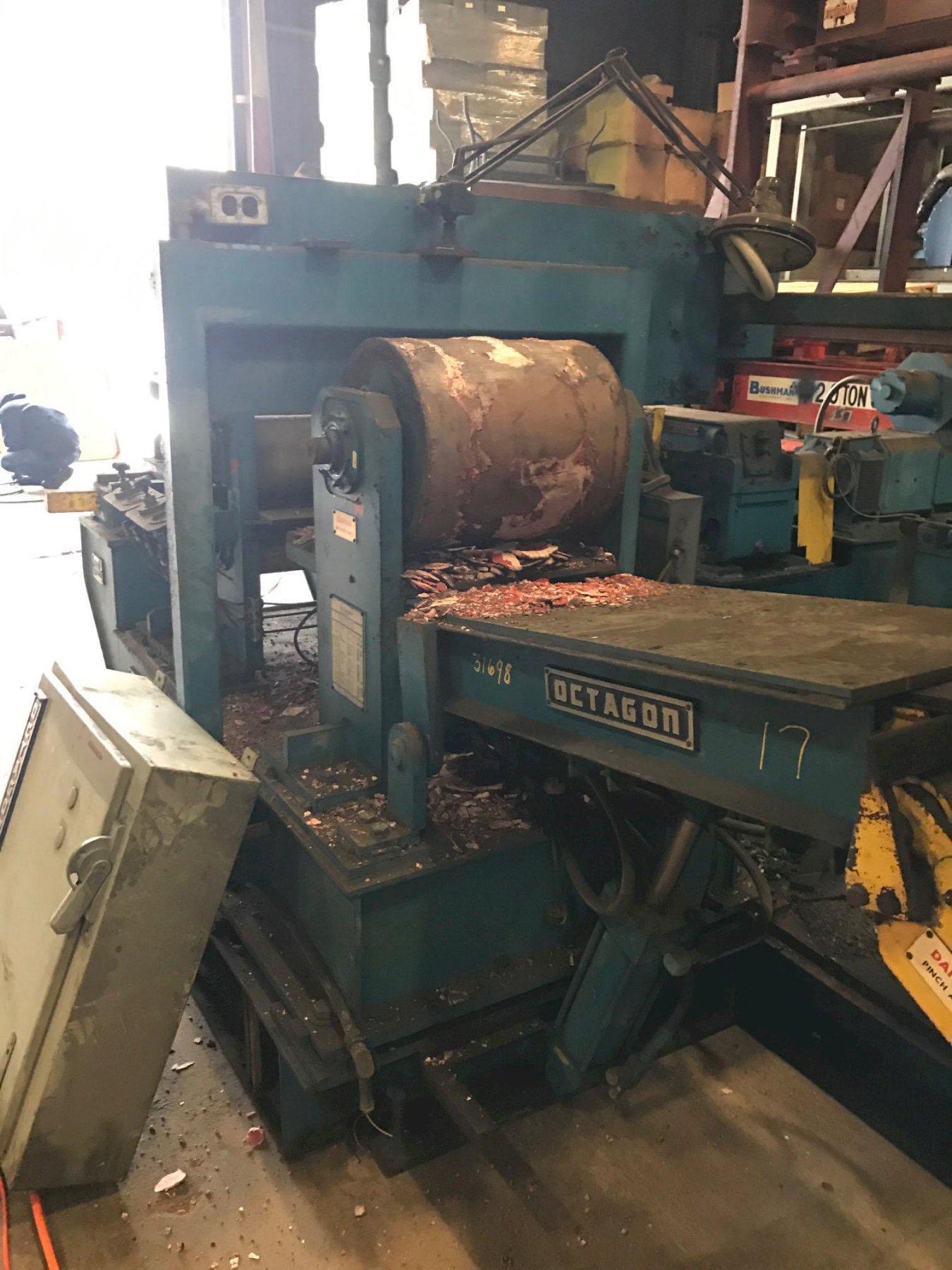

PEELER BLADE TYPE COIL END GUIDE, HYDRAULIC LIFT & EXTEND ......
TABLE TO GUIDE LEAD END OF COIL ONTO RECOILER/BELT WRAPPER ....
EST. MIN/MAX. COIL SPEED:
103/135 FPM DRIVEN BY 20 HP DC ........

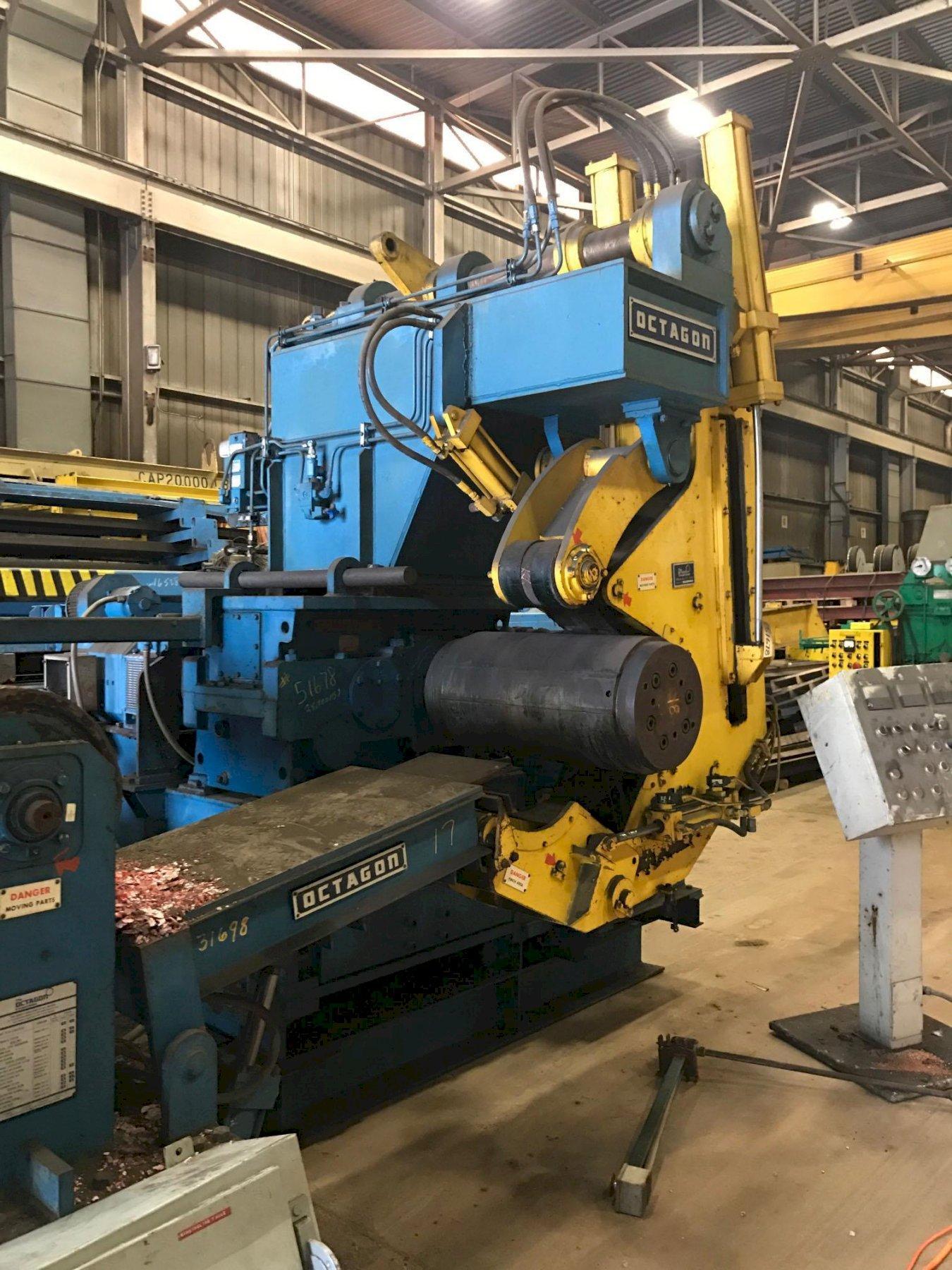

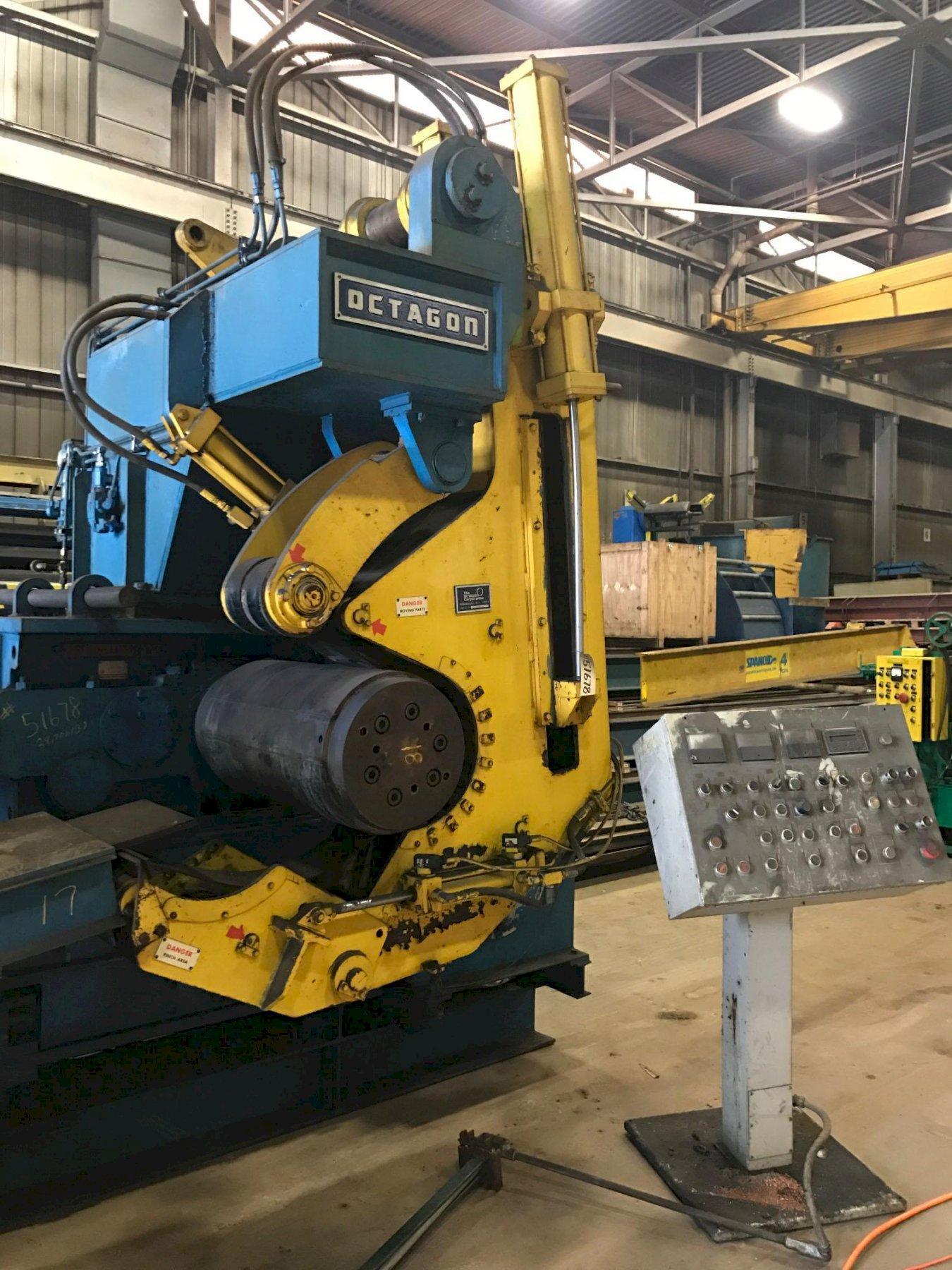

RECOILER:..
MAX. COIL WIDTH: 27"........
MAX. COIL O.D.: 54" (EST) ..........
COIL I.D. (RECOILER DRUM O.D.): 16" .....
RECOILER SHAFT DIAMETER: 9" ...........
EST MIN. STRIP SPEED ON BARE DRUM & MIN. RECOIL SPEED: 35 FPM ....
EST MAX. STRIP SPEED AT FULL COIL DIA.& MAX. RECOIL SPEED: 360 FPM ..
MOTOR - 10 HP DC ..

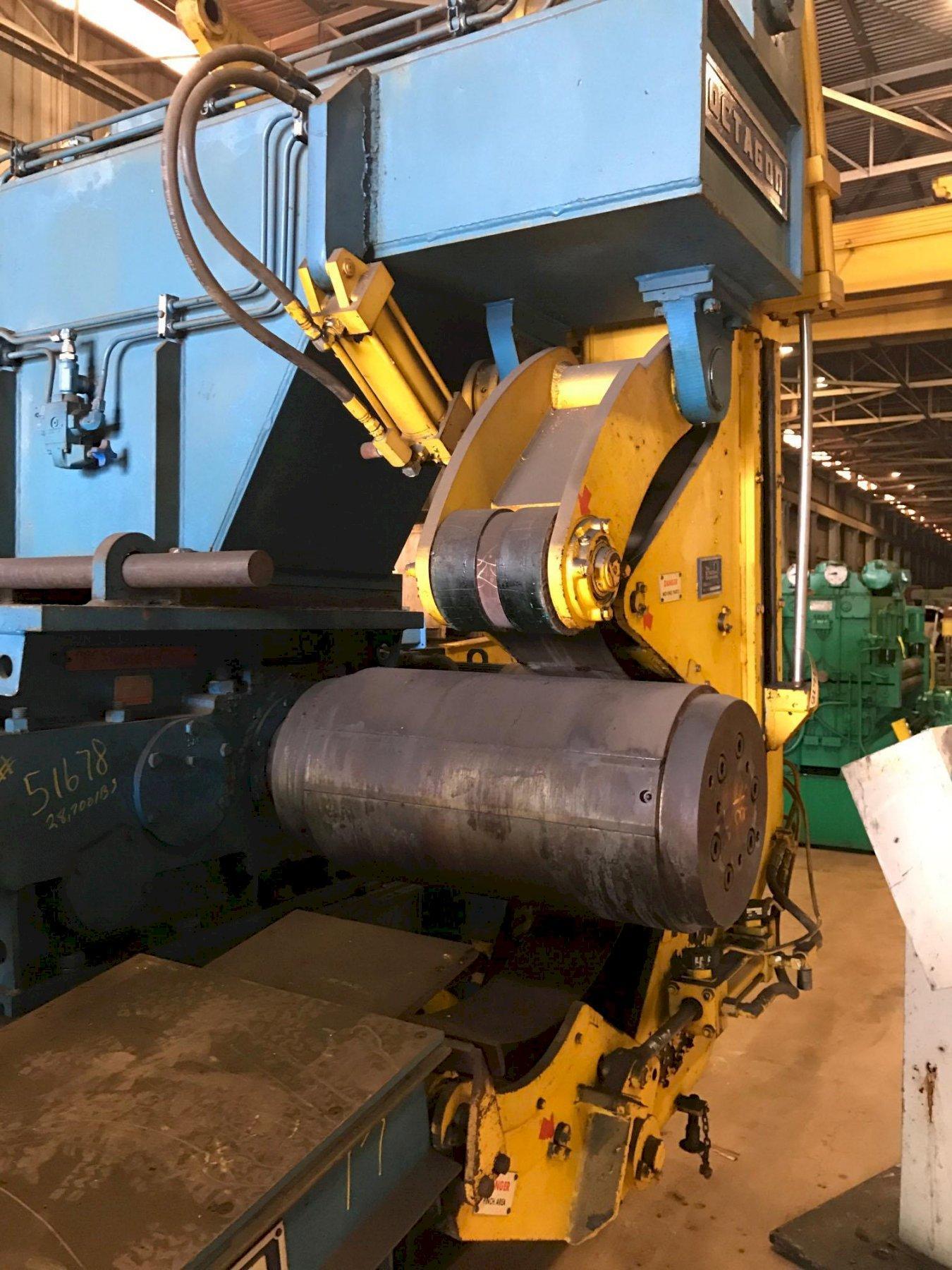

HYDRAULICALLY OPERATED 8" WIDE BELT WRAPPER ..
RECOILER MOTOR - 10 HP DC 500 VOLT, 650/1950 RPM W/RELIANCE BLOWER 1/2 HP ..
W/DC TECHOMETER ..
HYDRAULIC UNIT - 20 HP 230/460/3/60-1750 RPM ..
