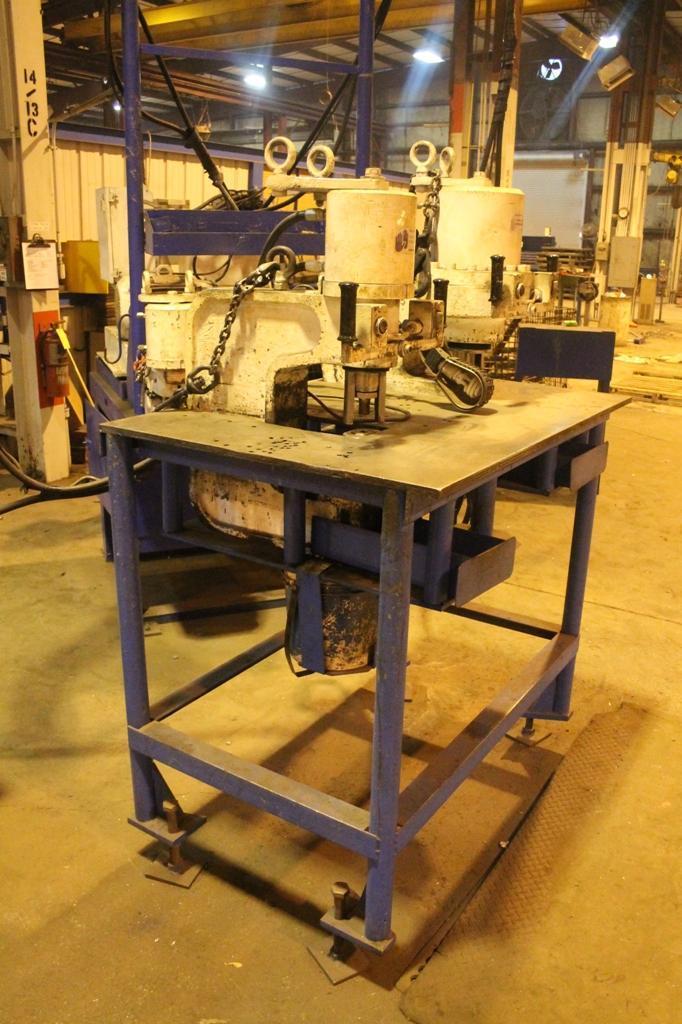

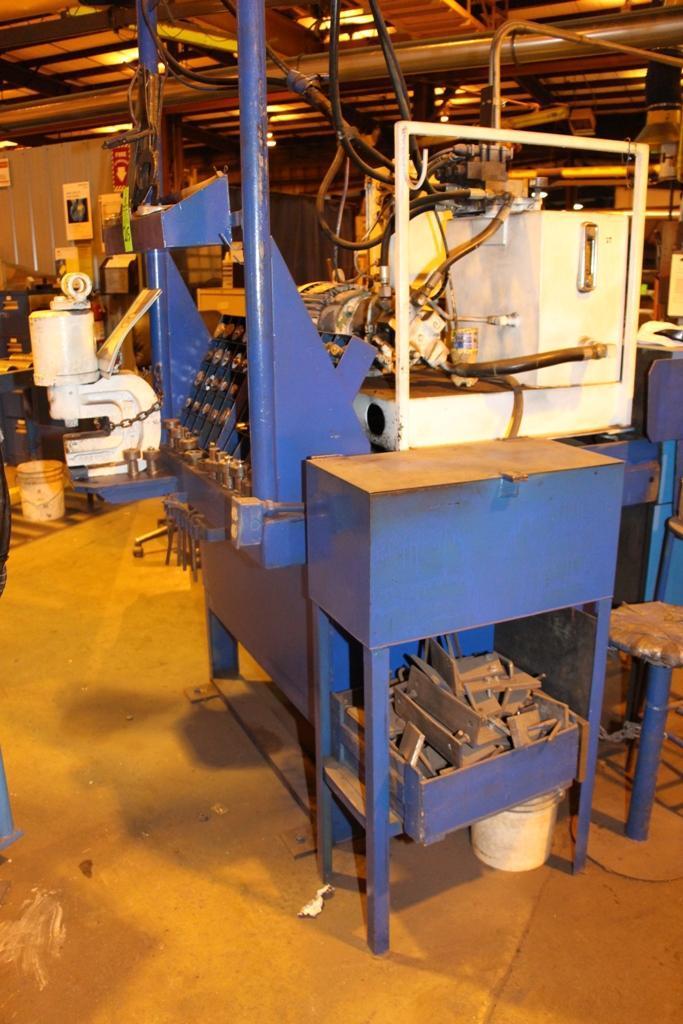

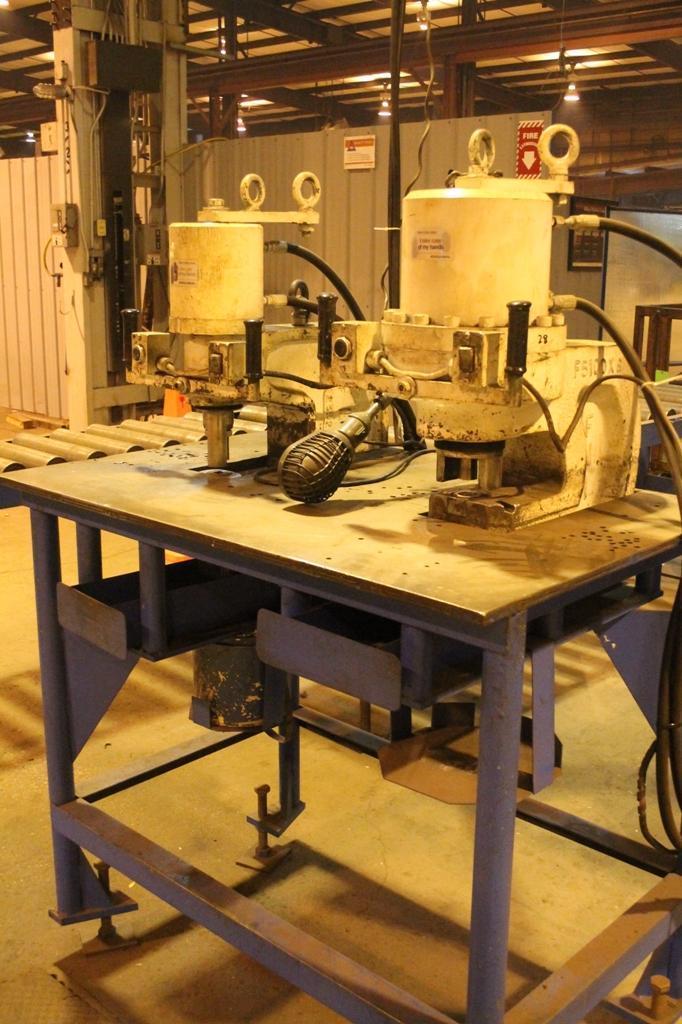

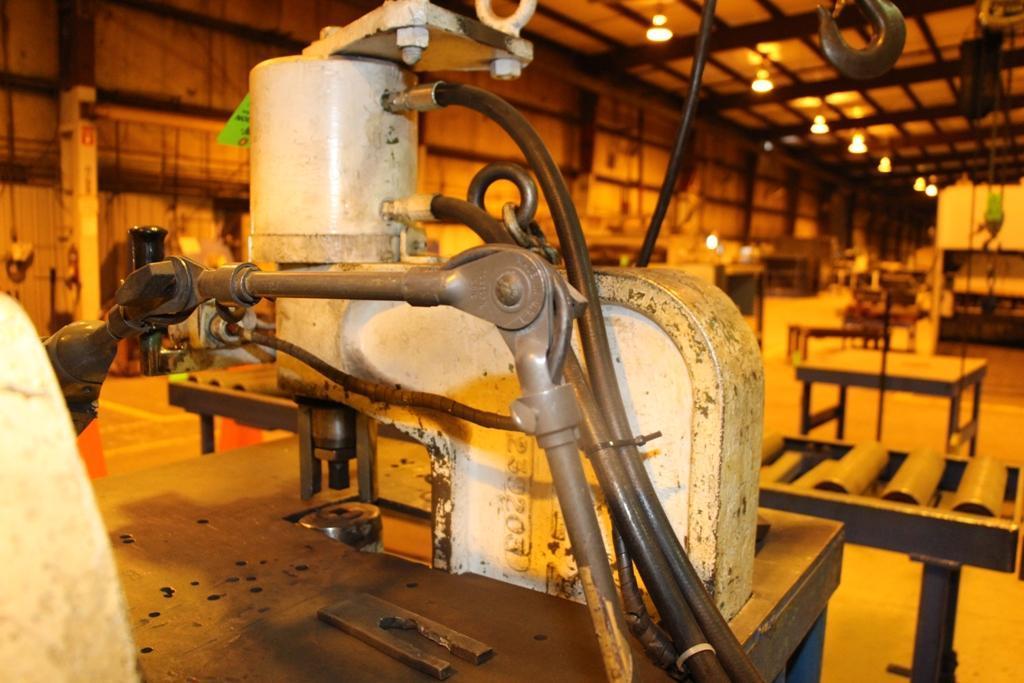

3 FRANKLIN HYDRAULIC PORTABLE PUNCHES WITH HYD UNIT: STOCK #65908

Manufacturer

Category

Punches

Type

Punches, Parts, Tooling & Accessories

Stock

65908

Model

None listed

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet

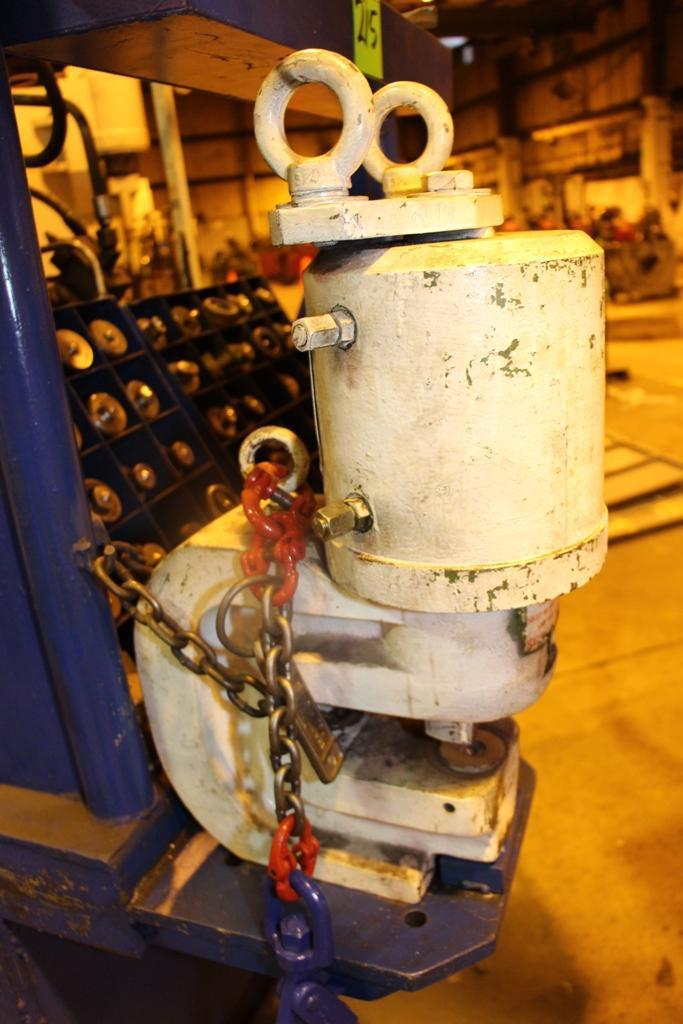

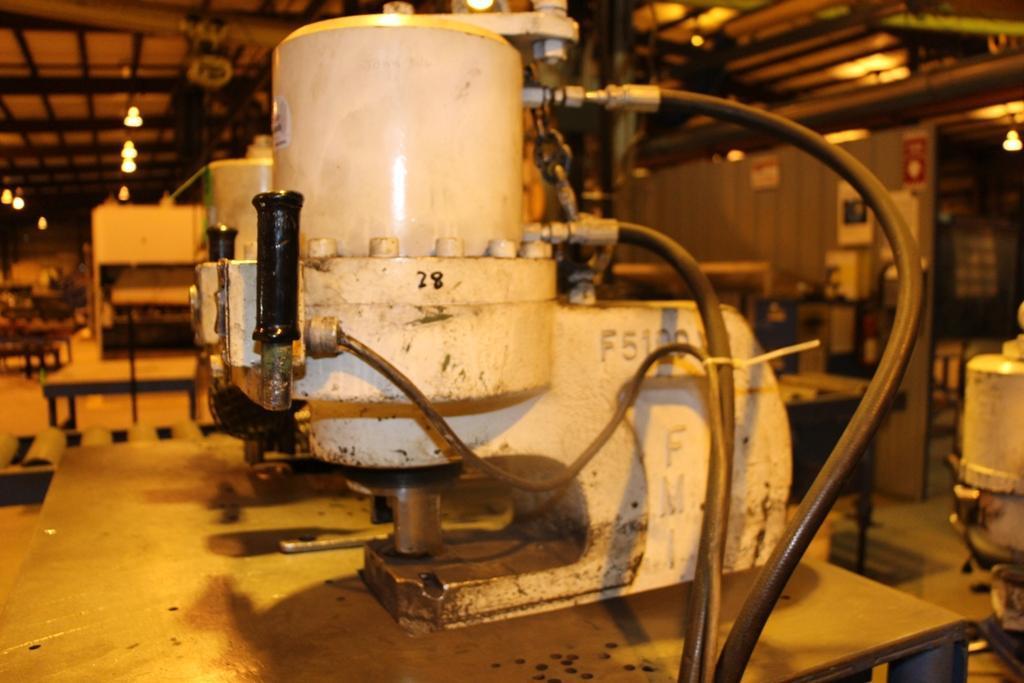

PUNCH # 1 FLANGE
MODEL .............................. F5100 FX6
CAPACITY ........................... 100 TON
STROKE ............................. 2"
DEPTH OF THROAT .................... 6"
MAXIMUM HOLE ....................... 1-3/16" IN 7/8" PLATE
MAXIMUM OPENING UNDER PUNCH ........ 1-9/16"
MAXIMUM FLANGE DEPTH ............... 8-1/2"
FACE OF PEDESTAL TO SLUG CENTER .... 1-1/8"
PUNCH #2 WEBB
MODEL .............................. 550
CAPACITY ........................... 50 TON
STROKE ............................. 1-5/8"
DEPTH OF THROAT .................... 8"
MAXIMUM OPENING UNDER PUNCH ........ 1-9/16"

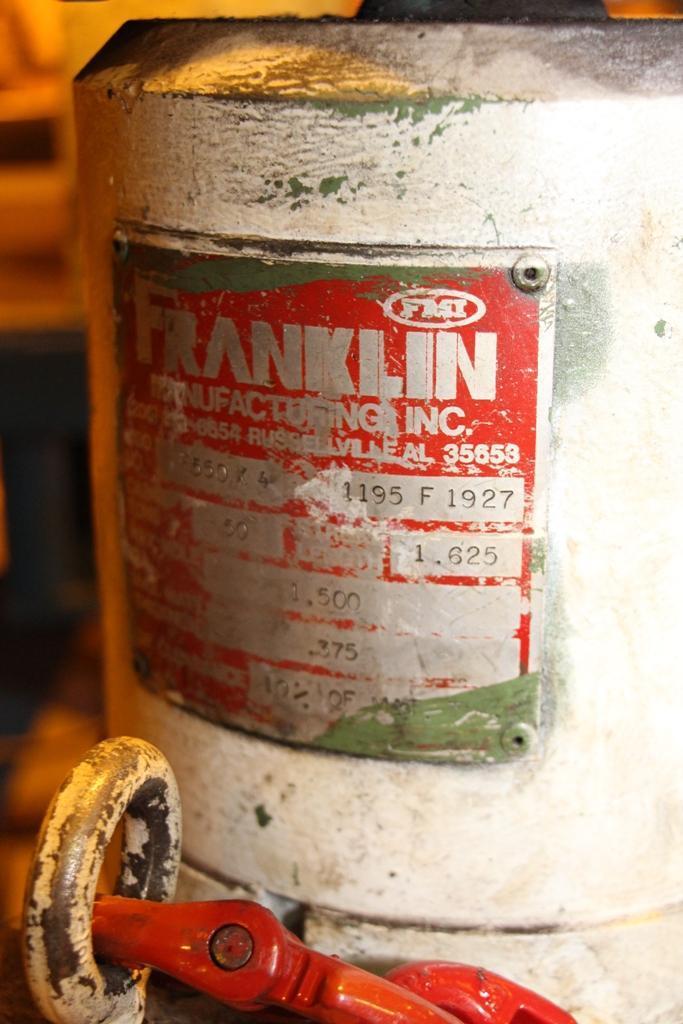

PUNCH #3 FLANGE
MODEL .............................. F550X4
CAPACITY ........................... 50 TON
DEPTH OF THROAT .................... 4"
MOTOR .............................. 10 HORSEPOWER
